Литий-ионный аккумулятор Power Wall 5/10/20 кВт/ч 48 В 100 Ач 150 200 ач литий-ионный Аккумулятор Lifepo4 система хранения солнечной энергии батарея Powerwall
0,35-0,50 $

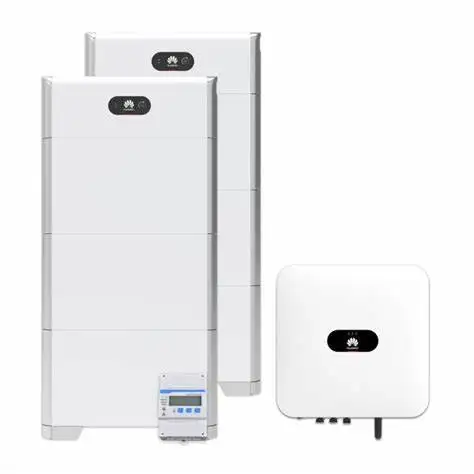

Уровень 1 брендовая оригинальная LUNA2000 5 E0 5kWh модуль для расширения литиевая батарея
- Категория: >>>
- Поставщик: Hefei Pinergy Solar Technology Co. Ltd.Hefei Ltd.
Сохранить в закладки 1600468571582:
Описание и отзывы
Характеристики
Product Description
Technical Specification | LUNA2000-5-50 | LUNA2000-10-S0 | LUNA2000-15-S0 | |||
Performance | ||||||
Power module | LUNA2000-5KW-CO | |||||
Number of power modules | 1 | |||||
Battery module | LUNA2000-5-E0 | |||||
Battery module energy | 5 kwh | |||||
Number of battery Modultes | 1 | 2 | 3 | |||
Battery usable energy | 5 kwh | 10 kwh | 15 kwh | |||
Max.output power | 2.5 kW | 5 kW | ||||
Peak output power | 3.5 kw,10s | 7kw,10s | ||||
Nominal voltage(uingle phane system | 450V | |||||
Operating voltoge range (single phase system) | 350-560V | |||||
Nominal voltage(three phase system) | 600V | |||||
Opurating valtage range(three phase system) | 600-980V | |||||
Communication | ||||||
Dimension (W*D*H) | 670*150*600(26.4*5.9*23.6 inch) | 670*150*960mm(26.4*5.9*37.8 inch) | 670*150*1320mm(26.4*59*60.0 inch) | |||
Weight(Floor stand toolrit incuded) | 63.8 kg(140.71b) | 113.8kg(250.9 1b) | 163.8 kg(361.1 b) | |||
Power module dimension (W*D*H) | 670*150*240mm(26.4*5.9*9.4 inch) | |||||
Power module weight | 12 kg (26.5 lb) | |||||
Battery module dimension (W*D*H) | 670*150*360mm(26.4*5.9*14.0 inch) | |||||
Battery module weight | 50kg(110.21b) | |||||
Instaltation | Floor stand(standard),Wait mount (optional) | |||||
Operating temperature | -10℃~+55℃(-40F~1310F)2 | |||||
Max,operating altiude | 4.000m(13,123t)(Derating above 2.000 m) | |||||
Environment | Indoor/ Outdoor | |||||
Retative humidity | 5%-95% | |||||
Cooling Naturd convection Protection rating | 1P 66 | |||||
Noise emssion | <29 dB | |||||
Cell technology | Lithium-iron phosphate(LiFePO4) | |||||
Scalability | Max.2systerns in parallet operation | |||||
Compatibte lnverters | SUN2000-364/5.58F10KTL-MOSUN2000-3/4/5/6/8/10KTL-M15UN2000273136814/46/5/6XTL-L1. | |||||
Standard Compliance(more available upon request) | ||||||
Certificates | CERCMCECVDE2510-50IEC626191EC60730,UN38.3 | |||||
Ordering and Deliverable Part | ||||||
Product ordering model | LUNA2000-5KW-CO,LUNA2000-5-E0,LUNA2000 Wal Mounting Bracket | |||||
Specification
The following requirements should be met if the SUN2000 is not put into use directly:
· Do not unpack the SUN2000.
· Keep the storage temperature at –40°C to +70°C and the humidity at 5%–95% RH.
· The product should be stored in a clean and dry place and be protected from dust and water vapor corrosion.
· A maximum of eight SUN2000s can be stacked. To avoid personal injury or device damage, stack SUN2000s with caution to prevent them from falling over.
· During the storage period, check the SUN2000 periodically. (It is recommended that the check is performed every three months.)
Replace the packing materials that are damaged by insects or rodents in a timely manner.
· If the SUN2000 has been stored for more than two years, it must be checked and tested by professionals before being put into use.
· Do not unpack the SUN2000.
· Keep the storage temperature at –40°C to +70°C and the humidity at 5%–95% RH.
· The product should be stored in a clean and dry place and be protected from dust and water vapor corrosion.
· A maximum of eight SUN2000s can be stacked. To avoid personal injury or device damage, stack SUN2000s with caution to prevent them from falling over.
· During the storage period, check the SUN2000 periodically. (It is recommended that the check is performed every three months.)
Replace the packing materials that are damaged by insects or rodents in a timely manner.
· If the SUN2000 has been stored for more than two years, it must be checked and tested by professionals before being put into use.
No. | Meaning | Value |
1 | Product family name | SUN2000: grid-tied solar inverter |
2 | Power level | · 2K: The power level is 2 kW. · 3K: The power level is 3 kW. · 3.68K: The power level is 3.68 kW. · 4K: The power level is 4 kW. · 4.6K: The power level is 4.6 kW. · 5K: The power level is 5 kW. · 6K: The power level is 6 kW. |
3 | Topology | TL: transformerless |
4 | Design code | L1: residential |
Application
Package
Factory
FAQ
FAQ.
What's your payment terms?TT,Letter of Credit,Paypal,Western Union etc. Could you send free sample?
Your sample fee will be returned when your place next order.
Can we print our own logo?
Yes absolutely.
What are the advantages of your company?
We are new factory ,now we control thin benifit for developing customers , price 、quality and service will never let customers down！！
Your sample fee will be returned when your place next order.
Can we print our own logo?
Yes absolutely.
What are the advantages of your company?
We are new factory ,now we control thin benifit for developing customers , price 、quality and service will never let customers down！！
Delivery
Contact
Похожие товары

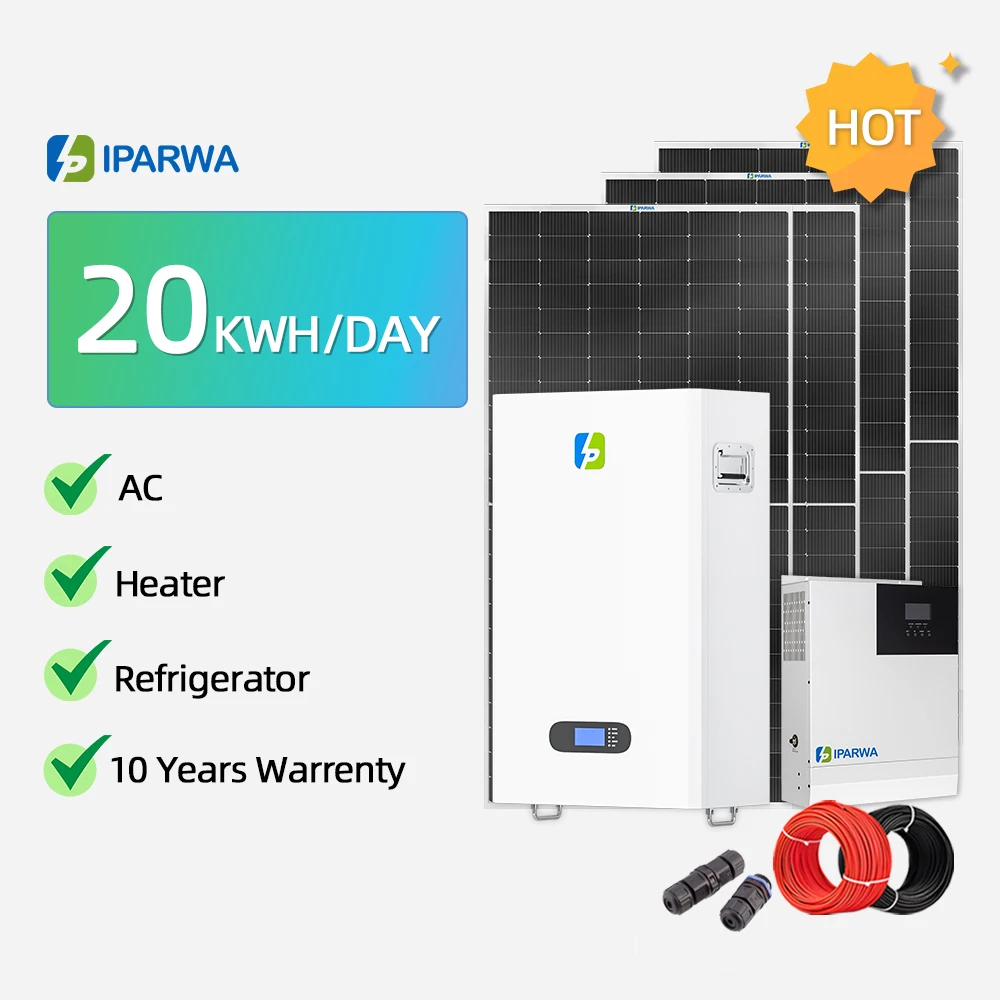

20 кВтч домашняя литиевая батарея для хранения солнечных батарей солнечной системы энергия все в одном 51 2 В 400ah литий-ионный аккумулятор
999,00-2 500,00 $
Easun power 10 кВтч аккумуляторная система питания 51 2 в Ач Lifepo4 аккумулятор солнечный пакет с гибридным инвертором BMS
579,99-749,99 $

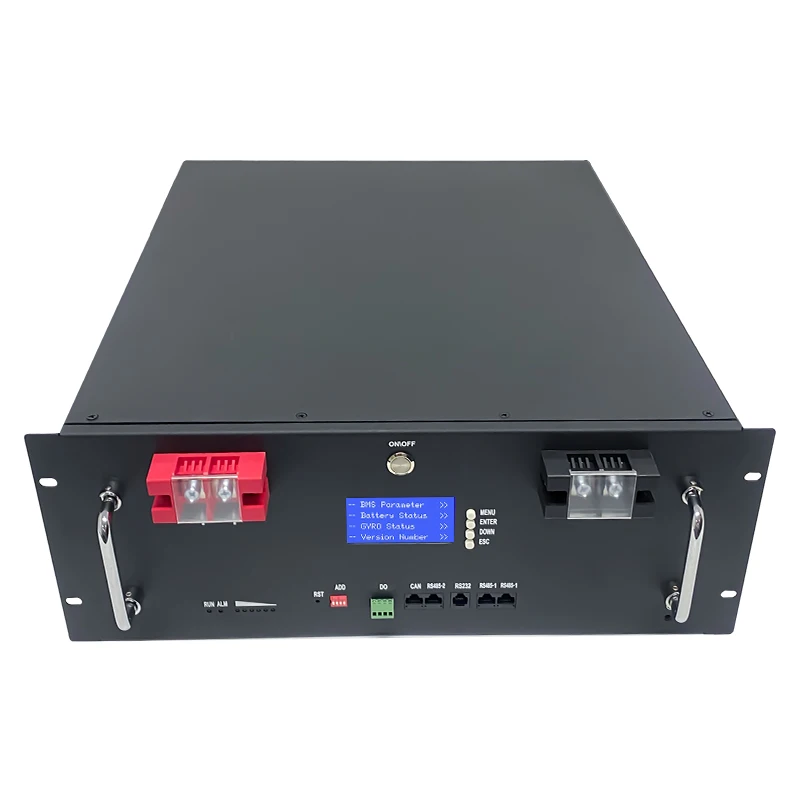

Распродажа 48 В 100 А/ч 200 50
856,00-901,00 $

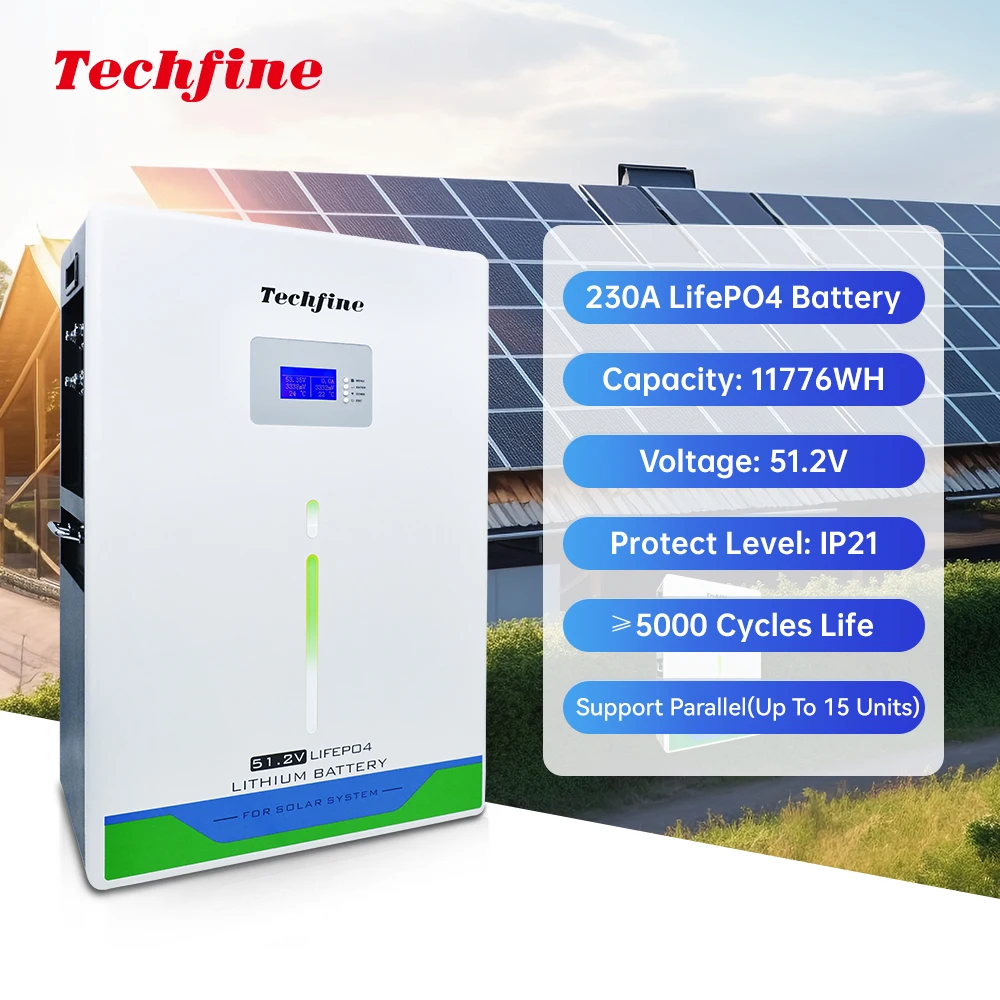

Новая система хранения солнечной энергии Techfine литий-ионный аккумулятор 48 В Аккумулятор Lifepo4 230Ah 200Ah 11 кВтч 10 домашняя солнечная батарея
871,00-1 189,00 $

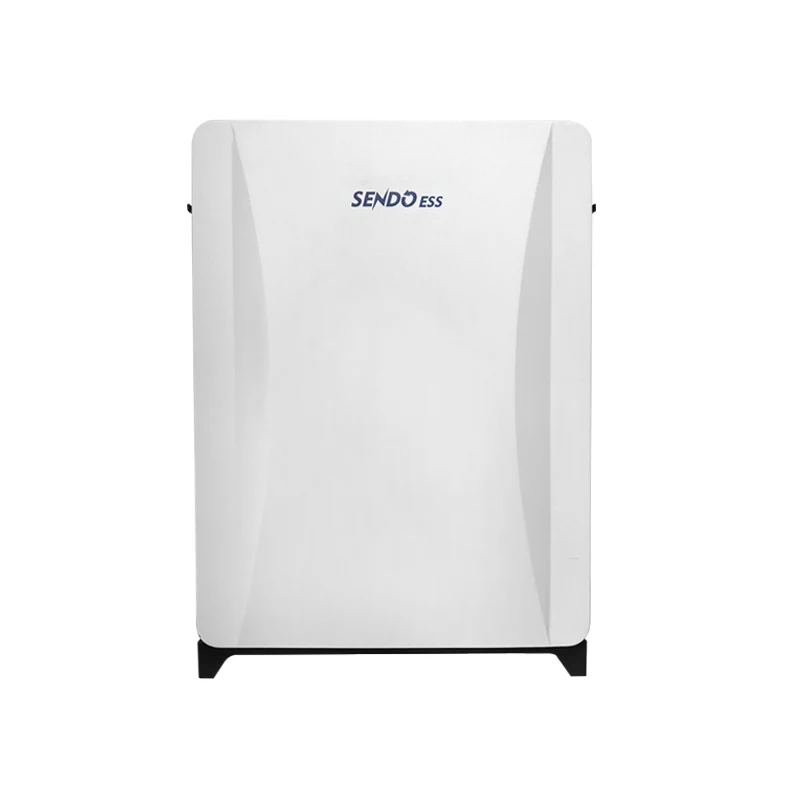

Настенный аккумулятор SENDO с дополнительными ячейками CATL BYD и управлением батареей
