Пеллетная мельница Muyang MUZL Zhengchang SZLH MZLH SDPM FCMP кольцевой штамп 420
- Категория: >>>
- Поставщик: Liyang Weifeng Equipment Co. Ltd.
Сохранить в закладки 1600469142235:
Описание и отзывы
Характеристики
Ring Dies for Pellet Size 1-12mm Animal Feed or Biomass Wood Pellet Making Machine

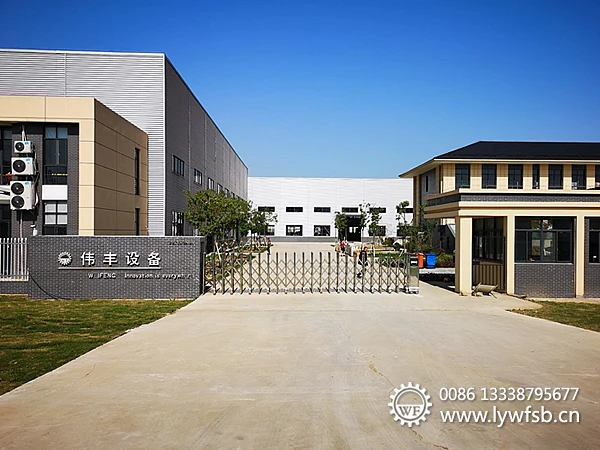

Company information
Liyang Weifeng Equipment Co.,Ltd is a professional manufacturing factory for Ring Dies, Pellet Dies, Flat dies, Feed Mill Pellet Ring Dies, Pellet Mill Ring Dies, Animal Feed Pellet Mill Ring Die, Pellet Machine Ring die, Pellet Press Ring Die, Wood Pellet Machine Ring Die, ring die accessories etc. spare parts.
We have our own ring die factory and technical engineers with 20 year's experience. Each year, we totally sell about 4000 spare parts: ring dies, rollers, roller assemblies to all over the world. Ring die is very important part of ring die pellet machine in the whole manufacturing process. The quality of ring die not only directly relates with the quality and output of pellets, but also the running state of equipment and maintenance cost.
Products Description

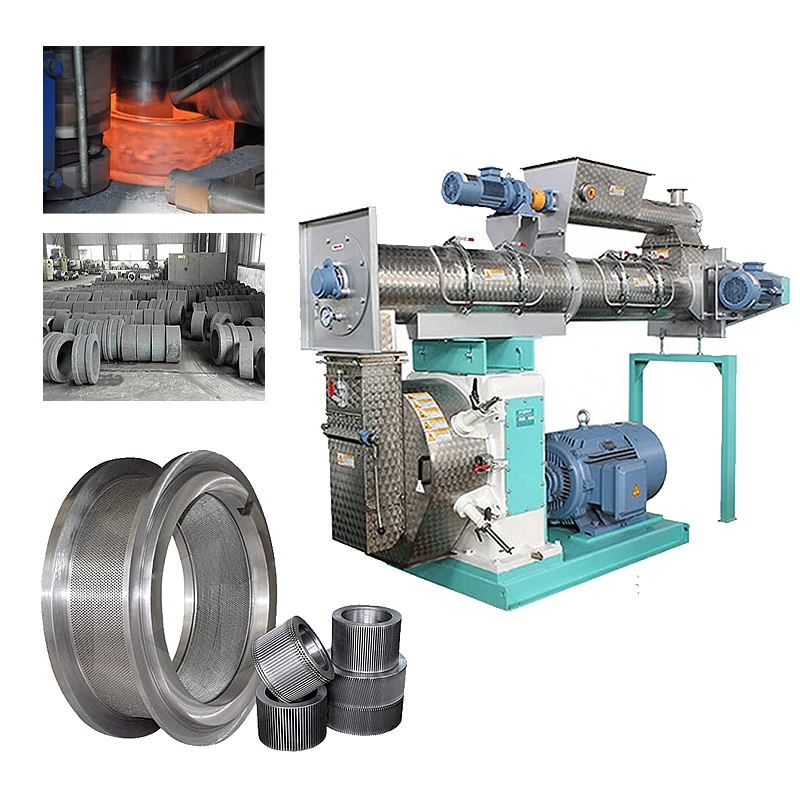

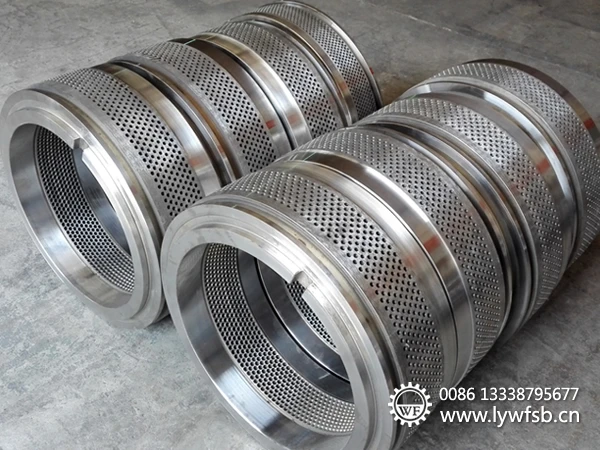

Ring die is the key part of Ring Die Pellet Mill in the large scale pellet plant to produce animal feed, wood pellets, poultry feed, livestock feed, aqua feed, biomass pellet and other granules. The quality of ring die plays an important role in making high quality pellets and high output, also can save much maintenance cost for pellet manufacturers. WEIFENG is a reliable ring die manufacturer who can supply you top quality ring dies.
Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.
Range of ring die spare parts' Application
Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.
Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too.
Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.
Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too.

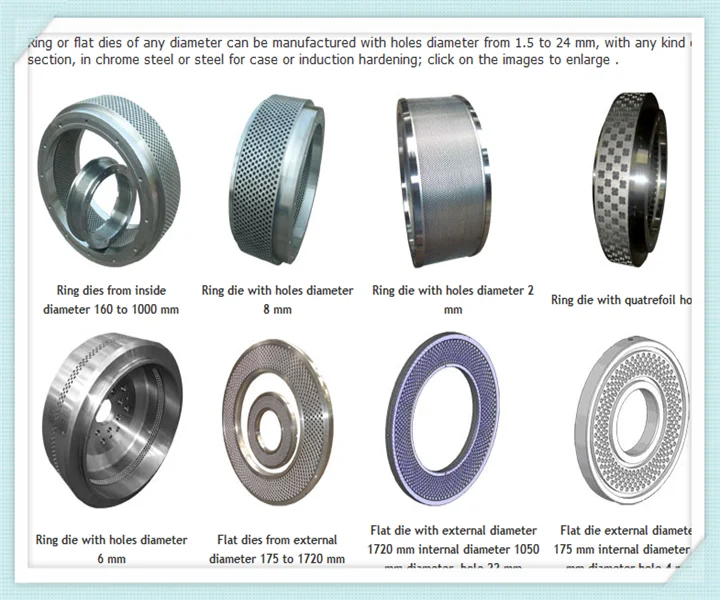

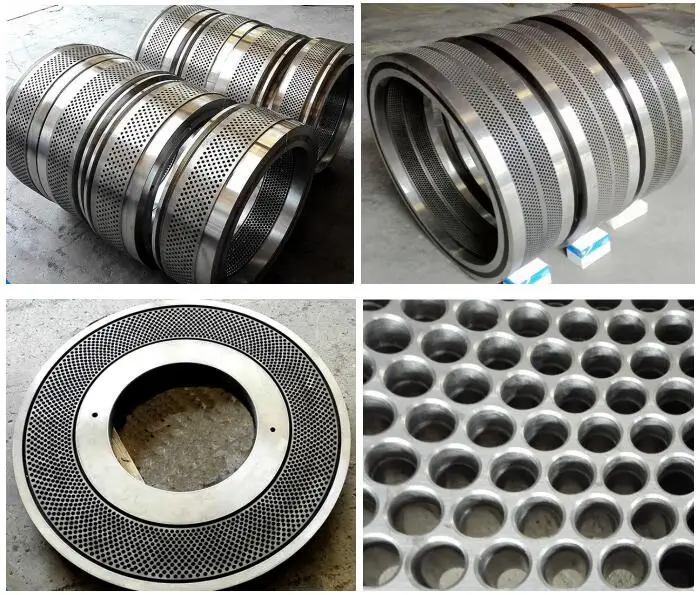

Introduction of pellet machine ring die
1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20CrMnTi (alloy steel) or customized
2. Hardness of ring dies: HRC54-60.
3. Diameter of ring die can do:0mm up to 28mm
4. Pellet die type can do: Ring Die or Flat Die
5. Outer diameter can do:Outer diameter up to 1800mm
1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20CrMnTi (alloy steel) or customized
2. Hardness of ring dies: HRC54-60.
3. Diameter of ring die can do:0mm up to 28mm
4. Pellet die type can do: Ring Die or Flat Die
5. Outer diameter can do:Outer diameter up to 1800mm

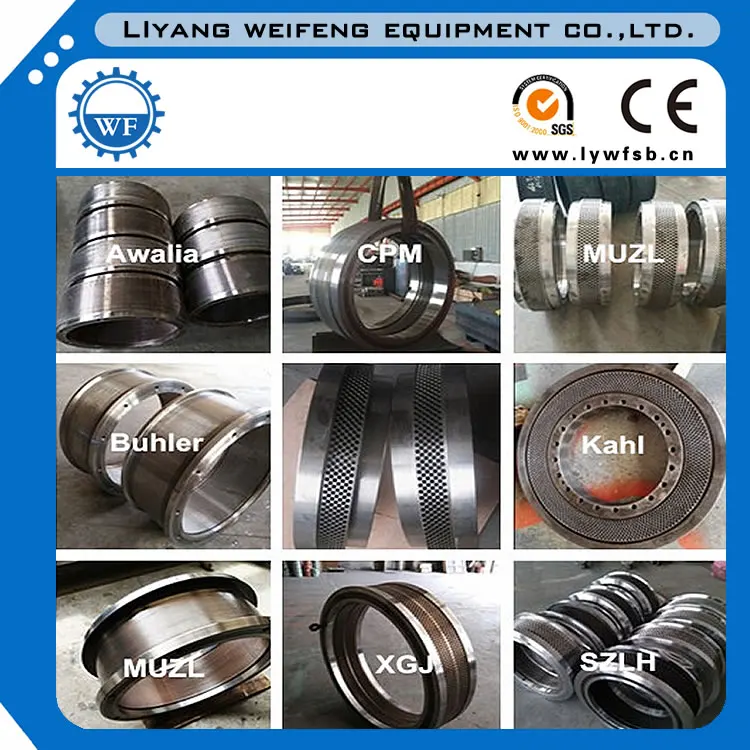

CPM, Buhler, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ), AWILA,PTN, Andritz Sprout, Matador, Paladin, Sogem, Van Arssen, Yemmak, Promill; etc. We can customize for you according to your drawing.
①For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
②For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
③For Awalia pellet mill: Awalia 420, Awalia350, etc
④For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
⑤For Kahl pellet mill(Flat die): 35-780, 37-850, 45-1250, etc.
②For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
③For Awalia pellet mill: Awalia 420, Awalia350, etc
④For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
⑤For Kahl pellet mill(Flat die): 35-780, 37-850, 45-1250, etc.
Compression Ratio of Ring Die
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality.
Compression ratio should be calculated based on raw material for making pellets and type of feed.
With many years pellet die manufacturing and research experience of WEIFENG Company, we provide some general data of ring die's compression ratio for your reference:
Compression ratio should be calculated based on raw material for making pellets and type of feed.
With many years pellet die manufacturing and research experience of WEIFENG Company, we provide some general data of ring die's compression ratio for your reference:
Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.
The most common structure of die hole are straight hole; release stepped hole; external conical hole and internal conical hole, etc. Different die holes structure are suitable for different raw material and feed formula for making pellets.
Item | Hole Diameter | Compression Ratio | ||
Poultry &livestock feed pellet | 2.5mm - 4mm | 1:4-1:11 | ||
Fish feed pellet | 2.0mm - 2.5mm | 1:12-1:14 | ||
Shrimp feed pellet | 0.4mm - 1.8mm | 1:18-1:25 | ||
Biomass wood pellet | 6.0mm - 8.0mm | 1:4.5-1:8 | ||

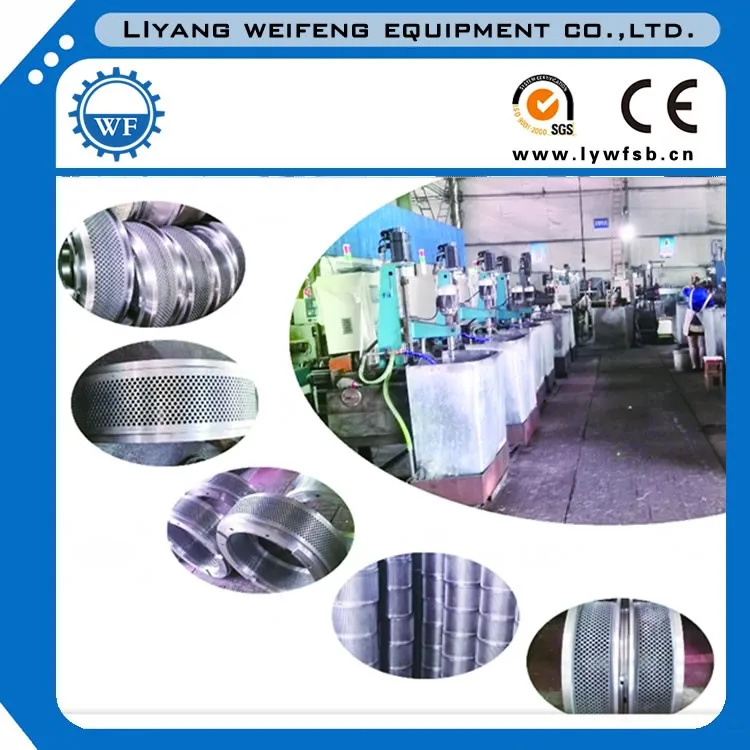

Production Process

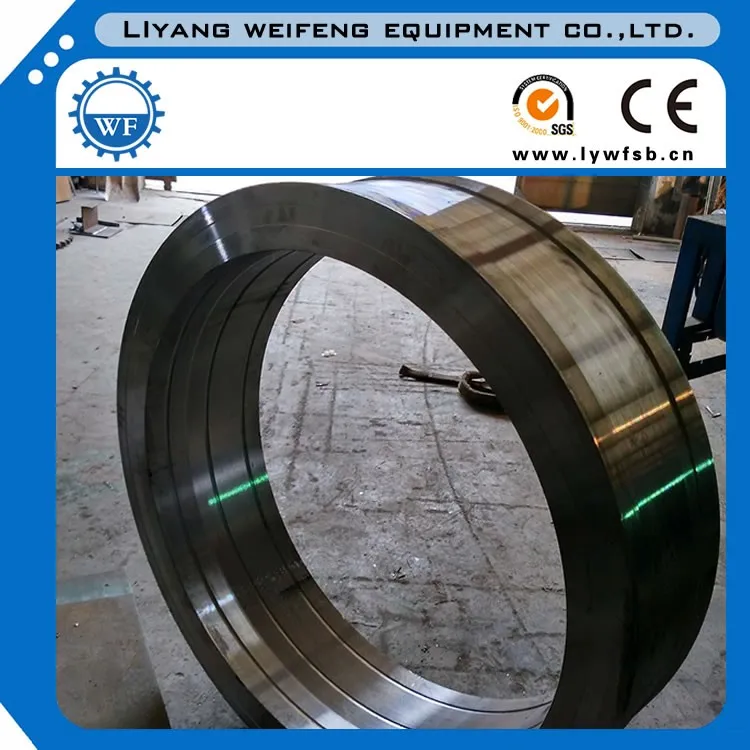

Process for making pellet mill ring die, pellet die, feed die

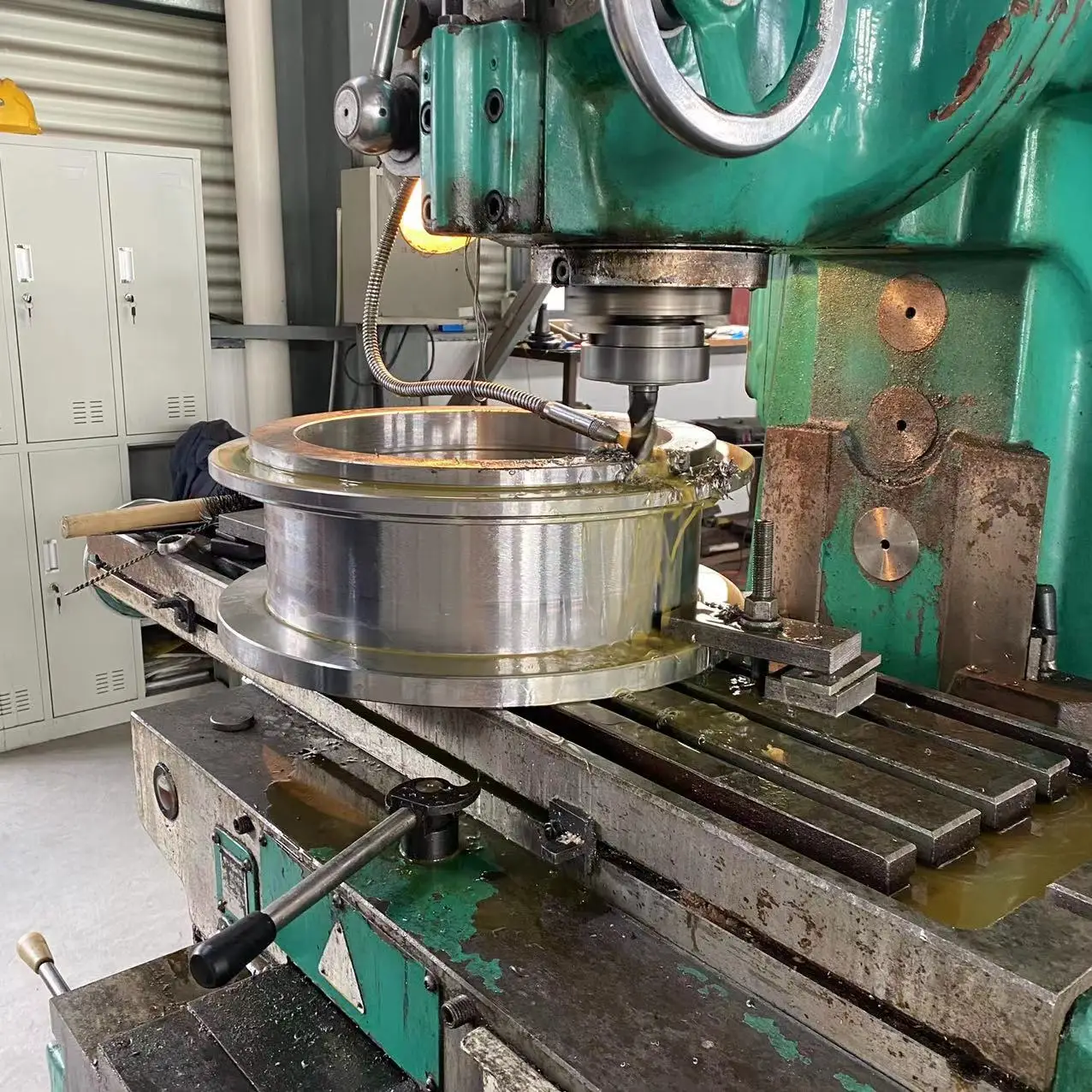

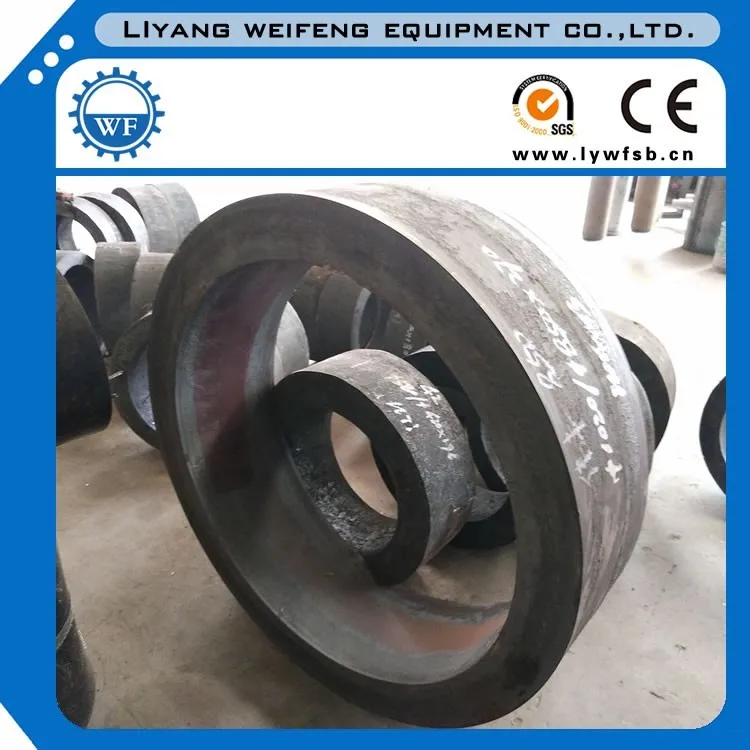

Blank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole---Keyway milling---Heat treatment---Finish turning---Package
Blank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole---Keyway milling---Heat treatment---Finish turning---Package

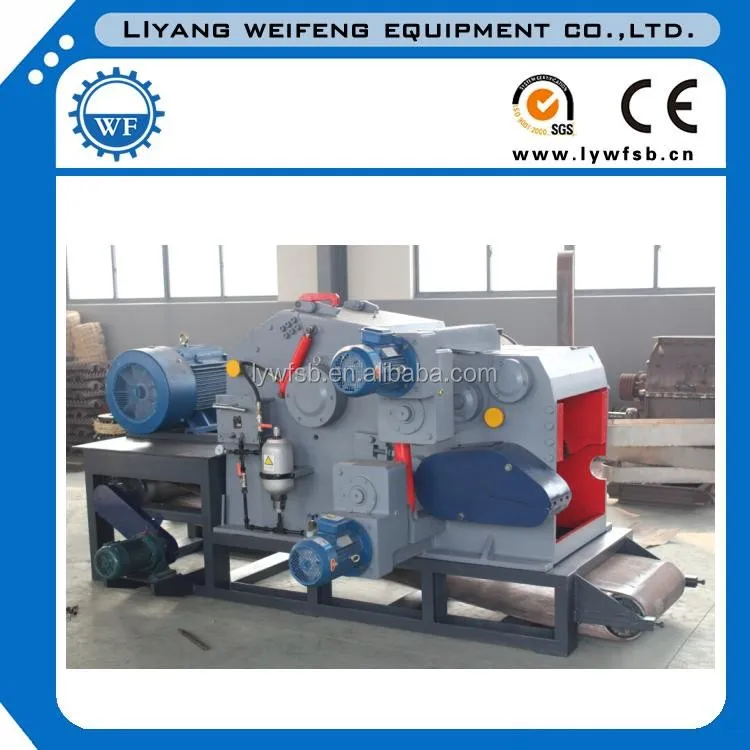

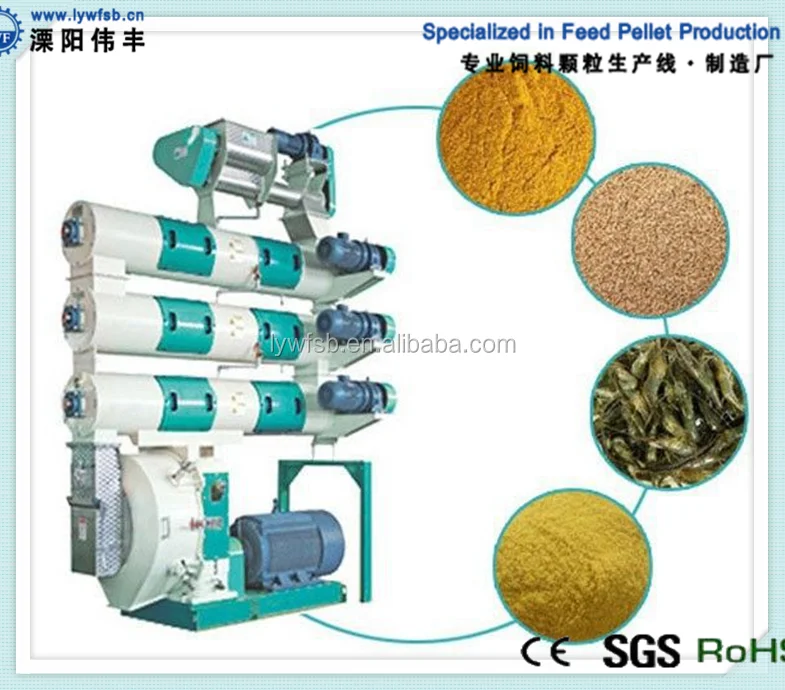

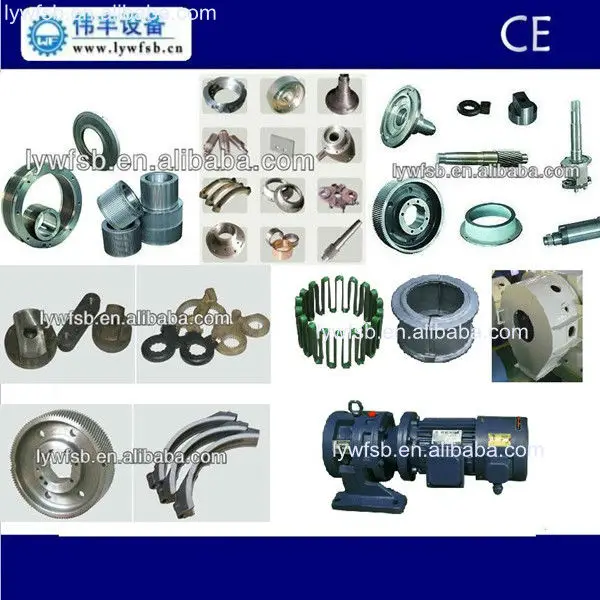

Recommend Products

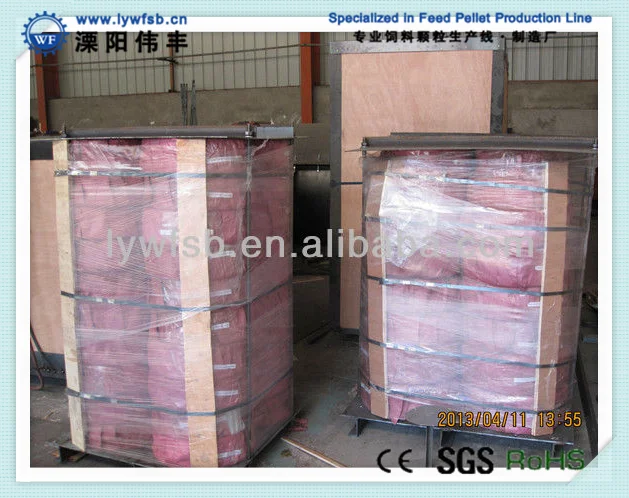

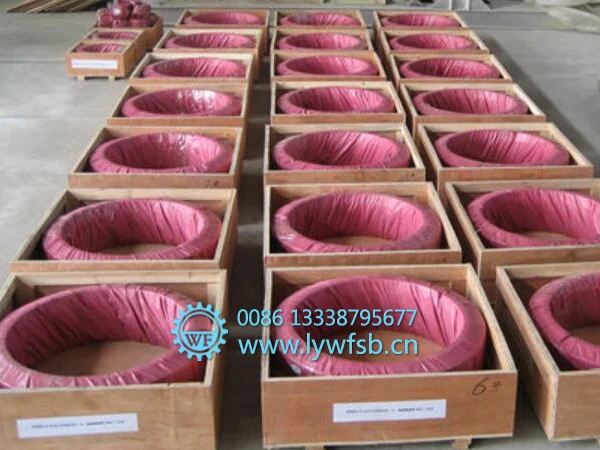

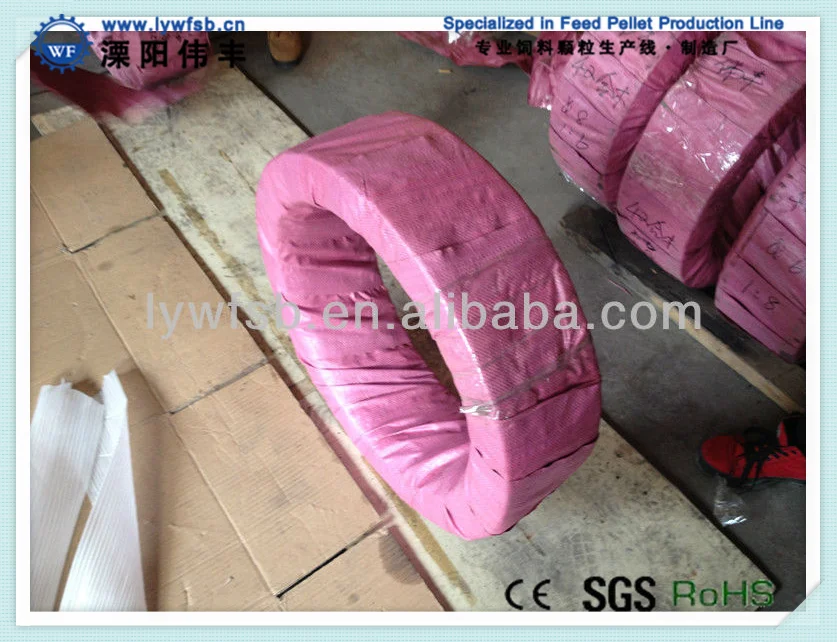

Packing and Delivering

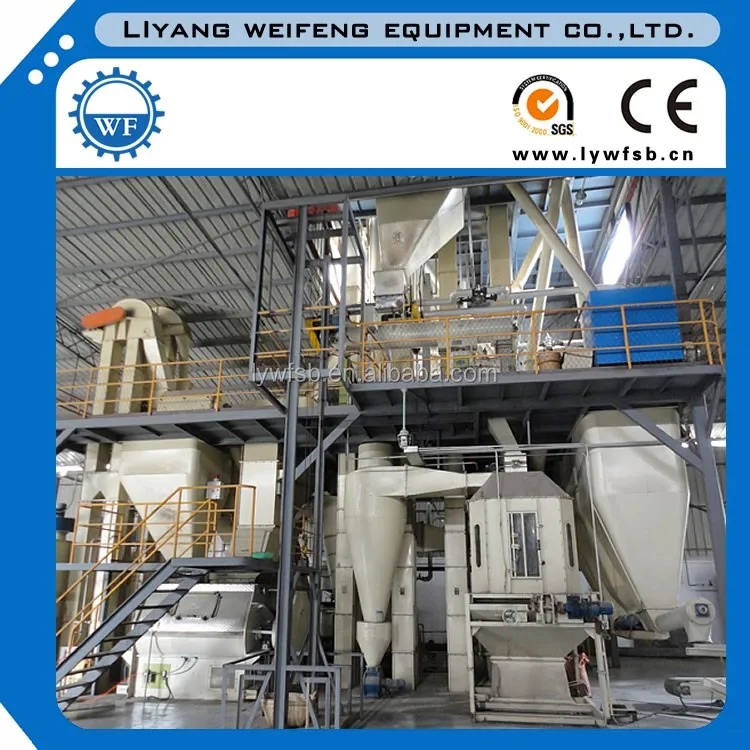

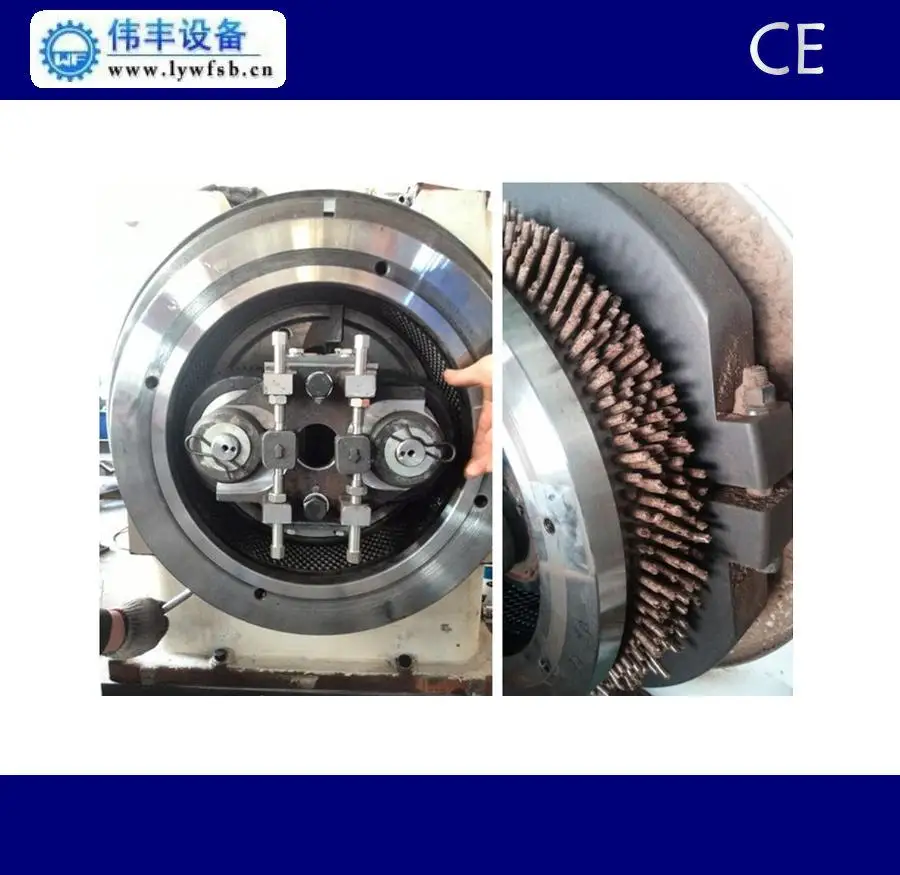

Customer Photos
Powerful customer
Powerful customer
Why Choose Us
1.We have our own ring die gun-drilling machines (import from German)

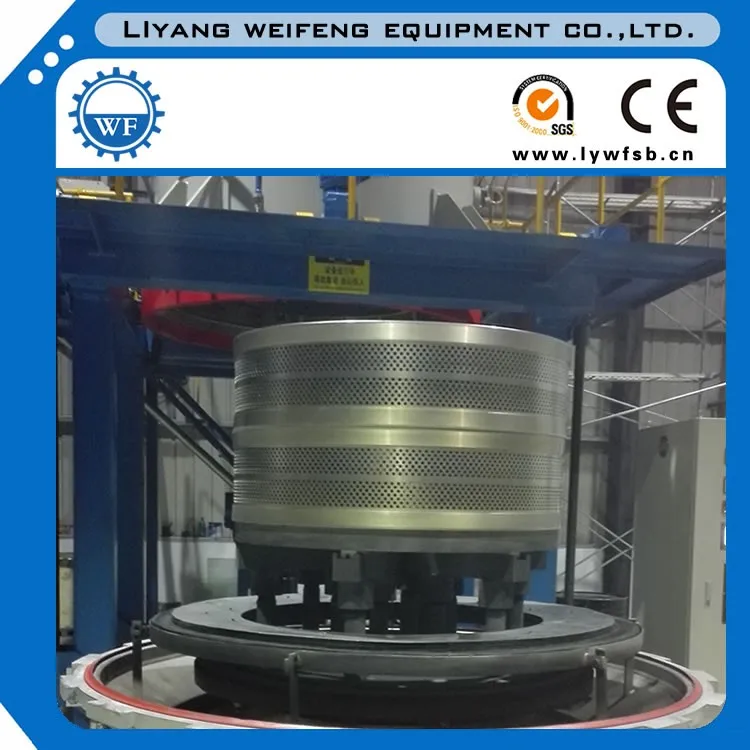

2.Using vacuum heat treatment machines, so the ring die will be more firm
3.New advanced hole designing, ensure the pellets can be made out smoothly, and special holes (row) arrangement, ensure the capacity can be enhanced 20%, the same time prevent broken
4.Our ring die raw material come from China No.1 steel forging factory, the using life can be enhanced about 10%-15%
5.Our workers all have over 20 years experience.Every year exported over 5000 pcs ring die.
2.Using vacuum heat treatment machines, so the ring die will be more firm
3.New advanced hole designing, ensure the pellets can be made out smoothly, and special holes (row) arrangement, ensure the capacity can be enhanced 20%, the same time prevent broken
4.Our ring die raw material come from China No.1 steel forging factory, the using life can be enhanced about 10%-15%
5.Our workers all have over 20 years experience.Every year exported over 5000 pcs ring die.
Contact us
