ЧУП вертикальный VMC фрезерный станок 5 Axis CNC обрабатывающий центр с ЧПУ
- Категория: >>>
- Поставщик: Hangzhou Dingchuan Import&export Co. Ltd.
Сохранить в закладки 1600470035434:
Описание и отзывы
Характеристики
CNC Vertical VMC Milling Machine 5 Axis CNC Vertical Machining Center
Plastic Pipe Fitting Mold Making Machine Great Vertical Machining Center KMC-850
Plastic Injection Molds Making Machinery Great KMC Series Vertical Machining Center KMC-850
Great KMC Series Vertical Machining Center KMC-850 machine de fabrication de moules en plastique
Great KMC Series Vertical Machining Center KMC-850 for Making Injection Mold, Hardware Mold and Engraving Molds
Great KMC Vertical Machining Center Factory contact sales: wiki wong
whatsapp/mobile: +8613738082939
wechat number: pewash
KMCThree-track
Suitable for automotive industry, home appliance industry, injection mold, hardware mold, and engraving mold.
KMC-850 can make all types of plastic injection molds for injection molding machine factories who need many different types of plastic molds.
KMC-850 Features
1.UsingMeehanite castings to strengthen the internal structure. All of the products have been tempered to ensure high stability with no deformation.
2. The linear rail is imported to provide high-speed and smooth motion performance, which is suitable for high-efficiency processing of products.
3. The three-axis guide rail is using fully enclosed stainless steel protective cover, which has good chip removal protection performance.
4. Using high-power servo motor to drive the feed to ensure high load capacity.
5. Dust-proof electrical box and electrical components are using foreign brands, with good stability and good dust-proof effect.
6. The wire holes are all waterproof, effectively preventing oil and gas from entering the box, ensuring the service life and performance reliability of the original electrical components.
7. Each machine tool is subjected to laser and circular inspection according to international standards to ensure the machining accuracy.

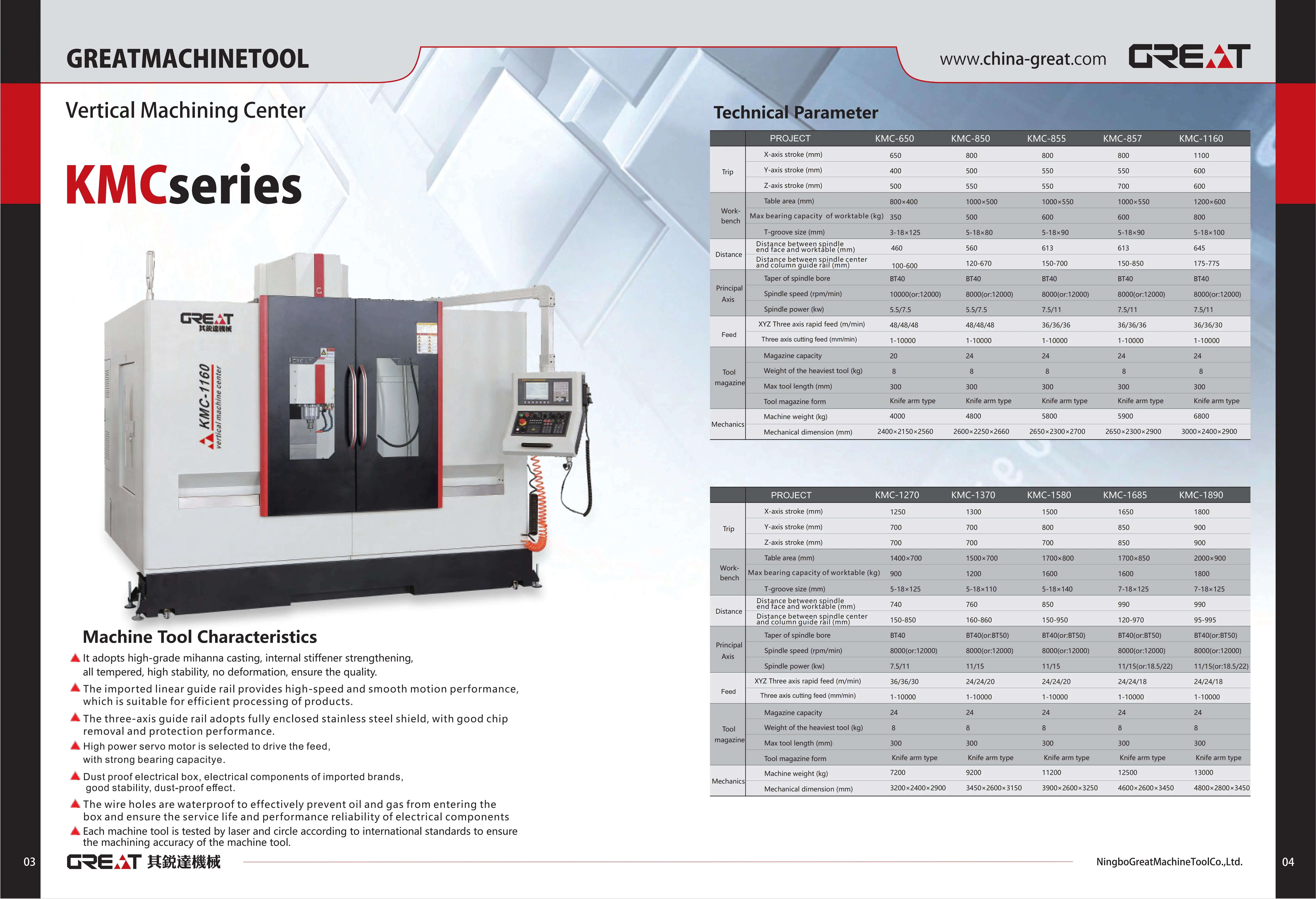

Great KMC Series Vertical Machining Center Main Technical Parameters
| Items | Unit | KMC-650 | KMC-850 | KMC-855 | KMC-857 | KMC-956 | KMC-1160 | KMC-1167 | |
| Axis travel | X axis travel | mm | 650 | 800 | 800 | 550 | 950 | 1100 | 1100 |
| Y axis travel | mm | 400 | 500 | 550 | 700 | 560 | 600 | 600 | |
| Z axis travel | mm | 500 | 550 | 550/600 | 900 | 640 | 600 | 700 | |
| workbench | workbench area | mm | 800*400 | 1000*500 | 1000*500 | 1000*500 | 1000*560 | 1200*600 | 1300*600 |
| max load-bearing capacity of worktable | kg | 450 | 600 | 600 | 600 | 850 | 1000 | 1000 | |
| T-slot size | / | 3-14*100 | 5-18*80 | 5*18*90 | 5-18*90 | 5*18*100 | 5-18*100 | 5*18*100 | |
| distance | distance from the end of spindle to workbench | mm | 100-600 | 120-670 | 120-670/720 | 150-850 | 105-745 | 120-720 | 180-880 |
| distance from the center of spindle to column guideway | mm | 450 | 560 | 590 | 570 | 610 | 645 | 690 | |
| spindle | taper of spindle bore | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | |
| spindle speed | rpm /min | 8000/ 12000 | 8000/ 12000 | 8000/ 12000 | 8000/ 12000 | 10000/ 12000 | 10000/ 12000 | 10000/ 12000 | |
| spindle power | kw | 5.5/7.5 | 5.5/7.5 | 7.5/11 | 7.5/11 | D11 | D11 | D11 | |
| feed | X Y Z rapid feed | m/ min | 48/48/48 | 48/48/48 | 48/48/36 | 48/48/36 | 36/36/36 | 36/36/30 | 36/36/30 |
| cutting feed | mm/ min | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | |
| tool magazine | tool magazine capacity | / | 20 | 24 | 24 | 24 | 24 | 24 | 24 |
| heaviest tool weight | kg | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| max tool length | mm | 240 | 300 | 300 | 300 | 300 | 300 | 300 | |
| tool magazine form | / | knife arm | knife arm | knife arm | knife arm | knife arm | knife arm | knife arm | |
| tool exchange time (tool to tool) | s | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | |
| machine accuracy | positioning accuracy (x y z) | mm | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 |
| repeat positioning accuracy (x y z) | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | |
| Mechanical | machine weight | kg | 4000 | 4800 | 5800 | 5900 | 6300 | 6800 | 7000 |
| machine size (including chip removal) | mm | 2250 *2020 *2450 | (2600 +1100)* 2300*2500 | (2600 +1100)* 2300*2700 | (2600 +1100)* 2300*2900 | (2750 +1100)* 2500*2900 | (3200 +1100)* 2400*2700 | (3200 +1100)* 2650*2850 | |
Great is focusing on high-tech CNC MachineNingbo GREAT Machine Tool Co., Ltd., is a modern scientific and technological enterprise specializing in the production of CNC Machinewith brand name Great. Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation.
Our main products including: vertical machining centers, high-speed drilling and tapping machines, CNC engraving and milling machines, gantry machining centers, horizontal machining centers, etc. Complete specifications, diversified configurations can be selected according to your different needs. 1.We offer customized products according to your needs, cost-efficient products processing solution, importing automation, replacing labour by machines,etc.
Our products are suitable for producing auto accessories, textile Accessories, digital products, military products, medical instruments, mold manufacturing, aluminum casting and so on.
We import inspection equipment from Italy and Britain and conduct complete inspection for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc.to ensure the high precise and stable quality of our products. In addition, we provide best after-sales service. Our professional teamsmaintain close contact with customers and provide technical support at any time if necessary.
We adhere to the Diamond qualityconceptand keep working on it to provide best products for each customer.
Похожие товары

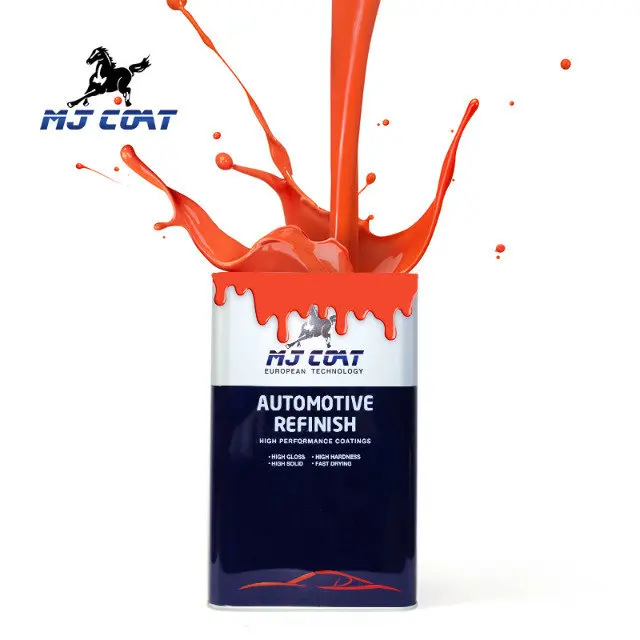

MJ Пальто Бесплатная samplest герметик primer Базовое покрытие для камеры для окрашивания

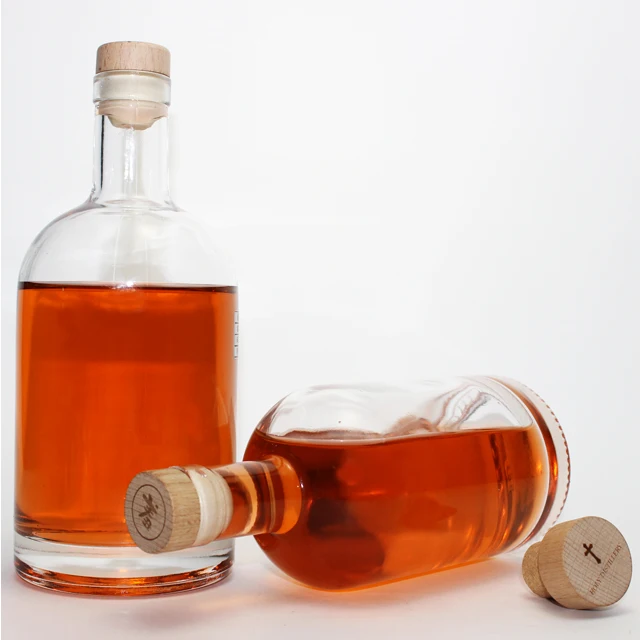

Оптовая продажа по индивидуальному заказу, круглая стеклянная бутылка 50 мл, 100 мл, 200 мл, 500 мл, 750 мл для виски, водки, Джина
0,22 $ - 0,58 $

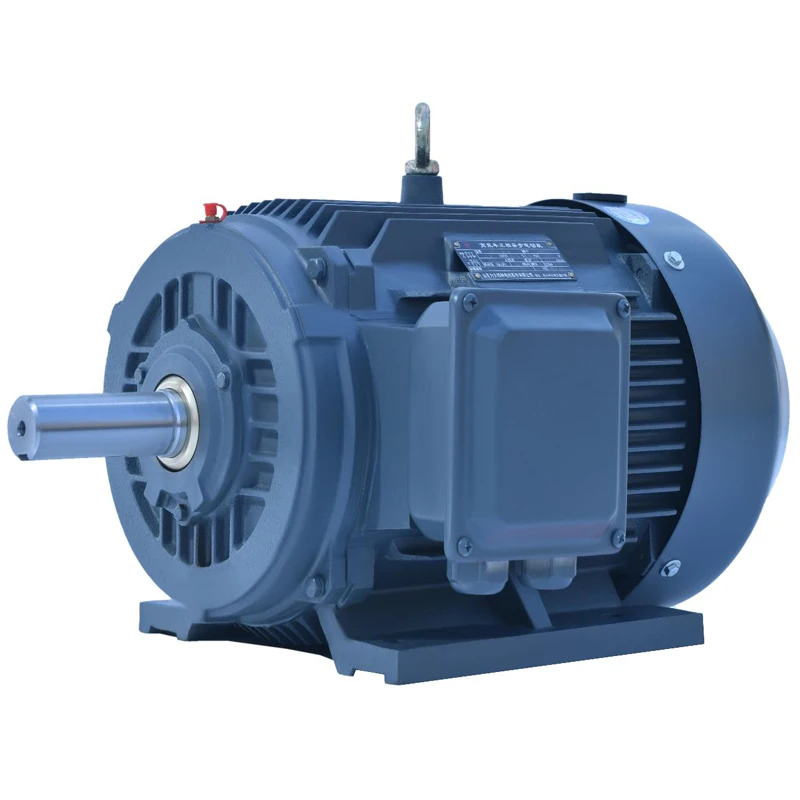

YX3 серии с высокой эффективностью трехфазный генератор переменного тока Электрический медный провод моторы 5,5 кВт 7.5kW 11kW в скорости 3000 об/мин

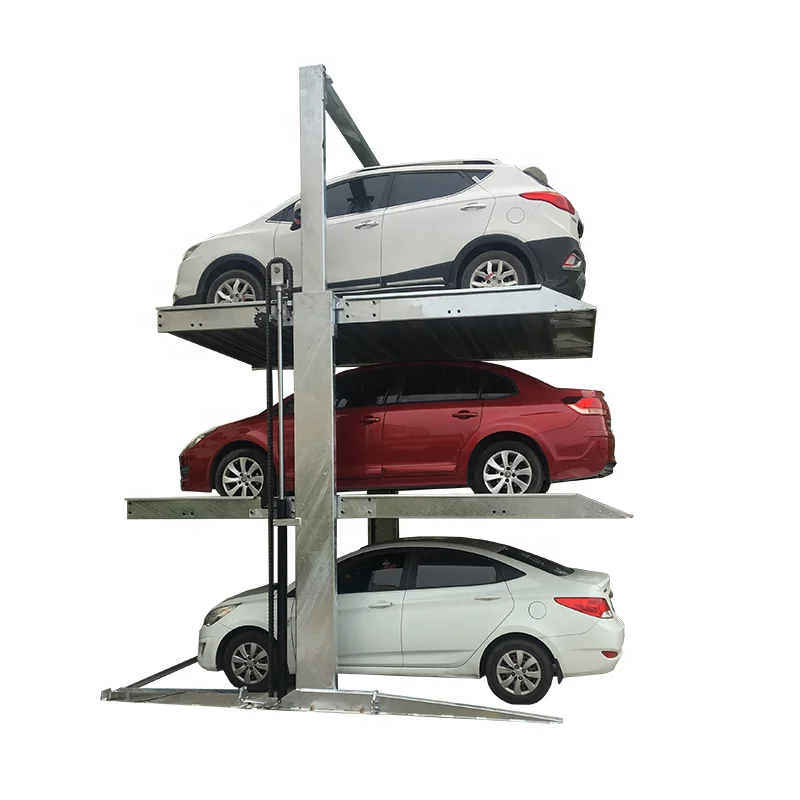

Китай высший рейтинг Прямая продажа с завода низкая цена гидравлический 2 столба 3 автомобильный парковочный подъемник CE и
1 970,00 $ - 2 050,00 $
Специально для шланга перистальтического насоса, устойчивого к концентрированной сульфуровой кислоте
19,10 $ - 28,60 $

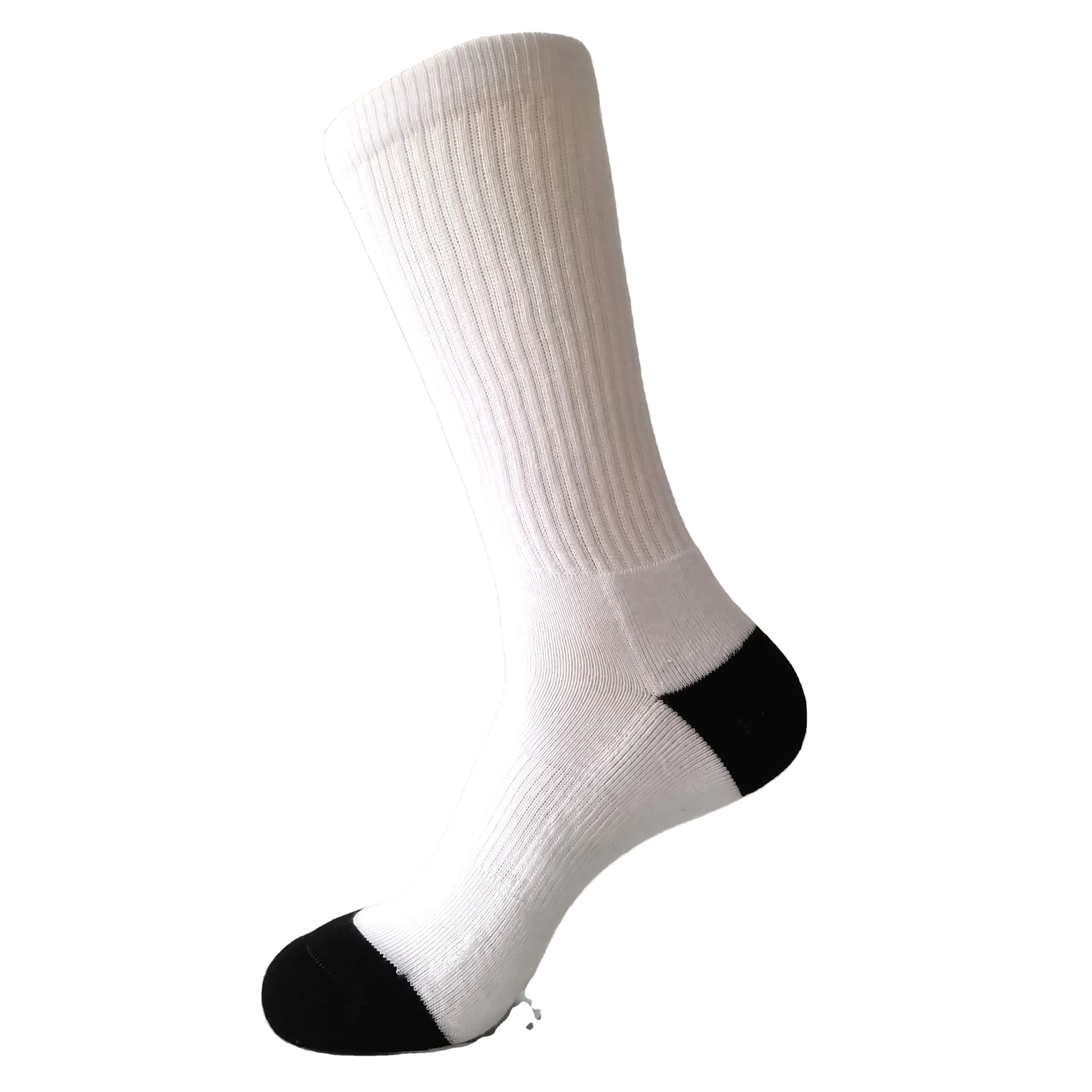

Белые сублимационные пустые полиэфирные носки с черным носком и пяткой
0,99 $ - 2,09 $

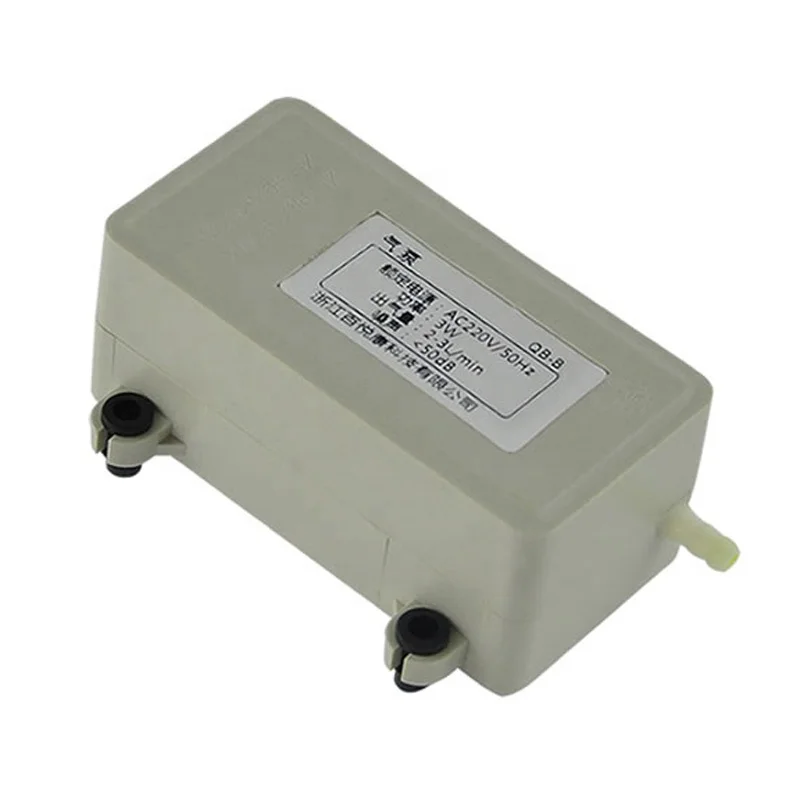

QB-B03 дешевый мини-насос, сделано в Китае
