Китайские гидравлические прессы Zhongyou 630T 800T гидравлический пресс от производителя
- Категория: >>>
- Поставщик: Zhongyou Heavy Industry Machinery Equipment Co. Ltd.
Сохранить в закладки 1600470746969:
Описание и отзывы
Характеристики
Product Overview

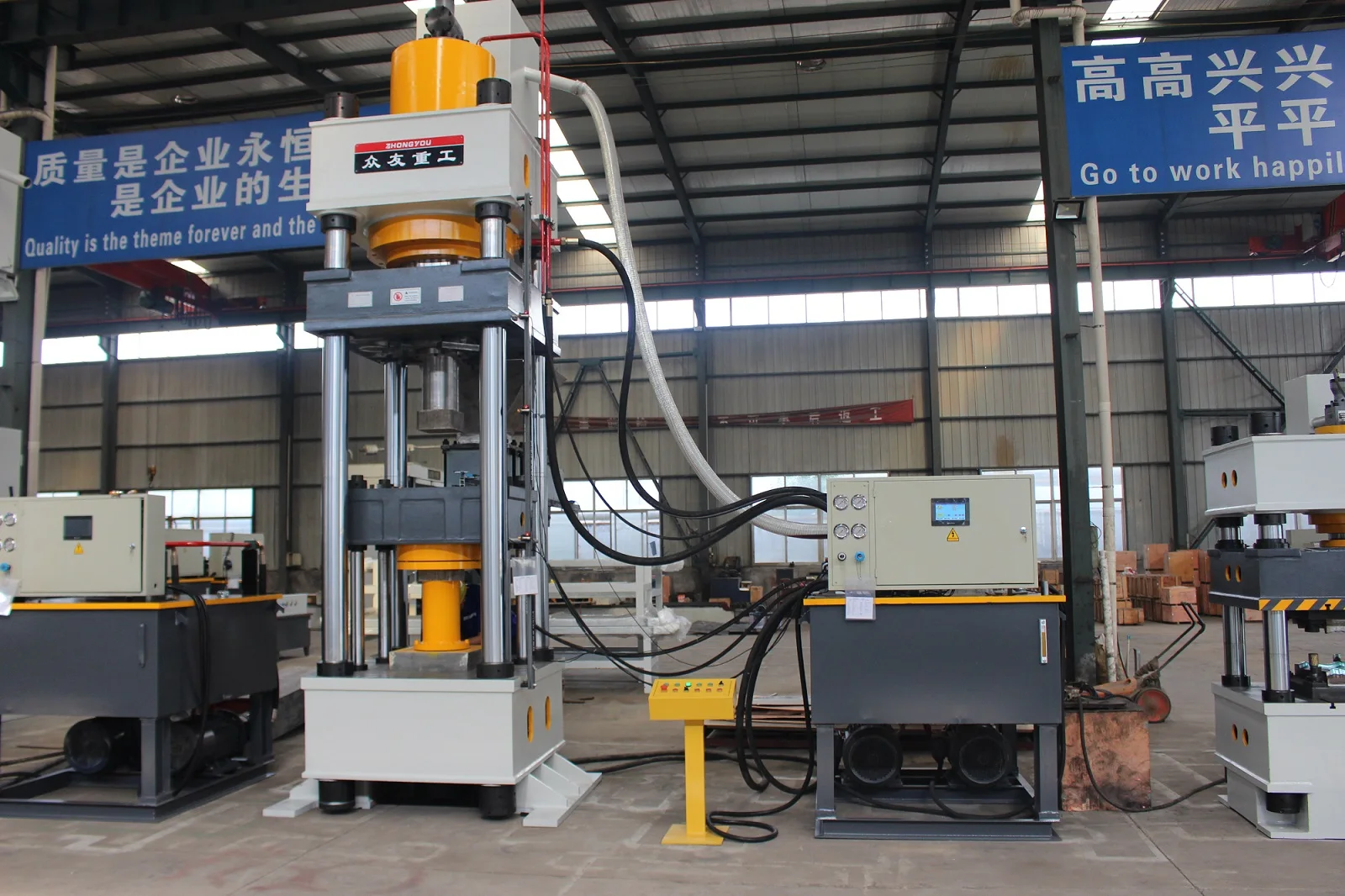

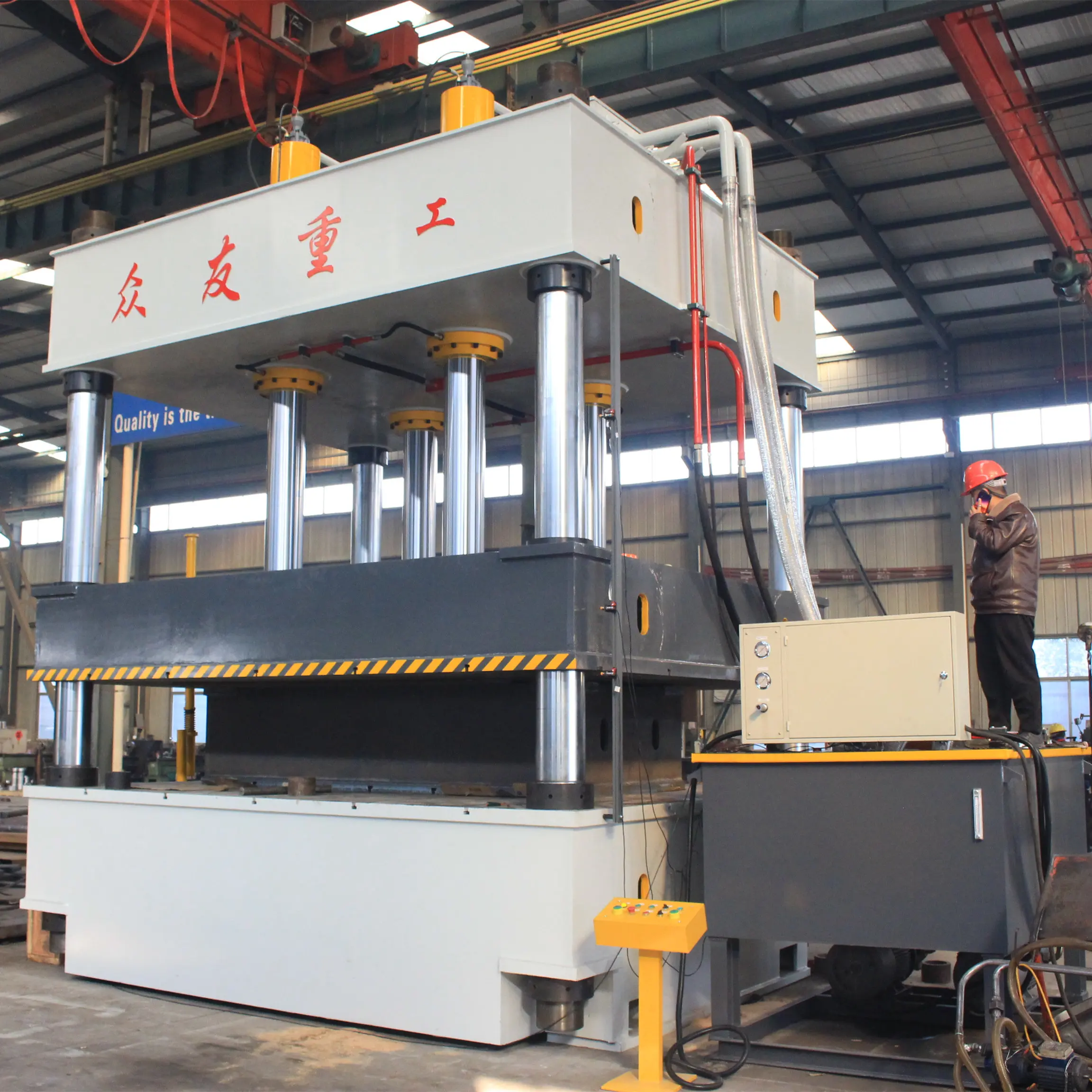

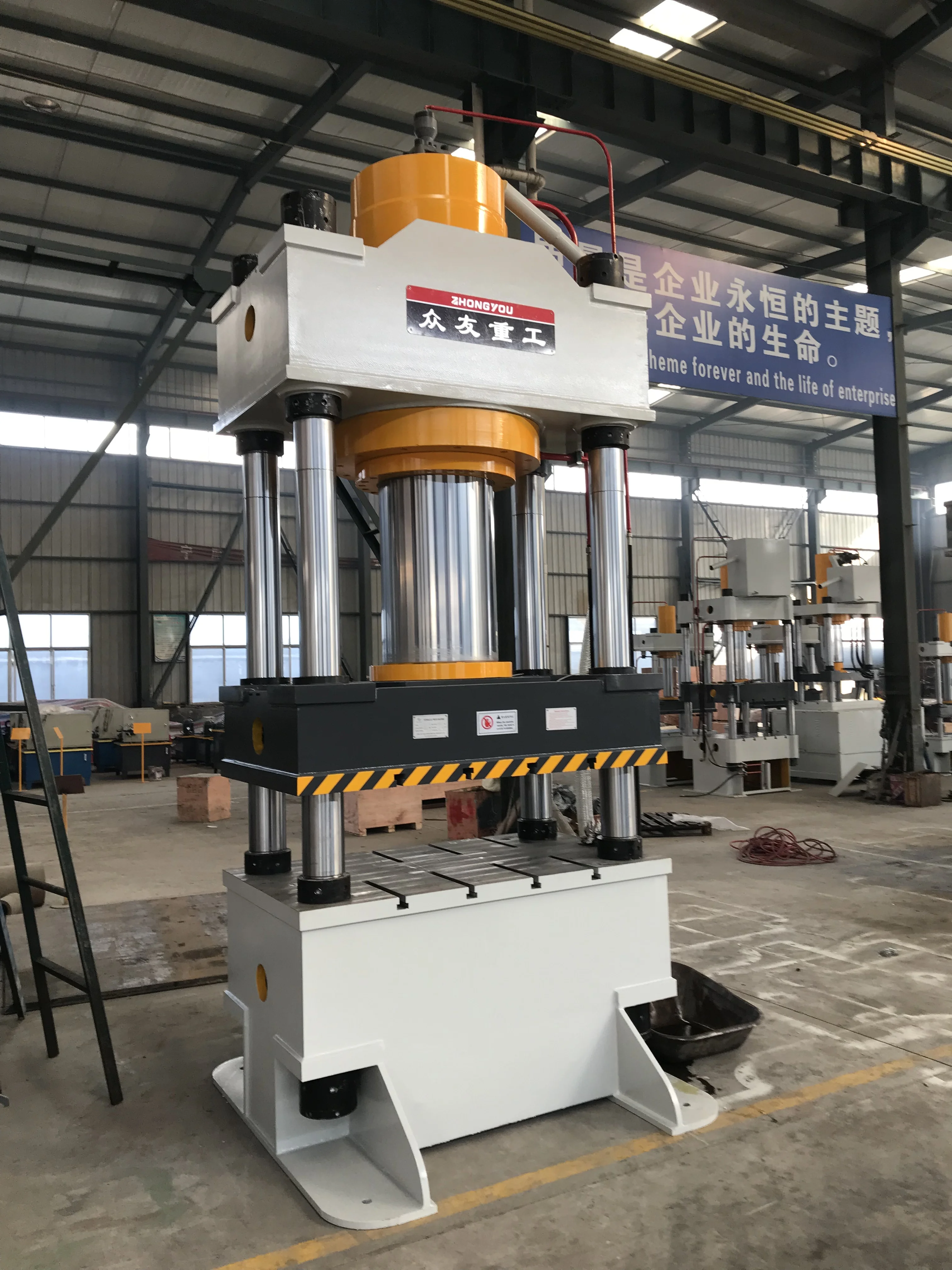

Zhongyou chinese hydraulic presses 630T 800T hydraulic press machine manufacture

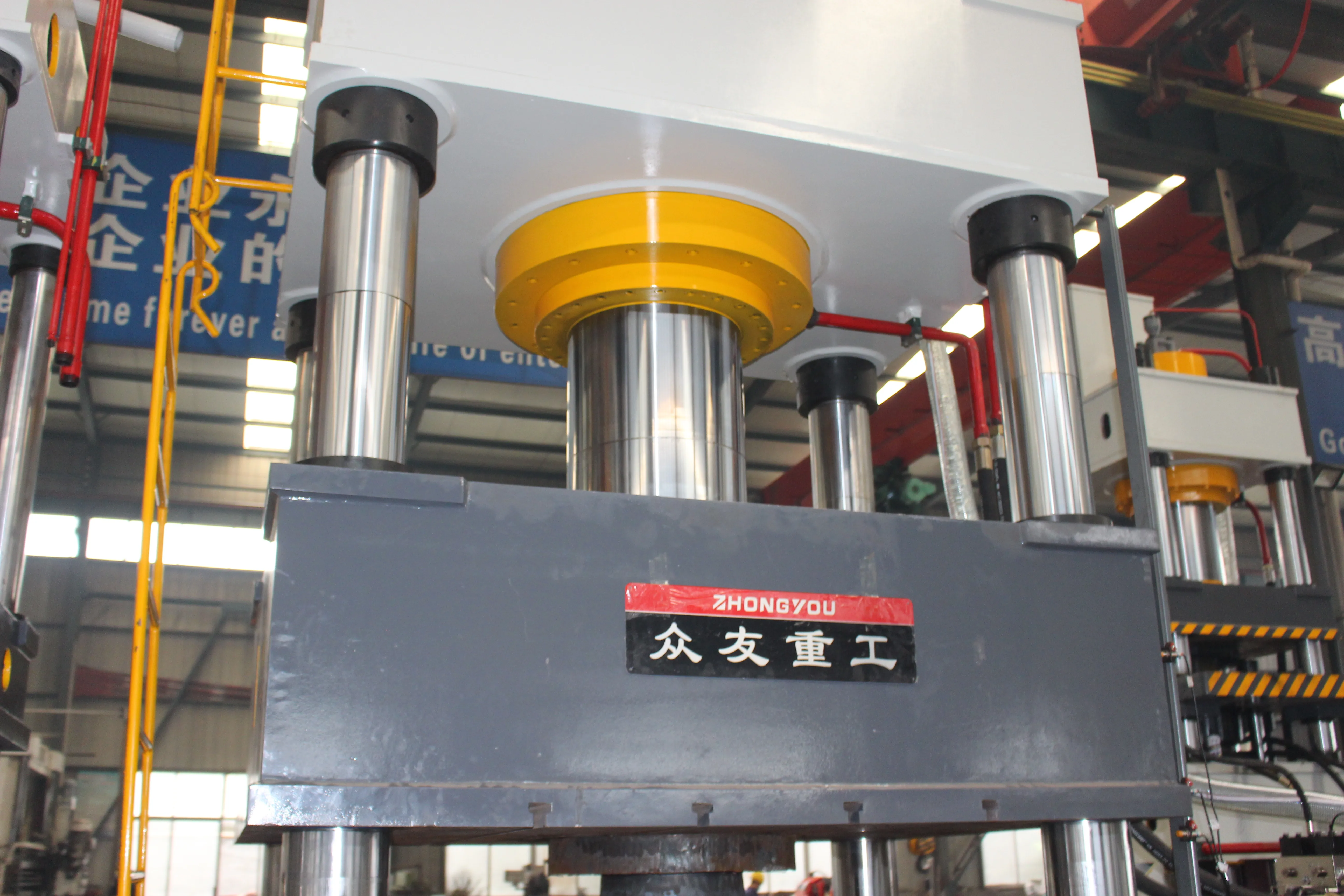

The main unit of this series of hydraulic press machine adopts a three-beam four-column structure, the hydraulic system uses a cartridge valve oil circuit, and the electrical system uses a relay or PLC control circuit. It has adjustment and semi-automatic operation modes.
The whole hydraulic press machine is simple, compact, economical and reasonable, and has a long service time. The hydraulic impact force is small, reducing the connection pipeline and leakage.
The working pressure, pressing speed and stroke range of this series of hydraulic press machines can be adjusted within the specified range according to the process requirements, and two process methods of constant pressure and fixed stroke can be realized.
During constant pressure molding, there is a pressure-holding delay and automatic return after pressing.
The whole hydraulic press machine is simple, compact, economical and reasonable, and has a long service time. The hydraulic impact force is small, reducing the connection pipeline and leakage.
The working pressure, pressing speed and stroke range of this series of hydraulic press machines can be adjusted within the specified range according to the process requirements, and two process methods of constant pressure and fixed stroke can be realized.
During constant pressure molding, there is a pressure-holding delay and automatic return after pressing.
PRODUCT SPECIFICATIONS
Type | Unit | YQ32-400 | YQ32-630 | YQ32-800 |
Nominal force | KN | 4000 | 6300 | 8000 |
System pressure | Mpa | 25 | 25 | 25 |
Slider Max.opening height | mm | 1250 | 1500 | 1800 |
Effective worktable size | mm | 1260*1160 | 1600*1600 | 1500*1500 |
Nominal force of upper ejection cylinder | KN | 630 | 1000 | 1000 |
Stroke of upper ejection cylinder | mm | 300 | 300 | 350 |
Slider descending speed | mm/s | 120 | 150 | 150 |
Slider pressing speed | mm/s | 8-15 | 10-22 | 10-20 |
Slider return speed | mm/s | 90 | 120 | 120 |
Scope Of Application

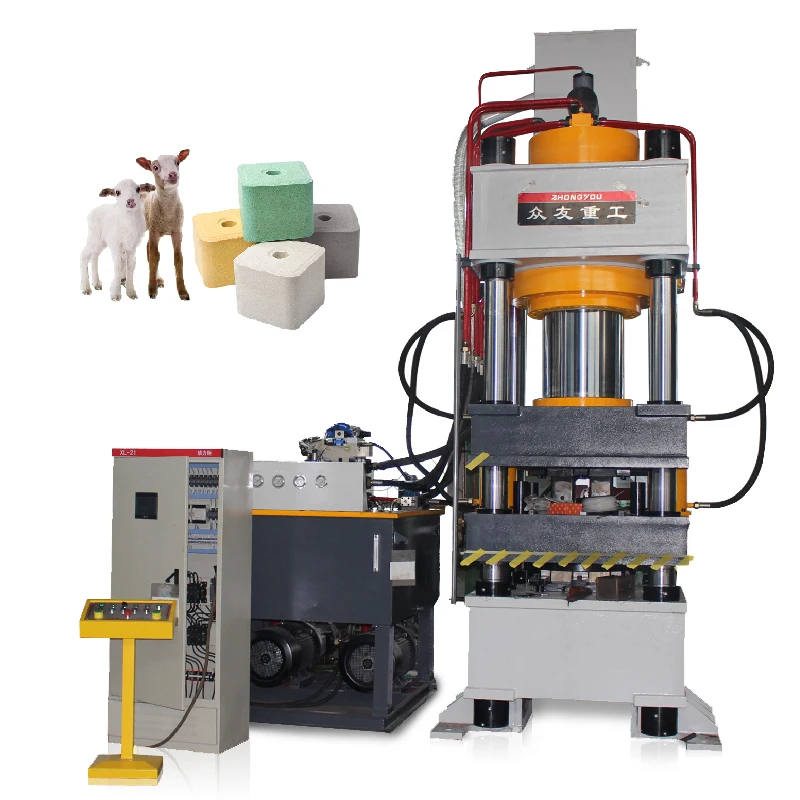

630T 800T hydraulic press machine
Product details
Hydraulic Press System:
The hydraulic transmission device of the machine is arranged beside the hydraulic press machine, and its role is to control the movement of the slider. The hydraulic control system adopts the integral two-way plug-in valve integrated block.
It has fast response speed, large oil-passing capacity, small flow resistance, reliable operation and easy maintenance. The power device of the cartridge valve uses a large flow CY high pressure variable axial piston pump.
Optional Accessories
*Punching cushioning installation *Mixing installation(hydraulic or mechanical)
*Movement working table *Touching industry display screen
*Cooling installation *PLC programmable control system
*light curtain Safety protector *Displacement device
*Movement working table *Touching industry display screen
*Cooling installation *PLC programmable control system
*light curtain Safety protector *Displacement device
Our Company
Tengzhou Zhongyou Forging Machinery Factory
Our company was built in 2006, covering an area of 20,000 square meters, has dozens of production lines, and an annual output value of 150 million. The technical team includes more than 20 engineers, many of whom have been
engaged in the forging industry for more than 30 years. With an authoritative technical team to do product management and control, the products we make can withstand the test of the market.
engaged in the forging industry for more than 30 years. With an authoritative technical team to do product management and control, the products we make can withstand the test of the market.
FAQ
Q:What's the price and specification of hydraulic press machine?
A: Zhongyou always provide high quality machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.
Q:How about your machine quality?We are worry about the quality.
A:Zhongyou is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
Q:How about your machine quality?We are worry about the quality.
A:Zhongyou is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
Похожие товары
Пенообразующий шампунь sles n70/galaxy surfactante sls/моющее средство 70 по цене
880,00 $ - 899,00 $

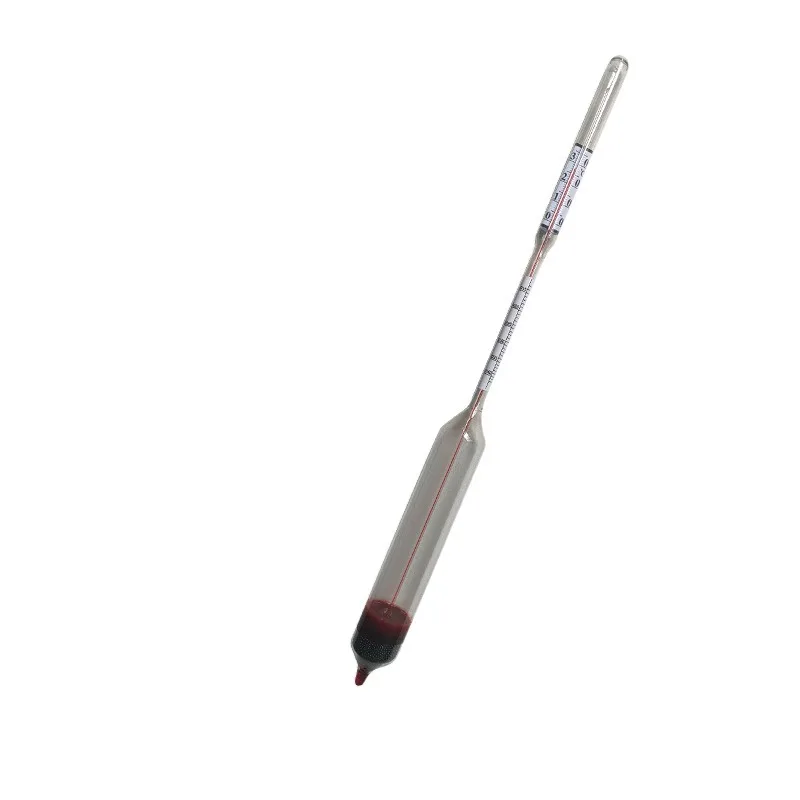

Термометр для измерения плотности молока и коз
11,00 $

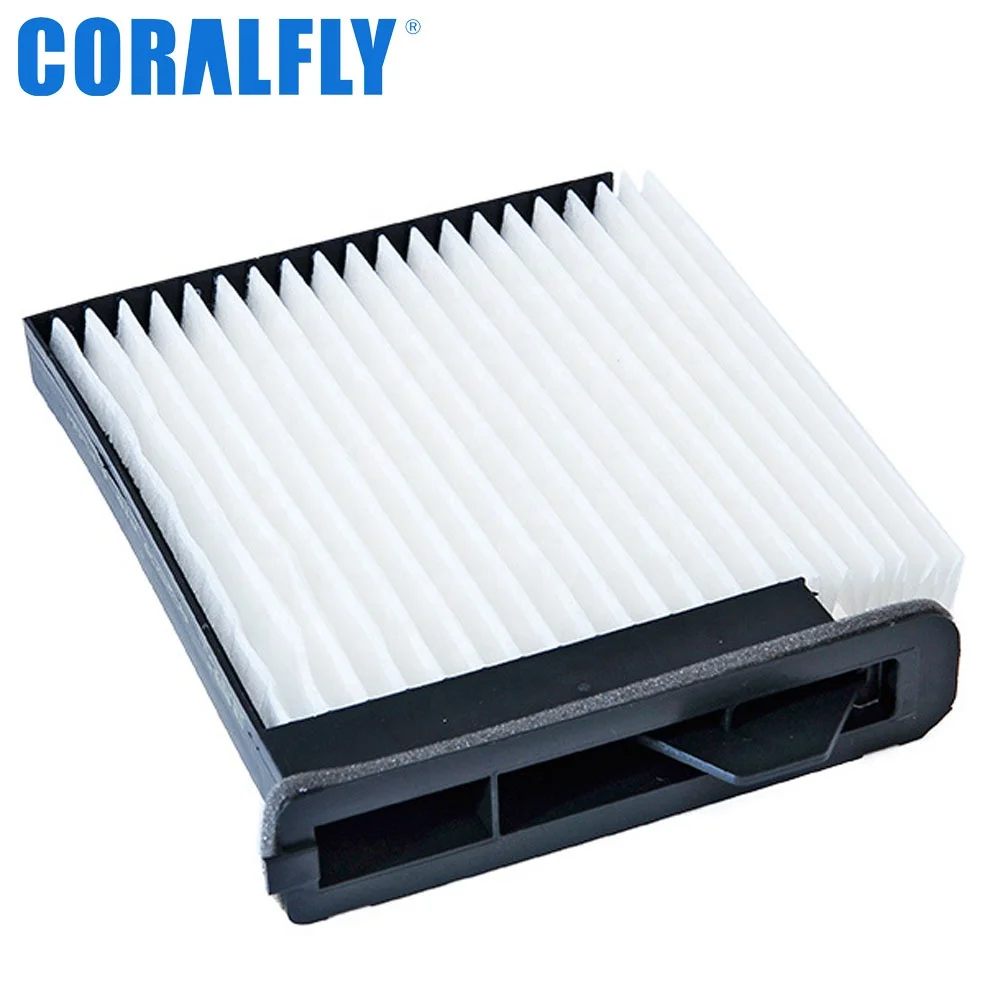

Подходит для производителей автомобильных салонных фильтров 27891-ED50A-A129, автомобильный салонный фильтр
1,76 $ - 2,35 $
Лапис лазурит в форме сердца, свободный драгоценный камень Кабошон полудрагоценный натуральный синий камень для изготовления ювелирных изделий оптом

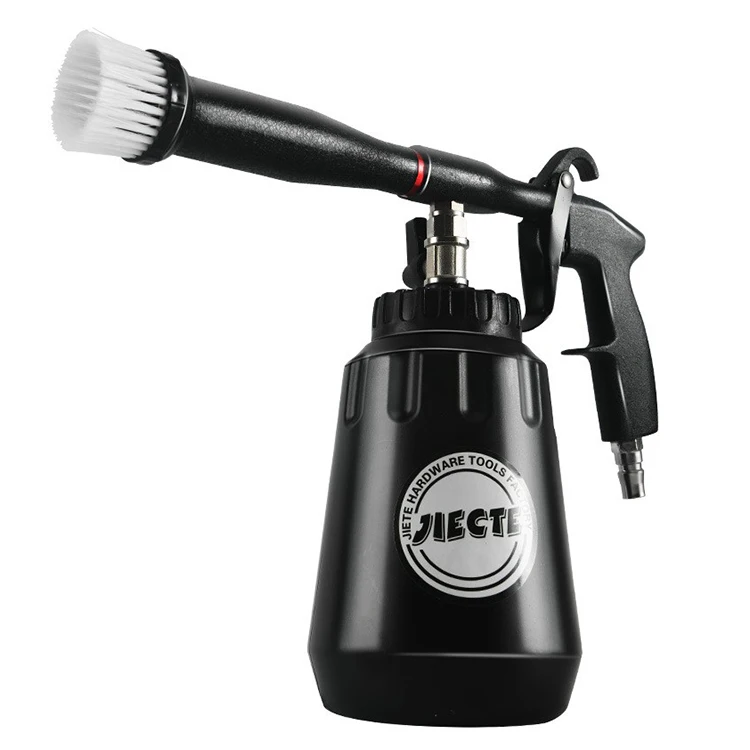

Пистолет с давлением для мойки автомобиля, насос для мойки автомобиля, пистолет с паровой струей, два пистолета, Паровая автомойка
9,99 $ - 13,99 $
Оптовая продажа высокое качество витамина D рафинированное подсолнечное черный рапсовое масло, рапсовое, растительное масло оптом нефтеперерабатывающего завода

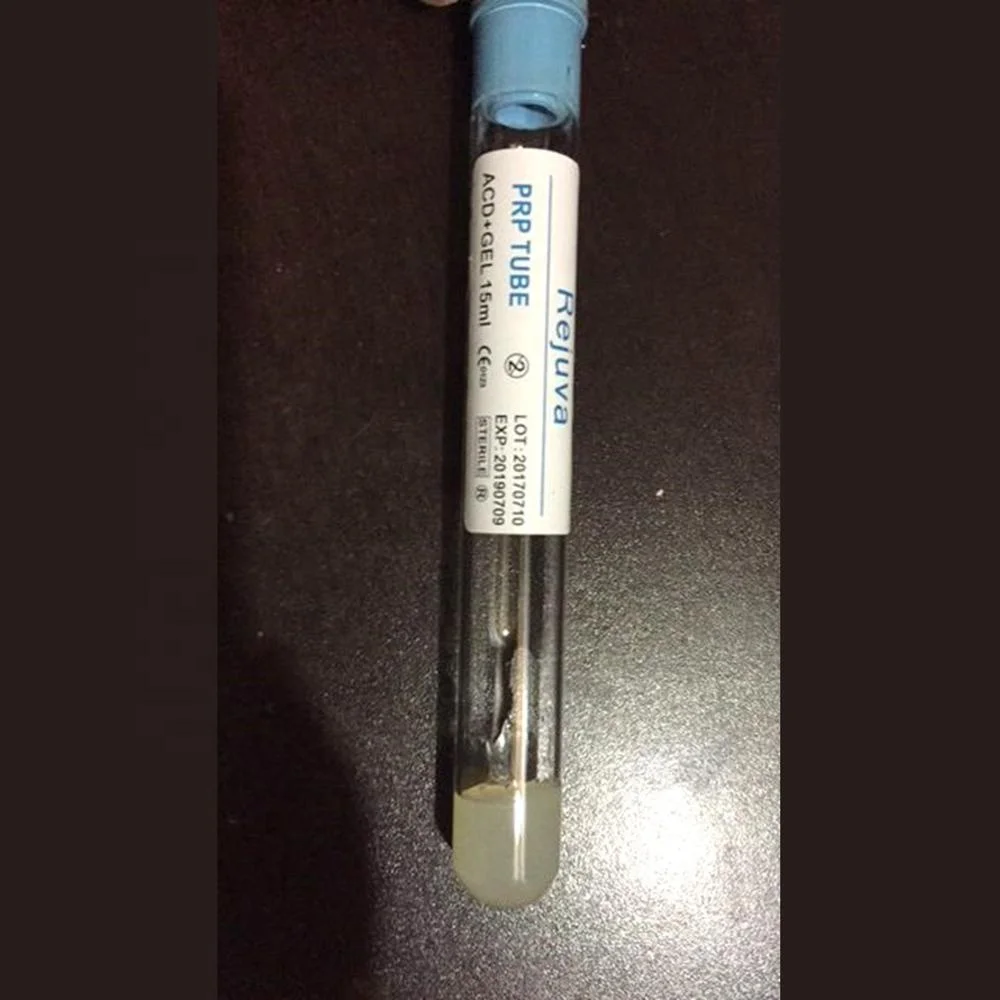

Заводская поставка 8 мл гелевая prp трубка для использования в клинических салонах красоты
