Оптовая продажа с завода аппарат для ленточной пилы сварочный стыковой сварки закаленным

Оптовая продажа с завода аппарат для ленточной пилы сварочный стыковой сварки закаленным

Категория: Butt Welders >>>
Поставщик: Guangdong DuroPower Industries Limited

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

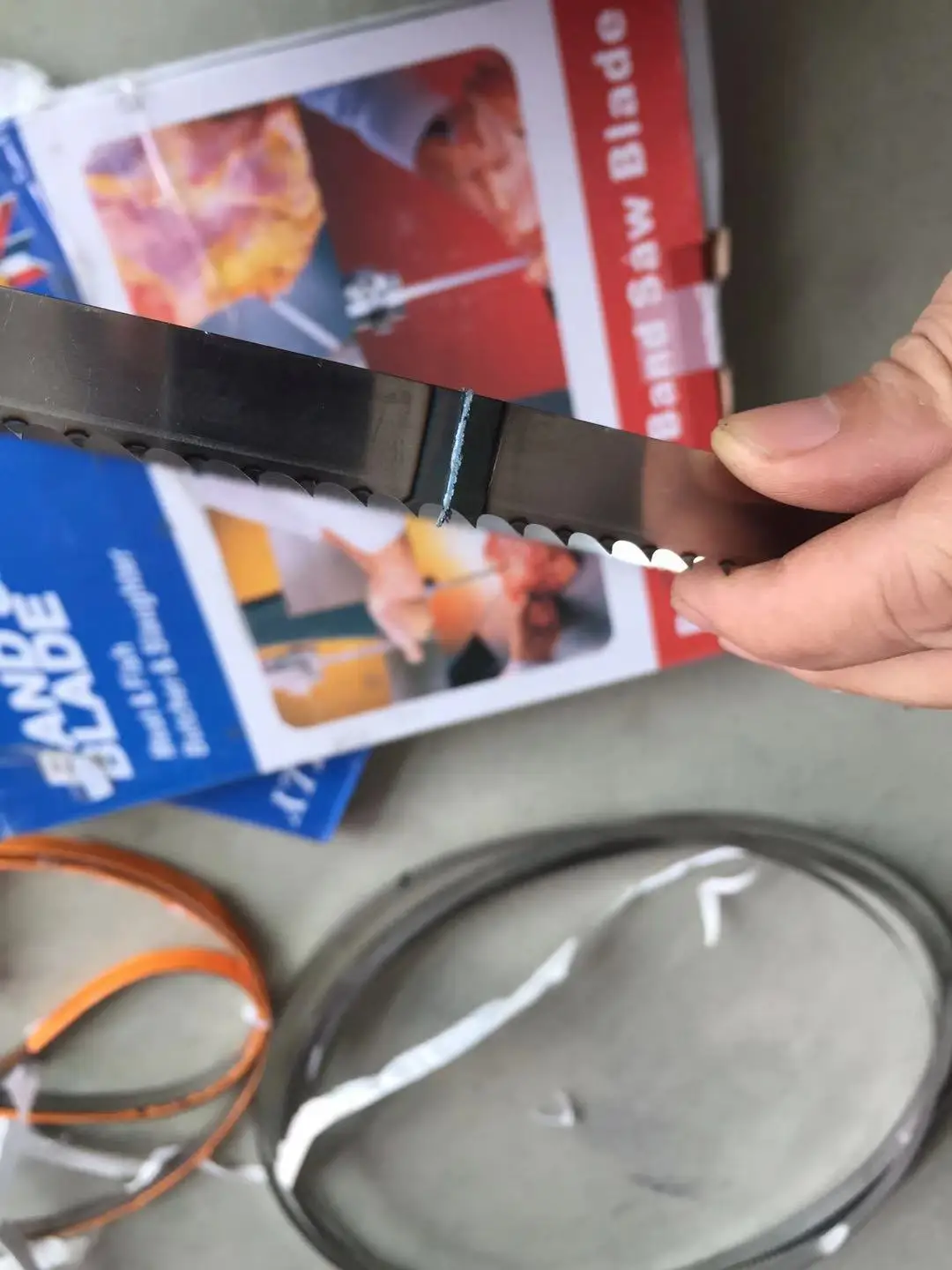

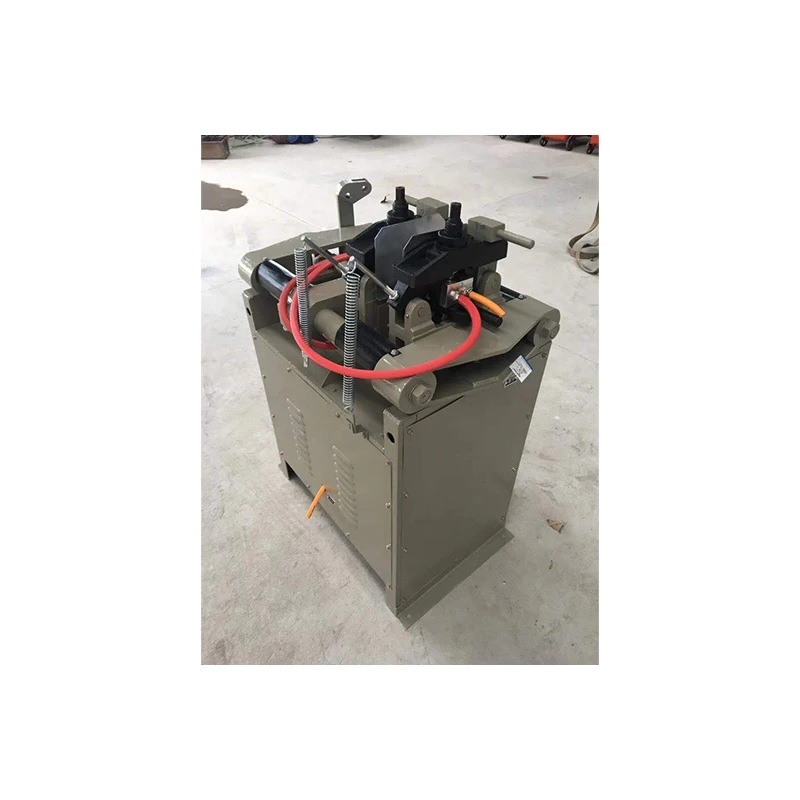

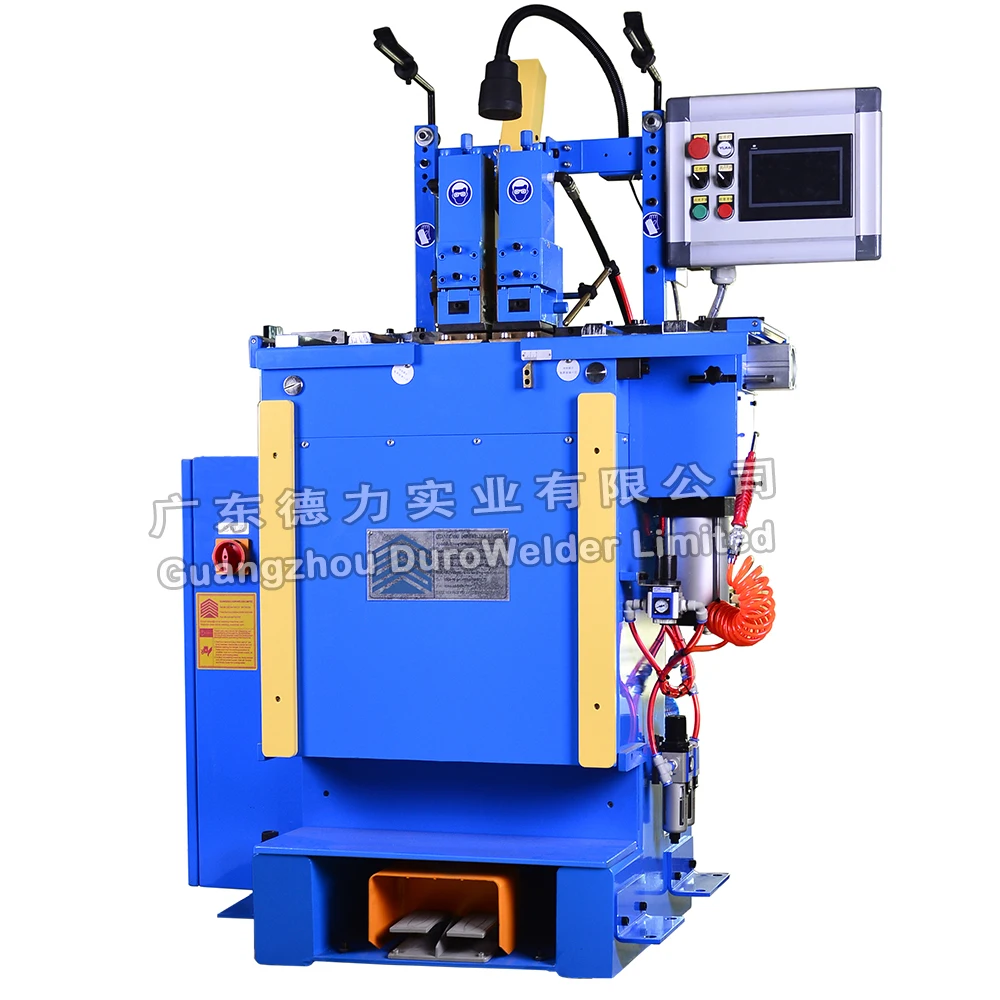

Factory Wholesale BAS Band Saw Blade Welder Butt Welding Machine With Tempering For Band saw Blade

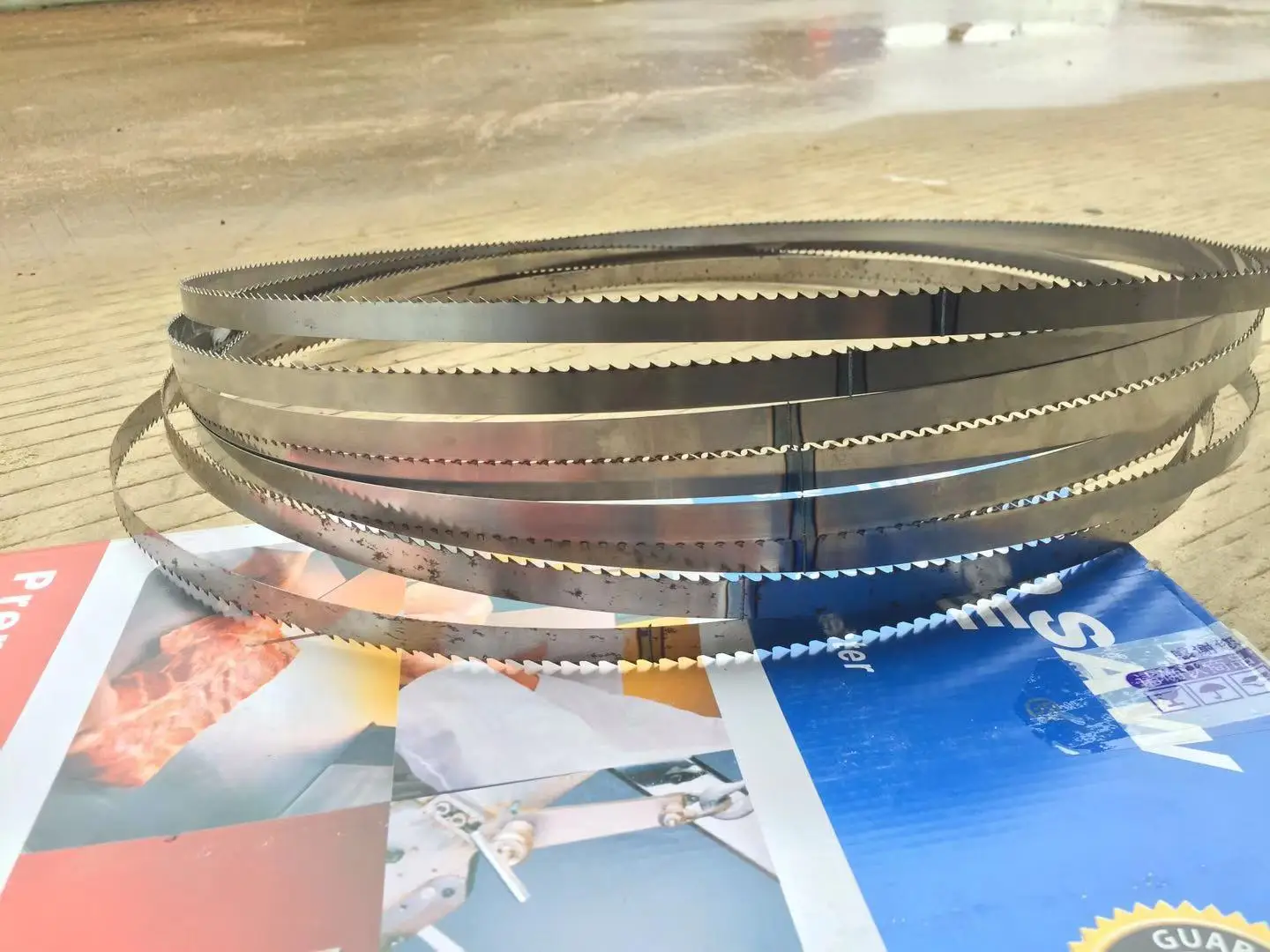

--------Welding Machine for All Kinds of Bandsaw Blades, Band Knives, High Carbon Steel Strip and Lower Carbon Steel Strip.

Main Descriptions and Advantages

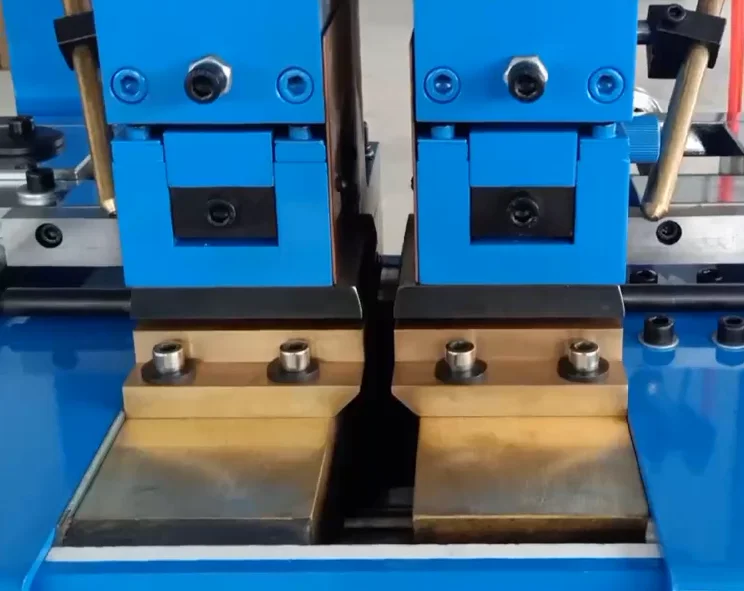

1. Vertical hydraulic clamping cylinders, much more stable.

2. Pneumatic upsetting cylinder.

3. Automatic Thyristor annealing device with infrared thermometer which can set and control the annealing temperature. Annealing time and voltage is also adjustable.

4. Automatic butt welding and annealing process.

5. Computerized Automatic Welding and Annealing Controlling System which can set the welding current, upsetting force, welding time, and other welding parameters easily.

Main Technical Parameters

Paramaters and Model	BAS 100
Capacity at 50% Duty Cycle 50%	25KVA
Metal Bandsaws (Bi-metall,Tungsten)	15-81mm, 0.591" - 3,189"
Wood-Cutting Bandsaws	15-100mm, 0.591”- 3937"
Stainless Steel Bandsaws	15-50mm, 0.591"-1.969”
Bandknives for Leather, Foam	25-800mm ,0.984" - 3.150"
Steel Strip (Ordinary) Max Cross Section	200mm²
Steel Strip Max Clamping Width	100mm
Net / Gross Weight	600KG / 700KG
Packing Dimensions (L x W x H)	130X100X175CM
