Product Description

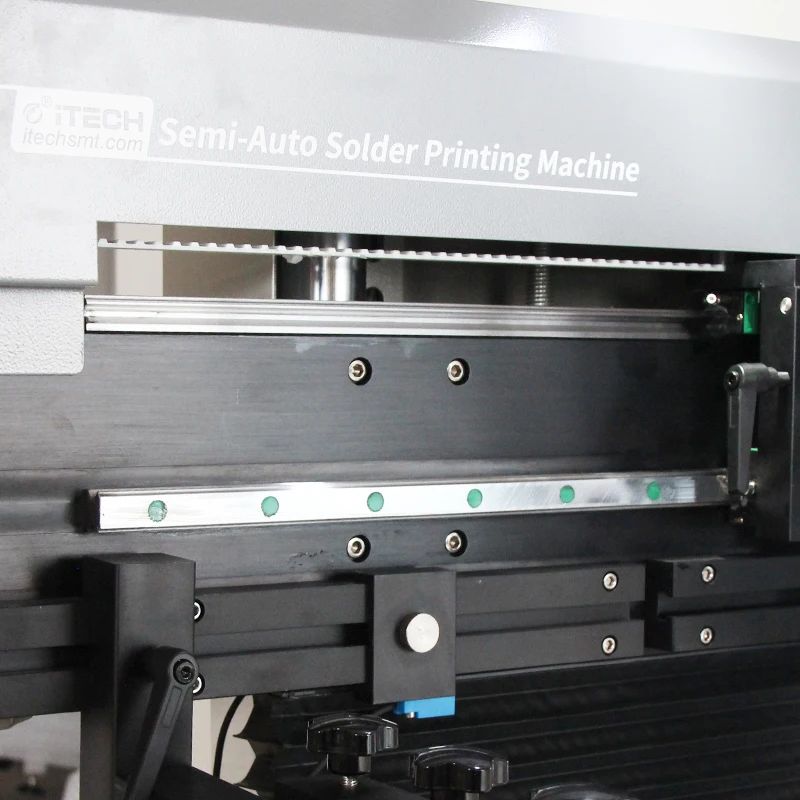

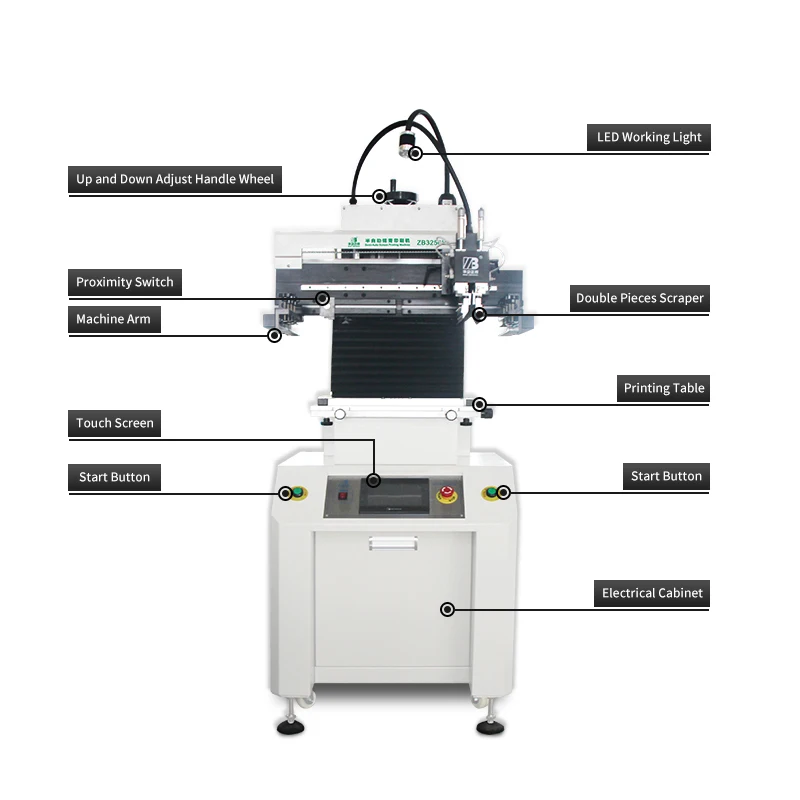

1. This machine uses high-quality speed control motor and linear guide rail and other precision accessories assembled, so that the scraper head printing smoother.

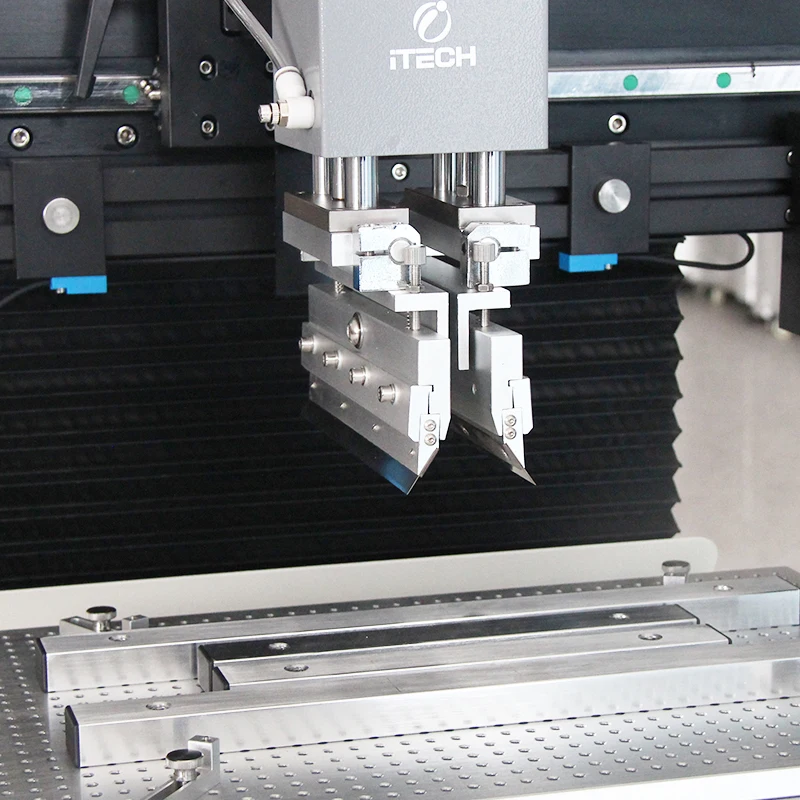

2. Double-scrapers printing pressure can be adjusted by the up/down cylinder throttle valve, the lifting
speed can adjust effectively avoid resonance
3. The printing head can be turned up 45o and fixed lock, convenient scraper loading and unloading and
steel mesh cleaning, easy to operate.
4. The printing head can be fixed after many directions, fixed convenient steel mesh in place, effectively
ensuring the printing effect.
5. The altitude of double-scraper of the printing head can be adjusted by adjusting the nut freely, so that the force between the scraper and the steel mesh can be controlled.
6. The level of spacing between the printing table plate and the steel mesh, the adjustment of the scale of
the precision spinner, and the scale number display.
7. The robot arm moving range can be freely adjusted by the proximity switch, suitable for the requirements of different specifications of steel mesh.

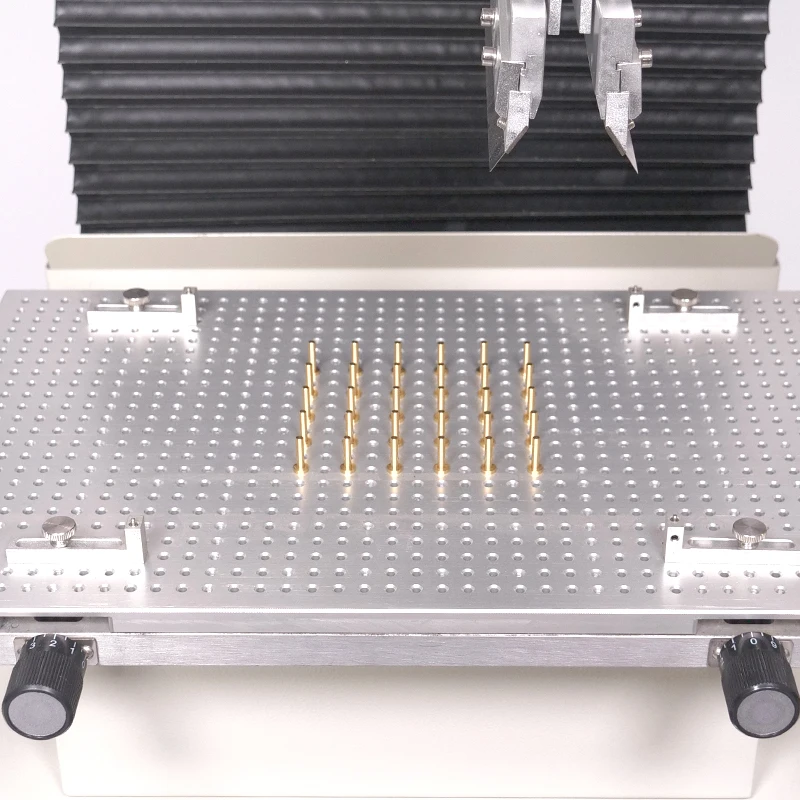

8. The printing table plate has high density snail bee hole with the use of thimble and positioning needle,
free positioning, simple operation, quick replacement, and suitable for single-sided substrate and
double-sided substrate production work.
9. Electrical components using a microcomputer PLC combined with touch screen control, free choice of
single or multiple printing and manual, semi-automatic and other modes.
2. Double-scrapers printing pressure can be adjusted by the up/down cylinder throttle valve, the lifting
speed can adjust effectively avoid resonance
3. The printing head can be turned up 45o and fixed lock, convenient scraper loading and unloading and
steel mesh cleaning, easy to operate.
4. The printing head can be fixed after many directions, fixed convenient steel mesh in place, effectively
ensuring the printing effect.
5. The altitude of double-scraper of the printing head can be adjusted by adjusting the nut freely, so that the force between the scraper and the steel mesh can be controlled.
6. The level of spacing between the printing table plate and the steel mesh, the adjustment of the scale of
the precision spinner, and the scale number display.
7. The robot arm moving range can be freely adjusted by the proximity switch, suitable for the requirements of different specifications of steel mesh.
8. The printing table plate has high density snail bee hole with the use of thimble and positioning needle,
free positioning, simple operation, quick replacement, and suitable for single-sided substrate and
double-sided substrate production work.
9. Electrical components using a microcomputer PLC combined with touch screen control, free choice of
single or multiple printing and manual, semi-automatic and other modes.

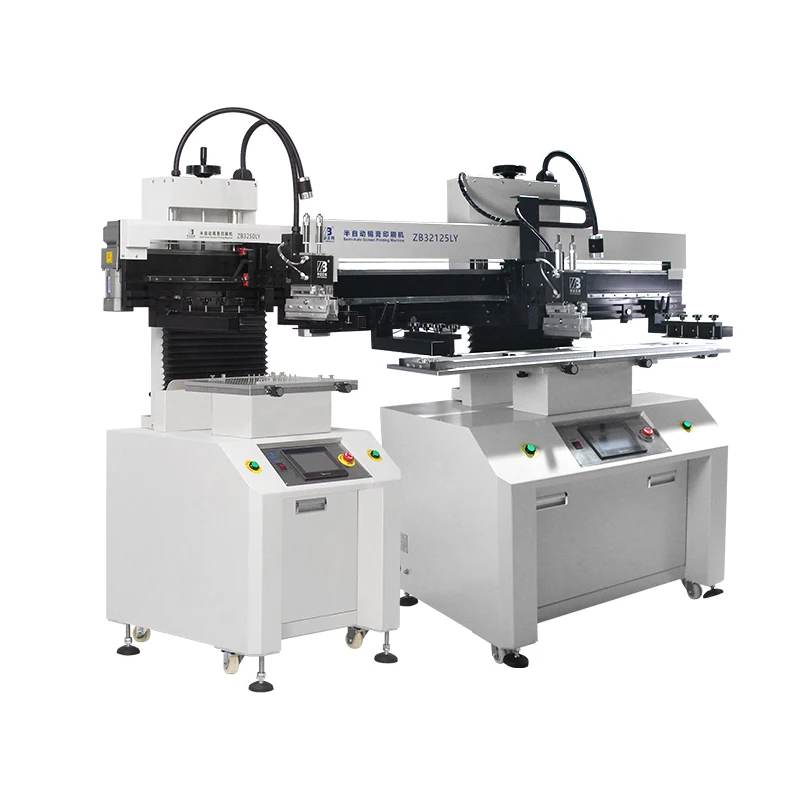

product name | High precise sem-automatically solder tin printing machine | ||||||
model | ZB-3250LY | ZB-32125LY | |||||
printing table acreage | 320*500mm | 320*1250mm | |||||
frame size | 370*470mm, 420*520mm, 550*650mm | 370*470mm, 420*520mm, 550*650mm, 550*1550mm | |||||
substrate size | 320*230mm | 300*1230mm | |||||
substrate thickness | 0.2-2.2mm | 0.2-5.0mm | |||||
fixation of printing position | pcb outer or pin positioning | pcb outer or pin positioning | |||||
micro adjust of table board | front/back±10mm, F/L±10mm | front/back±10mm, F/L±10mm | |||||
printing precise | ±0.02mm | ±0.02mm | |||||
machine repeated accuracy | ±0.05mm | ±0.05mm | |||||
minimum spacing | 0.25mm | 0.35mm | |||||
using power supply | 220v 50/60Hz 100w | 220v 50/60Hz 100w | |||||
machine size | 900*700*1650mm | 1680*700*1650mm | |||||
outline packaging size | 1100*850*2120mm | 2200*850*2120mm | |||||
net weight | 200kg | 280kg | |||||
gross weight | 250kg | 350kg | |||||
Product Details
Recommend Products
About Us
Wenzhou Zhengbang Electronic Equipment Co., Ltd was established 2006, located in Ouhai Zone,Wenzhou,China,which is a professional manufacturer specializing in research,development, production, marketing and service of soldering welding machines.
We are the leader of soldering machines supplier, our main products are Solder Paste Mixer, Silk Screen Printing Machines, Pick And Place Machine, Reflow Oven, Heating Plate, Dip Soldering Machines, SMT Inspection Conveyor, SMT upper and bottom stock frames, Turnover Cart, Feeder, Nozzles, Soldering Pot, PCB cutting machine, Sharpen Machine and so on. Most our products have passed CE certification and lots of products got patent.
Our products have won a good reputation all over the world, We’re sincerely looking forward to serving you in the nearest future.
We are the leader of soldering machines supplier, our main products are Solder Paste Mixer, Silk Screen Printing Machines, Pick And Place Machine, Reflow Oven, Heating Plate, Dip Soldering Machines, SMT Inspection Conveyor, SMT upper and bottom stock frames, Turnover Cart, Feeder, Nozzles, Soldering Pot, PCB cutting machine, Sharpen Machine and so on. Most our products have passed CE certification and lots of products got patent.
Our products have won a good reputation all over the world, We’re sincerely looking forward to serving you in the nearest future.
Похожие товары

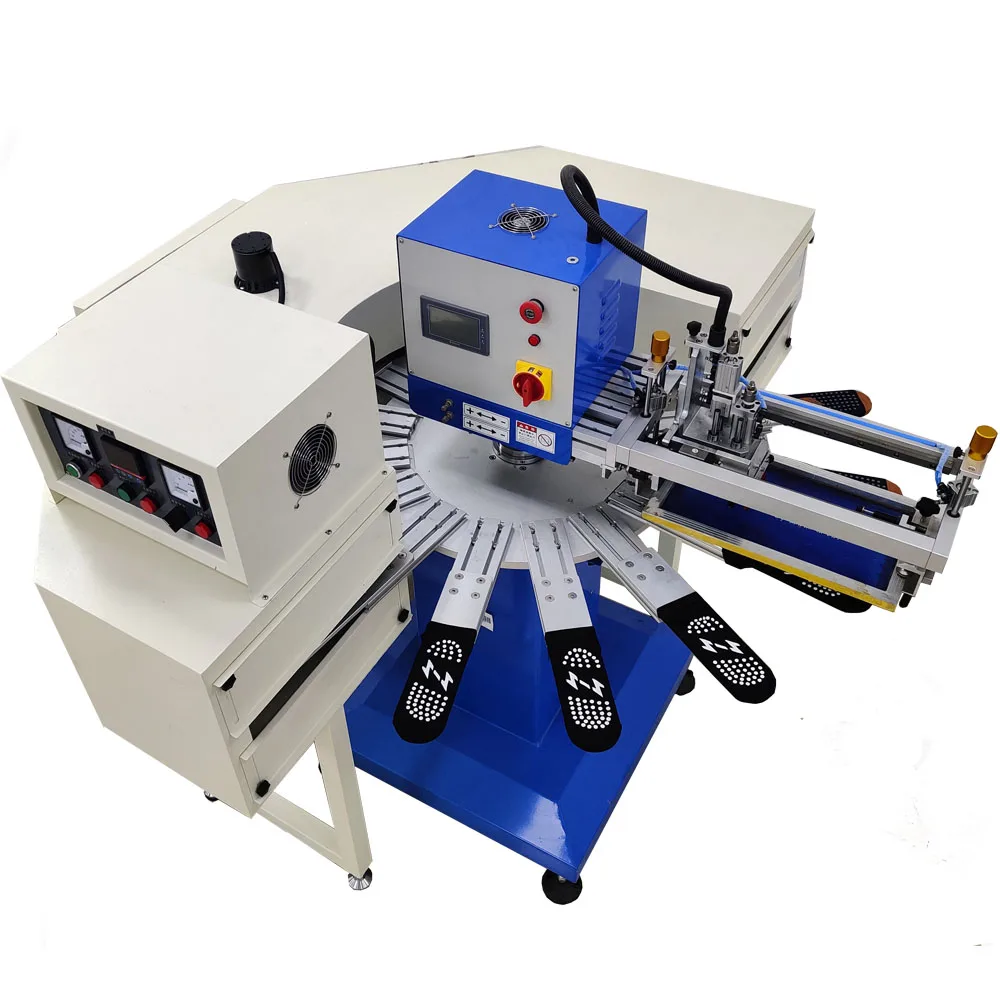

Автоматическая Нескользящая печатная машина для носков
493 638,28-596 957,92 ₽
Силиконовый носок 3d печатная машина Нескользящая calcetines antideslizante mquina de impresin silicio
1 021 716,44-1 125 036,08 ₽

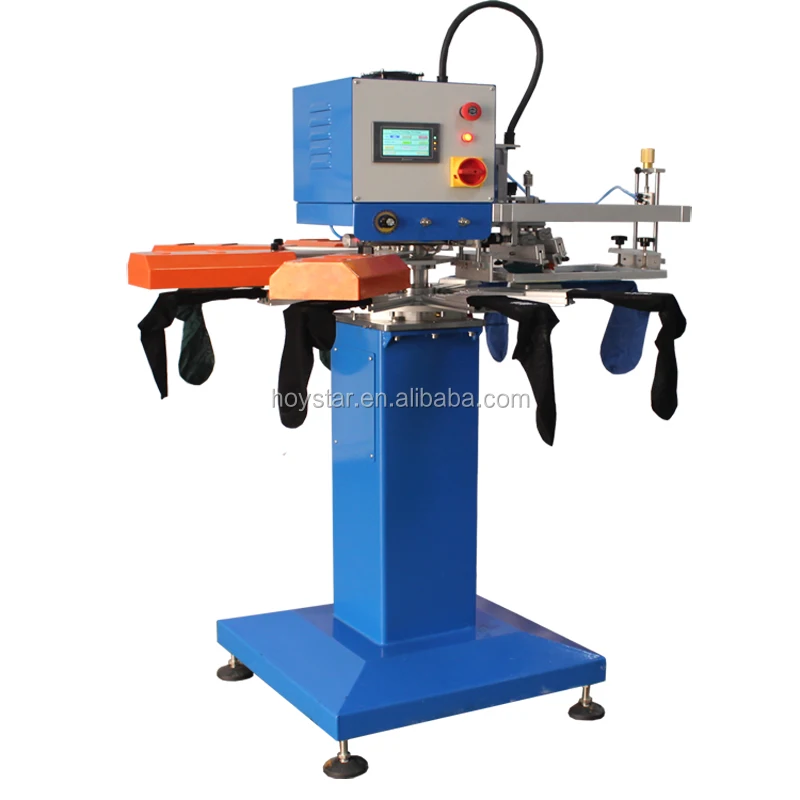

Силиконовая Автоматическая силиконовая машина для печати на носках
493 638,28-596 957,92 ₽

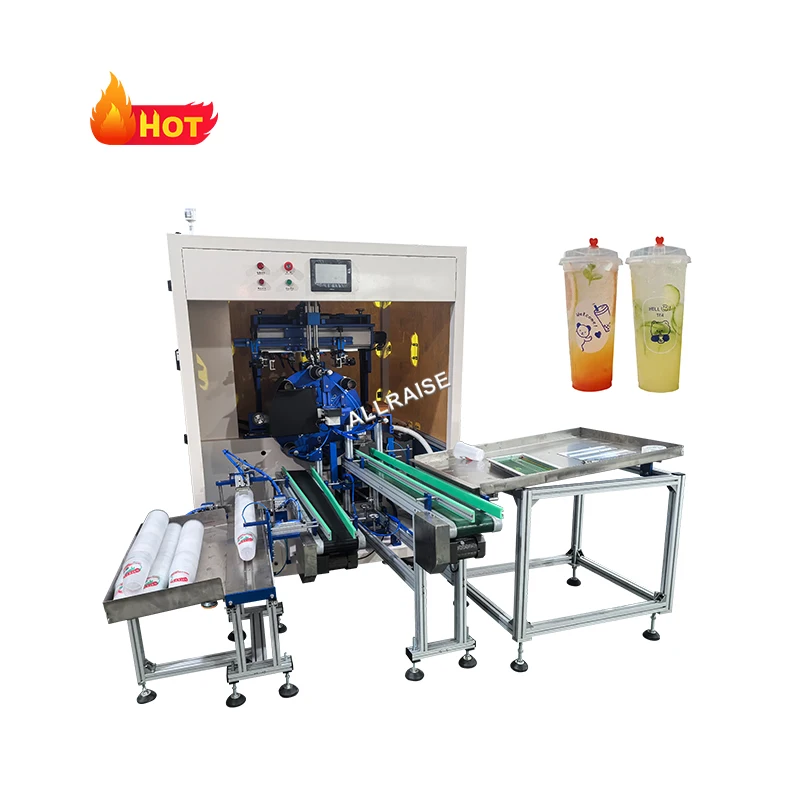

Автоматическая машина для принтеров с логотипом одноцветная пластиковая чашка печатная трафаретной печати
