Безсетевой инвертор Xindun нулевое время передачи 24 В 48 3000 5000 Ватт 3 кВт немодулированный синусоидальный

Сохранить в закладки 1600475157450:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Inverter Feature




1 Pure sine wave output;

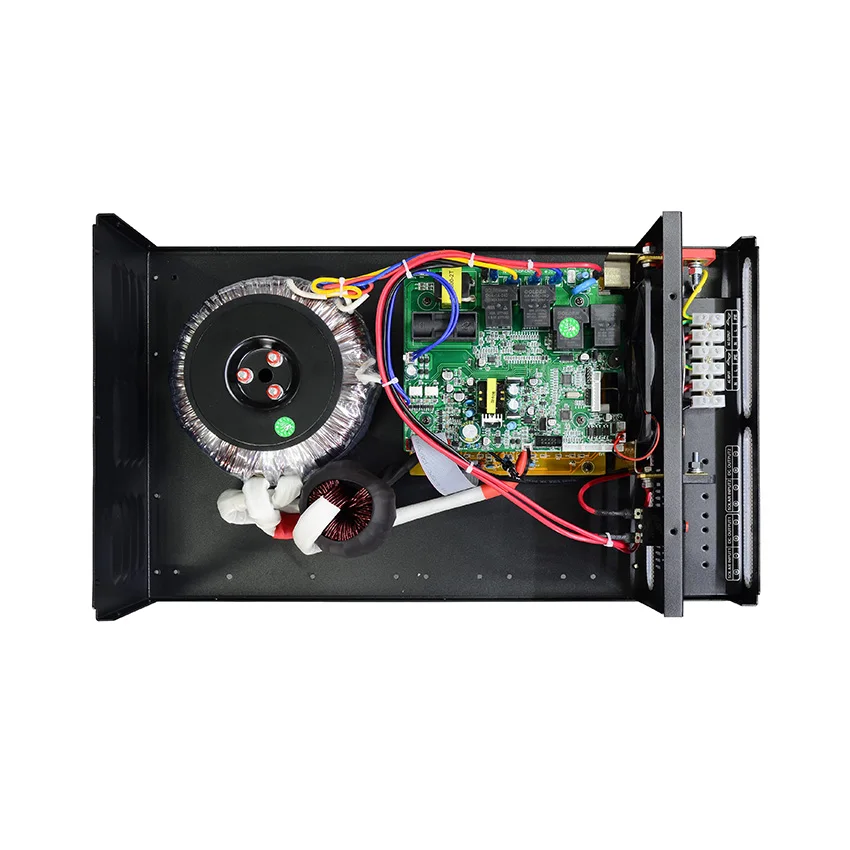

2 Low frequency toroidal transformer lower loss;
3 Intelligent LCD integration display;
4 Built-in PWM or MPPT controller optional;
5 AC charge current 0~30A adjustable, three working modes selectable;
6 Peak power more than 3 times, full-automatic and perfect protection function;
7 Added fault code query function, easy to monitor the operation in real time;
8 Supports diesel or gasoline generator, adapt any tough electricity situation;
9 Combine industrial and home usage, wall-mounted design, convenient installation.





Why Choose XD-LS Series Inverter

LS-inverter_01.jpgLS-inverter_02.jpgLS-inverter_03.jpgLS-inverter_04.jpgLS-inverter_05.jpg





Inverter Details











How to Use Inverter?









Inverter Technical Parameters

















































































































































































Specification
Model XD-LS10212/24/48
(102)
15212/24/48
(152)
20212/24/48
(202)
30224/48
(302)
40224/48
(402)
50248
(502)
60248
(602)
Rated Power1000W1500W2000W3000W4000W5000W6000W
Peak Power(20ms)3000VA4500VA6000VA9000VA12000VA15000VA18000VA
Start Motor1HP1.5HP2HP3HP3HP4HP4HP
Battery Voltage12/24/48VDC24/48VDC24/48VDC48VDC
Size(L*W*Hmm)500*300*140530*335*150
Packing Size(L*W*Hmm)565*395*225605*430*235
N.W.(kg)1213.51820222426
G.W.(kg)(Carton Packing)13.51519.521.5242628
InputDC Input Voltage Range10.5-15VDC(Single battery voltage)
AC Input Voltage Range85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) / 180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC)
AC Input Frequency Range45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current0~30A(Depends on model)
AC charging methodThree-stage (constant current, constant voltage, floating charge)
OutputEfficiency(Battery Mode)≥85%
Output Voltage(Battery Mode)110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode)50/60Hz±1%
Output Wave(Battery Mode)Pure Sine Wave
Efficiency(AC Mode)>99%
Output Voltage(AC Mode)110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode)Follow input
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode)≤0.8% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
≤10W
Battery TypeVRLA BatteryCharge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize batteryCharging and discharging parameters of different types of batteries can be customized according to user requirements
 (charging and discharging parameters of different types of batteries can be set through the operation panel)
Working ModeBattery First/AC First/Saving Energy Mode
Transfer Time≤4ms
CommunicationRS485/APP(WIFI monitoring or GPRS monitoring)

Special voltage, power and appearance can be customized according to the users.


Accept OEM/ODM






Safe Packaging









Inverter Application case









Feedback from Customers









About Xindun Power














We never use poor-quality products in the market.


The Most Reliable Inverter Manufacturer in China.


15 Years of Production and Sales Experience.


Suitable for personal use or for agents to select suppliers.






xindun-inverter_01.jpgxindun-inverter_02.jpgxindun-inverter_03.jpgxindun-inverter_04.jpg





FAQ




Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.





Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on the different models. 1~10pcs sample order is available. Welcome to take samples for testing.





Q3: What kind of certificate you have?
A3: ISO, CE,IEC etc. All series product pass different laborary testing according to your special requirements.





Q4: How is your after-sale service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have specialized after-sales service engineers to provide professional after-sales service and technical support.





Q5: Does your company also provide other solar products except Inverter?
A5: Yes, we also provide other solar products for the whole solar power systems, such as solar charge controllers, solar panels, off grid solar inverters, on/off grid in one inverters, batteries, and other accesories related to the solar power system.





Q6: How to choose a right inverter?
A6: Tell us your demand, then our sales will recommend a suitable inverter to you.





Q7 How about the delivery time?
A7: 3- 7 days for sample; 10-20 days for bulk order.





Q8: How to solve the technical problem?
A8: 24 hours after-service consultancy just for you and to make your problem to solve easily.
