Японский супер Сферический роликовый подшипник 22206EAE4 22206EAKE4 22206

Японский супер Сферический роликовый подшипник 22206EAE4 22206EAKE4 22206

Категория: >>>
Поставщик: Shandong Tefule Bearing Co. Ltd.

Цена:5,60 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

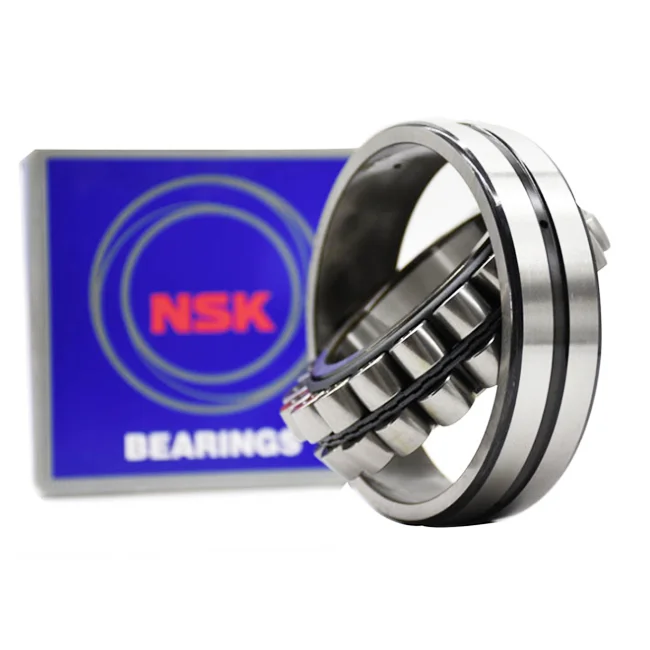

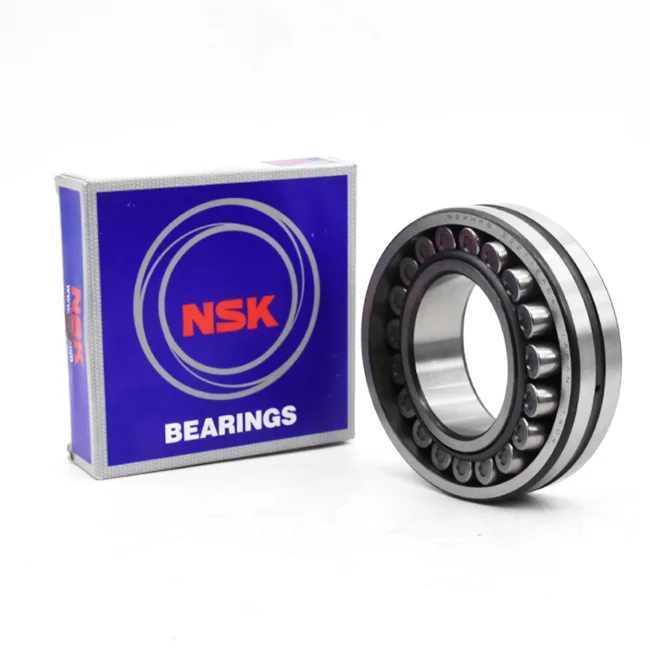

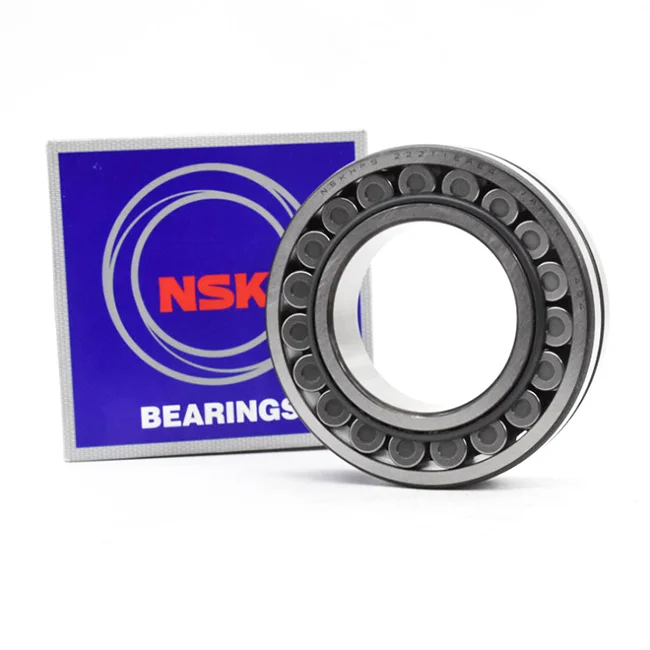

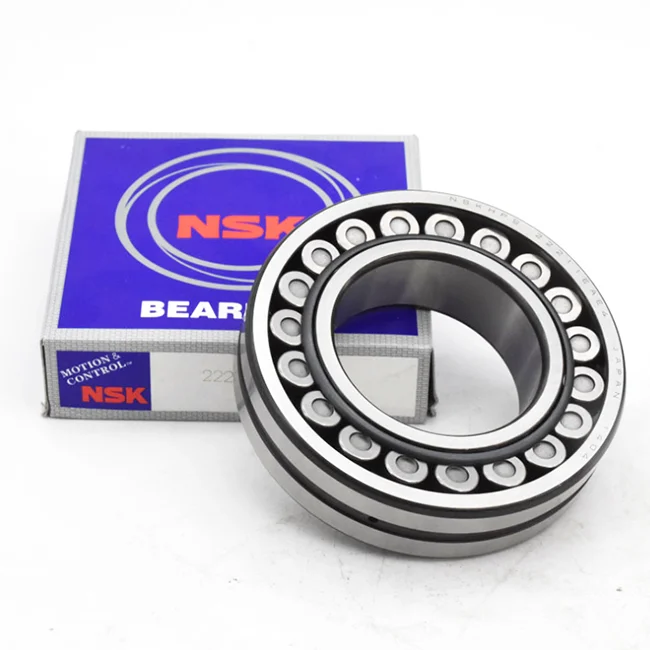

Japan NSK Spherical Roller Bearing 22206EAE4 22206EAKE4 22206

Spherical roller bearing with cylindrical bore and annular groove with three lubrication holes in outer ring 30mm inside x 62mm outside x 20mm width, also known as 22206CCW33
Why spherical roller bearings?
Spherical roller bearings offer an attractive combination of design features, which are making them irreplaceable in many
demanding applications.

Self-aligning
Spherical roller bearings accommodate misalignment between the shaft and housing without increasing friction or reducing bearing service life.

Very high load carrying capacity
Optimized internal geometry within the available cross section provides maximum radial and axial load carrying capacity.

Robust
Insensitive to misalignment caused by shaft or housing deflections as a result of heavy loads.

Easily fitted for loads in all directions
The bearings are non-separable and ready to install, having a choice of mounting methods.

System of Measurement	Metric
Bore Diameter	30 mm
Outside Diameter	62 mm
Width	20 mm
Shoulder Diameter Of Inner Ring	37.6 mm
Shoulder Recess Diameter Of Outer Ring	53 mm
Width Of Lubrication Groove	3.7 mm
Chamfer Dimension	1 mm
Diameter Of Shaft Abutment(Min)	35.6 mm
Diameter Of Housing Abutment	56.4 mm
Diameter Of Lubrication Hole	2 mm
Radius Of Fillet	1 mm
Basic Dynamic Load Rating	66.1 kN
Basic Static Load Rating	60 kN
Fatigue Load Limit	6.4 kN
Reference Speed	10000 r/min
Limiting Speed	14000 r/min
Limiting Value	0.31
Axial Load Factor Y1	2.2
Axial Load Factor Y2	3.3
Axial Load Factor Y0	2.2
Mass	0.28 kg

Delivery & Payment

Shipment
1. By FedEx /DHL /UPS /TNT /EMS door to door services.
2. By Air or by Sea for batch goods; for FCL. You'll have to pick up the goods at the airport or port.
3. Customers specifying freight forwarders or negotiable shipping methods are available.

Payment

Payment: 100% T/T, Western Union, PayPal or Alibaba Secure Payment in advance;

Certifications

Company Profile

Shandong Tefule Bearing Co.,Ltd
is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 10 years and made international trade of bearing import and export for more than 8 years.We have our own brand "TFL" and applied ISO9001:2000certificate for certification authority.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.
Our company is specialized in ball bearing,roller bearing,housing units, wheel hub bearing,bearing parts and accessories, cross roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.

FAQ

Q: Are you trading company or manufacturer?
A: We are factory. Shandong Tefule Bearing Co.,Ltd integrates production, trade, investment and sales.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods out of stock, depends on order quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could provide free samples, but freight collect.

Welcome to contact me anytime~
