HY-R02 Soft Skeleton Micro Speaker Voice Coil Automatic Winding Machine

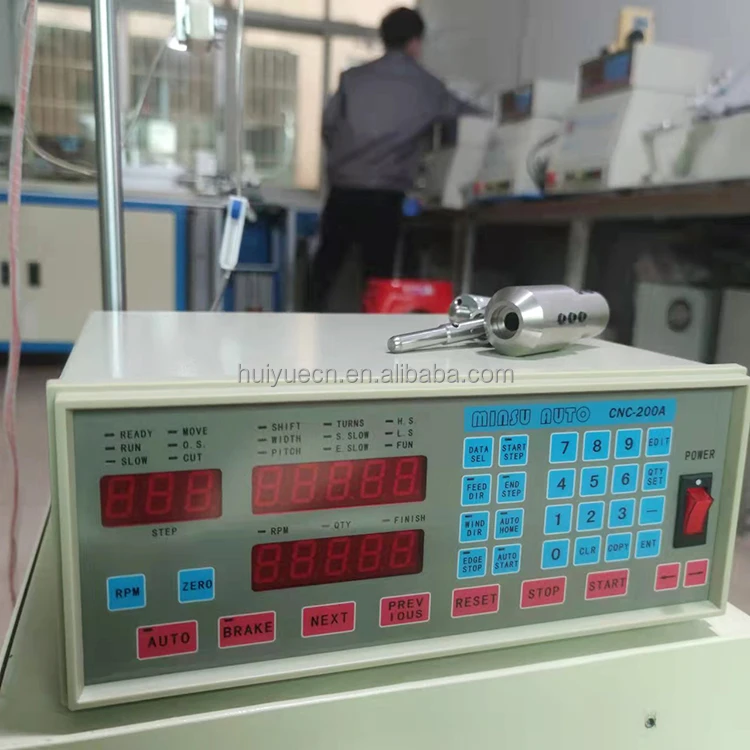

1. Using microcomputer design, teaching input, easy data setting;
2. The installation settings can be changed for different occasions, and the scope of use is wider;
3. The winding data is set by the button, which is convenient and accurate, and can reach multi-segment and multi-speed purposes;
4. Adjusting the starting point and width can be input by teaching mode, and the data setting is easy and accurate;
5. The power supply circuit adopts an improved anti-interference circuit, which has stronger anti-interference ability;
6. The winding shaft adopts CPLD decoding speed measurement circuit, which makes the positioning more accurate;
7. The arranging shaft stepper motor is driven by a constant current chopper, with fast arranging speed and high precision;
8. The position of the arranging axis can be input with the teach key, and the current position of the arranging axis can be displayed
9. Automatic forward and reverse winding, synchronous wiring, multi-segment lap count.
10.The installation parameters can be changed for different specifications of machines and use occasions, and the scope of use is wide.
11.Each set of winding procedures independently provides multiple operation and operation mode options, and the operation and application are more flexible.
12. According to customer needs: connect/not connect DC24V 12W bobbin brake.
13.The minimum displacement unit of the cable axis can be set by the button, which can be applied to a variety of screw specifications.
14. Error alarm function, which can display error information and prompt sound
15. Power supply: AC220V±10% mains
16. Part of the machine encapsulating table adopts: fine-tuning function, easy to use in adjustment
17. The wire rack and the wire head are fixed on the wire rod, which can realize the function of synchronous movement
18. Purpose: various switching power supply transformers, supplies, Japanese fonts, inductance coils, relay coils

HY-R02 Soft Skeleton Micro Speaker Voice Coil Automatic Winding Machine

HY-R02 Soft Skeleton Micro Speaker Voice Coil Automatic Winding Machine

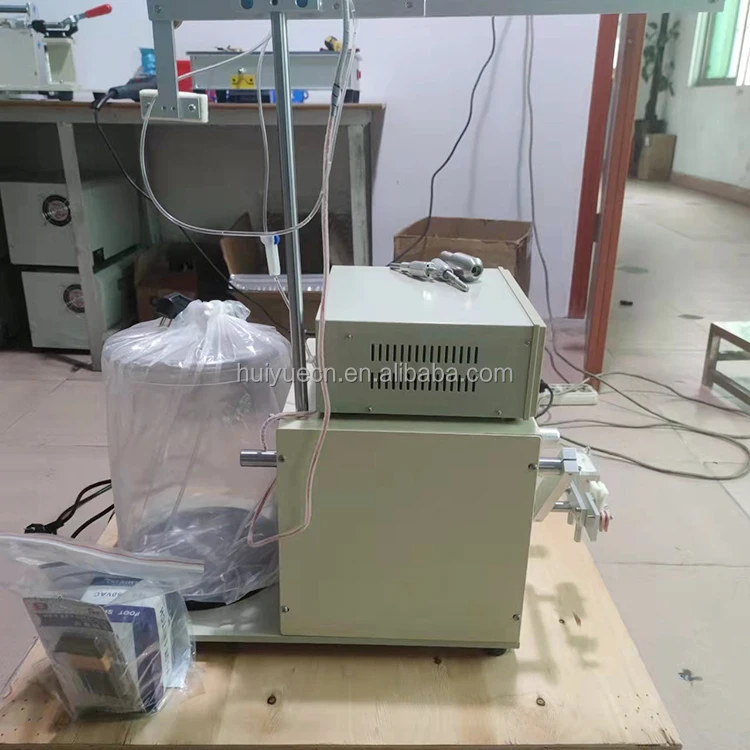

Wooden packing

24 hour online technical support and 100% quality warranty for 12 months except consumable parts.

Our vision : created a century brand success for centuries

Our mission : to promote the progress and development of the most cost-effective automation technology

Our values : customer first, teamwork, loyalty, dedication, passion, dedication

Our business purpose : to satisfy customers, employees, businesses of both material and spiritual well-being

Our quality policy : quality is life, progress endless; service is fundamental, innovation to win

Our commitment : no excuses

Our two style : serious, fast

Our three thanksgiving : thanksgiving customers to create my performance,thanksgiving my career platform company, thanksgiving working with my colleagues

Dongguan Huiyue Automation Equipment Co., Ltd. FAQ:

Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
Q: Our required parameter is not standard,can made to order?
A: Our machines can made to order according to customer’s requirement.
Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc
Q: What is the payment term?
A: T/T , L/C.
Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
Q: What is the warranty period of the machine?
A: The warranty period is one year.Lifetime Maintenance
