Светодиодный лазерный чип с одним излучателем 12 Вт Нм
- Категория: >>>
- Поставщик: Hangzhou Brandnew Technology Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1600477617577:
Описание и отзывы
Характеристики
Product Description
Item Name

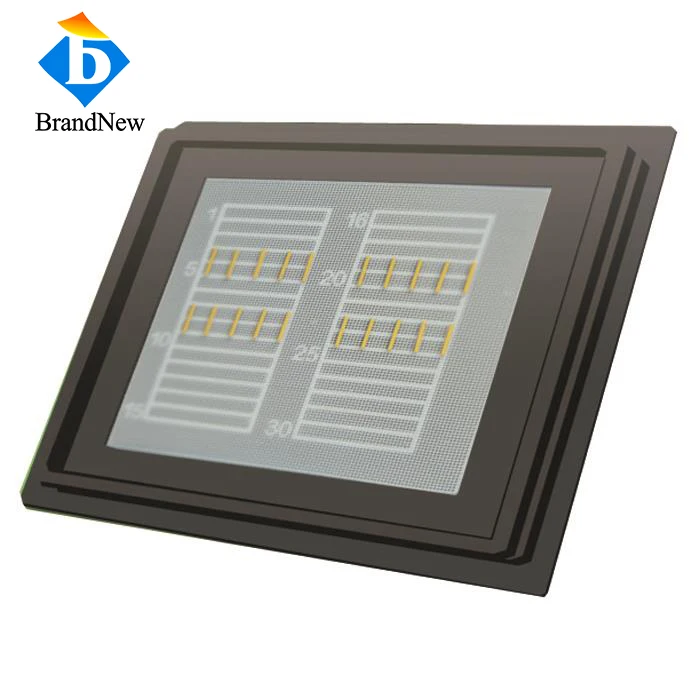

12W 975nm Single Emitter Laser Led Laser Chip
Feature
High efficiency and high reliable
Long lifetime>10000hours
Small wave tolerance ±2nm
Long lifetime>10000hours
Small wave tolerance ±2nm
Emitter width 90um, emitter pitch 400um
Application
Fiber Laser Pumping Source
Solid-state Laser Pumping Source
Direct Semiconductor Laser
Medical research
Solid-state Laser Pumping Source
Direct Semiconductor Laser
Medical research
Printing industry
Specification
Optical | Typical Value |
Center Wavelength λ | 976nm |
Optical Power | 12W |
FWHM | 30Deg |
Emitter Width | 90um |
Emitter Pitch | 400um |
Cavity Length | 4000um |
Thickness | 105um |
Electrical | |
Operating Current Lop | 12A |
Threshold Current Lth | 0.8A |
Operating Voltage Vop | 1.6V |
Conversion Efficiency | 60% |
Thermal | |
Test Temperature | 25℃ |
Storage Temperature | —30~70℃ |
Wavelength Temperature Coefficient | 0.3nm/℃ |
Packing & Delivery
Order Procedure:
1. Contact us for more details by email
2. We send PI to you for payment, payment term is T/T or Western Union
3. Once payment is done, we will arrange production
4. Delivery time is 1-4 weeks depends on different order qty and request.
5. After delivery, we will send you DHL UPS FedEx TNT tracking no.
6. Quality warranty is 12 months
1. Contact us for more details by email
2. We send PI to you for payment, payment term is T/T or Western Union
3. Once payment is done, we will arrange production
4. Delivery time is 1-4 weeks depends on different order qty and request.
5. After delivery, we will send you DHL UPS FedEx TNT tracking no.
6. Quality warranty is 12 months
Packing:
One set in a case(According to your request)
Delivery:
Normally 1-2 Weeks
FedEx，DHL Express, UPS, TNT
Payment Term:
T/T and Western Union, For your Choice
Return Policy:
Buyer Pay the Shipping Cost.
One set in a case(According to your request)
Delivery:
Normally 1-2 Weeks
FedEx，DHL Express, UPS, TNT
Payment Term:
T/T and Western Union, For your Choice
Return Policy:
Buyer Pay the Shipping Cost.
Certification
Our Company
Hangzhou BrandNew Technology Co., Ltd.
Founded in 2011, Professional Laser diode supplier,manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including laser chip, fiber coupled laser diode, single bar and high power diode laser array.Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNews strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.
Our range of products gives this feeling to our customers who rapidly understand that our solutions help them save time in their RD photonic system and integration work.
Core Competency
◆ Diode Packaging ◆ Beam Shaping
◆ Reliability Testing ◆ Efficient Cooling
Founded in 2011, Professional Laser diode supplier,manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including laser chip, fiber coupled laser diode, single bar and high power diode laser array.Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNews strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.
Our range of products gives this feeling to our customers who rapidly understand that our solutions help them save time in their RD photonic system and integration work.
Core Competency
◆ Diode Packaging ◆ Beam Shaping
◆ Reliability Testing ◆ Efficient Cooling
FAQ
Q1: What payment methods do you support？
T/T and Western Union, For your Choice
T/T and Western Union, For your Choice
Q2: How long can I receive the package？
Normally 1-2 Weeks FedEx, DHL Express, UPS, TNT.
Normally 1-2 Weeks FedEx, DHL Express, UPS, TNT.
Q3: How to place an order?
Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the order.
Fourthly we arrange the production.
Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the order.
Fourthly we arrange the production.
Q4: How about after sale service?
1. We offer an instant 7 days return policy. (7 days after receiving the items)
2. If the items are defective, please notify us within 3 days of delivery.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. If you have any question, please contact us via E-mail or Sales manager.
1. We offer an instant 7 days return policy. (7 days after receiving the items)
2. If the items are defective, please notify us within 3 days of delivery.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. If you have any question, please contact us via E-mail or Sales manager.
Похожие товары

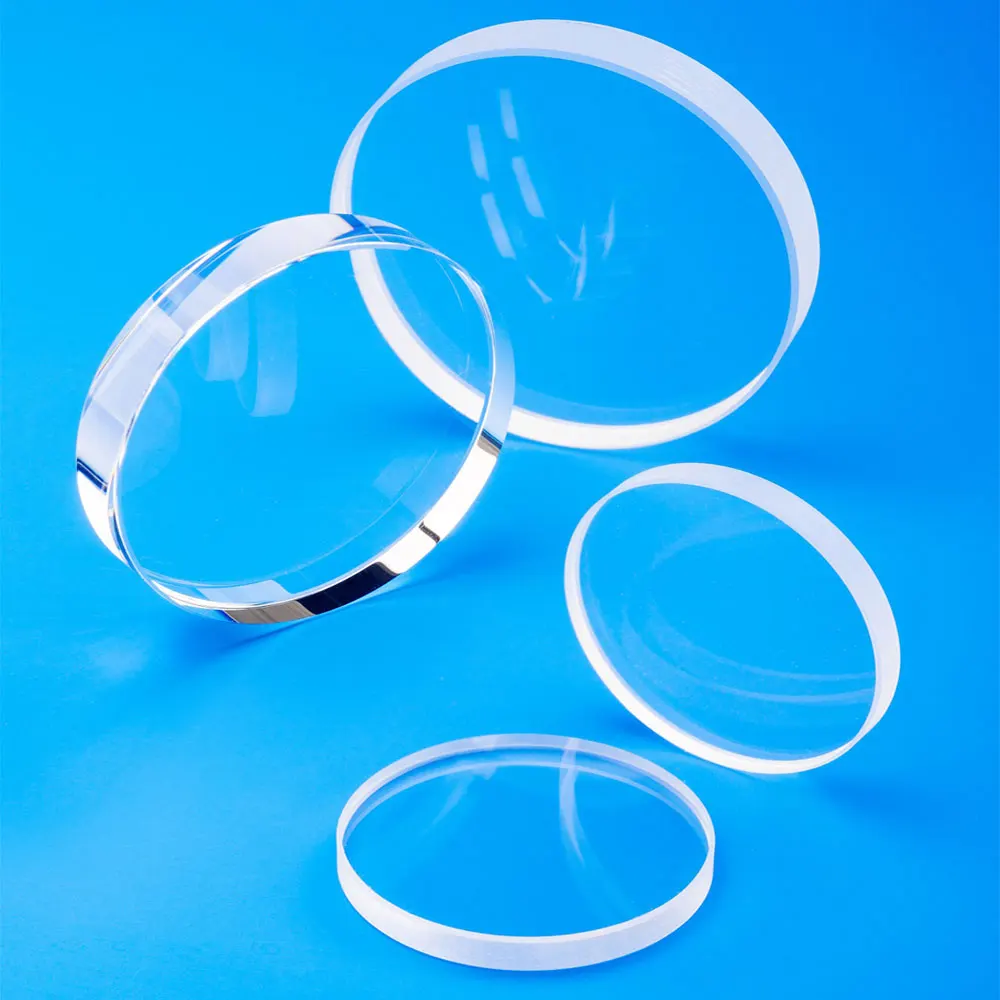

Машина для волоконной резки 6 кВт 34*5 мм кварцевый плавленый кварц с AR покрытием 30x5 1064 нм волоконные линзы защитные лазерной машины
D80-Fiber SI400-5M высокой мощности Прямая продажа с завода хорошая цена оптический лазерный сварочный аппарат
24 156,97-27 335,51 ₽

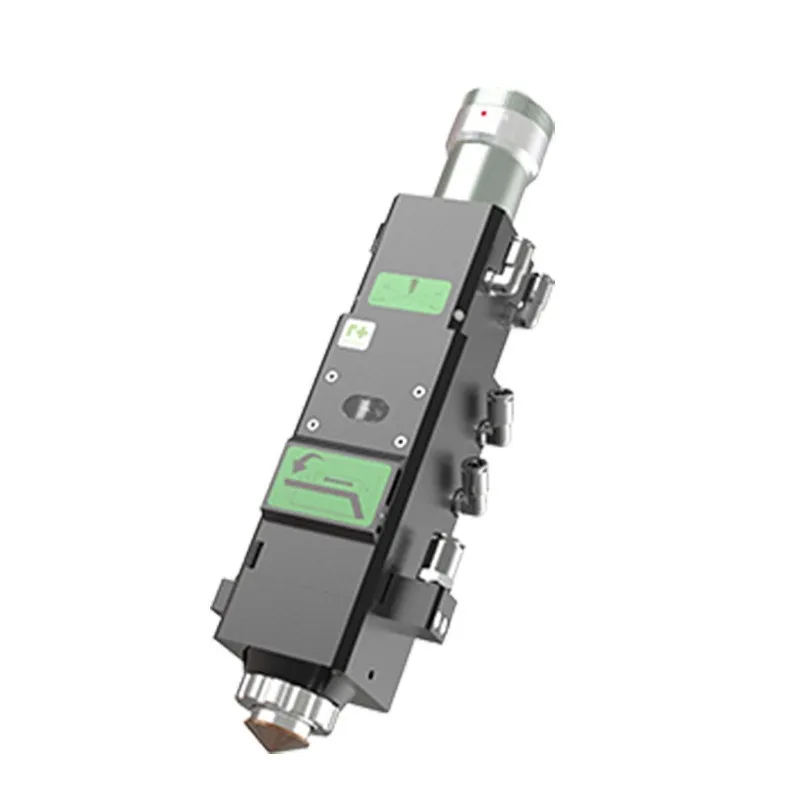

Оригинальная волоконная Лазерная режущая головка Raytools 1 кВт 2 3 лазерная с автофокусом
165 284,47-190 712,85 ₽
Зеленый лазерный линейный генератор проектор для выравнивания по дереву и камню
Инфракрасный Сенсорный проектор 830 нм 300 МВт лазерный модуль для обнаружения
5 721,39-6 357,10 ₽

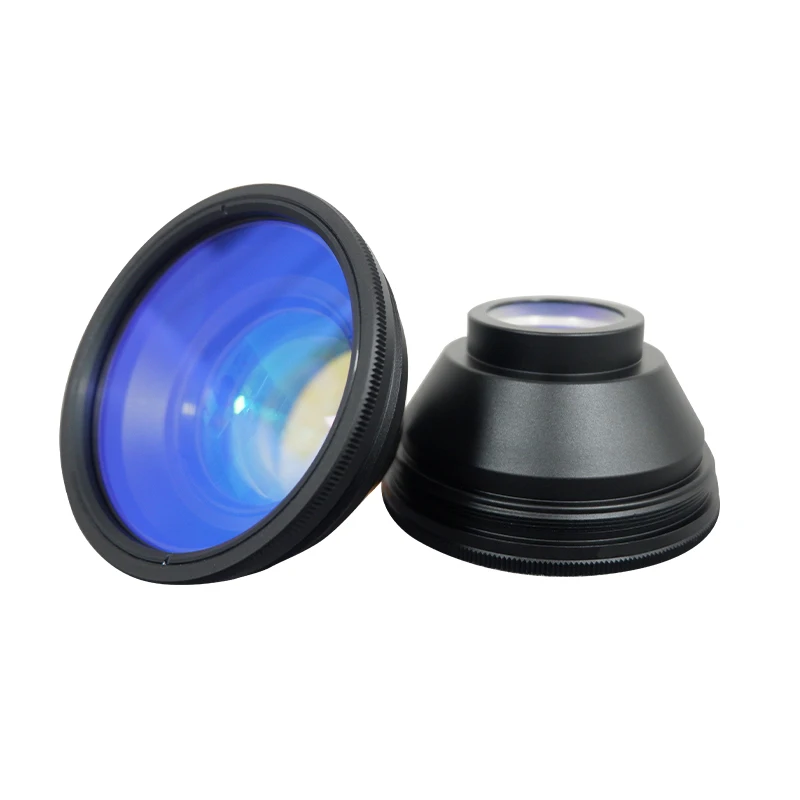

Линзы с высоким коэффициентом пропускания света 150*150 мм Hansel F-theta аксессуары для лазерного маркировочного станка

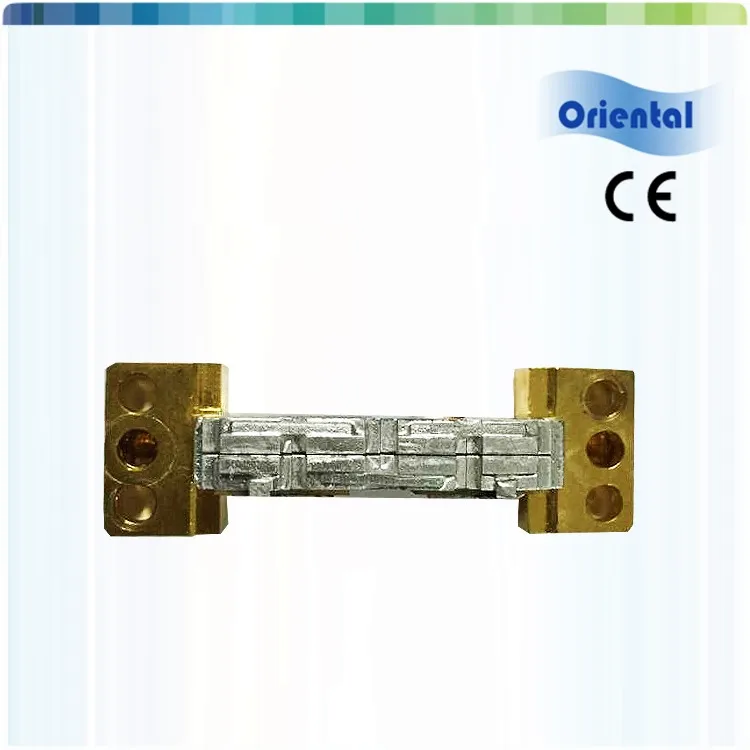

Лазерный диод CW и QCW горизонтальный стоечный насос 1064 нм nd:yag лазер
