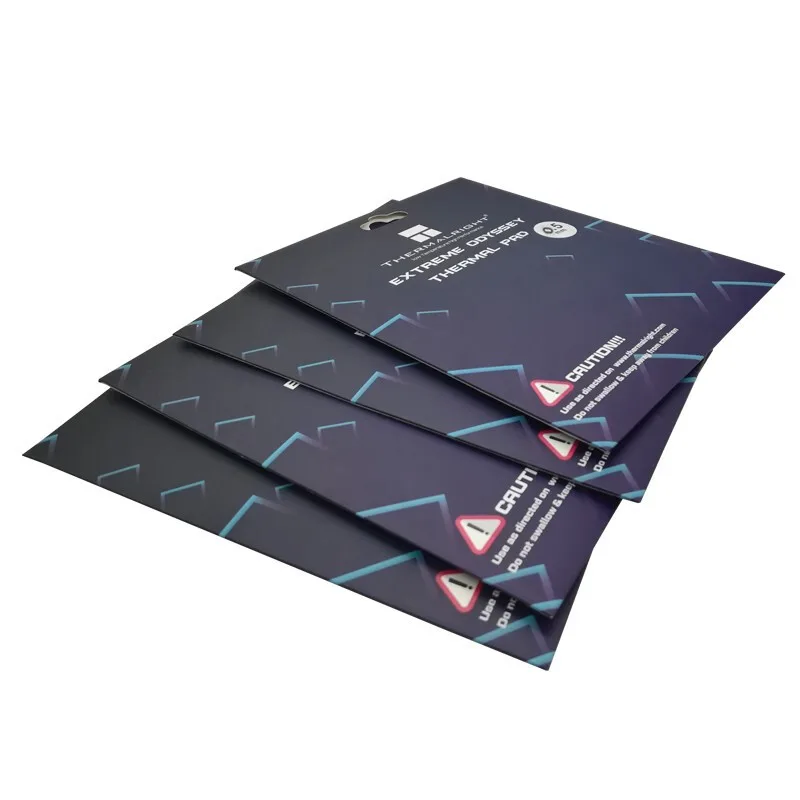

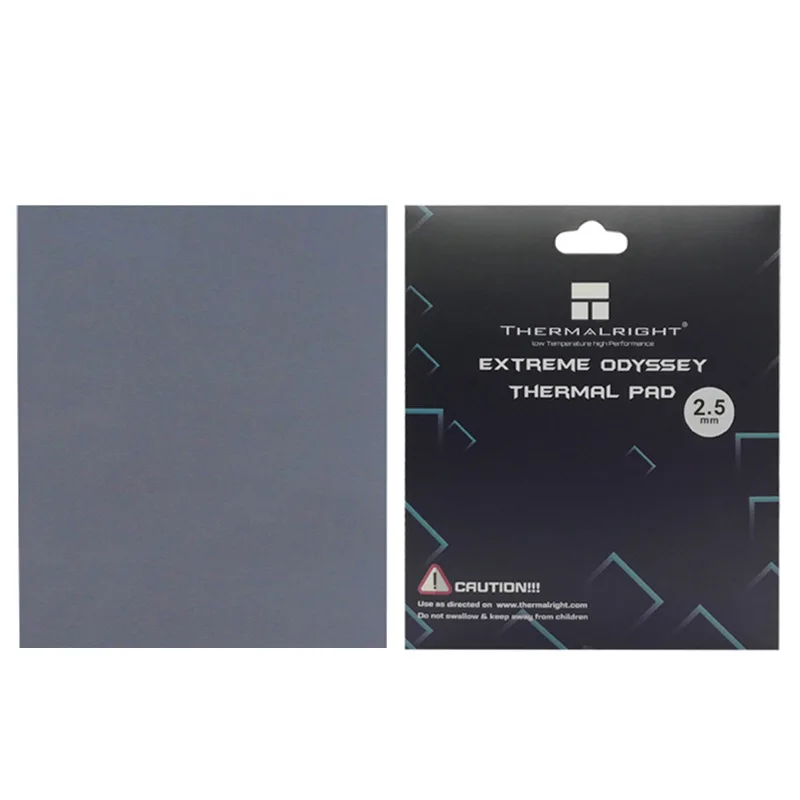

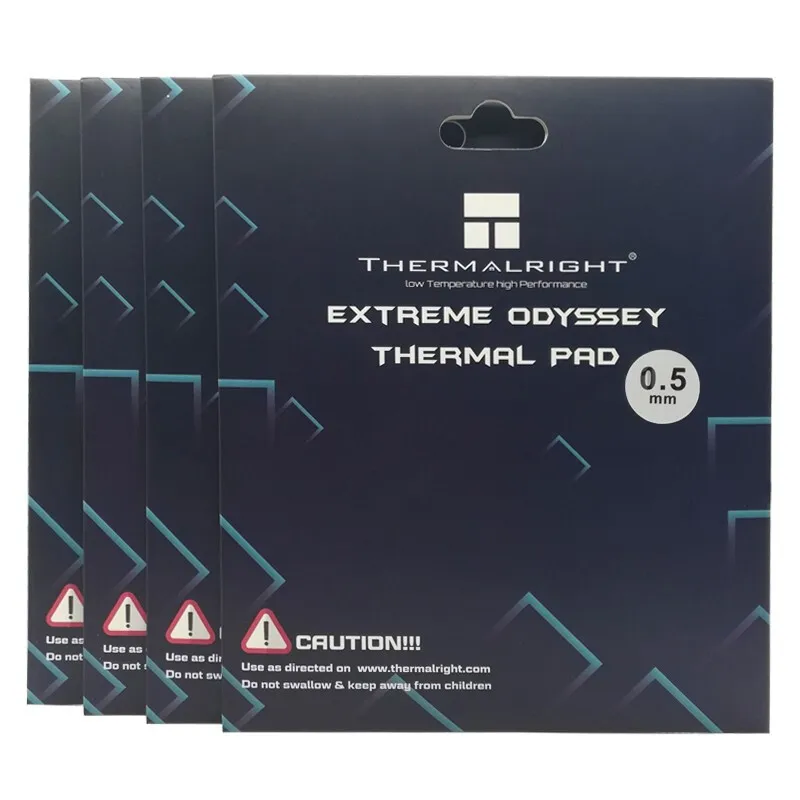

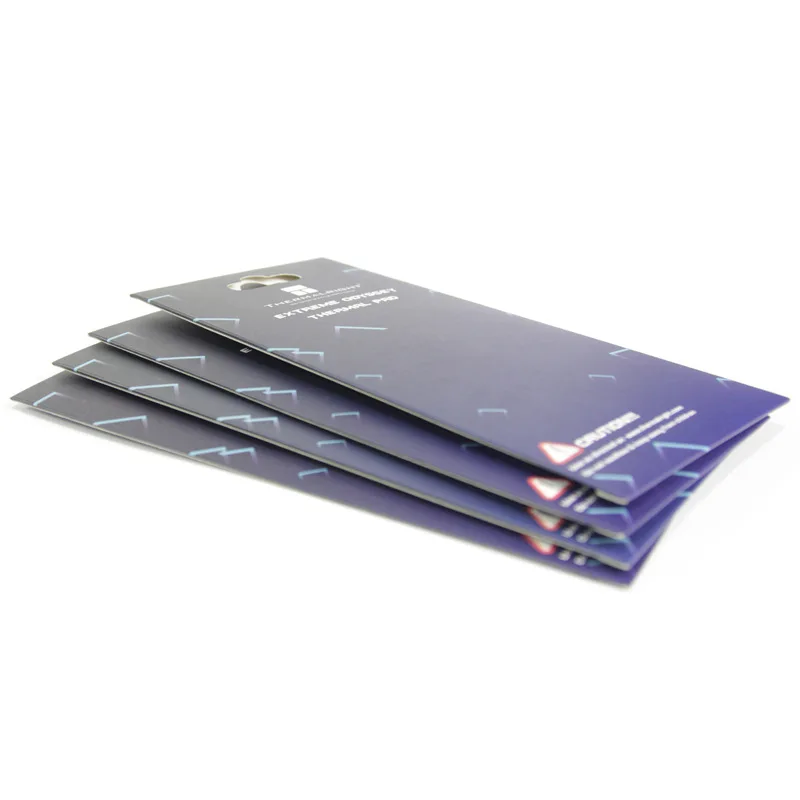

CPU GPU RTX 3080 3090 Thermalright Thermal Pad 12.8W/m.k

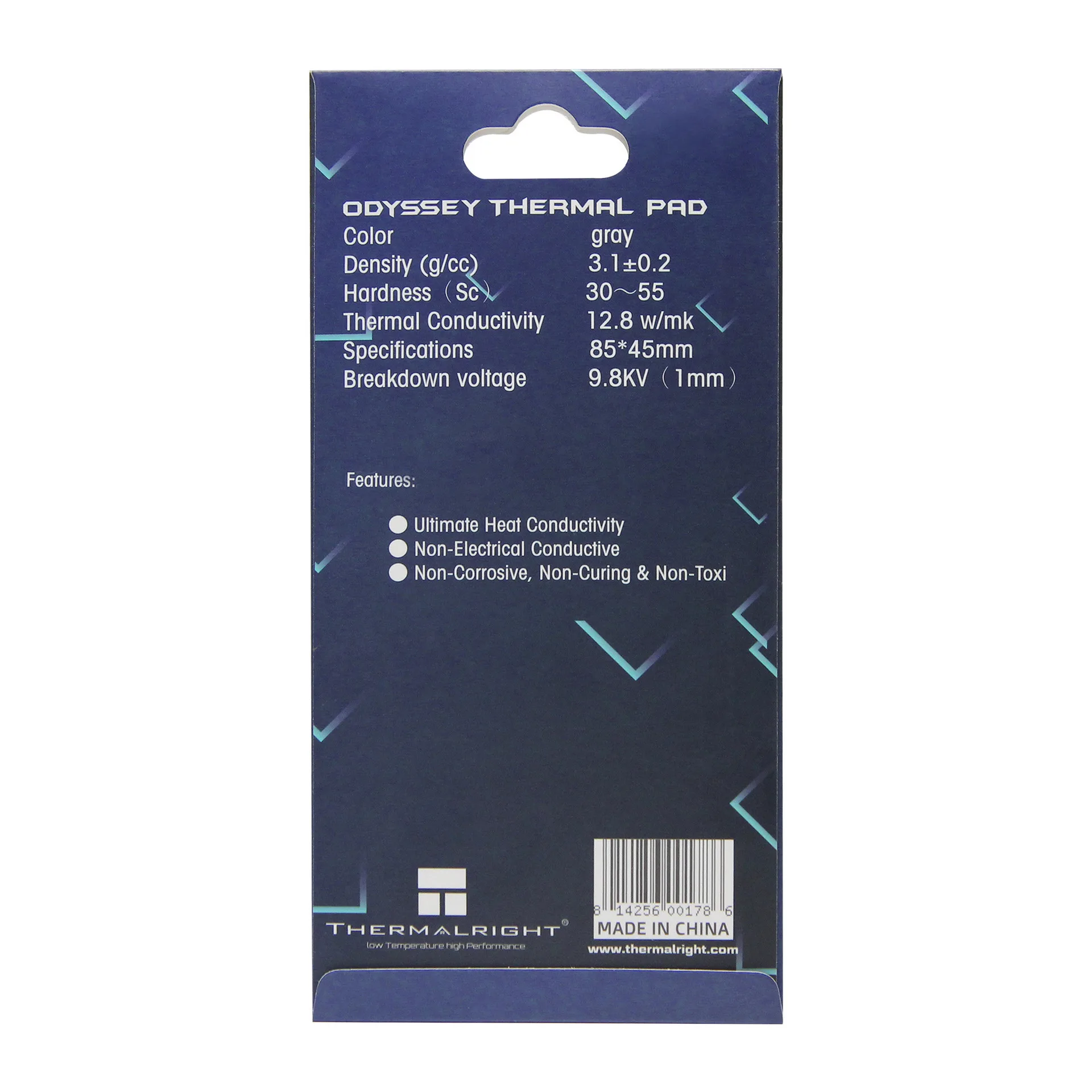

Datasheet:
--------------------------------------------------------------------------------------------------------------------
Color:gray
Density:3.1±0.2
Hardness:30~50
Thermal conductivity:12.8W/mk
Size:84*45mm*0.5mm,1.0mm,1.5mm and 2.0mm,2.5mm,3.0mm
120*120mm*0.5mm,1.0mm,1.5mm and 2.0mm,2.5mm,3.0mm
Breakdown Voltage:9.8KV
--------------------------------------------------------------------------------------------------------------------
Test Content | Typical Value | Test Method |
Model Number | GP1300 | --- |
Color | Gray/blue | Visual |
Thickness | 0.5 -5.0mm | ASTM D374 |
Specs | 200×400 mm | ASTM D1204 |
Density | 3.6g/cc | ASTM D792 |
Hardness | 50-80 Shore 00 | ASTM D2240 |
Continuous Temp | -50 to 200℃ | EN 344 |
Breakdown Voltage | 5500 VAC/mm | ASTM D149 |
Volume resistivity(Ω·cm) | 5.6×1012Ω.cm | ASTM D527 |
Tensile Strength(psi) | ≥35 | ASTM D412 |
UL Flammability Rating | 94 V0 | UL-94 |
Thermal Conductivity | 13.0W/m-k | ASTM D5470 |
Shenzhen Zhenzhixing Technology Co.,Ltd.,is founded in 2009,now is owns Shenzhen factory and new R&D production base in Jiangxi province.Its total registered capital is eleven million RMB Yuan,it has 120 employees.The company has passed ISO 9001:2008 international quality management system certification,company products through UL94-VO,main products include artificial graphite sheet,natural graphite sheet,high thermal conductive grease(paste),high thermal conductive silicone pad,pouring silicone sealant,thermal transfer tape,thermal silicone gel mud,thermal liquid silicone,electric conductive grease and other electric materials (Developing custom for the customer is available),it is one of the largest and most complete heat conducting materials,insulating materials and shielding materials comprehensive solution providers in China.
Shenzhen Zhenzhixing Technology Co.,Ltd. focuses on meeting customers needs,and wins with high quality,quick response and flexibility,has partnership with Changhong,Panasonic,Foxconn,Midea,ZTE,Huawei and other long-term customers.
Silicone Pad Packaging:
1. PET film covered--protection
2. Use paper card to separate each layer.
3. Standard export carton or customized.
4. Marked with customer's information or customized.
5. QC Department will check in case the packing method isn't safe enough.
6.Big quantity shipped by sea will packed in wooden case.
Silicone Pad Shipping:
1. By courier, like DHL, UPS, FEDEX, etc. It is door to door, usually it takes 3-5 days to arrive at destination.
2. By air to the airport, usually 5-7 days.
3. By shipping, usually, it will spend 15-30 days to arrive at customer factory.
