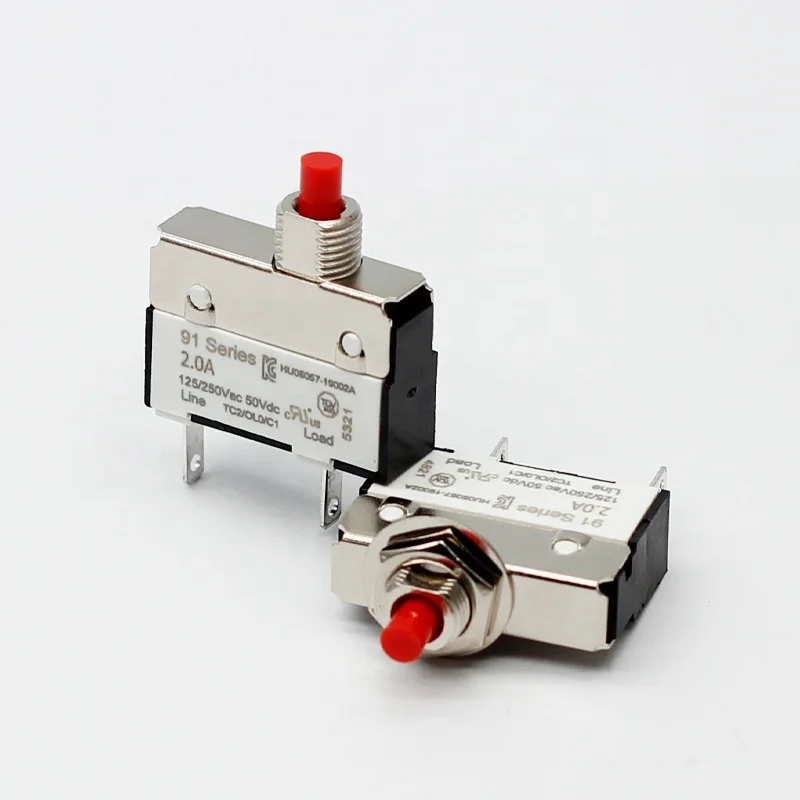

Kuoyuh 91 серия 2A термозащита от перегрузки Автоматический выключатель красная кнопка ручной сброс автоматический

Сохранить в закладки 1600477757850:


Цена:1,05 $ - 1,20 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

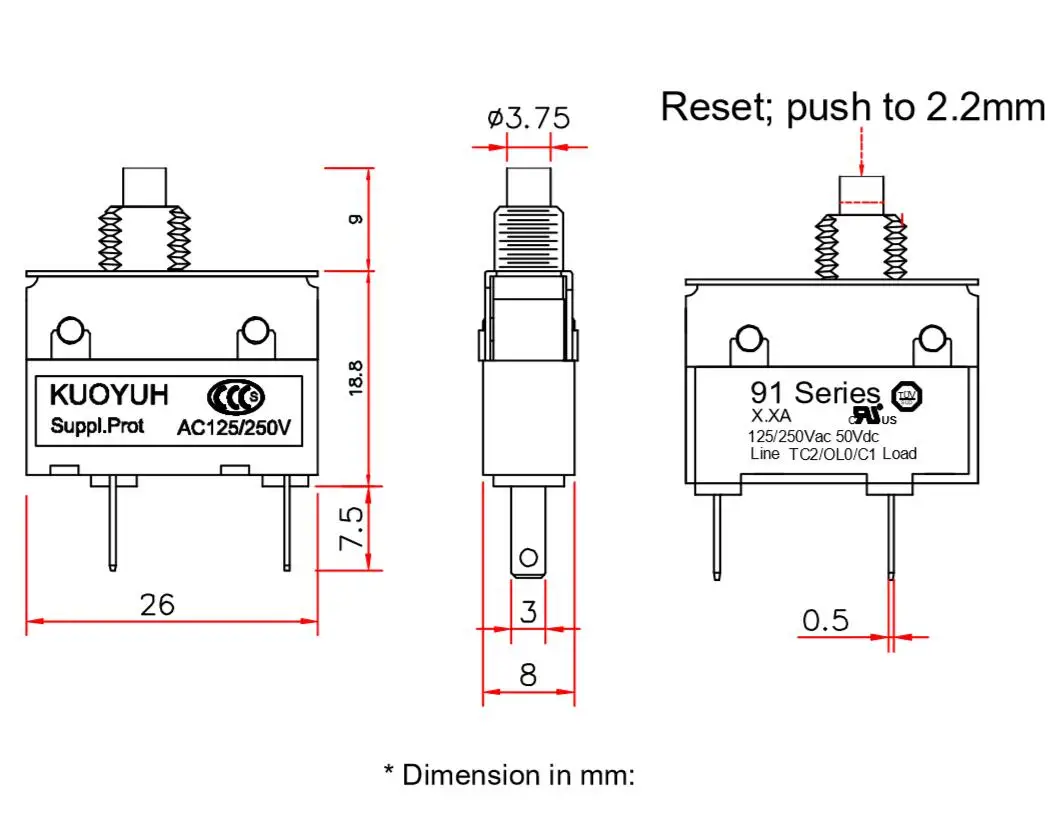

 91circuit breaker.jpg91 circuit breaker-01.jpg


Technical data


Current rating rang          0.5-10A


Input voltage rating         125 / 250VAC : 50VDC


Interrupting Capacity       125 / 250VAC X 1 , 000A ( UL 1077 ).


Typical life                        1,000 operations at 200% overload


Insulation co-ordination     Rated impulse withstand voltage 2 . 5kv


Dielectric Strength             > 1500VAC / min.


Insulation Resistance        > 100MOHM ( DC 500V )


Degree of protection           Terminal area IPOO , operating area IP40





.Mechanical/Environmental


DataOperating Ambient Temperature: -10C to +60C


Termination: 110"(2. 8mm quick connects or solder terminals

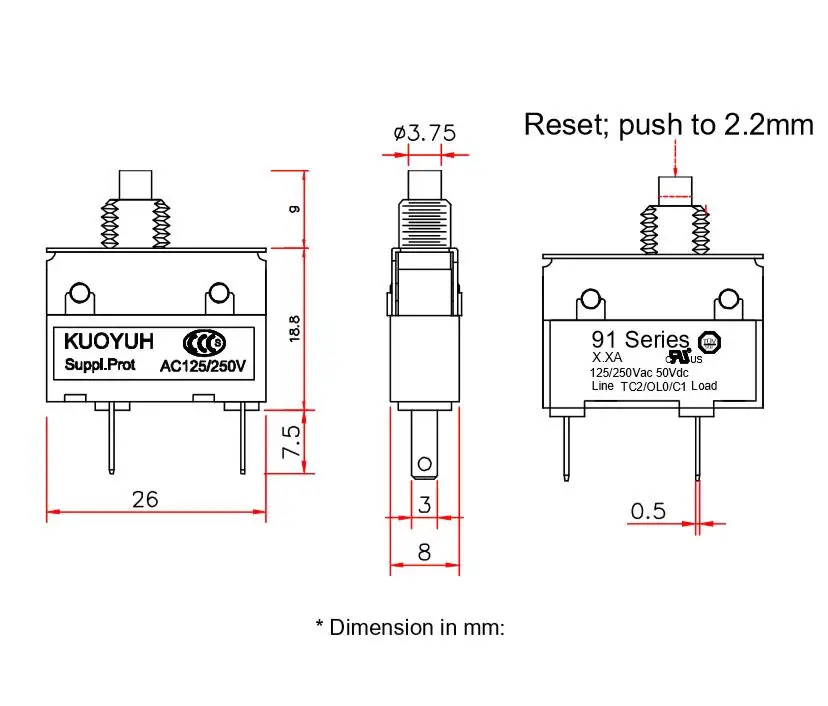

Mounting: Various options. See Ordering Information and drawings

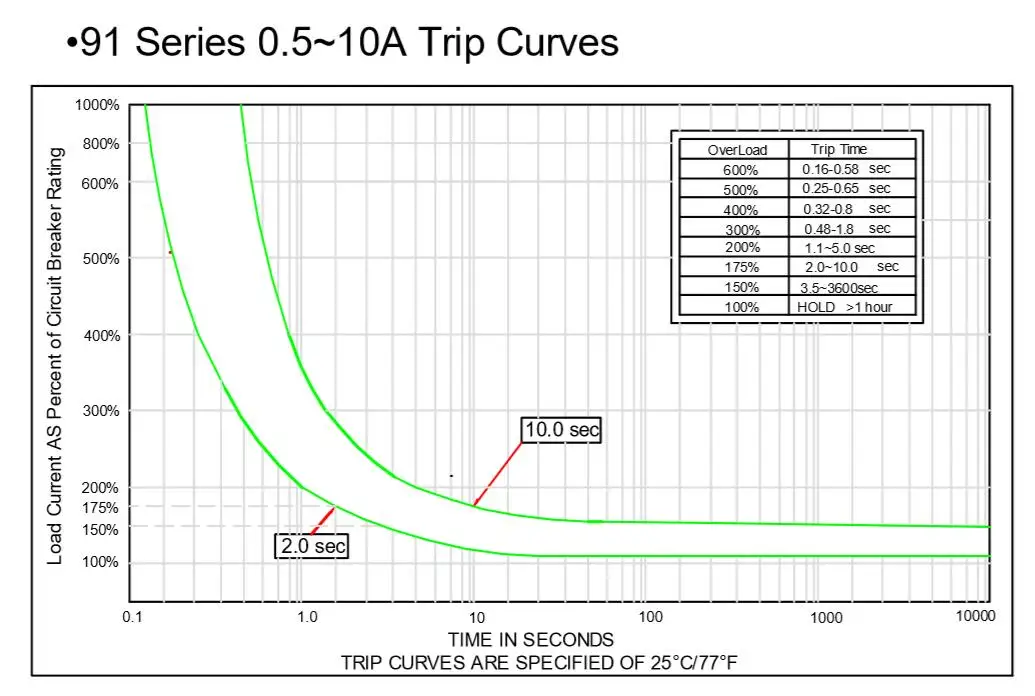

Calibration(at25℃)


100% of Rated Current: Hold, No Trip


150% of Rated Current: Tnp Within 1 Hour.


175% of Rated Current: 2.0-10.0 sec Trip


200% of Rated Current: 1. 1-5.0 sec Trip





Approval


Approval File No                   Rated current             Rated voltage


CUL UL E155159                    0.5-10.0A                125/250VAC.50VDC


TUV SUD B150158611006     0.5-10.0A                125/250VAC,5OVDC


CCC201101030752058          1.0-10.0A                125/250VAC.


VDE40036160                        1.0-10.0A                125/250VAC

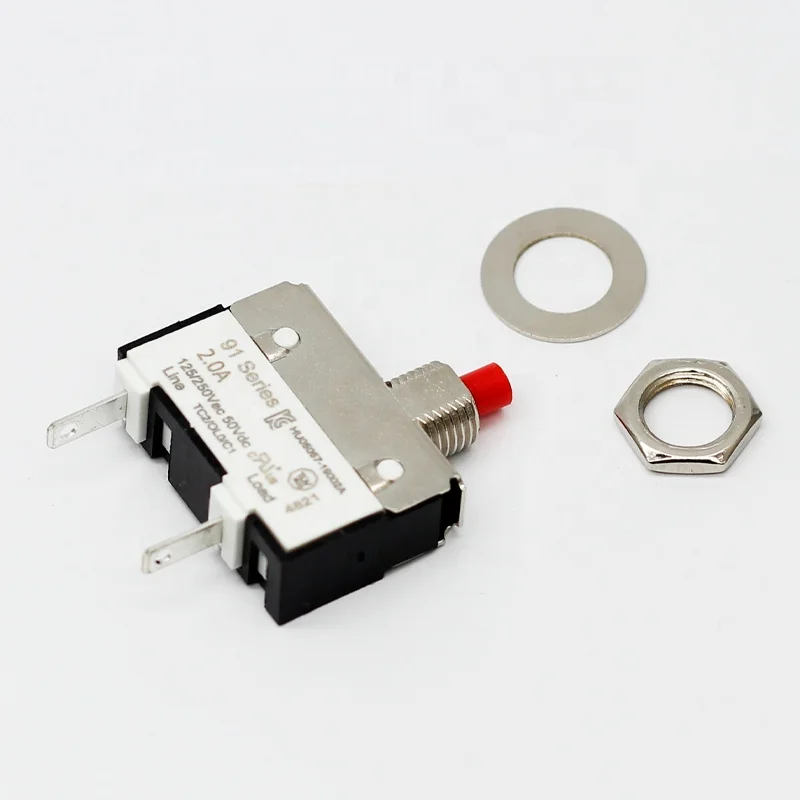

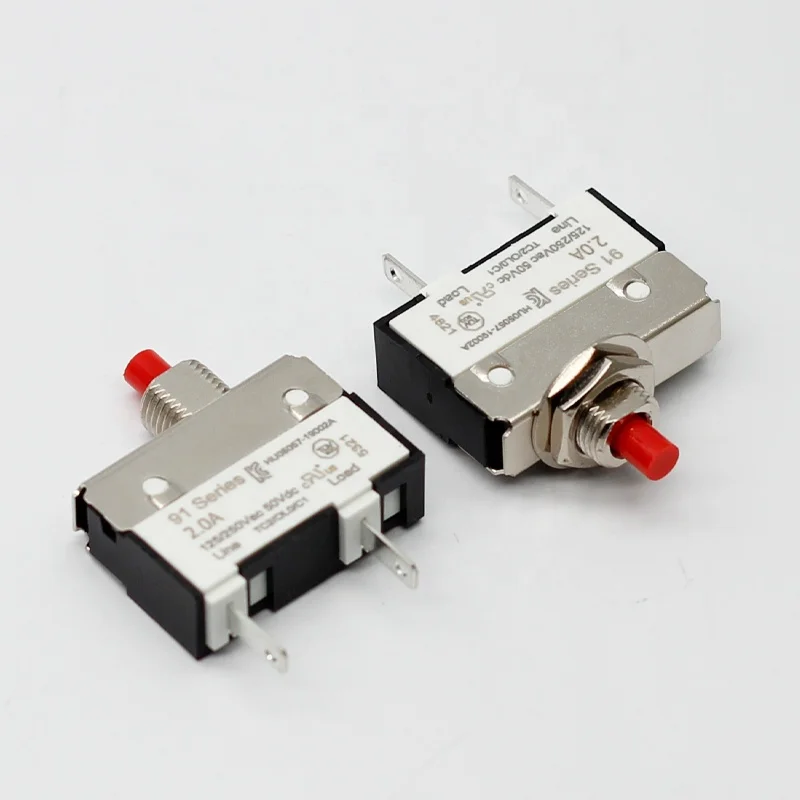

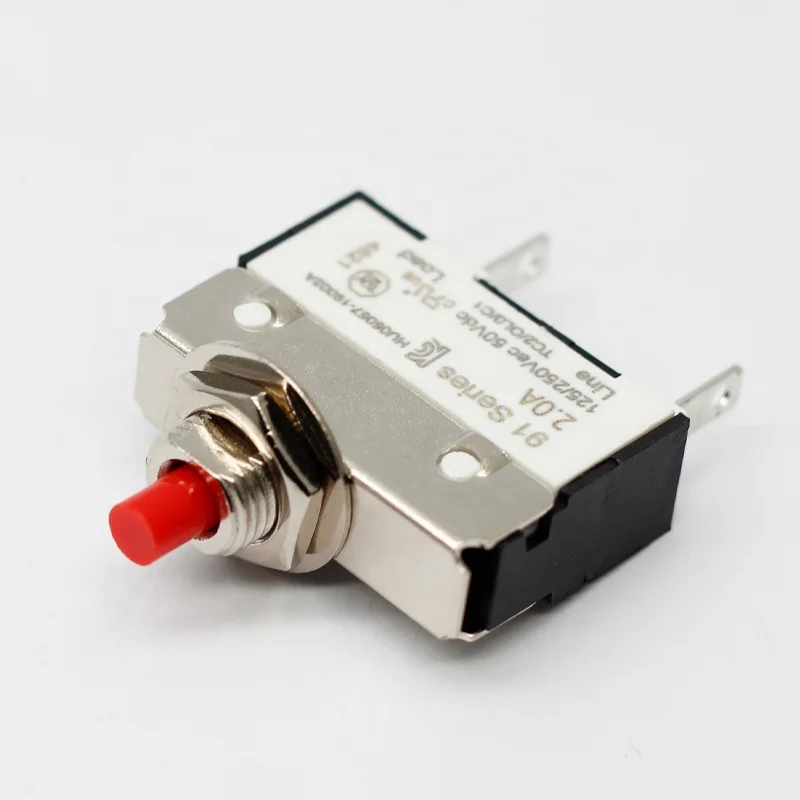

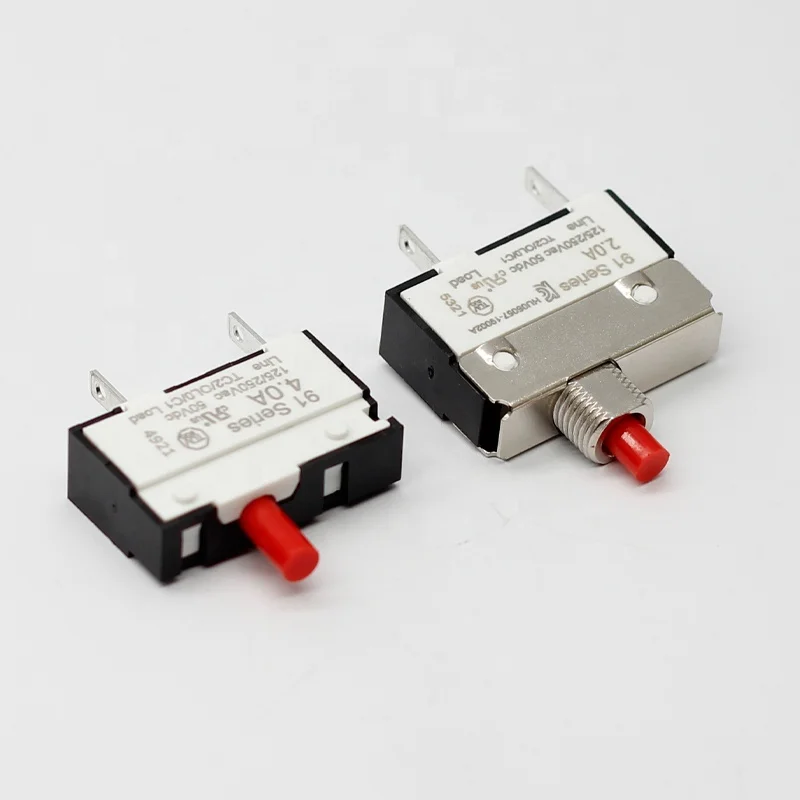

91-BMR-2.0A-1.jpg91-BMR-2.0A-2.jpg91-BMR-2.0A-3.jpg91-BMR-2.0A-4.jpg91-ANR-4.0A-6.jpg
