Product Description

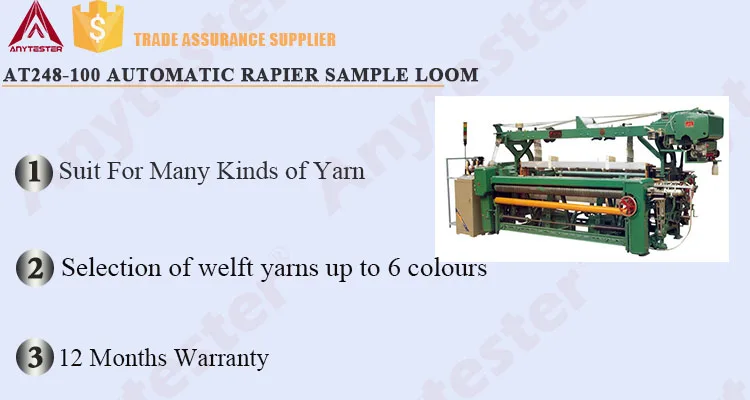

AT248 Automatic Rapier Sample Loom

AT248-100 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of dobby shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

Specification

Model	AT248-100
Reed width	100cm
Yarn linear density range	5~500tex
Weft yarn count range	Cotton 5Ne~80Ne Jute 8Nm~130Nm Man-made fibers 1200dtex~75tex
Weft density	200weft/min, adjustable
No. of heald frame	Max. 16pcs
Color selection	6 color or 8 color
Let-off	Active electronic control
Take-up	Motor control
Shedding	Dobby shedding
Beating-up	Motor control
Disc diameter of warp beam	Ф600mm
Diameter of cloth roll	Max. Ф300mm
Power	AC380V 50Hz, three-phase

Details and Features

Dobby shedding, active electronic let-off and automatic beat-up and take-up;
Rapier weft insertion, suitable for various yarns;
Heald frames up to 16pcs, easy to mount and dismount;
Automatic selection of weft yarns up to 6 colors;
Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;

Our Company

Packing&Delivery

Packing
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
