Product Description
Overview
HiOSO FOWAY1310TFS series switch supply ten ports 100/1000M Ethernet Switch, it provides eight 100M (10/100M adaptive) RJ45 ports and 2 Gigabit SFP ports uplink, include managed and non-managed types, managed type supports web management and SNMP management.
Features
Support 8 100M (10/100M adaptive) RJ45 ports and 2 1000M SFP port uplink
web management and SNMP management inside
Support 100/1000M port full rate, full-duplex non-blocking forwarding
Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth
Support to provide wall-mounted hanger better for installation(optional), metal casing better for heat dissipating
web management and SNMP management inside
Support 100/1000M port full rate, full-duplex non-blocking forwarding
Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth
Support to provide wall-mounted hanger better for installation(optional), metal casing better for heat dissipating
Technical Specification
Parameter | Specification |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control，IEEE802.1q VLAN，IEEE802.1p QoS, IEEE802.1d Spanning Tree |
Wavelength | SFP Module: 850nm/1310nm/1490nm/1550nm |
Distance | 1000M SFP multi-mode:220m (fiber 62.5/125μm）/ 550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m |
Port | 8 100M RJ45 ports : 10/100Mbps 2 1000M SFP: 1 Gbps, 1000M SFP |
MAC | 8K |
Buffer memory space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power | DC12V/1A |
Power consumption | 6W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 28mm (H)×193mm(W)×119mm (D) |
Order information
No | Product code | NMS | Ports | Power |
1 | FOWAY1310TFS | NO | 8 100M RJ45 + 2 1000M SFP uplink | DC12V |
2 | FOWAY1310TFSM | YES | 8 100M RJ45 + 2 1000M SFP uplink | DC12V |
3 | FOWAY1310TFSP | NO | 8 100M RJ45 + 2 1000M SFP uplink | AC110V/220V |
4 | FOWAY1310TFSPM | YES | 8 100M RJ45 + 2 1000M SFP uplink | AC110V/220V |
Company Profile
HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.
To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.
With the principle of "high quality, A-class service and continuous innovation", we have set up perfect testing systems which ensure the quality of every out-going product before delivering to the customers. We have made our products meet ISO9001:2000 international requirements, and obtained the certificate of Network Access License from Telecommunication Equipment Ministry.
To be our clients, you can enjoy perfect services: technical support and related trainings can be obtained at any time, and problems occurred can be solved within 24 working hours. Besides, we provide a one-year replacement, a three-year free repair, and a whole life maintenance service for all of our products.
To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.
With the principle of "high quality, A-class service and continuous innovation", we have set up perfect testing systems which ensure the quality of every out-going product before delivering to the customers. We have made our products meet ISO9001:2000 international requirements, and obtained the certificate of Network Access License from Telecommunication Equipment Ministry.
To be our clients, you can enjoy perfect services: technical support and related trainings can be obtained at any time, and problems occurred can be solved within 24 working hours. Besides, we provide a one-year replacement, a three-year free repair, and a whole life maintenance service for all of our products.
3D Reality Showroom
VR
Hot Sales
Packing & Delivery
Standard packing
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to South America(30.00%),Southeast Asia(30.00%),Western Europe(20.00%),North America(10.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Optical Line Terminal,Optical Network Unit,Fiber Media Converter,Switch,SFP
4. why should you buy from us not from other suppliers?
HiOSO founed in 2002, Shenzhen. HiOSO is a manufacturer focusing on GPON,GEPON, PoE switches, fiber switches, industrial ethernet switches,Din Rail switches,Access network Ethernet switches, EOC and fiber media converters, fiber modems, ECC, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2002,sell to South America(30.00%),Southeast Asia(30.00%),Western Europe(20.00%),North America(10.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Optical Line Terminal,Optical Network Unit,Fiber Media Converter,Switch,SFP
4. why should you buy from us not from other suppliers?
HiOSO founed in 2002, Shenzhen. HiOSO is a manufacturer focusing on GPON,GEPON, PoE switches, fiber switches, industrial ethernet switches,Din Rail switches,Access network Ethernet switches, EOC and fiber media converters, fiber modems, ECC, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
Похожие товары

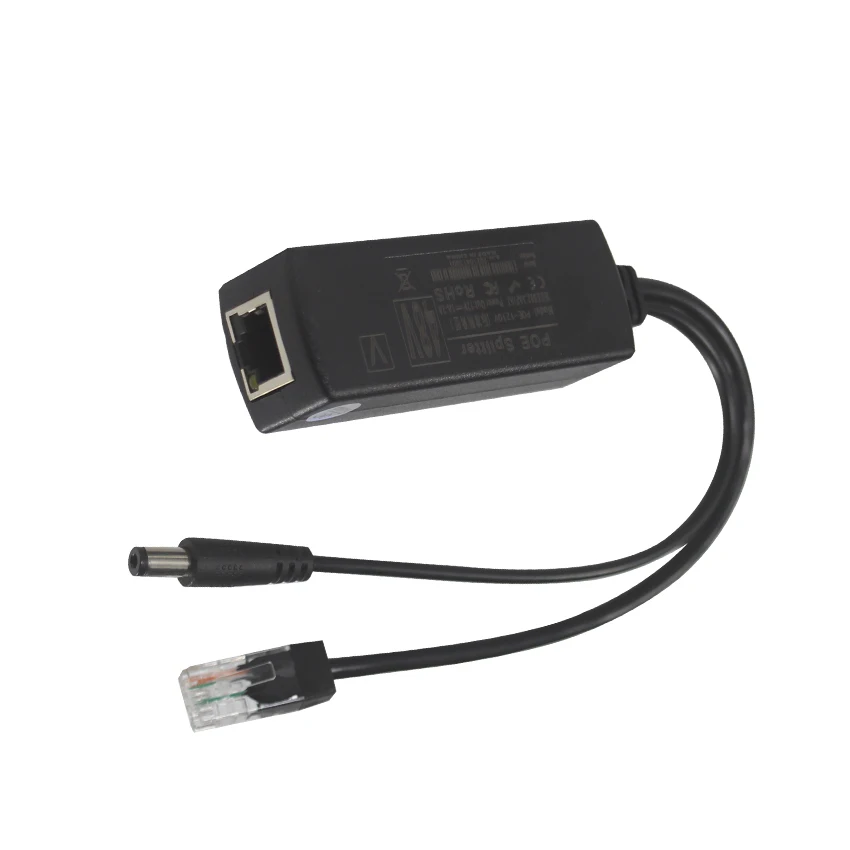

Poe коммутатор или инжектор совместимый с IEEE 802.3Af Разъем 5 мм X 2 1 POE
1,35 $ - 1,58 $

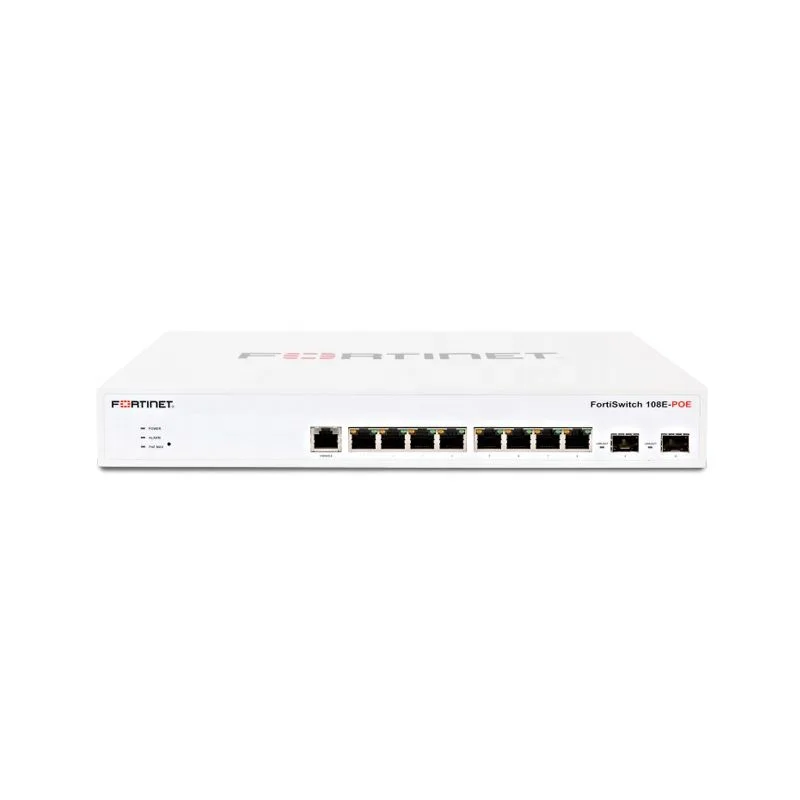

Новый Fortinet FortiSwitch 108E-POE POE слоя 2 гигабитный коммутатор FS-108E-POE

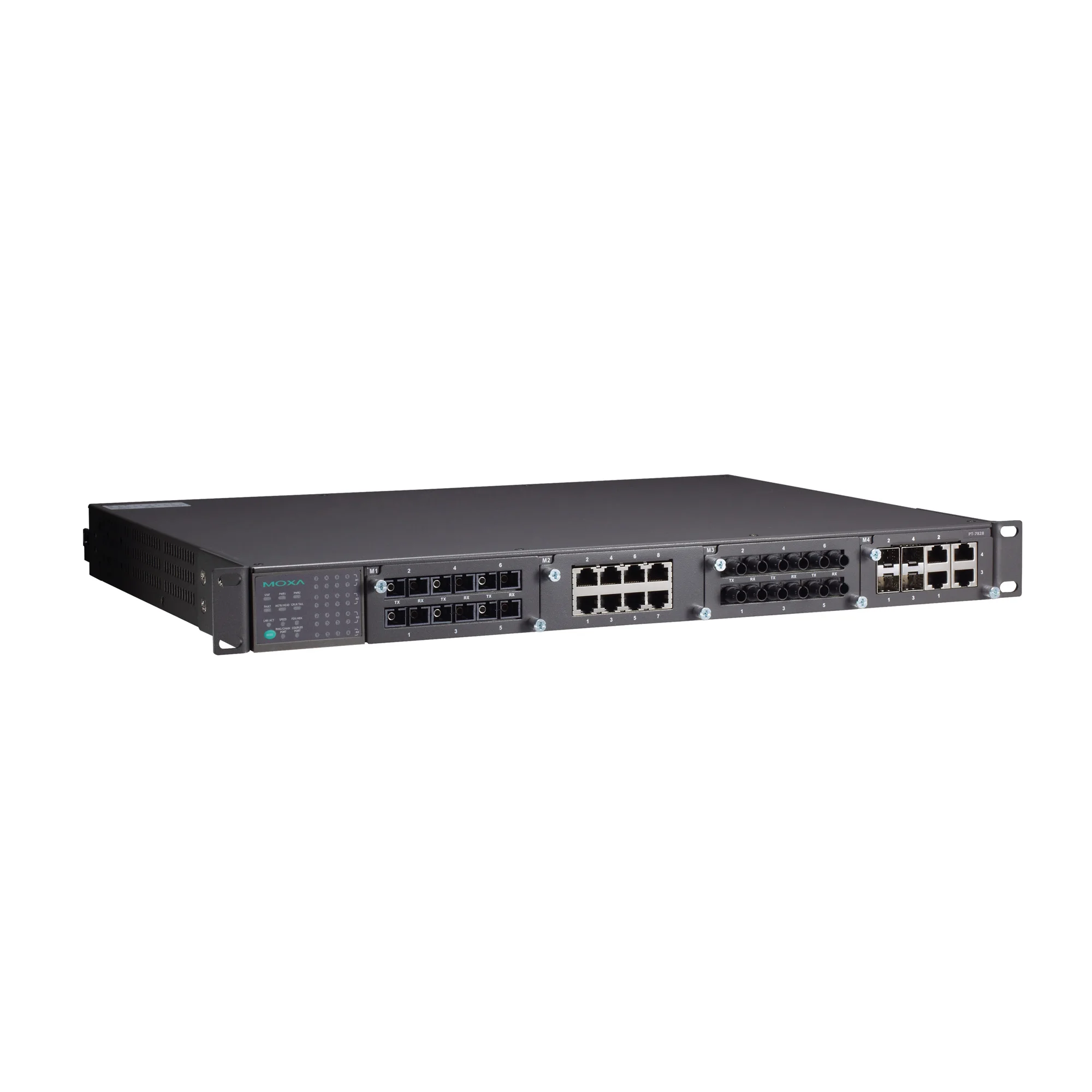

Мокса PT-7828 серии IEC 61850-3/EN 50155 24 + 4G порт 3-х слойные модульный гигабитный управляемой стойки Ethernet сетевой
300,00 $
C9300-24UX-E C9300-24UX-A 9300 24-портовый mgig и UPOE сеть необходимое преимущество

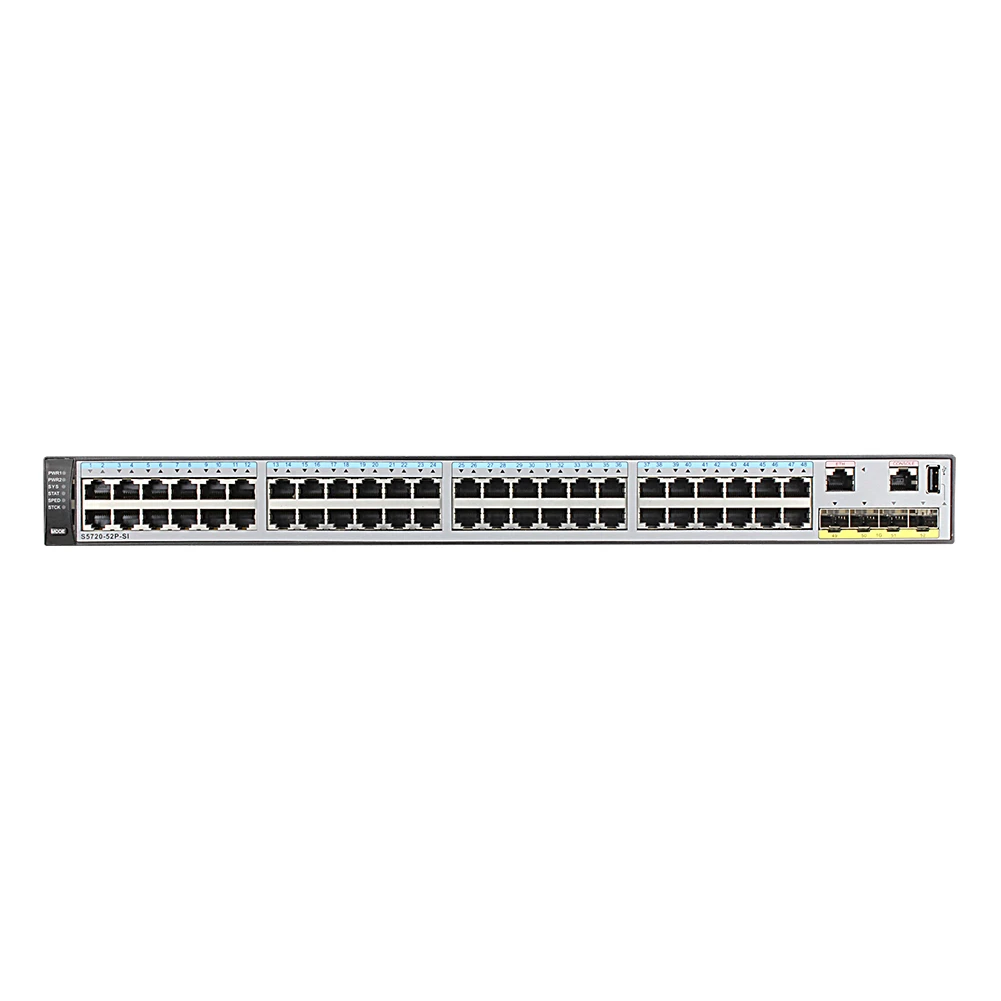

Оптовая продажа низкая цена S5720-52p-si-ac сорок восемь портов 02350dlu 10/100/1000base-t + четыре порта

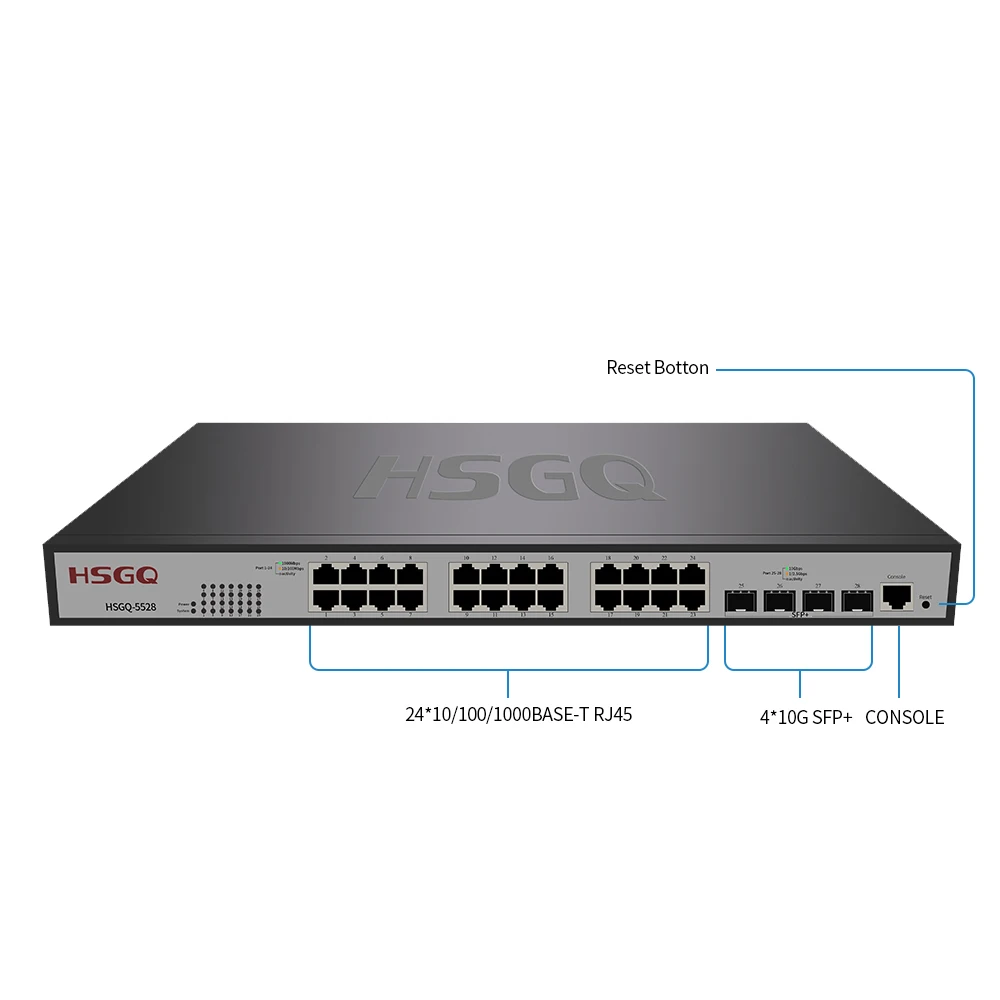

HSGQ-5528 24 порта 8-портовый коммутатор питания через Ethernet 10/100/1000 Мбит/с поставить камера охранного видеонаблюдения
137,00 $ - 257,00 $

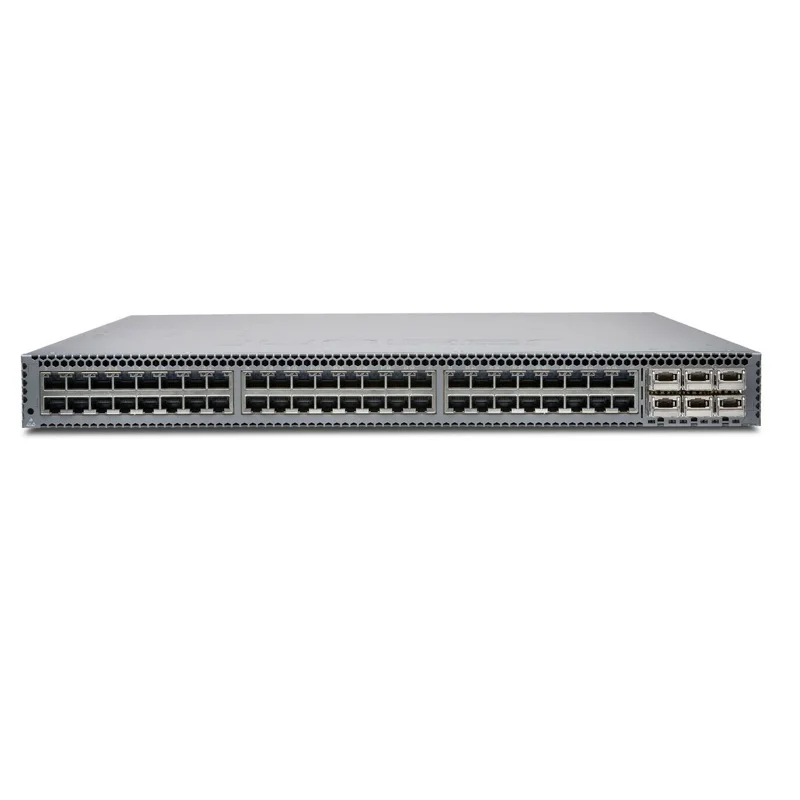

Ju ni за QFX5100-48T-AFO 48 100M/1G/10G Base-6 комплектов/партия QSFP 2X
