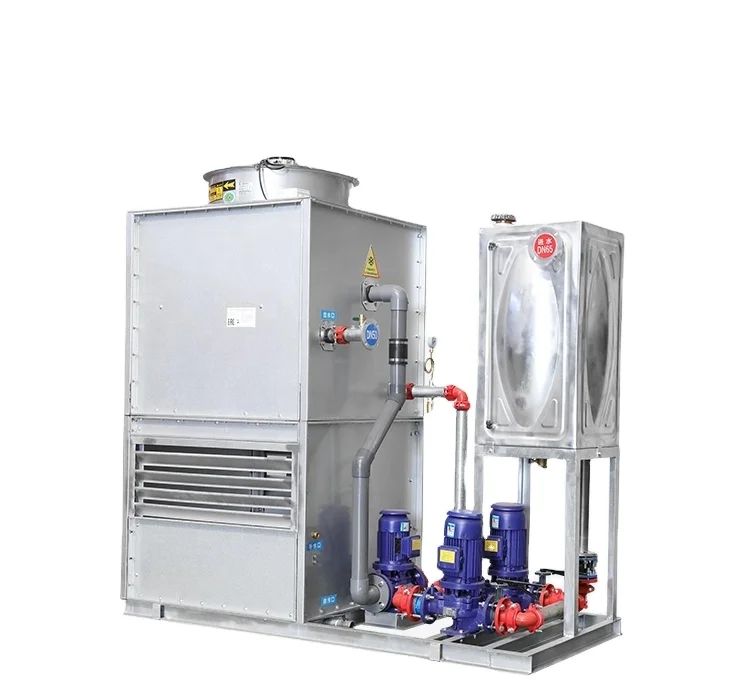

Китайский Испарительный конденсатор нового типа RXS с замкнутым контуром, система водяного охлаждения, башня для промышленного охлаждения
9 500,00 $ - 10 000,00 $
Водяная охлаждающая башня ПВХ заполняет вентиляторы катушка распылительное сопло насос и запасные части.
- Категория: Cooling Towers >>>
- Поставщик: Wuxi Master Cooling Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1600478659216:
Описание и отзывы
Характеристики
Product Paramenters
Cooling Tower Item | Closed Cooling Tower |
Material | Stainless steel or customized |
Application | Manufacturing plant,construction project,hotel,etc |
Customize | Available |
Warranty | 1 year |
Products Description
Operational Principle
Internal circulating water system: The circulating water is heated up through heat transferand then enters the heat exchanger (cooling coils) , The waste heat is exchanged by contacting the falling spray water through the out shell of the coil, and forms saturated hot andhumid air alternately with the dry and cold air inlet during at the bottom of the coolingtower (on both sides or all sides). Then the cooled circulating water is sent to the heatsource by the circulating pump of the system.
External circulating water system:The spray water is sent from the lower water tank to theupper water distribution pipe by the spray water pump, and the water spray contact withthe heat exchanger pipe. Part of the water in evaporation with heat, and these heat is dis-charged by the top fan, and water vapor is blocked back by the special structure of the de-hydrator then fall into the collection tank for circulate again.
Characteristics:
1.Compact Structure
The counter-flow closed tower has four faces for wind inlet, which is relatively uniform.Theinner structure of the tower is more compact, reducing the footprint and meeting the needsof user space.Under the same occupation area, the heat transfer efficiency is higher thanthat of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet, and will not to short flow,which can ensure that the saturation humidity of the inlet air is relatively low. And the ar-rangement of the fan ensures the uniform distribution of air volume, less heat dissipationblind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit, it will convenient forcustomers to operate, and easy to transportation & installation.
External circulating water system:The spray water is sent from the lower water tank to theupper water distribution pipe by the spray water pump, and the water spray contact withthe heat exchanger pipe. Part of the water in evaporation with heat, and these heat is dis-charged by the top fan, and water vapor is blocked back by the special structure of the de-hydrator then fall into the collection tank for circulate again.
Characteristics:
1.Compact Structure
The counter-flow closed tower has four faces for wind inlet, which is relatively uniform.Theinner structure of the tower is more compact, reducing the footprint and meeting the needsof user space.Under the same occupation area, the heat transfer efficiency is higher thanthat of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet, and will not to short flow,which can ensure that the saturation humidity of the inlet air is relatively low. And the ar-rangement of the fan ensures the uniform distribution of air volume, less heat dissipationblind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit, it will convenient forcustomers to operate, and easy to transportation & installation.
Application
Central air conditioning cooling system, cooling system, air compressor, injection molding ma-chine,intermediate frequency furnace cooling system, cooling system, vacuum furnace, furnacecooling system cooling system, cooling system, heat treatment quenching oil cooling system,quenching,quenching medium liquid cooling system cooling system, the hydraulic oil coolingsystem, copper sulfate, cooling system, water cooling system, water cooling system, coolingsystem, rectifier Conductive seat cooling system, copper bar cooling system, rectifier coolingsystem, capacitor cooling system, thyristor cooling system, silicon rectifier cooling system,vacuum pump cooling system, heating equipment cooling system, cooling tower of heating cooling system and etc.
Main Raw Materials
Outer shell:Aluminum-zinc plate/ Superdyma/304SS/316L
Brand:Bao steel/POSCO
High strength and toughness, corrosion resistance,sultable for long distance transportation.Laser cut-ting technology has more fine workmanship.
Thickness:2-3mm
High strength and toughness, corrosion resistance,sultable for long distance transportation.Laser cut-ting technology has more fine workmanship.
Thickness:2-3mm

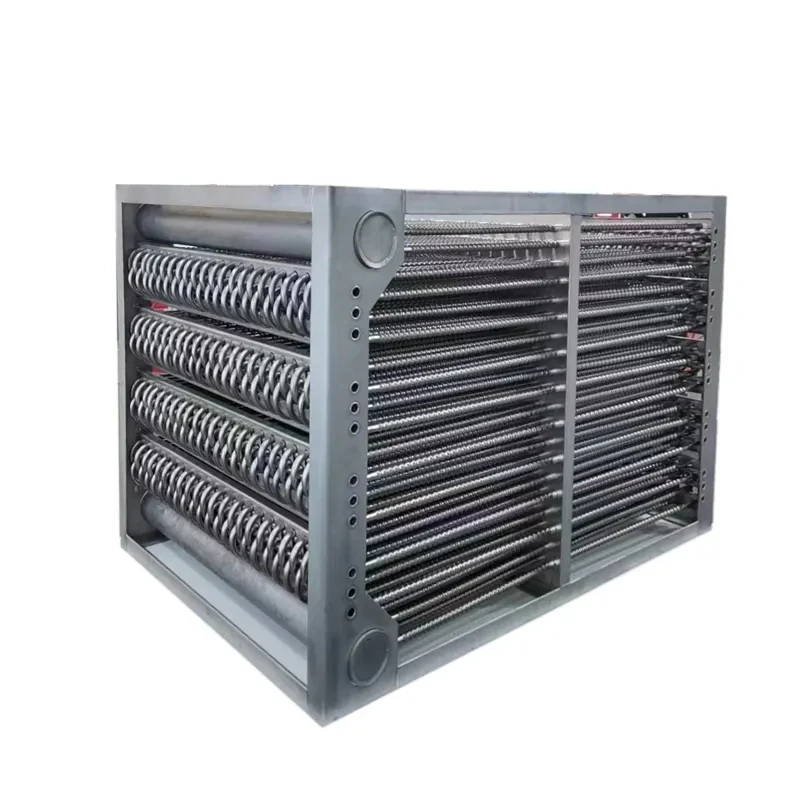

Cooling coils : 304SS / 316L / T2 red copper
Welding manner : Automatic weldingStainless steel - is durable , more advantageous under high pressure and high strength conditions , cheaper , more corrosion resistant , more frost resistant , more difficult to scale.
Red copper-thermal conductivity has significant advantages.
high recycling and utilization rate
Pipe Diameter : 16 / 19 / 22 / 25mm
Red copper-thermal conductivity has significant advantages.
high recycling and utilization rate
Pipe Diameter : 16 / 19 / 22 / 25mm
Spray system :
-Spraying Pump ( motor : Siemens , TECO , WEG , ABBSpecial circulating spraying pump with the protective level is IP55 , no leakage , long life span . Adopt special out door motor , with special imported bearing to ensure the pump reliable operation.And has following advantages : small horse power , large flow volume , lownoises and etc . high performances .

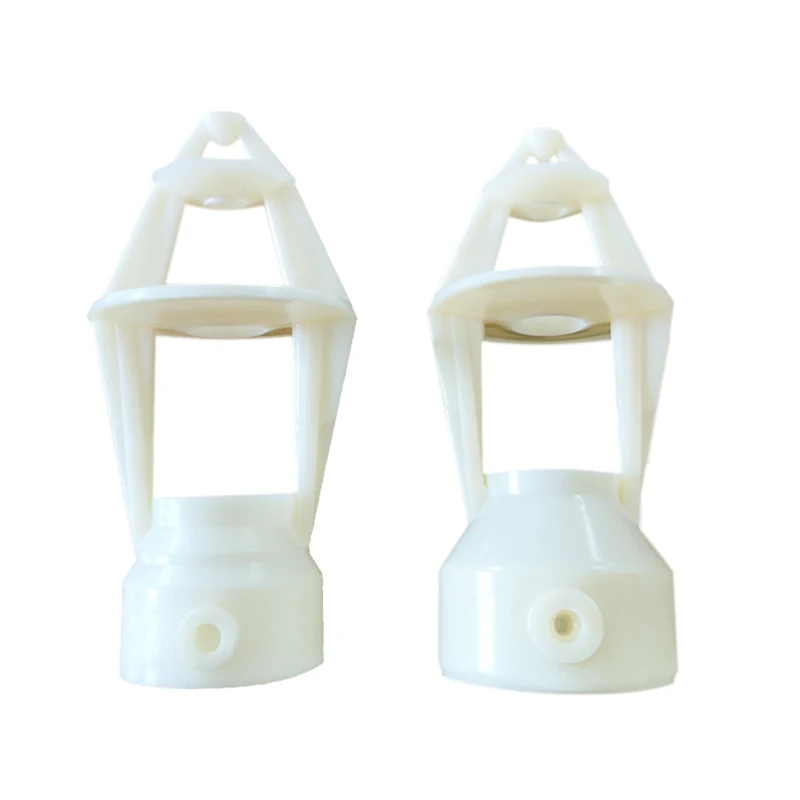

-Spraying Nozzle
The high-efficiency water spray system provides important guarantee for the cooling capacity . Spray water is evenly distributed, and the spray nuzzles areeasy to clean and replace .
-Spraying Nozzle
The high-efficiency water spray system provides important guarantee for the cooling capacity . Spray water is evenly distributed, and the spray nuzzles areeasy to clean and replace .

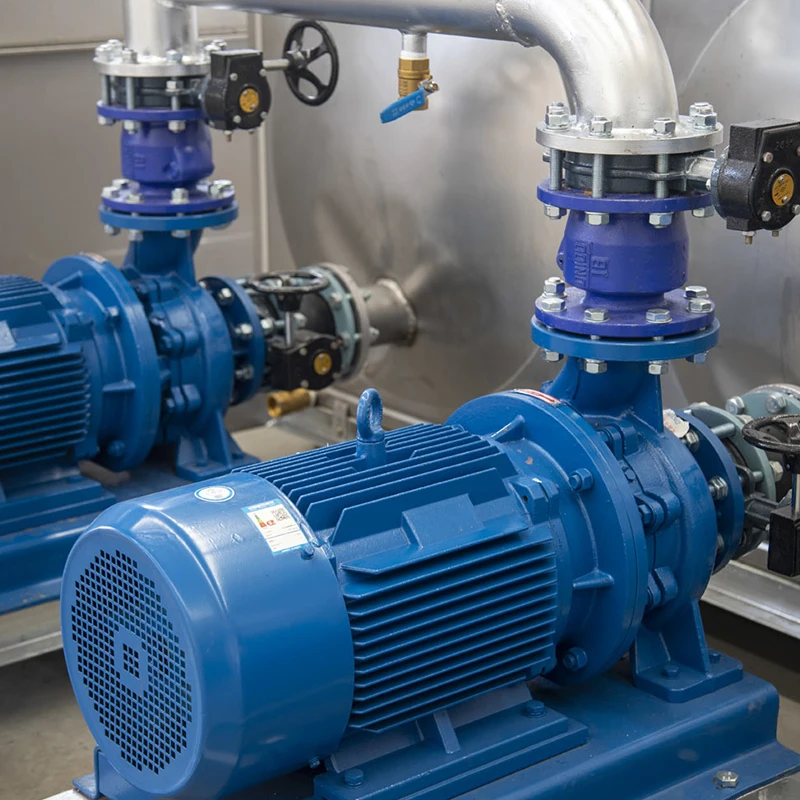

Main circulation system:
Main circulation system :A pump with a backup , fallure occurs the backup pump can automatically put into operation High
efficlency . Low-vibration , low-noise and high energy - efficlent Type : Vertical / Horizontal
efficlency . Low-vibration , low-noise and high energy - efficlent Type : Vertical / Horizontal

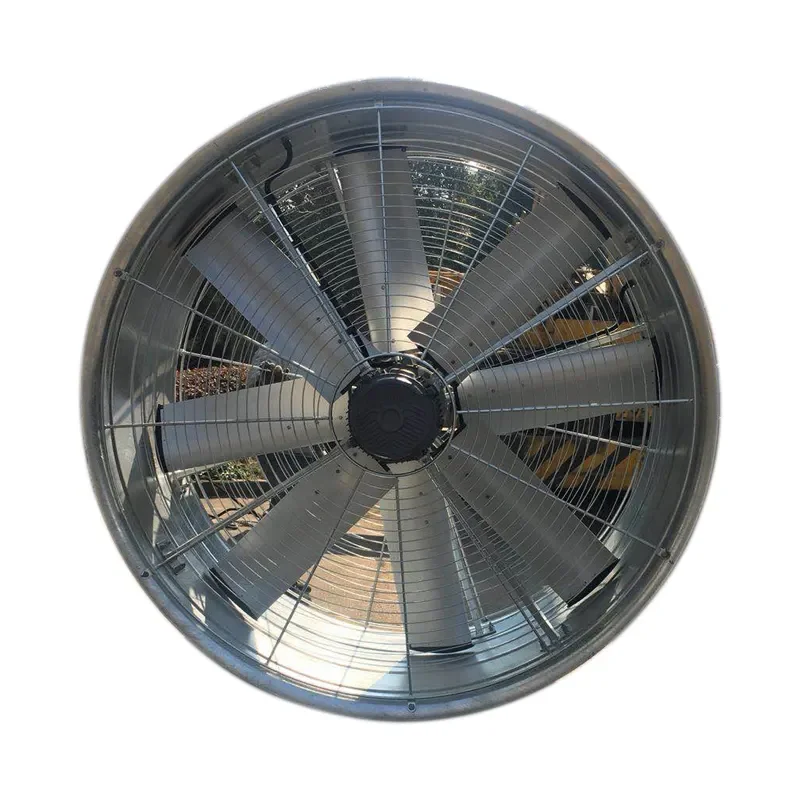

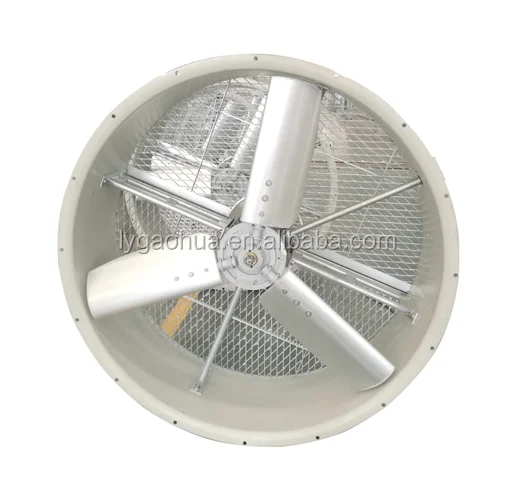

Exhaust system :
Low speed fully sealed motor adopts blades with super width . The fan is composed of aluminum bladesand steel wheel hub , featuring low wind resistance ,high rate of air flow , low noise , high efficiency , and reliable performance and so on . The protective leves IP55 , suitable used for out door.
(Blade options : aluminum alloy , aluminum alloy hollow , carbon fiber , polyethylene)
(Blade options : aluminum alloy , aluminum alloy hollow , carbon fiber , polyethylene)

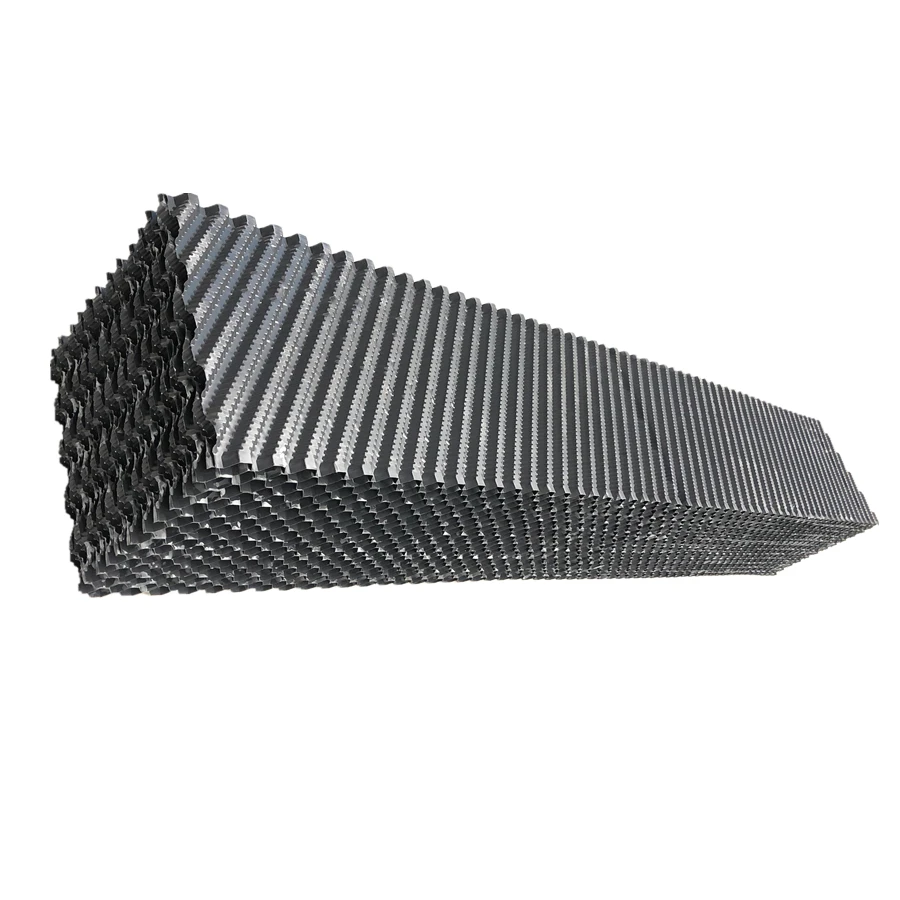

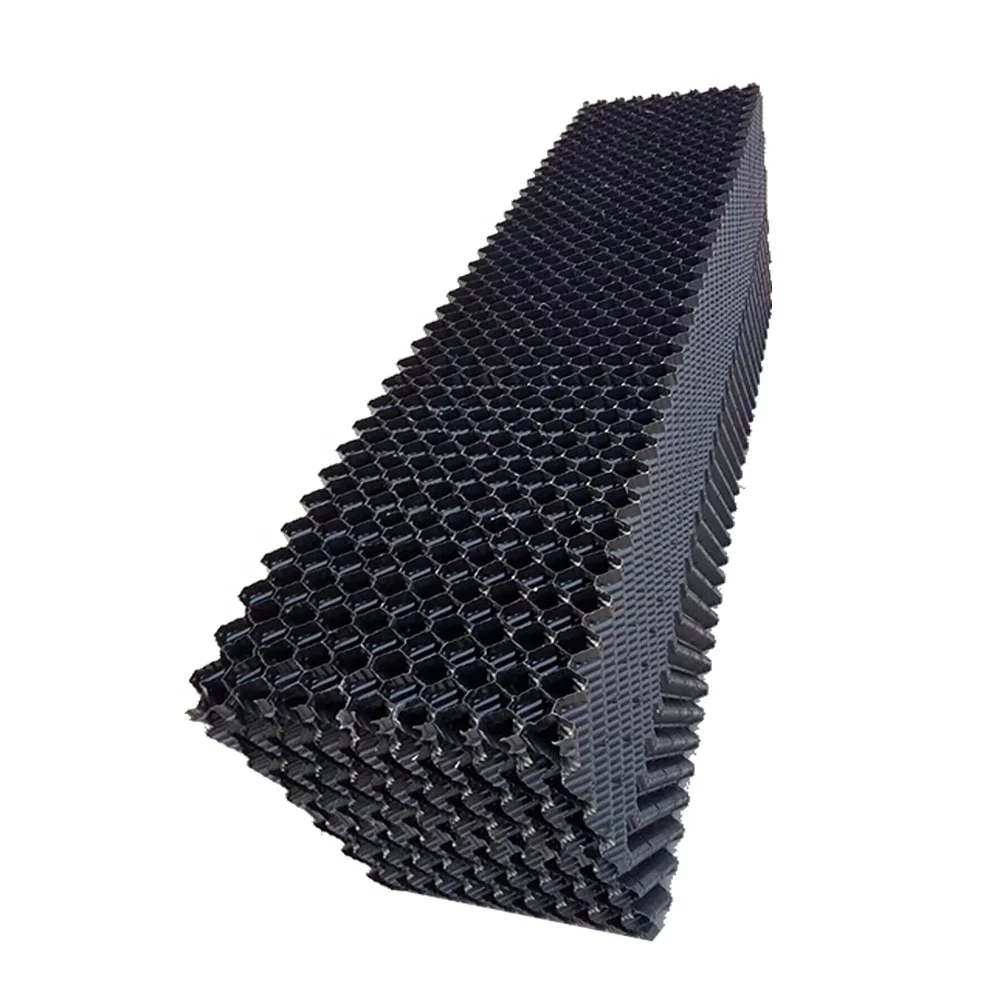

PVC fills - Dewaterer:
What the PVC fills' purpose are when theheated spray water drops down throw PVC fills , they can help dissipating . And when saturated moist air meets the water collectorit,it will condense into drops of water and fall to the collecting tank , thus quality PVC material may effectively transfer heat and reducing the water flow to save energy resources.
Control system :
Normal or PLC control system , local / remote control customize the appropriate system according to customer requirements.
Company Profile
Wuxi Master Cooling Machinery Manufacturing Co , Ltd is a professional manufacturer of cooling system . Our company is located in Wuxi national industrial park , we have convenient transportation and elegant environment , with modern factory , advanced technologyand equipments.
Our mainly productions are closed cooling tower , opened cooling tower , evaporative condenser , chiller , RO system and other accessory parts . Our products are widely used inelectric power , chemical industrial , metallurgy , cooling , light industrial , civil facilities andother fieldsWe have an excellent scientific research and development team whom onstantly desian new products always more efficient and more innovative in order to meet the different needs from different customers.
Our core competencies are the reasonable price with superior quality and also our products own high efficiency , environmental protection , easy installation , operation and maintenance , long service life and what matters most is that we pay more attention to customers feelings . al protection , easy installation , operation and maintenance , long service life and whatmatters most is that we pay more attention to customer's feelings.
Our mainly productions are closed cooling tower , opened cooling tower , evaporative condenser , chiller , RO system and other accessory parts . Our products are widely used inelectric power , chemical industrial , metallurgy , cooling , light industrial , civil facilities andother fieldsWe have an excellent scientific research and development team whom onstantly desian new products always more efficient and more innovative in order to meet the different needs from different customers.
Our core competencies are the reasonable price with superior quality and also our products own high efficiency , environmental protection , easy installation , operation and maintenance , long service life and what matters most is that we pay more attention to customers feelings . al protection , easy installation , operation and maintenance , long service life and whatmatters most is that we pay more attention to customer's feelings.
Why Choose Us
(1)We have complete service of cooling tower equipment
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
FAQ
More information needed when you request a proper cooling tower
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase . If different please specify .
For more details and reach us more quickly, please contact by Regina at Whatsapp/Tel/Wechat : +86 18912361965
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase . If different please specify .
For more details and reach us more quickly, please contact by Regina at Whatsapp/Tel/Wechat : +86 18912361965
