Высоковольтный импульсный источник питания для печатной
- Категория: Power Supplies >>>
- Поставщик: Shenzhen Uwet Electric Technologies Co. Ltd.
Сохранить в закладки 1600478677345:
Описание и отзывы
Характеристики

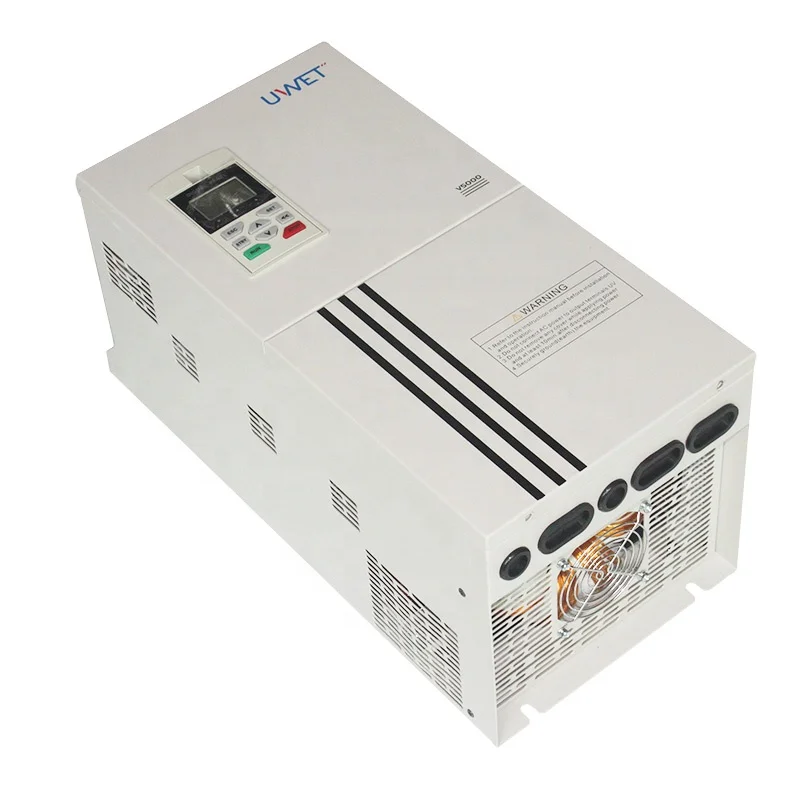

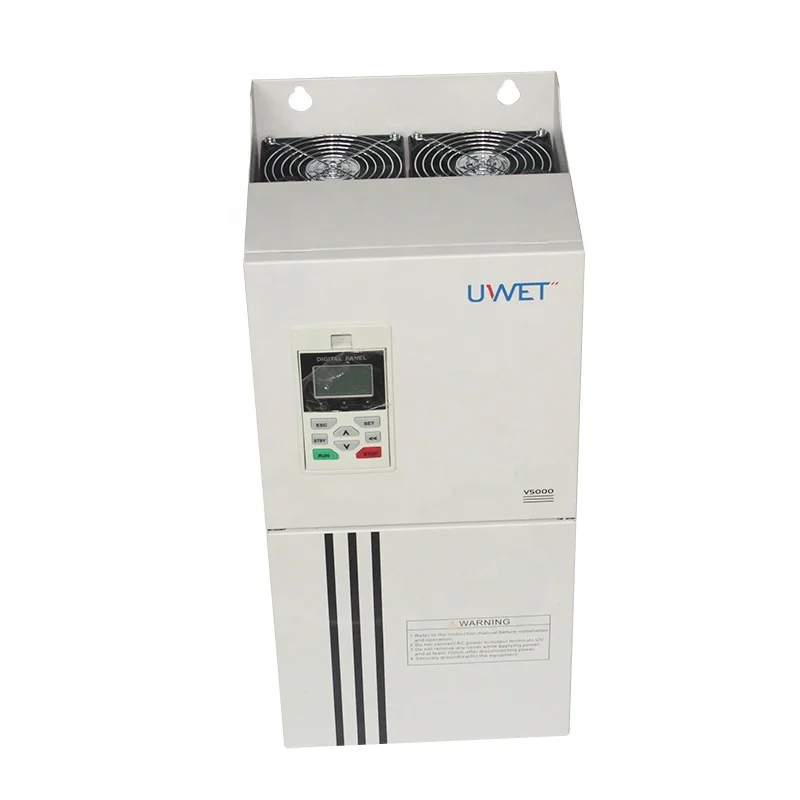

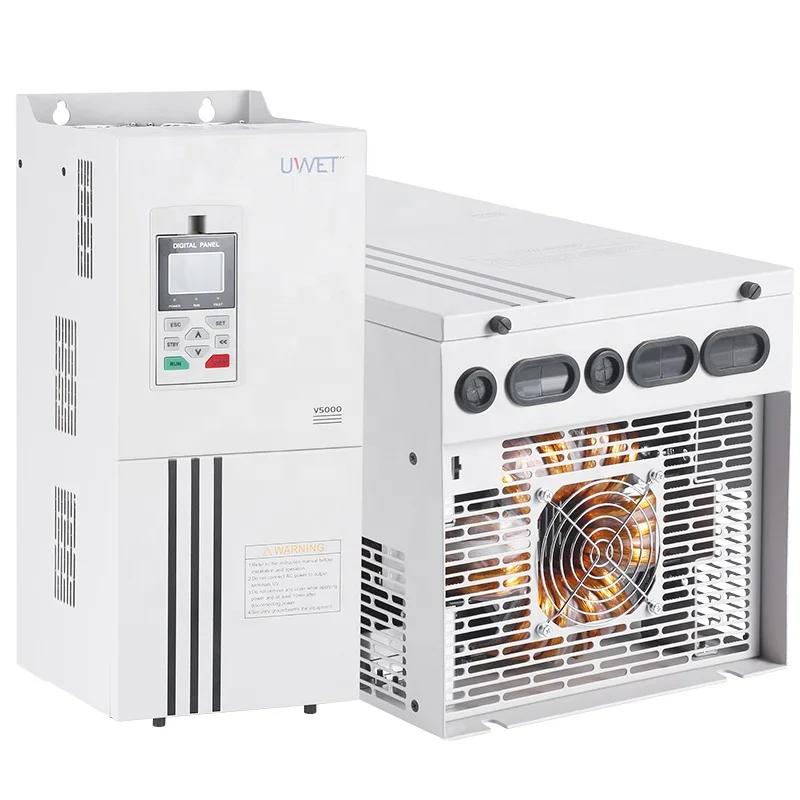

UWET UV Electric 380V Isolated boost Transformer
Product Introduction
V series digital power supply is a high-tech product developed for the driving of gas discharge lamps such as mercury lamps and halogen lamps. It takes high-performance MCU as the control core and high-precision vector control algorithm to ensure the stable output of energy, so as to create excellent curing equipment for customers. This product is widely used in more than 20 fields such as painting, printing, woodworking, PCB, military medical.
Features
1) Flexible control mode: standard operation panel control, external terminal control, optional RS485 communication control.
2) Rich lighting characteristics: high Voltage mercury lamp, metal halogen lamp parameters are optional.
3) Automatically match the lamp: As long as the rated power of the lamp is set correctly, the power supply automatically compensates for the rated tube Voltage error of the lamp.
4) Automatic compensation for ambient temperature of lamp tube: automatically compensates for the energy drop caused by the exhaust.
5) Status monitoring: This machine comes with LCD human-machine interface to display the working status of the machine and lamp tube in real time.
6) Abundant status signal output: fan control, fault alarm, start-up completion, etc.
7)Standard operation panel is easy to use: start-stop control, power setting, status monitoring, parameter modification, etc.
Specifications
Input | Rated voltage, frequency | three phase(4T#series)380V 50/60Hz | ||
Voltage allowable range | Determined by model | |||
Output | Voltage | Determined by model | ||
| Frequency | 8K Hz ~16K Hz | |||
Overload capability | 110% 10min | |||
Control Mode | vector control | |||
Control Characteristic | Resolution | 1% | ||
Current limitation | Power allowable setting | |||
Voltage limitation | 110% of rated lamp tube Voltage | |||
power limitation | Maximum rated output power of the lamp | |||
Under-voltage suppression in operation | Especially for users with low grid voltage and frequent fluctuation of grid voltage, even below the allowable voltage range, the system can maintain the longest running time according to unique algorithm and residual energy allocation strategy. | |||
Typical Function | Standby | sets standby power consumption when equipment is intermittent for energy-saving applications | ||
Working time record
| can read lamp working time in operation | |||
RS485 Communication | Standard Configuration RS485 Communication Interface, Running and Stopping Commands and Machine Status Reading | |||
Operation | Using external Dry Contact Control to Start and Stop | |||
Fault analysis
| with function of fault record query and fault cause analysis | |||
Display | Operation panel display | operation Status | Monitor output voltage, output current, set power, output power, etc. | |
parameter setting | Set the relevant parameter values according to actual requirements.
| |||
Protection / Alarm | Protection / Alarm of Over current, overvoltage, under voltage, overtemperature, short circuit, internal memory failure | |||
environment | Ambient temperature | -10ºC--+50ºC(not frozen) | ||
Ambient humidity | Below 90%(no frost) | |||
Ambient environment | Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)
| |||
| Altitude | Below 1000m | |||
Structure | degree of protection | IP52 | ||
Cooling method | Independent air-duct design forced air cooling | |||
Trade Show
Application
Mainly used in graphic printing industry, UV curing industry, spraying UV curing industry, wood surface treatment and other industries.
Certifications
Payment & Delivery
Our Company
Shenzhen UWET Electric Technologies Co., Ltd. is a high-tech private enterprise specializing in R&D, production, sales and service of UV intelligent power supply. It is located in Longhua District,where there are many high-tech industries. The company's R&D team is strong, and most of the R&D personnel have R&D experience of foreign companies. More than ten top experts in the industry have absorbed advanced technologies such as Italy, Austria, Germany and Japan, combined with the principle of frequency converters and the development of the domestic UV industry.It took three years to develop the company's latest product: UV intelligent variable frequency power supply. The products have completely independent intellectual property rights,and now many technologies are in the leading level in the industry and even in the world.
Похожие товары

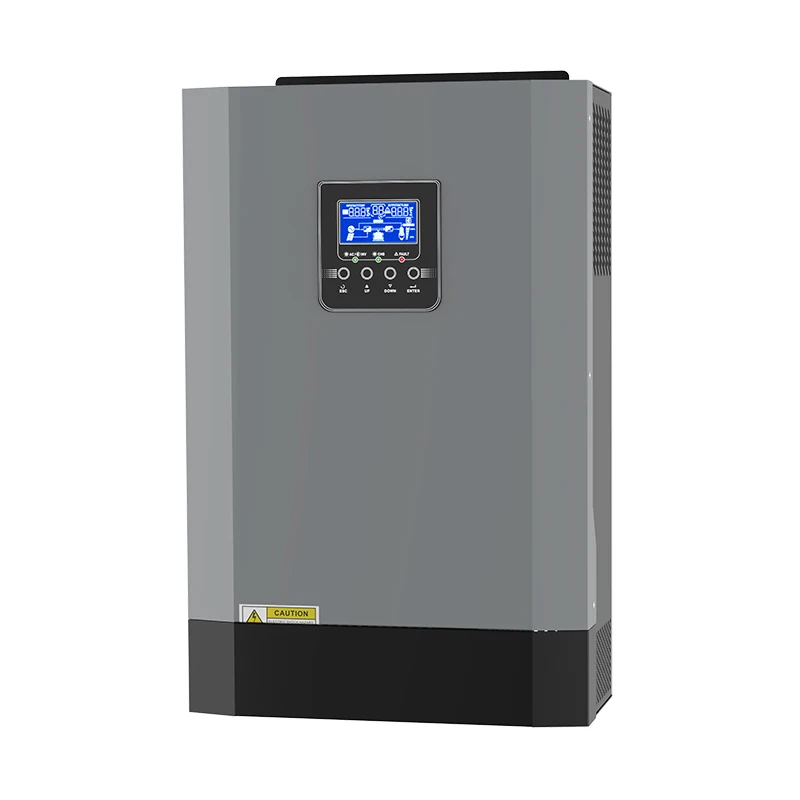

OEM mppt Контроллер заряда солнечной батареи с удаленным дисплеем опционально mpp солнечный гибридный
350,00 $ - 400,00 $

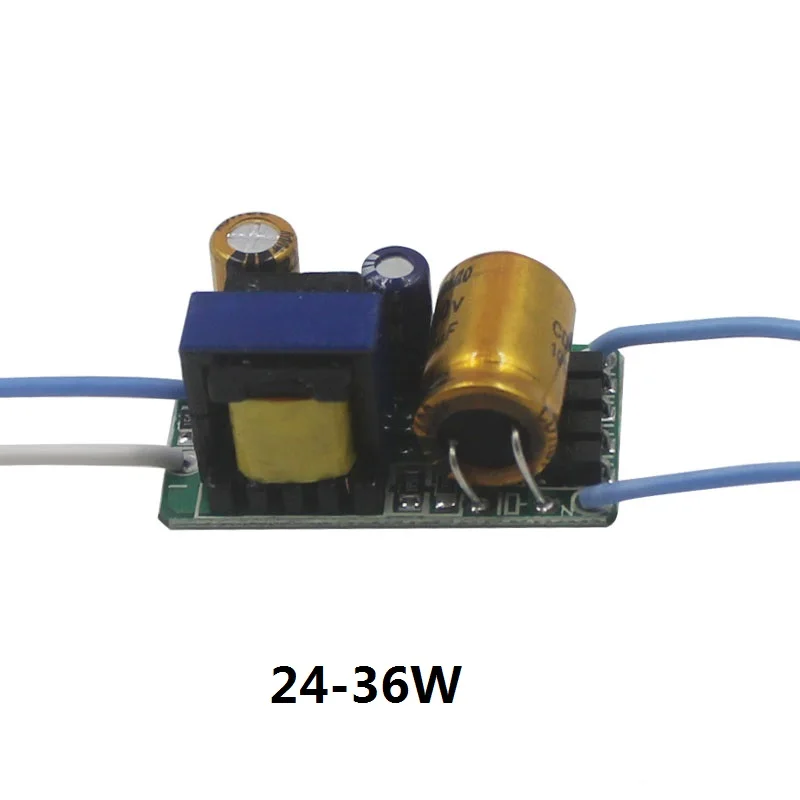

Драйвер для светодиодной лампы 24-36 Вт трансформатор питания адаптер тока 220 мА
0,30 $ - 0,70 $

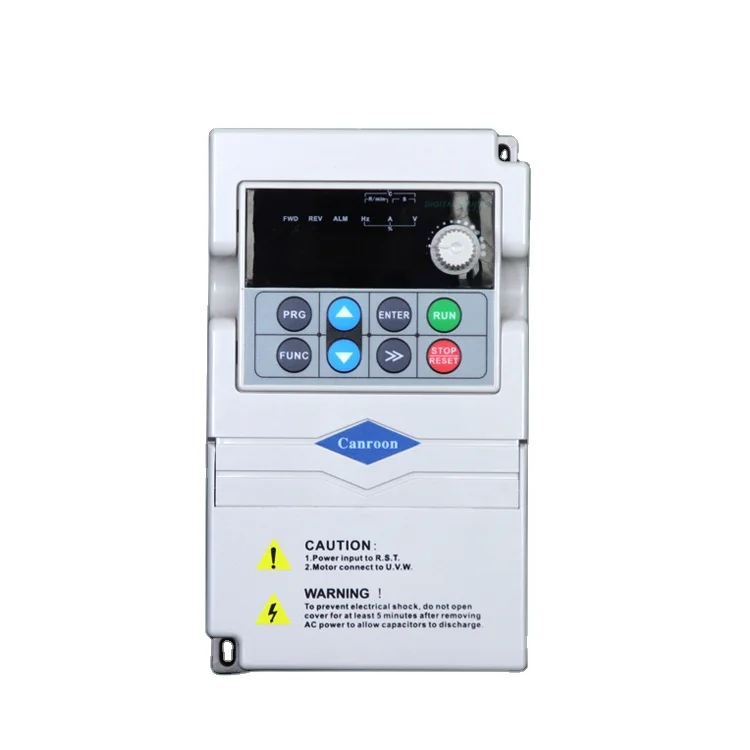

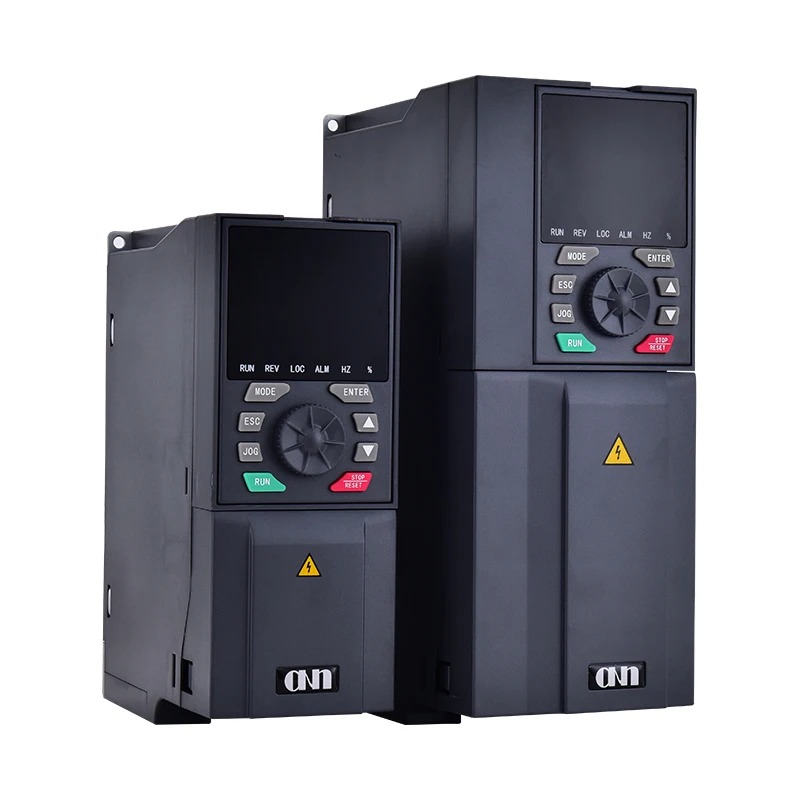

Преобразователь частоты привода переменного тока 1 5
90,00 $ - 99,00 $
Ноутбук планшет телефон цифровая камера роутер модем робот увлажнитель ридер POS принтер светодиодный динамик импульсный источник питания
1,00 $ - 1,40 $

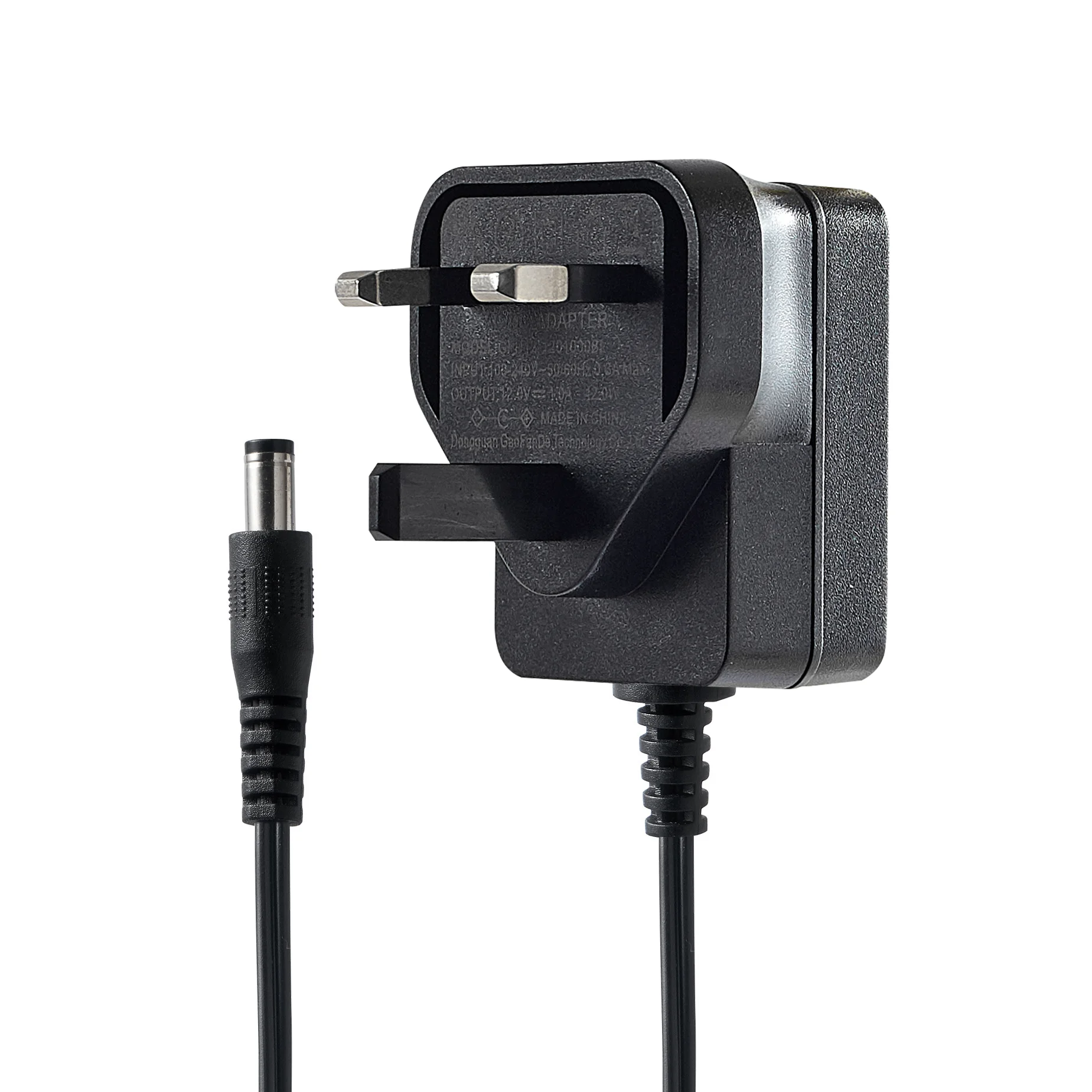

Высококачественное зарядное устройство 5 В/1 А с адаптером

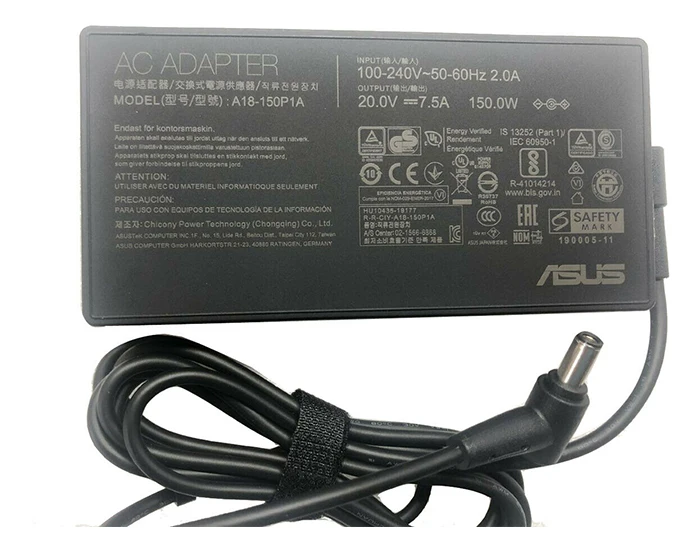

20V 7.5A 150W адаптер переменного тока питания зарядное устройство для ASUS ROG Strix G G531 GL531GT-XS53 6 0*3 7 мм наконечник
