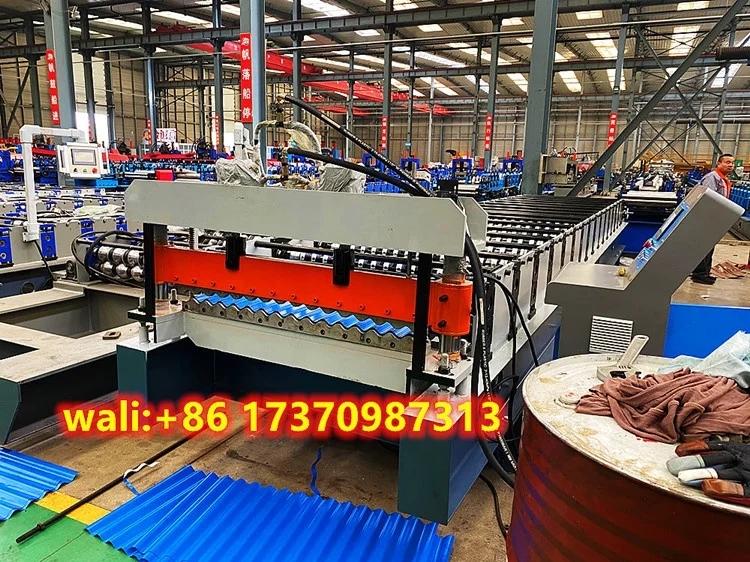

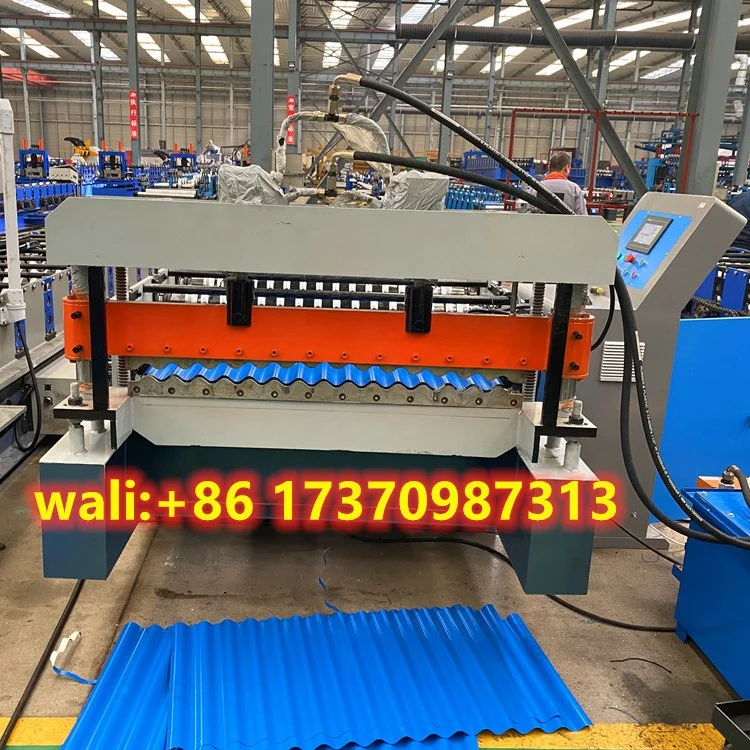

Металлический кровельный лист гофрирующий станок для производства листового железа линия холодной гальванизации
- Категория: >>>
- Поставщик: Cangzhou Hener International Trade Co. Ltd.
Сохранить в закладки 1600479388127:
Описание и отзывы
Характеристики
Product Certification
CE Certified.Valid from 2020-07-18 until 2025-07-18
Packaging & Delivery
Packaging Details : nude packing or as client”s required
Port: Tianjin port,China
Single package size: 8000X1600X1500 mm
Single gross weight:7500.000 kg
Lead Time:
Quantity(Sets) | 1 | 2 | >2 |
Est.Times(days) | 30 | 35 | Negotiated |

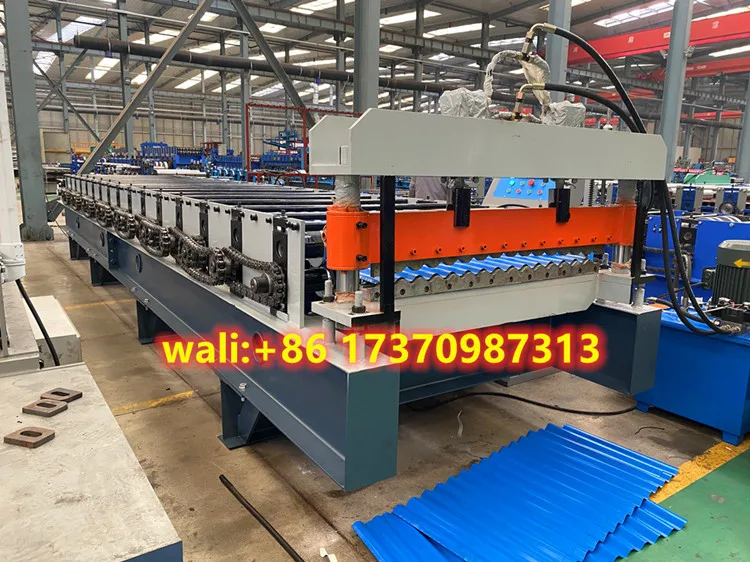

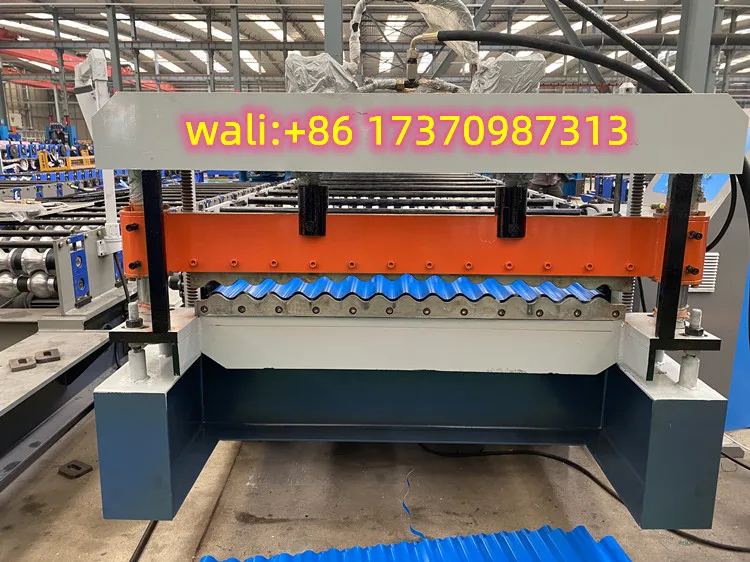

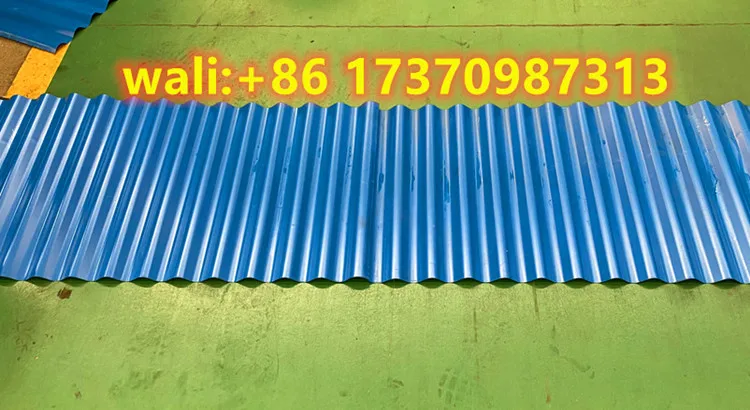

Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine, Cold Galvanizing Line
Zinc wave shape corrugated roofing steel sheet long span metal roll forming machine for sale with uncoiler based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

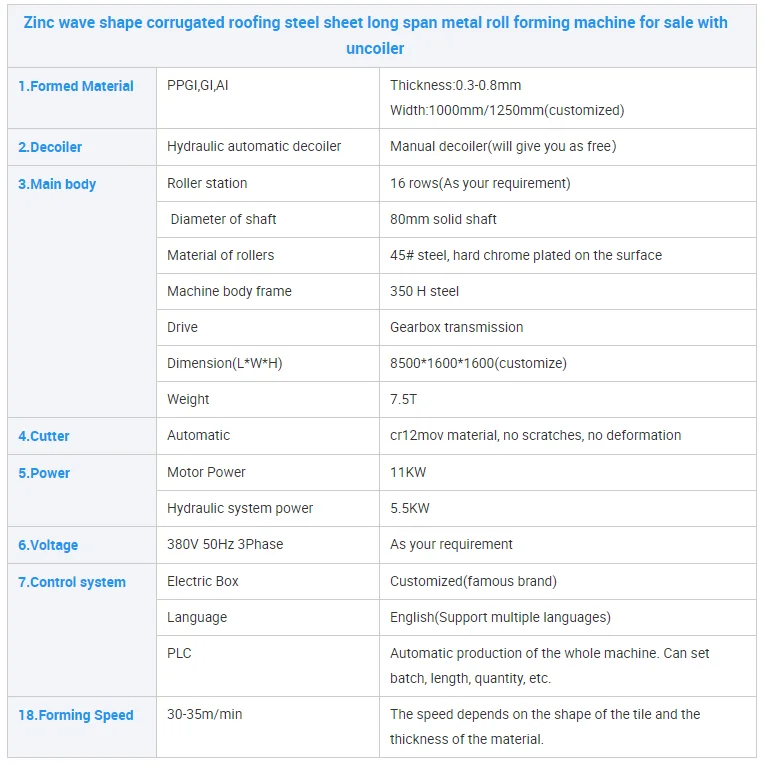

Product Description

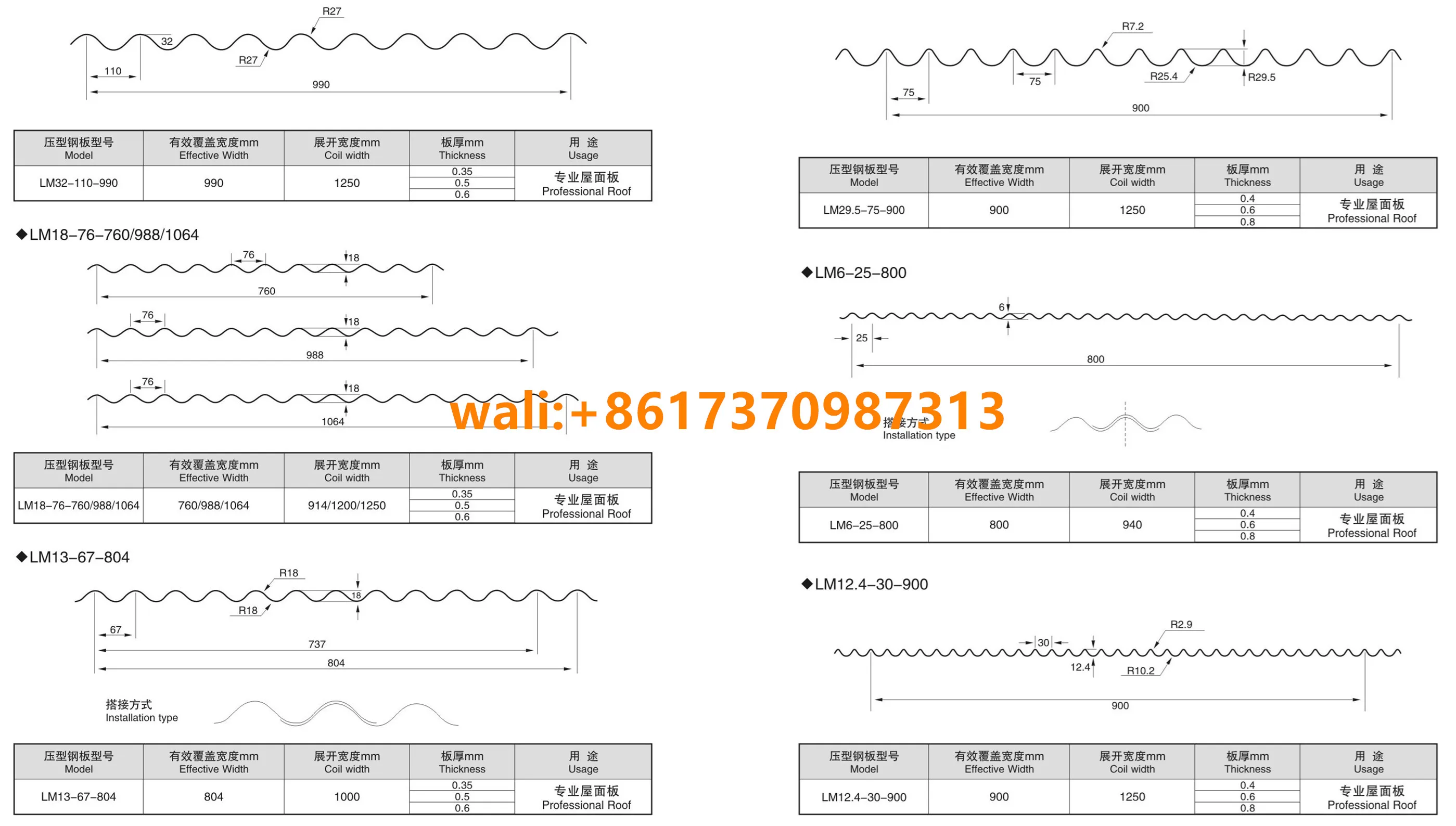

Here are some popular profile drawing for you reference
| Feeding Part: | ||
| 1 | Positioning plate | Adjust the position of both ends to make it fit the width of the feed |
| 2 | Guide frame | Play a role in supporting the transport of the material roll |
| 3 | Guide roller | The upper and lower round rollers are designed to make the feeding process more smooth |

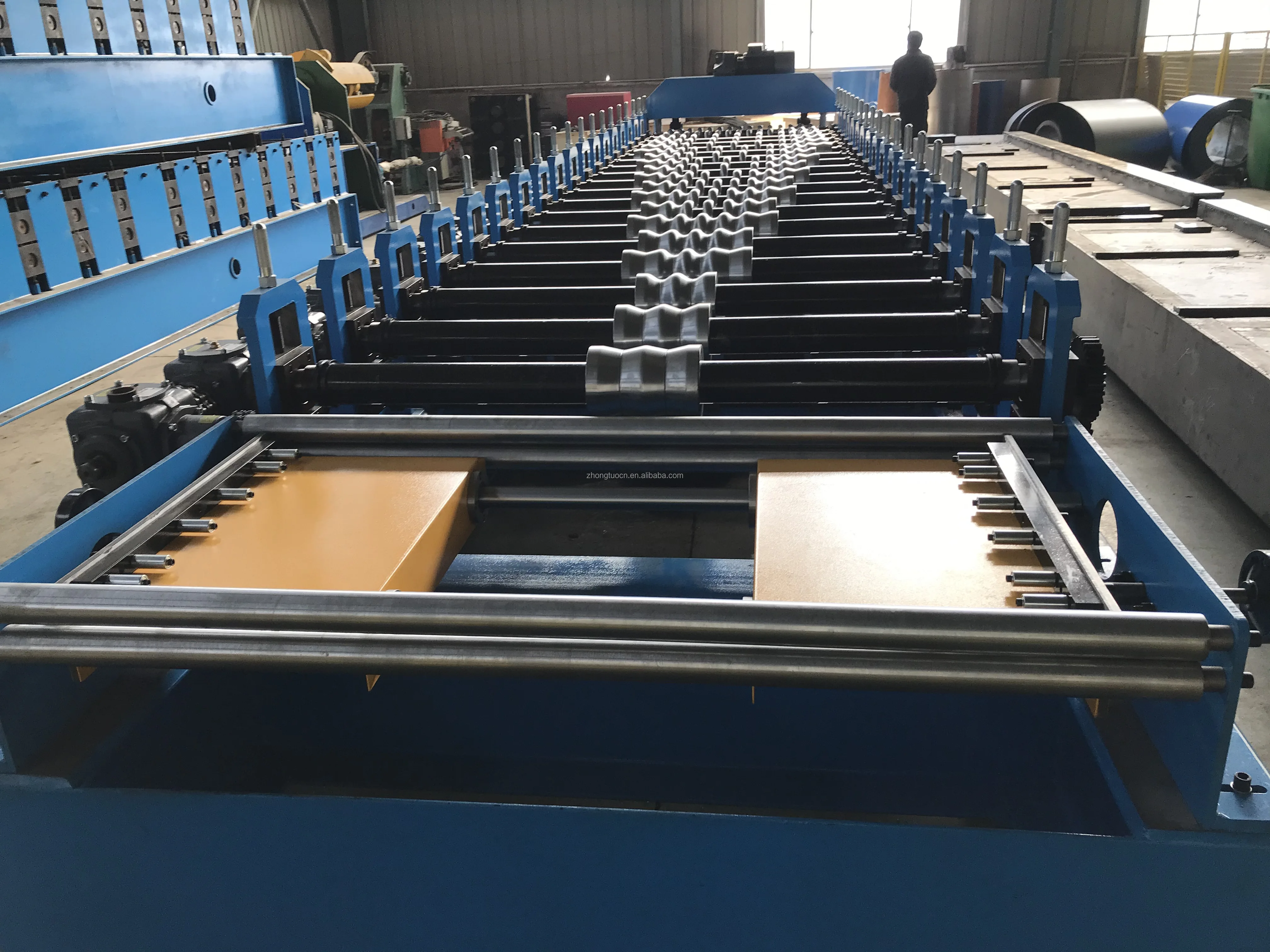

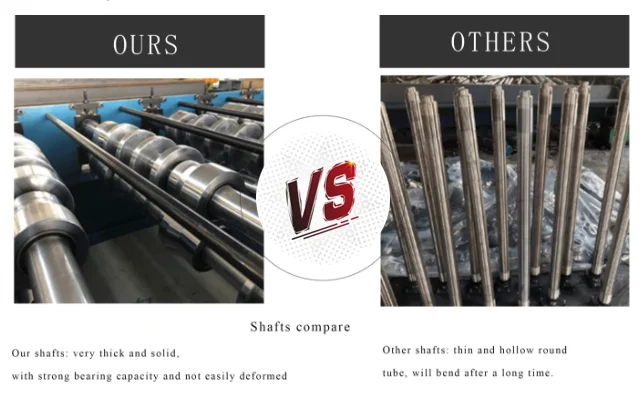

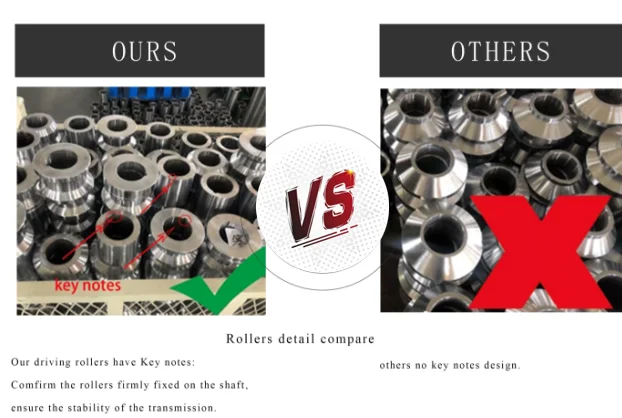

| Roller Assembly: | ||
| 1 | Main roller diameter | 90mm |
| 2 | Roller material | 45 # steel,Heat treatment, hard chrome plating after finish turning, mirror polishing |
| 3 | Frame tie rod | 20 # electroplate round steel to increase rigidity on both sides of wall panel |
| 4 | Roll forming | Roll forming process of coil |
| Cutting After Forming: | ||
| 1 | Guide mechanism | make the knife holder cut smoothly without deformation of the cut. |
| 2 | Cast iron tool holder | obvious shock absorption effect and strong impact resistance |
| 3 | Blade material | Cr12Mov The cutting life exceeds 1 million times |
| 4 | Rear scissor frame | Q235 steel plate, annealing treatment after rough turning, finishing. |
| PLC Control Cabinet | ||
| 1 | P L C | Adopt DELTA high-precision PLC electronic device. |
| 2 | Inverter | DELTA heavy-duty inverter, running efficiently and stably. |
| 3 | Control Components | DELTA Electronics, with long service life and low failure rate. |
| 4 | Touch Screen Control | Input production data and automatically complete production requirements. |
Product Features
1. More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;

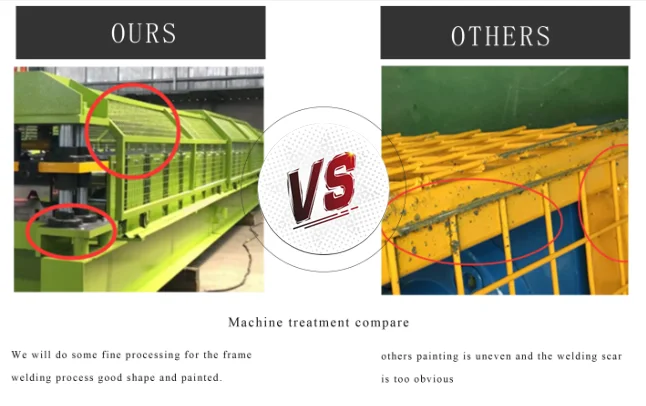

6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
EXHIBITION
Certification

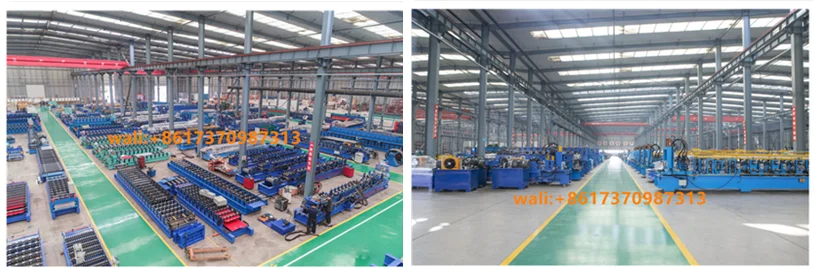

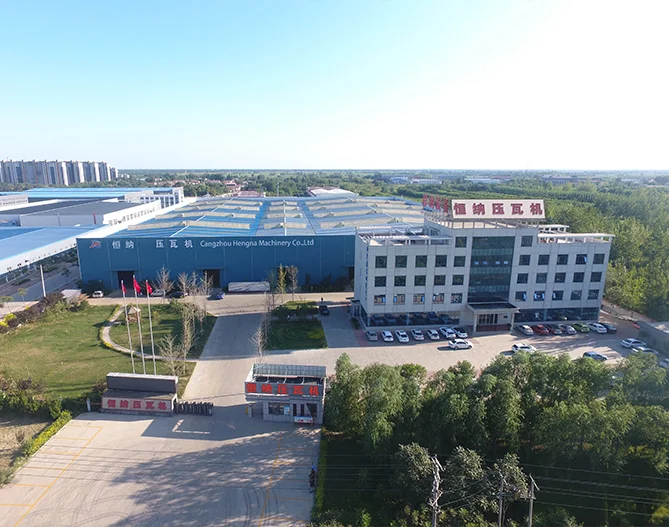

Company Information
FAQ
1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 12 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 10 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.
About the after-sale services, no worries, we will responsible for you.
4. Will i receive a good machine ? Same with my wanted ?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
5. What is the machine minimum quantity?
One machine is okay.
6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
