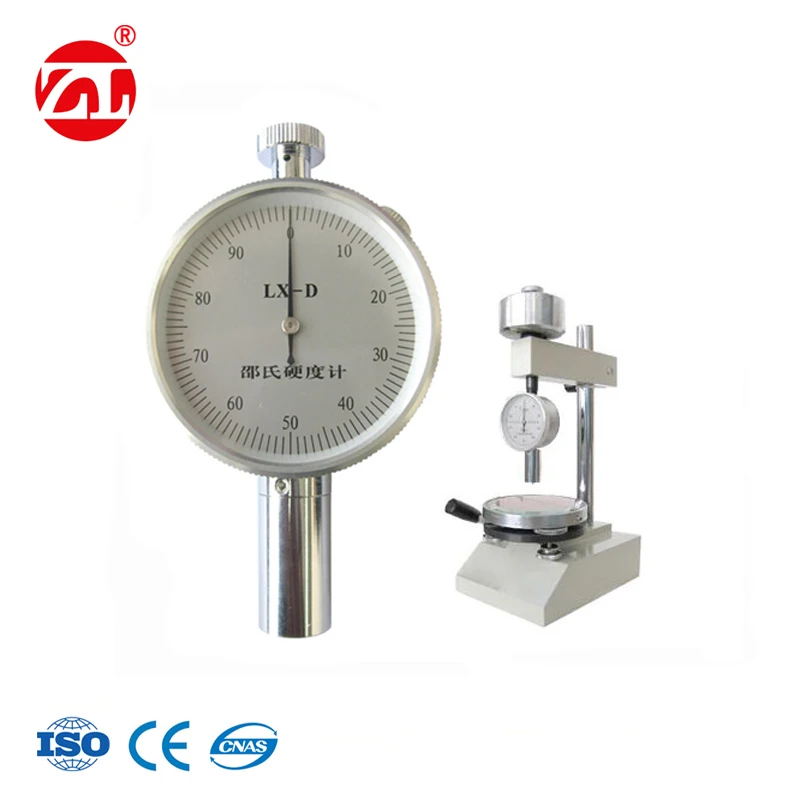

Измеритель Твердости Shore дюрометр с подставкой для диапазона измерений 0 100HA
- Категория: >>>
- Поставщик: Wuhan Baykul Electronic Commerce Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1600479432258:
Описание и отзывы
Характеристики
Products Description
item | value |
Warranty | 1 year |
Customized support | OEM |
Place of Origin | China |
Brand Name | toolia |
Model Number | LX-A |
Product Name | Multifunctional Shore Hardness Tester |
Product model | LX-A |
Product material | stainless steel, marble base |
Needle stroke range | 0-2.5MM |
Dial value | 0-100° |
Pressure at the end of the needle | 0.55N-8.06N |
Product size | 35*20*24cm |
Packing size | 35*20*24cm |
Net weight | 4kg |
Measurement objects | vulcanized rubber and soft plastic products, etc. |
Feature
The shore hardness tester is an instrument for measuring the hardness of vulcanized rubber and plastic products. The hardness tester is installed on a supporting production load measuring rack of the same model, and can measure the standard hardness of rubber and plastic standard test pieces in the laboratory. You can also hold the head of the hardness tester to measure the surface hardness of rubber (plastic) objects mounted on the equipment.
Features
1. Accurate meter head: It adopts pointer type meter head, the mechanical kinetic energy is simple and intuitive, and the measurement is accurate.
2. Alloy probe: The input is more accurate, and it can measure the hardness of vulcanized rubber and plastic products.
3. Convenient to carry: Hand-held durable design, you can choose handheld measurement (also can be installed on the matching test bench for testing)
4. Dustproof nut: You will feel more convenient when using it. The nut can be rotated, fastened and durable, and has a long service life.

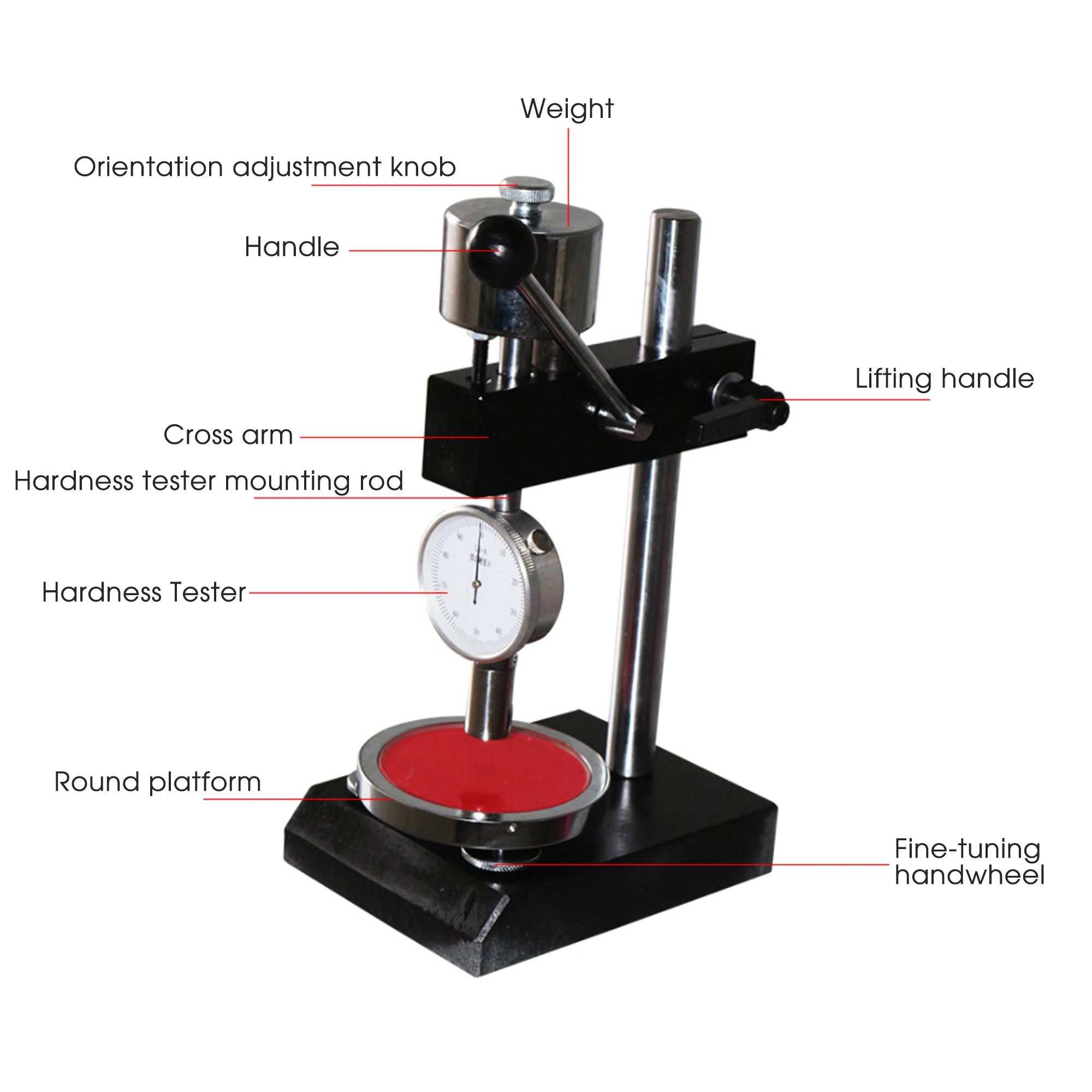

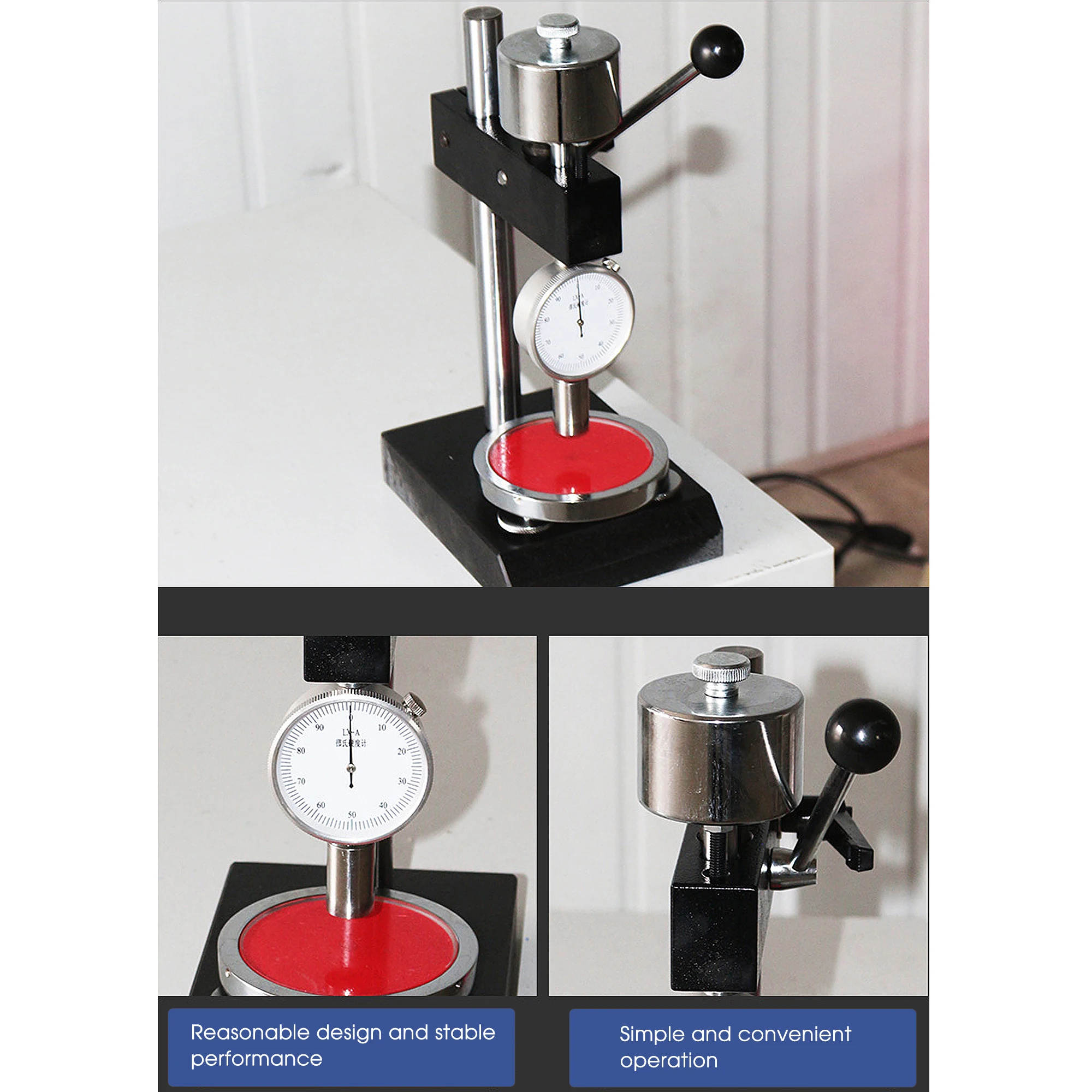

5. Precision manufacturing: Black marble is used as the substrate and high-strength tempered glass is used as the test platform to make the test more stable and the test results more accurate.
maintain:
After use, wipe it and put it in the instrument box, put it in a dry place to avoid dampness, wipe the measuring frame frequently, use a small amount of anti-rust oil to prevent rust, and add the effective part.

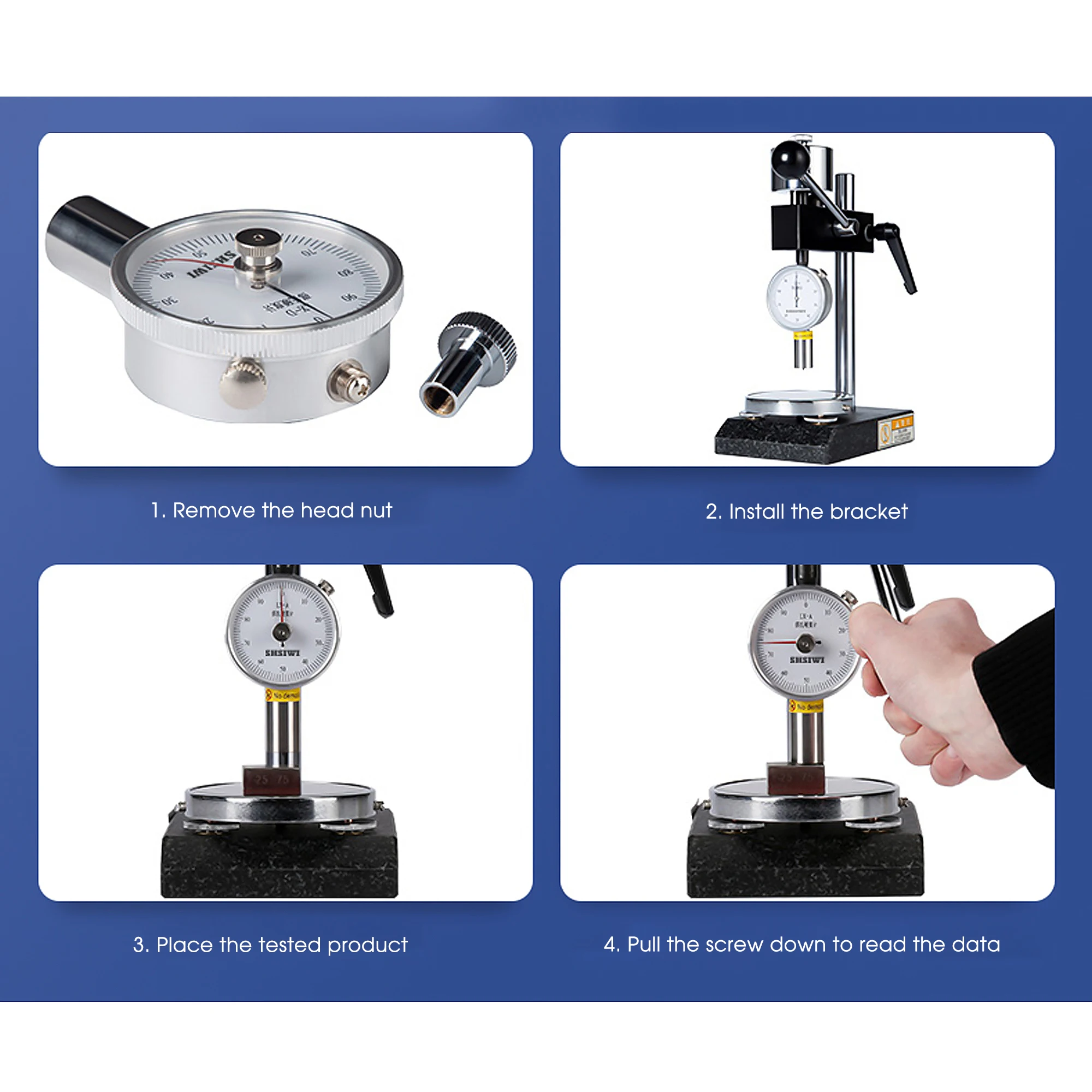

How to use the hardness meter:
Hold the hardness tester and press it flat on the sample until the bottom surface of the hardness tester is in full contact with the sample. At this time, the scale pointed by the pointer is the hardness value of the sample, which is a stable measurement condition and improves measurement accuracy. The hardness tester should be installed on the same type of constant load measuring rack. Three points should be selected in different positions for each measurement, and the arithmetic mean value should be selected.
application
Widely used in laboratories, scientific research institutes, factories and other places
Package
Shore Hardness Tester*1
Test frame*1
Features
1. Accurate meter head: It adopts pointer type meter head, the mechanical kinetic energy is simple and intuitive, and the measurement is accurate.
2. Alloy probe: The input is more accurate, and it can measure the hardness of vulcanized rubber and plastic products.
3. Convenient to carry: Hand-held durable design, you can choose handheld measurement (also can be installed on the matching test bench for testing)
4. Dustproof nut: You will feel more convenient when using it. The nut can be rotated, fastened and durable, and has a long service life.
5. Precision manufacturing: Black marble is used as the substrate and high-strength tempered glass is used as the test platform to make the test more stable and the test results more accurate.
maintain:
After use, wipe it and put it in the instrument box, put it in a dry place to avoid dampness, wipe the measuring frame frequently, use a small amount of anti-rust oil to prevent rust, and add the effective part.
How to use the hardness meter:
Hold the hardness tester and press it flat on the sample until the bottom surface of the hardness tester is in full contact with the sample. At this time, the scale pointed by the pointer is the hardness value of the sample, which is a stable measurement condition and improves measurement accuracy. The hardness tester should be installed on the same type of constant load measuring rack. Three points should be selected in different positions for each measurement, and the arithmetic mean value should be selected.
application
Widely used in laboratories, scientific research institutes, factories and other places
Package
Shore Hardness Tester*1
Test frame*1
Company Profile
Why Choose Us
Product packaging
FAQ
Похожие товары
Измеритель твердости по металлу
101 821,51-107 181,50 ₽
Высокая точность берег Твердомер Резины цена
Устройство для измерения твердости по металлу
31 470,71-36 954,24 ₽
Электронный указатель Тип Бринеллю Rockwell Vickers
HT-6510F Портативный дурометр f берега тестера метра твердости цифров
Резина берег Durometer твердости

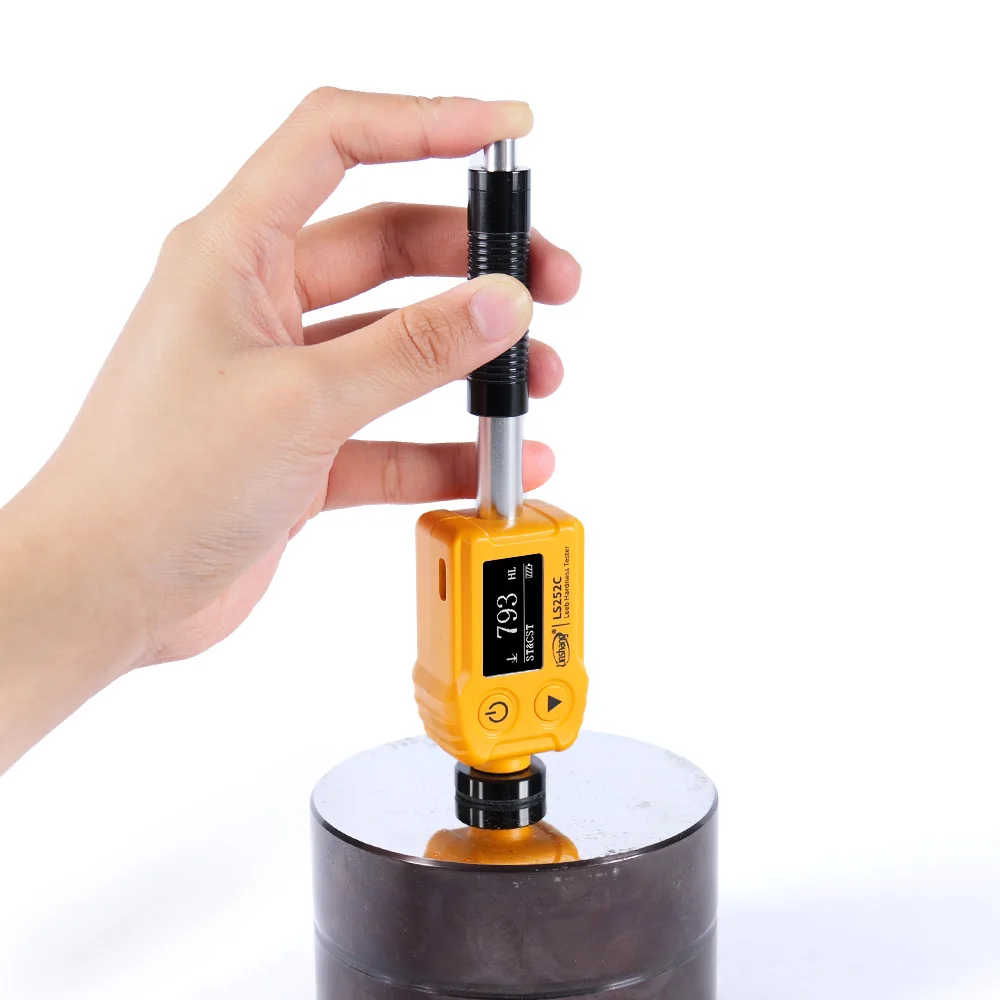

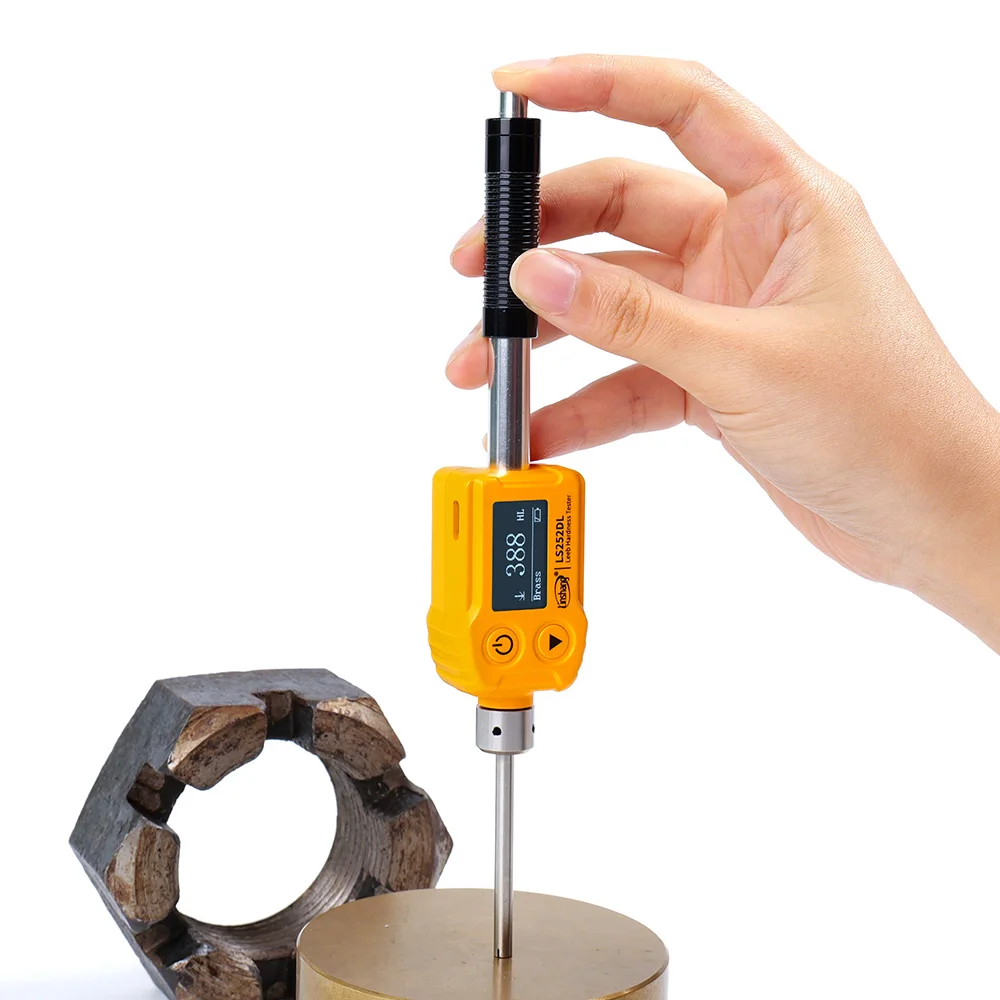

Высокоточный портативный измеритель твердости Leeb для стальной пластины LS252C
