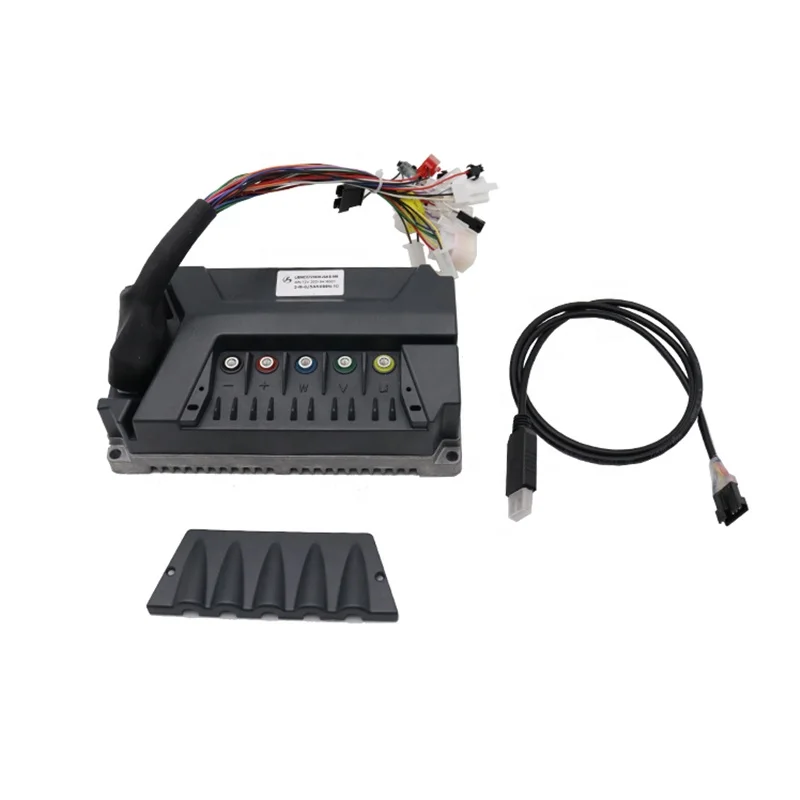

Контроллер двигателя PMSM Lingbo LB72252 100A 2500 Вт для контроллера двигателя среднего привода
- Категории: Motor Controllers >>>
- Поставщик: Wuxi,Yuma,Power,Technology,Co.,Ltd.
Сохранить в закладки:
Описание и отзывы
Характеристики
Lingbo LB72252 100A 2500w PMSM Motor Controller for Mid Drive Motor Controller
Specification
Controller Brand | Lingbo | ||||||
Controller Type | FOC PMSM/BLDC Sine Wave Controller | ||||||
Controller Design | Sine Wave, Programmable by PC | ||||||
Motor Control Method | FOC(Field Oriented Control) | ||||||
Model | LBMC72252 | ||||||
Rated Voltage | 48V-72V | ||||||
Matched Motor | 2KW-3KW | ||||||
Rated current | 100A | ||||||
Boost current | 280A | ||||||
Net weight | 1.3kg | ||||||
Instaliing Size | 206mm*118mm*60mm | ||||||
Mosfets | 18 FET | ||||||
Working Communication | Hall Sensor | ||||||
Controller working temp | -20℃to 90℃ | ||||||
Controller storage temperature | -10℃to 40℃ | ||||||
Work Method | Torque loop + speed loop control | ||||||
Application | Electric Scooter, Motorcycle, Tricycle, Car, Four Wheelers, Golfcar, Sight Seeing Car etc. | ||||||
Default Function
The default function for Lingbo LBMC controller:
Hall Plug, Low Brake 0V, High Brake 12V, Throttle (0-5V) , Ignition, Regenerative , Cruise, Three Speed, Anti-theft, Speed Limit, Reverse, Program Port.
Hall Plug, Low Brake 0V, High Brake 12V, Throttle (0-5V) , Ignition, Regenerative , Cruise, Three Speed, Anti-theft, Speed Limit, Reverse, Program Port.
Drawing
Wiring Definition
Software Surface
Q1. Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
