Портативная установка для бурения скважин с геотермальным эффектом Spt 100 м 150 300 метров цена
- Категория: >>>
- Поставщик: Luohe Ocean Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1600480460720:
Описание и отзывы
Характеристики

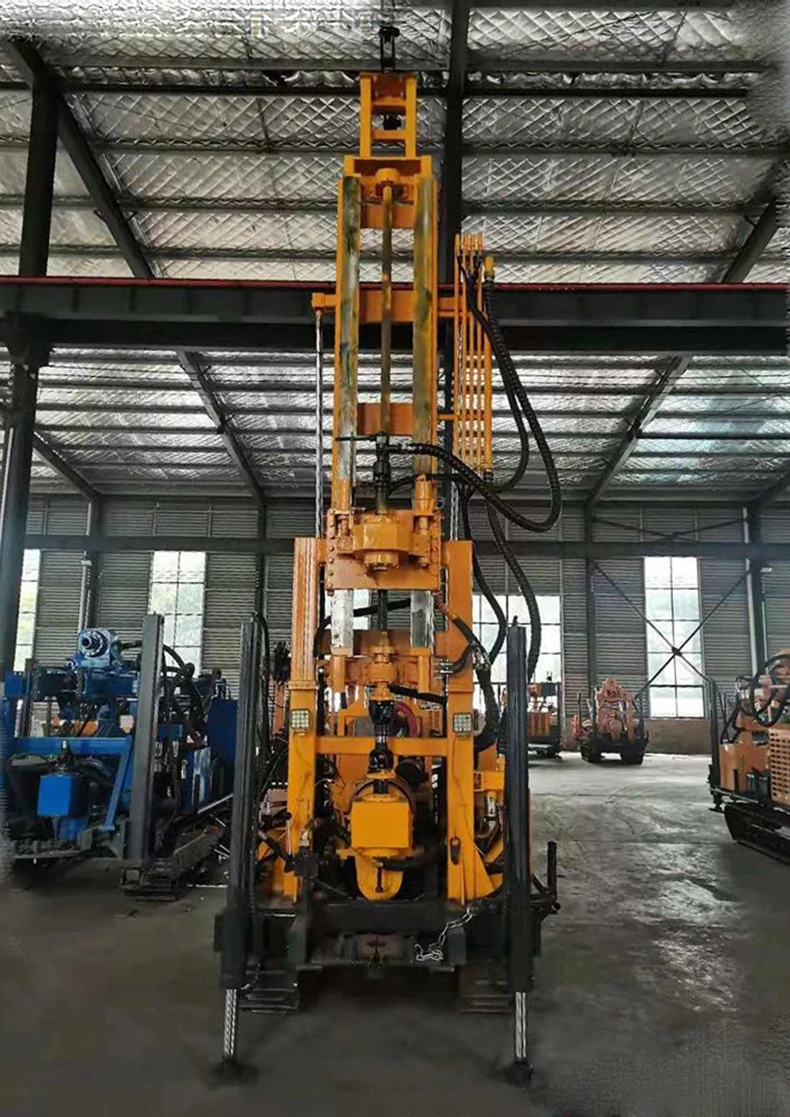

Product photo
Geothermal Spt 100m 150 300 Meter Man Portable Dth Water Well Borehole Drilling Rig Price
Suitable For
JDL series drilling rig is a mechanical top-drive drilling equipment that can work both air and mud drilling, when drill hard layer,we use air compressor, when drilling soft layer, we use mud pump. It is suitable for various formations, it can do core drilling,geological exploration, deep water well in solid area and construction drilling.
Application
JDL series drilling rig is mainly used for core drilling with large and small caliber, mainly alloy and diamond, as well as for engineering geological exploration, hydrology, wells, agricultural irrigation wells and other uses, especially for water collection projects in mountainous areas and rock formations.
Features
· Adopt automatic manual transmission gearbox.
· The rig adopts a long stroke mechanism and a mechanical power head.
· The drilling rig adopts double oil pump for oil supply, and the hydraulic system uses split flow and convergence technology.
· The main shaft of the drilling machine adopts mechanical transmission.
· Some functional interfaces are reserved in the hydraulic control system of the drilling rig.
Mine drilling rig specifications:
* Equipped with hydraulic steel tracks for stronger off-road capability;
* Equipped with four hydraulic square tube high outriggers, which is convenient for leveling on site and saves a lot of loading and unloading costs;
* The left and right of the rig are equipped with drill rod holders and foot pedals, which are more user-friendly in design;
* The front end of the drilling rig is equipped with an auxiliary rod unloading cylinder, which makes it easier to loosen the drill rod;
* The hydraulic oil pump is directly connected to the power by a universal shaft, which makes the rig climbing and moving more powerful;
* AMT manual automatic transmission with electronic transmission and electronically controlled shifter make shifting easier;
* The rig uses dual oil pumps to supply oil, and the hydraulic system uses split flow and merge technology to increase and decrease the power head more quickly;
* Equipped with a foldable auxiliary tower, which can lift two 3 m / drill drill rods at a time.
Product Paramenters
Drilling capacity | NQ Wireline drilling | 450m | |
Small bore mud drilling depth | 500m | ||
Air drilling | 280m | ||
Drilling diameter | 115-350mm | ||
Drive head | Lifting capacity | 10 ton | |
Thrusting capacity | 5 ton | ||
Rotary speed RPM | 33-1120r/min | ||
Max. Torque | 9800N.m | ||
Power Unit | Engine Model | YN27, 5 speed manual shift | |
Rated power/speed | 42kW/ 2400r/min | ||
Mechanical winch capacity | 4.5 Ton | ||
Drill pipe | Drill pipe diameter | 50/60/76mm | |
Drill pipe length | 2000mm | ||
Mud pump | BW200 | ||
Crawler chassis | Walking speed | 0～2 km/h | |
Climbing angle | Max. 20° | ||
Dimension | Transport | 4600*1900*2540mm | |
Working | 3800*2200*5700mm | ||
Weight with steel crawler | 3800kg | ||

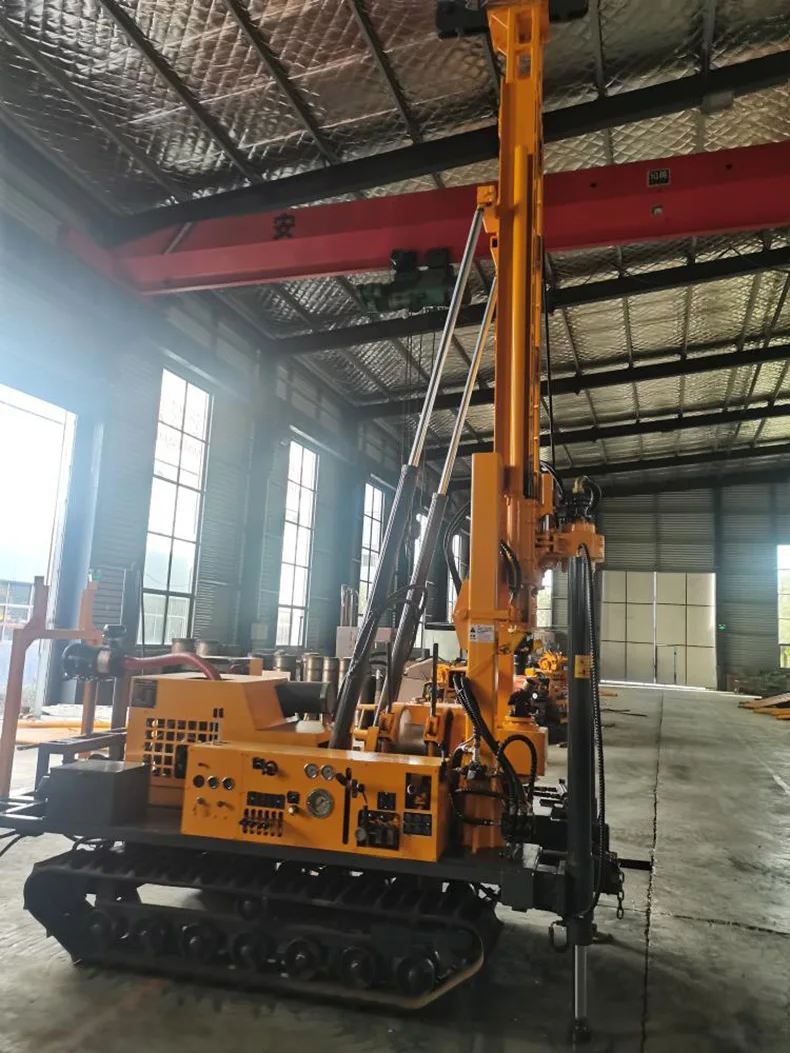

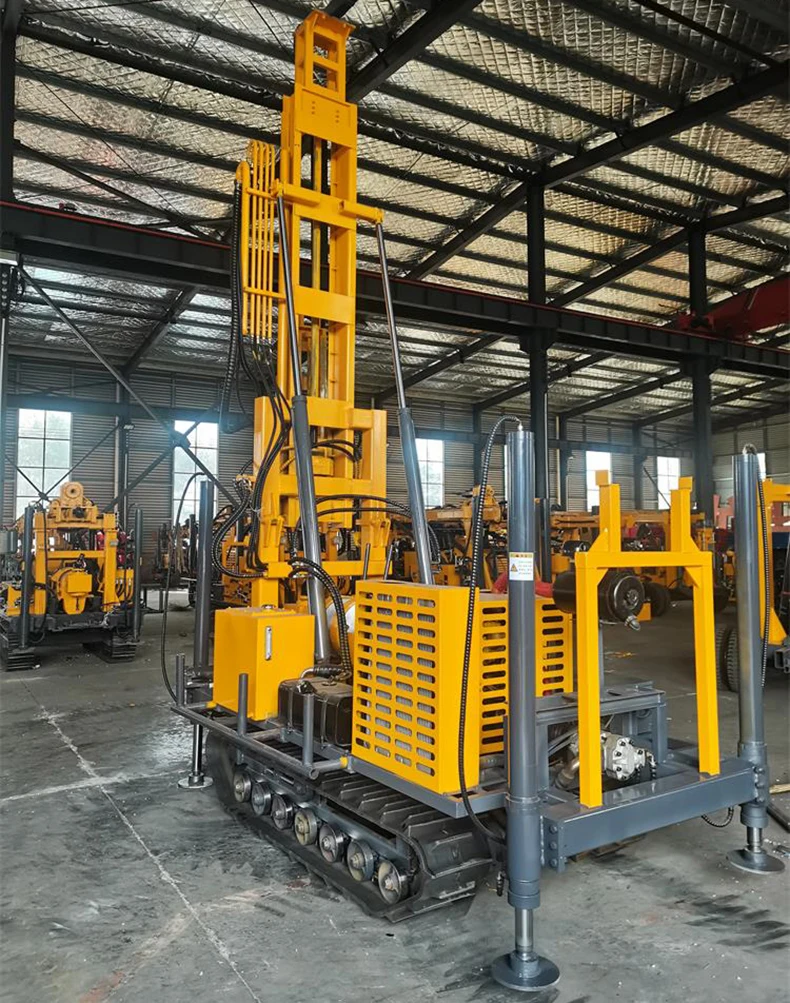

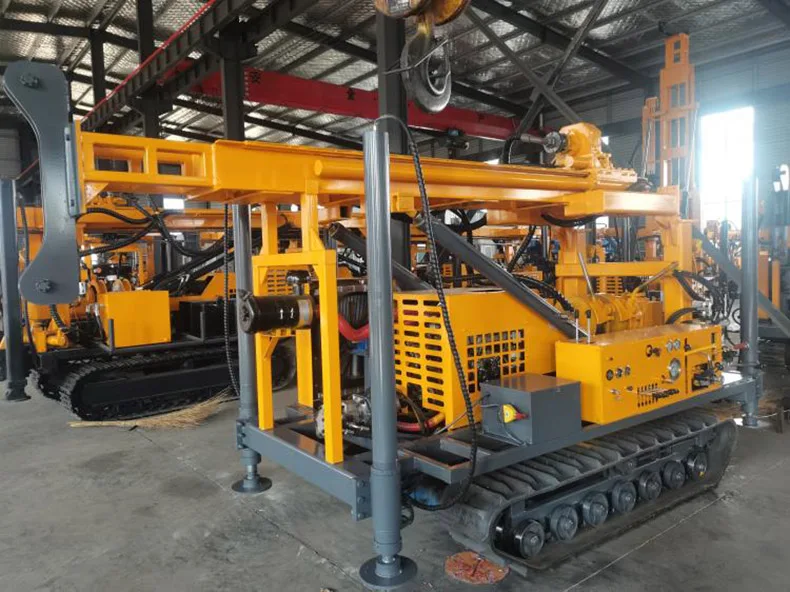

Factory Real Shot
Recommend Products
Company Profile
Customer Photos
FAQ
Q1,Are you factory?
A:Yes, we are factory with more than 10 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models.If larger machine, we suggest you choose by sea to ship.
Q3, Where are you? Can we go to China and visit your factory?
A:Yes, of course. We are in Henan, China. Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms),insurance policy (if CIF terms), also CO, FORM E if you need.
A:Yes, we are factory with more than 10 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models.If larger machine, we suggest you choose by sea to ship.
Q3, Where are you? Can we go to China and visit your factory?
A:Yes, of course. We are in Henan, China. Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms),insurance policy (if CIF terms), also CO, FORM E if you need.
Packaging & Shipping
