Products Description

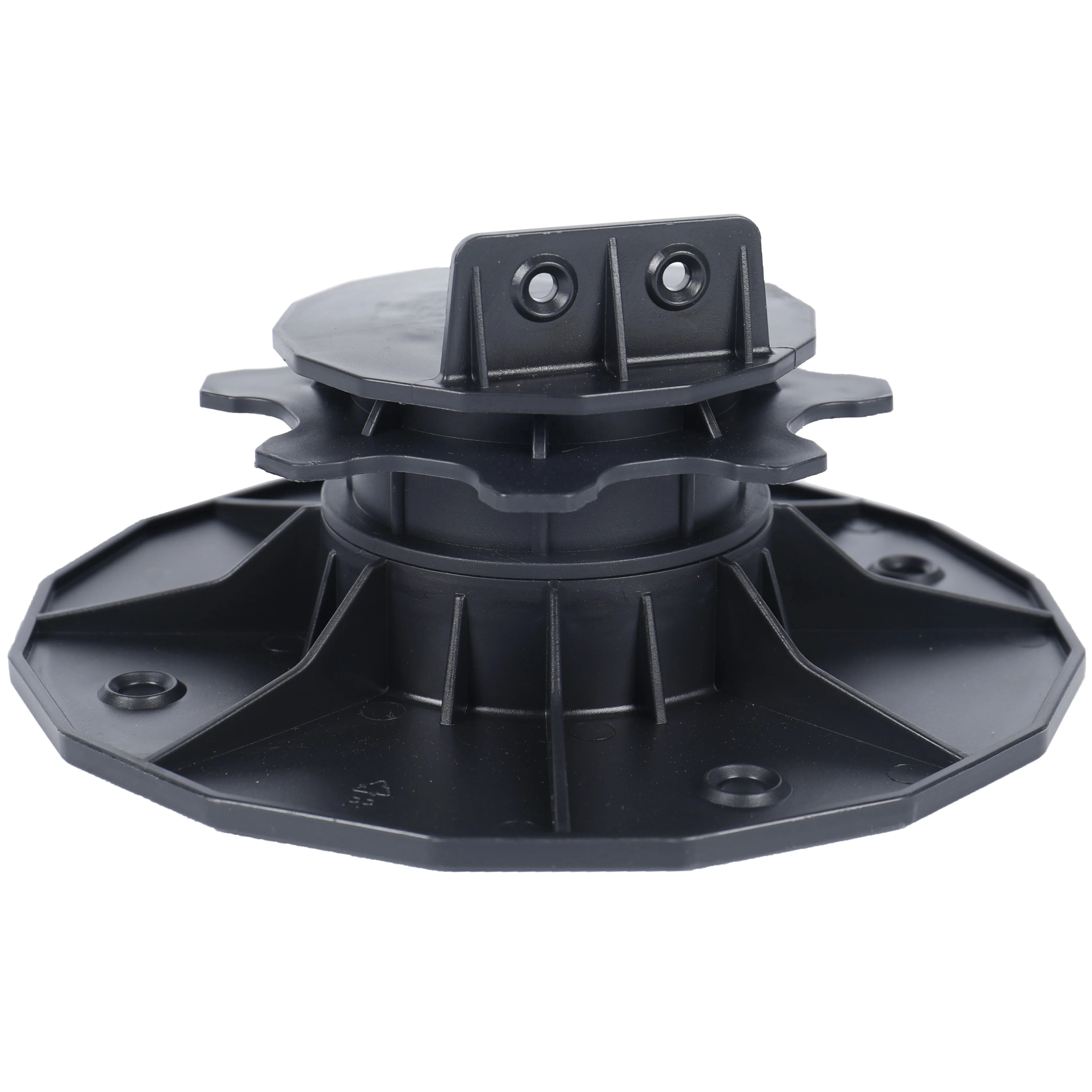

Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
Xinfeng adjustable pedestals offer a wide range of solutions for your leveling and elevation needs, such as to create an elevated platform or to compensate unevenness of the ground.
These pedestals are made of enhanced polypropylene and can hold up to 800kg of weight.
Come with different head components suitable for traditional joists, tiles and our unique click system.
Come with different head components suitable for traditional joists, tiles and our unique click system.
General Information | ||
Product Name | Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2 | |
Material | Polypropylene | |
Color | Black | |
Size | Base diameter: 200mm | |
Height Range | 35-70 mm (1.38"-2.76") | |
Loading Capacity | 500 kg/set (2000-3000 kg/m2) | |
Applicable Temperature | -20℃~60℃ (-4℉~140℉) | |
Warranty | 10 years | |
Certificates | ISO9001, ISO14001, BSCI, CE, REACH, SGS | |
Function | Height/Slope Adjustable Supporting for Timber Bearer/Decking board joists/Tiles/Pavers; Save bedding sand; easy access to concealed services; Air ventilation and heat insulation; Drainage. | |
Application | Roof; Terrace; Garden; Balcony; Pedestrian; Walkway; Pool surround; Podium; Water Feature; Temporary floors; Exhibition stands | |
Sample | Free; Parcel freight by customer | |
Lead Time | Sample 3 days; Normal orders 15 days | |
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
Products for option:

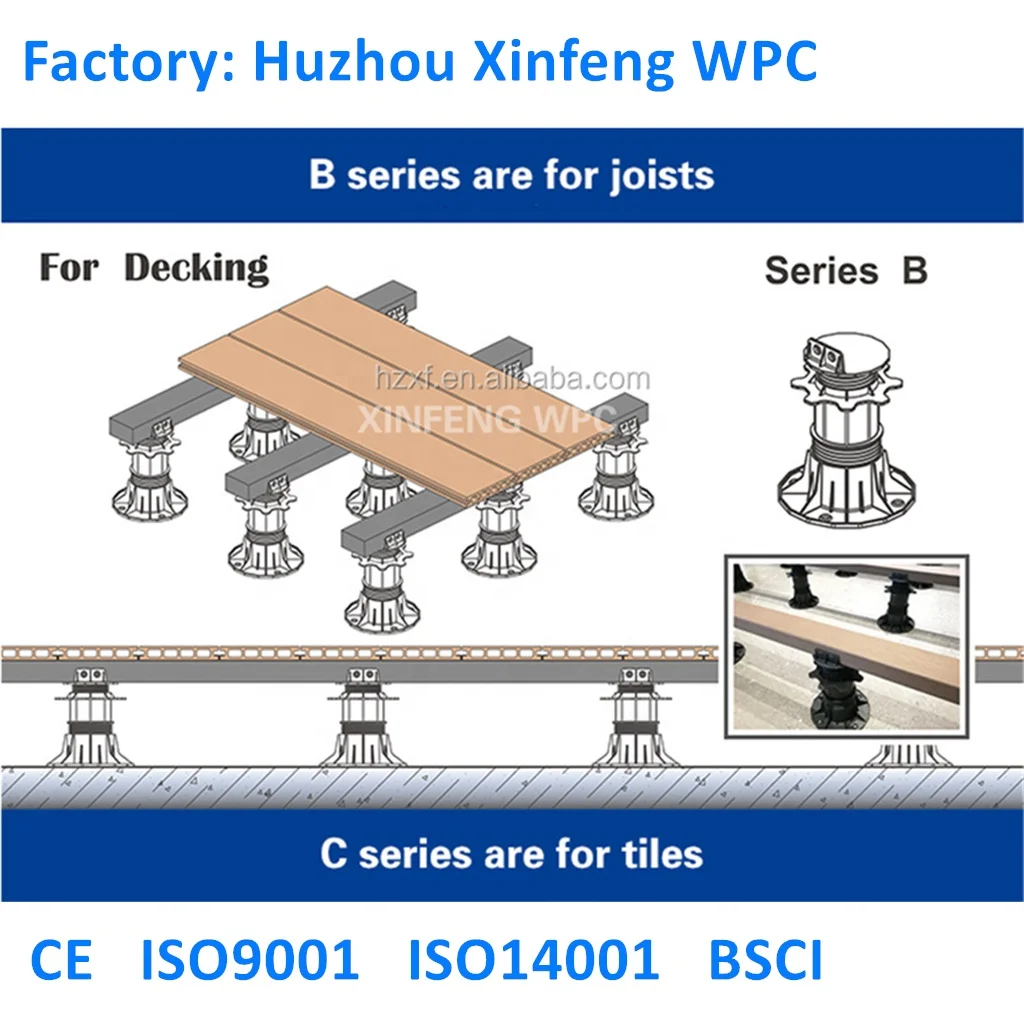

- B series are ideal for traditional timber flooring and decking installation with joists.
- D and C series will make installation and leveling of tiles a easy task.
- E series are designed to achieve fast and toolless installation with our special designed aluminum joists.
[Please don't hesitate to ask us for recommendation of most suitable products]
- D and C series will make installation and leveling of tiles a easy task.
- E series are designed to achieve fast and toolless installation with our special designed aluminum joists.
[Please don't hesitate to ask us for recommendation of most suitable products]
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
For each series, we have different height range for option.
Here are the images of each item.
Please contact with us for accurate price and more product supply.
XF-T201B-2 | XF-T202B-2 | XF-T204B-2 | XF-T205B-2 |
18-32mm | 35-70mm | 66-145mm | 140-220mm |
84 pcs/ Carton | 48 pcs/ Carton | 24 pcs/ Carton | 22 pcs/ Carton |
XF-T201C-2 | XF-T202C-2 | XF-T204C-2 | XF-T205C-2 |
18-32mm | 35-70mm | 66-145mm | 140-220mm |
80 pcs/ Carton | 48 pcs/ Carton | 32 pcs/ Carton | 22 pcs/ Carton |
XF-T201D-2 | XF-T202D-2 | XF-T204D-2 | XF-T205D-2 |
30-45mm | 45-80mm | 76-155mm | 150-230mm |
56 pcs/ Carton | 32 pcs/ Carton | 24 pcs/ Carton | 22 pcs/ Carton |
Packing and Shipping
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
1. For Small Order Pedestals less than 2 cartons, we can deliver by Air, carton packing only;
2. For Big order Pedestals, we can pack according your needs.
3. Shipping by sea: Shanghai Port
4. Incoterm: EXW, FOB, FCA, CIF, CFR, or DDU
5. Lead Time: 15-25 days after confirm the order.
6. Shipping Date: usually 30 days.
3. Shipping by sea: Shanghai Port
4. Incoterm: EXW, FOB, FCA, CIF, CFR, or DDU
5. Lead Time: 15-25 days after confirm the order.
6. Shipping Date: usually 30 days.
Deliver to Door Service
For small quantity orders, we can offer deliver to door service to below countries:
USA, Canada, UK, France, Germany, Australia, Philippines, Singapore, and many other countries in Europe and South Asia.
Contact us for details.
Installation Instructions
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
1. Clean the ground and lay out the pedestals according to your design.
2. Pedestals can be fixed to the ground with glue, concrete or expansion-screw.
3. Lay down the joists/tiles, adjust the pedestals until all the joists/tiles on an even level.
4. To adjust height, rotate the top cap of the pedestals.
3. Lay down the joists/tiles, adjust the pedestals until all the joists/tiles on an even level.
4. To adjust height, rotate the top cap of the pedestals.
For WPC/Metal Joists | 11 pcs/ square meter |
For Tiles/Pavers | |
600*600mm (24") | 3 pcs/ square meter |
500*500mm (20") | 4 pcs/ square meter |
400*400mm (16") | 7 pcs/ suqare meter |
300*300mm (12") | 11 pcs/ square meter |

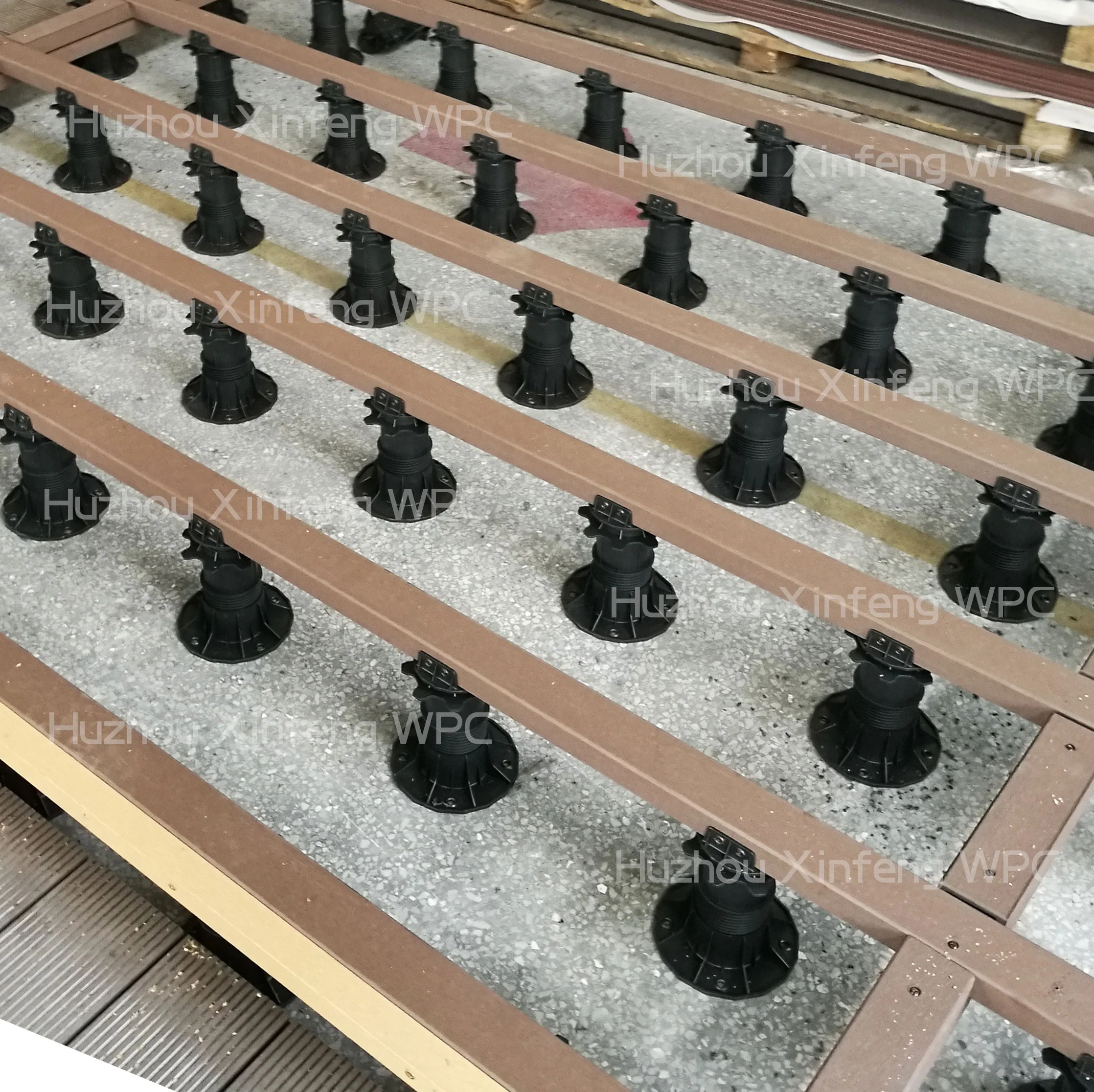

Project Showcases
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
Plastic Pedestals are the ideal choice for supporting flooring, decking boards, joists, beams, bearer, tiles, slabs, grates,
granite tile, marbles, precast concrete paver or any other pavement flooring. Such as balcony, patio, terrace, swimming pool
surrounds, roof, garden, fountain, park, square, plaza, outdoor walkways, pathways, pedestrians, platforms, illuminated floors,
temporary floors, podium, landscapes, verandas, etc.
[Please don't hesitate to ask us for recommendation of the most suitable products]
granite tile, marbles, precast concrete paver or any other pavement flooring. Such as balcony, patio, terrace, swimming pool
surrounds, roof, garden, fountain, park, square, plaza, outdoor walkways, pathways, pedestrians, platforms, illuminated floors,
temporary floors, podium, landscapes, verandas, etc.
[Please don't hesitate to ask us for recommendation of the most suitable products]
Company Profile
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
1. Factory located in Deqing county, Huzhou City, Zhejiang province, 65,000 square meters area;
2. Over 30 years of plastic products manufacturing experience;
3. Automated production lines with skilled workers;
4. A wide range products for option;
5. Xinfeng products warmly welcomed by customers on Exhibitions;
6. Professional Teams with passion.
2. Over 30 years of plastic products manufacturing experience;
3. Automated production lines with skilled workers;
4. A wide range products for option;
5. Xinfeng products warmly welcomed by customers on Exhibitions;
6. Professional Teams with passion.
Certificates
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
1. Xinfeng factory qualified by ISO9001, ISO14001, audited by BSCI;
2. Xinfeng products labeled China Environmental mark, certificated by CE and REACH;
3. Xinfeng has got over 60 patents in China and abroad.
2. Xinfeng products labeled China Environmental mark, certificated by CE and REACH;
3. Xinfeng has got over 60 patents in China and abroad.
FAQ
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
Q: What is the proportion of wood and plastic in your product?
A: 98%PP and 2% additives, such as anti-UV etc. We have 30 years injection products experience.
Q: What type of plastic do you use?
A: Our injection Plastic Pedestal products are made of Polypropylene (PP).
As it allows us to create patterns and surface textures that are more interesting and realistic.
Q: How much weight can your pedestals support?
A: Due to its high-density material and weight-bearing structure, our pedestal can support up to 1000kg/m2(Supported by Intertek
and SGS reports)
Q: How do you develop and improve your production techniques?
A: Our Plastic Pedestals Products all designed and manufactured in Xinfeng.
It has been continuously improved through close cooperation with several university labs and experts in the field of polymer structure.
Q: How long does it last?
A: Our products are expected to last 50 years
Q: What temperature can it endure?
A: -20℃--- +60℃
A: 98%PP and 2% additives, such as anti-UV etc. We have 30 years injection products experience.
Q: What type of plastic do you use?
A: Our injection Plastic Pedestal products are made of Polypropylene (PP).
As it allows us to create patterns and surface textures that are more interesting and realistic.
Q: How much weight can your pedestals support?
A: Due to its high-density material and weight-bearing structure, our pedestal can support up to 1000kg/m2(Supported by Intertek
and SGS reports)
Q: How do you develop and improve your production techniques?
A: Our Plastic Pedestals Products all designed and manufactured in Xinfeng.
It has been continuously improved through close cooperation with several university labs and experts in the field of polymer structure.
Q: How long does it last?
A: Our products are expected to last 50 years
Q: What temperature can it endure?
A: -20℃--- +60℃
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2 |
WHY XINFENG PEDESTALS |
1000kg/m2 loading capacity |
Tested by Intertek and SGS |
20 Years of expected working life |
Anti-UV, none poisonous and harmful materials |
Free Samples |
OEM ODM & LOGO customizing service |
30 years of manufacturing Experience |
10 years of wpc product manufacturing experience |
Product Selections
Outdoor Plastic Support Pedestal For Wood Composite Decking XF-T202B-2
Xinfeng supplies high quality Plastic Pedestals, WPC Decking, WPC Fence System and Interlocking DIY tiles.
Please contact with us for more project possibility.
We will reply you within 24 hours.
Choose Xinfeng, Choose Higher Quality, Choose Better Purchasing Experience.
