Полимерный SLA 3D принтер ZRapid iSLA660 для прототипов хит продаж

Полимерный SLA 3D принтер ZRapid iSLA660 для прототипов хит продаж

Категория: >>>
Поставщик: ZRapid Technologies Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

‍SLA 3D Printer Features:

•Fine detail and smooth surface finishing

•Print intricate details with accuracy achievable up to 0.05mm

•Convenient and user- friendly for printing concept models, functional prototypes and end-products

•Three options of quick printing mode and precision mode available,Variable spot technology

•Dynamic focus and super fast scanning style

•large surface intelligent partitioning scanning

•Granite integrated Z axis lifting platform

•Intelligent positioning and vacuum adsorption recoater

•Damaged parts can be deleted immediately

•High market share in China, more than 3000 sets industrial 3D printers installed in China and all over the world.

•Have been researched 3D printing technology since year 1998.

•One-stop solution for machine, software and materials.

•Rich product range including SLA, SLM, SLS and ceramic machines.

•World Well-known brands for key components to guarantee the machine quality and stability.

•English and fast response online support guys.

‍

Product Description

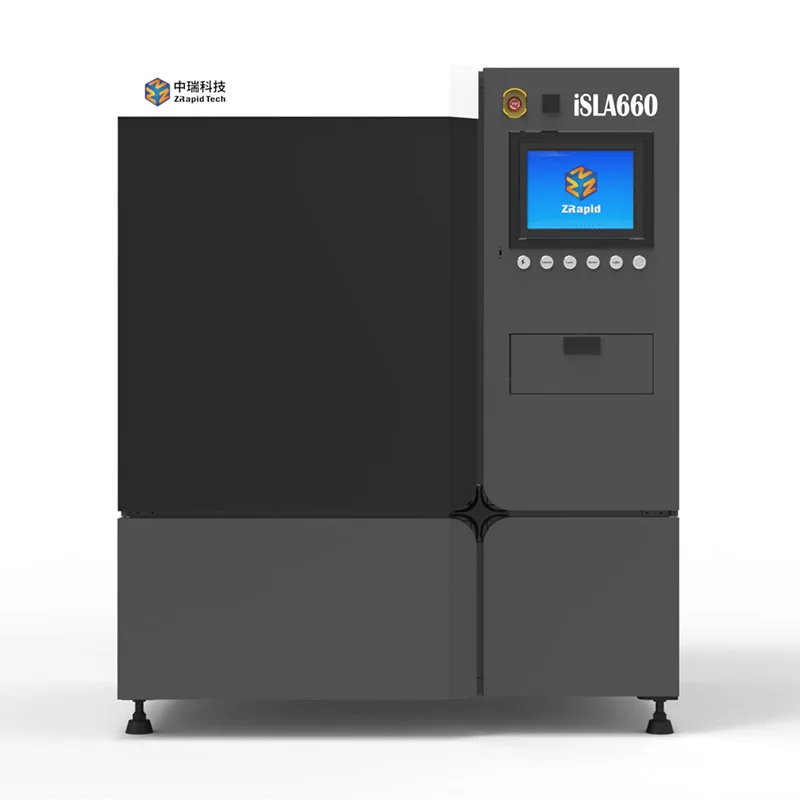

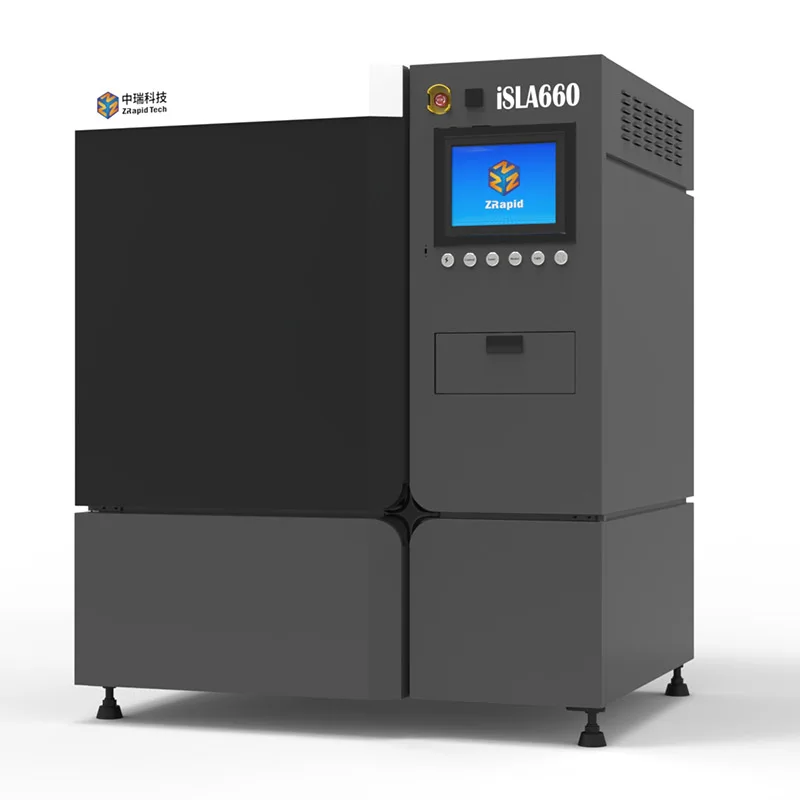

ZRapid iSLA660 resin SLA 3D Printer for Prototype best selling

resin 3d printer

LASER SYSTEM

Type	Diode-pumped solid-state laser Nd:YVO4
Wavelength	354.7 nm
Laser Power	3W
RECOATING SYSTEM
Process	Intelligent reduced vacuum press recoater
Normal build style	0.1mm layer thickness rang are adjustable
Quick build style	0.1-0.15 mm
Precision build style	0.05-0.1 mm
OPTICAL & SCANNING
Beam (diameter Φ)	0.10-0.5mm laser spot are adjustable
Focus style	High Speed Scanning Galvanometer
Part drawing speed	Recommended 6.0m/s,Max scan speed :18m/s
Beam jump speed	Recommended 10.0m/s ,
Referenced printing speed	50-180g/h
ELEVATOR
Position repeatability	±0.01mm , High accuracy servo motor x3(Z,C,R-axis)
Maximum part weight	80 KG , Marble platform
RESIN VAT
Volume	Approx. 162.0L (185kg) Z-axis:300mm
Build envelope:	600mm(X)600mm(Y)300-450mm(Z)
Patent Resin heated style	Patent ,Hot air heated , close-loop
SOFTWARE
Operating system	Patent ZERO 5.0 ,Windows 10, Ethernet, IEEE802.3
Build software	ZERO Patent build software :3dMagic
CAD interface	3D design software, STL file format
INSTALLATION CONDITION
Power	200-240VAC 50/60Hz, single phase, 5/10Amps
Ambient temperature	20-26ºC
Relative humidity	Less than 40%, non-condesing
Machine Size	1450mm(W)1050mm(D)1850mm(H)
Machine Weight	Approx. 830Kg
WARRANTY Optional :1-5 years
Laser	5000 hours or 12 months (whichever comes first)
Main machine	Two (2) years from the date of installation date

Applications

resin 3d printer

Our Advantages

•High market share in China, more than 3000 sets industrial 3D printers installed in China and all over the world.
•Have been researched 3D printing technology since year 1998.
•One-stop solution for machine, software and materials.
•Rich product range including SLA, SLM, SLS and ceramic machines.
•World Well-known brands for key components to guarantee the machine quality and stability.
•English and fast response online support guys.

Our company offers variety of industrial 3D printers which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

Packaging & Shipping

resin 3d printer

About ZRapid

resin 3d printer

Certifications

resin 3d printer

FAQ

Q1:Your main products are those?

A1: Our main products are industrial SLA 3D printer, Industrial metal SLM 3D printer .

Q2: What is your hot items?

A2 :Best selling machine are iSLA660 iSLA880 iSLM160 iSLM280

Q3:What is the biggest feature of your resin SLA 3D printer?

A3:High precision ,High stability ,Open system ,Open material ,second in the world

Q4: What is the biggest feature of your metal SLM 3D printer?

A4: The core components are the world's top brands. Hundreds of products have been tested in the market and continue to iterate, becoming a good helper for small and medium-sized enterprises.

Q5: How about after-sales service?

A5: We provide customers with free training, and provide door-to-door installation, commissioning, training

Q6: where is your company?

A6:Our company is in Suzhou City ,Near Shanghai ,1.5 hours from Shanghai Hongqiao Airport
