product Description


1. Capacity: 5-4000m3/h, Head:5-100m

2. Apply to industrial, construction, Sewage

3. CE , ISO 9001 Certificate

4. Used for clean water, sewage

5. Drive by Motor


6.Material:Cast iron,Stainless Steel 304,Stainless Steel 316,Stainless Steel SS316L,Duplex Stainless Steel AA2205 ect.





Product Introduction.

Pumps type ISW is a kind of axial suction centrifugal pump with single stage and suction
It is used to pump clear water and physical or chemical liquid similar to clear water below 85℃, and is widely applied to industries, to city water supply and drain, and also to agricultural and orchard irrigation.
ISW pump is of simple structure, reliable performance, small body, light weight,high efficiency, low noise, tiny vibra, little NPSH and easy in maintenance.
Pump type ISW have 29 main type and 151 sizes, but only 4 shafts and 4 mounting frames are utilized on it. So the
interchangeability or parts is more than 91%.

Usage


1. Cleanout system.
2. Every series of food machining and medicine produce
3. Environment protect system.
4. Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye.
5. Electroplate and Dyeing system.
6. Industrial and chemical sump treatment
7. Explosion proof motor for oil, alcohol and other explosive liquid



Industries Served

♦ Construction
♦ Industrial
♦ Municipal
♦ Agricultural
♦ Mining
♦ Dewatering
♦ Industrial Waste
♦ Sewage
♦ Oil Field
♦ Petrochemical
♦ Paper Mills
♦ Processing



Advantage :

1. pump body pass 60% of the diameter in the pump in-outlet

2.Convenient repair and clean

3.OEM ,L/C ,TT , ,D/P,D/A and so on

4.TUV .ISO 9001

General material:
1.Cast iron body+Bronze impeller+SS304 shaft+Mechanical seal+NSK Bearing

1.SS304 body+Bronze impeller+SS304 shaft+Mechanical seal+NSK Bearing

1.SS304 body+SS304 impeller+SS304 shaft+Mechanical seal+NSK Bearing

1.SS316 body+SS316 impeller+SS316 shaft+Mechanical seal+NSK Bearing

All of the pump can resist on the Corrosive water.




Product introduction


MODEL
Capacity(m3/h)
Head
(m)
Speed
(RPM)
Power
(KW)
ISW20-160
2.5
    32
2900
1.1
ISW25-125
4
20
2900
0.75
ISW25-125A
3.6
16
2900
0.55
ISW25-160
4
32
2900
1.5
     ISW160A
3.7
28
2900
1.1
ISW32-125
      4.5
20
2900
0.75
ISW32-160
4.5
32
2900
1.5
    ISW32-160A
4
25
2900
1.1
ISW32-200
4.5
50
2900
3
ISW32-200A
4
40
2900
2.2
ISW32-100I
6.3
12.5
2900
0.75
ISW32-125I
6.3
20
2900
1.1
ISW32-160I
6.3
32
2900
2.2
ISW32-200I
6.3
50
2900
4
ISW40-100
6.3
12.5
2900
0.75
ISW40-100A
5.6
10
2900
0.37
ISW40-125
6.3
20
2900
    1.1
ISW40-125A
5.6
16
2900
0.75




Certifications

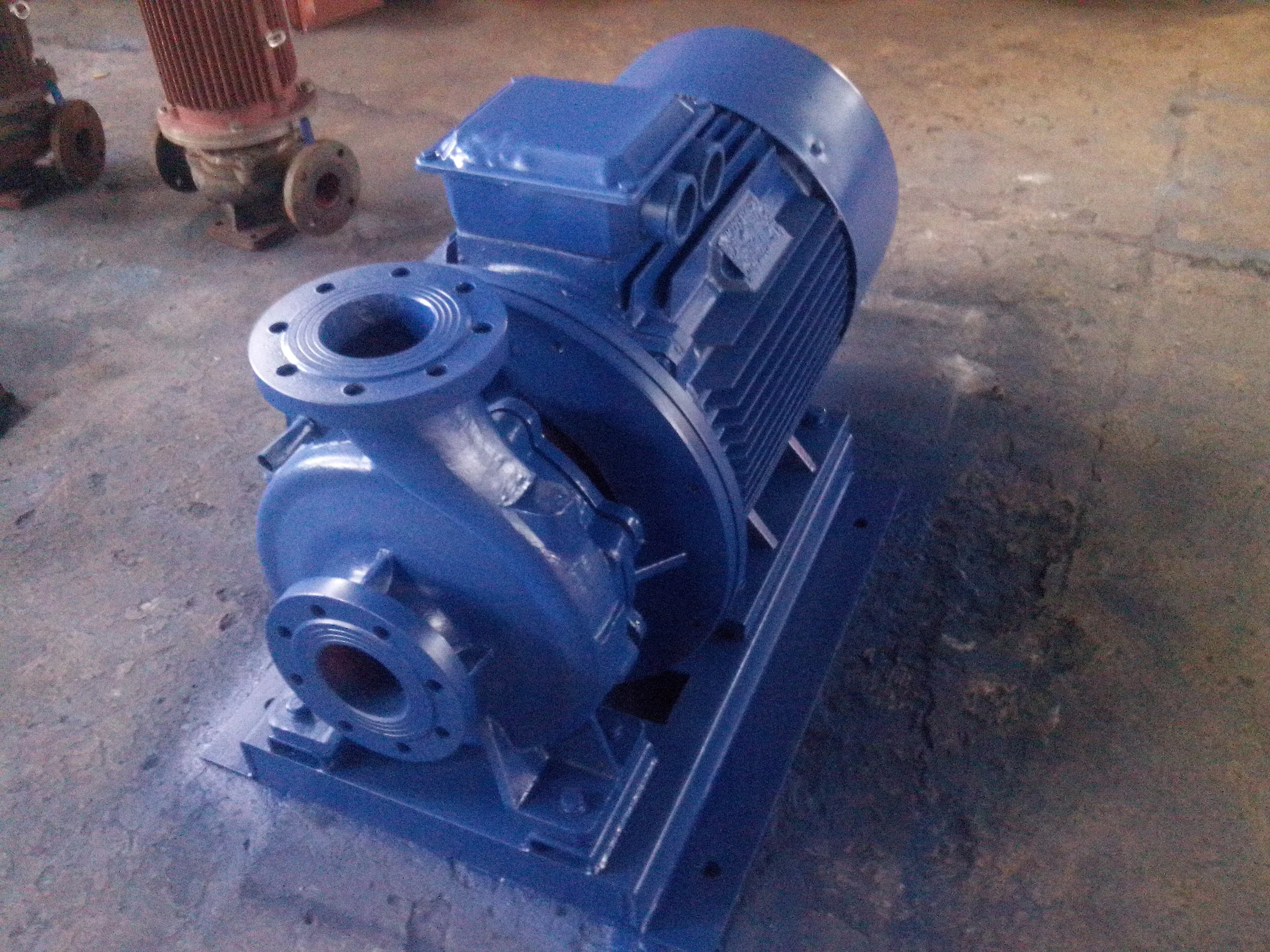

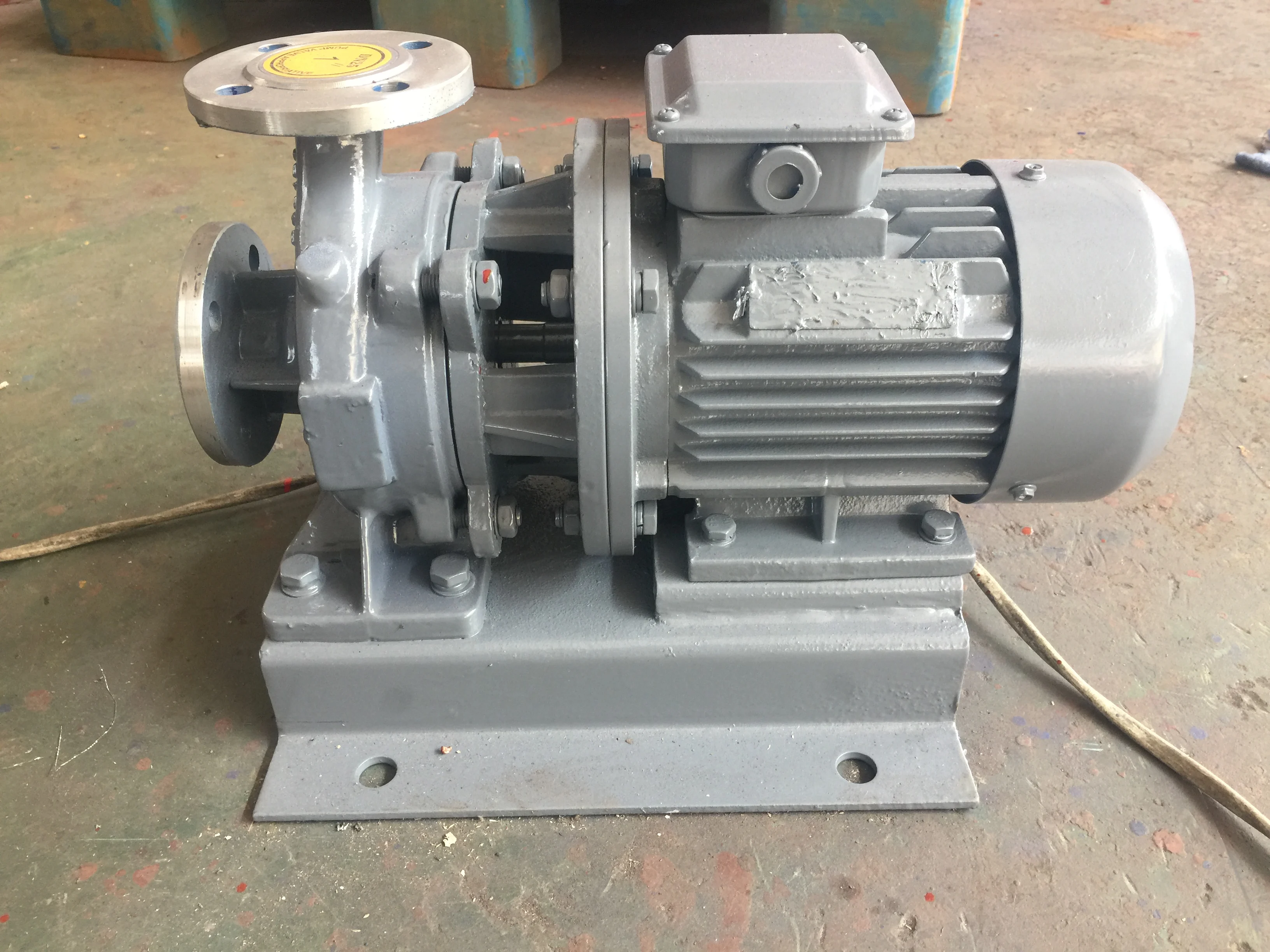

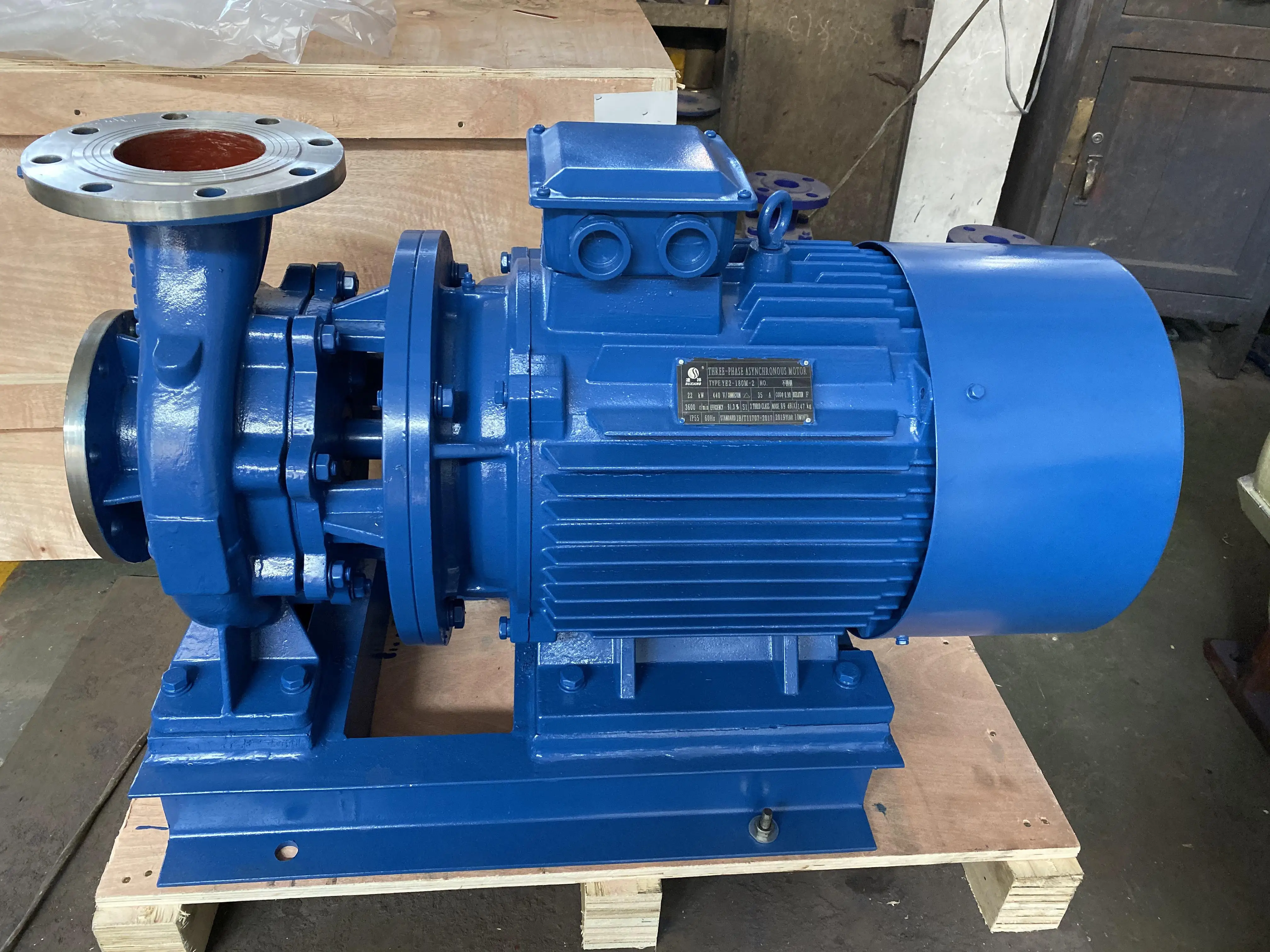

Detailed Images




Our Service




Samply available: 7~10days. Sample is provide with full total price. Oversea Service could be provided, but you have to bear the freight charge.
Qty: 1pc, only pump head is provided.
Price: US$500~5500
OEM is welcome
OEM expierence: more than 20 years.
Countries: Germany, U.S.A, Spain, Italy, United Kingdom etc
Warranty: the whole pump is guaranteed within 1 year, the pump's spare parts are guranteed for 3 months from the date of delivery. If our pump is broken within 3 months, we will provide the new one to you without any delay.
For more information, please do not hesitate to contact me.





Packing & Delivery




FAQ


The information should be including inquiry as following:

1.Pump's flow rate

2.Pump's Head (Pressure)

3.Driven Mode: By electric motor or diesel engine or bare shaft etc

4.Power and rotary speed

5.Suction lift for self priming pump

6.Temperature of liquid if you can provide

Upon the receipt of the pump's parameter, we can send our quotation to you within 24 hours.Or the condition of pump station would be provided.



FAQ

1. Q: Can I know more about your products?

A: Pls view our website: www.chinalancopump.com


2. Q: What's your MOQ of this item?

A: 1~2PCS


3. Q: What is the lead time?

A: normally,5-7 days after receiving your payment, it depends on pumps.


4. Q: What is the payment term?

A: Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card


5. Q: what is the product's warranty?

A: The whole pump is warrantee for one year, while the spare parts or wetting parts about pump will be warrantee for 3 months from the date of delivery.


6. Q: Are you a manufacturer or trading company

A: We are a manufacturer specialize in water pump and other pumps more than 20 years.
