Листовые рессоры стальные шпинделя дисковые пружинные шайбы 50crva/60si2mn стандартная 2093 дисковая пружина
0,11-0,53 $
Высококачественные дисковые пружины DIN2093 Belleville ленточная шайба металлическая пружина из сплава нержавеющей стали
- Категория: >>>
- Поставщик: Tianjin Lantoo International Trade Co. Ltd.Tianjin Ltd.
Сохранить в закладки 1600483391654:
Описание и отзывы
Характеристики
Specification
Product Name | High Quality DIN2093 Belleville Disc Springs Tape Washer Stainless Steel Alloy Metal Spring |
OD Size range | 8-250mm |
Thickness | 0.2~20mm,as your request |
Customizable | Customized springs can be produced by drawings, samples or specification |
Surface Treatment | Galvanized, Powder coating, electrophoresis, Blackening , Chemical oxidation, Phosphating, Dacromet, Color zinc plating, Nickel plating, Chrome plated, Cataphoresis, Apply oil , black painted or at customers' request |
Application | Aviation, automotive, Valve actuator, Safety brake, Punch stripper, Crusher, Vibration sieve, Forklift, industrial, mining equipment, motorbike, bicycle, automatic equipment, household appliance, medical device ,toy, telecommunication, computer, instrument and meter, furniture, electric tools, mold and other industries |
Certificate | ISO9001:2015 |
MOQ | Any small trial order is welcomed |
Delivary Time | Normally 7-15 workdays or based on purchase quantity |
Payment Terms | 30% T/T deposit, 70% against copy of B/L |
Samples | Samples is free of charge |
Keywords | Supply spring assembly belleville disc spindle draw bar helical disc spring |
Product Description

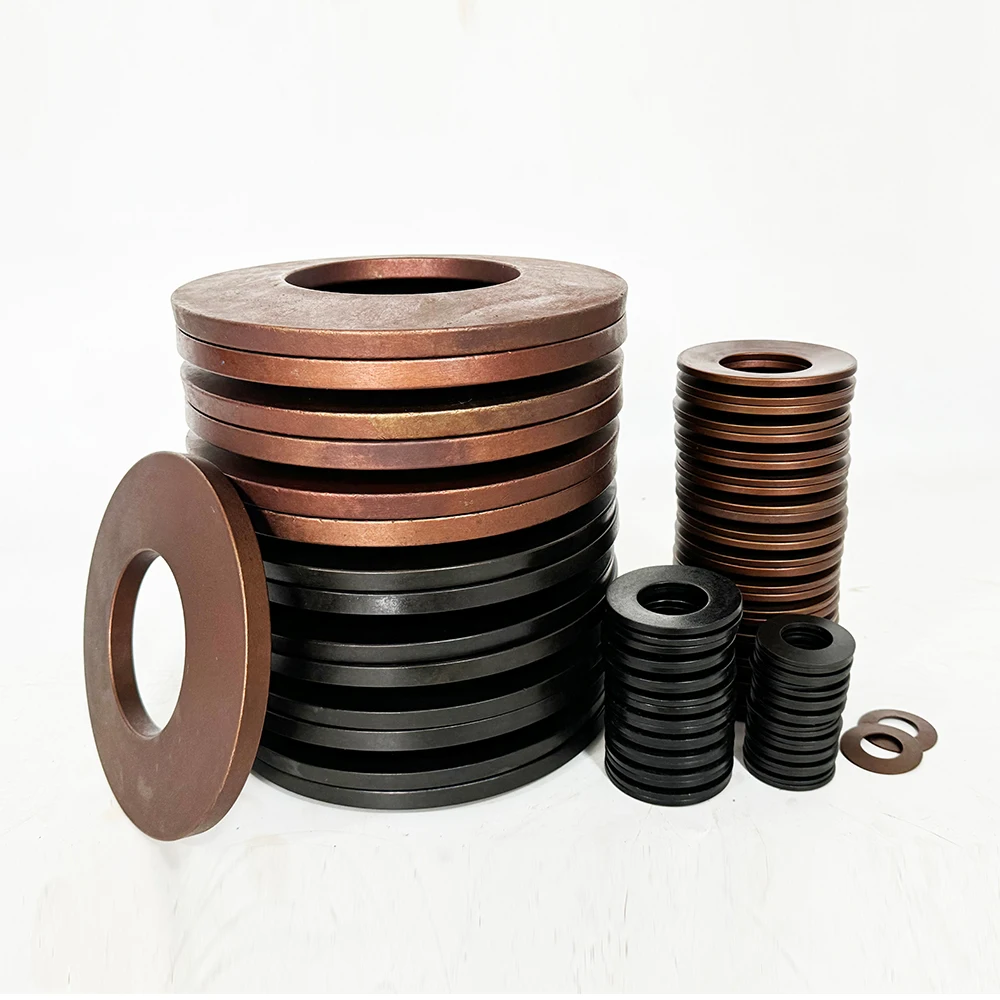

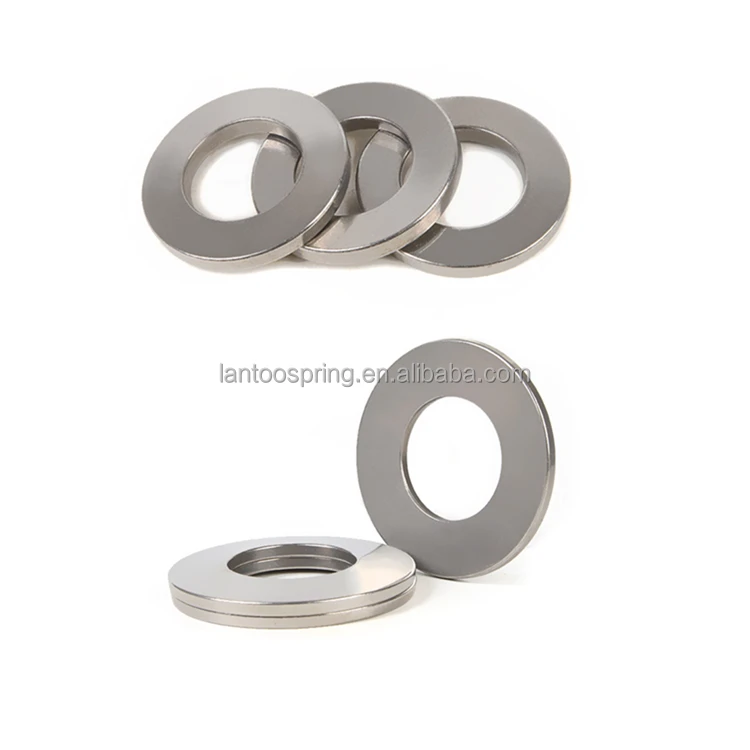

Belleville spring
also known as Belleville spring washer. The shape of the disc spring is a conical disc shape, which is different from traditional springs. It has its special function in function. The main features are large load, short stroke, small space required, easy combination and use, easy maintenance and replacement, economical safety high. Suitable for precision heavy machinery with small space and large load. The best use range of its compression stroke is between 10%-75% of its maximum compression stroke.
The advantages of disc springs compared to springs: 1. Disc springs bear a great load in a small space. Compared with other types of springs, the deformation energy per unit volume of a disc spring is larger. It has good cushioning and shock absorption ability, especially when the laminated combination is used, due to the effect of surface friction resistance, the effect of absorbing impact and dissipating energy is more significant. 2. Disc springs have variable stiffness characteristics. By changing the ratio of the height of the truncated cone in the disc to the thickness of the disc, different spring characteristic curves can be obtained, which can be linear, increasing, decreasing or a combination of them. In addition, variable stiffness characteristics can be obtained by combining different thickness discs or different combinations of overlapping discs with different numbers of sheets.
The advantages of disc springs compared to springs: 1. Disc springs bear a great load in a small space. Compared with other types of springs, the deformation energy per unit volume of a disc spring is larger. It has good cushioning and shock absorption ability, especially when the laminated combination is used, due to the effect of surface friction resistance, the effect of absorbing impact and dissipating energy is more significant. 2. Disc springs have variable stiffness characteristics. By changing the ratio of the height of the truncated cone in the disc to the thickness of the disc, different spring characteristic curves can be obtained, which can be linear, increasing, decreasing or a combination of them. In addition, variable stiffness characteristics can be obtained by combining different thickness discs or different combinations of overlapping discs with different numbers of sheets.

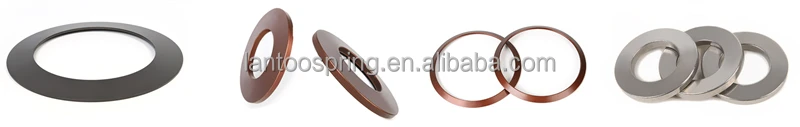

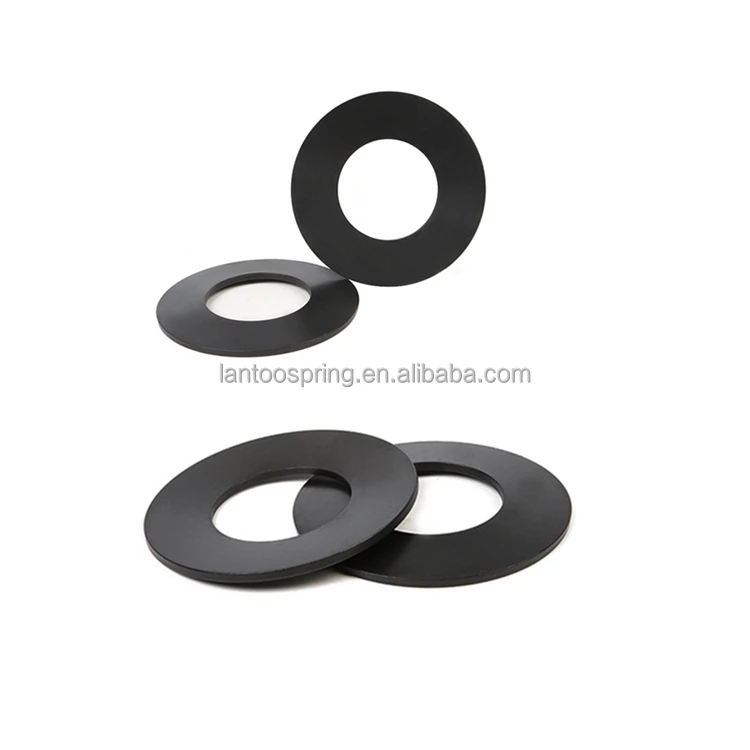

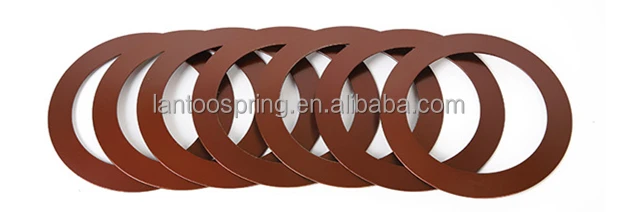

Lantoo Disc springs
According to DIN 2093 and (GB/T 1972-2005) standard, disc spring manufacturing process for the thickness is divided into three categories:
1. thickness t < 1.25 mm, punching, cold forming, to wear away angle.
2. 1.25 mm ≤ thickness t ≤6 mm, punching, cold forming, inside outside diameter processing to grinding flat or excellent punching, cold forming, remove the edge of angle.
3. 6 mm ≤ thickness t≤16 mm, casting embryos, surface all processing to grinding flat and punching, cold forming, inside outside diameter processing to acute angle or fine punching
1. thickness t < 1.25 mm, punching, cold forming, to wear away angle.
2. 1.25 mm ≤ thickness t ≤6 mm, punching, cold forming, inside outside diameter processing to grinding flat or excellent punching, cold forming, remove the edge of angle.
3. 6 mm ≤ thickness t≤16 mm, casting embryos, surface all processing to grinding flat and punching, cold forming, inside outside diameter processing to acute angle or fine punching
For more parameters, please contact customer service
Recommend Products
Company Profile
Tianjin Lantoo International Trade Co.,Ltd.,
Founded in 2008, our company is a high-quality manufacturing enterprise integrating design, production, sales and service. Specialized in high precision hardware parts, springs, hose clamps, stamping components, We are offering OEM service for global customers, also can make designs to follow your ideas, product requirements.Committed to helping customers from all walks of life meet current and future social needs, in order to actively explore domestic and foreign markets, accelerate industrial upgrading and product structure adjustment, we have fully automatic spring coiling machines, spring grinding machines, tempering furnaces, quenching furnaces, and more than 10 sets of various advanced CNC machinery to meet the market's highest requirements for functions.

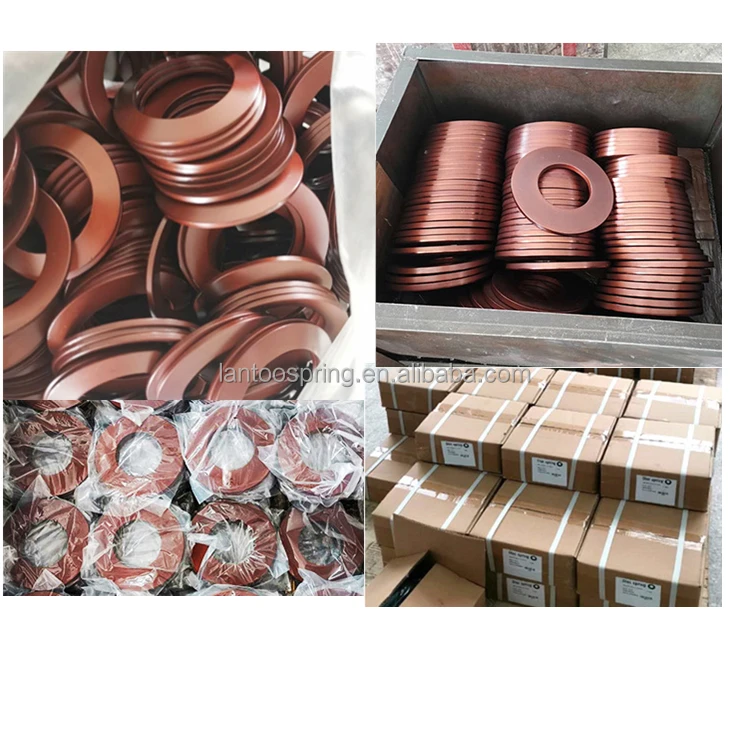

Packing & Delivery
FAQ
1. Are you factory or trading company?
We are spring factory in Tianjin with 20 years of production experience.
2. What’s the MOQ?
It depend on the size and complexity of the process, usually MOQ is 10pcs for normal size.
3. What’s the payment term?
T/T 30% deposit and 70% balance against copy of BL.
4. What’s the delivery time?
Quantity≤1000-3000pcs, it takes 12-15 days.
Quantity≥3000-5000pcs, it takes 15-20 days.
5. What’s the payment method?
T/T, L/C, western union , paypal are all available.
6. Can i get one sample?
Yes, sample is free if amount not too much, you only afford the freight.
7. What information should i provide for quote?
Please send specification or drawing or samples if you have.And your special requirement, such as material, surface treatment,tolerance, quantity, package.
We are spring factory in Tianjin with 20 years of production experience.
2. What’s the MOQ?
It depend on the size and complexity of the process, usually MOQ is 10pcs for normal size.
3. What’s the payment term?
T/T 30% deposit and 70% balance against copy of BL.
4. What’s the delivery time?
Quantity≤1000-3000pcs, it takes 12-15 days.
Quantity≥3000-5000pcs, it takes 15-20 days.
5. What’s the payment method?
T/T, L/C, western union , paypal are all available.
6. Can i get one sample?
Yes, sample is free if amount not too much, you only afford the freight.
7. What information should i provide for quote?
Please send specification or drawing or samples if you have.And your special requirement, such as material, surface treatment,tolerance, quantity, package.
8. How is your service
We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we offer best after sale service low price: The price of our products is reasonable and competitive than other manufactures.
We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we offer best after sale service low price: The price of our products is reasonable and competitive than other manufactures.
Contact Us
Похожие товары

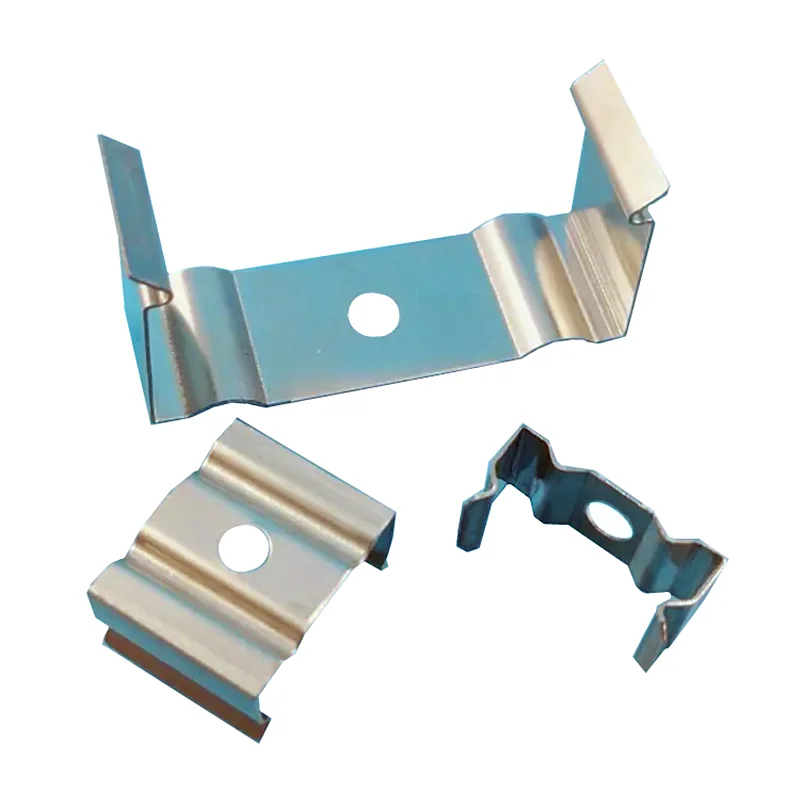

Поставка с фабрики Китая пружинные кронштейны OEM индивидуальные высококачественные анодированные из нержавеющей стали

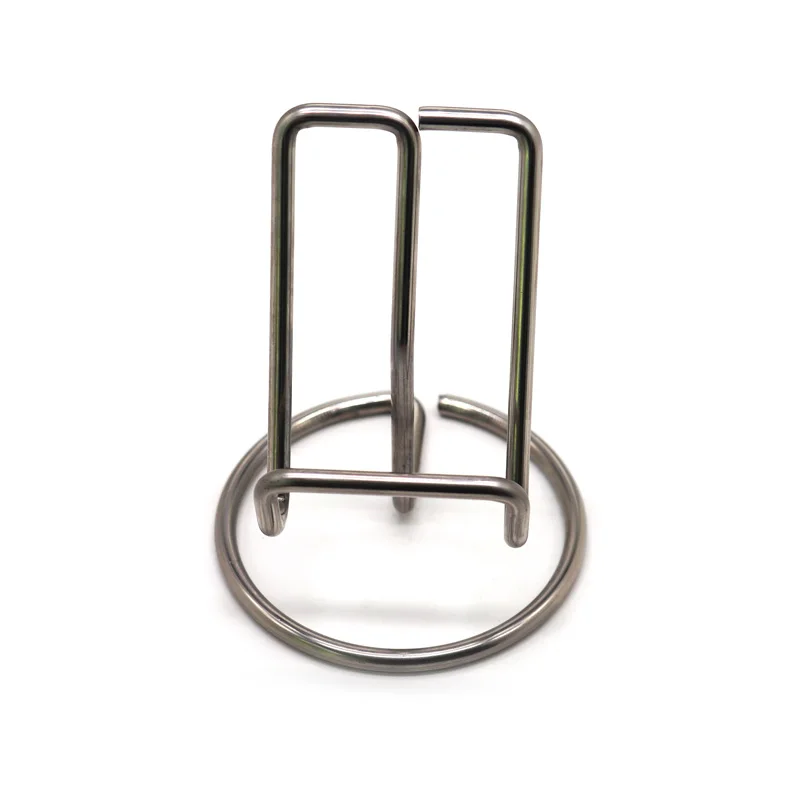

Полукруглый плоский стальной пружинный кронштейн из SUS304
0,20-1,00 $
Фабрика OEM изготовленный на заказ высокоточный алюминиевый стальной пружинный кронштейн
0,18-0,44 $

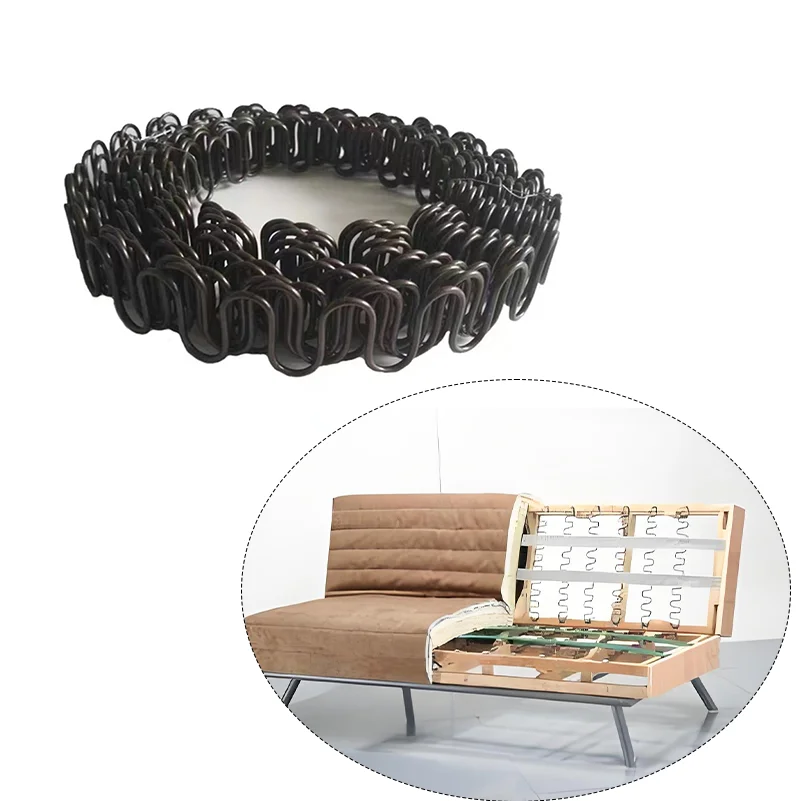

Jian Li Oem металлический каркас для дивана зигзаг пружинная пружина сиденья
0,87-0,99 $

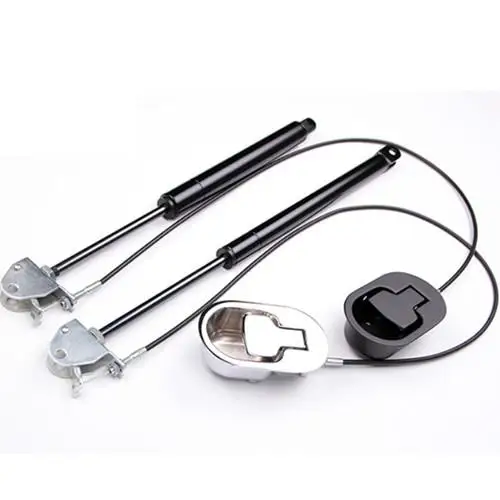

Кресло с откидывающейся спинкой и закрывающейся газовой пружиной
