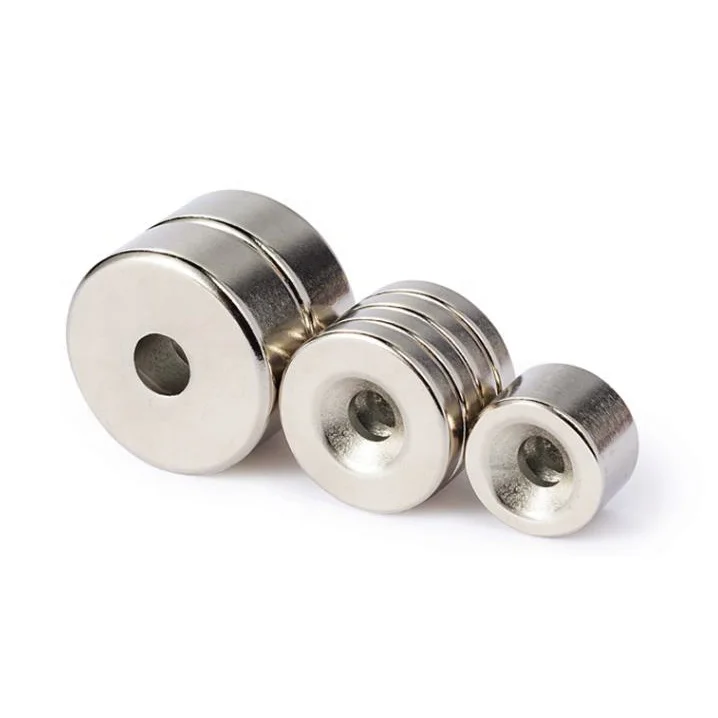

Оптовая продажа, неодимовый магнит imanes de neodimio n52 с потайным отверстием
0,10 $ - 0,20 $
Экономичная и прочная паяльная печь JAGUAR A8 с 8 зонами нагрева
- Категория: >>>
- Поставщик: Shenzhen JAGUAR Automation Equipment Co. Ltd.
Сохранить в закладки 1600484166318:
Описание и отзывы
Характеристики
Product Description

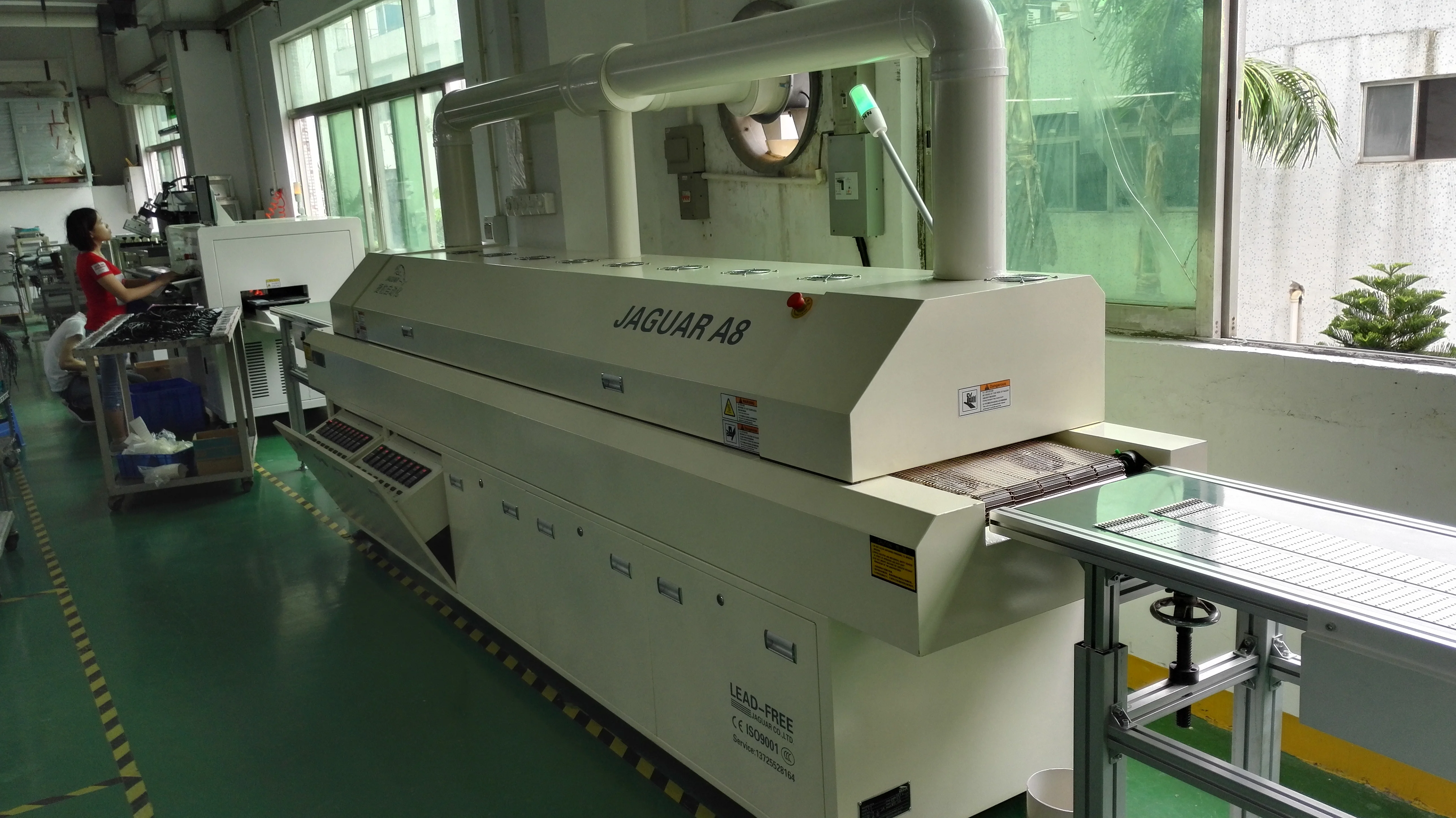

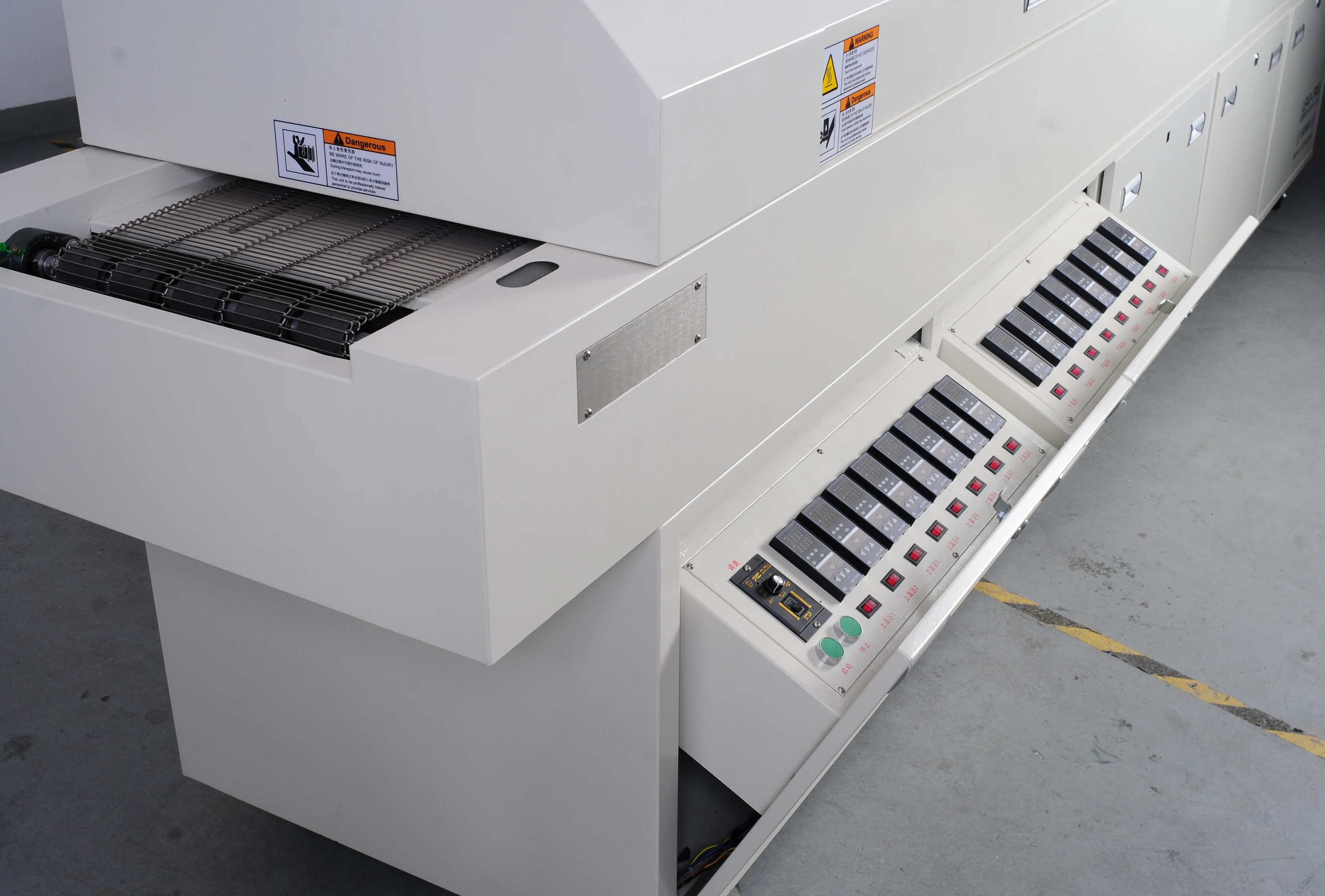

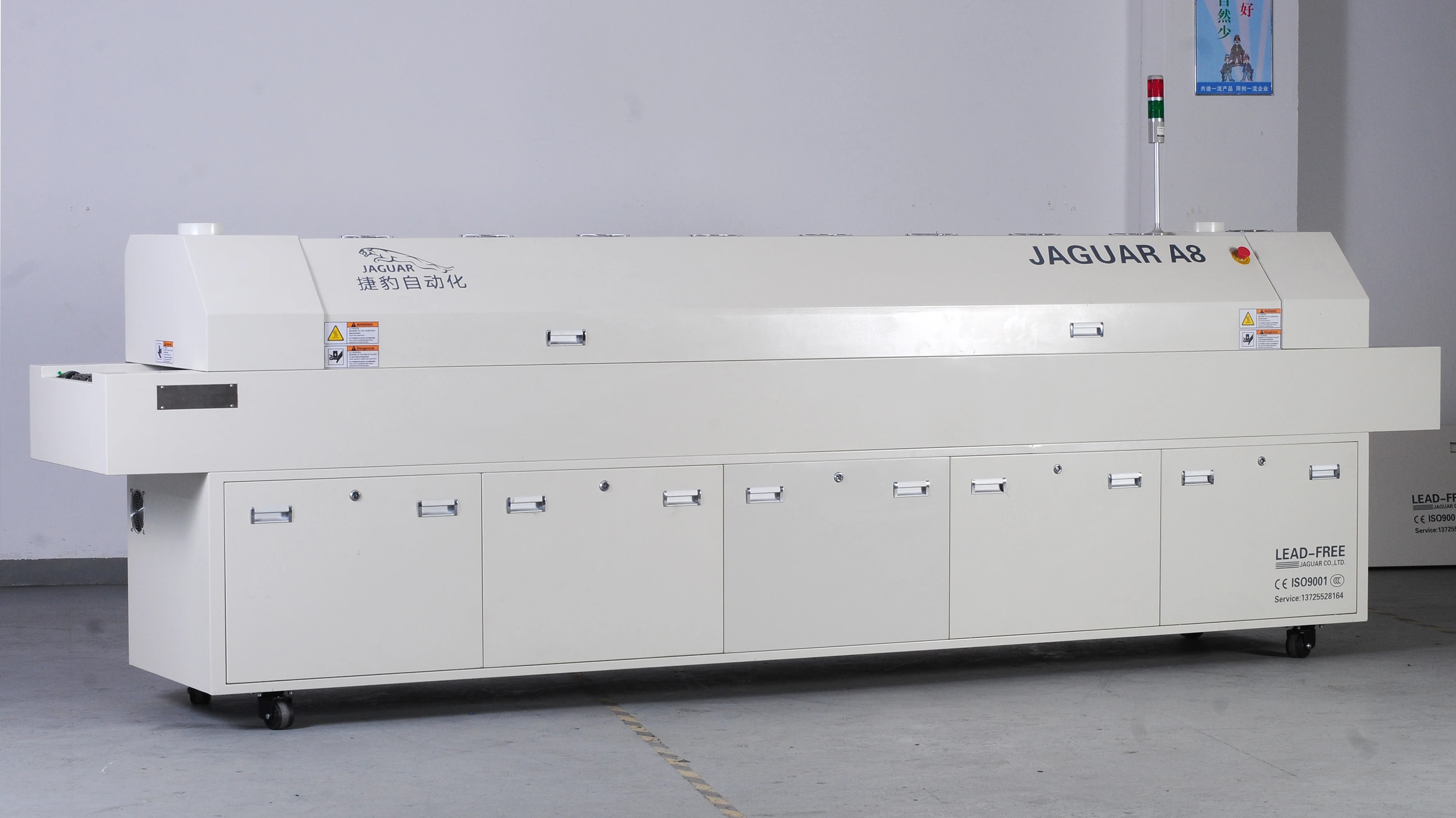

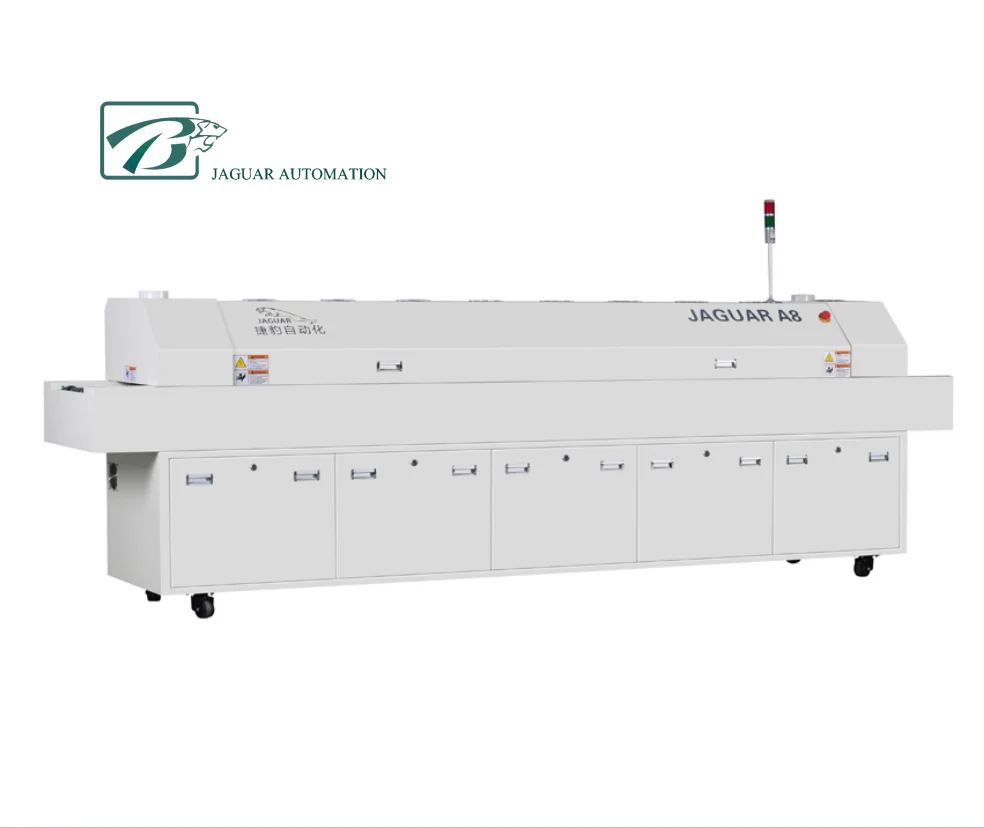

JAGUAR 8 Zones Lead-free Reflow Oven A8
Introduction:
No.1 The unique advanced long life heating system
1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The
peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely.
2. Using special high temperature barrier structure for heat preservation and special iron in
Heating passage.
3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.
4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.

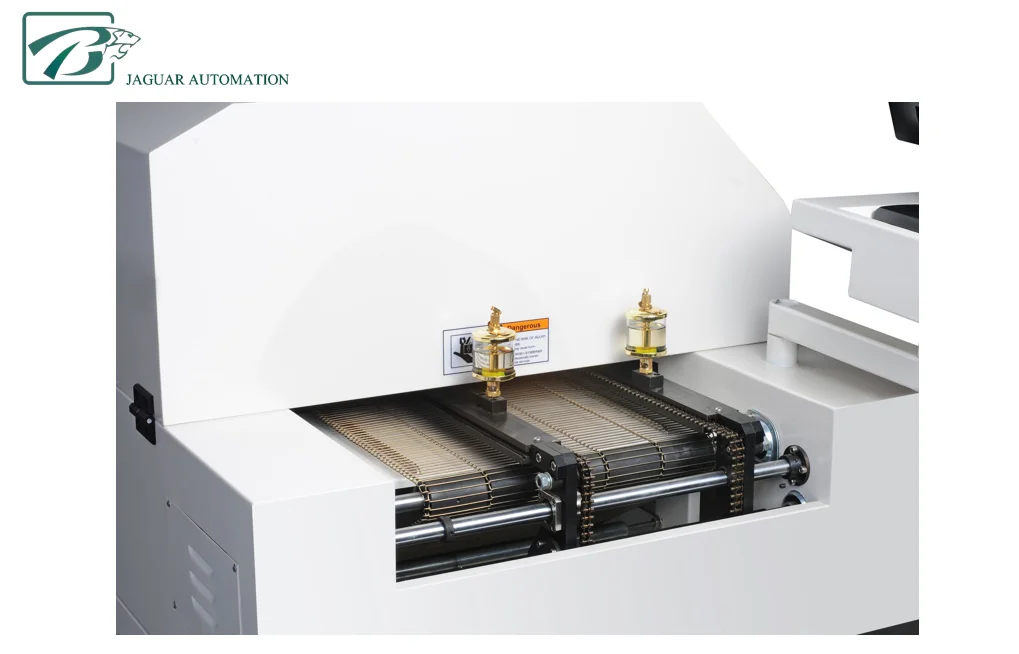

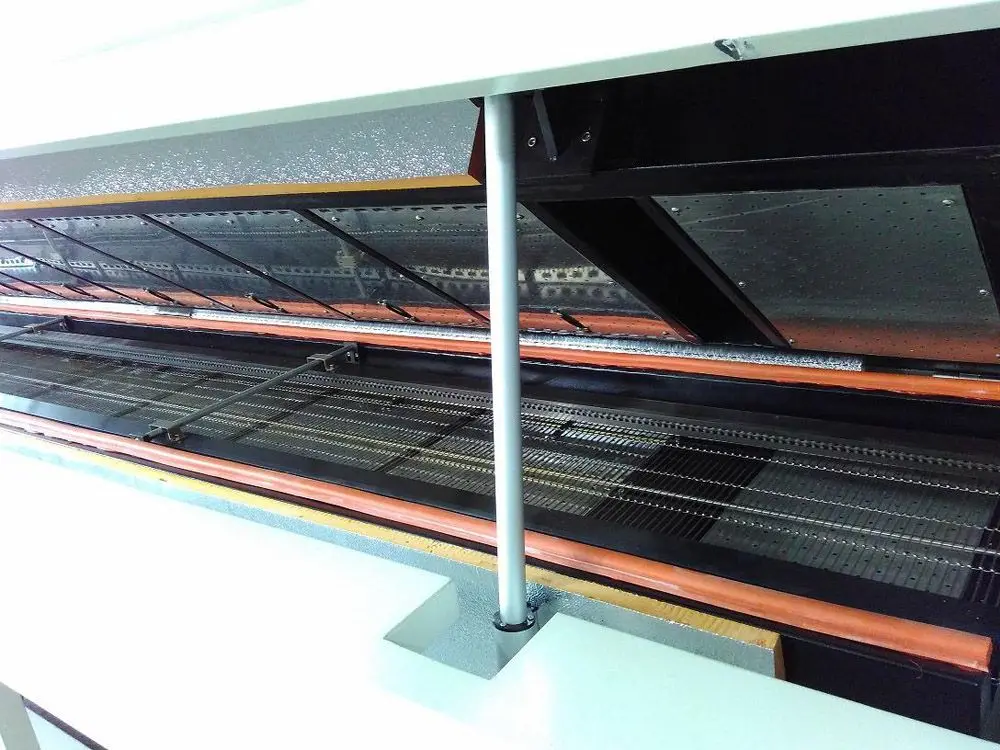

No.2 Smooth and reliable transmission system
1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1000mm/min.
1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The
peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely.
2. Using special high temperature barrier structure for heat preservation and special iron in
Heating passage.
3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.
4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.
No.2 Smooth and reliable transmission system
1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1000mm/min.
2. Independent roller structure support and match stainless steel mesh belt to make the running smoothly and the speed precision is up to ±20 mm/min.
3.Special stainless steel mesh belt: durable and wear-resistant, long lifetime.
No.3 Stable and reliable electrical control system
1. It adopts imported thermostat control which owns fuzzy logic and PID close loop system. It can fast response to temperature changes and ensure temperature compensation by PID intelligent operation.
2. Using thermocouple imported from Taiwan to each temperature zone, it can fast and sensitive response the changes in each temperature zone, feedback and control timely, compensate the temperature stability in each zone.
3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively. Non-contact output and fuzzy control function by thermostat, can monitor the changes of environmental temperature, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform internal temperature. The length ,direction, temperature distribution, all these meet with IPC standards .
4. Heat energy is abundant, heat up fast, it’s only need 20 minutes from room temperature to set-point temperature.
5. Failure diagnosis, visual & audio alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent hardwares thermal damaged.
3.Special stainless steel mesh belt: durable and wear-resistant, long lifetime.
No.3 Stable and reliable electrical control system
1. It adopts imported thermostat control which owns fuzzy logic and PID close loop system. It can fast response to temperature changes and ensure temperature compensation by PID intelligent operation.
2. Using thermocouple imported from Taiwan to each temperature zone, it can fast and sensitive response the changes in each temperature zone, feedback and control timely, compensate the temperature stability in each zone.
3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively. Non-contact output and fuzzy control function by thermostat, can monitor the changes of environmental temperature, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform internal temperature. The length ,direction, temperature distribution, all these meet with IPC standards .
4. Heat energy is abundant, heat up fast, it’s only need 20 minutes from room temperature to set-point temperature.
5. Failure diagnosis, visual & audio alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent hardwares thermal damaged.
Specification
Model | JAGUAR A8 | ||
Heating System | Number of heating zones | Top 8/Bottom 8 | |
Heating passage | 2800MM | ||
Heating style | Top: hot air; bottom: IR(Top hot air bottom hot air is optional) | ||
Cooling Style | Force air | ||
Conveyor System | Max. Width of PCB | 400mm | |
Mesh belt width | 400mm | ||
Conveyor Direction | L→R(or R→L) | ||
Process Height | 880±20mm | ||
Conveyor type | Mesh | ||
Conveyor speed | 0-1000mm/min | ||
Fixed Track | Front track fixed(option: rear track fixed) | ||
Control system | Power supply | 5 line 3 phase 380V 50/60Hz | |
Total consumption | 38kw | ||
Startup consumption | 34kw | ||
Steady consumption | 4KW | ||
Ramp Up time | About 20 mins | ||
Temp. set-point range | Room temperature-300℃ | ||
Temp. control method | PID close loop control & SSR driving | ||
Temp. control precision | ±2℃ | ||
Data storage | Process Data and status storage(80GB)(machine with PC) | ||
Nozzle plate | Aluminum Alloy Plate | ||
Abnormal Alarm | Abnormal temp. (Overtemp/low temp.) | ||
Board dropped alarm | Tower light: Amber-warning, Green-normal, Red-abnormal | ||
General | Dimension(L*W*H) | 4200×700×1320mm | |
Weight | 800KG | ||
Color | Computer grey | ||
Packing & Delivery
Wooden Box and Vacuum Package
Company Profile
Shenzhen Jaguar Automation is professional in manufacturing wave soldering machine and reflow oven,besides both two kinds of products, we also engaged in offering SMT conveyor, pick and place machine, LED equipments, PCB loader and unloader, screen printer and other SMT machines.
Our services, we devote to serve customers and meet all of their diversified requirments with stable technical level, innovative design concept, precise manufacturing process, reasonable price and customer first after-sales system.
JAGUAR has been committed to develop to lead-free machine and manufacture lead-free electronic devices since foundation. At present, we have researched and developed 4 sorts of environmental friendly reflow oven, there are A series, M series, F series and R series. What's more, we have also develop wave soldering machine, for example, the econimic wave solder, top lead free wave solder and high-end of large size wave solder. All of our machines are not only used wildly in electronic circuit, LED industry, instruments and apparatuses, but also in household appliances, such as washing machine, microwave, television ect.
Our services, we devote to serve customers and meet all of their diversified requirments with stable technical level, innovative design concept, precise manufacturing process, reasonable price and customer first after-sales system.
JAGUAR has been committed to develop to lead-free machine and manufacture lead-free electronic devices since foundation. At present, we have researched and developed 4 sorts of environmental friendly reflow oven, there are A series, M series, F series and R series. What's more, we have also develop wave soldering machine, for example, the econimic wave solder, top lead free wave solder and high-end of large size wave solder. All of our machines are not only used wildly in electronic circuit, LED industry, instruments and apparatuses, but also in household appliances, such as washing machine, microwave, television ect.

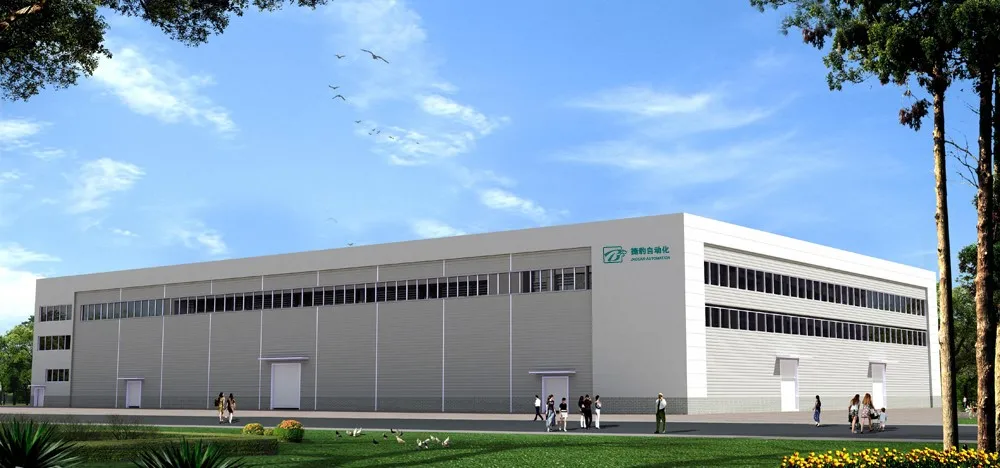

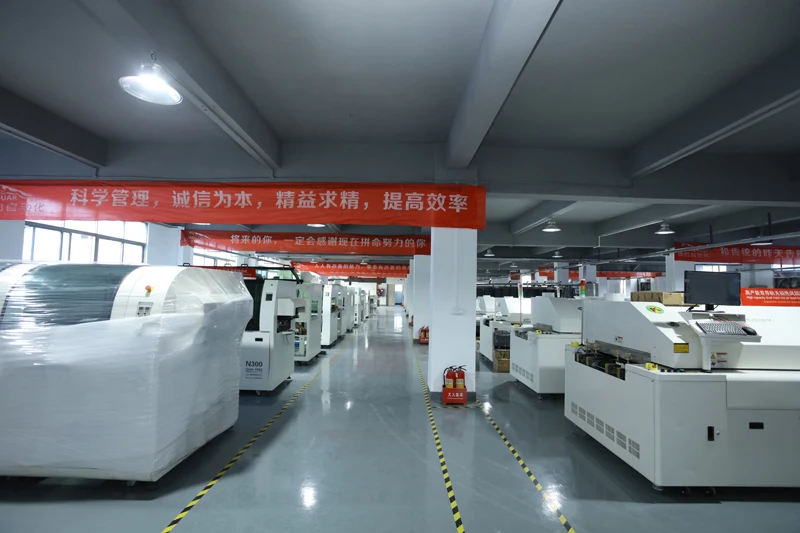

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Exhibition
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Why Choose Us

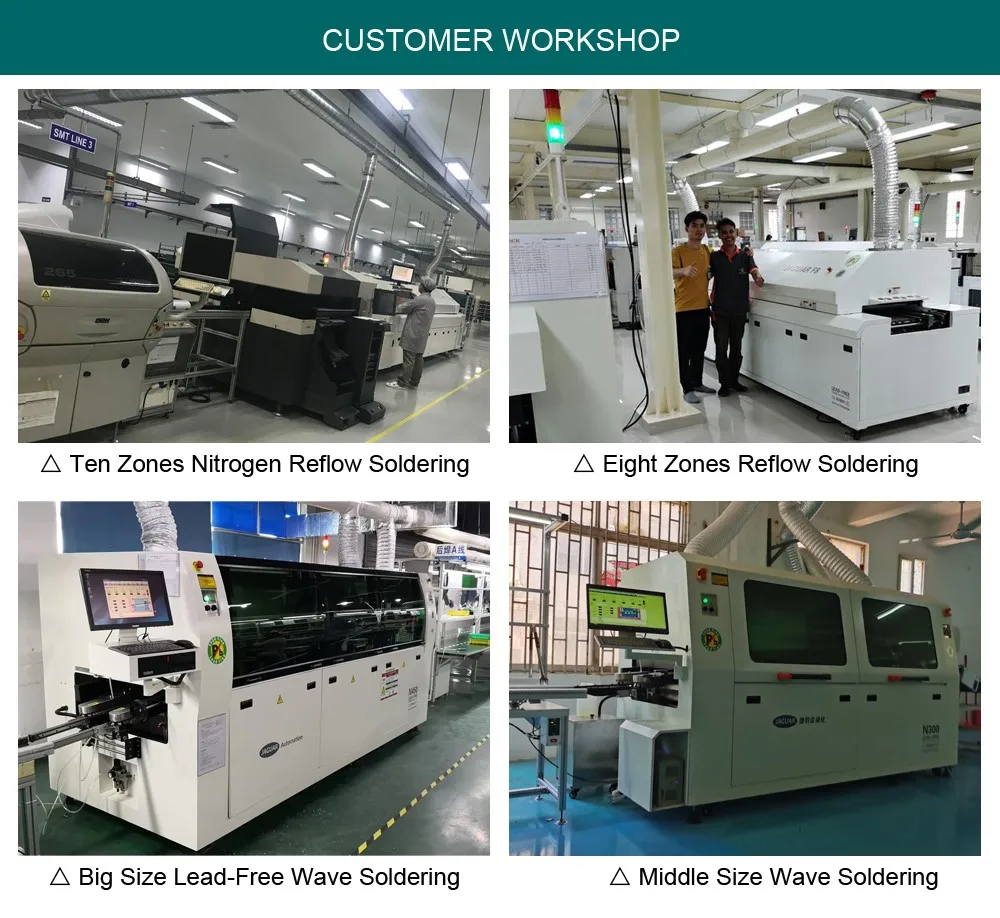

JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
FAQ
1)This is the first time I use this kind of SMT wave soldering machine, is it easy to operate?
There is english manual or guide video that show you how to use SMT wave soldering machine. If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service
2) If SMT wave soldering machine have any problem after I receive it, how can I do ?
Free parts send to you in SMT wave soldering machine at warranty period. If the part is less than 0.5KG, we pay the postage. If it exceeds 0.5KG, you need to pay the postage.
3) What is the MOQ ?
1 set SMT wave soldering machine, mixed order is also welcome.
4) How can I buy this SMT wave soldering machine from you?( Very easy and flexible !)
A. Consult us about this product online or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.
F.Shipping the machine by air or by sea.
5)Why choose us ?
A.Factory directly supply,Ensure quality,price and delivery time.
B.Gold supplier on Alibaba,trade assurance reached US$54,000
C.Product quality inspection before shipment, professional and timely after-sales service
There is english manual or guide video that show you how to use SMT wave soldering machine. If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service
2) If SMT wave soldering machine have any problem after I receive it, how can I do ?
Free parts send to you in SMT wave soldering machine at warranty period. If the part is less than 0.5KG, we pay the postage. If it exceeds 0.5KG, you need to pay the postage.
3) What is the MOQ ?
1 set SMT wave soldering machine, mixed order is also welcome.
4) How can I buy this SMT wave soldering machine from you?( Very easy and flexible !)
A. Consult us about this product online or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.
F.Shipping the machine by air or by sea.
5)Why choose us ?
A.Factory directly supply,Ensure quality,price and delivery time.
B.Gold supplier on Alibaba,trade assurance reached US$54,000
C.Product quality inspection before shipment, professional and timely after-sales service
Contact Information
Shenzhen JAGUAR Automation Equipment Co.,Ltd
Nirvana
Mobile/Whatsapp/Wechat: 86-18123080337
E-mail: sales05@jaguar-ele.com
Nirvana
Mobile/Whatsapp/Wechat: 86-18123080337
E-mail: sales05@jaguar-ele.com
