S 800 12 800W 12VDC 66A выход импульсный источник питания для трансформаторная развязка управления

Сохранить в закладки 1600484704562:


Цена:55,00 $ - 67,13 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


S-800-12 800W 12VDC 66A Output Switch Mode Power Supply For Control Transformer








Features:

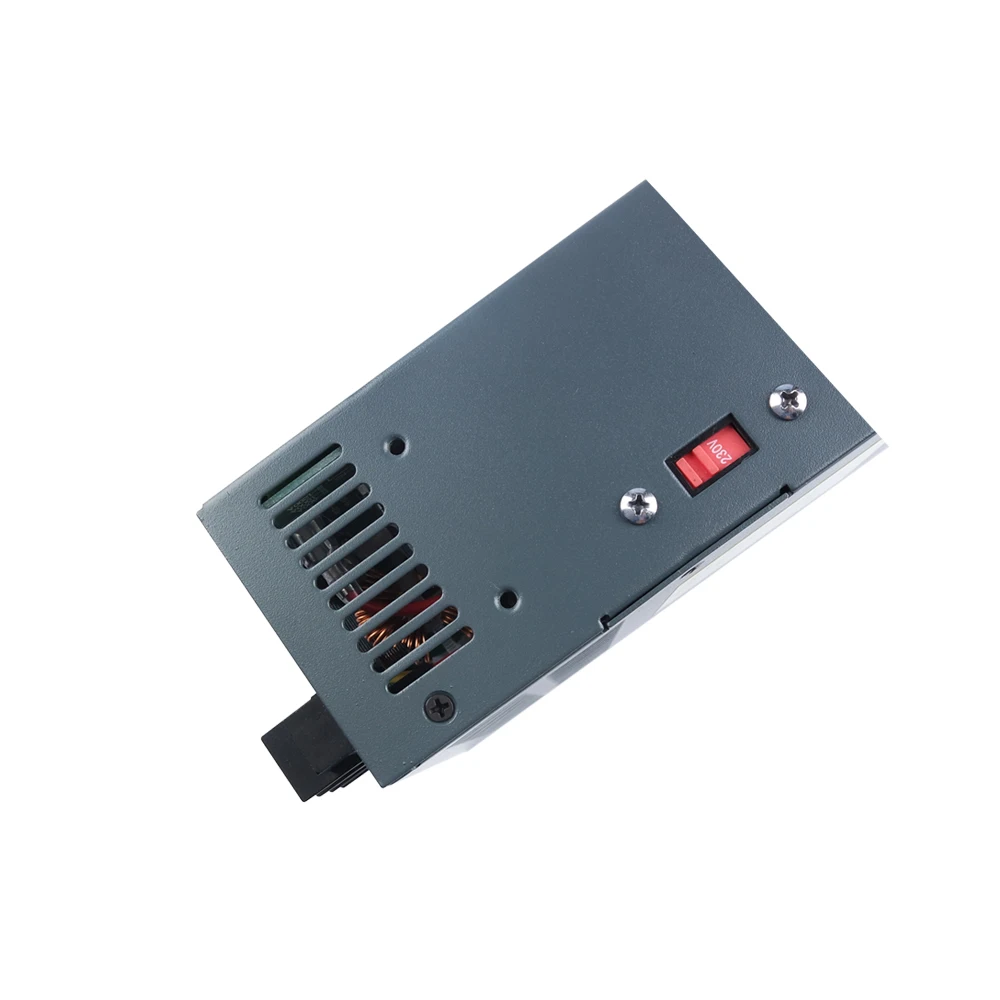

1. AC input range selectable by switch


2. Protections: Short circuit / Overload / Over voltage / Over temperature


3. 100% full load burn-in test


4. Low cost, high reliability


5. 24 months warranty


























































































































































MODELS-800-12S-800-15S-800-24S-800-48
OUTPUTDC Voltage12V15V24V48V
Voltage Tolerance±1%±1%±1%±1%
Rated Current66A54A33A16.6A
Current Range0-66A0-54A0-33A0-16.6A
Rated Power800W800W800W800W
Ripple & Noise150mVp-p150mVp-p240mVp-p480mVp-p
DC Adjustment Range±5%; Can adjust from 40%~100% output voltage by external control 2-5V
Setup, Rise, Hold Time800ms, 50ms, 16ms at full load
INPUTVoltage Range90~130VAC / 180~260 VAC47~63 Hz;selected by switch260~370VDC
AC Current13A/115 VAC 8.0A/ 230 VAC
Efficiency80%81%85%87%
Inrush Current60A/230V
Leakage Current3.5 mA/240VAC
PROTECTIONOver Load110%~135%
Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover
Over TempTSW1(Power transistor) When temp. >100 °C, shut down o/p voltage, re-power on to recover
ENVIRONMENTWorking Temp., Humidity-10°C~+65°C,20%~90 %RH
Storage Temp., Humidity-20°C~+85°C,10%~95 %RH
Vibration10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETYWithstand VoltageI/P-O/P, I/P-FG:1500VAC
Isolation ResistanceI/P-O/P, I/P-FG, >100M Ohms / 500VDC
 EMC StandardDesign refer to FCC Part 15 Class A
OTHERSWeight2.65Kg;
Packing6pcs/16kg/CARTON
NOTE1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
