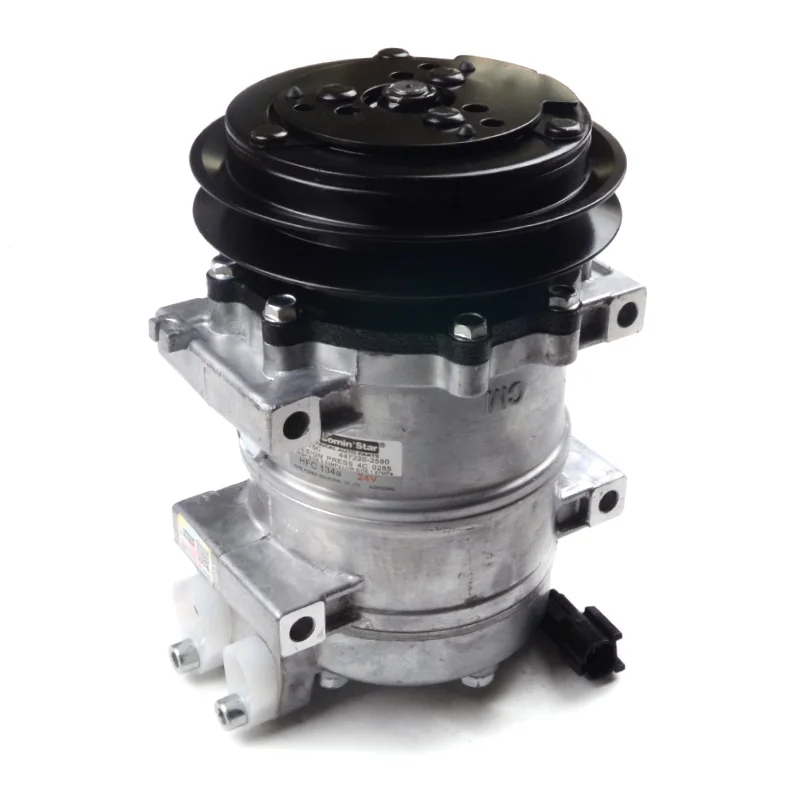

Производитель A/C AC экскаватор R134a 12V 24V EX200-3 EX120-3 ZAX200-3 ZAX120-3 воздушный компрессор строительная техника экскаватор HITACHI
48,00 $ - 50,00 $
Полиуретановая пневматическая пластиковая мягкая труба воздушный компрессор шланг экструзионная линия
- Категория: >>>
- Поставщик: Dongguan Songhu Plastic Machinery Corp.
Сохранить в закладки 1600485132204:
Описание и отзывы
Характеристики
Production profile
Dongguan Songhu Plastic Machinery Co,LTD, as a professional small and medium-sized precision extrusion equipment research and development, production enterprises, starting from the needs of users, which has been trying to create the most precise and efficient PU Pneumatic pipe production line.
Songhu is based on rich experience in equipment design and manufacturing,combining with the special processing properties of PU materials,which has developed a high speed PU air hose extrusion line and realized the high speed and stable extrusion moulding of PU Pneumatic pipe.
The production technology adopts vacuum negative pressure and positive pressure moulding method, which greatly improves the accuracy of PU Pneumatics Pipe and uniform wall thickness, making the product more pressure resistant. So far, it is still continuously researching, improving technology and putting it into actual production. It is one of the technical leaders in the domestic industry.
Product advantage
PU Pneumatic Plastic soft Pipe Air Compressor Hose extrusion line
1, High speed,automation: automatic extrusion production line equipment;In the production process, without personnel operation supervision, it is more convenient to complete the production process quickly.
2, New high-tech configuration: strict material selection. It select reliable quality accessories to ensure the stability of equipment, equipment temperature control precision, extrusion stability, precision cutting. Product surface gloss, small aperture error, good texture.
3, Good product quality: It adopt special technology. The produced PU pipe wall is smooth and uniform with high surface gloss, stable size, long working life; Good resilience, small bending radius, easy installation and cutting; Wear resistance, excellent mechanical properties.
Product Description
1,The technical parameters of PU Plastic Soft pipe extrusion line:
Machine model | Screw diameter | Screw L/D | Installed power | Equipment size | extrusion output |
SHSJ-55 | 55 | 30:1 | 35 | 12*1.5*2.1 | 30-60 |
SHSJ-65 | 65 | 30:1 | 50 | 18*2*2.5 | 40-80 |
2,Composition of PU Plastic Soft pipe extrusion line:
NO. | Device name | Quantity:set | Remark |
1 | Main extruder | 1 |
|
2 | Extrusion mould | 1 |
|
3 | Vacuum shaping cooling tank | 1 |
|
4 | Servo tractor | 1 |
|
5 | Winder machine | 1 |
|
auxiliary equipment (cooling-water machine, automatic feeding machine, blender mixer,Caliper ) is negotiable. | |||

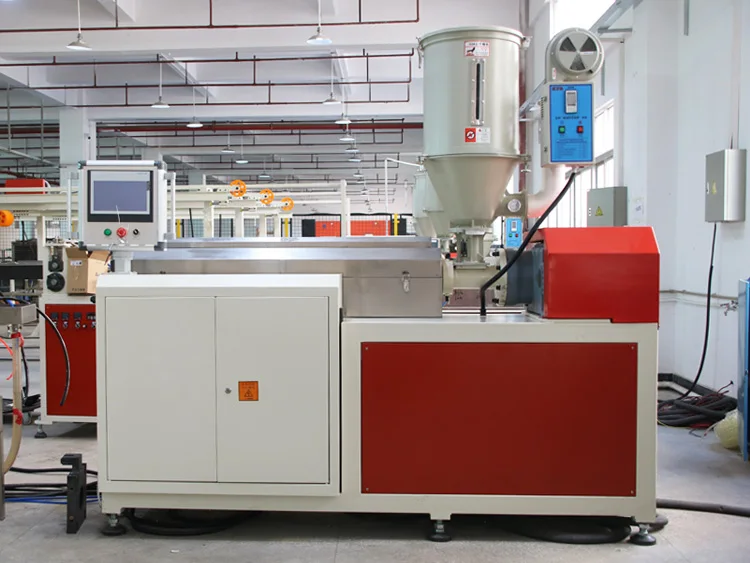

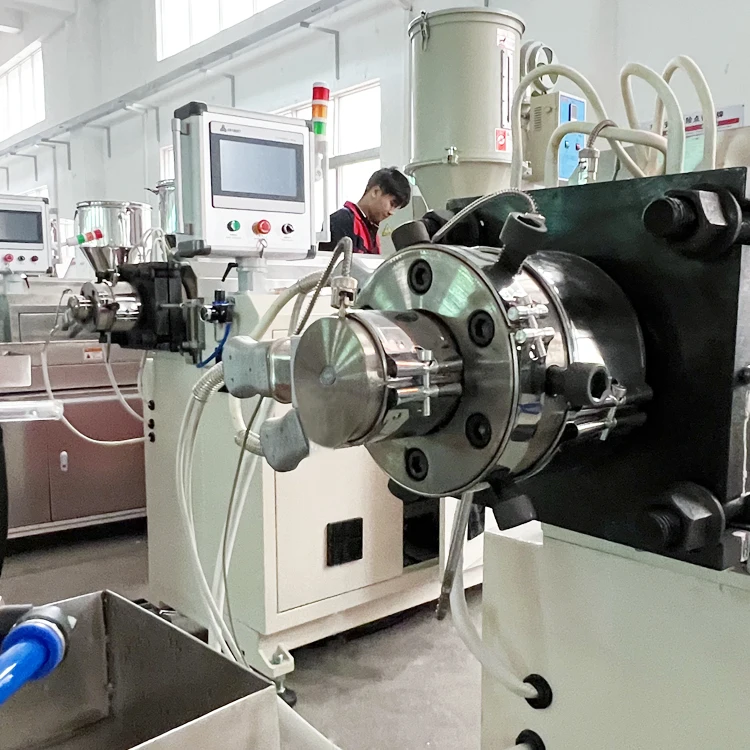

NO.1 Main extruder:
The main extruder is driven by high-precision hard tooth surface reducer, and the screw barrel is made of high strength nitride alloy steel (38CrMoALA) or high strength quenched alloy steel (9Cr18MoV). The main extruder is driven by Siemens motor, with low noise and reliable quality. Besides, it adopt temperature-controlled meter to realize precise temperature control of equipment; it adopt frequency conversion control.
NO.2 Extrusion mould:
High precision extrusion mould: extrusion mould is S136, with the corresponding sizing set, precise product size.

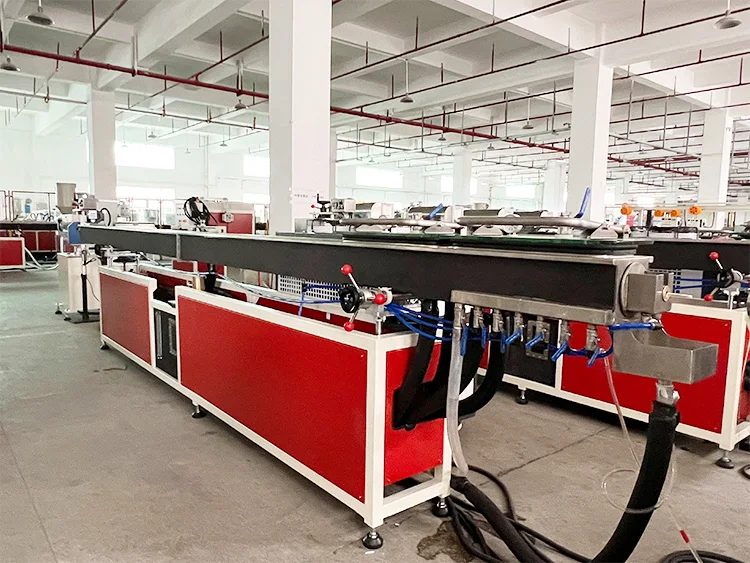

NO.3 Vacuum shaping cooling tank:
The main body of stainless steel cooling water tank adopts imported SUS304 material; The water tank frame adopts spiral elevator device, which can be adjusted up, down and around 3d, convenient operation; Equipped with stainless steel water storage tank and stainless steel special centrifugal pump, cooling water circulation, saving water resources.
NO.4 Servo tractor:
The tractor adopts high precision ball guide system, single screw center high adjustment, tensioning adjustment, high efficiency, high stability surface foam PU multi-wedge belt, low inertia multi-wedge belt, high efficiency and precision worm gear reducer transmission, high precision frequency conversion controller, traction speed adjustable
NO.5 Winder Machine
With automatic meter function, direct packaging shipment.
(The winding machine is driven by torque motor and controlled by constant tension)
Product application

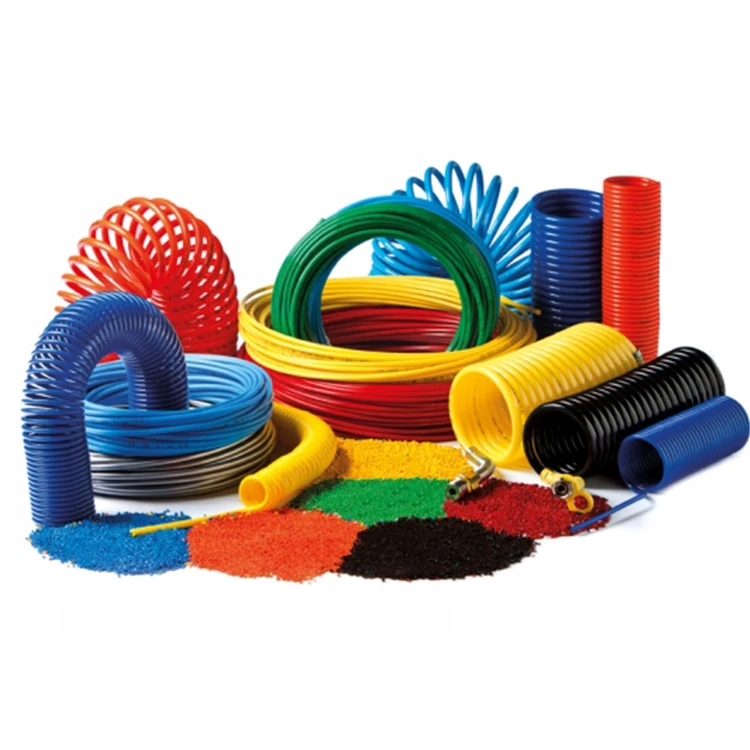

PU material is widely used for liquid transportation under general working pressure in industry, agriculture, food, medicine, civil engineering, fisheries, aquaculture, garden irrigation and other fields. Such as: pneumatic hose, hydraulic pipe, garden hose, oil, water pipe and so on. Production pipe diameter range of 4-18mm.
After-sales service
1. The company adopts after-sale service mode of whole-process telephone tracking for the supplied equipment.
2. The warranty period starts from the date when the equipment is installed and tested and accepted by both parties. If the equipment accessories are damaged due to non-human factors, our company will be responsible for free trade-in within one year.
3. After one year, the company will charge maintenance fees lower than the market price and provide lifelong technical services.
4. Establish installation, daily maintenance and maintenance service files, and record the usage, repair and maintenance of equipment in detail;
5. Regular telephone interview to solve specific problems encountered during the operation of the equipment, and prevent problems before they occur;
6. Provide technical training on the use, simple repair and maintenance of the whole set of equipment;
7. We will comprehensively consider the after-sales service of the equipment in terms of management and technology, and provide a comprehensive guarantee for the system to have fewer problems and no problems;
8. During the warranty period: For problems with the equipment, firstly, we will help to solve them through telephone guidance. If the problem cannot be solved by telephone, our company will send technicians to the scene to solve them.
Packaging & Shipping
Company Information
Songhu specializes in the research and development, production and technical services of precision extrusion production lines, with first-class process equipment engineers and rich experience in industrial production equipment manufacturing.
Contact Information
PU Pneumatic Plastic soft Pipe Air Compressor Hose extrusion line
Dongguan Songhu Plastic Machinery Corp.
Ms Candy Tang
0086-15118427012 wechat/whatsApp
E-mail: candy(@)songhu3dprint.com
Dongguan Songhu Plastic Machinery Corp.
Warmly welcome to Contact with me , more information is ready for you .
Похожие товары
Спираль репеллента от комаров Topone 130 мм, черная противомоскитная спираль без дыма с 12H
0,12 $ - 0,14 $
3D силиконовая форма для мыла в виде полярного медведя, цветочного горшка, свечи, для эпоксидной смолы, бетона, суккулента, горшка, глины, цемента, торта, свечи, инструмент
6,70 $ - 7,96 $
Легкий набор, надувной бассейн, купольный бассейн и аксессуары, надувной плавательный бассейн для детей и взрослых
194,50 $ - 304,92 $

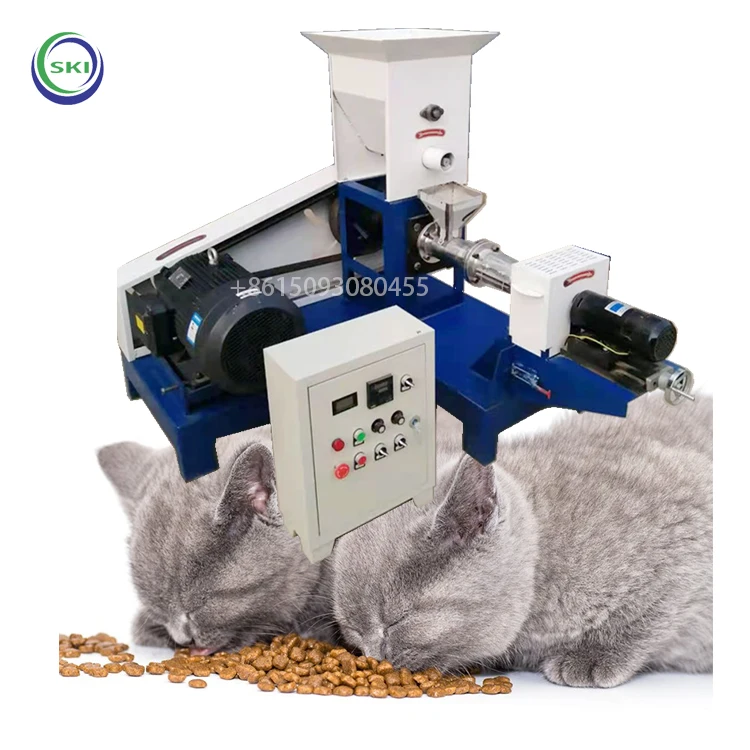

Плавающий экструдер для рыбы, машина для изготовления гранул для форели, корма для животных
1 400,00 $ - 1 600,00 $

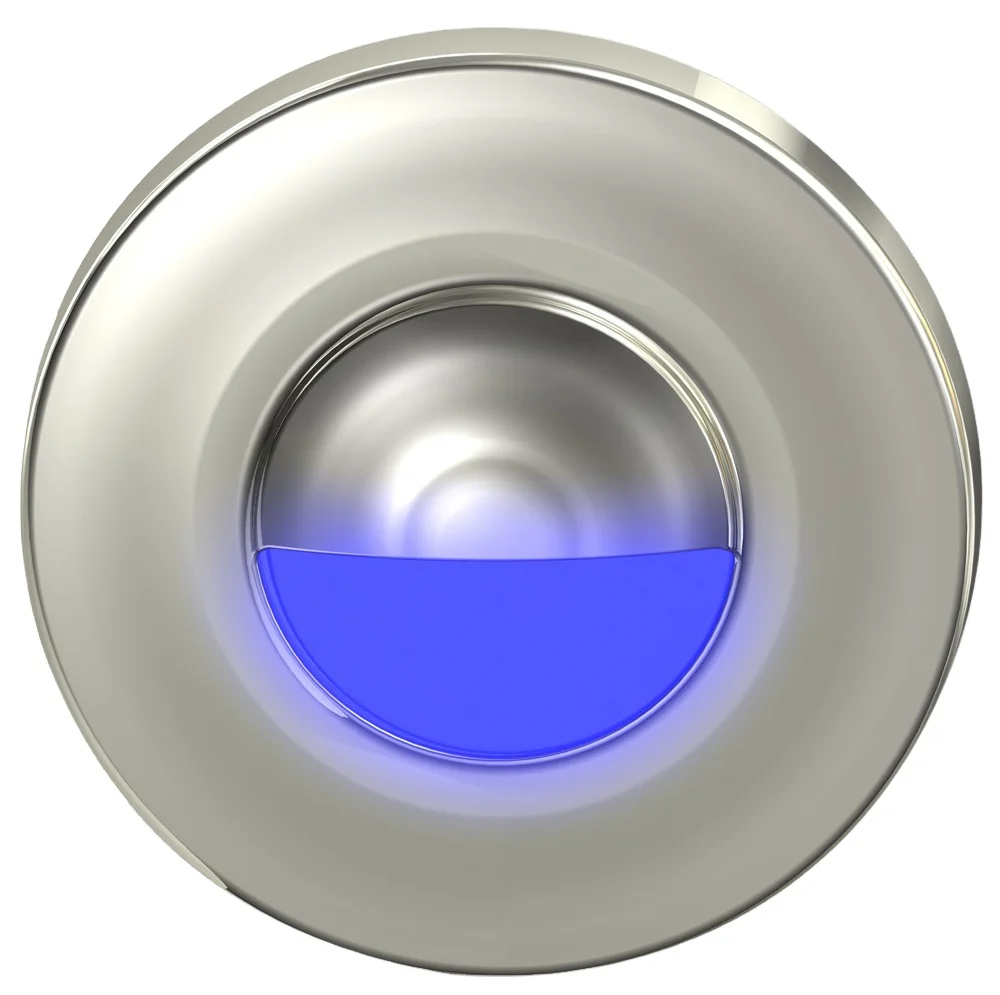

Круглая Светодиодная лампа для ног, 306 из нержавеющей стали, водонепроницаемая морская лампа для прицепа
284,49 ₽ - 294,80 ₽

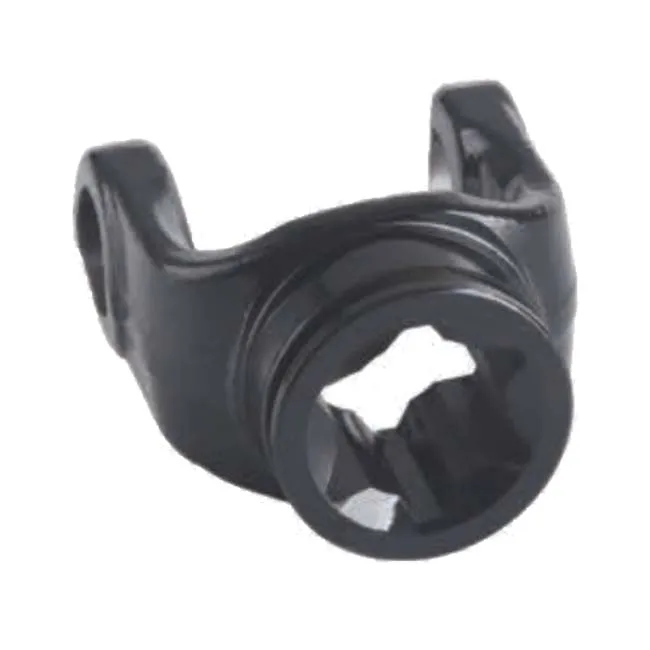

Ever-power приводной вал PTO 1.0505B, хомут коробки передач, Беларусь, Китай, запчасти для тракторов, запасные части для тракторов
