Модем Gsm 8 портов каналов 2g/4g Sim массовый модем Sms Отправитель шлюз
- Категория: >>>
- Поставщик: Shenzhen Skyline Technology Co. Ltd
Сохранить в закладки 1600485465741:
Описание и отзывы
Характеристики
Product Description
Gsm Modem Bulk Sms
SMS MODEM pool also known as "SMS Modem Cat" in China, USB 2.0 can be used directly into the computer USB port, for laptops, desktops can be used. Break the rule that multi-tech can only be used in desktop computers. Built-in wireless modules can be inserted SIM cards, simultaneously to send text messages.

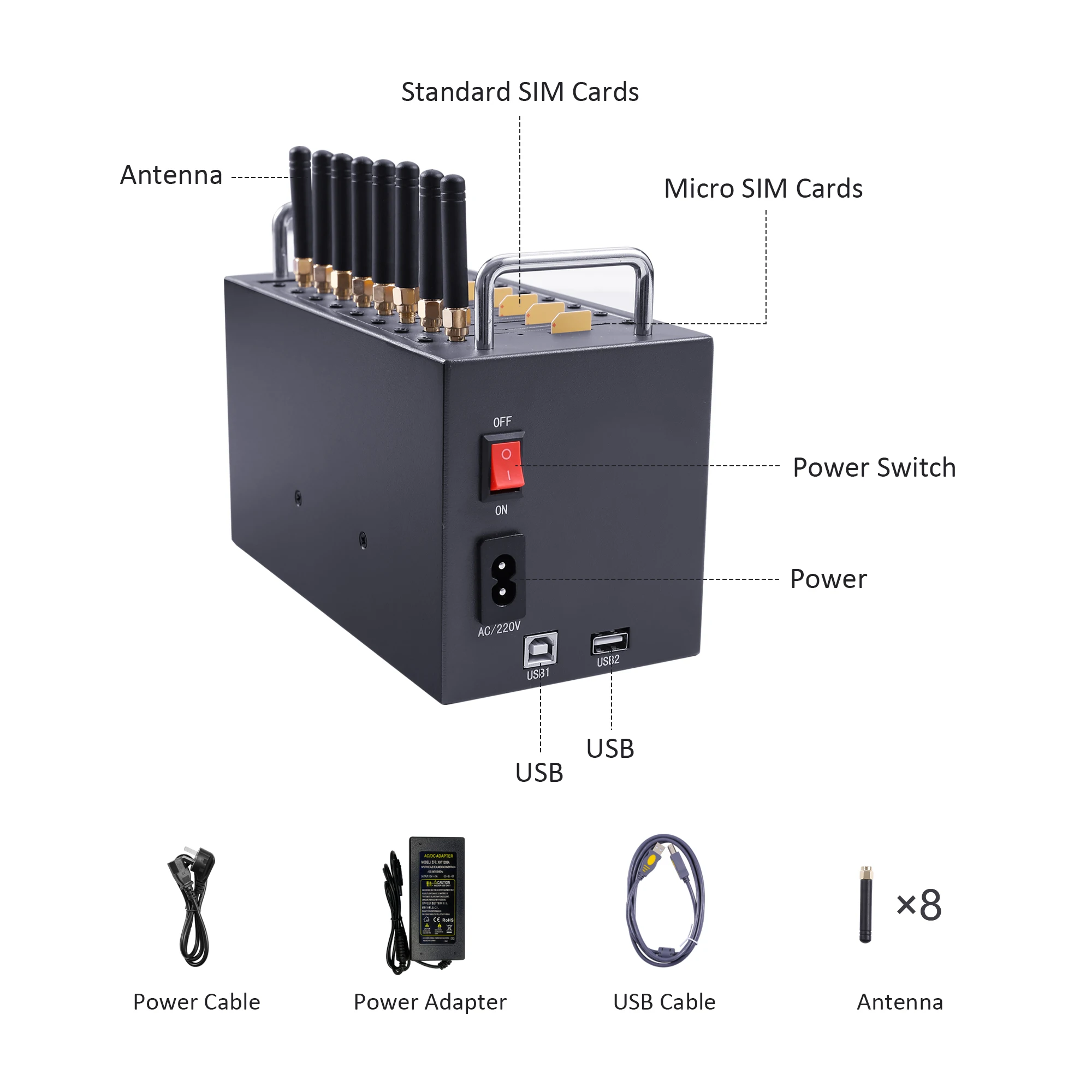

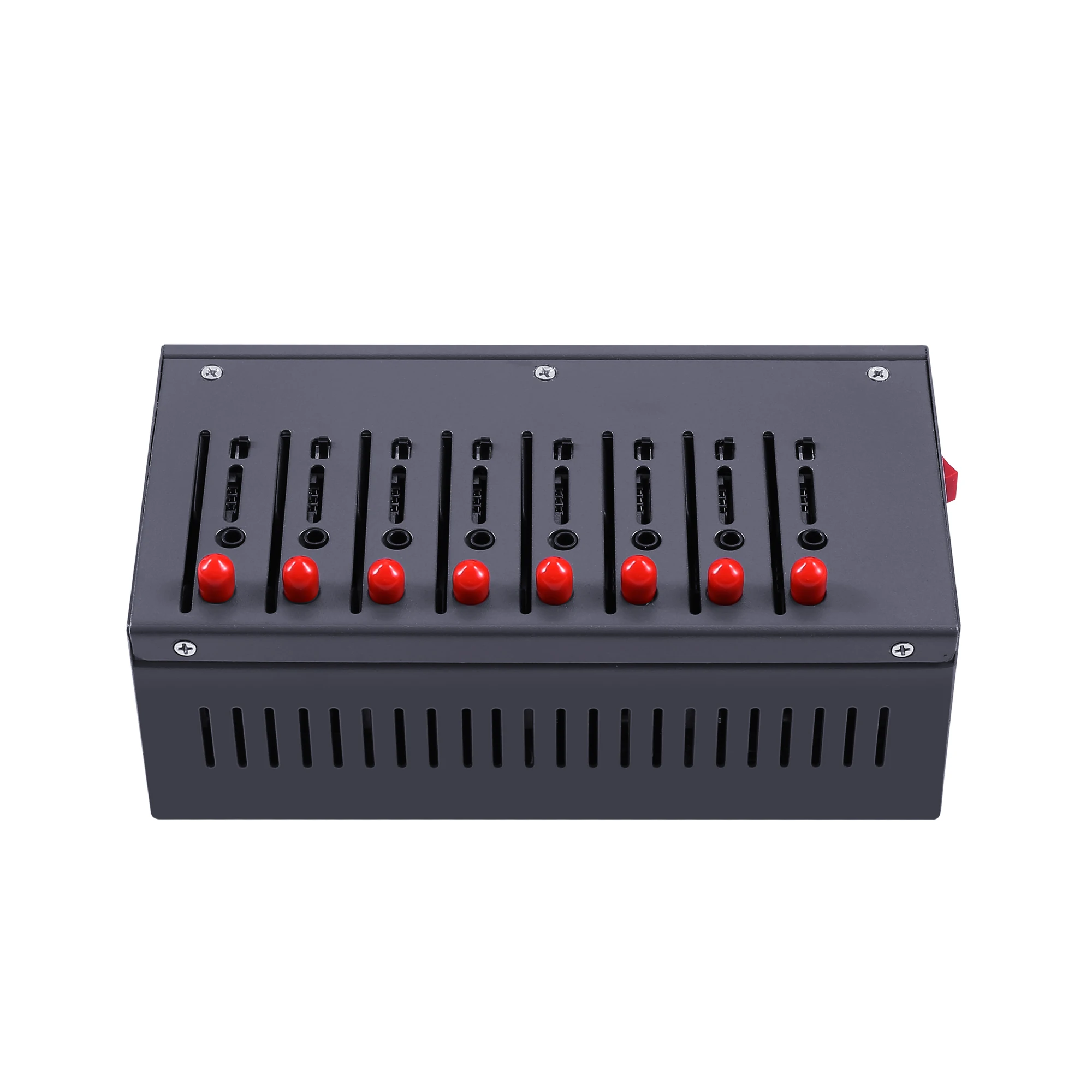

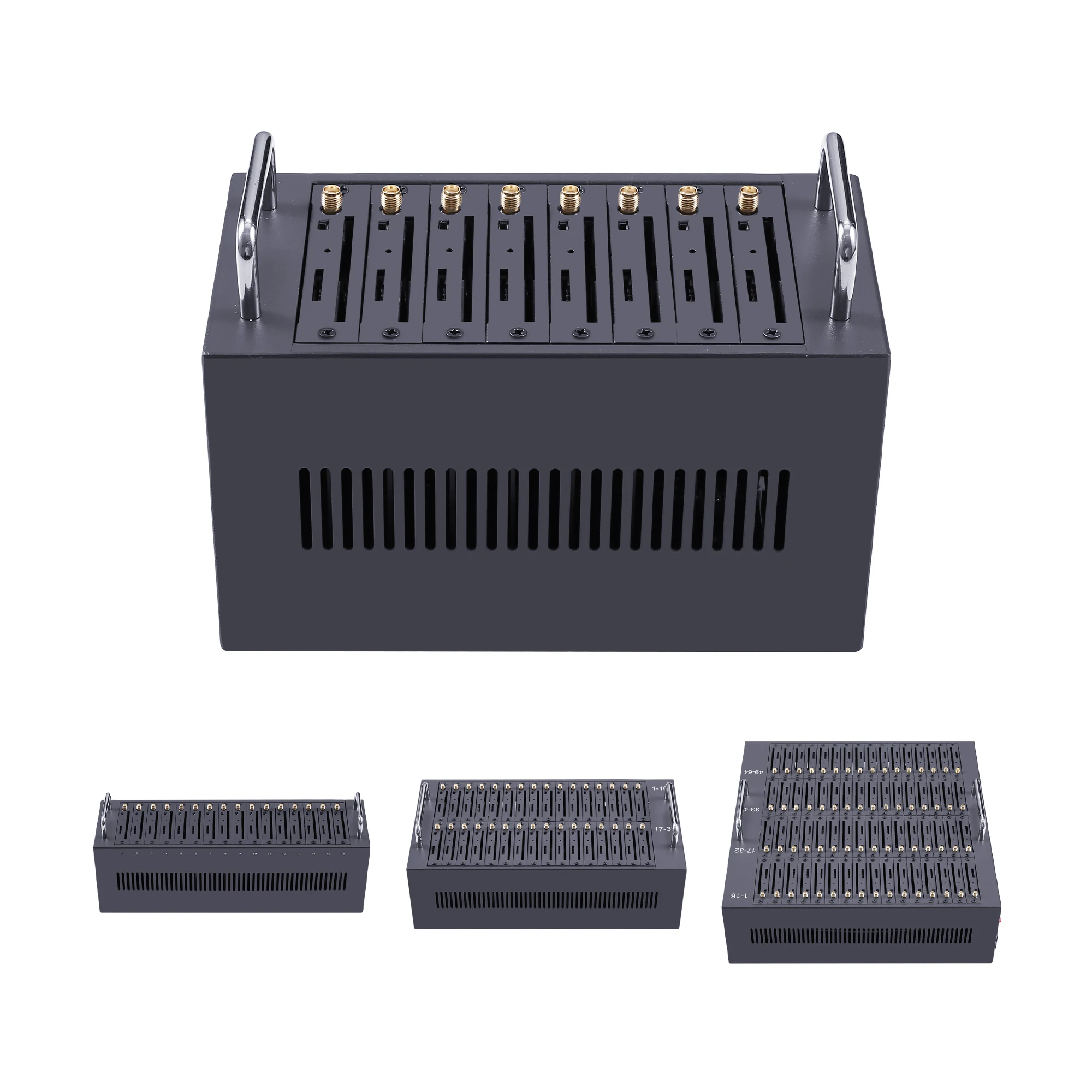

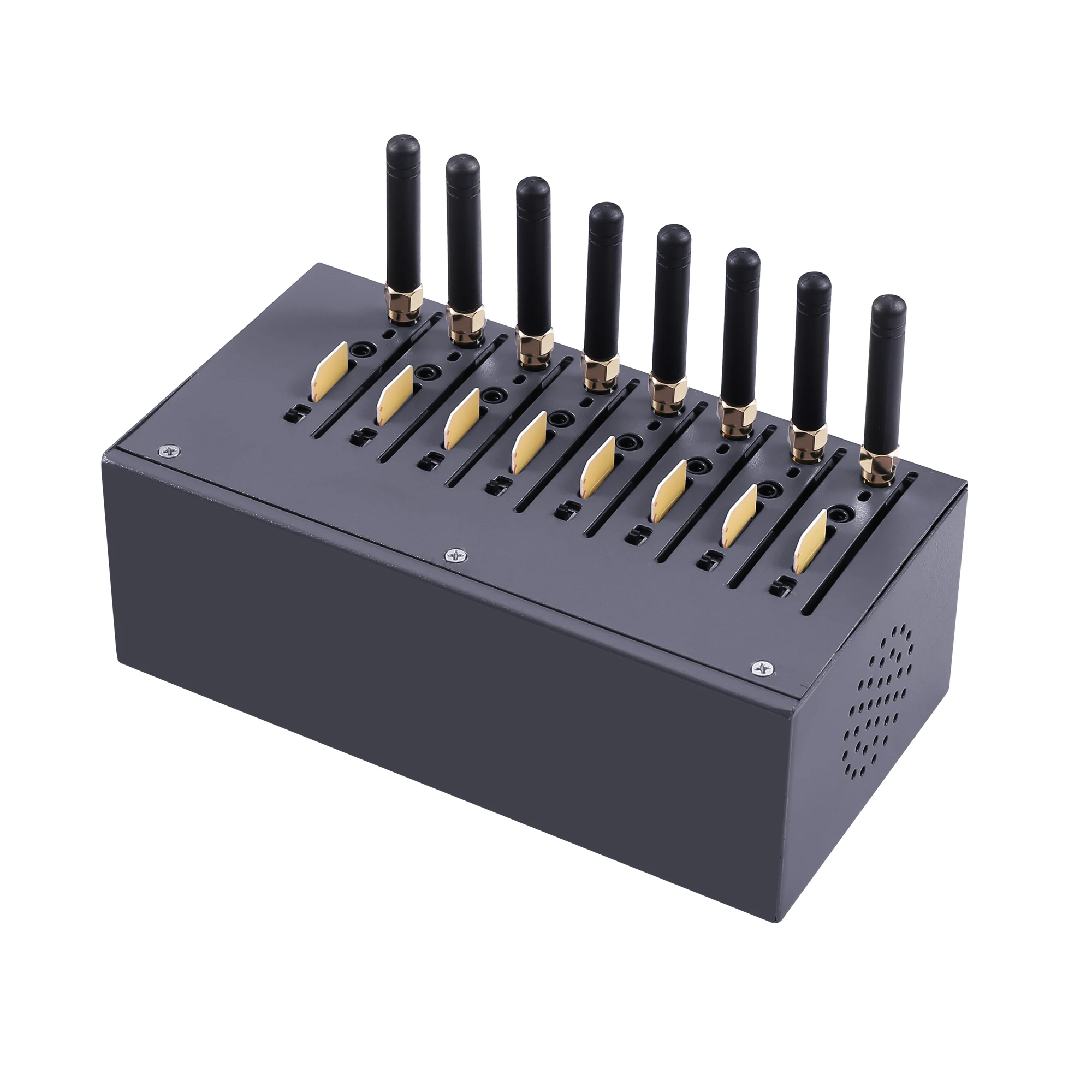

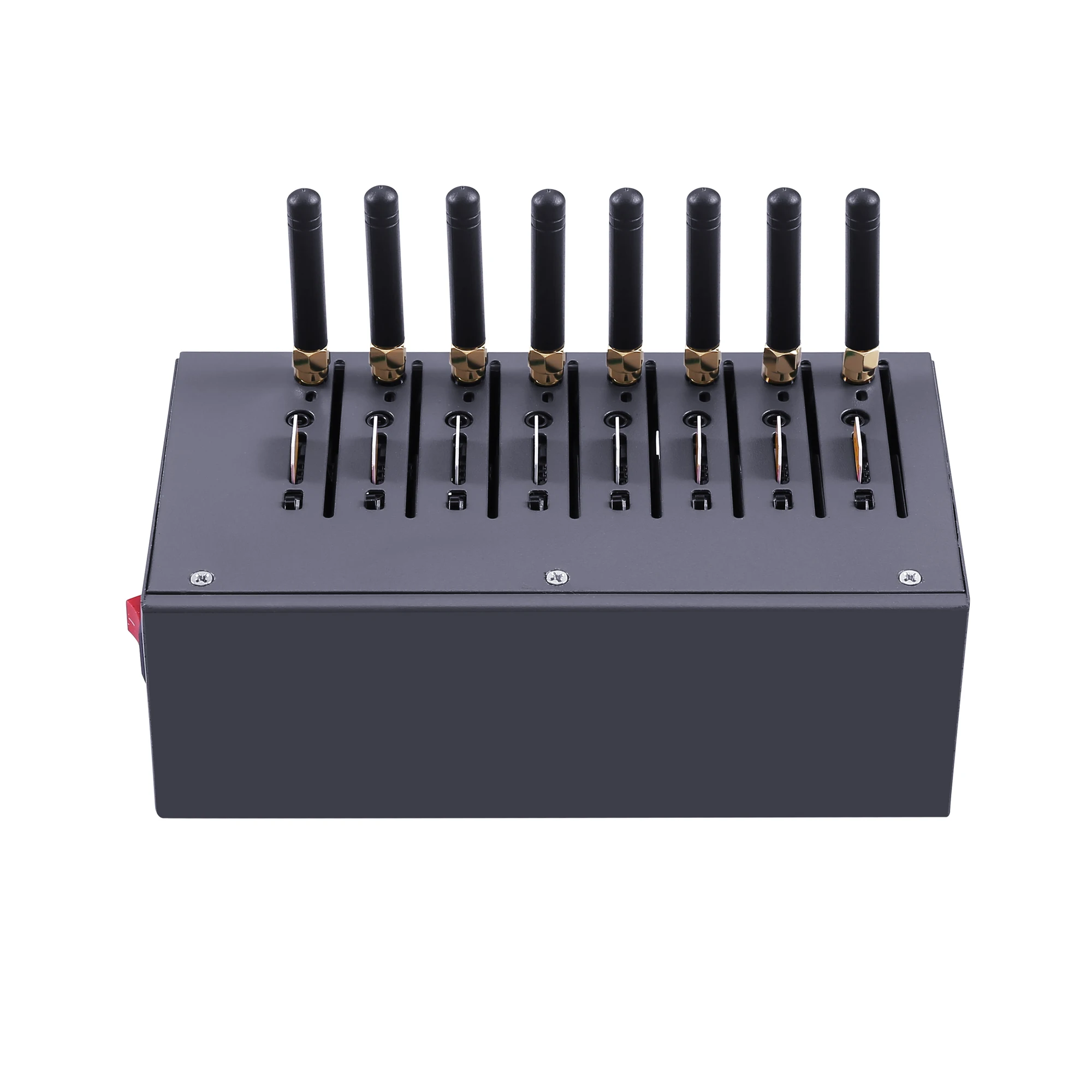

4G SMS MODEM 8 Ports
4G SMS MODEM 8 Ports
built-in 8 wireless modules can be inserted 8 sim cards, can use 8 cards to send text messages, send speed as 8 times as a single channel modem. It uses the development of QUECTEL module, 220V power supply, can be a long time stability, generous luxury housing.
Function | Send & Receive SMSIMEI Change AT Command Send USSD Voice Call |
Frequency | EC25-AUX： LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD:B40 WCDMA:B1/B2/B4/B5/B8 GSM:B2/B3/B5/B8 EC25-EUX: LTE FDD:B1/B3/B7/B8/B20/B28A LTE TDD:B38/B40/B41 WCDMA:B1/B8 GSM:B3/B8 |
Optinal Module | 2G: M263G: UG96, UC20 4G: EC25-AUX/EUX/AFX |
Optional Ports | 8 Ports |
SMS | Support Text and PDU mode |
Power consumption | Voltage : 3.6V Class4(2W@850/900MHz) Class1(1W@1800/1900MHz) |
Input | 110~240AC/50~60HZ |
Interface | USB 2.0 & USB 3.0 |
Protocol | TCP/UDP/PPP/MMS/HTTP/HTTPS/SMTP/ SMTPS/FTP/NTP/NITZ/PING/SSL |
Compaitible System | windows 2008 R2, Windows 7, Vista, XP, 2006/2000, 98SE/CE, LINUX. |
Model | 2G 3G 4G 8 Ports SMS MODEM |
Module | EC25-AUX/EUX |
Simslot | 8 |
Weight | 3KG |
Size | 29cm×22cm×21.5cm |
Software | SMSCaster (free) |
SMS Sending Speed | 2G: 1000sms/hour/port 3G: 2500sms/hour/port 4G: 3000sms/hour/port |
Applications
● Large shopping malls, supermarkets
● Professional market, large wholesalers
● Large hotels, large-scale entertainment
● Largeagencies
● Transport, logistics industry
● Large enterprises, and institutions
● Large hospitals, large bookstore
● Newspaper,television and radio stations
● Oil Company ( other chain business model)
● Government agencies or large township
● Receive Code SMS
Key Feature
●8 channels work at the same time
●Insert 8 simcards (big or small)
●Connection with the computer through a data line be integrated with Serial 8
●Each channel with separate power switch
●Each individual module be demolished
●Industrial chassis, elegant shell
●Wireless access to internet
●Comply with GSM phase2 standard
●USB interface
●Optional data, voice function
●Send and receive English SMS/MMS in bulk
●Insert 8 simcards (big or small)
●Connection with the computer through a data line be integrated with Serial 8
●Each channel with separate power switch
●Each individual module be demolished
●Industrial chassis, elegant shell
●Wireless access to internet
●Comply with GSM phase2 standard
●USB interface
●Optional data, voice function
●Send and receive English SMS/MMS in bulk
Basic Feature
●Asynchronous, transparent or non-transparent, to a maximum 14400bits/s
●Baud Rate: 300-115200bits/s
●Automatic baud rate:2400-19200 bits/s
●Fax support three
●Switched voice and fax
●V. 42, V. 42bis
●GPRS compatible
●Wap compatible
●SMA Antenna Interface
●SIM Card Outlet
●Power connector
●RS-232, the Mini-dB-9 connector
●Baud Rate: 300-115200bits/s
●Automatic baud rate:2400-19200 bits/s
●Fax support three
●Switched voice and fax
●V. 42, V. 42bis
●GPRS compatible
●Wap compatible
●SMA Antenna Interface
●SIM Card Outlet
●Power connector
●RS-232, the Mini-dB-9 connector
Hardware Feature
●Meet the ETSI GSM 2 + standards
●5 -24 VDC power supply (which be directly connected to the nickel- metal
●Hydride or lithium batteries)
●Operating Temperature: -20°C- +55°C
●Storage temperature: -25°C- +70°C
●Size: Standard 1U chassis
How to use
▲Change IMEI/Send USSD/Call/Put in PIN/PUK code(AT command)
Download putty(we will send file to you), and open it, put in COM number, open it.
According to the following text instructions
Change IMEI |
●open Putty●click " Serial" ● Input the com port in "Serial line" such as COM 1 ●PUT IN "at&f" ●put in "at+cgsn"//check IMEI ●at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134" if you put in imei is wrong, it will reset or keep old IMEI ●put in "at+cgsn"//check new IMEI |
Call |
●open Putty ●click " Serial" ●Input the com port in "Serial line" such as COM 1 ●PUT IN "at&f" ●put in "ate1" ●put in "atd number;" for example: atd 0976006161; ●put in"ATH" hung off call |
Send USSD |
●open Putty ●click " Serial" ●Input the com port in "Serial line" such as COM 1 ●PUT IN "at&f" ●put in "at+cusd=1,"USSD command"" for example: at+cusd=1,"*097#" |
Put in PIN/PUK code |
●open Putty ●click "Serial" ●Input the com port in "Serial line" such as COM 1 ●PUT IN "at&f" ●PUT in"at+cpin?" //check PIN status If display "ready"=> it is ok, don’t need put in PIN code If display "SIM PIN" =>need put in PIN code PUT IN "at+cpin=PIN code", for example: at+cpin=1234 If display "SIM PUK" =>need put in PUK code PUT IN "at+cpin=" PUK code","NEW PIN code" " , for example: at+cpin=”12345678”,”1234” |
Packing and Shipment
Company Profile
China Skyline Telecom Co., Ltd
China Skyline Telecom Co., Ltd. was founded in 2007. Focus on the communications industry for more than 10 years. We have over 150 employees, 15 departments and more than 10 production lines. More than 200 companies from over 60 different countries have established business with us. Our company is a manufacturer of VoIP Gateways, GSM VoIP gateways, Industrial Routers… with well-equipped testing devices and strong technical force. With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in communication industry and other industries.
Related Products
FAQ
1. Q:How about our service?
A:We have professional engineers to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
2. Q: When can I get the goods?
A: We’ll deliver the product withindays after received payment. Besides, we have several delivery company you can choose.
Usually, you can receive the product within a week.
3. Q: How is the quality and after-sale service?
A: The warranty of all our products last 12 months. Were there any problems about our products quality, we could change a new product for you in any circumstance.
A:We have professional engineers to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
2. Q: When can I get the goods?
A: We’ll deliver the product withindays after received payment. Besides, we have several delivery company you can choose.
Usually, you can receive the product within a week.
3. Q: How is the quality and after-sale service?
A: The warranty of all our products last 12 months. Were there any problems about our products quality, we could change a new product for you in any circumstance.
Похожие товары
5015 разъем bakambako 5015 вентилятор 5015 2pin Мужской Кабельный разъем круговой разъем байонетного типа CA3106A10SL-4P
Цепочка с кулоном в виде доллара США для мужчин и женщин модное ожерелье золотого цвета стиле хип-хоп рэп аксессуары кристаллами золотая
0,92 $ - 1,26 $

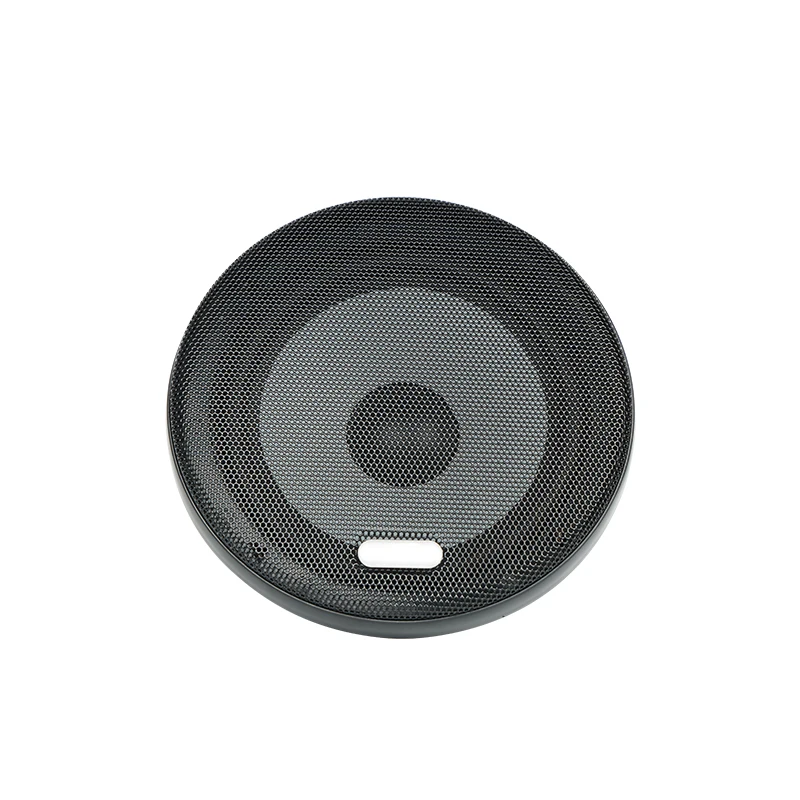

6,5 дюймовый динамик bose, автомобильный динамик, сабвуфер SP1021
16,30 $ - 16,88 $
Умная настольная лампа RGB в форме G с будильником, домашнее освещение, светодиодная приглушаемая Настольная лампа с беспроводной зарядкой, декоративное освещение, прикроватная лампа
28,60 $ - 30,80 $

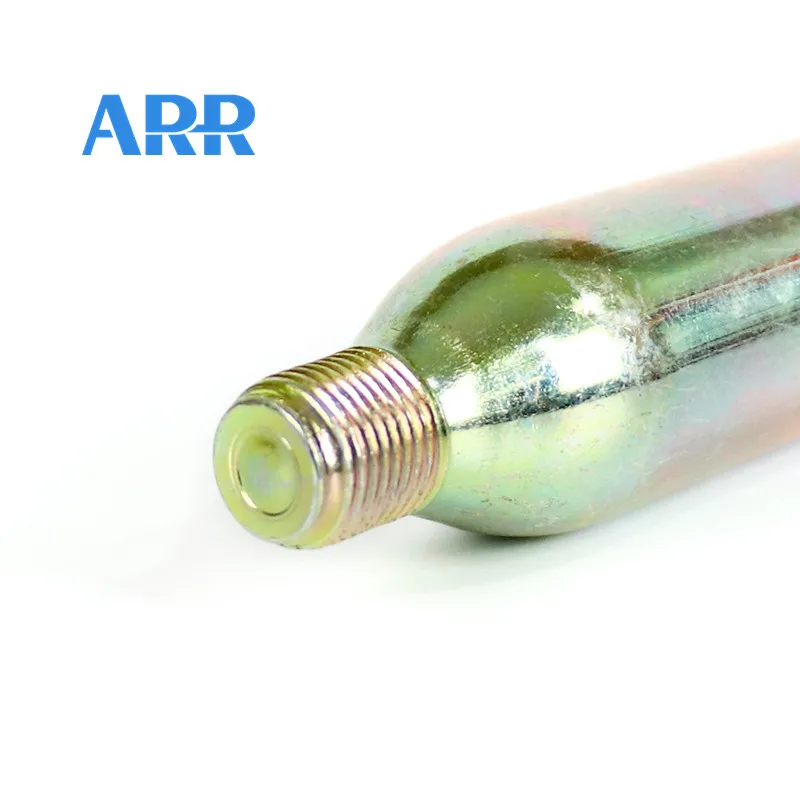

60cc co2 Картридж 45g co2 газовые баллоны co2 для подушек безопасности для верховой езды co2 cartouches 50cc 48cc 38g
1,37 $ - 1,67 $

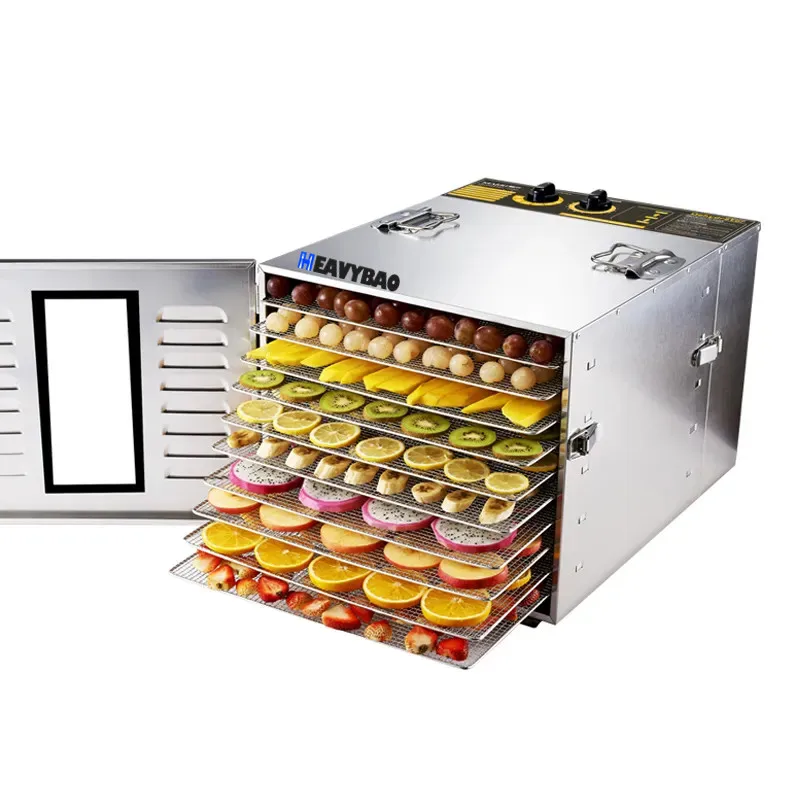

Многофункциональная Сушилка для овощей Heavybao из нержавеющей стали, пищевой Дегидратор с большой емкостью и электрическим дегидратором

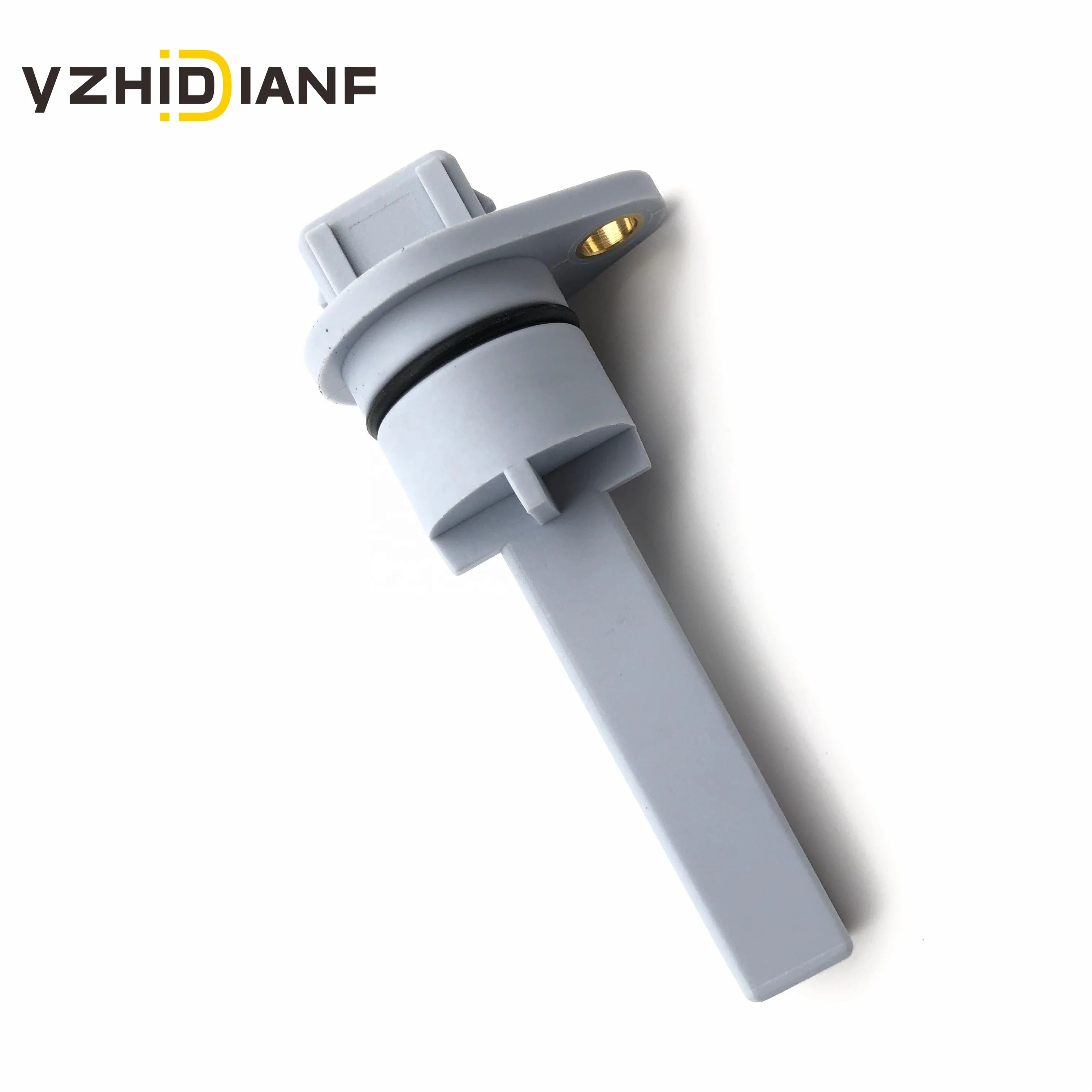

Автозапчасти одометр датчик скорости автомобиля 514314202 JD0113825 TZF190646 08234808 для Kia Pride
