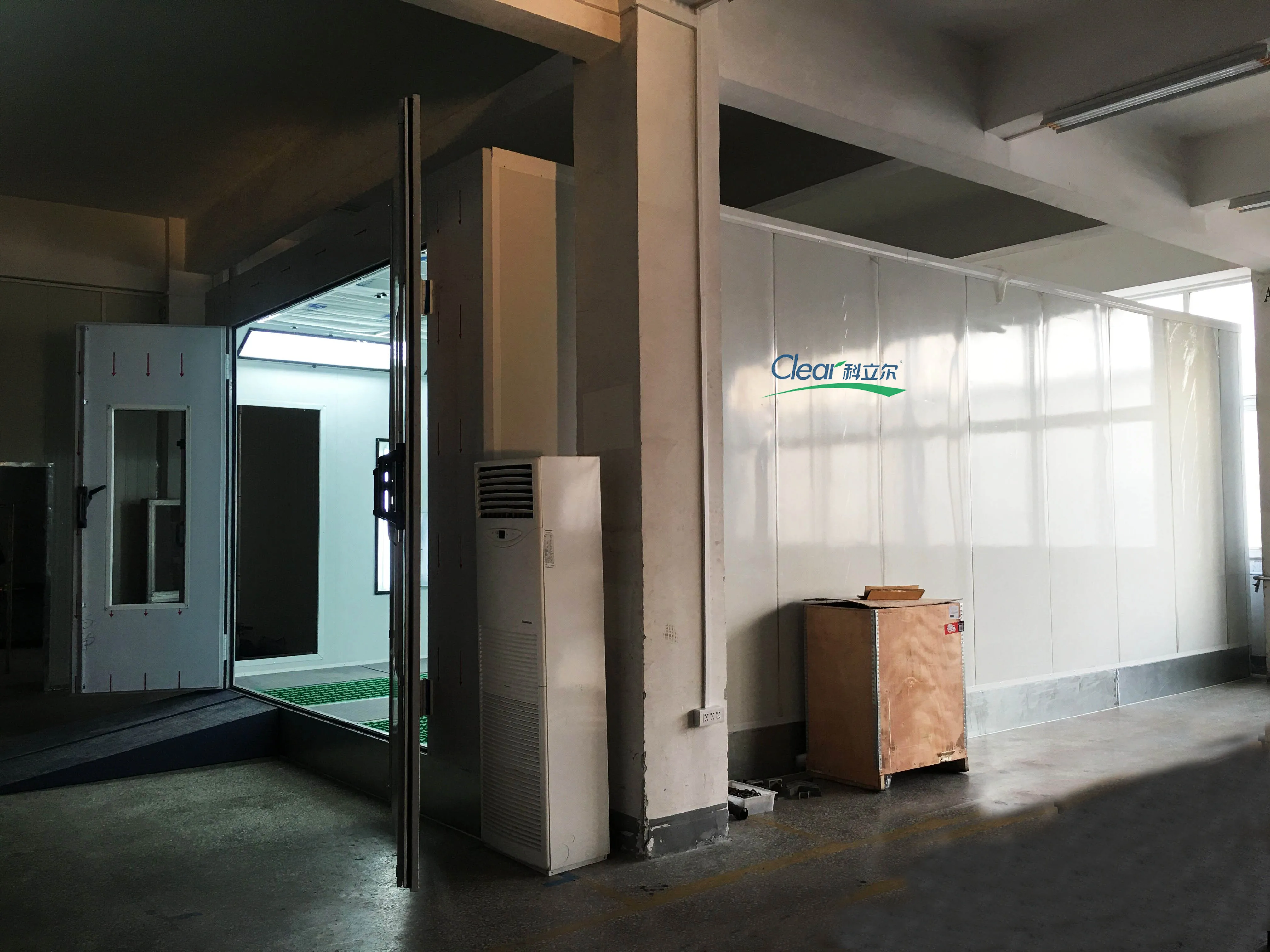

Китайский производитель автомобильная духовка распылительная камера для краски автомобиля покраски

Китайский производитель автомобильная духовка распылительная камера для краски автомобиля покраски

Категория: Spray Booths >>>
Поставщик: Yantai Clear Coating Equipment Co. Ltd.

Цена:542 179,50 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Dear Friend,
Thank you for visiting our website.

This is Nina from Yantai Clear Group Company is a professional designer and manufacturer for powder coating system and liquid painting system . We have professional team to serve for our client . Our company has passed "CE", "ISO 9001" . More than 30 years experience . So many kinds of powder coating system and liquid painting system .
Considerater ofter - sale service , technial assistance and provide installing ,debugging and training one site .

Our equipment has been exported to more than 100 countries.

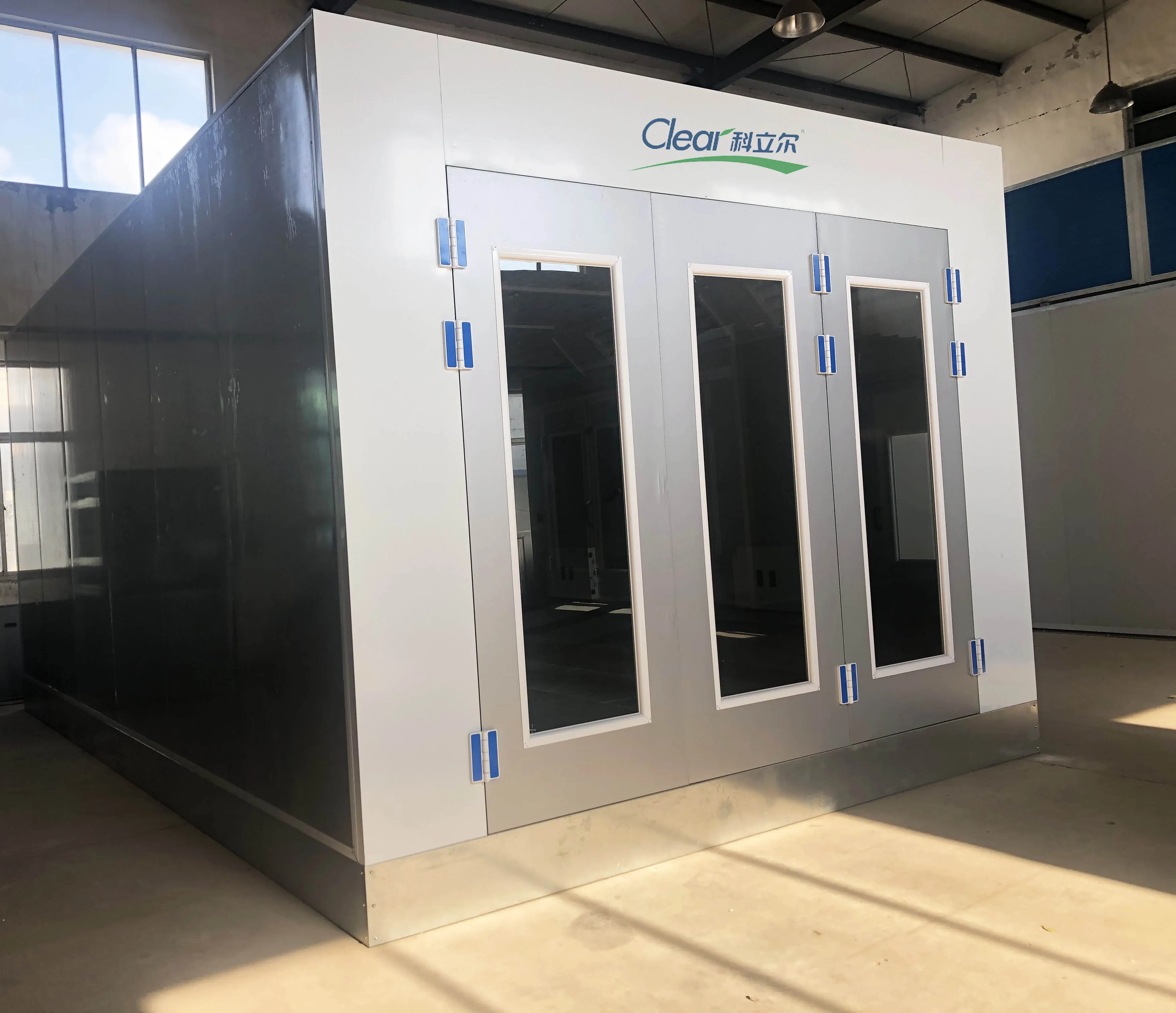

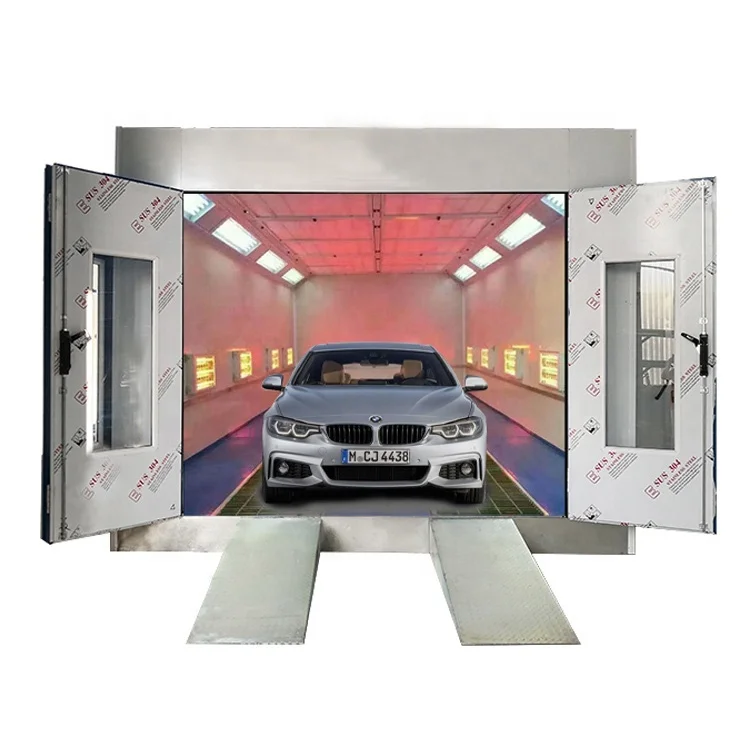

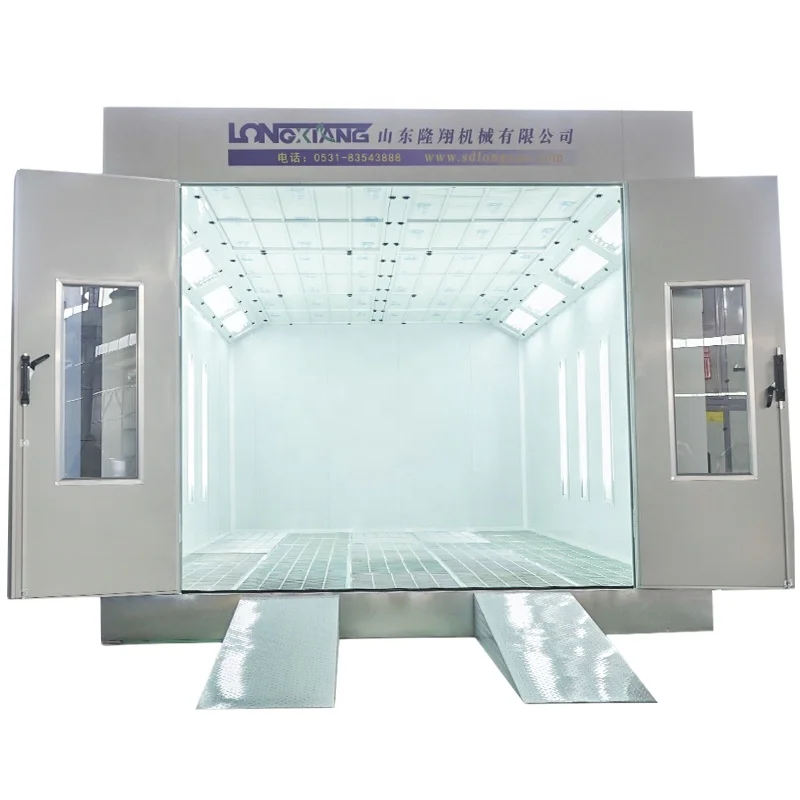

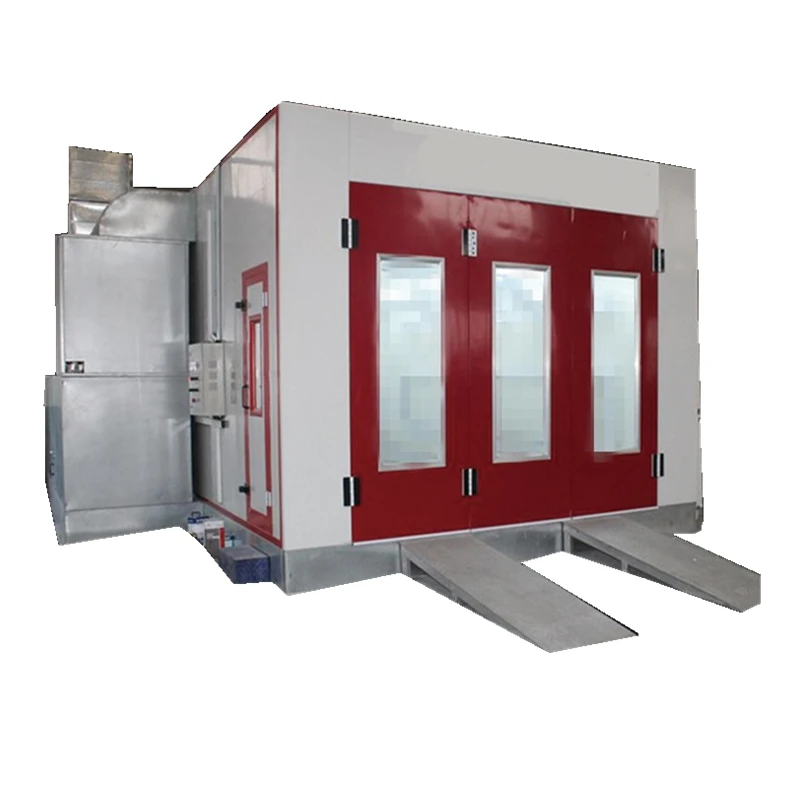

Specification of Cabinas de pintura Car spray cabin /

spray painting booth

Outside Size (mm)	8000×5560×3430mm (LWH)
Inside Size (mm)	7900×4000×2800mm (LWH)
all panel	Rock Wool powder coated panel, 50 mm Thick, Compound Construction, Anti-flame and Heat-Insulation, Handiwork Door, Galvanized Steel Roof Panel.

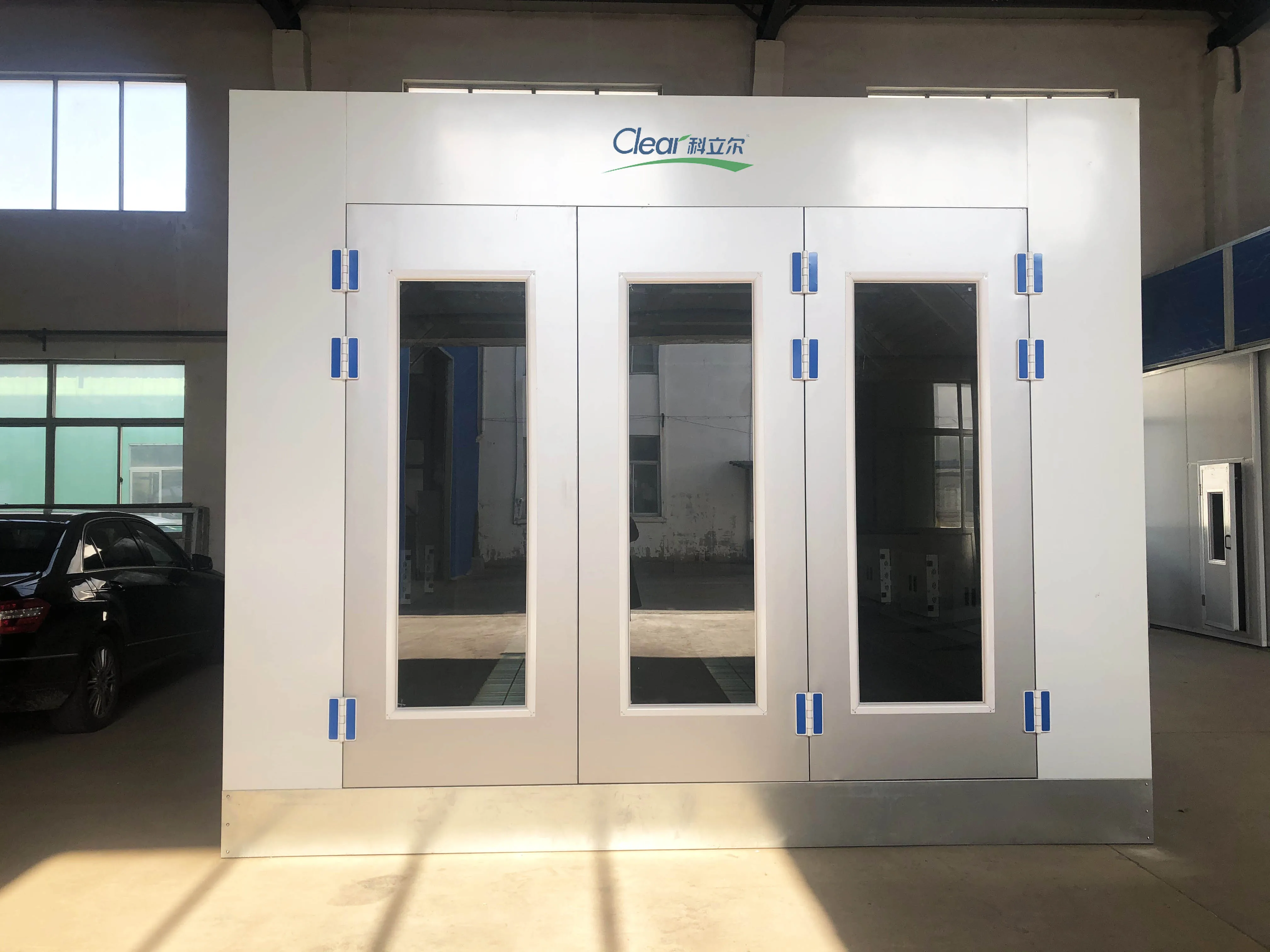

Doors	Front door size: 29502700mm(WH), side door size:8002000mm(WH)
Basement	Two Grids & Three Embossed Plates, Galvanized Steel Sheet Construction, Two Ramps.
Air Circulation System	Inlet Fan	Blower capacity: 24000 m³/h	Outlet Fan	Blower capacity: 24000 m³/h
					Power: 4 kw/set	Power: 5.5 kw/set
					Quantity: 2 sets	Quantity: 1 set
		Air Volume: 24,000 m3/h; Air Speed: 0.35 m/s, Air Recycling times:280 times/h;
Purification System	Dual filtering structure. The primary filter can capture granules larger than 10um. Ceiling Filter can Capture Granules Bigger than 5 μm. The whole purification system has capacity of large volume of dust. Its filtering ratio reaches 98%. TSP≤1.4 mg/m3.
Heating system	Riello Brand FS20 natural gas burner, 200,000 Kcal/h, SUS304 stainless steel heating exchanger, argon arc welding; max temp:80 ℃, heating time: 4-6 min (20-60℃), fuel consumption:4-5 kg/vehicle

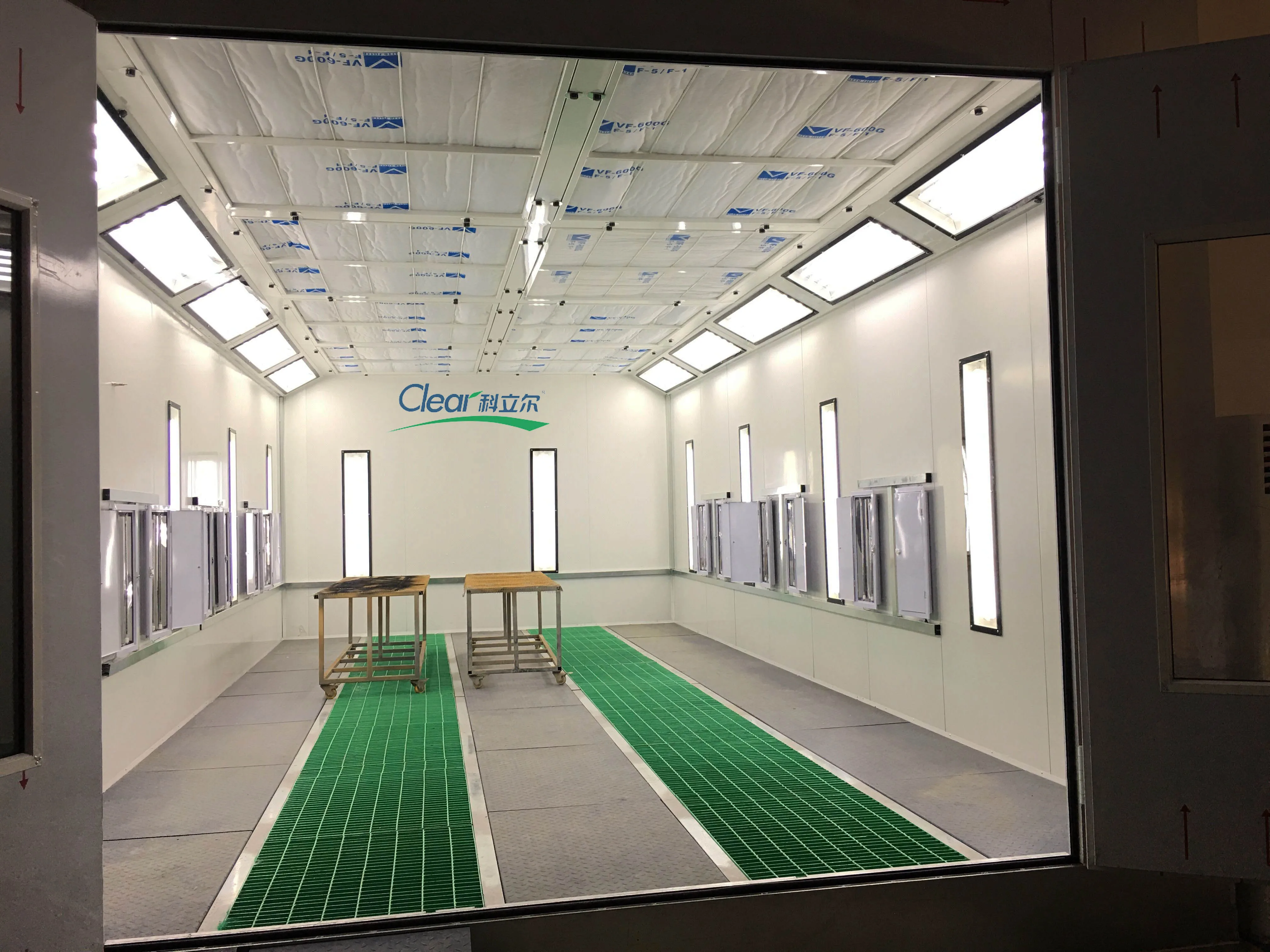

Lighting System	Ceiling Light: 32 pcs 18W Philips Lamp; Side Light: 16 pcs 18W Philips Lamp, tempered glass,900 Lux
Control system	Micro-computer programmed controlling, spray & baking switch, light switch, emergency stop, breakdown alarm
Environmental System	Multi-lagers fiberglass filter, active carbon

Some of our overseas projects

Our projects are all over the world: North America, South America, Australia, Europe, the Middle East, Southeast Asia, Africa，etc. You will find our project near you.

Our Company

YANTAI CLEAR COATING EQUIPMENT CO., LTD

Our company covers an area of about 20000 square meters, more than 200 employees, more than 40 senior, intermediate and junior engineers, more than 60 patents. we have become a leading manufacturer of powder coating field in China, and exports products to more than 50 countries and regions. is a professional manufacturer integrating the R&D, production, sales, installation and after-sales service of coating equipment.

Passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001 occupational health management system and CE certification.

Our Services & Strength

Oversea installation team and aftersale service

Professional design team and production team

Products also including:

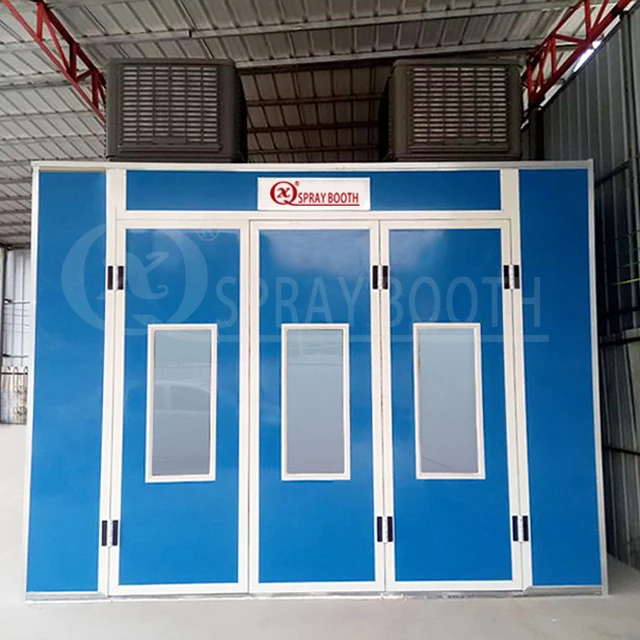

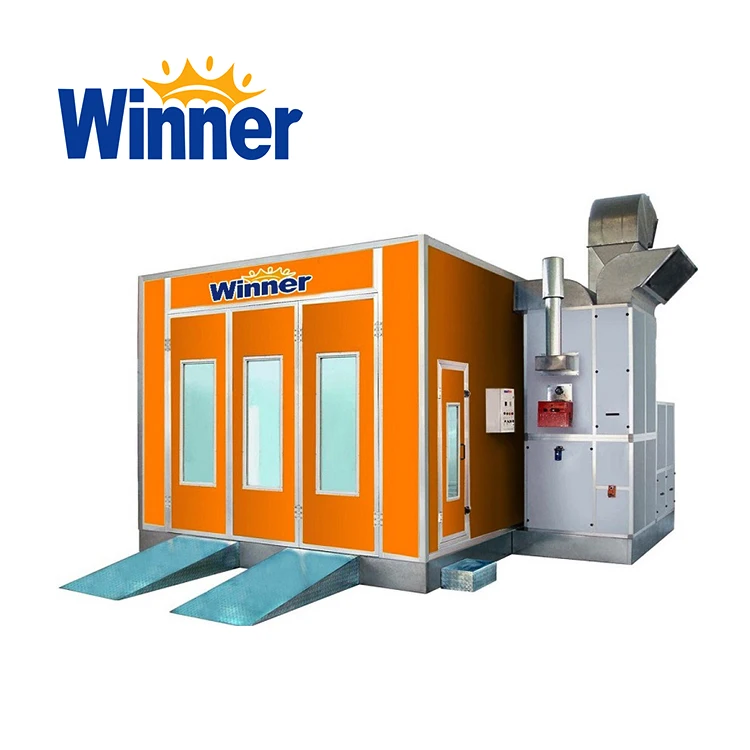

1.Auto spray booth,bus/truck spray booth,train spray booth
2.Industrial spray booth and oven
3.Powder coating booth and oven
4.Spray painting line

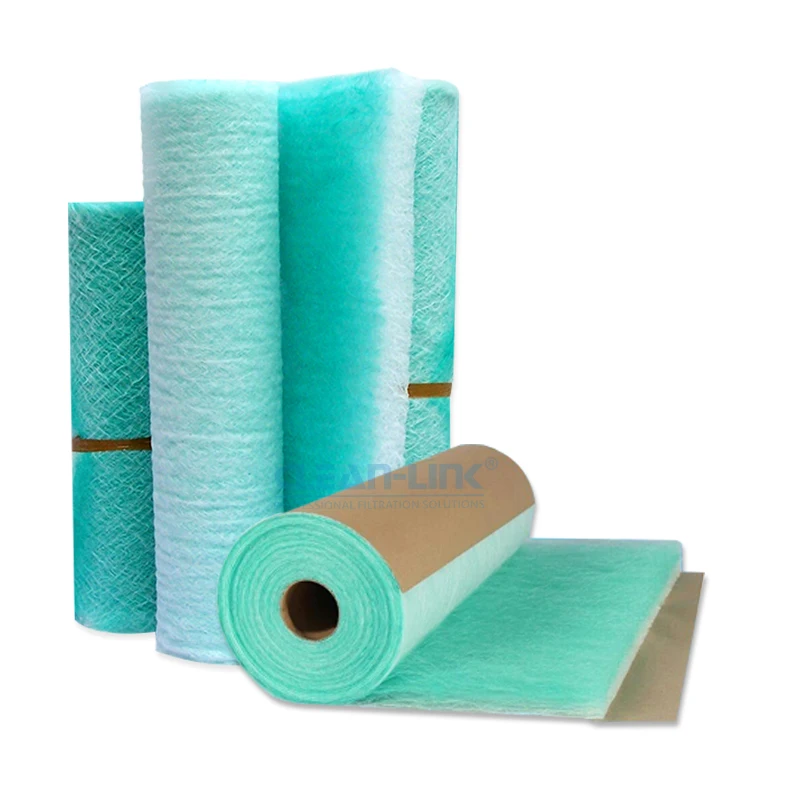

5.Spray booth spare parts,paint guns,powder coating guns,filters
Professional design team is always at your service!

Our service

1.Project Management Service	We will document your project, from product design, manufacturing, packaging, transportation, assembly, operation and after-sales service, we believe that high-quality service should not stop at sales.
2.Design service	We have an experienced design team who have designed hundreds of domestic and foreign projects and can provide you with the best project solution.
3.Installation Service	Our engineers have hundreds of overseas service experience, and our excellent distribution network can provide you with hassle-free installation and start-up services.
4.Technical Support Service	We have experienced technicians with strong technical background and on-site problem-solving ability to ensure timely response and handling of any equipment problems you encounter.

FAQ

Q1: What product can I customize from you?

A1: We could supply the customized design for all the sizes of the workpieces you produce, such as Various styles of powder coating and spraying production lines, industrial spray booths, environmentally friendly and energy-saving spray booths, high-temperature rooms, through-type spraying, dry (water curtain) spraying chambers, electric hot air drying ovens, drying ovens and drying tunnels, hanging conveying equipment, Painting equipment such as furniture baking room.

Q2: What types coating line could you make?
A2: Automatic Powder Coating Line For Column,Powder Coating Line With Fast Color Change System,Automatic Powder Coating Line For Control Box,Powder Coating Line For Springs.

Q3: What is your terms of packing?
A3: Generally, we pack our goods in Carton boxes and square tube . If you have other requirements , please let us know .

Q4: Payment terms?
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

L/C is also acceptable.

Q5: What is your terms of delivery?
A5: EXW, FCA,FOB, CFR,CIF, DDU

Q6: How about your delivery time?
A6: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery. And we welcome you to coming and checking the quality of the equipment.

Q8: How to make sure the equipment suitable for you ?
A8: After we get your requirements about equipment , we will ask our engineer to do design drawing to you . If you think ok, we will give you quotation .

Q9: How do you make our business long-term and good relationship?
A9: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q10: Can you send engineer oversea for installation instruction?

A10: Yes, we have very experienced engineers for oversea installation.

Q11: What about the guarantee period?

A11: You will have 12 months guarantee time for the paint booth, if the parts broken as our mistake, we will send you by DHL. But as we do the pre install before the loading, so this situation won't happen we believe.
After one year, if you still have any help about the equipment, please feel free to contact us at any time, as we will supply you lifelong service.Contact： Nina Wang Mobile: 0086 13668659906

Contact Person： Nina Wang

Yantai Clear (Colin) Electromechanical Equipment Co.,Ltd

Cell phone/ Whatsapp/ Wechat/ Facebook /Mobile: 0086 13668659906

Email：goodclear04@clear88.com

Spype: ninisaraw
