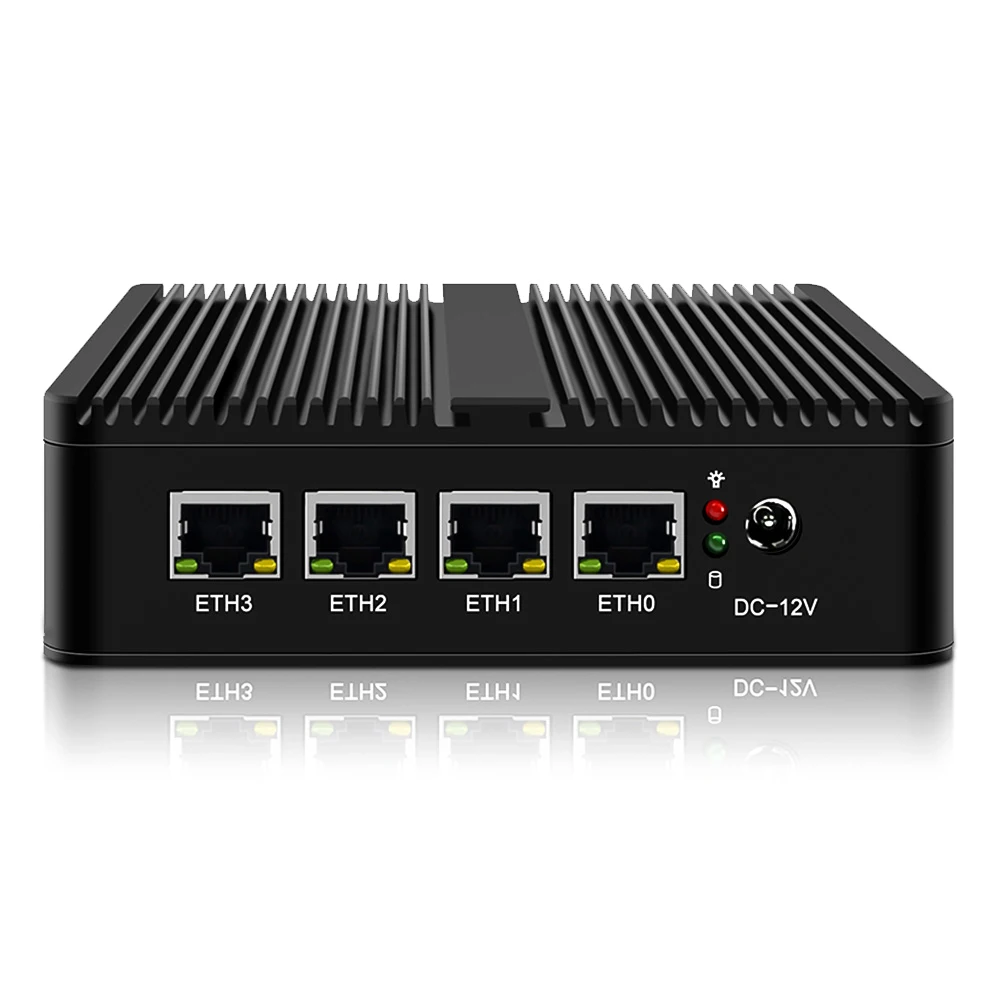

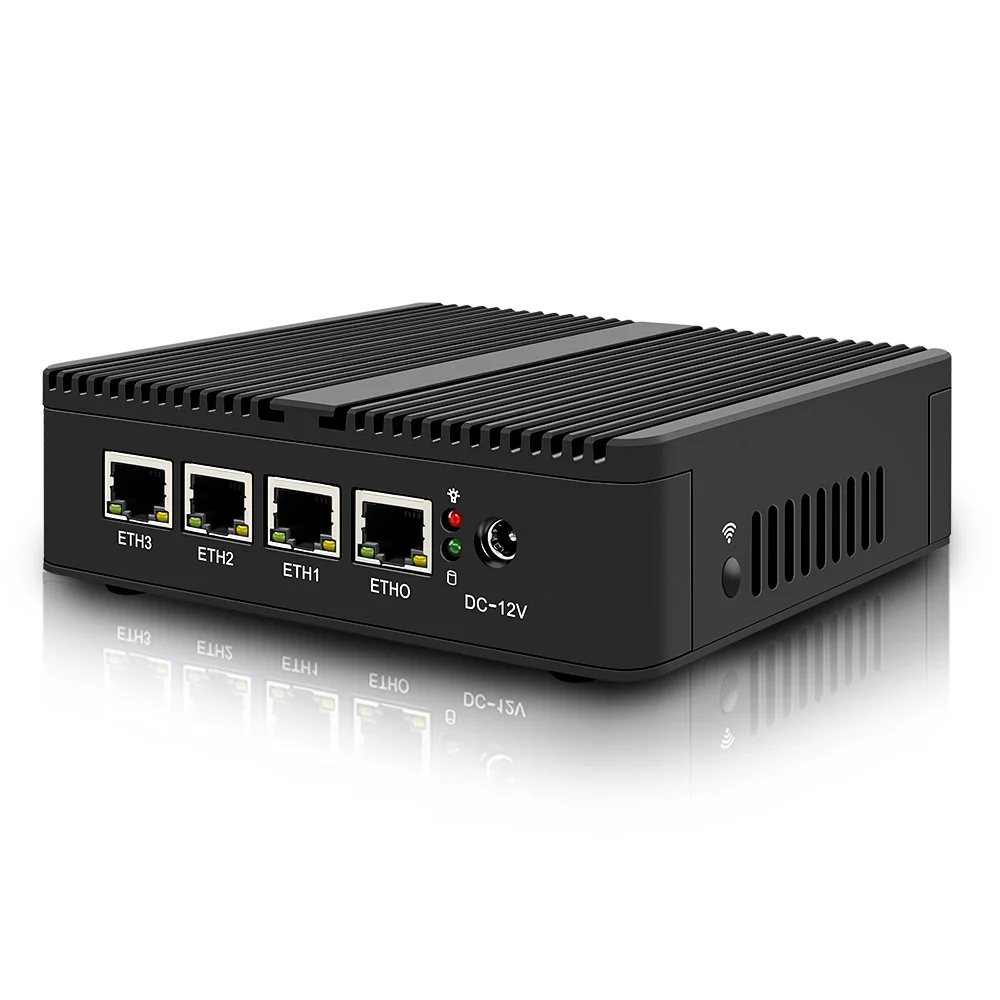

Мини роутер J4125 без вентилятора 2 5 ГГц 4 * i225 I226 2.5GbE Nics pfSense
- Категория: >>>
- Поставщик: Dongguan Tuofuton Electronic Technology Co. Ltd.
Сохранить в закладки 1600487693041:
Описание и отзывы
Характеристики
Product Description

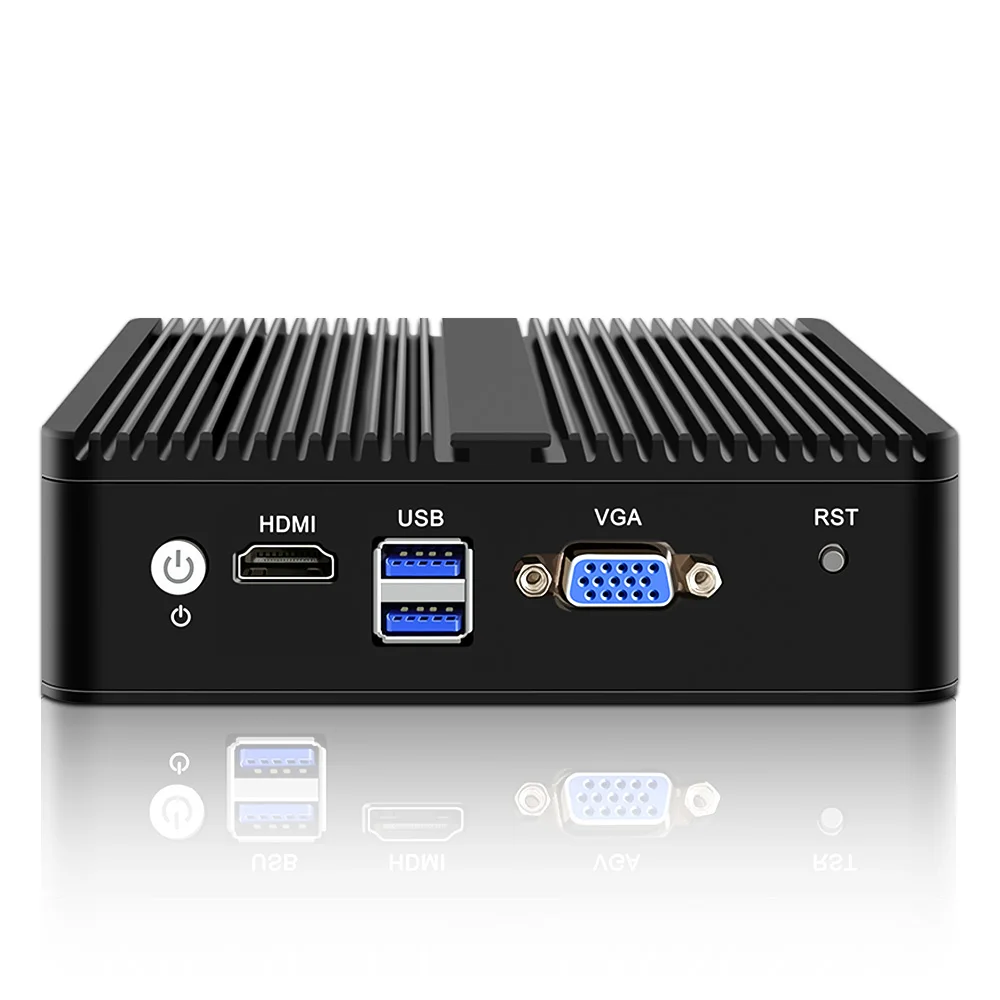

J4125 Fanless 2.5G Router Nano Mini PC 4 * i225 I226 2.5GbE Nics pfSense plus Firewall Router PC N4000 OPNsense VMware ESXi Proxmox
Notice
In-tel i226-V is a new network card, pfSense etc system maybe have not released compatible driver to match yet, suggest to install newest version of following systems: OPNsense 22.x, pfSense Plus, OpenWrt, ESXi, Proxmox, PVE, CentOS etc. Please make clear before buying, DO NOT open dispute because of system issue.
In-tel i226-V is a new network card, pfSense etc system maybe have not released compatible driver to match yet, suggest to install newest version of following systems: OPNsense 22.x, pfSense Plus, OpenWrt, ESXi, Proxmox, PVE, CentOS etc. Please make clear before buying, DO NOT open dispute because of system issue.
Processor parameter for referance only
1. Gemini Lake Ce-leron J4125 4 cores 4 threads 2.0GHz up to 2.7GHz 4MB cache TDP 10W In-tel UHD Graphics 600, AES-NI supported.
2. Gemini Lake In-tel Ce-leron N4000 2 cores 2 threads 1.1GHz up to 2.6GHz 4MB cache TDP 6W In-tel UHD Graphics 600, AES-NI supported. (temperature is lower)
1. Gemini Lake Ce-leron J4125 4 cores 4 threads 2.0GHz up to 2.7GHz 4MB cache TDP 10W In-tel UHD Graphics 600, AES-NI supported.
2. Gemini Lake In-tel Ce-leron N4000 2 cores 2 threads 1.1GHz up to 2.6GHz 4MB cache TDP 6W In-tel UHD Graphics 600, AES-NI supported. (temperature is lower)
Product Highlight

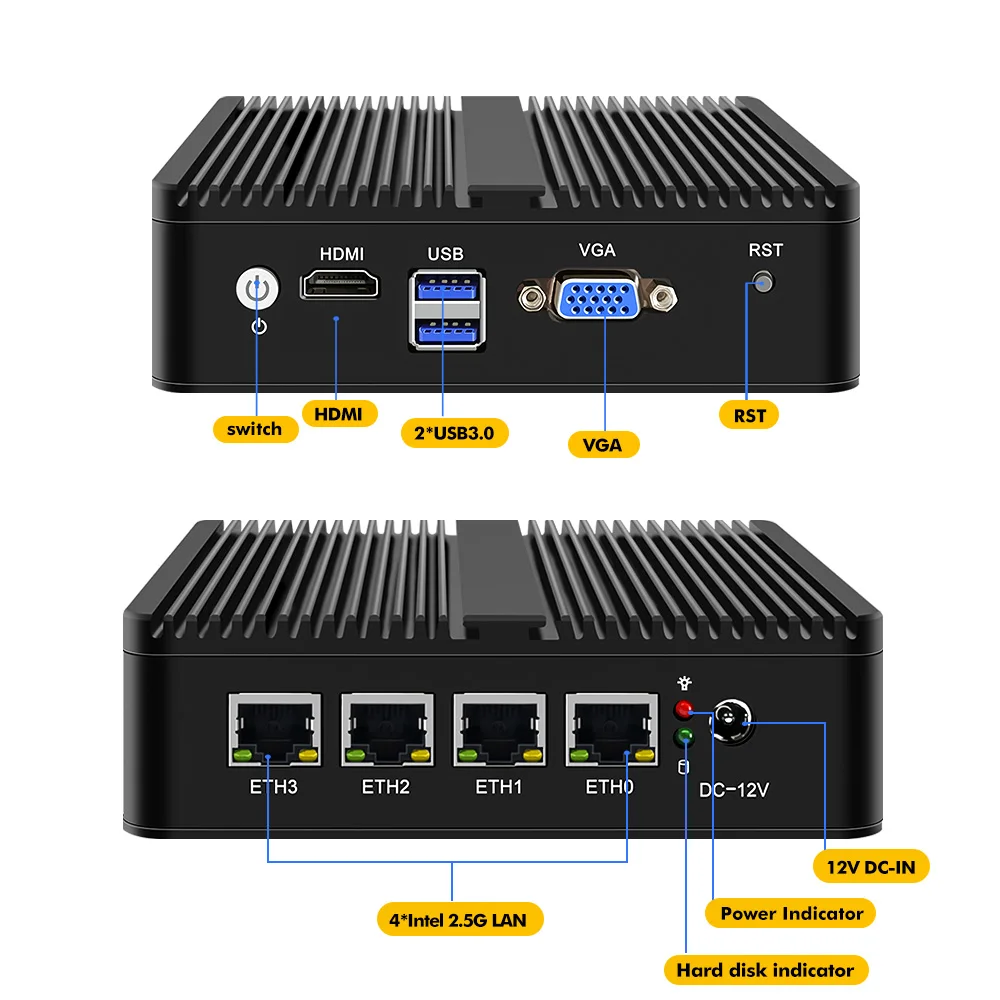

-4xIn-tel i225-V B3/i226-V 2.5G RJ45 LANs, 2xUSB3.0.
-2xDDR4 SODIMM non-ecc ram slots, support 2400MHz.

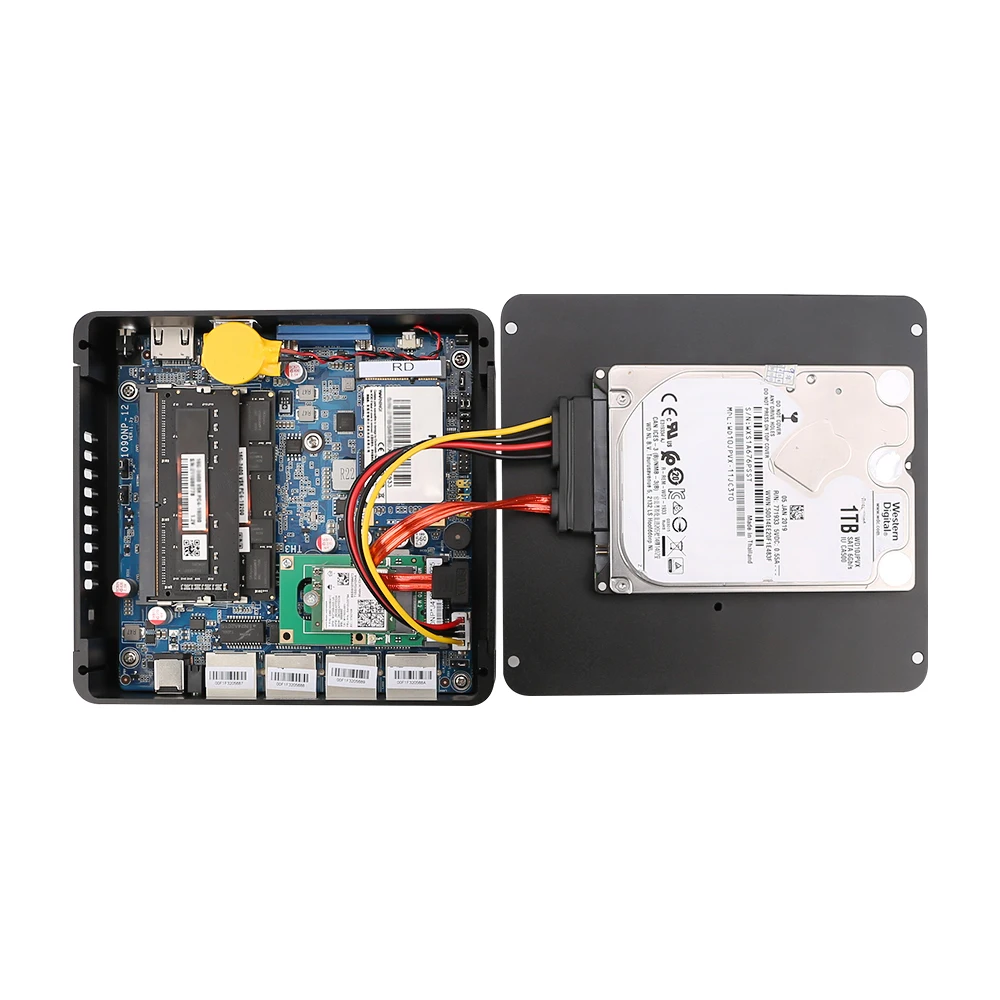

-Support two storage: 1xmSATA3.0 SSD+1x2.5''SATA3.0 SSD/HDD.
-Support 1xHD-MI+1xVGA dual display output synchronously and asynchronously.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.

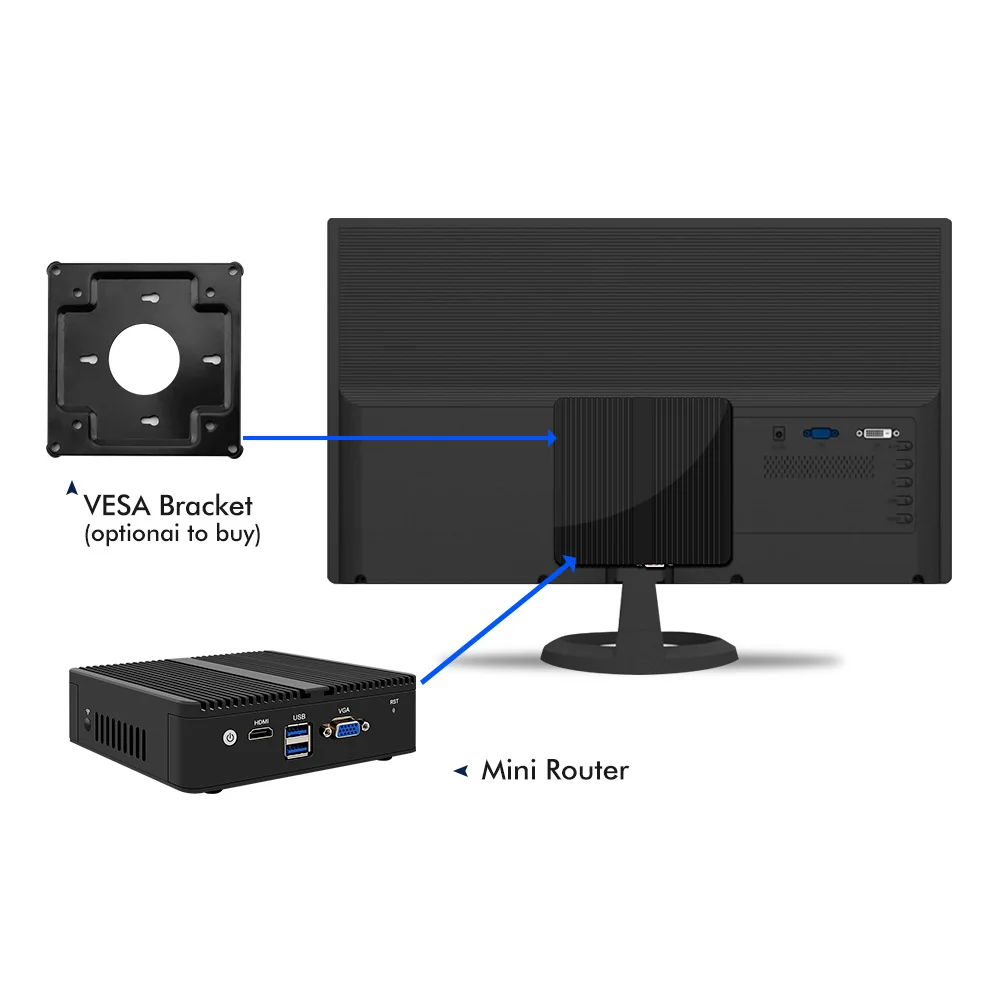

-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).
-4xIn-tel i225-V B3/i226-V 2.5G RJ45 LANs, 2xUSB3.0.
-2xDDR4 SODIMM non-ecc ram slots, support 2400MHz.
-Support two storage: 1xmSATA3.0 SSD+1x2.5''SATA3.0 SSD/HDD.
-Support 1xHD-MI+1xVGA dual display output synchronously and asynchronously.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag
Application area
What's the mini computer can do?
1. Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others;
3. Game playing: Support most online games and PC games, like Warcraft, Counter-Strike (CS).
4. Entertainment: Support blu ray 1080P and 4k video play, XBMC and others.
1. Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others;
3. Game playing: Support most online games and PC games, like Warcraft, Counter-Strike (CS).
4. Entertainment: Support blu ray 1080P and 4k video play, XBMC and others.
Customizable
About Print Logo：
Pls send us a high-resolution file by JPG/PDF/PNG format).
Why Choose Us
Topton Technology Co.,Ltd :
2. OEM/ODM Service For big order quantity.
3. Free to Install Operating System(Windows/Linux/Pfsense/Ubuntu etc) before delivery.
4. Over 10 years experience in computer industry,We sure to provide you our best service and support to increase your sales and market shares!!!
1. 3 Years long warranty, Confident to cooperation with us!!!
2. OEM/ODM Service For big order quantity.
3. Free to Install Operating System(Windows/Linux/Pfsense/Ubuntu etc) before delivery.
4. Over 10 years experience in computer industry,We sure to provide you our best service and support to increase your sales and market shares!!!
1. Raw Material
Raw Material,CPU, Ram, Storage, Battery, Wifi etc
2. Professional SMT process
Automatic SMT production line +
8 inspection processes
3. Function Test
Every PC must test for at least 2 hours
4. Assembly
Produce 500+ Computer every day
5. Aging Test
Long time aging test(3D Mark,AIDA64) to ensure high-quality
6. Package
Safety packaging to ship ( Accept customized packaging )
Safety packaging to ship ( Accept customized packaging )
Certifications
Packing & Delivery
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Way: 1unit packed into a individual box, 10units individual box a Pack.
3.Shipping Way: Small QTY, Our customer can choose ship by DHL, Fedex, UPS. For large QTY, We can support to ship by air or by sea.
2.Packaging Way: 1unit packed into a individual box, 10units individual box a Pack.
3.Shipping Way: Small QTY, Our customer can choose ship by DHL, Fedex, UPS. For large QTY, We can support to ship by air or by sea.
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving!
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What's the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving!
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What's the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
Похожие товары
2022, автомобильная мойка без воды, быстрое покрытие, автомобильный воск, полировка, спрей, Гидрофобный детейлинг, спрей, воск C16
2,10 $ - 9,20 $
Деревянная фоторамка со светодиодной подсветкой
Медицинский газовый Европейский кислородный регулятор DIN477 #6, медицинский кислородный цилиндр, регулятор потока, кислородный цилиндр 2, кислородный регулятор 0-15LPM
Кольца клубника фичи 100 г
1,00 $
Новый дизайн бунт Мако 10 АБС-пластик каяк с одной педалью мощный рыболовный каяк сидячий на верхушке каяк
1 264,00 $ - 1 390,00 $

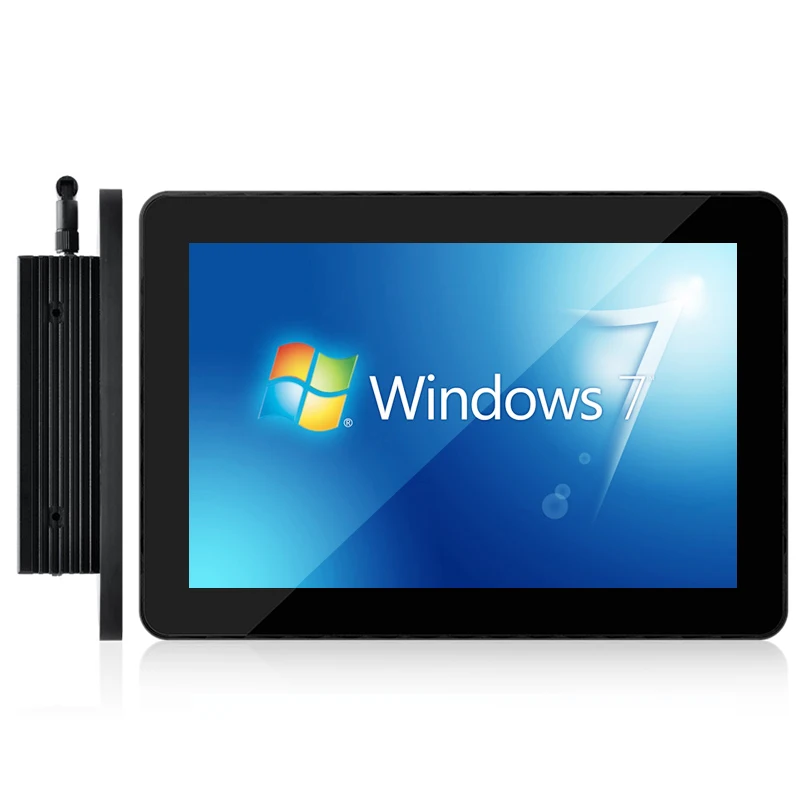

Умный планшет Usingwin 7 & quot, четырехъядерный, поддерживающий систему Android и Linux, с водонепроницаемым сенсорным экраном, планшетный ПК, USB 3,0, 128 ГБ
100,00 $ - 120,00 $

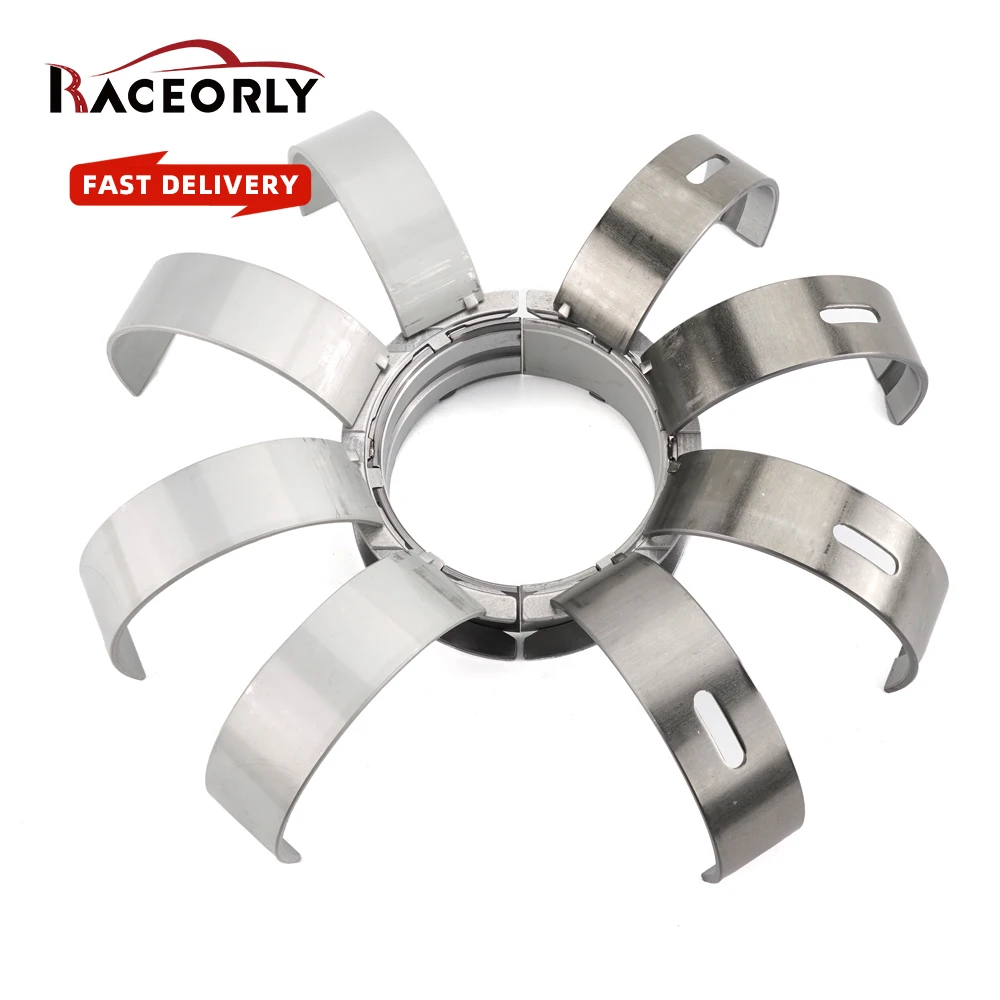

Лидер продаж детали системы двигателя автомобиля raceparis подшипник коленчатого вала для Mercedes-Benz M651 A6510330701
