L-type three axis elevating positioner is widely used in welding and assembly of complex workpieces. The L-type welding positioner makes the workpiece in the best welding or assembling position of horizontal or 45° through the rotation, flipping and lifting of the work table. It can be combined with other welding equipment to form a semi-automatic, fully automatic welding machine. The rotary table uses variable frequency stepless speed regulation. L-type welding positioner is mainly used for the welding of special workpieces such as buckets of loaders and buckets of excavators. Widely used in construction machinery, agricultural machinery, automobile transportation machinery and other special industries.
Model | HBSF-05 | HBSF-10 | HBSF-20 | HBSF-30 | HBSH-40 | HBSF-50 | HBSF-100 | ||||||
Max Loading Capacity (Kg) | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 10000 | ||||||
Rotation Speed (rpm) | 0.15---1.5 | 0.1---1 | 0.1---1 | 0.1---1 | 0.05---0.5 | 0.05---0.5 | 0.03---0.3 | ||||||
Rotation Speed Adjust-way | AC VFD change speed | ||||||||||||
Tilting Speed (rpm) | 1,0 | 1.0 | 1.0 | 0.45 | 0.45 | 0.2 | 0.15 | ||||||
Lifting Speed (mm/min) | 1.5 | 1.0 | 1.0 | 0.8 | 0.8 | 0.4 | 0.3 | ||||||
Lifting Way | Mechanical | Hydraulic | |||||||||||
Rotation Motor (kW) | 0.55 | 1.1 | 1.5 | 2.2 | 2.2 | 3.0 | 4.0 | ||||||
Tilting Motor (kW) | 0.75 | 1.5 | 3.0 | 3.0 | 4.0 | 5.5 | 7.5 | ||||||
Lifting Motor (kW) | 0.55 | 1.5 | 3.0 | 3.0 | 5.5 | 5.5 | 7.5 | ||||||
Worktable Diameter---Wt (mm) | 800 | 800 | 1000 | 1200 | 1200 | 1500 | 2000 | ||||||
Worktable Min Height---Ht (mm) | 800 | 800 | 800 | 850 | 850 | 850 | 900 | ||||||
Lifting stroke --- Ls (mm) | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 | ||||||
Machine Height --- Mh (mm) | 2600 | 2700 | 3000 | 3500 | 3500 | 3800 | 4200 | ||||||
Product Advantages

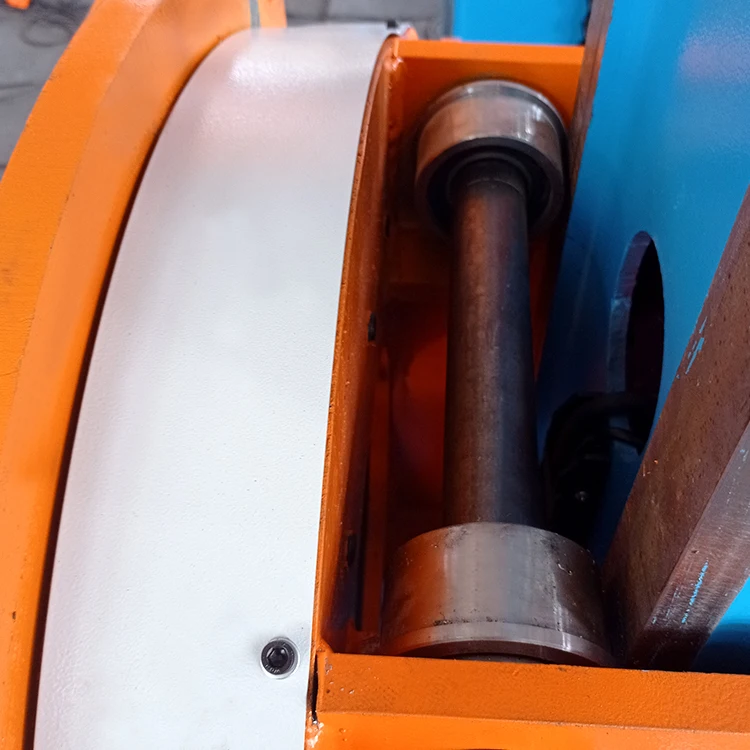

When running at full load, the pressure on the contact surface between the guide wheel and the guide rail is large. Increase the contact area between the guide wheel and the guide rail to reduce the pressure, balance the pressure through the guide wheels in multiple directions, and reduce the friction during the lifting process.
The overturning of the L arm and the rotation of the workpiece all adopt the slewing bearing rotation structure. Different from the ordinary bearing, the slewing bearing can make the stress evenly distributed on the larger diameter steel ring, which greatly improves the rotation.

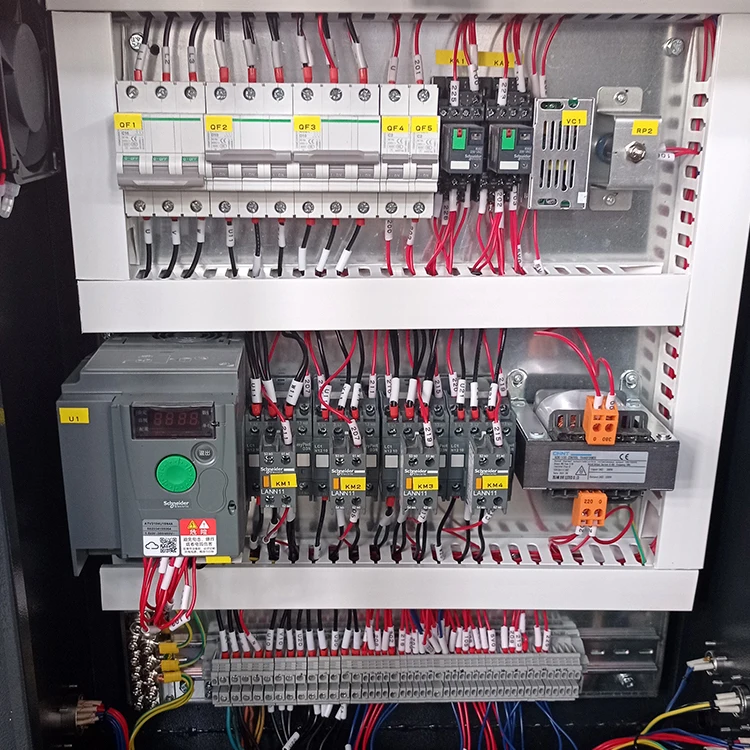

The worktable rotation speed is adjusted by VFD,the adjustment response accuracy is high,and the speed operation is stable and reliable.

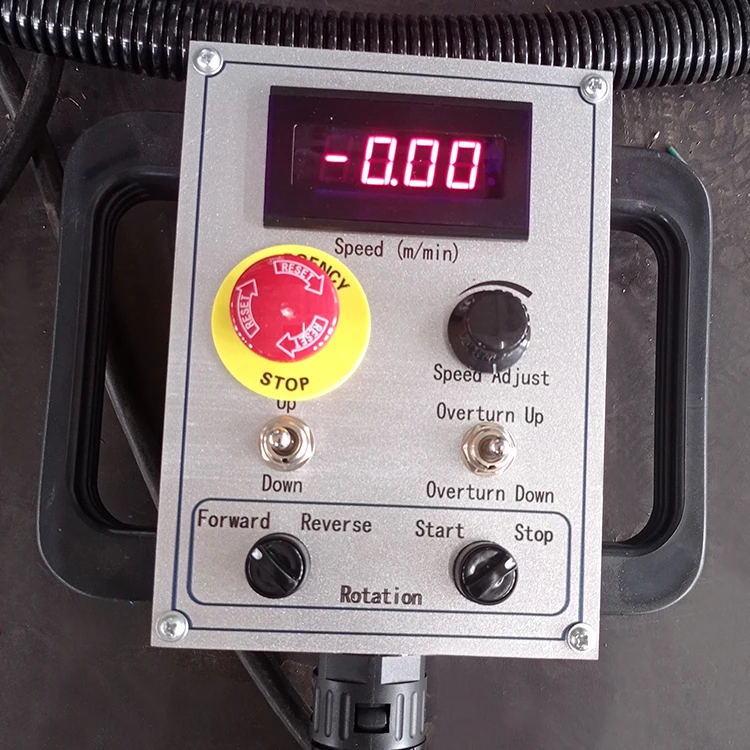

The operation panel has the functions of ·up、down、tilting、forward、reverse and stop. The speed is adjusted by the rotary button and displayed on the display screen.
Packing & Shipping
Customers of Zhou Xiang
Why Choose Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
We actively participate in and hold exhibitions, and reach friendly cooperation with foreign friends. Our cooperation is not only our progress but also the world's progress!
Our Service
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T.
3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Years.
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T.
3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Years.
Похожие товары
Уси Умеренная Цена Сварочный Манипулятор Поставщиков
Конкурентоспособная цена Робот позиционер 95m2 500A Сварочный
4 000,00-4 285,00 $
Автоматическая двухосевая сварочная рабочая станция состоит из промышленного сварочного робота и пешеходной дорожки.
3 000,00-3 200,00 $
Поворотная Сварочная горелка supercnc
300,00-430,00 $

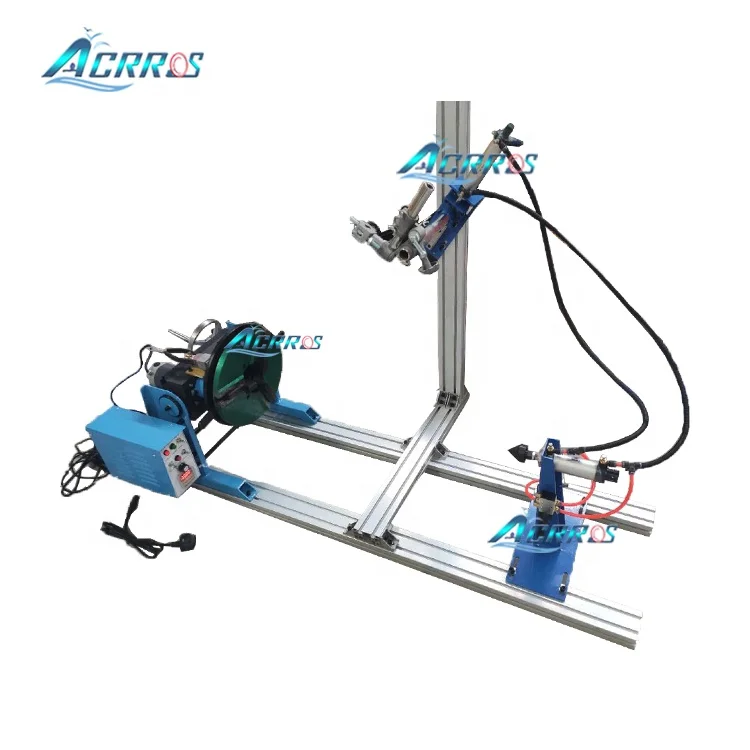

Пневматический сварочный манипулятор Acrros 300 кг с отверстием 170 мм
