Стальной дверной мотор роликовый мотор-затвор для автоматизации
3 728,05 ₽ - 6 798,21 ₽
Электродвигатель для роликовых дверей
- Категория: >>>
- Поставщик: Zhangzhou Mingniao Electronic Machinery Co. Ltd.
Сохранить в закладки 1600488205776:
Описание и отзывы
Характеристики
You may also like
Products Description

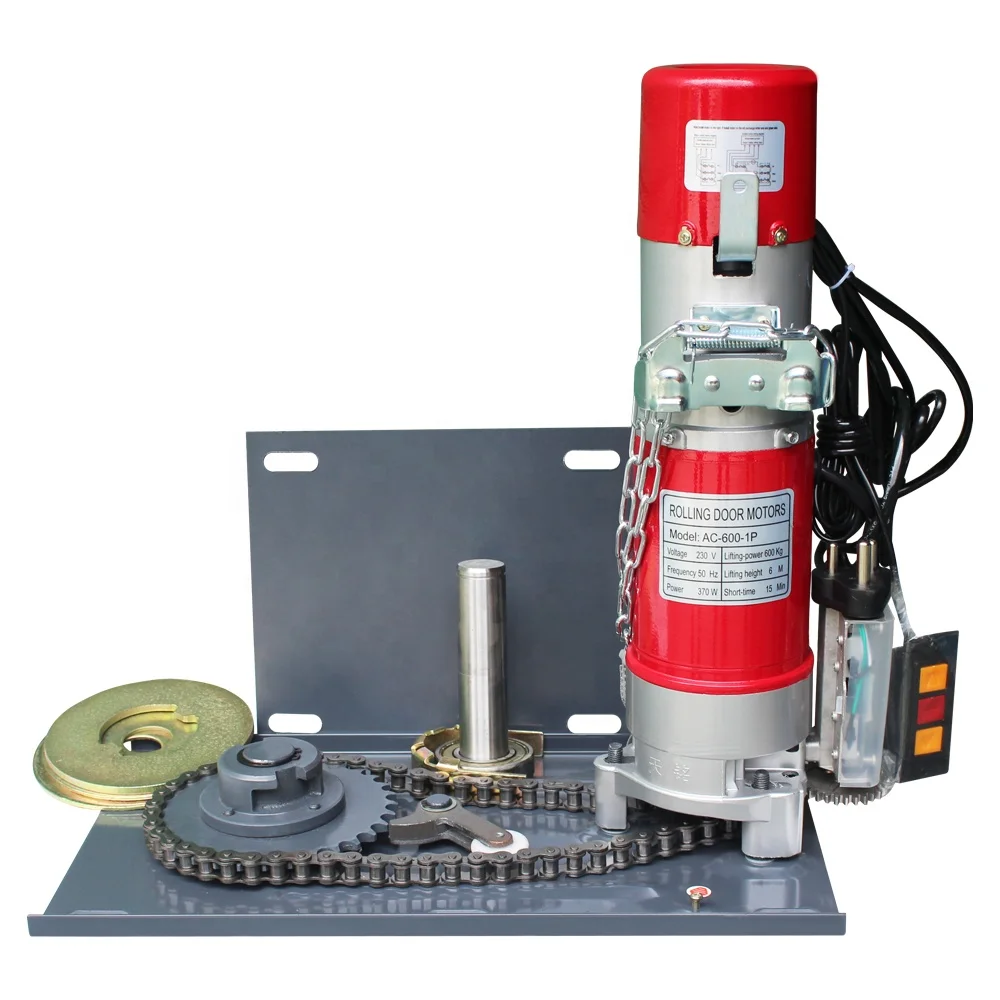

automatic electric aluminium roller shutter motor
Our company has 22 years of experience in the production of shutter motors, the main market in southeast Asia and the Middle East, committed to the production of silent type, sincerely look forward to long-term cooperation with you。
Features:
1.Rolling shutter opened and closed by the power-driven operation.
2. Limit switch unit enables precise adjustment of door in both up and down positin.
3. In case in the absence of powerm a release chain can be operated door manually.
4.Powerful strength, overheat protection when overloaded.
5.One-phase rolling door motor has the capacitance automatic dis charge device for security overhaul.
6.Easy installation, low noise, small power consumption.
1 | electric control box | 8 | reduction gear box |
2 | clutch lever | 9 | bracket |
3 | clutch drive | 10 | shaft block |
4 | motor | 11 | flange |
5 | limit stop | 12 | side bracket |
6 | manual chain | 13 | madrel |
7 | manual button |
1 | Cover | 5 | Back of cover |
2 | Gear wheel / bearing | 6 | Limit gear wheel |
3 | Motor | 7 | Limit switch |
4 | Manual chain | 8 | Terminals |
Technical parameters | ||||||||||||||
Model | Max. Lifting force(kg.f) | Max Elevating distance(m) | Power(w) | Rate Current (A) | Output torque (N.m) | Output turn Speed (r/min) | Chain | |||||||
220V,50Hz | ||||||||||||||
MN(Z)-1P-150 | 150 | 5 | 220 | 1.2 | 105 | 5.0 | 08B | |||||||
MN(Z)-1P-300 | 300 | 6 | 400 | 2.4 | 210 | 5.0 | 08B | |||||||
MN(Z)-1P-500 | 500 | 6 | 480 | 2.6 | 350 | 5.0 | 10A | |||||||
MN(Z)-1P-600 | 600 | 6 | 500 | 3.0 | 420 | 5.3 | 10A | |||||||
MN(Z)-1P-800 | 800 | 9 | 540 | 3.8 | 610 | 4.6 | 10A | |||||||
MN(Z)-1P-1000 | 1000 | 9 | 580 | 4.2 | 760 | 4.6 | 12A | |||||||
380v,50Hz | ||||||||||||||
MN(Z)-3P-500 | 500 | 6 | 380 | 0.8 | 350 | 5.3 | 10A | |||||||
MN(Z)-3P-600 | 600 | 6 | 450 | 0.9 | 420 | 5.3 | 10A | |||||||
MN(Z)-3P-800 | 800 | 9 | 500 | 1.2 | 650 | 4.6 | 10A | |||||||
MN(Z)-3P-1000 | 1000 | 9 | 580 | 1.5 | 800 | 4.4 | 12A | |||||||
MN(Z)-3P-1300 | 1300 | 9 | 800 | 1.7 | 1050 | 4.4 | 12A | |||||||
MN(Z)-3P-1500 | 1500 | 9 | 900 | 1.9 | 1520 | 4.4 | 12A | |||||||

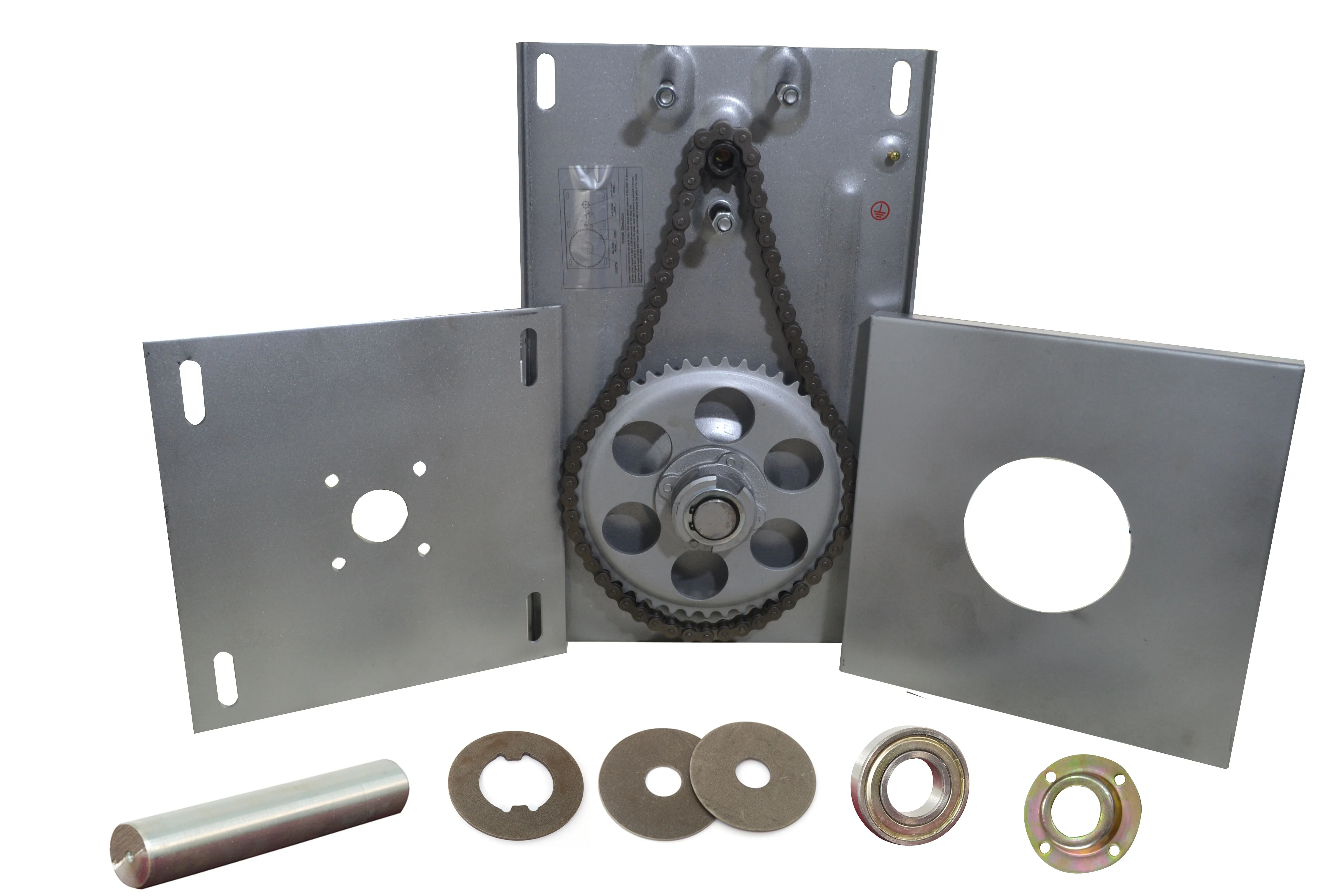

Standard Accessores
We provide customized services that can provide you with specific requirements for different countries, including packaging, accessories, motors, power, plugs, etc.
Packing&Shipping
Title goes here.

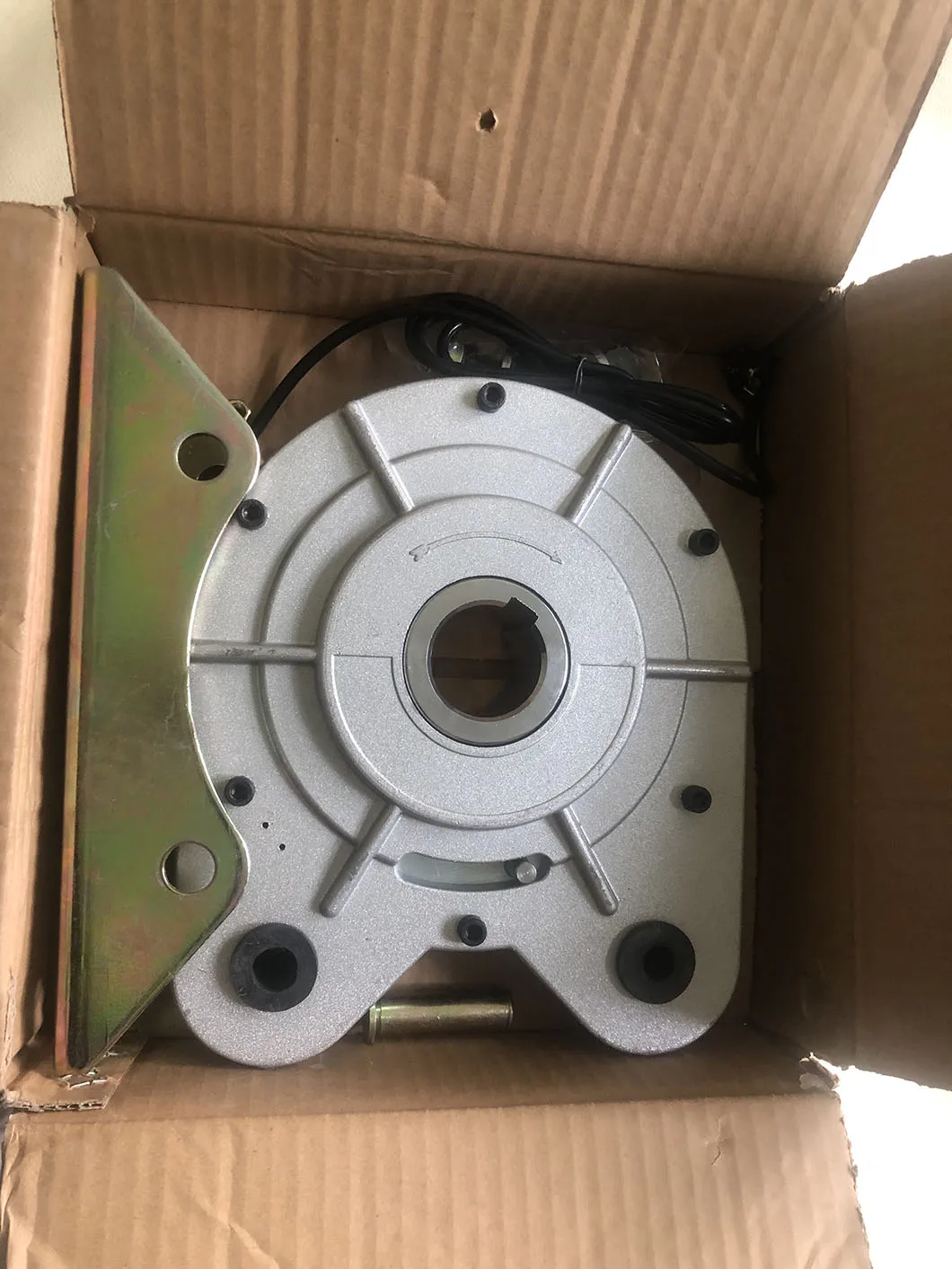

Packaging:one set packing in two cartons with foam inside.
FOB (Xiamen)Price
Lead Time: Delivery time is determined by the amount of your order .
Warranty: 1 year.
Container Loading Capacit
20" container DC motor can put 500set-520set
20" container AC rolling door motor mixed with DC roller shutter motor can put 550set
40" container DC motor can put 850set
40" container AC rolling door motor mixed with DC roller shutter motor can put 920-950set
FOB (Xiamen)Price
Lead Time: Delivery time is determined by the amount of your order .
Warranty: 1 year.
Container Loading Capacit
20" container DC motor can put 500set-520set
20" container AC rolling door motor mixed with DC roller shutter motor can put 550set
40" container DC motor can put 850set
40" container AC rolling door motor mixed with DC roller shutter motor can put 920-950set
Company Introduction
Zhangzhou Mingniao Electronic Machinery Co., Ltd. is a professional research and production of various forms of electric door opener and inverter welding machine high-tech enterprises. The company was founded in 2000, the existing equipment is excellent, the technical force is abundant, has the strong mechanical processing ability and the microcomputer control system design ability, can support the mechatronics function for the general user in time. The inverter welder designed and developed by our company adopts advanced inverter power source technology and imported IGBT module. The inverter frequency can reach 20kHz, the dynamic response speed is faster, the function is perfect, the performance is excellent, and the welder has high reliability. It can meet the requirements of high-quality welding and is a reliable welding equipment for users. Your need is our pursuit! The company diligently maintains the brand, develops the market honestly, pursues the perfect function with the meticulous design, the accurate manufacture guarantees the product quality, develops the market with the sincere service attitude, strives for the survival with the quality With the aim of quality and development, our products are sold all over the country and exported all over the world.
Our Services & Strength
Open and close the shutter door by electric driveOperating up and down stroke by the limit switch automatic control, accurate and reliable positioning, open and close safetyPower failure, manual operation, convenient and labor-savingThe motor prevents assembly with overheating protectionSingle-phase rolling door machine is also equipped with capacitance automatic discharge device when the machine stops, which is convenient for safety maintenanceEasy installation, low noise and low power consumption
FAQ
Q: Do you have your own factory?
A: Yes, We are a professional manufacturer of rolling door motor in Zhangzhou, we have our own factory and welcome your visit
Q: What is your delivery time?
A: The time of delivery is about 15 to 25 days after receiving deposit, this is decided by order quantity.
Q: Can you make an OEM for me?
A: Yes! OEM orders is acceptable, please let’s know your requirements, we ll offer you a reasonable price and make samples for you ASAP
Q: Do you provide sample?
A: Yes, we can provide you with sample, but there a charge for the sample and shipping cost.
A: Yes, We are a professional manufacturer of rolling door motor in Zhangzhou, we have our own factory and welcome your visit
Q: What is your delivery time?
A: The time of delivery is about 15 to 25 days after receiving deposit, this is decided by order quantity.
Q: Can you make an OEM for me?
A: Yes! OEM orders is acceptable, please let’s know your requirements, we ll offer you a reasonable price and make samples for you ASAP
Q: Do you provide sample?
A: Yes, we can provide you with sample, but there a charge for the sample and shipping cost.
