Products Description

Note:

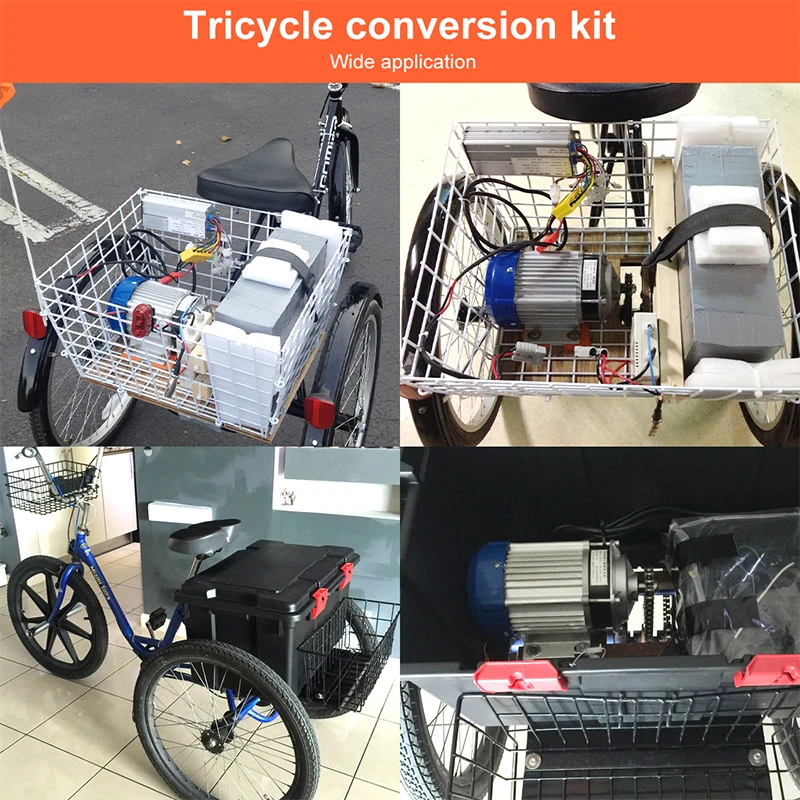

1). This kit is for the tricycle, rickshaw, pedicab, etc, the motor output speed is not fast, but its torque is big.
If you can not sure what motor you should use, please send me your vehicle picture, so I can recommend you the correct motor.
----------
2). This motor kit is easy to install to the vehicle, just need to fix the adapter to the vehicle axle, then mount the chain wheel to it, and fix the motor to the vehicle frame, then link the motor sprocket and the chain wheel by the chain.
If you do not know how to fix the motor, please send me your vehicle picture, so I can give you suggestion.
----------
3). This kit just for people riding tricycle easier, it is not fast (26-inch tricycle can run about 20km/h), 500W motor loading
weight is about 250kg.
----------
4). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are
all ok, and the battery capacity I recommend 48V 20Ah.
----------
5). This controller has "reverse" function, but as this kit uses the freewheel chain wheel, it can drive the vehicle go forward
only, if you want it drive reverse, you need to use a fixed chain wheel or welde the freewheel to make it fixed, please
understand.
----------

48V 500W brushless gear motor kit

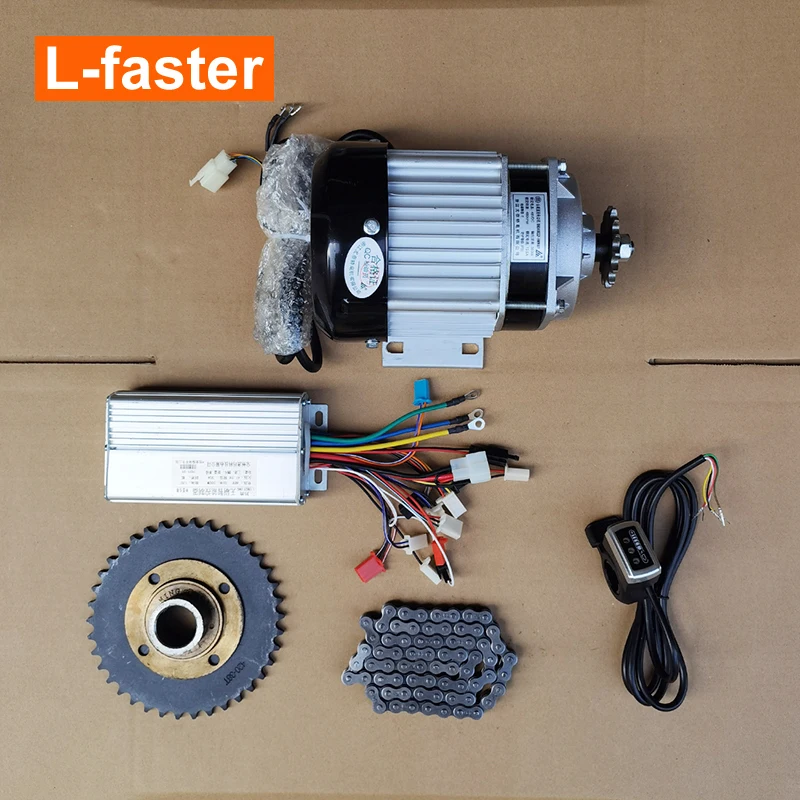

The kit includes:

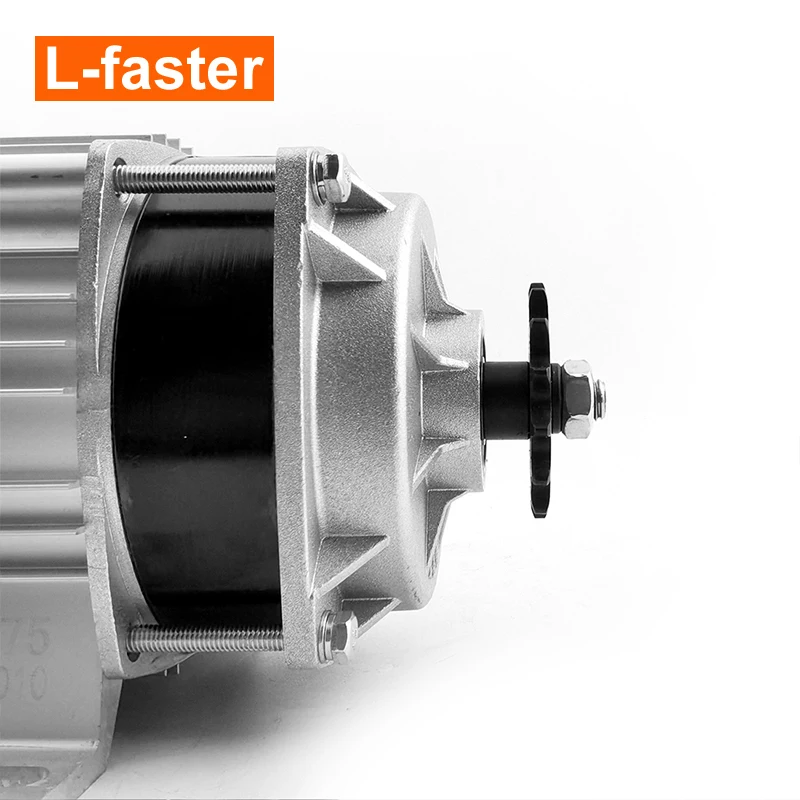

1). 1x 500W Brushless geared motor

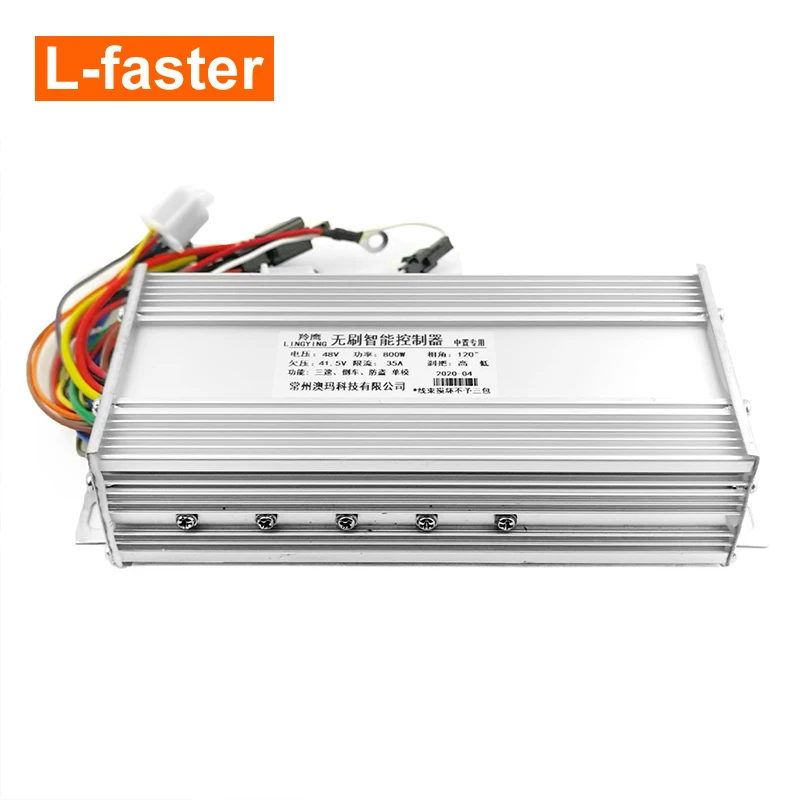

2). 1x Motor controller

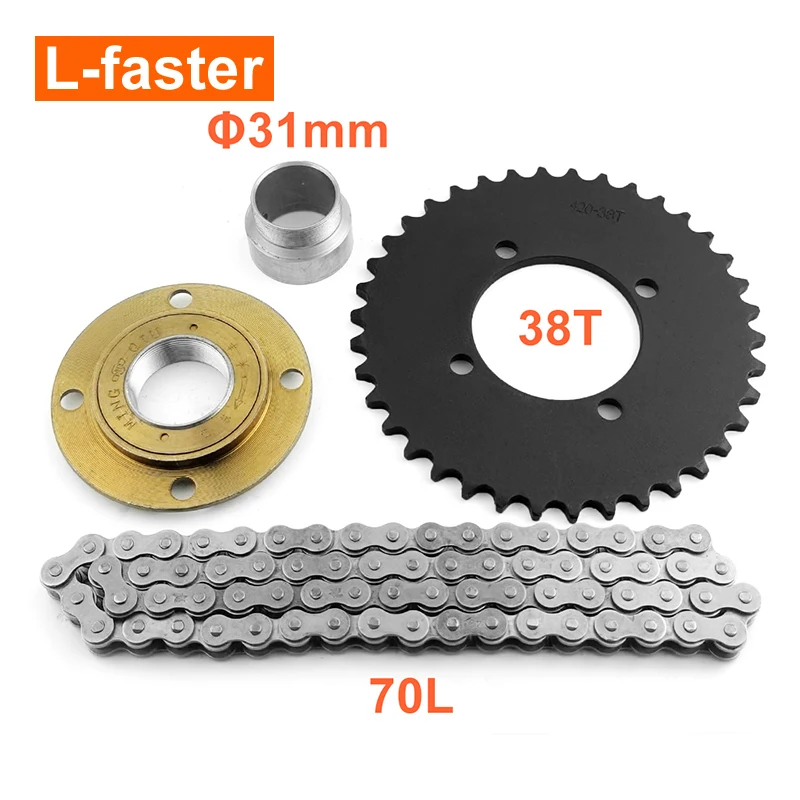

3). 1x #420 Chain (70 links)
4). 1x Chain wheel (38 tooth)
5). 1x No teeth freewheel
6). 1x Freewheel adapter (31mm)
7). 1x Thumb throttle (with button switch & battery indicator lights)

Note: this kit without battery and battery charger .

Motor model	Tricycle motor
Motor type	Brushless gear motor
Motor power	500W
Motor voltage	48V
Output speed	460 RPM
Torque	10 N.m
Wiring	3 pcs phase cable, 5 pcs hall sensor wires
Max loading	350 kg
Motor weight	5.2kg
