★★★ Sennuopu X680 6 ch amp processor 8 channels dsp car stereo amplifiers car audi ★★★
Product Description
▼▼PRODUCT OVERVIEW▼▼

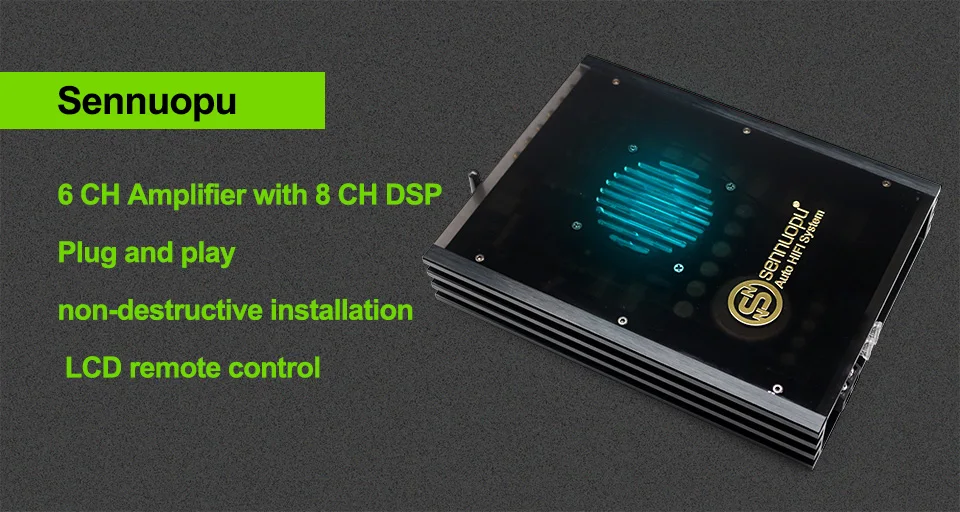

➤ Experience your music in Hi-Res with the versatile X680 6-Channel Amplifier with 8-Channel Digital Signal Processor, The highest power output in its category, you'll hear the hair-raising details of music with the most accurate sound reproduction for music that stays true to the artist's intention.

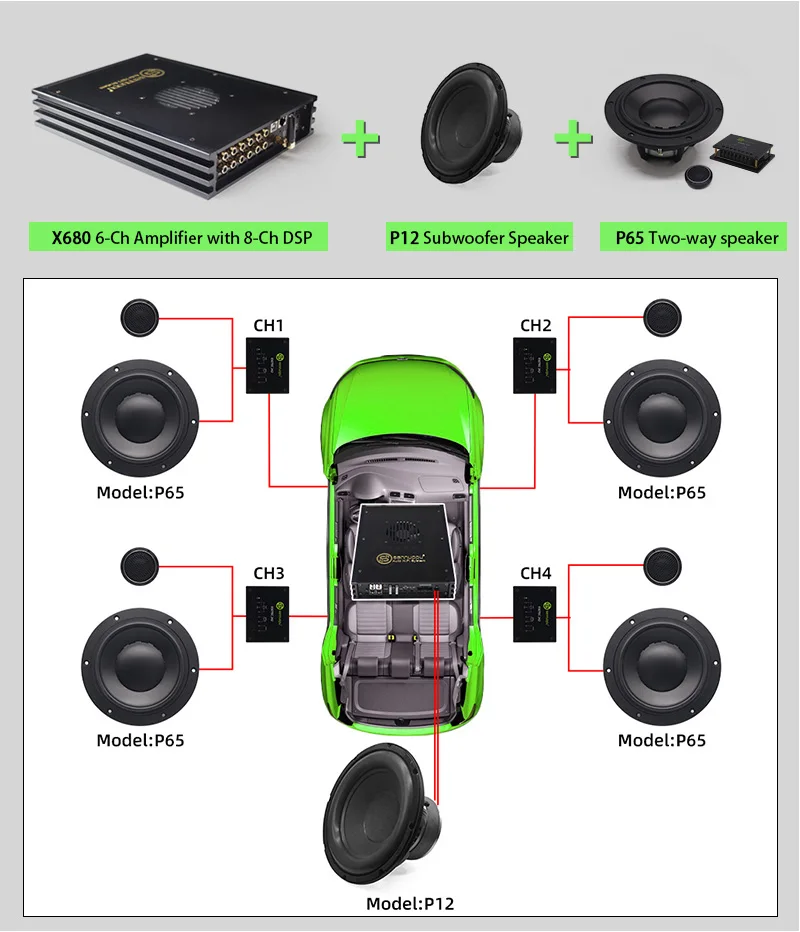

➤ Built-in 6*110 Watts power amplifier, with enough energy to push P65-242 2-way speaker with high dynamics, and the 5th and 6th channels can be bridged to push 450 Watts bass speaker.
➤ Easy plug-and-play and lossless installation.
➤ 8-channel DSP, each channel can be adjusted separately, allowing you to easily adjust your car Concert Hall.

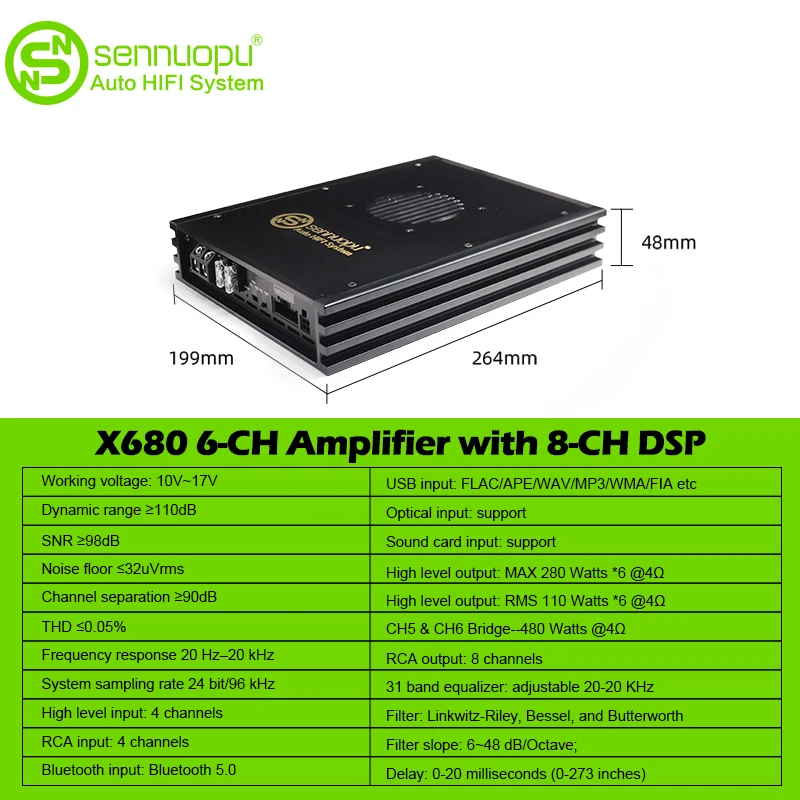

Product Technical Specification

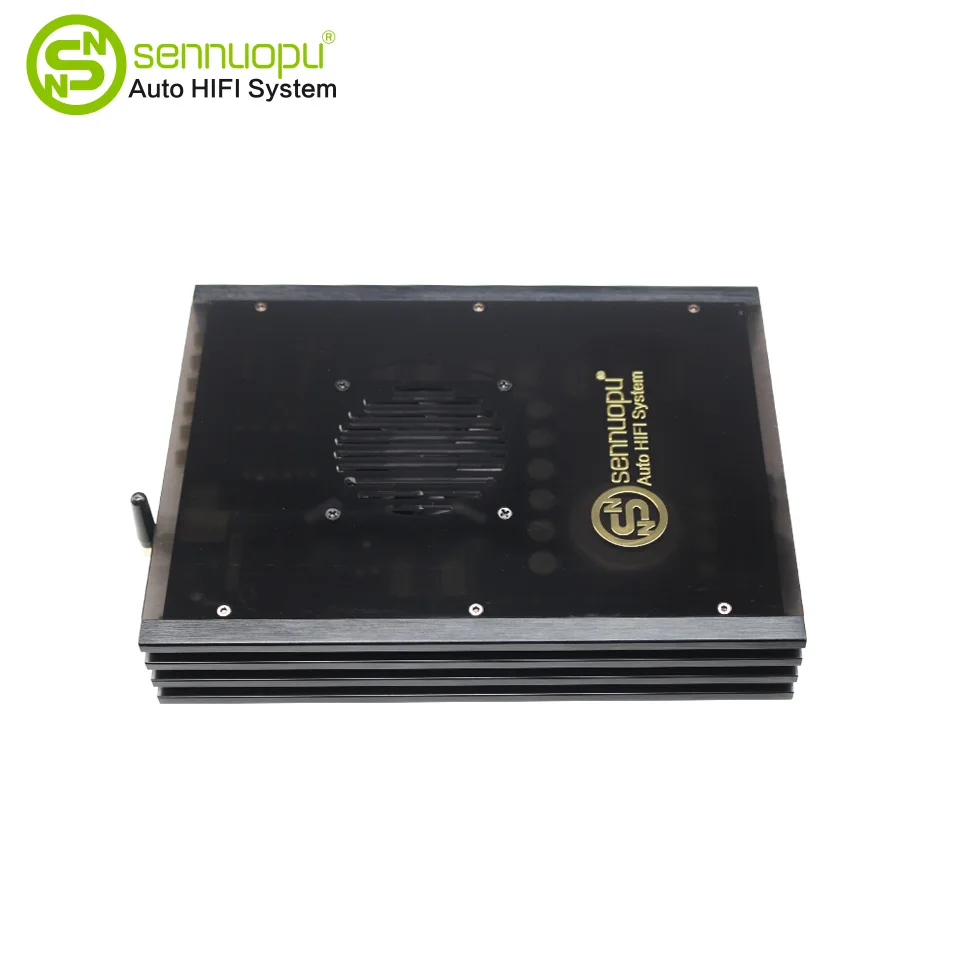

SENNUOPU X680 6-Channel Amplifier with 8-Channel Digital Signal Processor | ||
Working voltage: 10V～17V | USB input: FLAC/APE/WAV/MP3/WMA/FIA etc | |
Dynamic range ≥110dB | Optical input: support | |
SNR ≥98dB | Sound card input: support | |
Noise floor ≤32uVrms | High level output: MAX 280 Watts *6 @4Ω | |
Channel separation ≥90dB | High level output: RMS 110 Watts *6 @4Ω | |
THD ≤0.05% | CH5 & CH6 Bridge--480 Watts @4Ω | |
Frequency response 20 Hz–20 kHz | RCA output: 8 channels | |
System sampling rate 24 bit/96 kHz | 31 band equalizer: adjustable 20-20 KHz | |
High level input: 4 channels | Filter: Linkwitz-Riley, Bessel, and Butterworth | |
RCA input: 4 channels | Filter slope: 6~48 dB/Octave; | |
BT input: BT 5.1 | Delay: 0-20 milliseconds (0-273 inches) | |

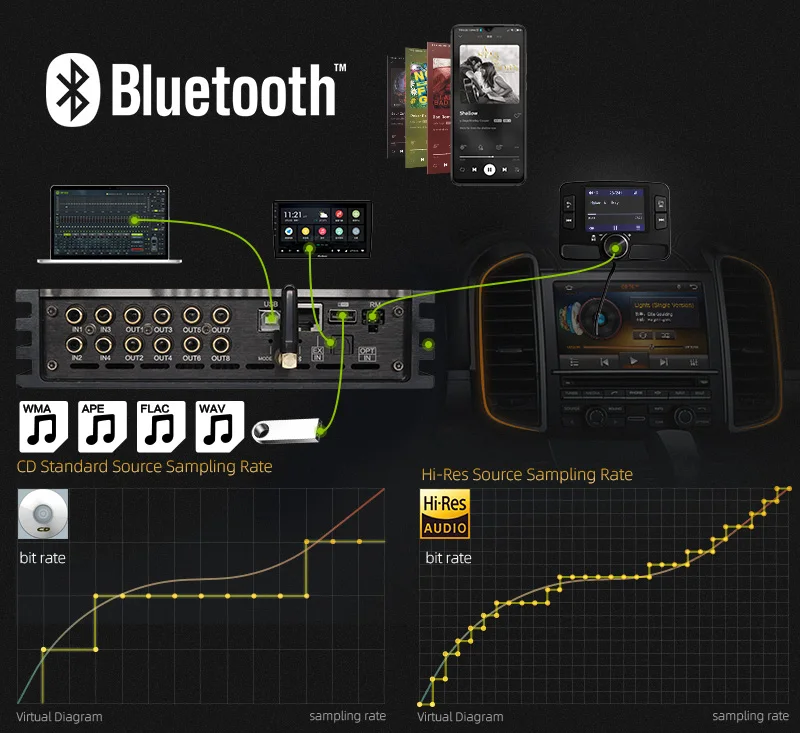

➤ X680 Features--Audio Media Player
X680 is a high-quality audio media player;
Application of HD BT5.1 player audio solution;

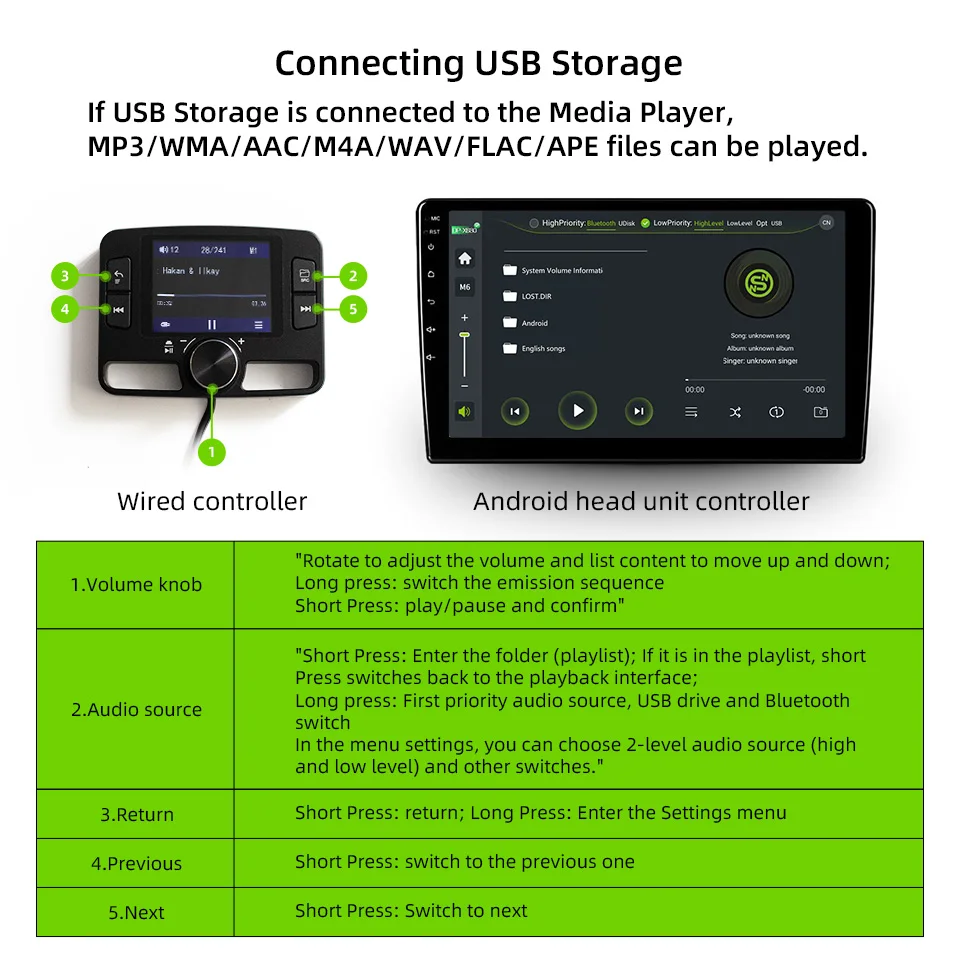

● U-disk playback input: Support Multiple Music Playing Formats(FLAC,APE,MP3,WAV,AAC,WMA);
● USB audio input: More and More Multimedia Playback Devices can be Expanded. USB Format Support : FAT16/32, NTFS;
● Optical input: Optical Fiber Connection can Achieve Electrical Isolation and Prevent the Transmission of Digital Noise through The Ground Wire, which is Conducive to Improving the Signal-To-Noise Ratio (S/N) of DAC (Digital Analog Conversion). Udisk playback input supports lossless playback (FLAC / APE / WAV / MP3 / WMA/FIA, etc.);
● It Can supports LED remote controller;
● Android head unit playback control. Need to download the APP we provide to install in the head unit.
➤ X680 Features--6 Channel Power Amplifier
X680 is a 6 Channel Power Amplifier;
6*110W @4Ω (Rated Power)
6*280W @4Ω (Maximum Power)
CH5 & CH6 Bridge--480W @4Ω ,Class AB

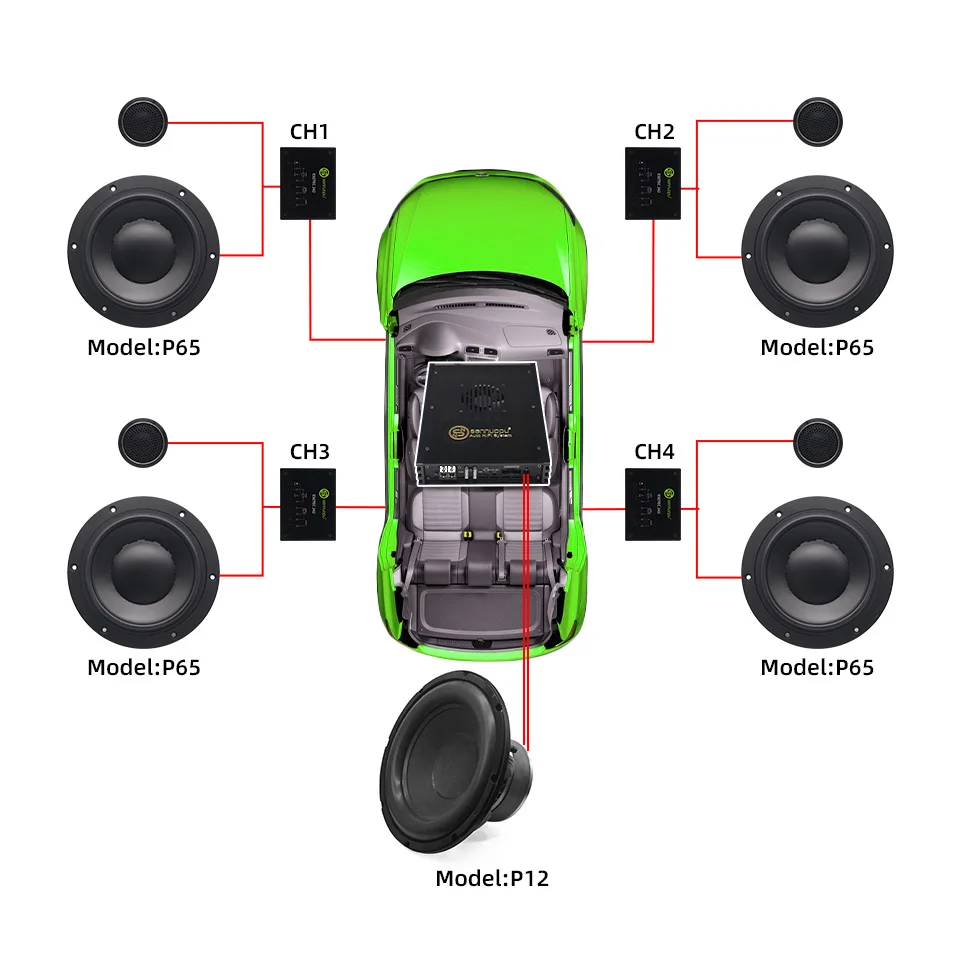

CH1~CH4 is responsible for promoting FF, FR, RF, RR channels. CH5 and CH6 bridge drive passive subwoofer.
CH1~CH4 is responsible for promoting FF, FR, RF, RR channels. CH5 and CH6 bridge drive passive subwoofer.
➤ X680 Features--8 CH Digital Signal Processor
X680 is also an 8 Channel Digital Signal Processor;
● 8-channel OMAP 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision) digital processor;
● 31-band EQ with fine tuning, Adjustable high-, low-, and band-pass filters (20-20 KHz),
● Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave), Selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley),
● Delay: 0-20 milliseconds (0-273"),
● Delay: 0-20 milliseconds (0-273"),
● Phase adjustment: 0 or 180°.
● DSP settings and adjustments made with windows PC via USB.
Note: The APP only supports Android phones and only supports more than 9.0 systems. IPhone is not supported.
Note: The APP only supports Android phones and only supports more than 9.0 systems. IPhone is not supported.

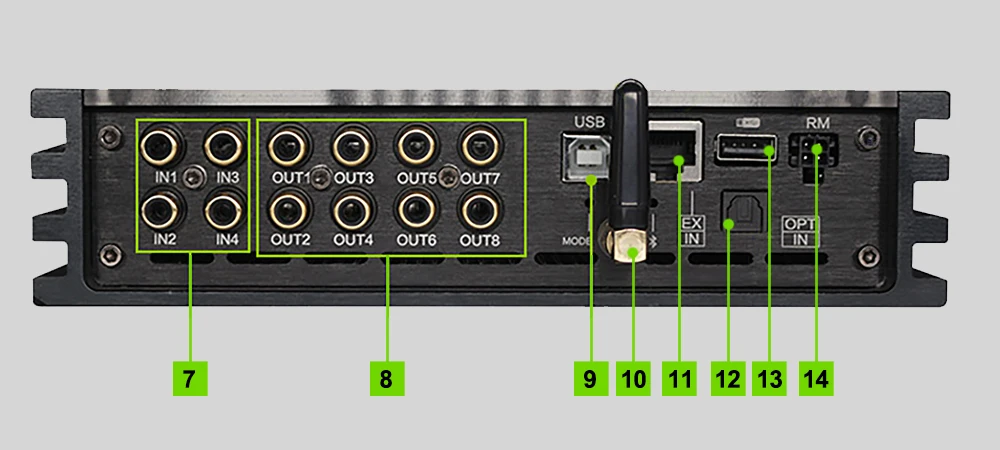

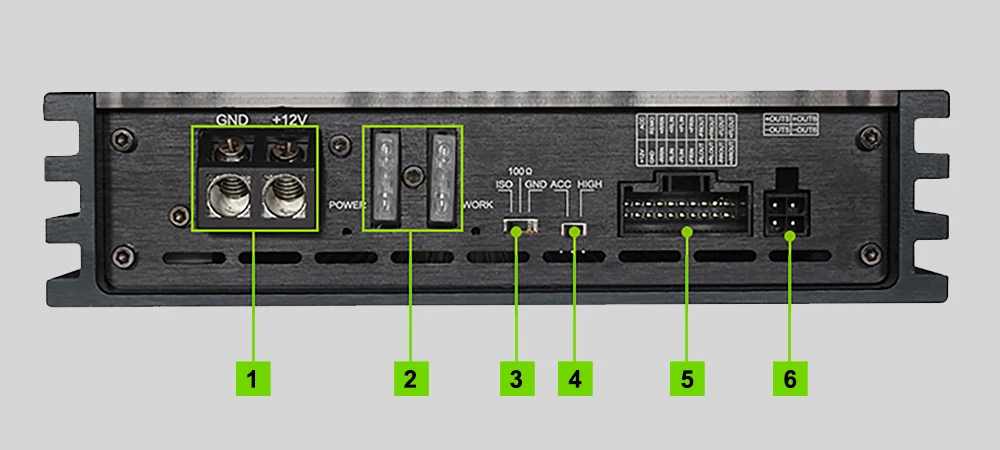

Product Details
1 | 12V power supply | 2 | One pair of 25A insurance | 3 | Earthing switch |
4 | Start switch selection | 5 | General interface of car power amplifier | 6 | CH5 and 6CH output |
7 | Low-level signal input RCA socket | 8 | Low-level signal output RCA socket |
9 | PC host computer USB interface | 10 | HD BT antenna |
11 | External audio source interface | 12 | Optical input interface |
13 | U disk interface | 14 | Color screen wire control interface |

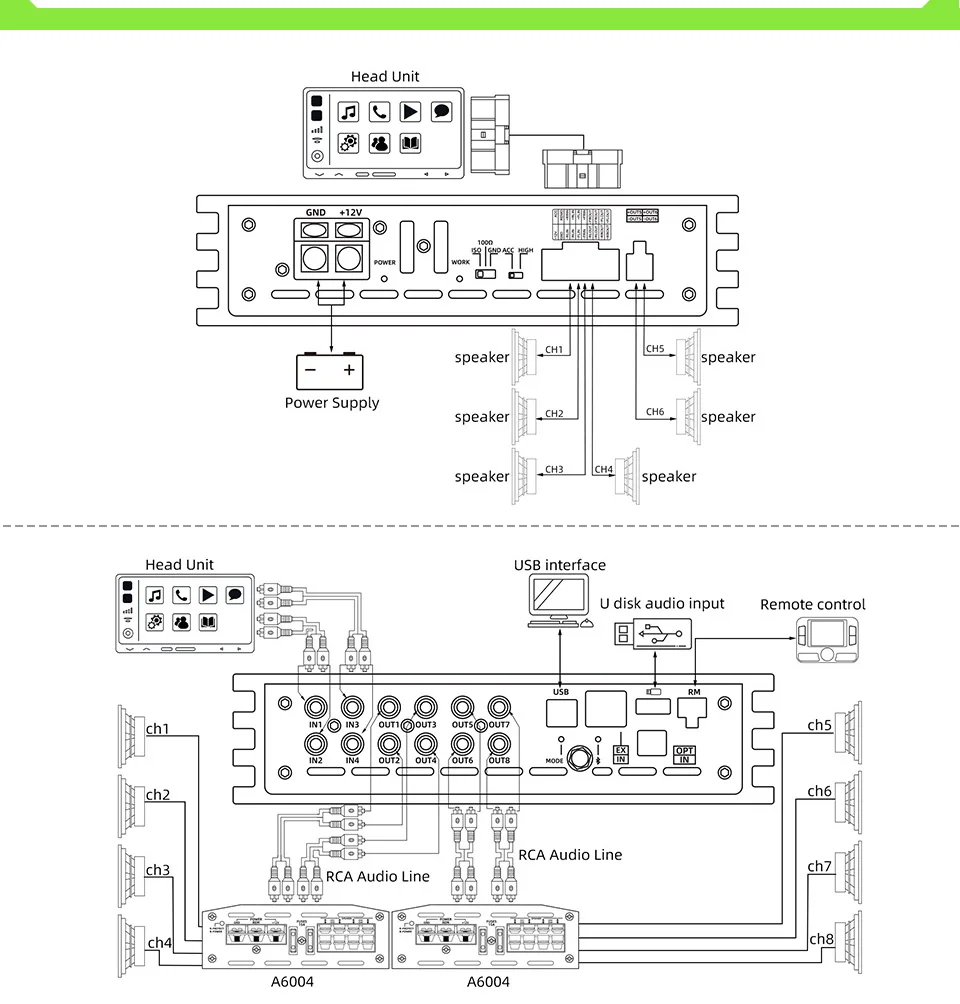

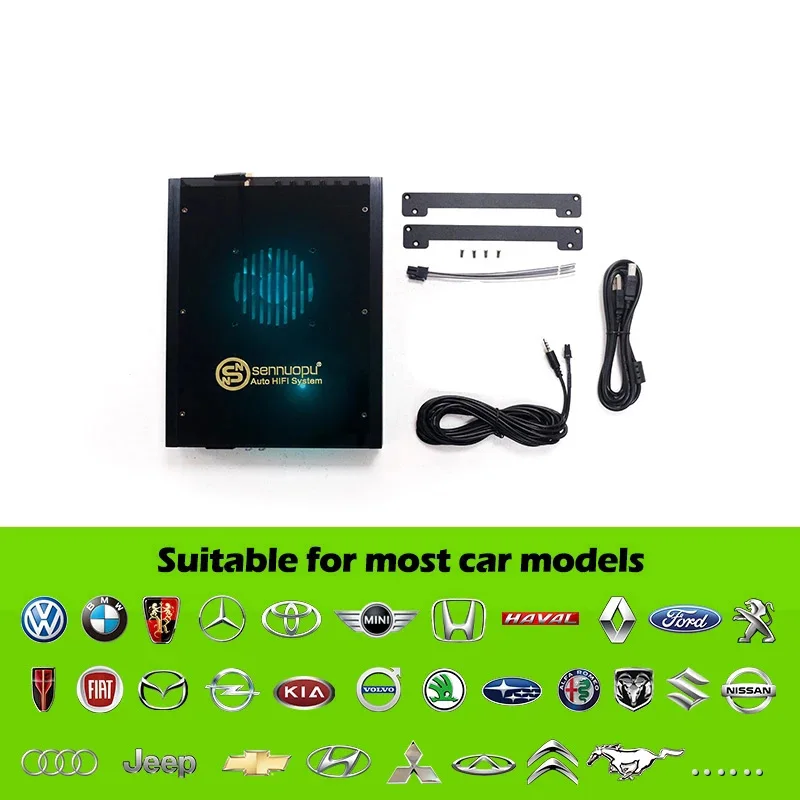

▼▼Installation Guide▼▼

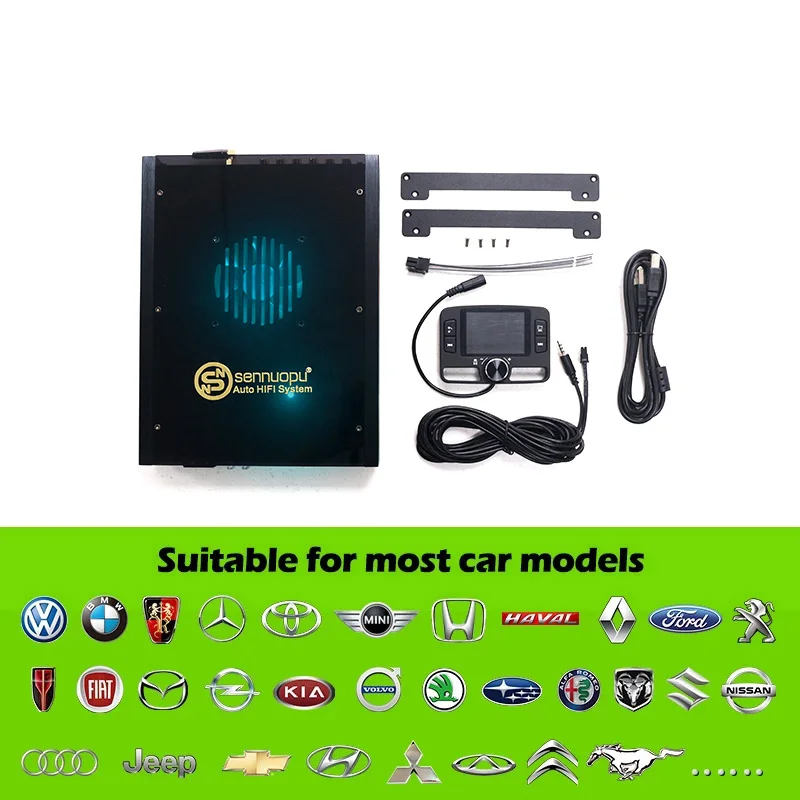

● Support plug-and-play installation of special car wiring harness, each model is different, please contact us to inquire your model.
● Note: Additional purchase is required for special car wiring harness.
● Suitable for Volkswagen, BMW, Toyota, Honda, Peugeot, etc.
