EXFO FTB 1v2 FTBx 750C метро/longhaul OTDR или iolm платформа и модуль
- Категория: >>>
- Поставщик: Shenzhen Fttx Technology Co. Ltd.
Сохранить в закладки 1600491822577:
Описание и отзывы
Характеристики
Products Description
We are EXFO's agent in China and can provide you with all types of EXFO OTDR at competitive prices.

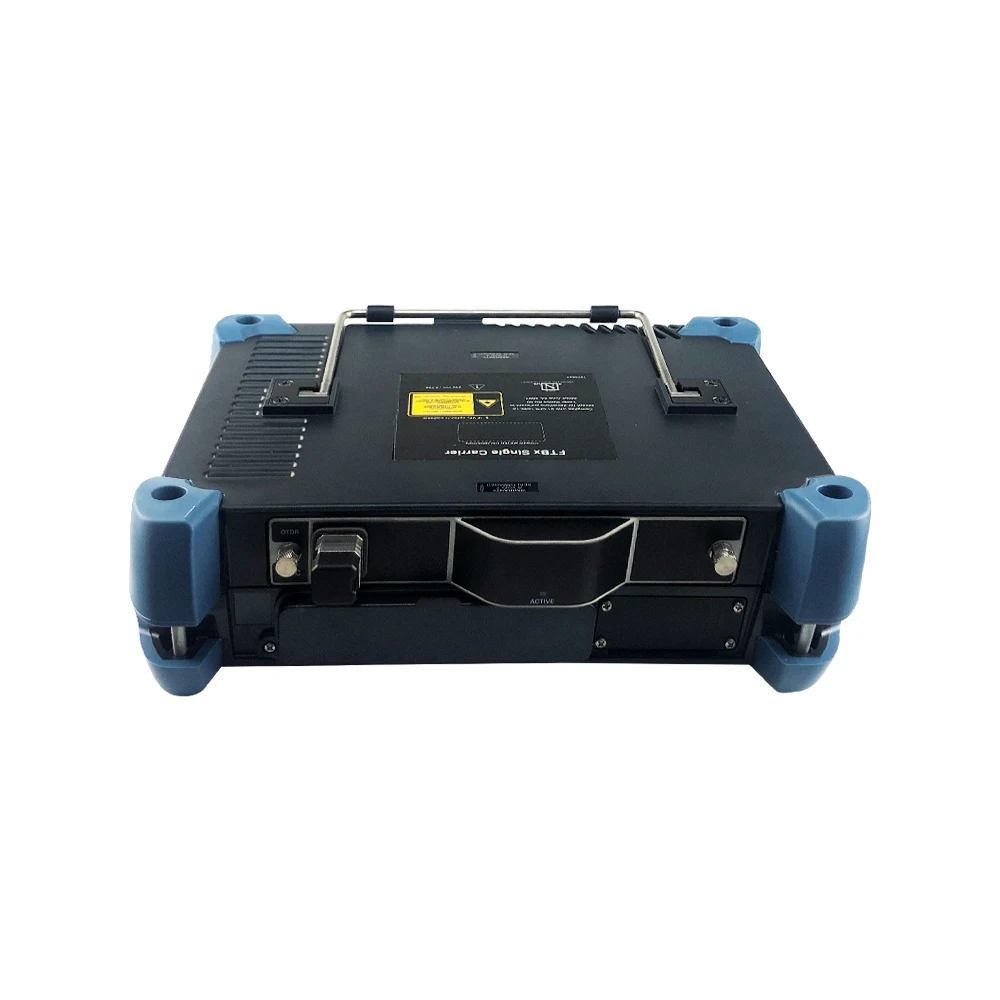

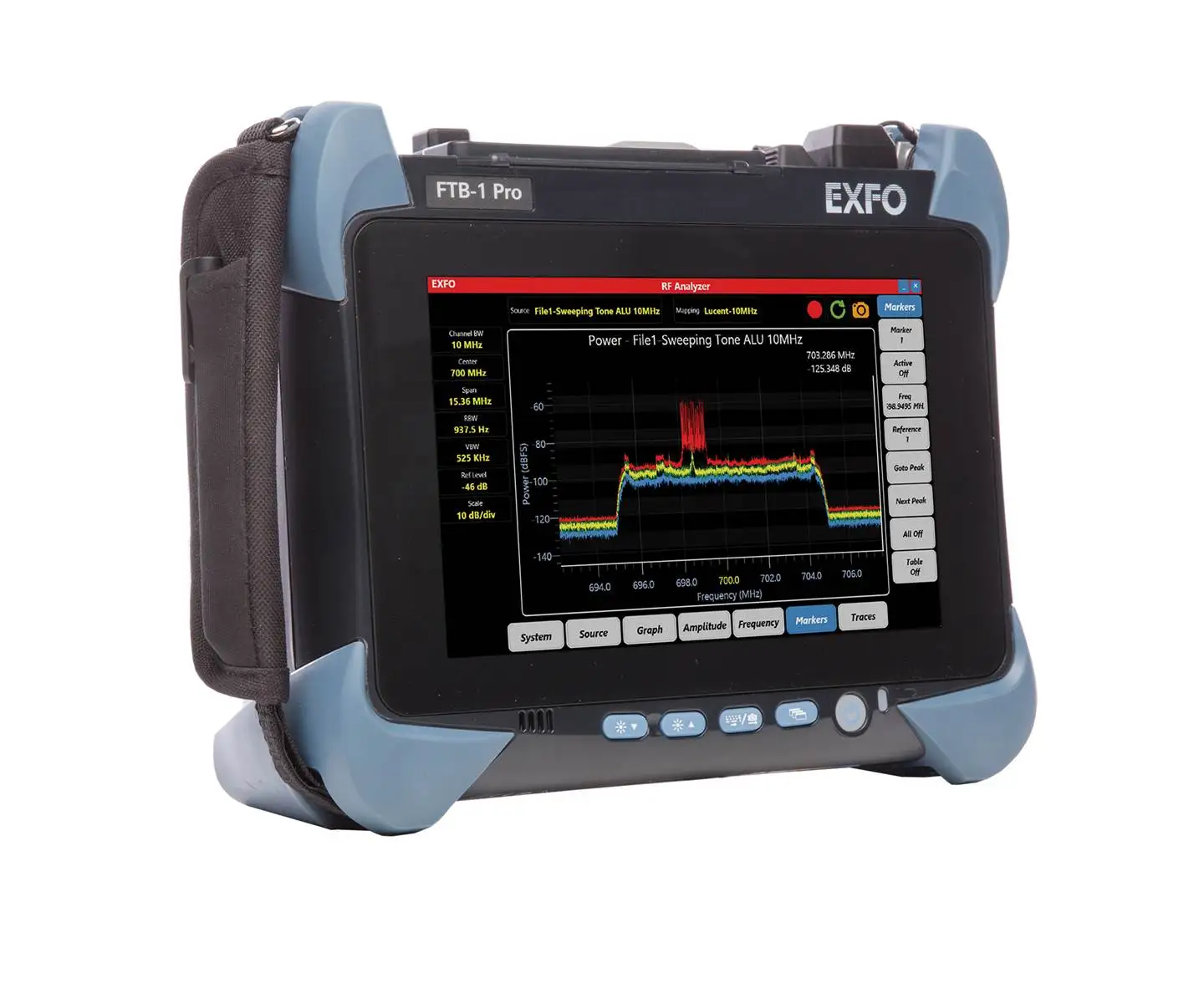

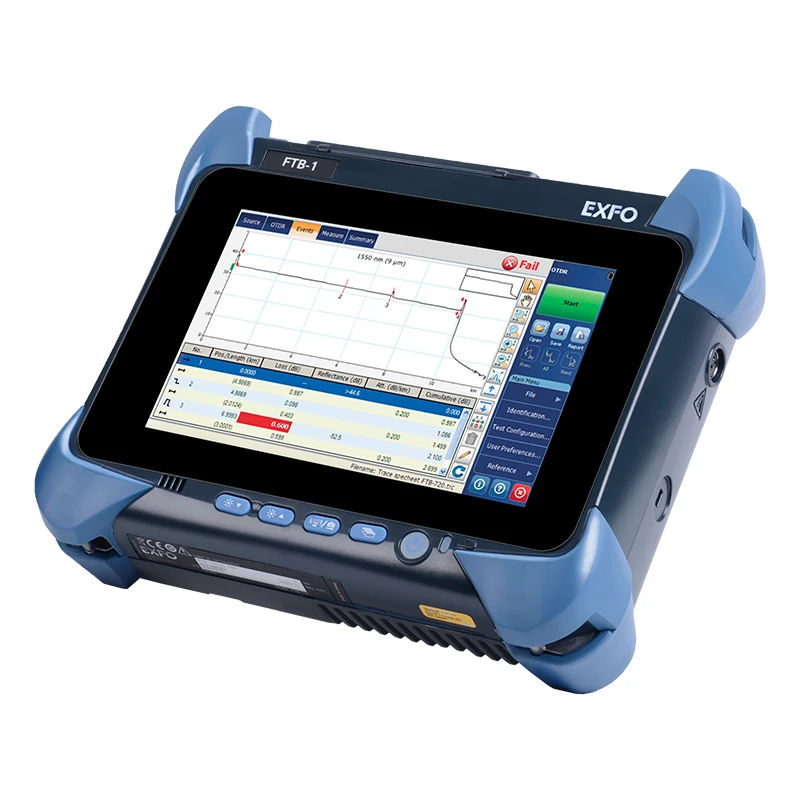

Platform: EXFO FTB-1V2& FTB-1 PRO OTDR or iOLM (Optional)

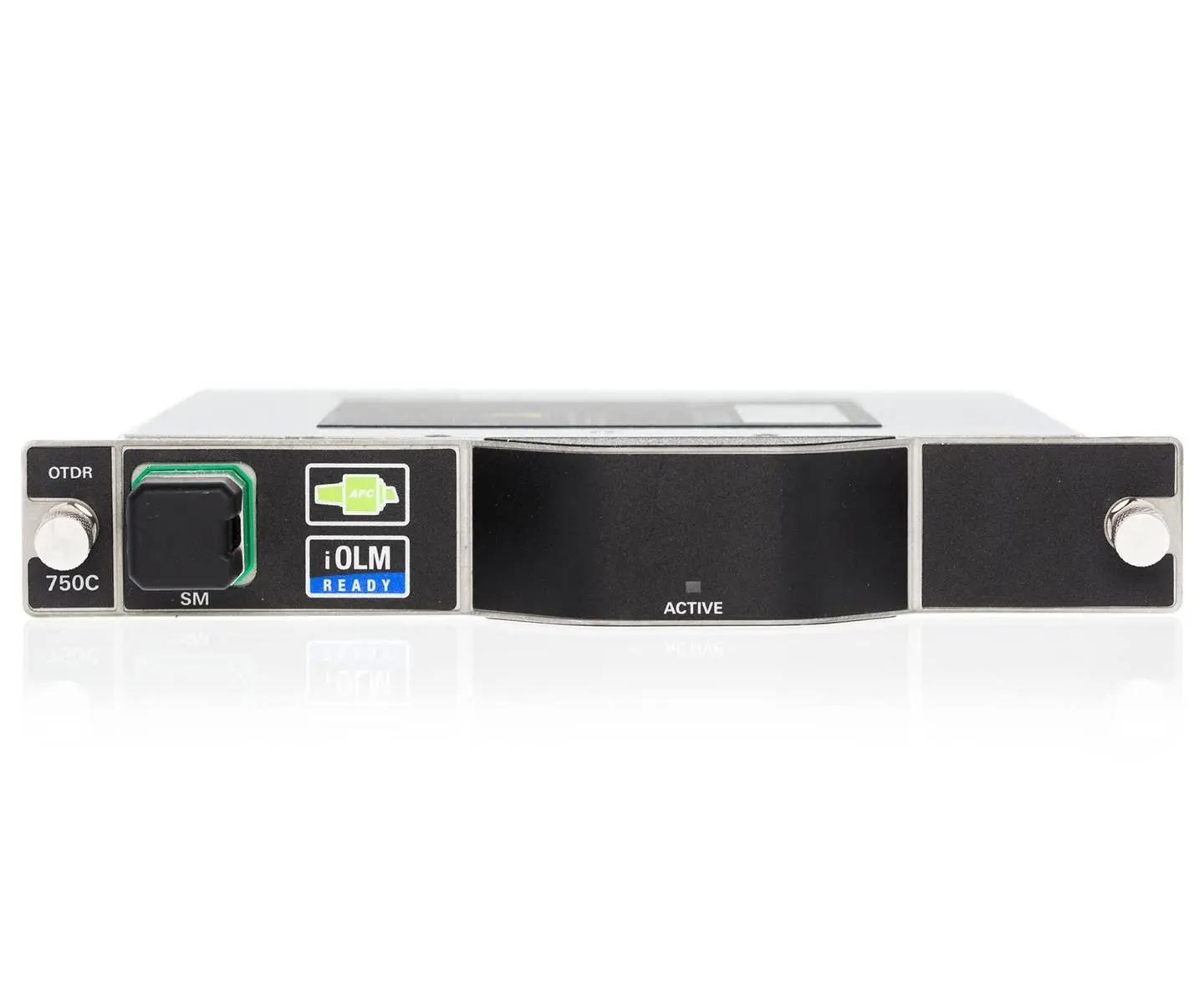

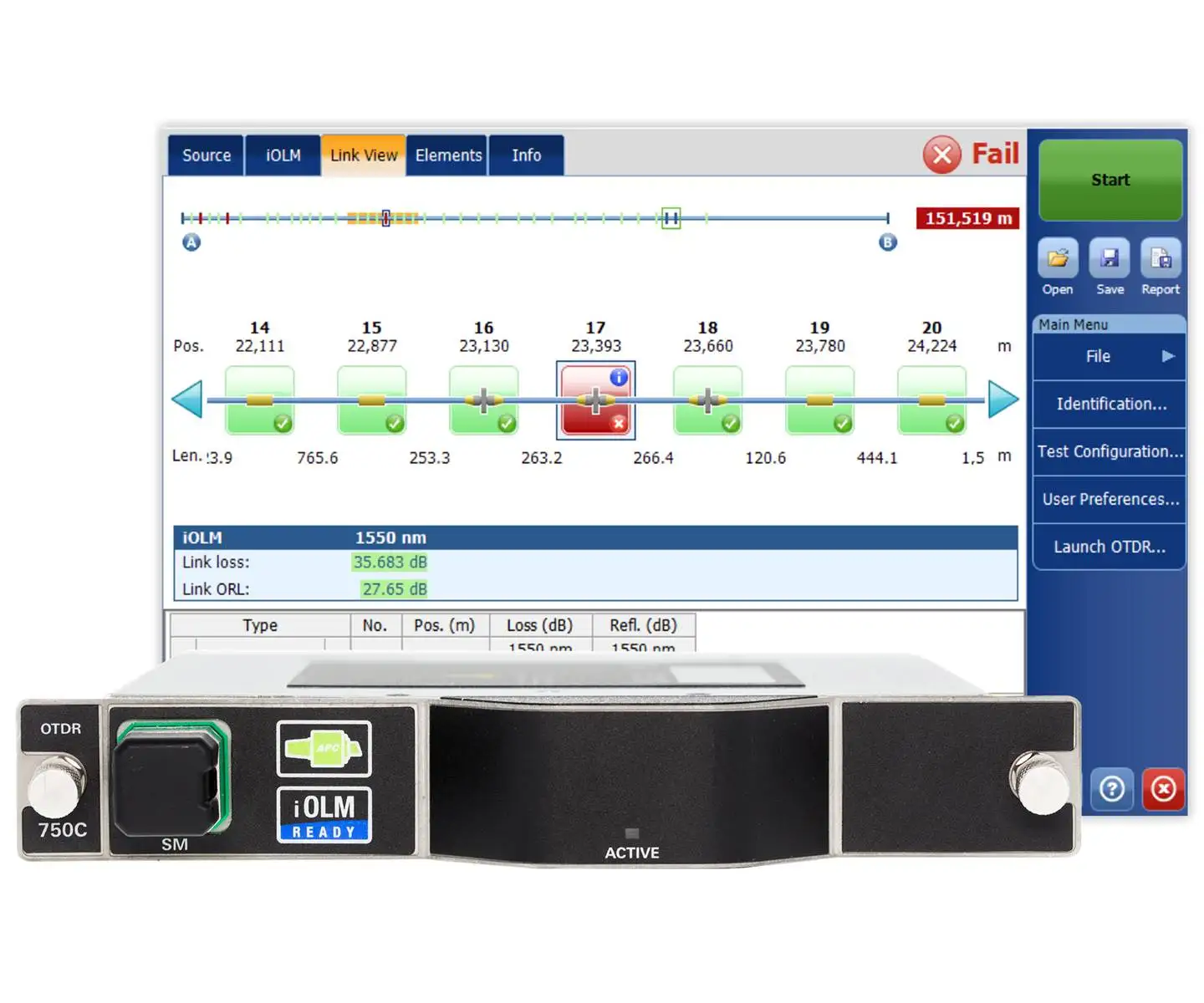

Module: FTBx-750C metro/longhaul OTDR MODULE
Wavelength: 1310nm/1550nm/1625nm
Dynamic range: SM1 46/45dB; SM3 45/45/45dB (9/125 µm)
Platform specifications
TECHNICAL SPECIFICATIONS | ||||
FTB-1 V2 | FTB-1 PRO | |||
Mainframe | Dual-core processor/4 GB RAM/Windows 10 | Quad-core processor/4 GB RAM/Windows 10 | ||
Display | Touchscreen, color 1280 x 800 TFT 203 mm (8 in) | Touchscreen, color 1280 x 800 TFT 203 mm (8 in) | ||
Interfaces | RJ45 LAN 10/100/1000 Mbit/s Two USB 2.0 ports One USB 3.0 port Micro SD card slot 3.5 mm headset/microphone port | RJ45 LAN 10/100/1000 Mbit/s Two USB 2.0 ports One USB 3.0 port Micro SD card slot 3.5 mm headset/microphone port | ||
Storage (Internal flash memory) | 128GB | 128GB | ||
Battery | Rechargeable Li-ion smart battery | Rechargeable Li-ion smart battery (2 batteries with the high-power dual carrier) | ||
Power supply | AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A | AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A with high-power dual carrrier AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 4.0 A max, output: 24 V; 8.33 A | ||
GENERAL SPECIFICATIONS | ||||
Size (H x W x D) | With single-depth module back/with single carrier With double-depth module back/with dual carrier With high-power dual carrier | 210 mm x 254 mm x 66 mm 210 mm x 254 mm x 96 mm 210 mm x 254 mm x 122 mm | ||
Weight (with battery) c | With single carrier With dual carrier With high-power dual carrier | 1.5 kg (3.3 lb) 2.0 kg (4.3 lb) 2.4 kg (5.2 lb) 3.2 kg (7.1 lb) | ||
Temperature | Operation Storage | 0 °C to 50 °C (32 °F to 122 °F) –40 °C to 70 °C (–40 °F to 158 °F) | ||
Relative humidity | 0 % to 95 % non-condensing | |||
BUILT-IN POWER METER SPECIFICATIONS (GeX) (OPTIONAL) d | ||
Calibrated wavelengths (nm) | 850, 1300, 1310, 1490, 1550, 1625, 1650 | |
Optional CWDM calibrated wavelengths (nm) | 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1383 and 1625 | |
Power range (dBm) | Typical 27 to –50 | |
Uncertainty (%) e, f | ±5 % ± 10 nW | |
Display resolution (dB) | 0.01 = max to –40 dBm 0.1 = –40 dBm to –50 dBm | |
VISUAL FAULT LOCATOR (VFL) (OPTIONAL) |
Laser, 650 nm ± 10 nm |
CW/Modulate 1 Hz |
Typical Pout in 62.5/125 µm: –1.5 dBm (0.7 mW) |
Laser safety: Class 2 |
a. All specifications valid at 23 °C (73°F).
b. –20°C to 60 °C (–4 °F to 140 °F) with the battery, and –20 °C to 45 °C (–4 °F to 113 °F) for long-term
c. Platform with batteries and without
d. At23 °C ± 1 °C, 1550 nm and FC With modules in idle mode. Battery-operated after warm-up.
e. Typical.
f. At calibration
b. –20°C to 60 °C (–4 °F to 140 °F) with the battery, and –20 °C to 45 °C (–4 °F to 113 °F) for long-term
c. Platform with batteries and without
d. At23 °C ± 1 °C, 1550 nm and FC With modules in idle mode. Battery-operated after warm-up.
e. Typical.
f. At calibration
Modual details
Module specifications
Recommend Products
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2012,sell to Southeast Asia(28.00%),Eastern Asia(25.00%),Western Europe(10.00%),Mid East(7.00%),South America(6.00%),Africa(5.00%),Eastern Europe(5.00%),South Asia(5.00%),North America(4.00%),Oceania(2.00%),Central America(2.00%),Northern Europe(1.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment
3.What can you buy from us?
Optical cable communication equipment and its derivatives.
We are based in Guangdong, China, start from 2012,sell to Southeast Asia(28.00%),Eastern Asia(25.00%),Western Europe(10.00%),Mid East(7.00%),South America(6.00%),Africa(5.00%),Eastern Europe(5.00%),South Asia(5.00%),North America(4.00%),Oceania(2.00%),Central America(2.00%),Northern Europe(1.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment
3.What can you buy from us?
Optical cable communication equipment and its derivatives.
4. Why should you buy from us not from other suppliers?
We have more than 12 years in Fiber network file. Main Products :Fiber fusion splicer, OTDR,power meter , VFL, Fiber cleaver,Fiber
media converter , Fiber cables etc FTTH products Our Advantages : 1:Top quality 2:Best service 3:Fast shipping!
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, CIP, FCA, DDP, DDU, Express Delivery, DAF；
Accepted Payment Currency: USD, EUR,CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian...
We have more than 12 years in Fiber network file. Main Products :Fiber fusion splicer, OTDR,power meter , VFL, Fiber cleaver,Fiber
media converter , Fiber cables etc FTTH products Our Advantages : 1:Top quality 2:Best service 3:Fast shipping!
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, CIP, FCA, DDP, DDU, Express Delivery, DAF；
Accepted Payment Currency: USD, EUR,CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian...
Our Advantages
With more than 10 years of expertise and expierences in the industry of optical material & network system material, our products have been provided to both domestic & overseas customers with good quality and win great reputation from all over the world.
A specialied sales engineer team can always provide you the professsional suggestions and perfect 24h online after-sales services group is ready to offer you the best solution whenever you contact them.
Company Profile
Shenzhen Fttx Technology Co., Ltd. is a professional international sales company for telecom test equipments. We have our own factory producing the fiber tester and fiber accessories. Our customers spread all of the world due to our high quality productswith competitive price. Moreover, we have some agents in many countries. In china market our customer include ChinaTelecom, factories, Huawei, ZTE, BYD, Military and many engineering companies. Our main products as below:
1. Fusion Splicer:COMWAY C10S/C6S/A33/C10/C6/A3; JAPAN (Type-82C+/FSM-88S+/88R+/90S+); Fitel S179;
2. OTDR: HSV-600 OTDR ,EXFO (MAX-715B/MAX-720C/MAX-730C/FTB-1v2/ FTB-2/FTB-4/ FTB-500); YOKOGAWA (AQ7280/AQ1200/AQ1000);
3. POWER METER (PPM-350C, FPM-300,HSV300P); LIGHT SOURCE (FLS-300, HSV300L); VFL (FLS-241, HSV-321); Multi Loss tester(MAX-940/MAX-945, FOT-302)
4. Anritsu site master S331L, S331E,S332E.
5. Fiber cleaver (CT-50/CT-08/FC-6R), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair ,calibration service for the EXFO, JDSU,Sumit, Fujik, Anritsu.
Shenzhen Fttx Technology Co.,Ltd. will continue to cooperate sincerely with all customers based on our Honest, Service, Value principles and make a better future together with our partners.
2. OTDR: HSV-600 OTDR ,EXFO (MAX-715B/MAX-720C/MAX-730C/FTB-1v2/ FTB-2/FTB-4/ FTB-500); YOKOGAWA (AQ7280/AQ1200/AQ1000);
3. POWER METER (PPM-350C, FPM-300,HSV300P); LIGHT SOURCE (FLS-300, HSV300L); VFL (FLS-241, HSV-321); Multi Loss tester(MAX-940/MAX-945, FOT-302)
4. Anritsu site master S331L, S331E,S332E.
5. Fiber cleaver (CT-50/CT-08/FC-6R), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair ,calibration service for the EXFO, JDSU,Sumit, Fujik, Anritsu.
Shenzhen Fttx Technology Co.,Ltd. will continue to cooperate sincerely with all customers based on our Honest, Service, Value principles and make a better future together with our partners.
Похожие товары

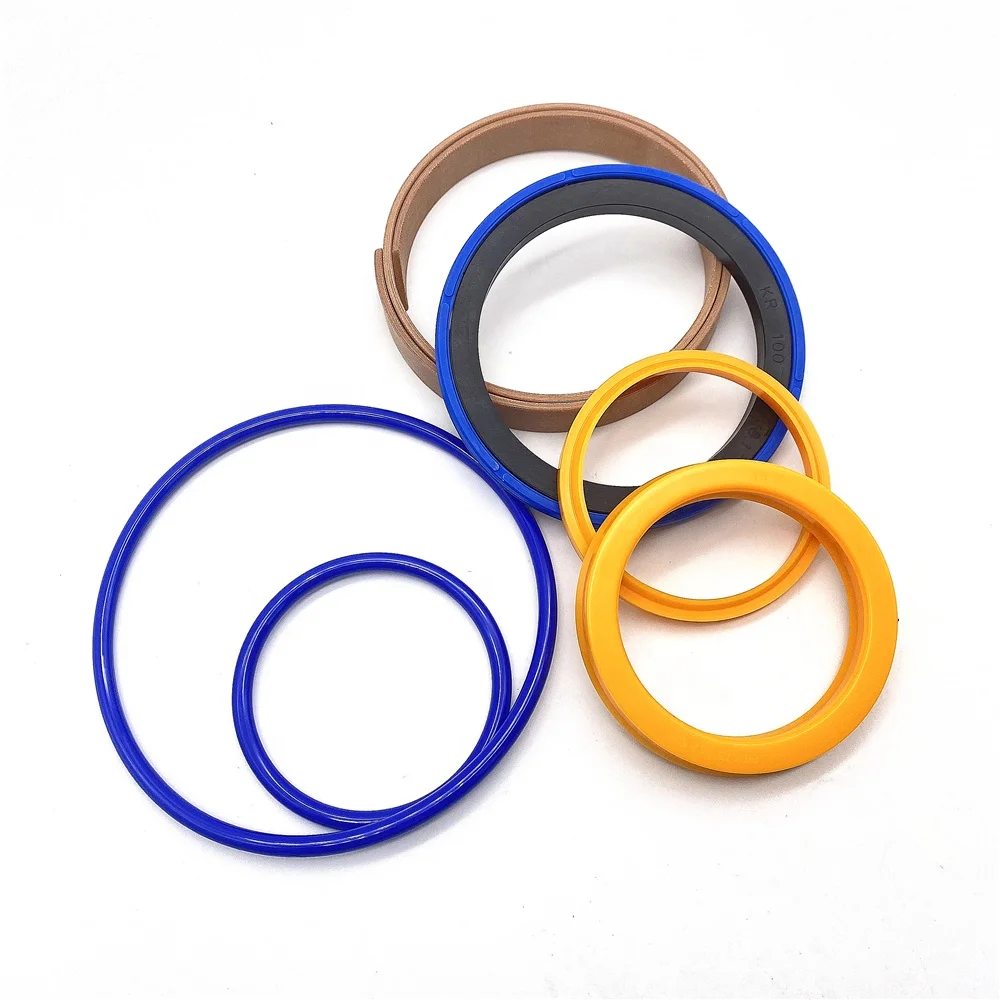

991/00152 991-00152 99100152 JCB запасные части комплект уплотнений гидравлический цилиндр ремонтные комплекты для экскаватора-погрузчика 3CX/4CX
6,50 $ - 6,82 $
Оптовая продажа, лента, блонд, 24 дюйма, человеческие натуральные волосы для наращивания, накладные волосы Cabello Ombre, необработанные волосы Remy 100, человеческие волосы для наращивания

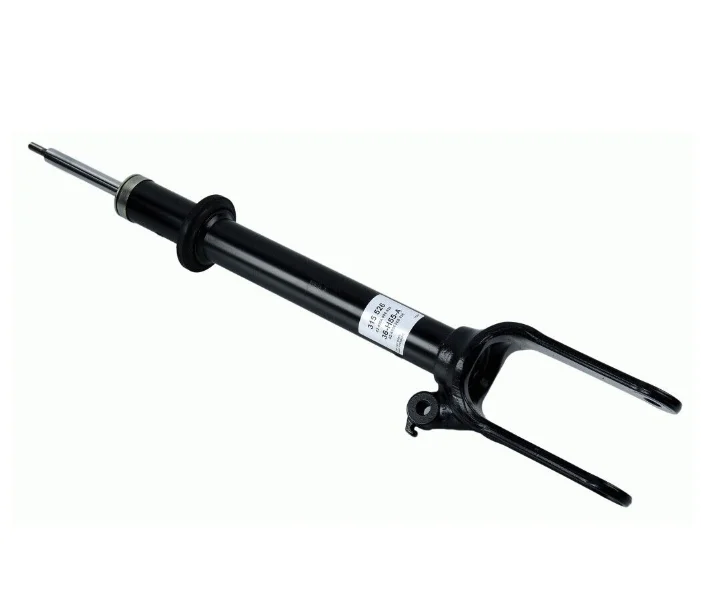

Амортизатор W164 X164 ML GL A1643200130 1643200130 задняя подвеска 1643202431 a 164 320 01 30 ML350 2011 для mercedes benz
Запчасти для фотоаппарата canon ir 2520
Подшипники rolinera koyo в Японии, подшипник koyo 62/28 63/22 63 28 63/28nr b34 205 60082rsc3 6228 6302 rmx 6310 6314 zz c3 6315 c3
0,23 $ - 1,16 $
Акция, 500 мл, нуклеатные стаканы Pilsner, пивная стеклянная чашка, классический крафт, пивной стакан для мужчин, большая стеклянная чашка
0,56 $ - 0,59 $

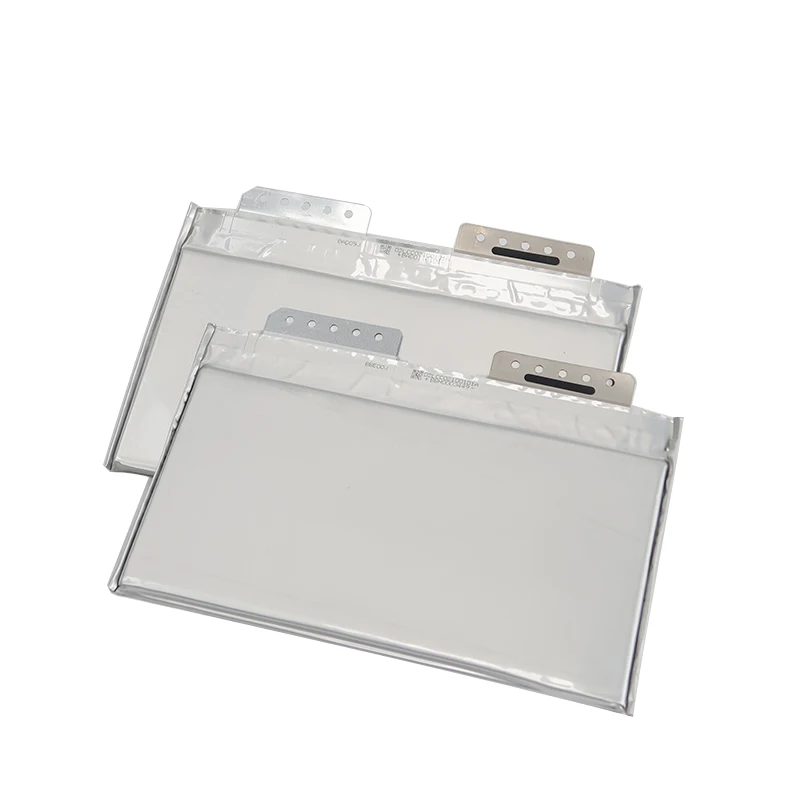

Mpco gen3 microобширные Чехлы для литиевых батарей mpco 48 В Аккумулятор
