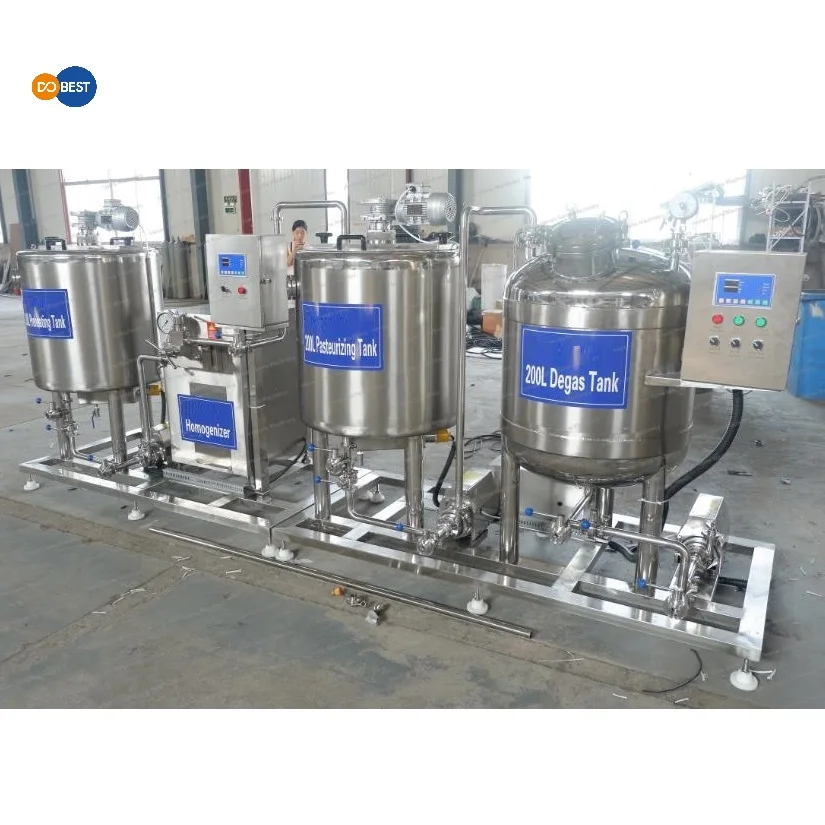

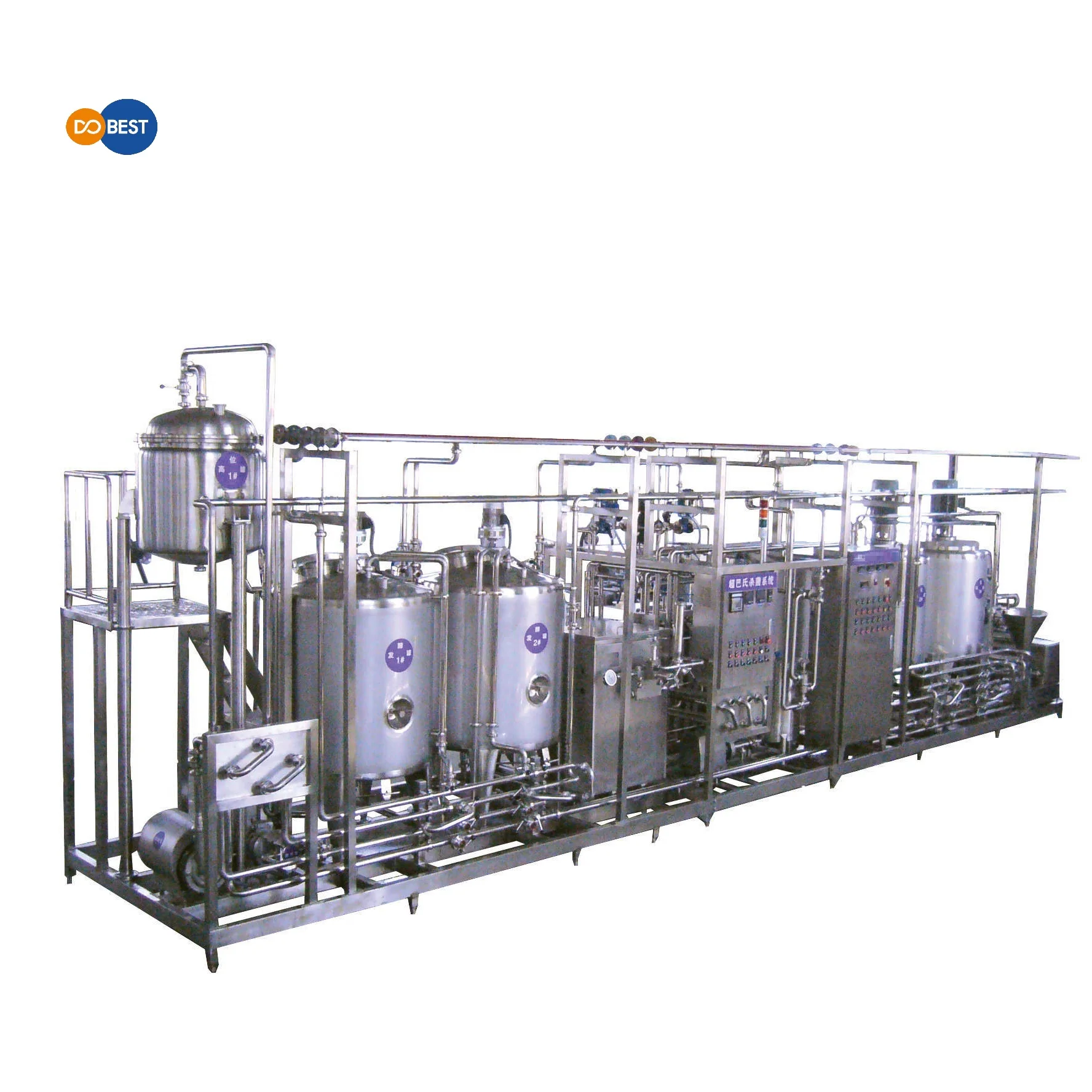

2022 DOBEST полная линия производства молока UHT/Оборудование для мини молочной переработки
- Категория: >>>
- Поставщик: Dongying Dobest Machinery Co. Ltd.Dongying Ltd.
Сохранить в закладки 1600492105046:
Описание и отзывы
Характеристики

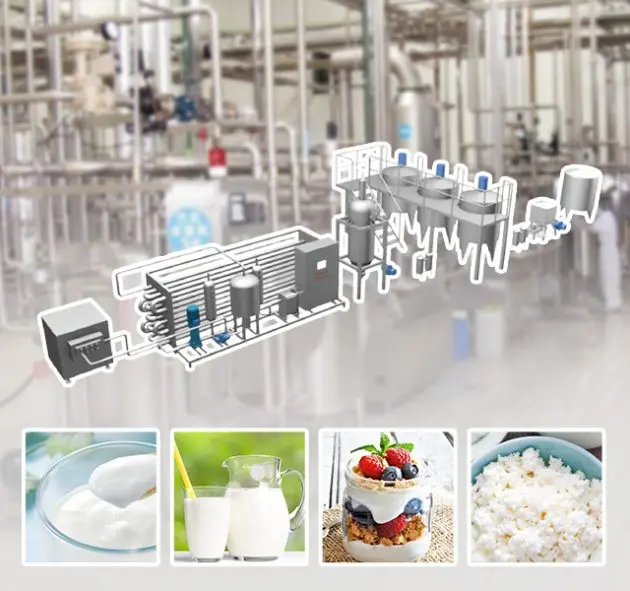

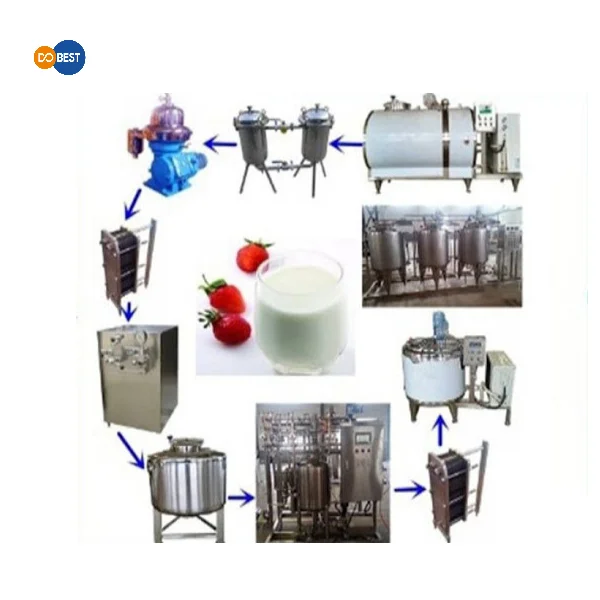

Fully automatic yoghurt maker machine industrial dairy product milk yogurt production line
Product Description：
Item | Value | ||||||
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Dairy factory, Milk processing industry | ||||||
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service | ||||||
Voltage | 220v/380v | ||||||
Power | 12kw | ||||||
Weight | 500KG | ||||||
Dimension(L*W*H) | 1400*780*1530mm | ||||||
Material | 304stainless Steel | ||||||
Final product | Flavoured Milk Yogurt | ||||||
Capacity | 300-10000L | ||||||
Processing Types | Complete Processing Line | ||||||
Tank type | Cooling, Heating, Sterilization, Fermentation Tank | ||||||
Details show:
Cooling Tank
Material: SUS304
Power supply: 380v/50Hz
Total power: 2Kw
Cooling capacity: 5000 kcal/hour
Installation size:
Power supply: 380v/50Hz
Total power: 2Kw
Cooling capacity: 5000 kcal/hour
Installation size:
1700*1100*1950mm
Refrigeration medium: R22
Thermal inaulation performance:
≤1℃/3H Compressor.2P
Motor power/quantity: 0.75kw/1
Refrigeration medium: R22
Thermal inaulation performance:
≤1℃/3H Compressor.2P
Motor power/quantity: 0.75kw/1
Duplex filter
filtering capacity: 5 t/h
Applicable temperature: ≤120℃Filter aperture: 200 mesh
Working pressure: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200(mesh/in)
Preheating tank
Material: SUS 304
Power supply: 380v 50HzPower: 9kw
Installation size: 1020*870*1530mm
Power of stirring motor: 0.55kw
Stirring speed: 36 r/min
Working pressure: 0.09 Mpa
Maximum temp:
the boiling point of the liquid at the local pressure
Homogenizer
Output: 200 L/H
Maximum pressure: 25 Mpa
Motor power: 4 kw
Dimensions: 990*600*850mm
Whole machine weight: 600kg
Pump body material: 1Cr18Ni9Ti
Plunger material: 9Cr18
Plunger diameter and frequency:
20mm,about 210 times/min
Plunger sealing materisl:
V-shaped cloth clip ring
Check valve structure: cone valve
Maximum pressure: 25 Mpa
Motor power: 4 kw
Dimensions: 990*600*850mm
Whole machine weight: 600kg
Pump body material: 1Cr18Ni9Ti
Plunger material: 9Cr18
Plunger diameter and frequency:
20mm,about 210 times/min
Plunger sealing materisl:
V-shaped cloth clip ring
Check valve structure: cone valve
Pasteurizer
Filtering capacity: 5 t/h
Applicable temperature: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200(mesh/in)
Applicable temperature: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200(mesh/in)

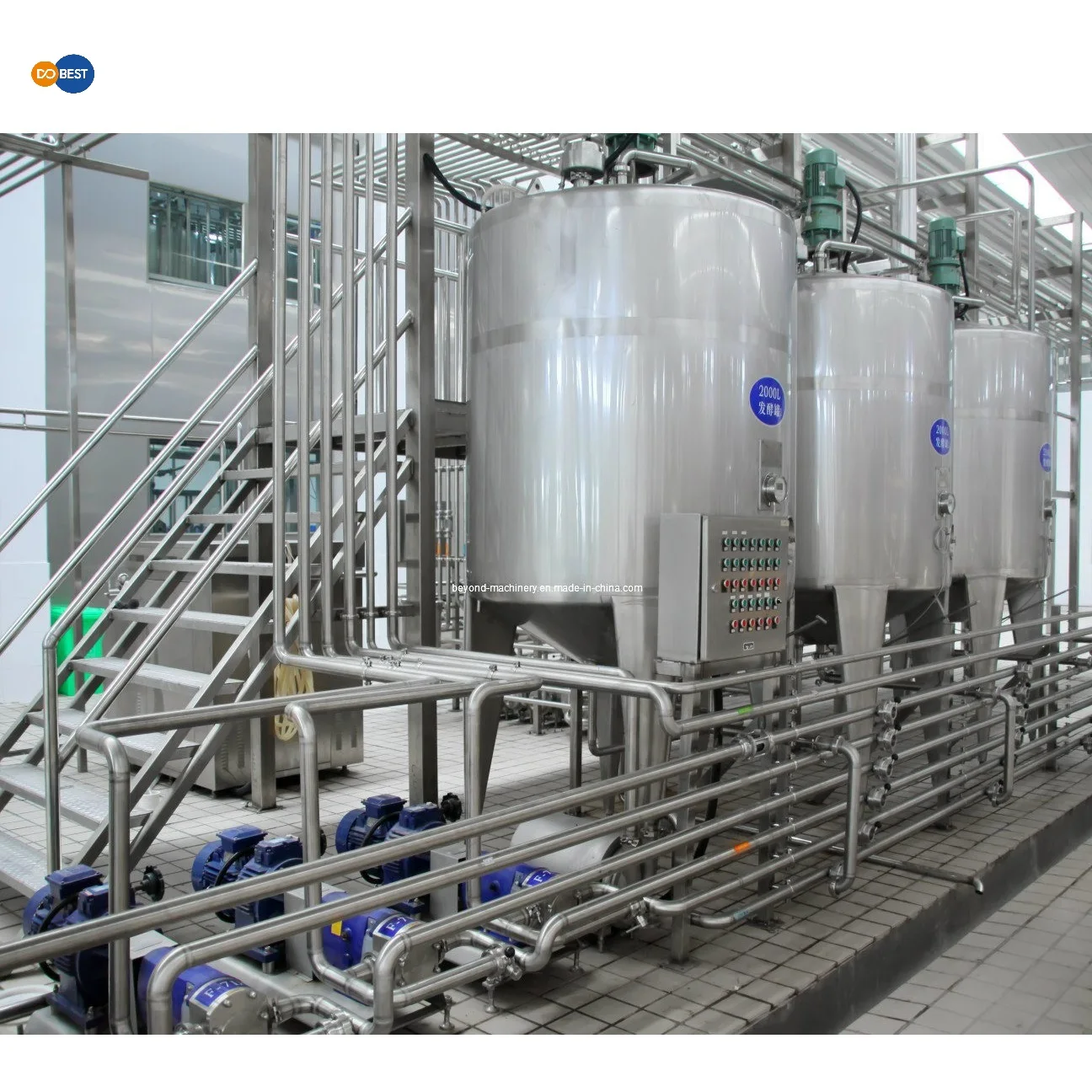

Fermenter
Material: SUS304
Power supply: 380v 50Hz
Power: 9kw
Installation size: 1400*1400*1950mm
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature:
the boiling point of the liquid at the local pressure
Power supply: 380v 50Hz
Power: 9kw
Installation size: 1400*1400*1950mm
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature:
the boiling point of the liquid at the local pressure
Filling Machine
Material: SUS304
Working method: continuous work
Filling method: automatic filling
Equipment size: 1300*1300*1750mm
Working method: continuous work
Filling method: automatic filling
Equipment size: 1300*1300*1750mm
Acid/Alkali/Water Tank
Water tank capacity: 500 L
Alkali tank capacity: 500 L
Acid tank capacity: 500 L
Pump power: 1.5 kw
Equipment weight: 500 kg
Dimensions: 4000*900*2300 mm
Alkali tank capacity: 500 L
Acid tank capacity: 500 L
Pump power: 1.5 kw
Equipment weight: 500 kg
Dimensions: 4000*900*2300 mm
Air Compressor
Power: 7.5kw
Wooden box size: 1240*500*1060mm
Wooden box size: 1240*500*1060mm
final products:
Company Profile:
Certifications:
FAQ:
Q 1: Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.
Q 2: What are your Price Terms?
A: Price can be based on FOB, CFR, or CIF, etc.
Q 3: What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Q 4: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Q 5: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Q 6 : Can I print my Logo on the machine?
A: Yes, sure.
Q 7 : Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
Q 8 : Which ports do you usually ship at?
A: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
Q 9 : This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q 10 : How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q 11 : If I buy your machines, can you offer us wear-out spare pats?
A3: We provide our high quality machine 1 years guarantee , and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it.Meanwhile, they will teach you the related experiences for fixing.
Q 12 : What are your advantages compared with your competitors?
A :With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
A: Yes, we are manufacturer with more than 10 years' experience.
Q 2: What are your Price Terms?
A: Price can be based on FOB, CFR, or CIF, etc.
Q 3: What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Q 4: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Q 5: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Q 6 : Can I print my Logo on the machine?
A: Yes, sure.
Q 7 : Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
Q 8 : Which ports do you usually ship at?
A: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
Q 9 : This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q 10 : How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q 11 : If I buy your machines, can you offer us wear-out spare pats?
A3: We provide our high quality machine 1 years guarantee , and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it.Meanwhile, they will teach you the related experiences for fixing.
Q 12 : What are your advantages compared with your competitors?
A :With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
