Высокое качество замок двери стиральная машина запасные части
1,28-1,35 $

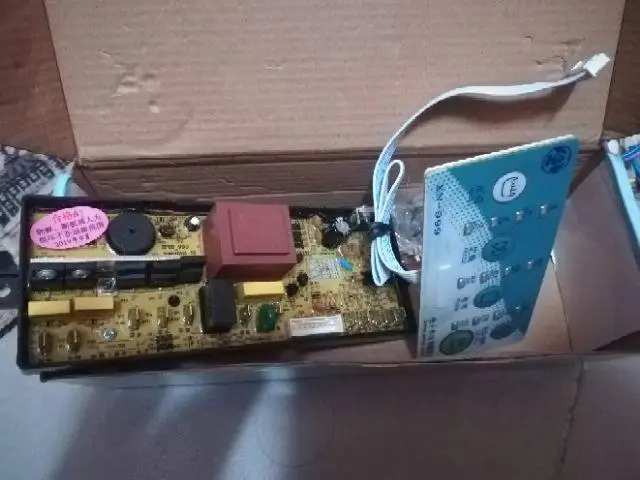

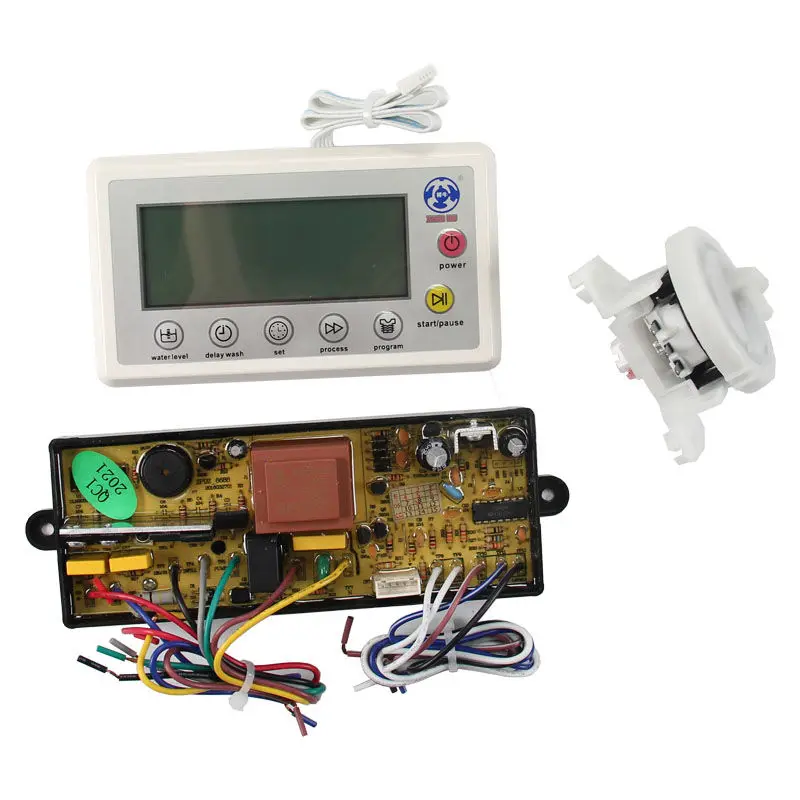

Полностью автоматическая стиральная машина от производителя запасные части домашняя панель управления печатной платой
- Категория: >>>
- Поставщик: Ningbo Lingtong Electric Appliance Co. Ltd.Ningbo Ltd.
Сохранить в закладки 1600492299367:
Описание и отзывы
Характеристики
Product Description
Feartures
1. Pioneer with control board starting in capacitive mode.
2. Samsung chips ensures strong anti-interference capacity.
3. Special fit water switch ensures accurate water level and correct wiring.
4. Buzzer alarm system for unclosed or damaged door.
5. Spin speed designed in 400 turn in soft program.
6. Available to choose belt pulley size ratio and velocity coils pulse ratio.
7. 4 programs: Intense, Normal, Wool, Quick;
4 processes: Dip, Wash, Rinse, Spin.
Specification
1. Voltage: 110VAC/220VAC±15%
2. Frequency: 50Hz/60Hz
3. Consumption: ≤5W
4. Ambient temperature: -20 ºC - +50ºC, Humidity: under 95% ( at 25 ºC)
5. Loading current: For motor control MAX 8A , incoming valve control MAX 4A
6. Program time deviation: ±1% or under 0.1 second
7. Min start voltage: at 170V , at rated loading
Installation Tips
1. Please check the motor, water inlet valve and drain valve of the washing machine are well before installation . Otherwise the computer board will be burned. Inlet valve should be more than 4K and also the drain valve shoud be over 100 Ω, if not it is the defect items and also should be replaced.
2. Un-dry clothers and no spin occurs often. Check the door swith and plugs is well connected .
3. For Electronic water level washing machine. Use the original or same frequency water level device or it will occur unlimited water flow and also the clothers will not be dried.
4. When there is a trouble alarm of computer board, It is usually the problem of peripheral circut. Please refer to the user
manual of washing machine for the failure code.
Basic Repair Note
1. The machine is not supplying water, nor washing, nor draining but lights flashing normally in start position. Reconnect the white plug/socket reversely.
2. The machine is not supplying water but keeping spining in start position. Reconnect the red pulg/socket reversely. Bayonets is subject to different batches.
3. Start-up alert. Water level sensor is in pool connect or disfunctions. Code E6 appears. Reconnect the socket or replace a new sensor.
4. Spin alert. Check the door lock. Run a test on ciruit switch to confirm.
5. Any other error/alert apprears. Check other components.
Feartures
1. Pioneer with control board starting in capacitive mode.
2. Samsung chips ensures strong anti-interference capacity.
3. Special fit water switch ensures accurate water level and correct wiring.
4. Buzzer alarm system for unclosed or damaged door.
5. Spin speed designed in 400 turn in soft program.
6. Available to choose belt pulley size ratio and velocity coils pulse ratio.
7. 4 programs: Intense, Normal, Wool, Quick;
4 processes: Dip, Wash, Rinse, Spin.
Specification
1. Voltage: 110VAC/220VAC±15%
2. Frequency: 50Hz/60Hz
3. Consumption: ≤5W
4. Ambient temperature: -20 ºC - +50ºC, Humidity: under 95% ( at 25 ºC)
5. Loading current: For motor control MAX 8A , incoming valve control MAX 4A
6. Program time deviation: ±1% or under 0.1 second
7. Min start voltage: at 170V , at rated loading
Installation Tips
1. Please check the motor, water inlet valve and drain valve of the washing machine are well before installation . Otherwise the computer board will be burned. Inlet valve should be more than 4K and also the drain valve shoud be over 100 Ω, if not it is the defect items and also should be replaced.
2. Un-dry clothers and no spin occurs often. Check the door swith and plugs is well connected .
3. For Electronic water level washing machine. Use the original or same frequency water level device or it will occur unlimited water flow and also the clothers will not be dried.
4. When there is a trouble alarm of computer board, It is usually the problem of peripheral circut. Please refer to the user
manual of washing machine for the failure code.
Basic Repair Note
1. The machine is not supplying water, nor washing, nor draining but lights flashing normally in start position. Reconnect the white plug/socket reversely.
2. The machine is not supplying water but keeping spining in start position. Reconnect the red pulg/socket reversely. Bayonets is subject to different batches.
3. Start-up alert. Water level sensor is in pool connect or disfunctions. Code E6 appears. Reconnect the socket or replace a new sensor.
4. Spin alert. Check the door lock. Run a test on ciruit switch to confirm.
5. Any other error/alert apprears. Check other components.
Specification
After-sales Service Provided | Return and Replacement |
Warranty | 1 Year |
Type | WASHING MACHINE PARTS |
Application | Household |
Power Source | Electric |
Place of Origin | China |
Brand Name | NBLT |
Model Number | WPH220314003 |
Product name | washing machine motherboard |
Voltage | 110VAC/220VAC±15% |
Frequency | 50Hz/60Hz |
Consumption | ≤5W |
Ambient temperature | -20 ℃ - +50℃ |
Humidity | under 95% ( at 25 ℃) |
Loading current | For motor control MAX 8A , incoming valve control MAX 4A |
Program time deviation | ±1% or under 0.1 second |
Min start voltage | at 170V , at rated loading |
Product Description
Recommend Products
Company Profile
Certifications
Our Advantages
Product packaging
Похожие товары

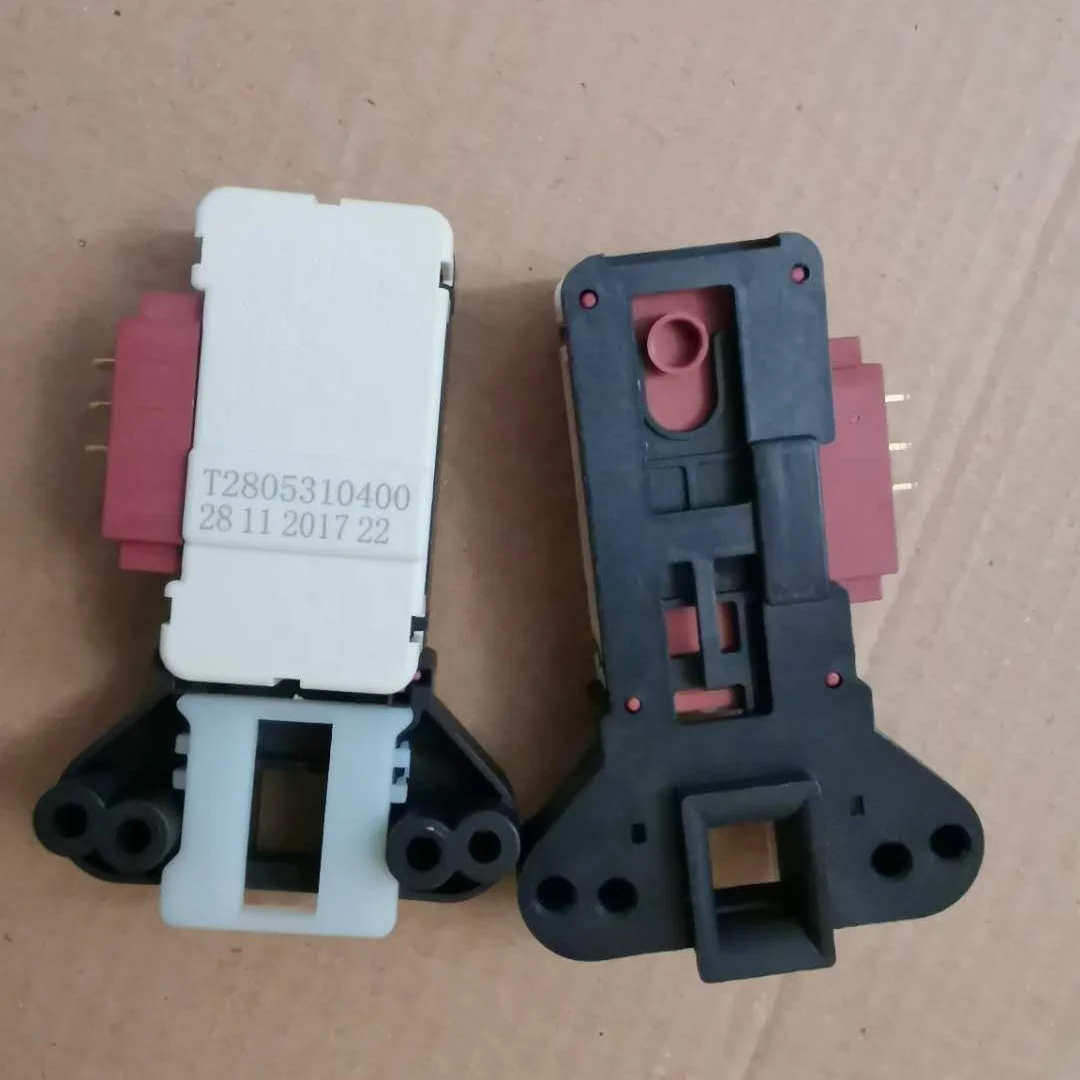

Переключатель блокировки двери EBF61315801 для стиральной машины совместимый с моделями 2667085 AP5672154 PS7792232
137006200 оригинальная деталь для мойки одежды заменяет дверной замок стиральной машины AP4368805
0,68-0,77 $

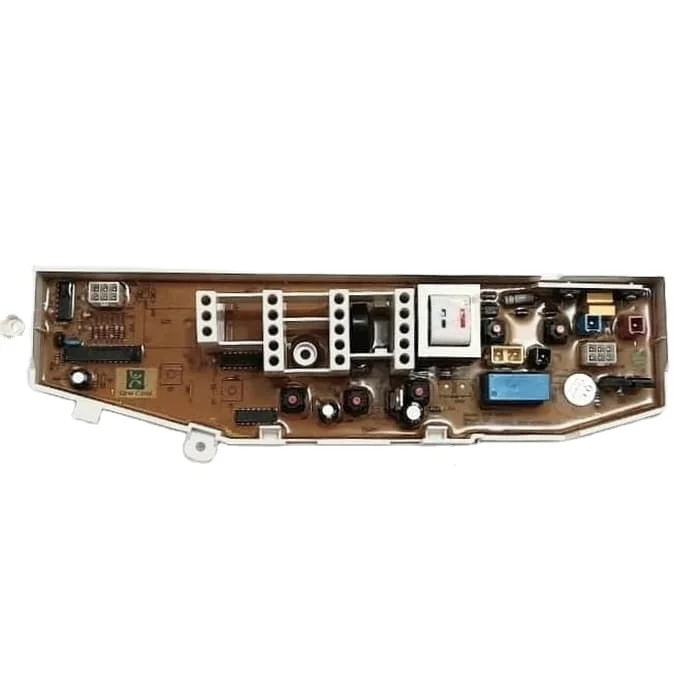

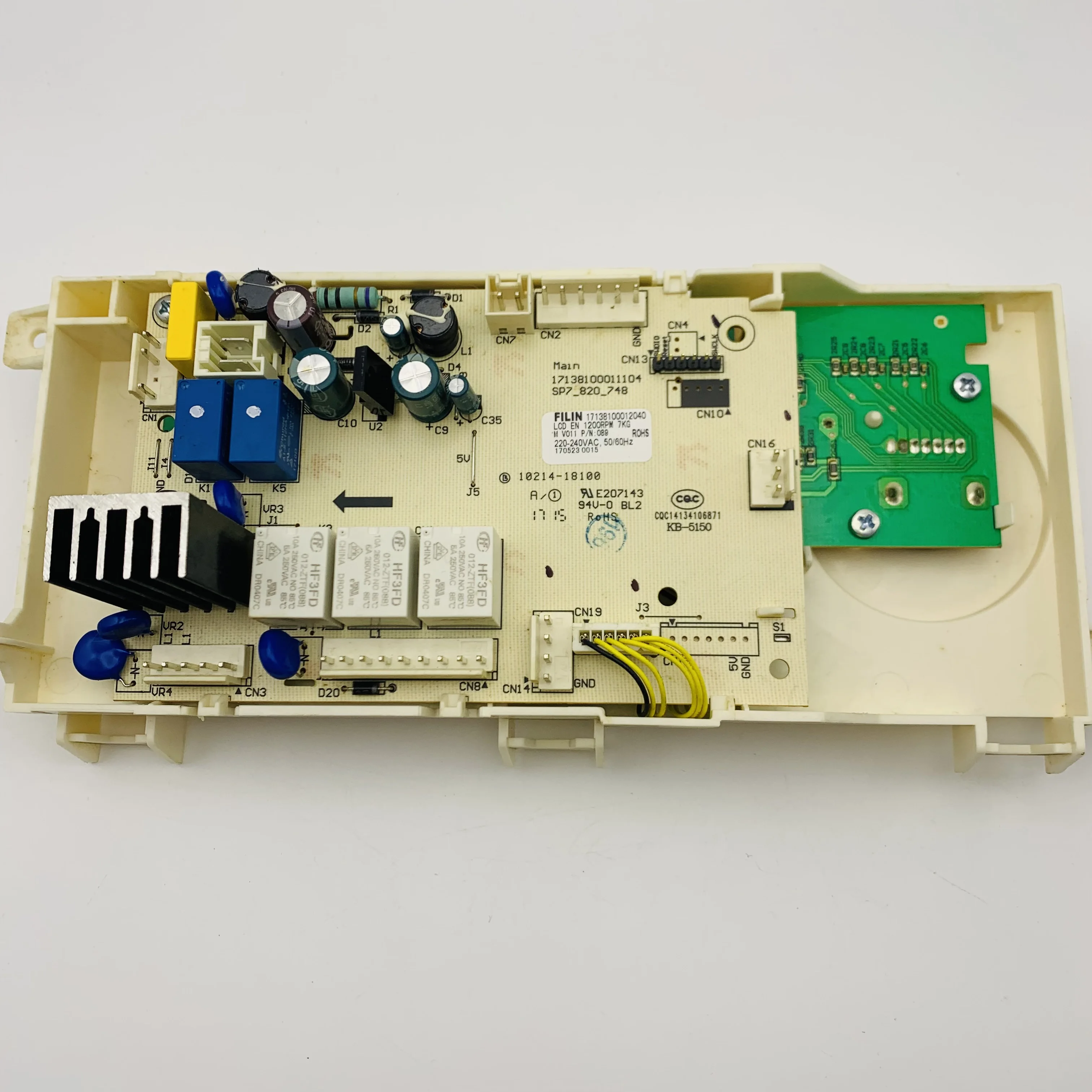

Поддержка барабана Midea печатная плата стиральной машины управления 17138100012040 питания аксессуары для
16,00-18,00 $
Электромагнитный впускной клапан для стиральной машины 33890120 воды запчасти Siemens
4,33-4,50 $
Высококачественная стиральная машина Askoll LG XP дренажный насос для стиральной машины
2,00-2,50 $
Горячая распродажа Высококачественная деталь для стиральной машины QE1-2 втягивающий двигатель
4,25-6,38 $

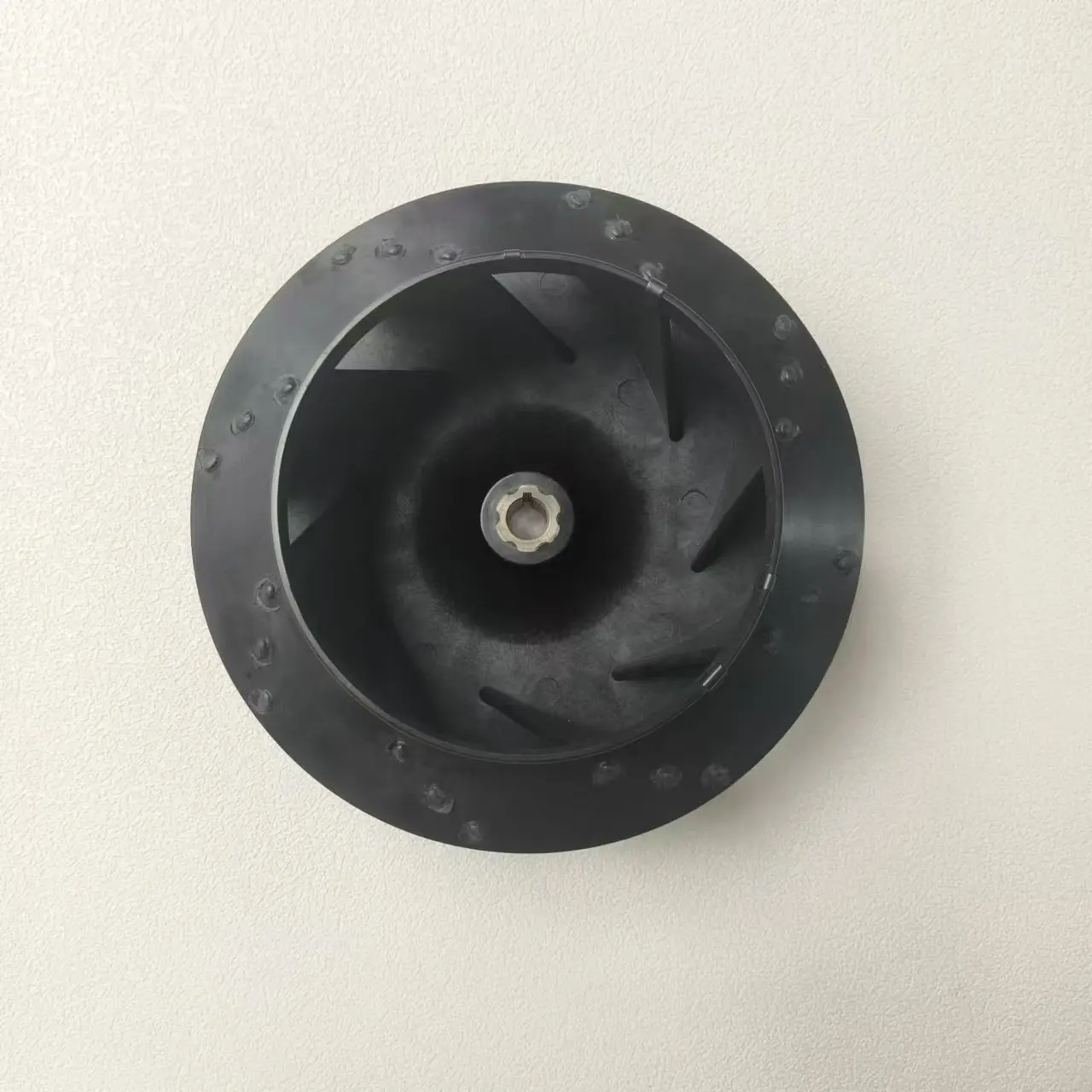

Колесо 70359801 вентилятора крыльчатки сушилки
