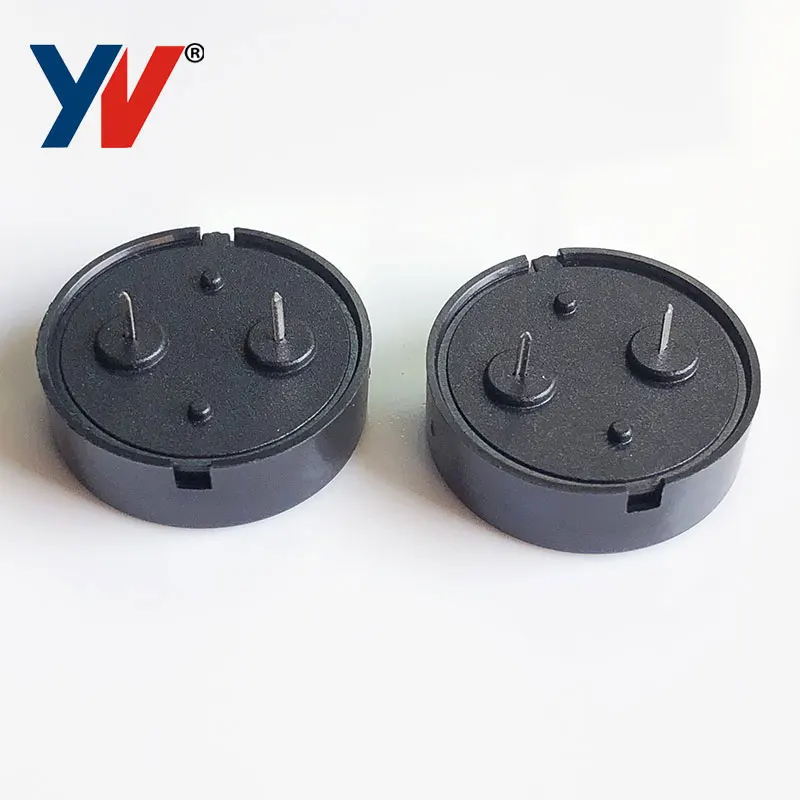

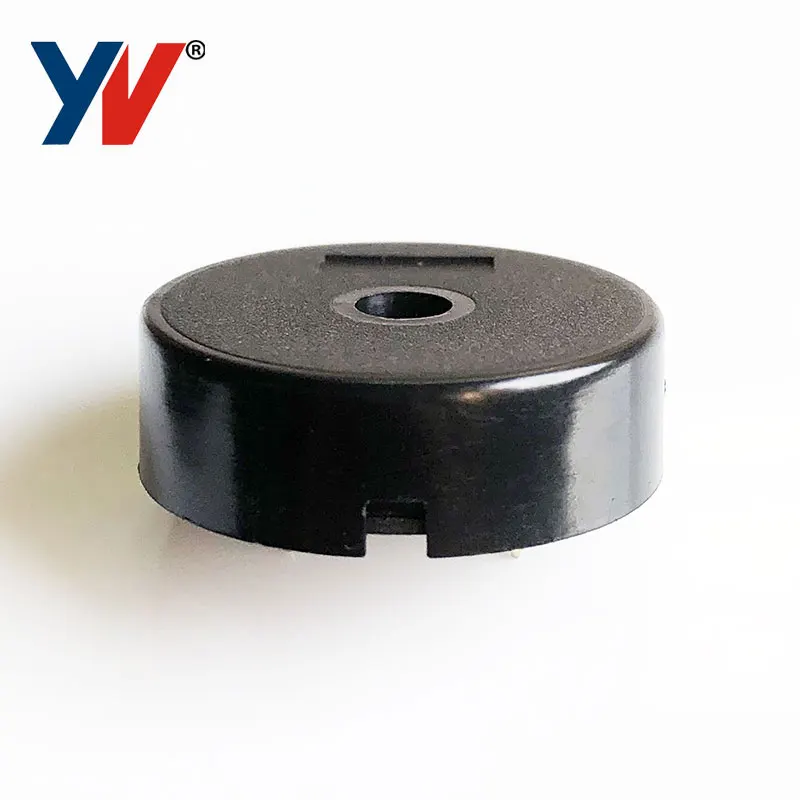

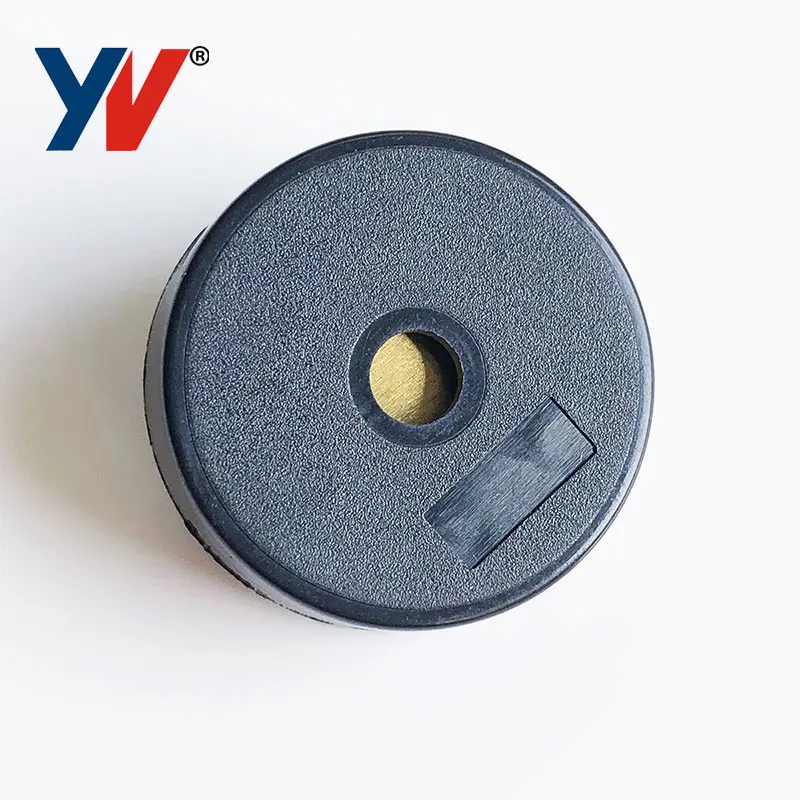

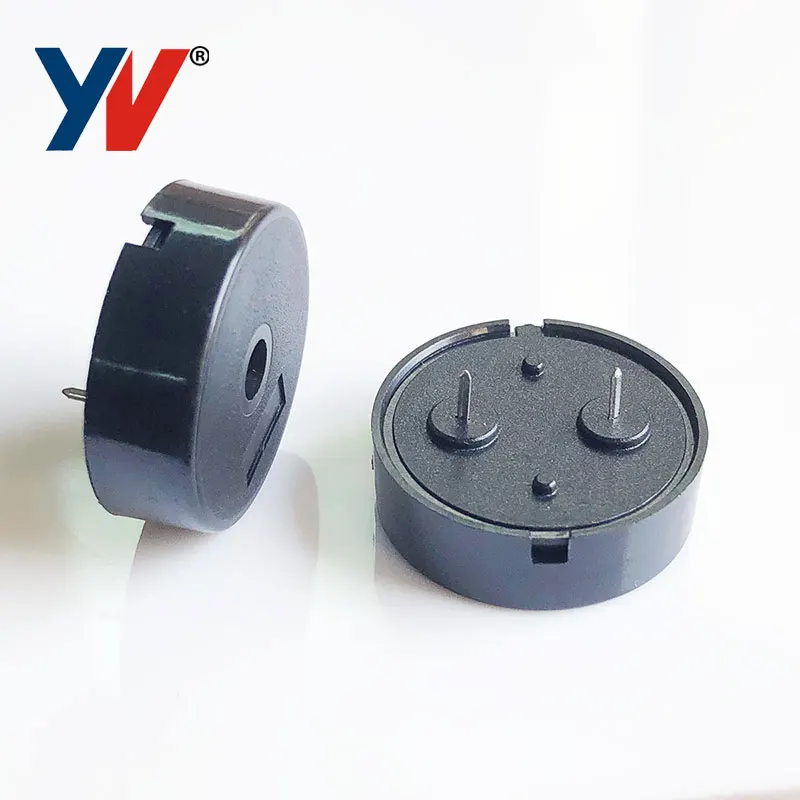

2207 Круглый Высокое качество 85db 4 кГц электронный сигнал тревоги для пайки пьезо 22 мм pcb зуммер 5v 3В 12v
- Категория: Passive Components >>>
- Поставщик: Guangzhou Yueneng Technology Co. Ltd.
Сохранить в закладки 1600492973999:
Описание и отзывы
Характеристики

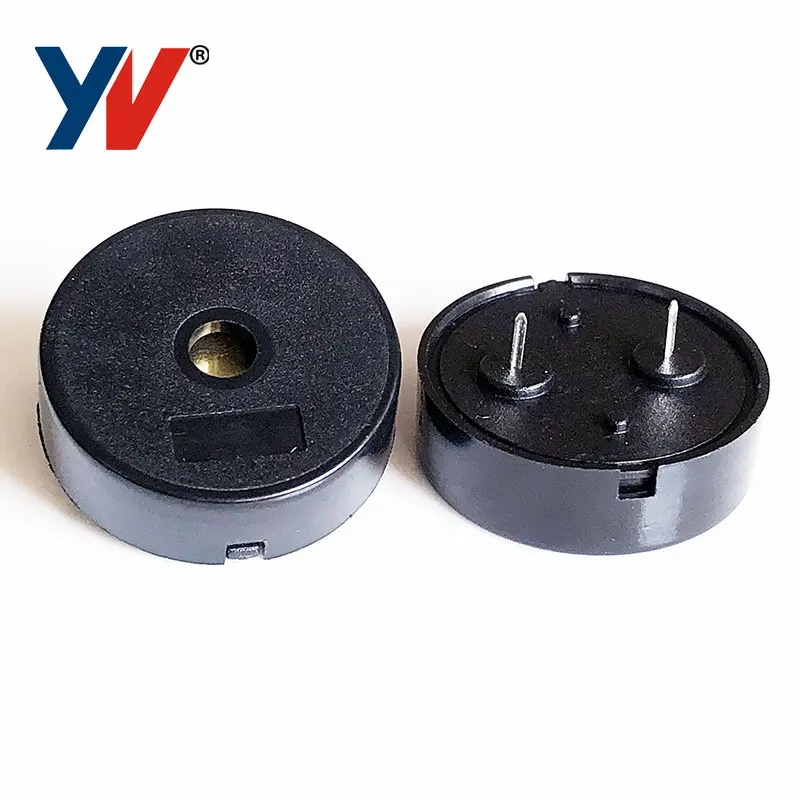

Round high quality 85db 4khz alarm Electronic Passive Piezo 22mm pcb Buzzer 5v 3v 12v YNR-2207
Product Name | high quality 85db 4khz alarm Electronic Passive Piezo 22mm pcb Buzzer 5v 3v 12v |
Type | Piezo Buzzer |
Rated Voltage | 12V |
Operating Voltage | 1V-30V |
Operating Temperature | -10°C ~ 60°C |
Storage Temperature | -20°C ~ 70°C |
Rated Current(Max.) | Max.3mA;Max.3mA;Max.5mA |
Sound Output at 10cm（dB） | Min. 80dB Min. 85dB Min. 85dB |
Resonant Frequency | 4000HZ |
Input Type | AC |
Technolgy | Piezo |

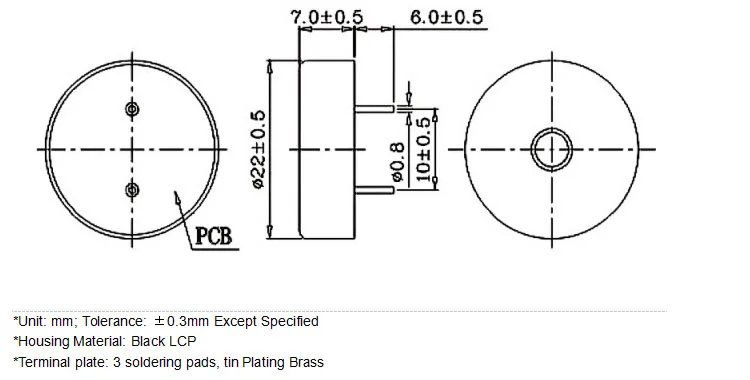

1. Piezo Buzzer Dimensions

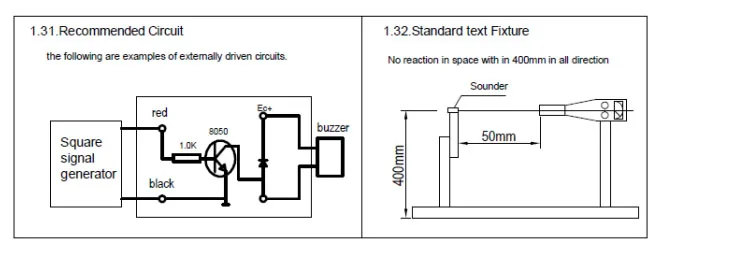

2. Piezo Buzzer Test Circuit

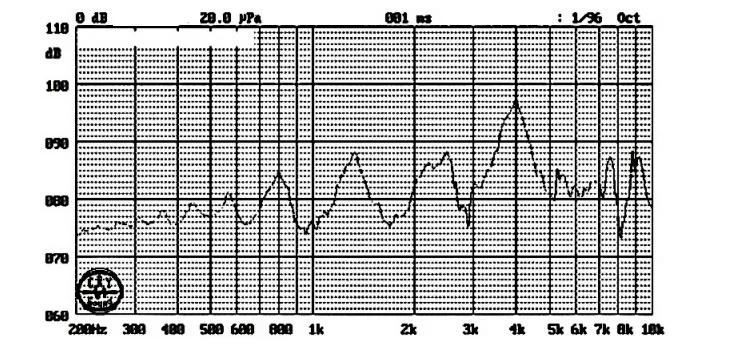

3. Piezo Buzzer Frequency Response

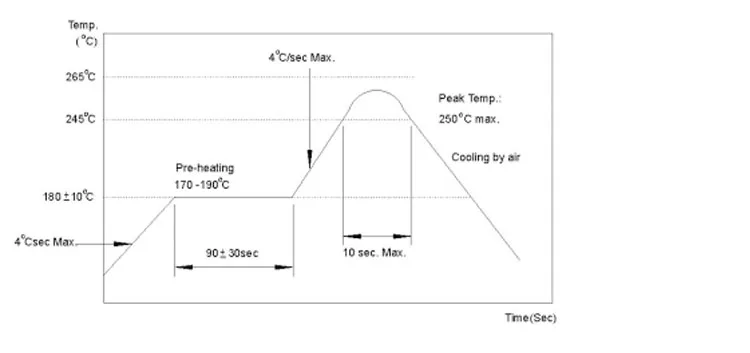

4. Piezo Buzzer Condition
Guangzhou Yueneng Technology Co., Ltd. is located in Yuexiu District, Guangzhou City, Guangdong Province, the business capital of a thousand years. We can provide SMD buzzers, piezoelectric buzzers, electromagnetic buzzers, speakers, receivers, microphone piezoelectric components and other products. Since 1994, we have been focusing on the research, development and production of acoustic components, and continue to provide high-quality products, competitive prices and reliable services. The company strictly implements ISO9001 and QS9000, and strengthens the control system. Our products are widely used in electrical appliances, such as MP3 players, MP4 players, security systems, medical equipment, etc. The company has more than 6,000 square meters of workshops, more than 260 skilled workers, and more than 30 experienced engineers. Most of the products are exported to the United States, Europe and Southeast Asia. We believe that Yueneng Technology will create a perfect future with you.
Q1: Could I have samples for testing first?
A1: Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
Q2: How long is the production lead time/delivery time?
A2: We will send sample to you within 3 days.
Production for big quantity needs about 20 days. And it also depends on product and quantity.
Q3: What about terms of payment?
A3: Payment terms: T/T, West Union, Paypal and L/C etc.
Q4: What is your MOQ?
A4 :We don’s requested MOQ for each model, but the more quantity cost will be more cost-effective .
Q5: How will you control product quality?
A5: We strictly control every details of production, and every product is inspected by our QC team before delivery.
Q6: Are you trading company or manufacturer ?
A6: We are buzzer manufactory.
Q7: Can you solve technical problems for us?
A7: Yes, Our technical team will try our best to support you.
Q8: Could you provide specifications and technical support?
A8 :We have a series of specifications to support you for free！Contact Us Now!
