Горячая Распродажа машина для лазерной резки металла JQ оборудование промышленного оборудования круглой трубы с квадратным лучом

Сохранить в закладки 1600493423426:


Цена:10 038 857,00-11 633 263,70 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description

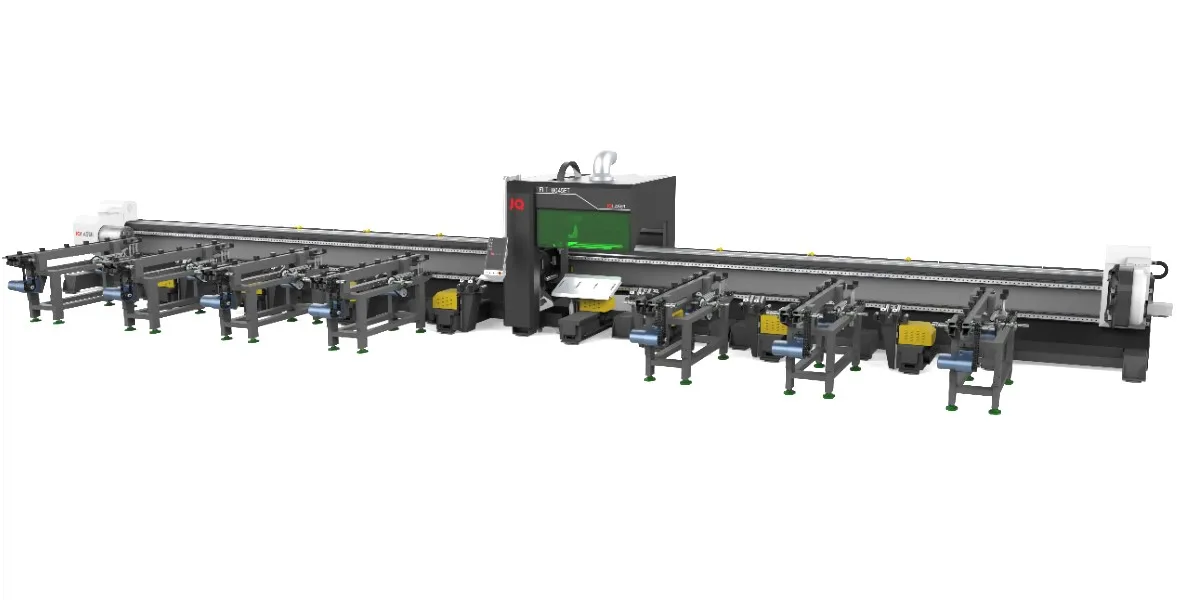

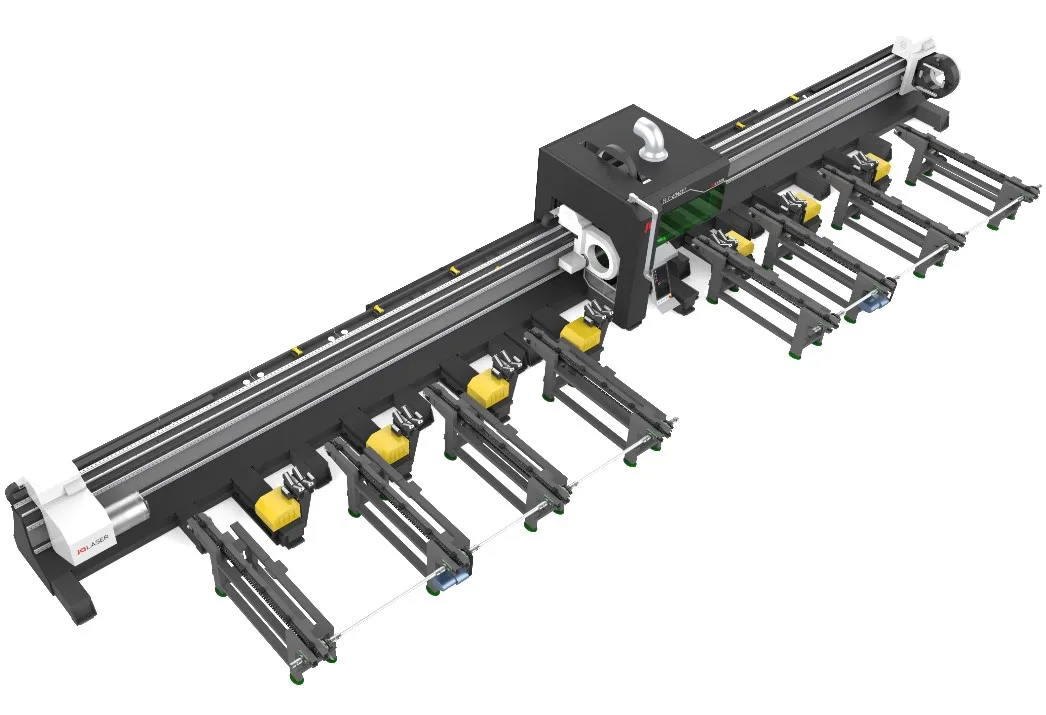

A "strength master" in metal profile processing, three-chuck laser pipe cutting machine specially is customized according to the actual application of customers. It can cut the pipe with a maximum diameter of 350mm, cut pipe length 9000mm, the super processing ability makes the standardization unchangeable.




Product Show


Three chunks
Three chucks mutual shift for fine cutting. Independently researched and developed full-stroke chuck to realize cutting and blanking of any length of pipe, using the entire pipe as much as possible to achieve "zero remains" cutting.


Welding Bed
To meet the cutting requirements of long workpieces. Compared with the traditional 6-meter pipe cutting, this equipment can process a wider range.


LASER HEAD

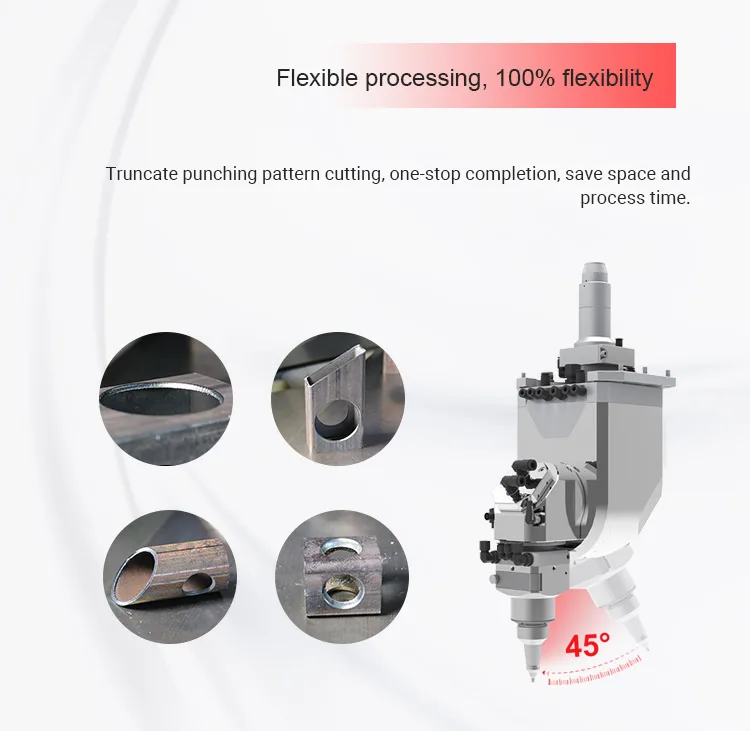

Auto-focus laser head - no manual operation, automatic control of up and down height, thus achieving different sheet thickness cutting operations.


Wide applications
suitable for the processing of a variety of metal pipes, waist round pipes, round pipes, giant pipes, square pipes, I-beams, channel steels, D-shaped pipes, special-shaped pipes, etc.


Follow-Up Front Splice
The Servo follow-up front receiving device can automatically screen material, divide material, and automatically flip, with high mechanization performance
Follow-on support device
The follow-on support device can provide auxiliary support for the pipe. For rectangular pipe, the system will adjust the height of the pallet assembly in real time according to the outer contour of the pipe to ensure that the pallet supports the pipe stably. When the chuck moves to the corresponding position, the auxiliary supports automatically descend for avoidance.


Product Paramenters


NO.
Item
Item
Parameter
Unit
1
Maximum cut pipe length
Maximum cut pipe length
Raw material length 5000~12000; cutting length 0~9000
mm
2
Cutting pipe diameter
Cutting pipe diameter
15~350 (external circle of workpiece)
mm
3
Automatic feeding range
Length
5000~9000
mm
4
Pipe diameter D
Round tube 40~230
mm
5
Load-bearing capacity
≤2000
Kg
6
Maximum load capacity of a single tube
400
Kg
7
Minimum tailstock
≥0(Related to the length of the workpiece and the actual cutting process
mm
8
X、Y-axis positioning accuracy
±0.05/1000mm
mm
9
X、Y-axis repeatability
±0.03/1000mm
mm
10
Acceleration speed
0.8g
m/s²
11
Max. running speed
60
m/min
12
Chuck load weight
400
Kg
13
Rated speed of chuck
80
rpm
14
Weight of loading machine
21500
Kg
15
Main machine shape (length, width and height)
Approx.
25000×4500×2500
mm
16
Laser power
***
w
17
Control system
cypcut5000A
18
Power of the whole machine
***
kw
19
Power supply requirements
380v/50Hz


Related Products


CHOOSE YOUR LASERTUBE
Make Your Choice
Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.




Samples & Applications










Customer Service






Company Profile


Our History








Certifications & Exhibition






Packing&Shipping




FAQ


Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: Why the machine price not include fiber source?
A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.

Q: If we are interested in your machine, how to choose proper power?
A:Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?

Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
