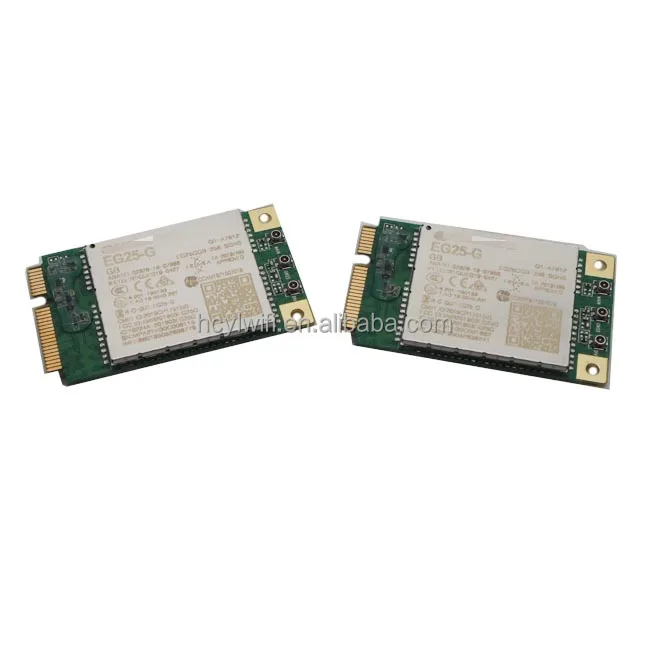

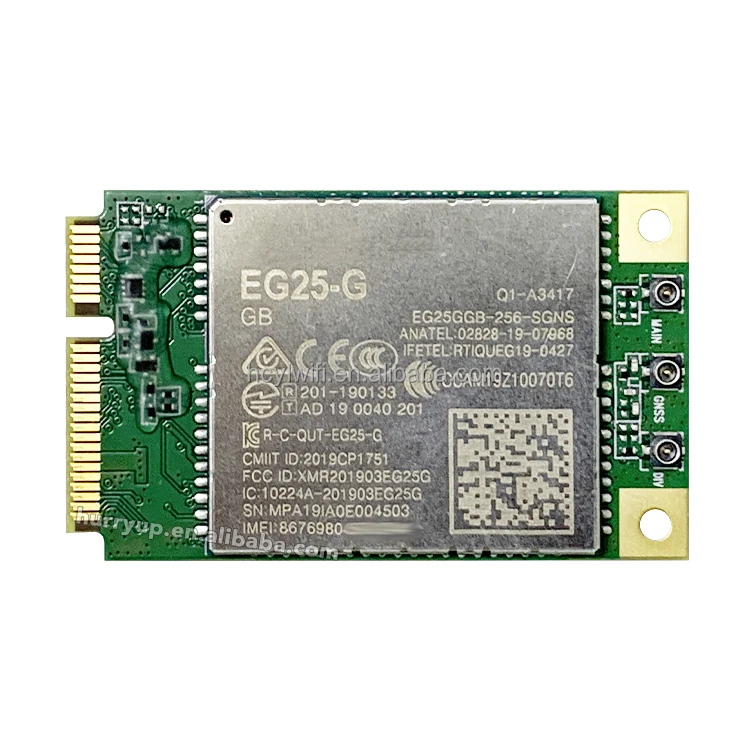

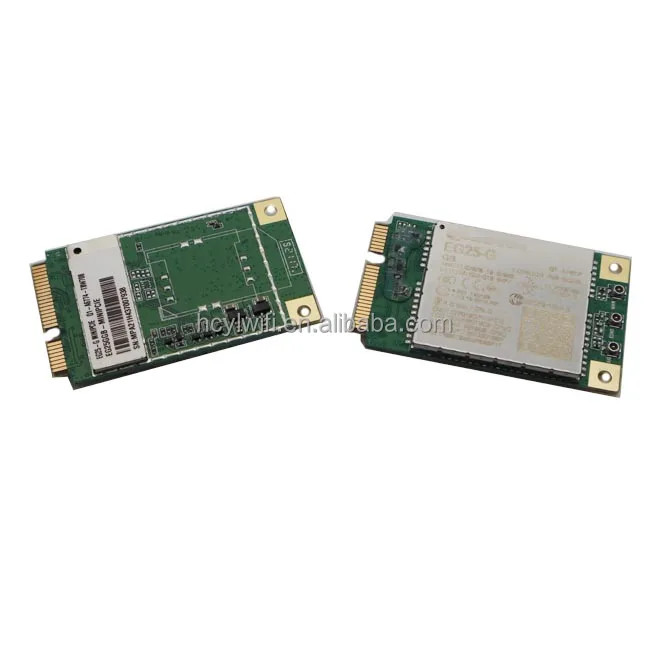

Original Quectel LTE Cat 4 module 4G IoT M2M Module EG25-G EG25 EC25G EG25GGB-256-SGNS PCIE with sim card slot for router
Product Description
* LTE Cat 4 module optimized for M2M and IoT applications
* Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
* Feature refinements: supports DFOTA and DTMF
* MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
Model Number | EG25-G PCIE | ||
UE-Category | LTE Cat4 module | ||
Dimensions | 51*30*4.9mm | ||
Form Factor(Package) | PCIE | ||
Frequency Bands | LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28 | |
LTE-TDD | B38/B39/B40/B41 | ||
WCDMA | B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 | ||
GSM | B2/B3/B5/B8 | ||
Supply Voltage | -35°C ~ +75°C | ||
Operation temperature | 3.0V~3.6V, 3.3V | ||
Embedded Software | Protocol | TCP/ UDP/ PPP/ FTP/ HTTP/ NTP/ PING/ QMI/NITZ/ CMUX/ HTTPS/ SMTP/ MMS*/ FTPS*/ SMTPS/ SSL/ FILE | |
Android RIL | Android 4.x/5.x/6.x/7.x/8.x/9.x | ||
USB Driver | Windows 7/8/8.1/10, Linux 2.6~5.4, Android 4.x/5.x/6.x/7.x/9.x | ||
MBIM Driver | Windows 8/ 8.1/ 10, Linux 3.8~5.4 | ||
Data Transmission | LTE | LTE-FDD: Max 150Mbps (DL)/Max 50Mbps (UL) LTE-TDD: Max 130Mbps (DL)/Max 30Mbps (UL) | |
GPRS/EDGE | EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL) GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL) | ||
Firmware update | Via USB/DFOTA | ||
Interfaces | (U)SIM 1.8V/ 3.0VUART 1 USB 2.0 (Hi-Speed) IIC Antenna Pads for Primary, Rx-diversity and GNSS | ||
Embedded GNSS | GPS/GLONASS/BeiDou(Compass)/Galileo/QZSS (Optional) | ||
Region | Global | ||

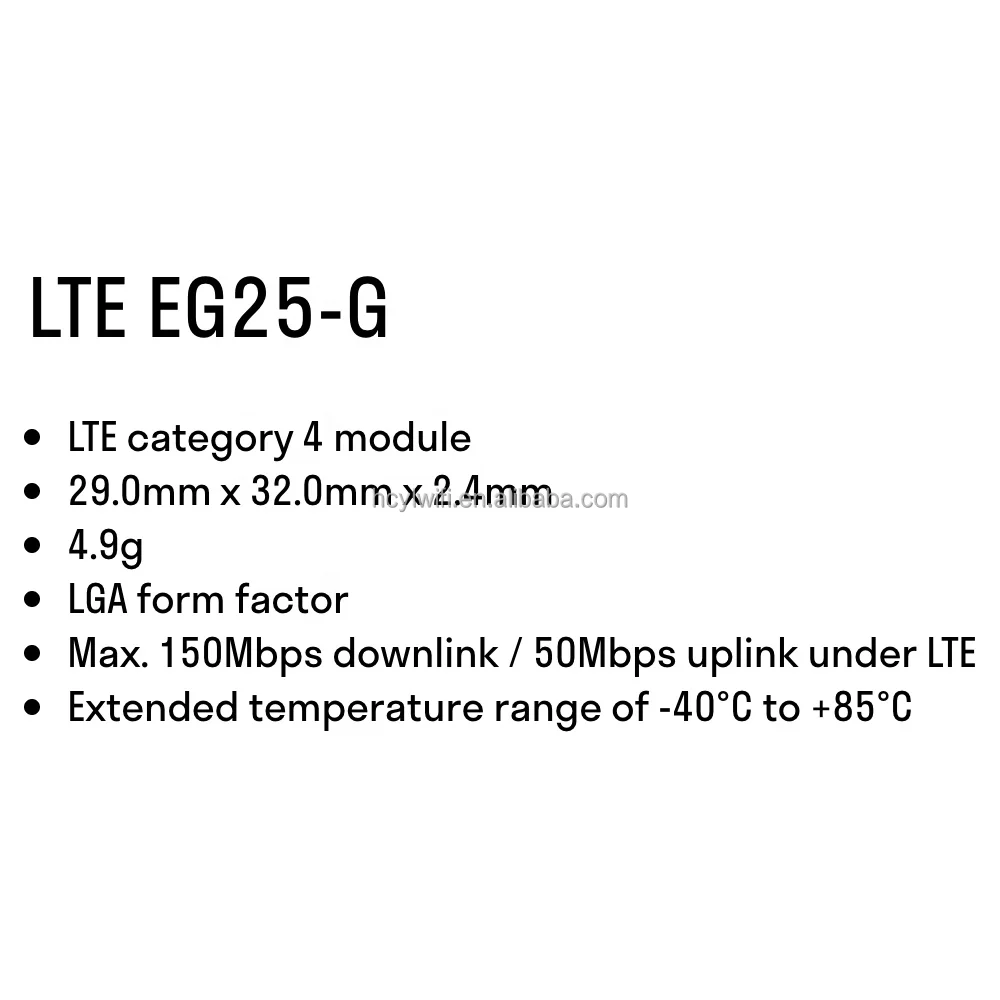

Quectel EG25-G is an LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.11 LTE technology, it delivers maximum data rates up to 150 Mbps downlink and 50 Mbps uplink. Designed in the compact and unified form factor, EG25-G is compatible with Quectel UMTS/HSPA+ UC200T series module and multi-mode LTE Standard EC2x series (EC25 series, EC21 series and EC20-CE)/EC200A series/EG21-G modules, which allows for flexible migration among them in design and use.
EG25-G is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EG25-G is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage. EG25-G supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10,Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.
Packing & Delivery
Company Profile
Shenzhen Huachuangyilian Electronics Co., Ltd.
We are a professional wireless network and telecommunication equipment developer and manufacturer, we have a professional production factory around 20,000 square metes and a team of more than 100 R&D engineers. We provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, 5G/4G Module etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
Our vision are providing best service to customers.
FAQ
Q: What's your delivery time?
A: Products can send out once receive your payment if we have stock. If they are customized products or out of stock at present, delivery time will provide by sales according to production schedule.
Q: Can your company accept customize?
A: Welcome OEM & ODM. Please contact us to get more information.
Q: What's your company MOQ?
A: Don’t has any MOQ for common products, if they are customized products, please contact us, we could talk about it.
Q: Will this package cause any other fee after delivery?
A: Products can send out once receive your payment if we have stock. If they are customized products or out of stock at present, delivery time will provide by sales according to production schedule.
Q: Can your company accept customize?
A: Welcome OEM & ODM. Please contact us to get more information.
Q: What's your company MOQ?
A: Don’t has any MOQ for common products, if they are customized products, please contact us, we could talk about it.
Q: Will this package cause any other fee after delivery?
A: If package arrived and is held by customs, please clear your item(s) with customs. Please note you might have to pay VAT(value added tax). If you need any documents or certification, please feel free to contact us directly and we will be glad to assist you.
Q: Can you send samples for us to test?
A: Yes, we can provide samples if they are our common products, and shipping cost will be paid on your side. If the sample you need are customized products, please send us inquiries and check customized samples fee.
Q: What's the quality of your products?
A: We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q: Why should you buy from us not from other suppliers?
A: We are a customer-oriented independent stocking distributor for Wireless Module, Antennas, Electronic Components and Routers. We only provide new and original parts with the best price and good service. Please send us messages, we won’t let you down.
Q: Can you send samples for us to test?
A: Yes, we can provide samples if they are our common products, and shipping cost will be paid on your side. If the sample you need are customized products, please send us inquiries and check customized samples fee.
Q: What's the quality of your products?
A: We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q: Why should you buy from us not from other suppliers?
A: We are a customer-oriented independent stocking distributor for Wireless Module, Antennas, Electronic Components and Routers. We only provide new and original parts with the best price and good service. Please send us messages, we won’t let you down.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары
Рекламные А4 прозрачные пластиковые раздвижные папки для файлов хорошего качества
0,08 $ - 0,10 $
Самый дешевый Zeeker 001 you me we u awd, лидер продаж, Новый энергетический автомобиль, Китай, высокоскоростной автомобиль, сделано 1000 км Zeeker 001
Синтетический драгоценный камень Starsgem Ilan GIA 0.5CT 1CT 2CT VVS грубый HPHT CVD свободный лабораторный Выращенный алмаз

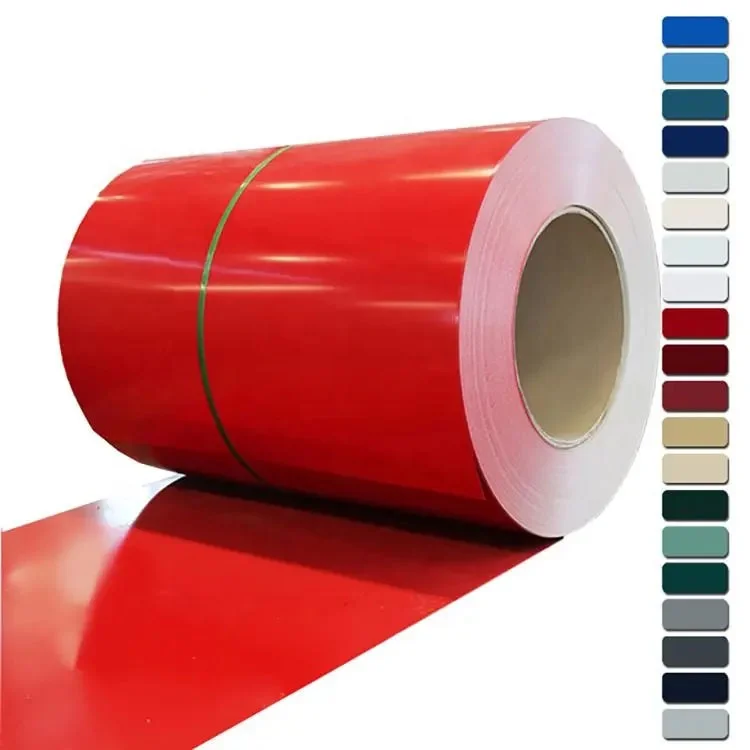

Цветной окрашенный металлический рулон с гальваническим цинковым покрытием PPGI PPGL стальная катушка
500,00 $ - 750,00 $

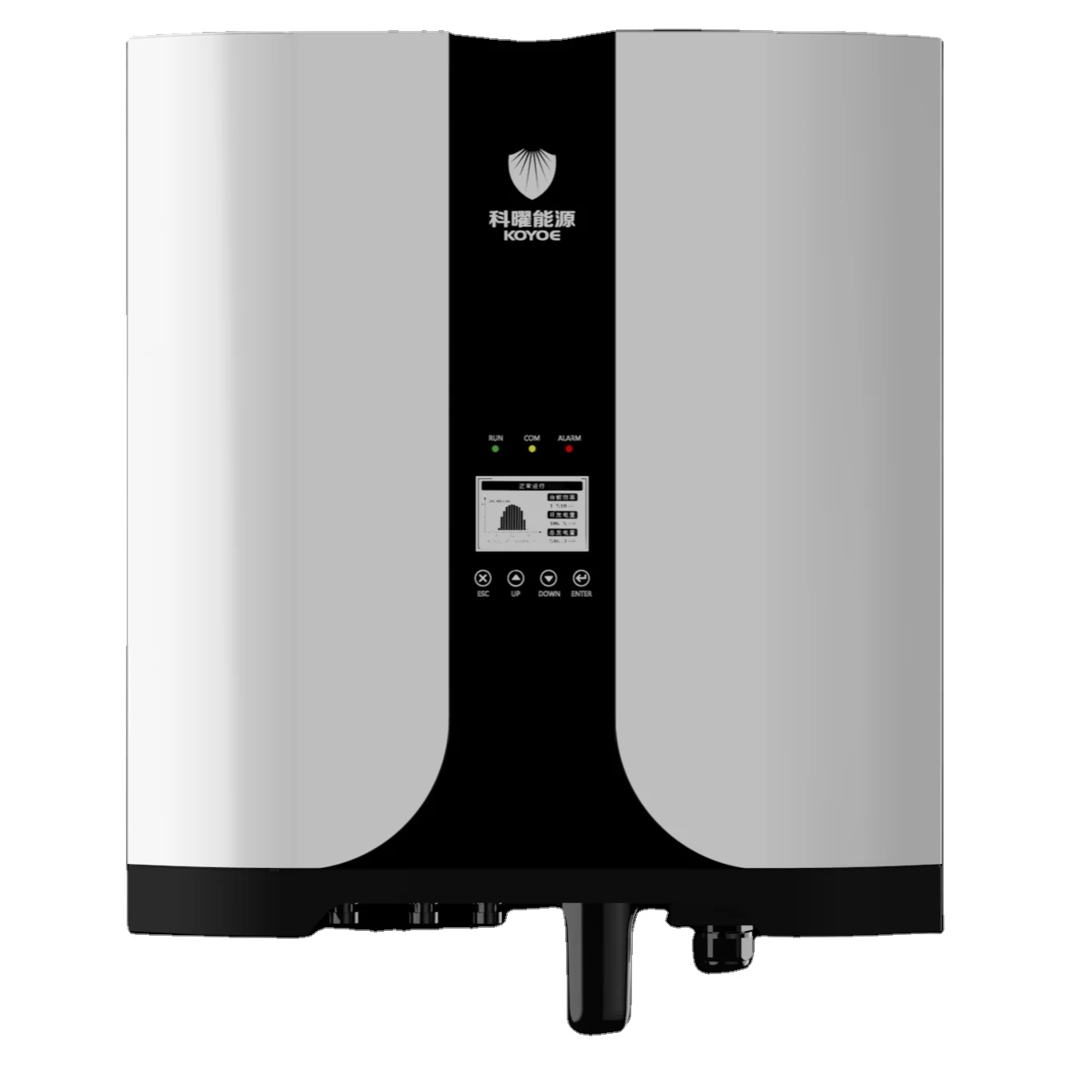

Гибридный Инвертор 15 кВт, гибридный солнечный инвертор с контроллером заряда mppt
2 350,00 $ - 2 500,00 $

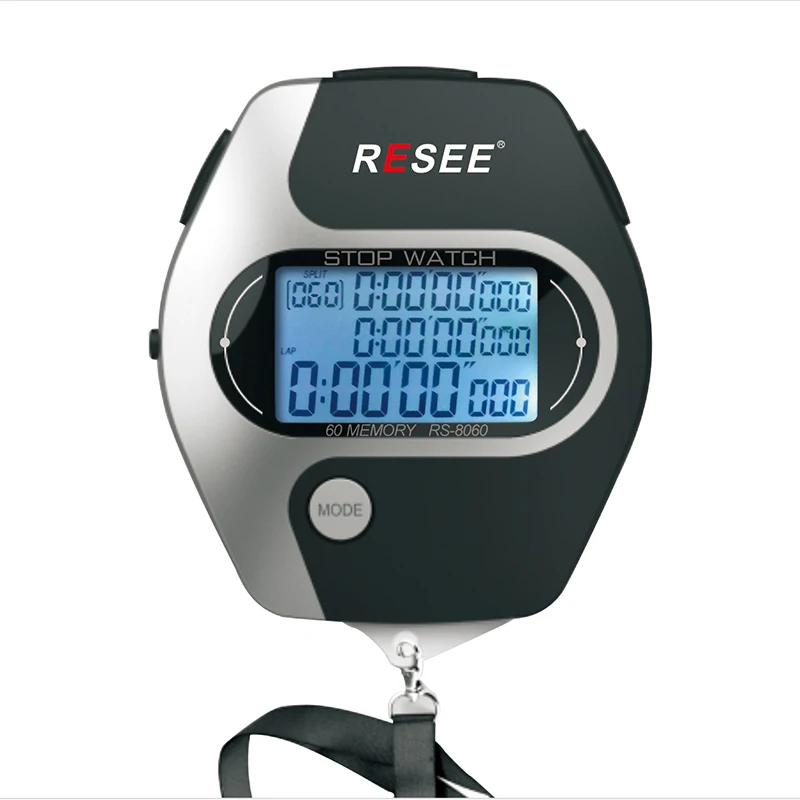

Вновь посмотреть трёхрядная дисплей Многоканальная система секундомер laboratorium electricical цифровой секундомер, таймер RS-8060
14,80 $ - 18,70 $

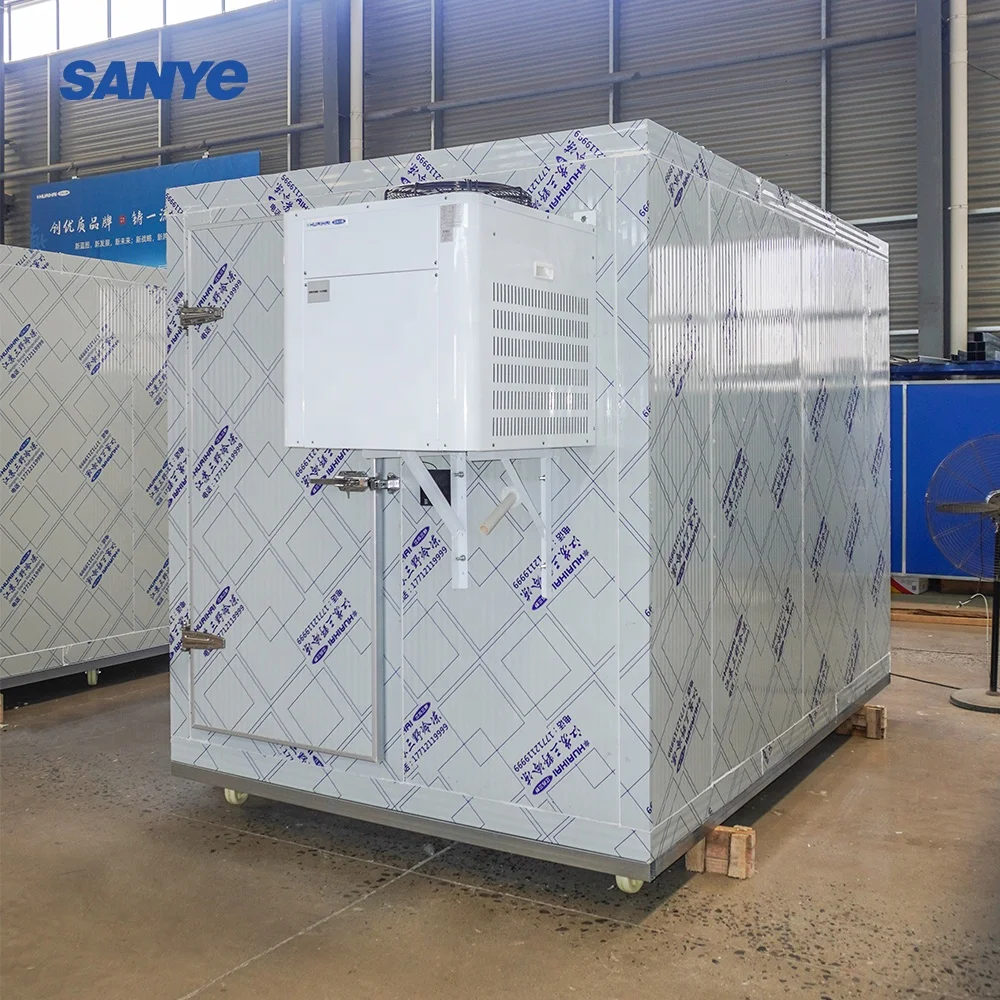

Холодильная Комната Небольшого размера для холодильной камеры для мяса и морепродуктов, овощей, фруктов
