Классическая электрическая Угольная щетка для
- Категория: Other Motor Accessories >>>
- Поставщик: Ningbo Haishu Nide International Co. Ltd.
Сохранить в закладки 1600494326216:
Описание и отзывы
Характеристики
Product Description

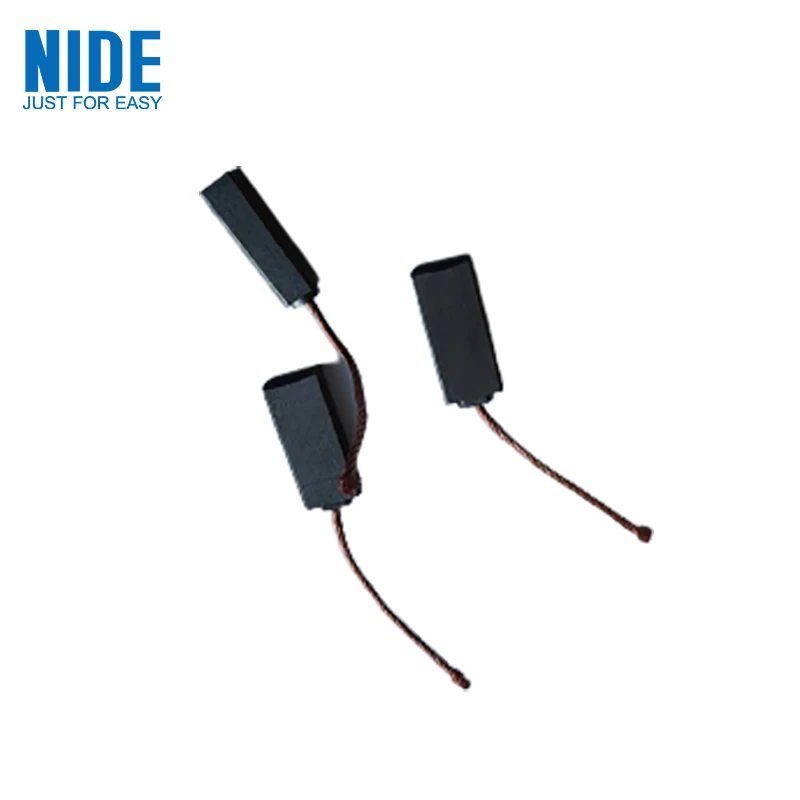

Classic Electrical Carbon Brush For Power Tools
We produce more than 2000 different type of commutatoe ,including Riser Type,Hook Type and Micro Type,ranging from OD 4mm to 150mm, which widely applied to Automotive industry, Power Tools,Household Appliances, and other motors, we will always be ready to give customer the best products and service.
We can make any kind of commutators according to your drawing or samples.
We can make any kind of commutators according to your drawing or samples.
Technical requirement
Material | Model | resistance | Bulk density | Rated current density | Rockwell hardness | loading |
Natural graphite | S3 | 11±30% | 1.66±10% | 11 | 77(-60%~+22%) | 60KG |
G4 | 15±30% | 1.73±10% | 11 | 83(-60%~+22%) | 60KG | |
Advantage: running stable, temperature rising slow | ||||||
Application: suitable for 80-120V DC motor | ||||||
Carbon brush features
1) Good quality
2) small spark
3) low noise
4) long duration
5) good lubrication performance
6) good electric conductivity
Information needed for carbon brush inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Carbon brush dimension: length, width, height, lead wire length
2. Carbon brush material:
3. Carbon brush voltage and current requirement.
4. Carbon brush applications
5. Required quantity
6. Other technical requirement.
If possible, it will better if customer could send us samples.
Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. Nide has three main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line,motor stator winding machine, staor insulation paper inserting mahcine, stator coil inserting machine , bldc / brushless motor winding machine,motor armature / rotor winding machine and rotor die casting machine,etc. The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc. The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Packaging
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
More Information
FAQ
Q: Are you trading company or manufacturer ?
A:We are a manufacturer
Q: Do you provide samples ? is it free or extra ?
A:There are many kinds of products in our company. Samples should be sent according to the types of products and negotiated with customers.
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
