Поставка с фабрики в Китае каменная дробилка для каменного камня оборудования
858,00 $

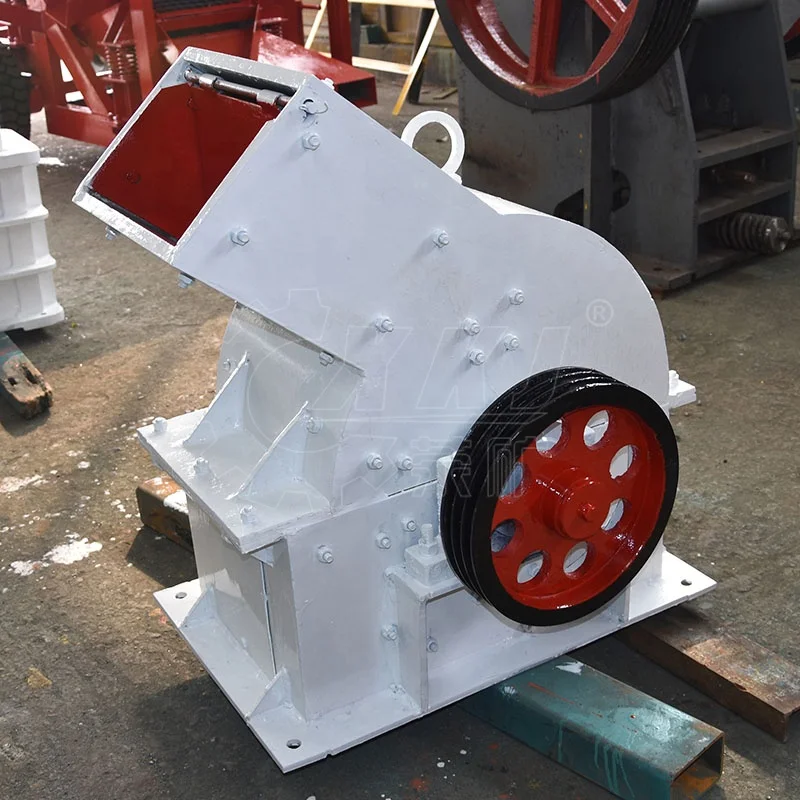

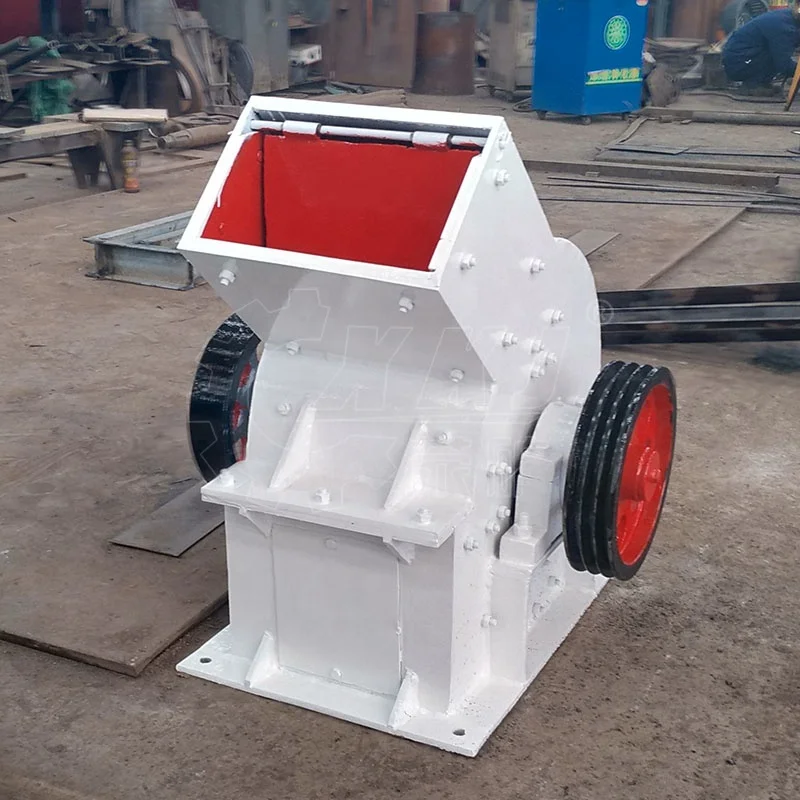

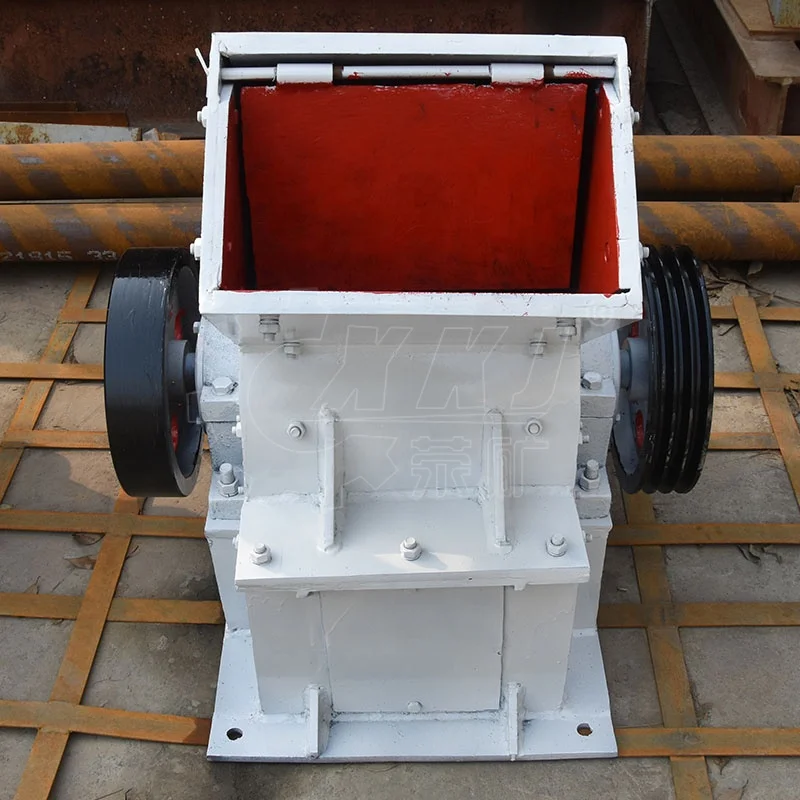

5TPH камнедробилка PC400 * 300 по хорошей цене
- Категория: >>>
- Поставщик: Henan Xingyang Mining Machinery ManufactoryHenan Manufactory
Сохранить в закладки 1600494485099:
Описание и отзывы
Характеристики
Product Description
Type: Hammer Crusher
Motor Type: AC Motor
Brand Name: XKJ
Material: Mn13Cr2/Mn18Cr2
Certification: CE & ISO
Capacity(t/h): 5-8 t/h
Weight: 700 KG
Dimension(L*W*H): 815*982*785
Color: Customizable
Quality: Advanced Technology
Price: Negotation
Online Service Time: 24 Hours Online
Delivery Time:15-30 Days
Factory visit: Welcomed Warmly
Certification: CE & ISO
Marketing Type: Hot Product 2022

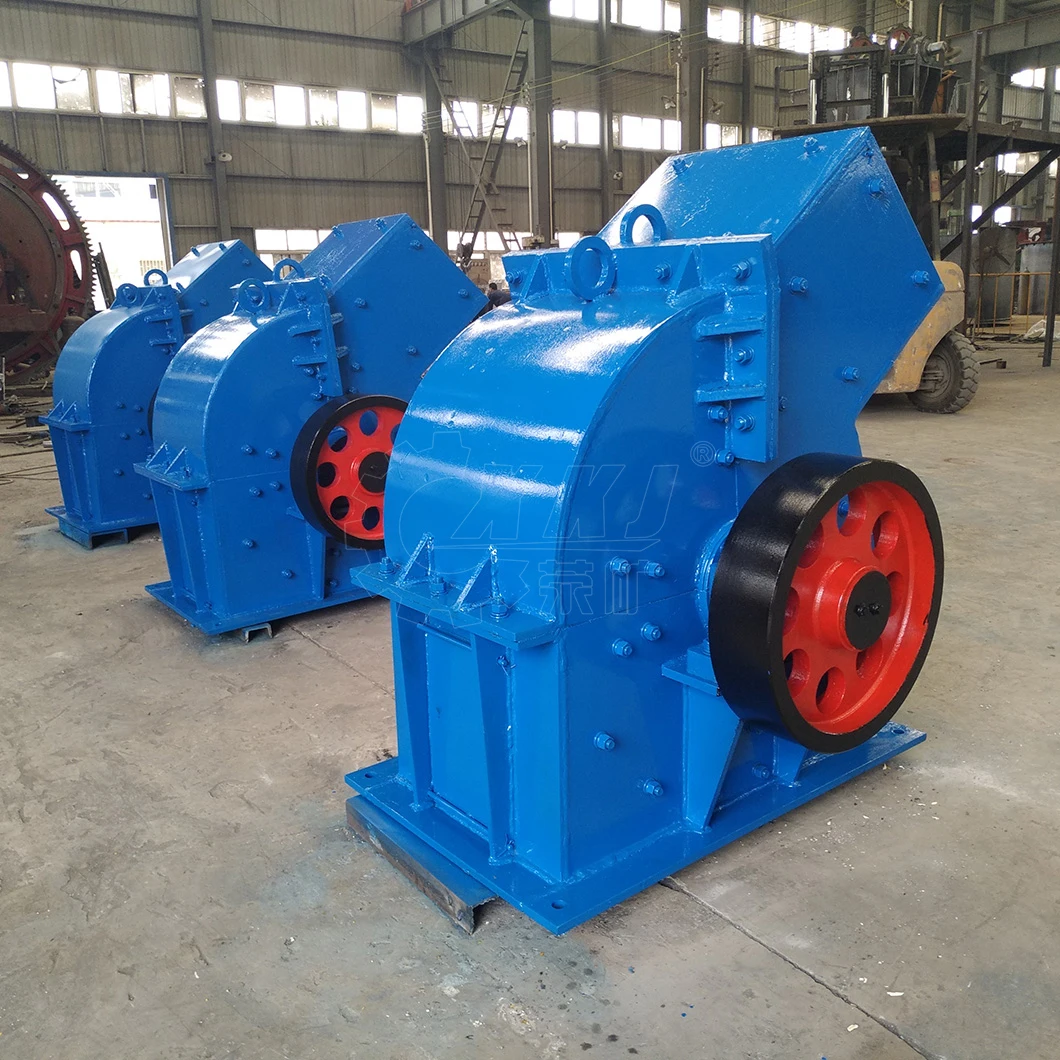

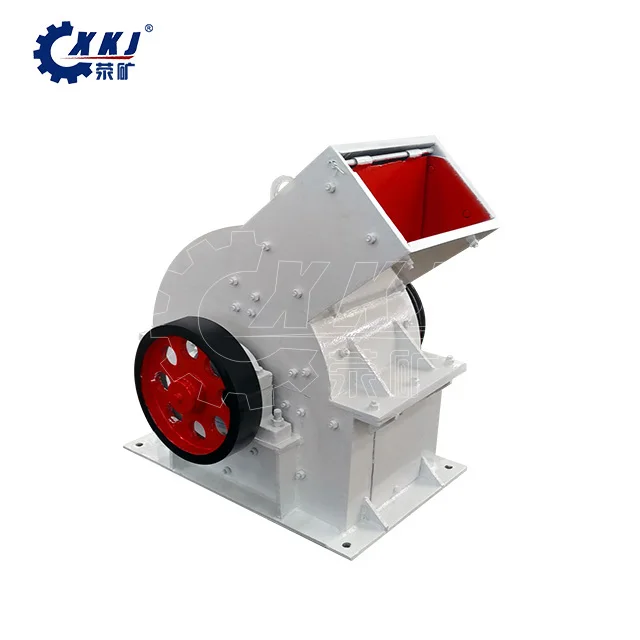

Hammer Crusher — Product Description
[Introduction]:
The hammer crusher is one of the main equipment for intermediate and fine crushing the brittle materials with less than intermediate such as such as limestone, slag, coke, coal and so on in cement,chemical, electric power,metallurgy and other industrial departments.Hammer Crusher can adjust grate strip gap according to user's requirement,Change the size of the material,This can meet the different needs of different users.The machine is used for crushing medium hardness and brittle materials, such as limestone, coal and so on .The maximum compressive strength of the material to be broken does not exceed 100MPA .Mainly used in cement, coal, glass, limestone power generation and building materials sectors.
Advantage
Hammer Crusher—Advantage
1. Big feed input, high crushing cavity, Suitable for high hardness of material, large block degree, less stone powder;
2. The material is suspended and the power consumption is small;
3. Novel hammerhead, Great impact;
4. Hammer shaft installation adjustable, long life hammerheadr;
5. Grid size adjustable, product granularity controllable, particle shape is good;
6. Chassis can be flipped, overhaul more convenient;
7. Square shank bolts, shock resistance, abrasion resistance;
8. Compact structure, strong machine rigidity;
9. Assembly structure, easy to carry and install;
10. This machine set impact, counterattack, impact crushing function in a, high production efficiency, mechanical wear small, comprehensive benefit is remarkable.
2. The material is suspended and the power consumption is small;
3. Novel hammerhead, Great impact;
4. Hammer shaft installation adjustable, long life hammerheadr;
5. Grid size adjustable, product granularity controllable, particle shape is good;
6. Chassis can be flipped, overhaul more convenient;
7. Square shank bolts, shock resistance, abrasion resistance;
8. Compact structure, strong machine rigidity;
9. Assembly structure, easy to carry and install;
10. This machine set impact, counterattack, impact crushing function in a, high production efficiency, mechanical wear small, comprehensive benefit is remarkable.

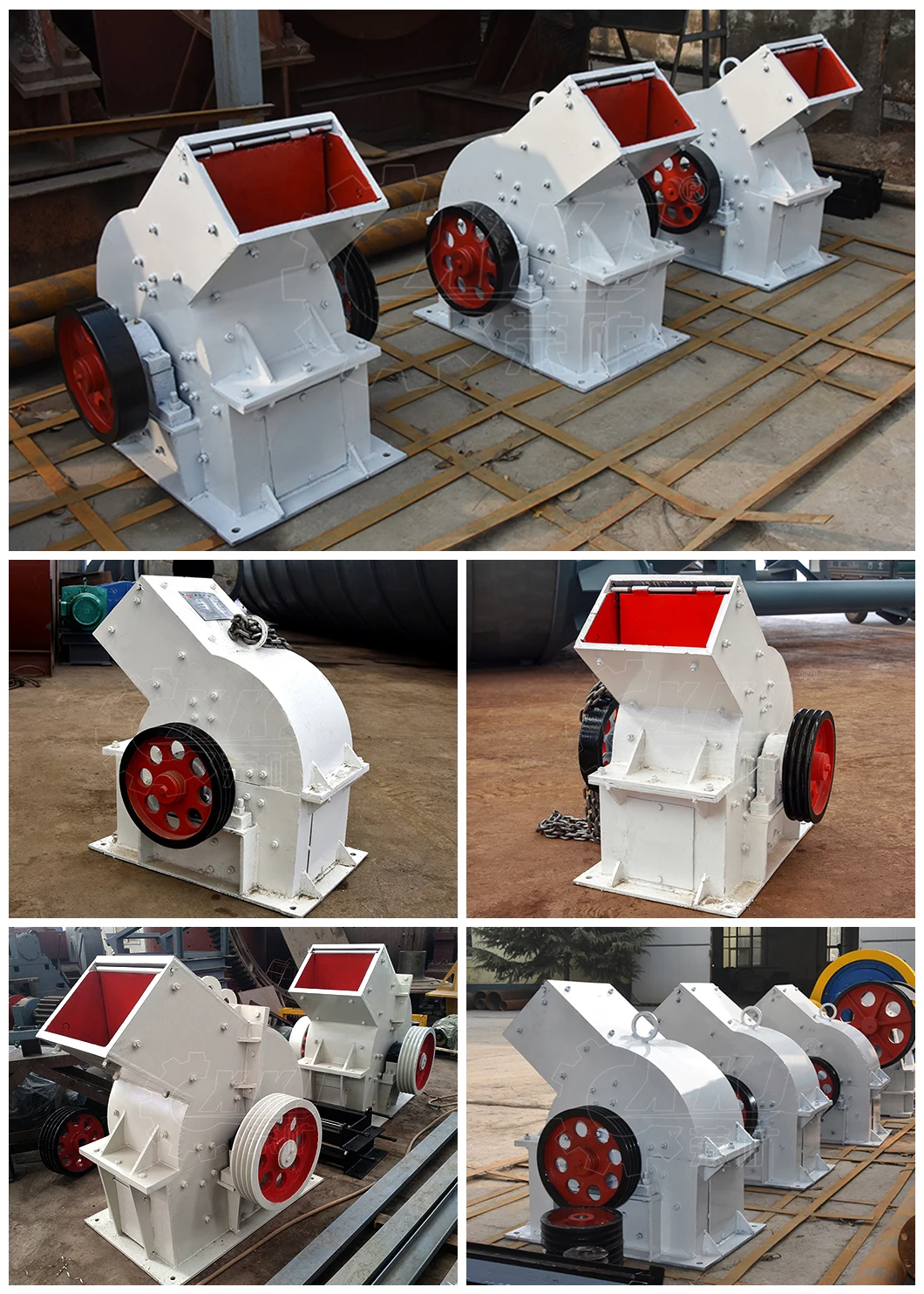

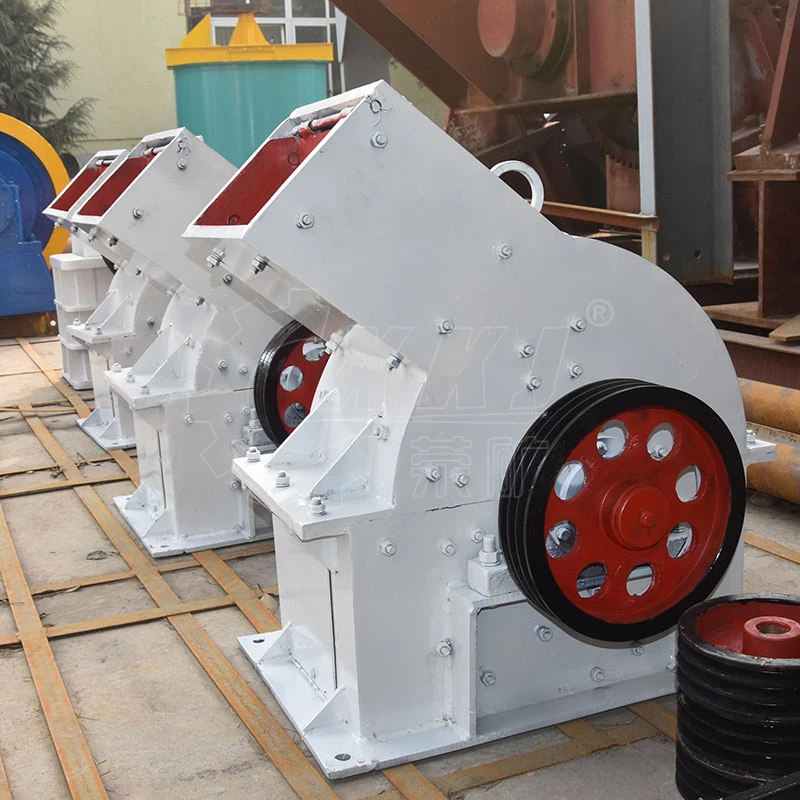

Product Details
Products Specifications
Model | Rotor speed (r/min) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Power (Kw) | Weight (t) |
PC400×300 | 1200 | ≤80 | ≤10 | 5-8 | 11 | 0.7 |
PC600×400 | 1000 | ≤110 | ≤15 | 10-15 | 18.5 | 1.5 |
PC800×600 | 980 | ≤120 | ≤15 | 20-25 | 55 | 3.7 |
PC1000×800 | 980 | ≤200 | ≤45 | 34-54 | 110 | 6.9 |
PC1000×1000 | 1000 | ≤200 | ≤15 | 40-60 | 132 | 8.5 |
PC1200×1000 | 745 | ≤200 | ≤25 | 75-150 | 160 | 12.5 |
PC1200×1200 | 745 | ≤200 | ≤20 | 80-160 | 185 | 14.3 |
PC1400×1400 | 750 | ≤250 | ≤20 | 120-170 | 280 | 17.2 |
PC1600×1600 | 500 | ≤350 | ≤20 | 220-290 | 500 | 32.4 |
PCH600×400 | 970 | ≤200 | ≤30 | 22-33 | 15 | 1.7 |
PCH600×600 | 980 | ≤200 | ≤30 | 30-60 | 30 | 2.4 |
PCH800×800 | 825 | ≤300 | ≤30 | 75-105 | 45 | 4.8 |
PCH1000×1000 | 740 | ≤300 | ≤30 | 90-150 | 90 | 7.5 |
Working Principle

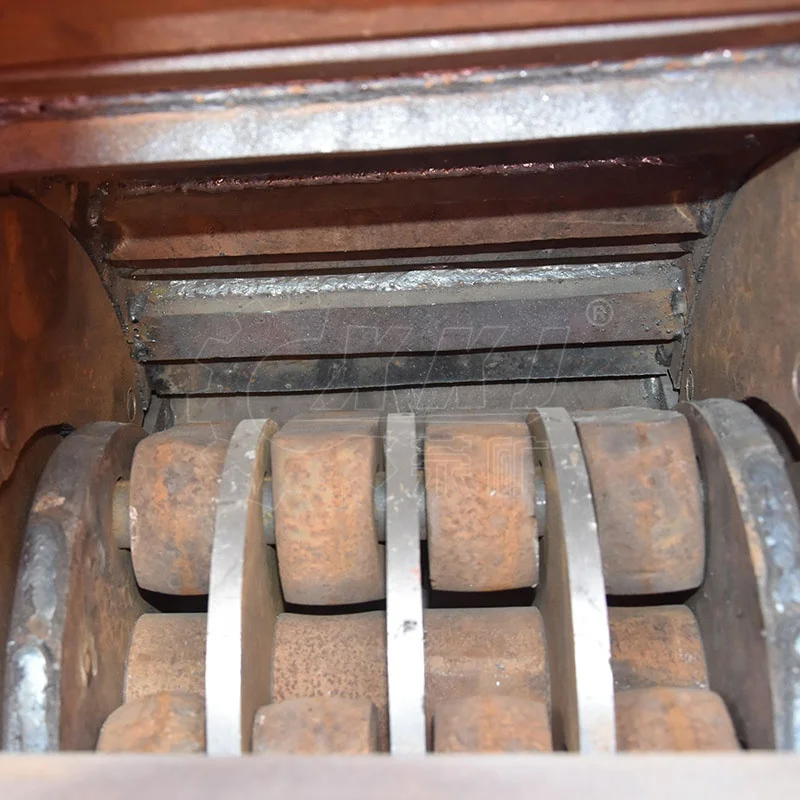

Hammer Crusher Working principle
The motor drives the rotor rotate of the hammer crusher machinery at a high speed through the belt, and on the rotor there are series hammers, when the material get into the working areas of hammers, they are crushed by the rotating hammers of the hammer
crusher machinery with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher machinery for being recrushed until they reached the required size.
crusher machinery with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher machinery for being recrushed until they reached the required size.
Similar Products
Click the picture to enter the product page！！！
Company Information
Company Information：
Why choose us ？
1.We are real manufacture factory ( not dealer)
All machineries from Henan Xingyang Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service; So please buy machine from factory.
2. With senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation.If you are new for this business, we will help you.
All machineries from Henan Xingyang Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service; So please buy machine from factory.
2. With senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation.If you are new for this business, we will help you.
Services
Our Services：
Before-sale services:
We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips: The prices in the web only to be reference, according to raw material's price fluctuations; Specific price is subject to the negotiation.
Tips: The prices in the web only to be reference, according to raw material's price fluctuations; Specific price is subject to the negotiation.

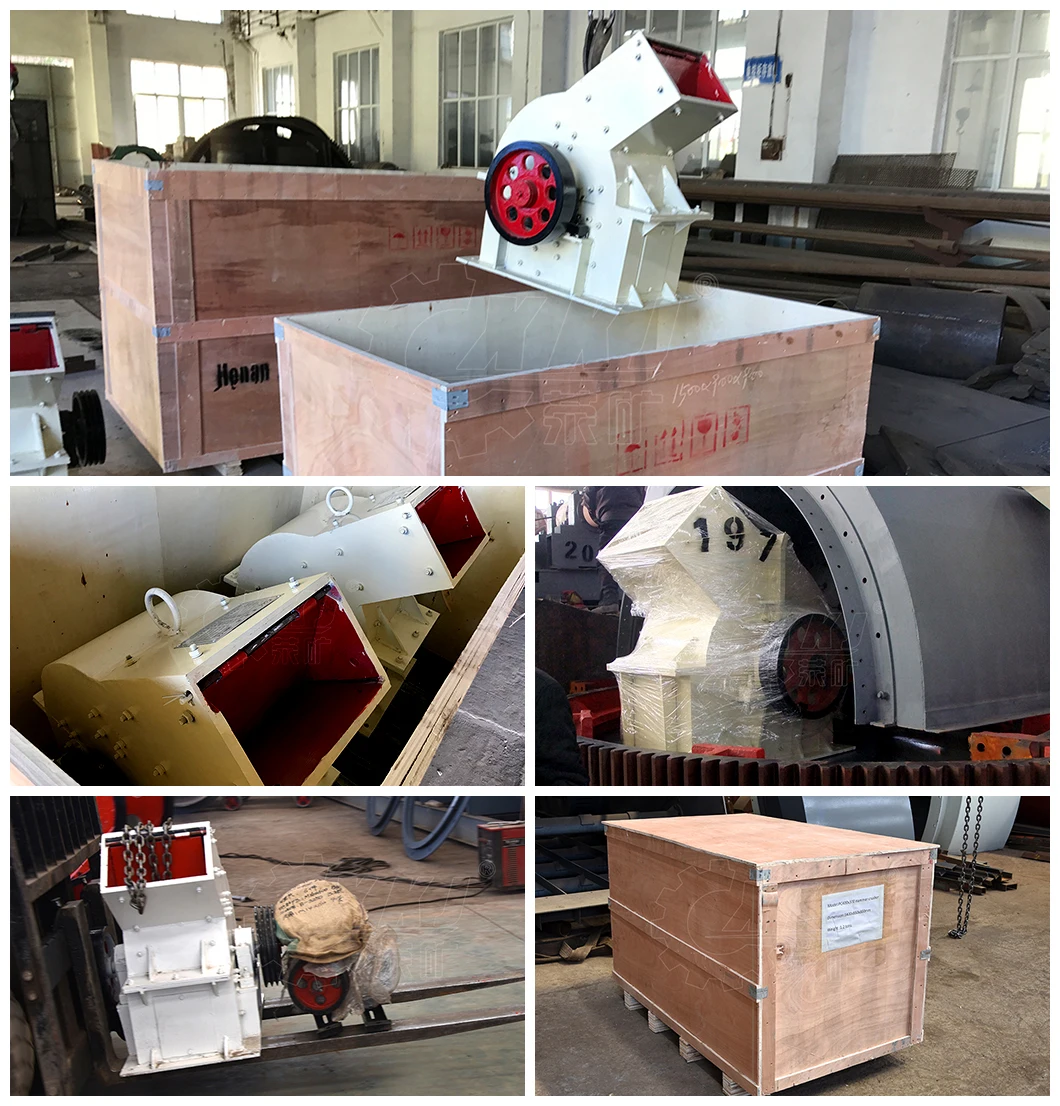

Packing：
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
FAQ:
Q How about the quality of your products?
A Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
A Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q How about the price?
A As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount.
Q Do you provide after-sale service?
A Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q Do you provide equipment operation training?
A Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q Can you test our samples?
A Yes. You can send your samples to us for test and analysis.
Q Can we visit your factory?
A Yes. You can visit our factory anytime you want.
For more details and Video, please contact us by following contact information:
Contact Person: Blake Liu
A As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount.
Q Do you provide after-sale service?
A Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q Do you provide equipment operation training?
A Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q Can you test our samples?
A Yes. You can send your samples to us for test and analysis.
Q Can we visit your factory?
A Yes. You can visit our factory anytime you want.
For more details and Video, please contact us by following contact information:
Contact Person: Blake Liu
