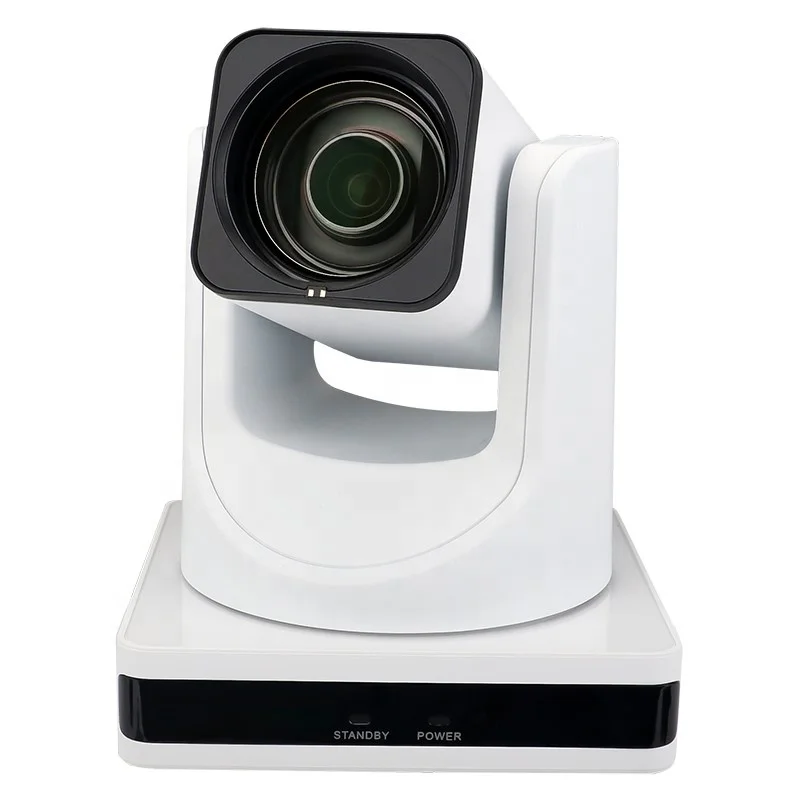

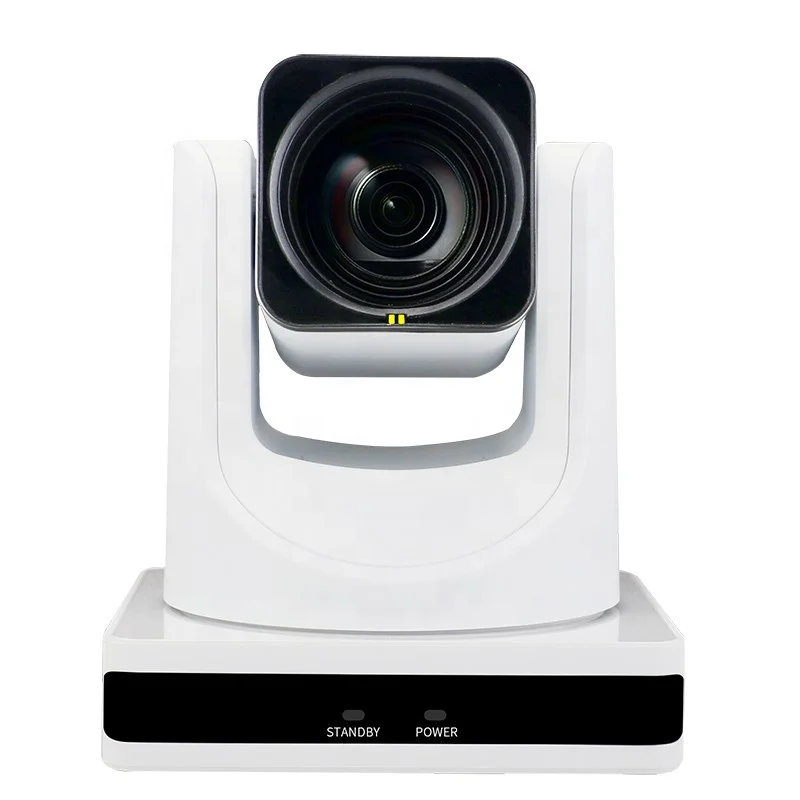

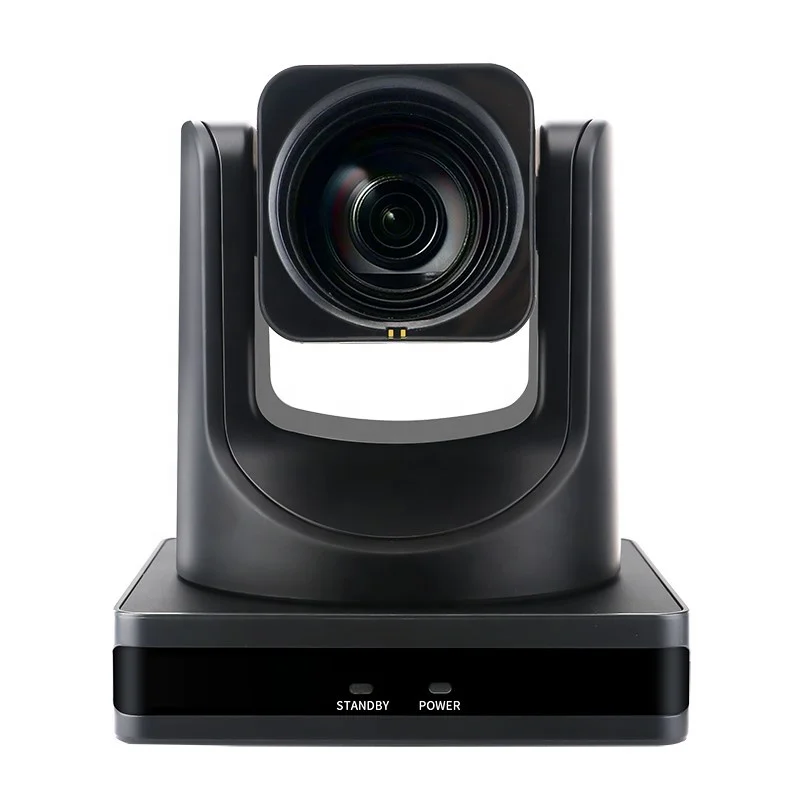

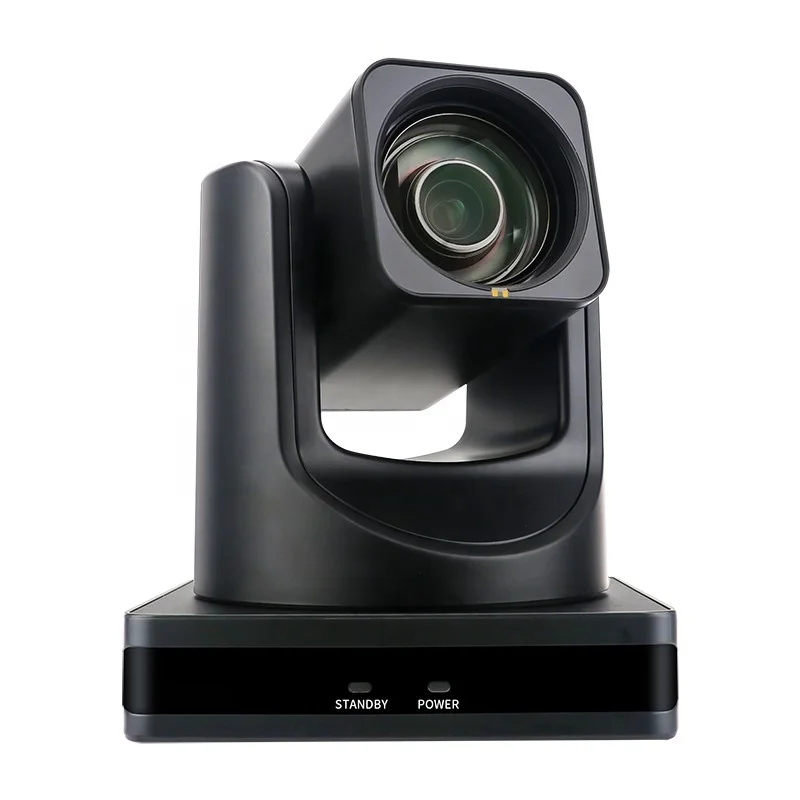

Панорамирование вертикальный экран вещания камера видеоконференции ip потоковая ptz 12X зум h dmi usb Тип c интерфейсы

Model

ZMKS80U

Name

USB3.0 HD Video Conference Camera

Camera

Video System

1080P, 720P, 540P, 480P, 360P, 240P etc.

Sensor

1/2.7'', CMOS, Effective Pixel: 2.07M

Scanning Mode

Progressive

Lens

12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8

Digital Zoom

16x

Minimal Illumination

0.5 Lux @ (F1.8, AGC ON)

Shutter

1/30s ~ 1/10000s

White Balance

Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual

Backlight Compensation

Support

Digital Noise Reduction

2D&3D Digital Noise Reduction

Video S/N

≥55dB

Horizontal Angle of View

72.5° ~ 6.9°

Vertical Angle of View

44.8° ~ 3.9°

Horizontal Rotation Range

±170°

Vertical Rotation Range

-30° ~ +90°

Pan Speed Range

2.7° ~ 35.7°/s

Tilt Speed Range

2.7° ~ 31.5°/s

H & V Flip

Support

Image Freeze

Support

Number of Preset

255

Preset Accuracy

0.1°

USB Featured

Operate System

Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android

Color System / Compression

YUV 4:2:2 / H.264 / MJPEG

Video Format

YUY2 (BULK): max to 1080P@30fps
YUY2 (ISOC): max to 1080P@30fps
H.264 AVC: max to 1080P@30fps
H.264 SVC: max to 1080P@30fps
MJPEG: max to 1080P@30fps

Audio on USB

Support

USB Video Communication Protocol

UVC 1.1~1.5

UVC PTZ

Support

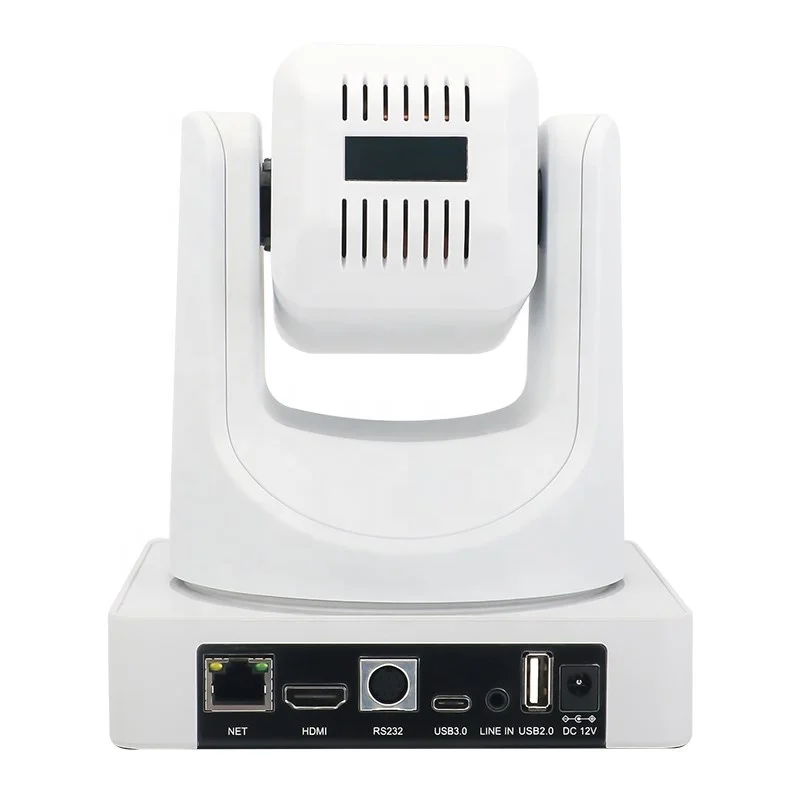

Input/Output Interface

USB Interface

1xUSB3.0: Type B female jack

Audio Interface

1-ch: 3.5mm Audio Interface, Line In

Communication Interface

1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P

Power Jack

JEITA type (DC IN 12V)/USB B type(DC IN 5V)

Generic Specification

Input Voltage

DC 12V/DC 5V

Current Consumption

1.0A (Max)

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-40°C ~ 60°C (-40°F ~ 140°F)

Power Consumption

12W (Max)

MTBF

>30000h

Size

144mm x 144mm x 167.9mm

Net Weight

1.285KG
