Заводская цена со скидкой ручной 100 Вт 200 импульсный Лазерная очистная машина лазерная для удаления ржавчины с воздушным охлаждением
- Категория: >>>
- Поставщик: Wuhan Xionghao Electronics Technology Co. Ltd.
Сохранить в закладки 1600496334741:
Описание и отзывы
Характеристики
Product Description

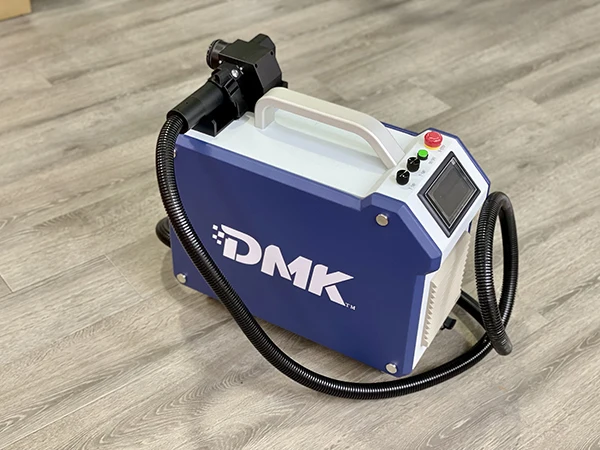

100w Laser Rust Removal Machine
1.Light weight, only 1.2kg.
2.Compact structure, occupying a small area. Small size and high energy,external size 616mm * 260mm * 438mm.
3.Very easy to use.
4.HD touch screen. Easy to operation, adjustable laser power and frequency.
5.High quality scanning gun. Light weight, easy to hold with both hands.
6.Famous brand laser generator（Brand JPT MOPA M7）.
2.Compact structure, occupying a small area. Small size and high energy,external size 616mm * 260mm * 438mm.
3.Very easy to use.
4.HD touch screen. Easy to operation, adjustable laser power and frequency.
5.High quality scanning gun. Light weight, easy to hold with both hands.
6.Famous brand laser generator（Brand JPT MOPA M7）.
100w Laser Rust Removal Machine
Main Features
1.Professional customized laser light,Focus on laser cleaning applications.
2. Ultra-light cleaning head can be operated with one hand, so it will not be tired for a long time.
3. Anti-shake technology,Hand-held cleaning efficiency is comparable to automation.
4. Patented light control technology, solves key edge problems and the cleaning quality is uniform and consistent.
5. Supports switching of multiple scanning patterns such as line, circle, rectangle, spiral, etc.
2. Ultra-light cleaning head can be operated with one hand, so it will not be tired for a long time.
3. Anti-shake technology,Hand-held cleaning efficiency is comparable to automation.
4. Patented light control technology, solves key edge problems and the cleaning quality is uniform and consistent.
5. Supports switching of multiple scanning patterns such as line, circle, rectangle, spiral, etc.

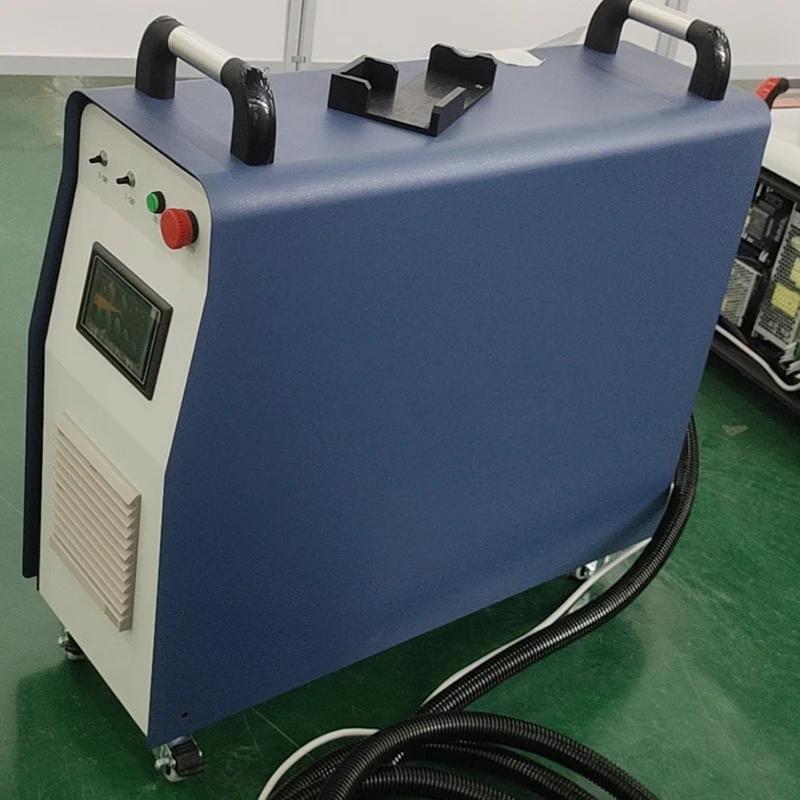

200w Laser Rust Removal Machine
200W series laser cleaning equipment adopts peak power pulse laser, imported high-speed scanning system, high-precision control
system and power supply of domestic and well-known enterprises. The whole machine is stable and reliable with good performance,
and has the characteristics of super portability, high efficiency and high cost performance.
system and power supply of domestic and well-known enterprises. The whole machine is stable and reliable with good performance,
and has the characteristics of super portability, high efficiency and high cost performance.
It weighs 58kg, and the hand-held head weighs only 1.4kg.
Technical Advantages
1.Clean or remove the surface paint layer quickly and smoothly.
2.Accurate cleaning and paint removal effects.
3.No damage to the substrate.
4.Low cost.
5.No need to sand grit or chemical.
6.The equipment does not need to be set up.
2.Accurate cleaning and paint removal effects.
3.No damage to the substrate.
4.Low cost.
5.No need to sand grit or chemical.
6.The equipment does not need to be set up.
Product Parameters
Device model | DSL - 100 | DSL - 200 | ||
Average Laser power | 100 w | 200w | ||
Operating mode | Pulse | Pulse | ||
Laser wavelength | 1064nm | 1064nm | ||
Polarization direction | arbitrarily | |||
Beam quality factor | M2 ＜1.5 | M2 ＜2.5 | ||
Laser line-width | Length: 5mm ~ 100mm, adjustable Width: 5mm ~ 100 mm, adjustable | |||
Scanning images | Support linear, 2D, circular, rectangular progressive scanning, rectangular ring, triangle, spiral | |||
Laser pulse frequency | 5kHz ~ 200kHz adjustable | |||
Maximum single pulse energy | 1.5 mJ | |||
Fiber length | 3m | 5m | ||
Instability of laser output | <5% | |||
Cooling mode | Air Cooling | |||
Guided laser function | Yes | |||
Anti hyper reflexes | Yes | |||
Field mirror model | F160 | |||
※The above parameters are for reference only, please refer to the actual situation | ||||

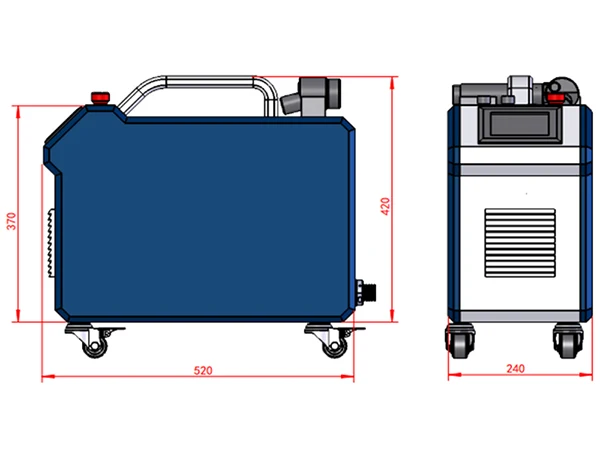

Dimension of DSL - 100

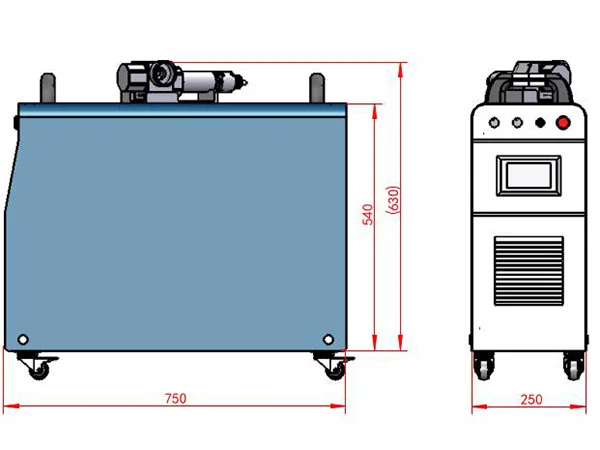

*********************************************************************************************Dimension of DSL - 200
Applications
Surface paint removal paint treatment
Remove the oxide layer on the metal surface
Oxide surface,Oil stain and contaminant cleaning
Surface without dirt, stains, dirt cleaning
Metal surface derusting
Welding surface / spray surface pretreatment
Packing & Delivery
Company Profile
Demark (Wuhan) Technology Co.,Ltd has focused on laser technology for over 20 years in China, including laser marking, laser engraving, laser welding and laser cutting applications. We started as a small operation, but now have become one of the leading suppliers in the laser industry in China.
Today, Demark (Wuhan) Technology Co.,ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser engraving machine, laser welding machine and laser cutting machine.
Today, Demark (Wuhan) Technology Co.,ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser engraving machine, laser welding machine and laser cutting machine.
Contact Us
Demark (Wuhan) Technology Co.,Ltd
WhatsApp/WeChat/Tel: +8615172315348
Fax: +86-27-65520783
Email: sally@demarkchina.com Website:www.demarkchina.cn
Add: Room 1707, Free Zone Financial Plaza, No.777 Guanggu 3rd Road, East-Lake Hi-tech Development Zone, Wuhan, Hubei, China
WhatsApp/WeChat/Tel: +8615172315348
Fax: +86-27-65520783
Email: sally@demarkchina.com Website:www.demarkchina.cn
Add: Room 1707, Free Zone Financial Plaza, No.777 Guanggu 3rd Road, East-Lake Hi-tech Development Zone, Wuhan, Hubei, China
FAQ
Q: I knew nothing about this machine, what kind of machine i should choose?
A: It is very easy to choose. Just tell us what you what to do by using the laser machine, then let us give you perfect solutions and suggestions.
Q: When I got this machine, but I don't know how to use it. What should I do?
A: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or Whatsapp and e-mail.
Q: If some problems happen to this machine during warranty period, what should I do?
A: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information.
Q: When I got this machine, but I don't know how to use it. What should I do?
A: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or Whatsapp and e-mail.
Q: If some problems happen to this machine during warranty period, what should I do?
A: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information.
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials. Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
2)Your materials. Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
