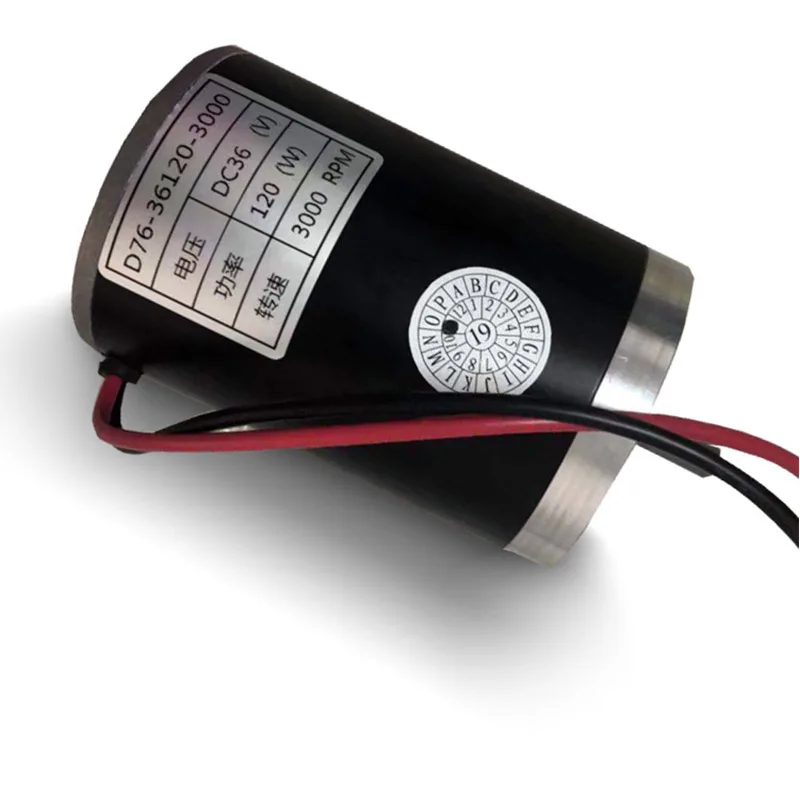

Магнитный Высокоскоростной мотор редуктор 3500 об/мин 12 В 50 Вт щеточный двигатель постоянного тока для
- Категория: >>>
- Поставщик: Guangzhou Wewin Motor Co. Ltd.
Сохранить в закладки 1600497469176:
Описание и отзывы
Характеристики
Product Overview

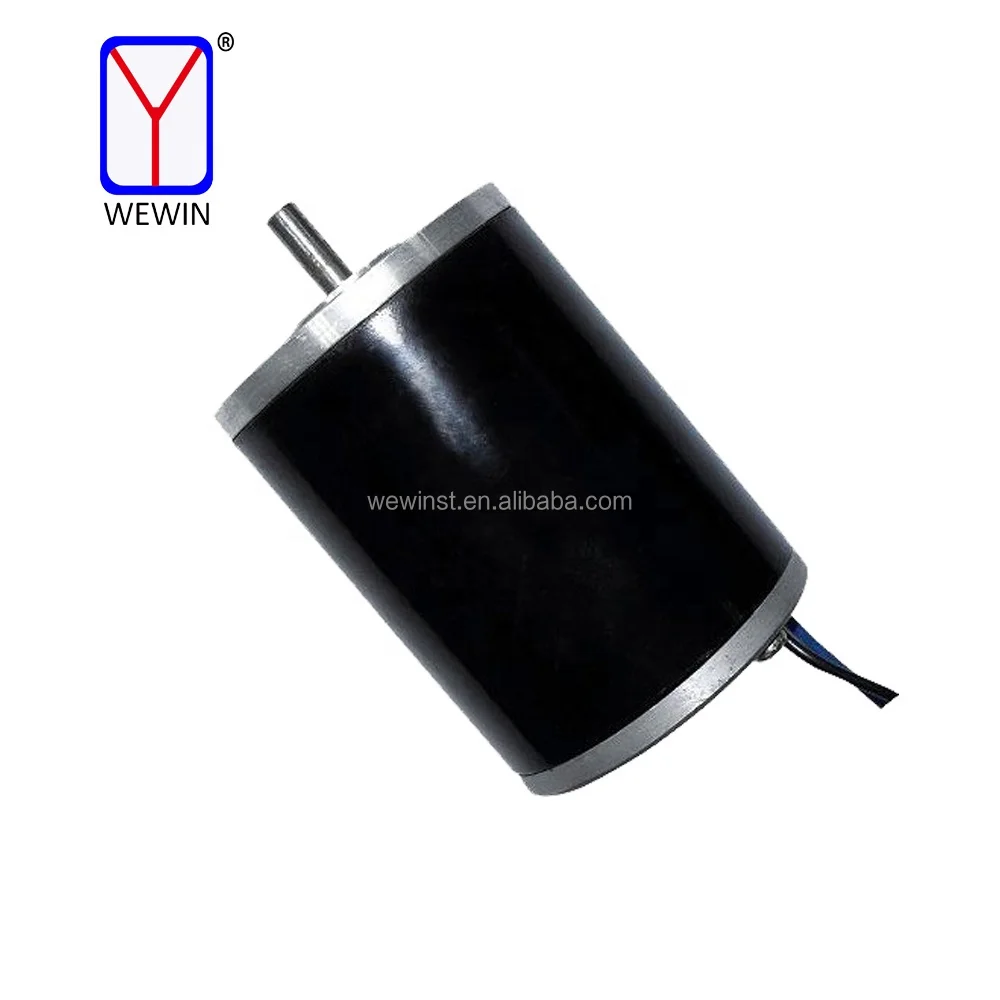

Magnetic High Speed 3500Rpm Geared Motor 12V 50W Brushed Dc Motor for Coffee Machine
NOTE: Most of our products are custom-made. We could design and manufacture the motors according to your requirements.
FEATURES AT A GLANCE
Voltage:12v 24v 36v 48v 110v
Power:60-500w
Speed:1000rpm-10000rpm
Sensor:Hall sensor,encoder,opto sensor ,brake gear motor
The parameters of the motor above are for your reference. We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.

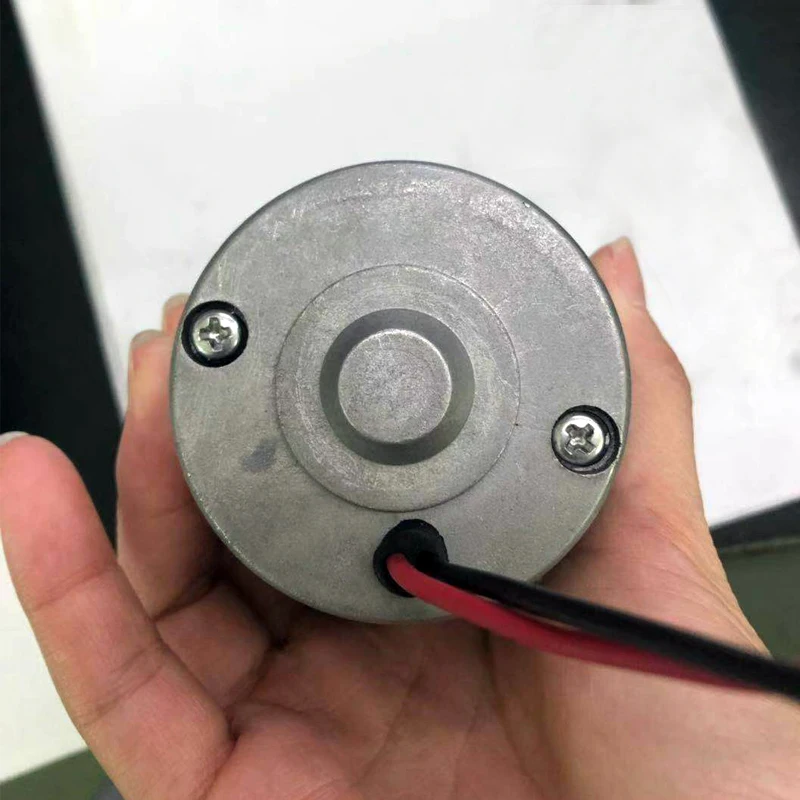

Right elevation

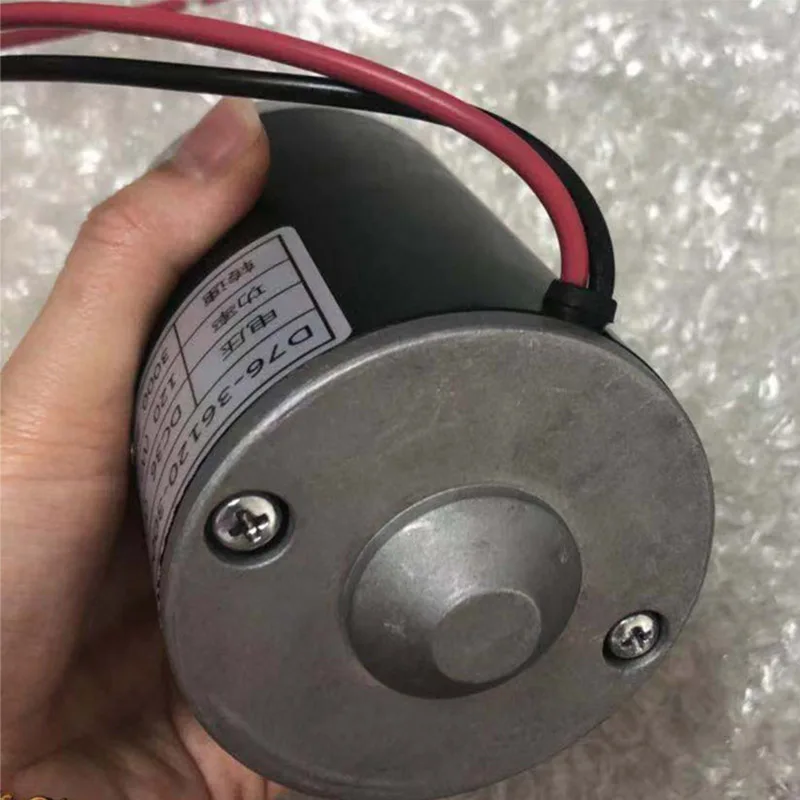

Left elevation

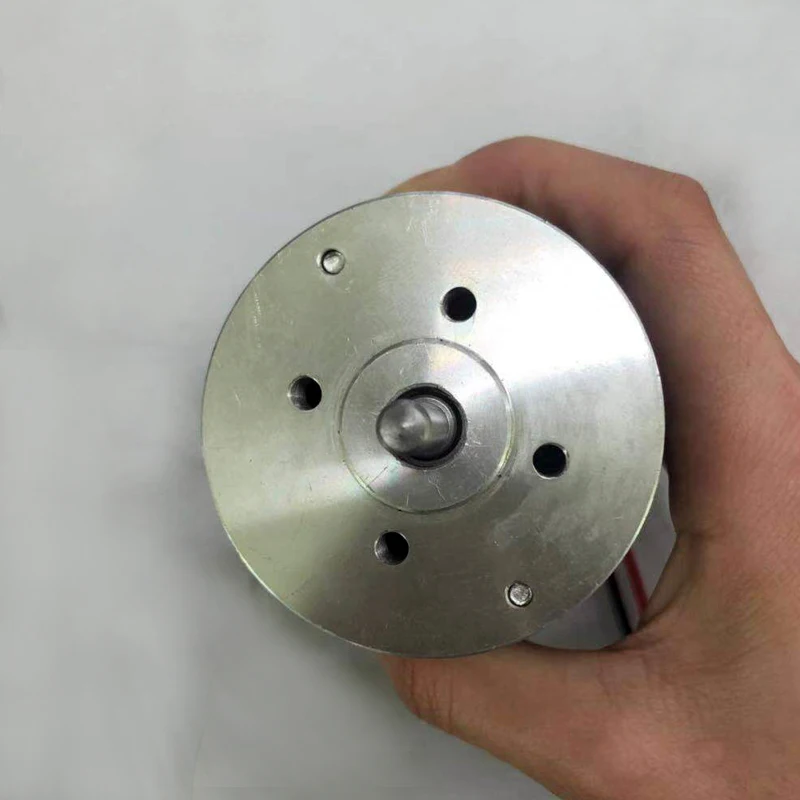

Front elevation
These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.
PRODUCT SPECIFICATIONS
Motor Model | Voltage | Power | No Load | |||
(V) | (W) | Speed(RPM) | Current(A) | |||
D49-1215-3000 | 12 | 15 | 3000±200 | ≤1.2 | Motor Size:49mm 59mm 63mm 76mm 88mm 110mm | |
D49-2415-3600 | 24 | 15 | 3600±200 | ≤1.0 | ||
D49-2420-4100 | 24 | 20 | 4100±200 | ≤1.5 | Voltage: 5V-110V | |
D49-2425-6000 | 24 | 25 | 6000±300 | ≤1.8 | ||
D59-1230-3000 | 12 | 30 | 3000±200 | ≤1.0 | Speed:08~10000RPM | |
D59-2430-3600 | 24 | 30 | 3600±200 | ≤0.8 | ||
D59-2445-3600 | 24 | 45 | 3600±200 | ≤1.2 | Torque:0.3N.M-2.5N.M | |
D59-2465-6000 | 24 | 65 | 6000±300 | ≤1.8 | ||
D63-1245-2500 | 12 | 45 | 2500±150 | ≤0.8 | More Motors: D76 D88 Gear Motor | |
D63-1265-5800 | 12 | 65 | 5800±200 | ≤1.8 | ||
D63-2445-2500 | 24 | 45 | 2500±150 | ≤0.6 | ||
D63-2445-200 | 24 | 45 | 200±100 | ≤0.6 | ||
Application
More Appliactions:
Roller shutter door motor,clothes drying stand motor,range hood motor,tennis ball machine motor,adjustable desk motor,adjustable bed lift motor,food waste recycle machine , hospital lift bed motor, intelligent agricultural motor,healthcare equipment motor,welding machine motor.
Manufacturing Technique
1.CNC Maching
2.Lathe
3.Milling
4.Hobbing
5.Hydraulic Press
6.Winding
7.Spot Welding
8.Gearbox Die Casting
9.Manual Assembly
10.QC
11.Life Tester
12.Torque Tester
13.Temperature & Humidity Chamber
Scan the QR code and get the factory panorama
14.Packing
Company Profile
Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience 3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Guangzhou Wewin Motor Co.,Ltd. is a professional company specialized in design and customization of small dc worm gear motor. The motor models mainly include D49 D59 D63 D76 D88 series, and all the motors can be installed with hall sensor, encoder, opto sensor and brake,so we accept OEM and ODM orders ,and manufacture the motor according to your required like voltage, power, speed, torque, dimension and motor direction.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
Certifications
FAQ
Q1：Are you trading company or manufacturer ?
A1：We are manufacture Integration of industry and trade, with over 20 years experience in dc gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfied.
Q2：What is your main product?
A2：DC Motor:gear motor and high speed motor without gearbox
Welding equipment: Wire feeder for Mig Mag Welding Machine
Q3：What if I don't know which DC motor I need?
A3：Don't worry, Send your specification,and our team will help you find the right
model you are looking for.
model you are looking for.
Q4：What is your payment term?
A4：Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T deposit in advance ,balance before shipment.
Q5：How to delivery?
A5： By sea - Ship out by buyer's appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Ship out by buyer's express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q6：How long is your delivery time?
A6：Usually it takes about 35 days if buyer accept our standard output shaft.If the output shaft is customized,the production time depends on what the customization shaft it is.
Похожие товары

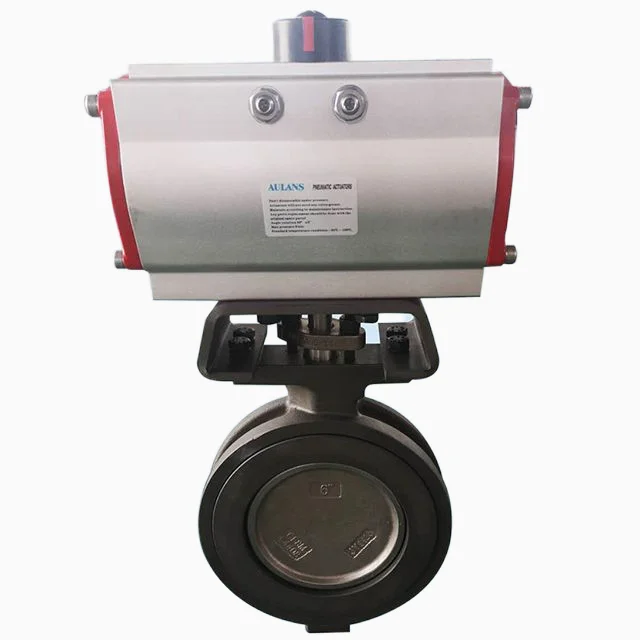

Пневматический электромагнитный клапан из алюминиевого сплава с пневматическим приводом, от 1/2 до 3 дюймов

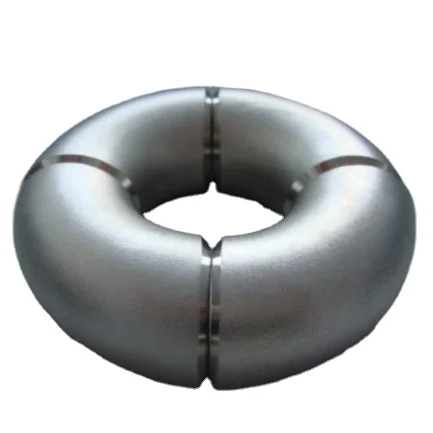

Заводской запас, фитинг для труб Ms 1/2, колено 4 дюйма, углеродистая сталь, 90 градусов, локоть для продажи
