Advanced Technology Contactless Card Module Mounting Machine for Card Making
Product Description

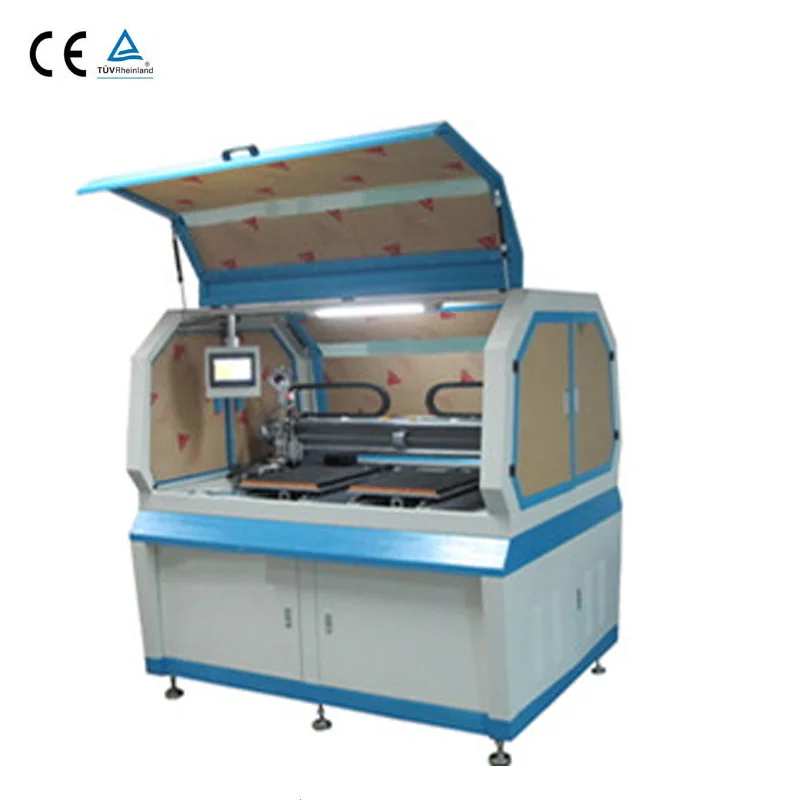

Contactless card Module Mounting Machine:
The module mounting machine use to placing the chips. The machinery automation technologies instead of the traditional manual way to embedding the chip, which save the labor and reduce costs, at the same time, ensure the quality of the products. In the machine structure, the machine is easy to operate and maintain, which enhances the service life of machine and the productivity.
The appearance and style of the machine is concise and easy, rationalization and hommization, and the user-friendly operator interface protect the safety of operators. We can also design the different style appearance according to different requirement.We offer the after-sale service and technical follow-up, and provide paid lifelong maintenance.
Main function:
1. It is suitable for mounting the bulk COB or cutting strip chips. Control by the digital vibration feeder.
2. With two vibration plates and two table to improve productivity.
3. The sensors monitor the chip feeding and the IC, and if the IC is broken, then get rid off the IC automatically.
4. Accurately vibrator and the PLC to ensure the stable of feeding.
5. According to different productive technology, it can mount the front or back side modules, just select by the HMI.
6. It can be used for taping type or gluing type, which can be selected by the HMI.
7. The direction of COB or IC can rotate 45/90 degrees, just needle to add a cylinder in the machine.
8. With double vibration plate and double Worktable and two groups XY servo design. The two Worktable can produce separate or at the same time.
9. It can be surface mounting for different layout, and the two tables can produce the different layout separately at the same time.
10. The unique module fixing design ensures the accurate location of the module.
11. Use the Delta PLC and the touch screen, stable and visualized.
Technical parameter:
| Overall dimension | L1650XW1200XH1800mm |
| Weight | 850kg |
| Power supply | AC220V 50/60HZ 25A |
| Power | 1.5KW |
| Air pressure | 6 kg /cm |
| Air consumption | 80L/min |
| Control | Servo positioning+ PLC |
| Tolerance of adjustment | 0.01mm |
| Accuracy | Scale of servo system = 0.01mm |
| Applicable materials | The cutting strip module or bulk COB which without burrs. |
| Operator | 1 person |
| Output rate | About 3500-4500pcs/hr |
| Product percent of pass | 99.8% |
Packaging & Shipping
Contactless Card Module Mounting Machine in Wooden Box
Company Information
Sinocard since 2000, which specializes in reaching, developing and manufacturing smart card making equipments. Equipped with the advanced production lines, professional R&D team and strict quality control system, Sinocard keeps good reputation on excellent quality, customer focus service and competitive prices.
Sinocardalways insists on "honesty first, professional concentration, in pursuit of excellent and service forever", and dedicates in technology innovation and product development.
It has researched and developed kinds of production equipments for plastic and paper card . The company always takes the lead in the industry especially in terms of automatic punching machine, automatic card packing machine, automatic IC slot milling machine and automatic chip implanting machines. Its products are highly recognized by the oversea and domestic customers for excellent qualities and reasonable prices.
FAQ
1.Question: How long time of warranty ?
Answers: 1 year free of charge
2.Question: Do you get CE certified ?
Answers: Yes, we get CE certificate for all our machines
3.Question: Can you supply door to door installation service for machines ?
Answers: Yes ,we supply ,buyer need to afford all dinners ,hotels and tickets .
Our Services
1.Inquiry and consulting support and sample testing support
2. View our factory
3. Industry and trade integration development
4. 16 years experience
5. Various products
6. Flexible payment
7. Accurate quotation quickly
