Лучший товар совместимый с Epon Onu двухдиапазонный для FTTO FTTH FTTB FTTA

Лучший товар совместимый с Epon Onu двухдиапазонный для FTTO FTTH FTTB FTTA

Категория: >>>
Поставщик: Hunan Hkt Technology Co. Ltd.

Цена:187,50 $ - 198,50 $*

Количество:

В избранное

Описание и отзывы

Характеристики

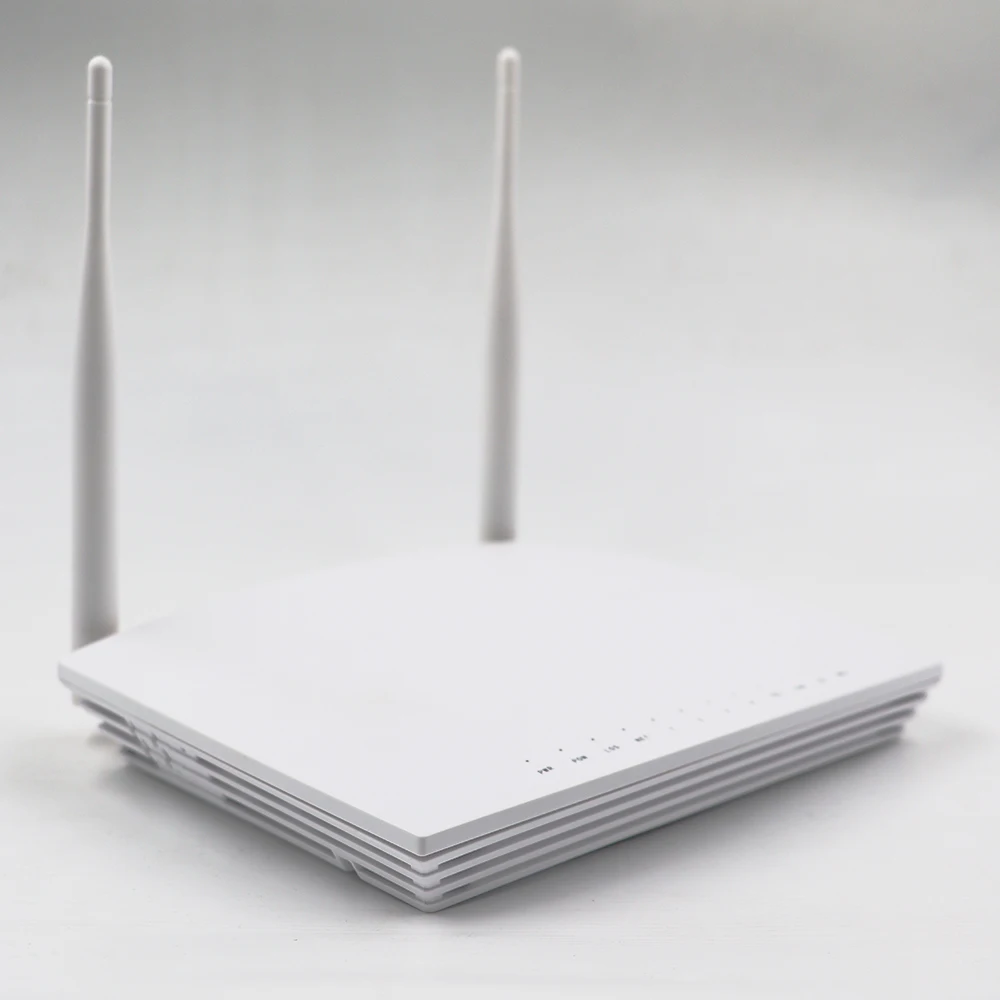

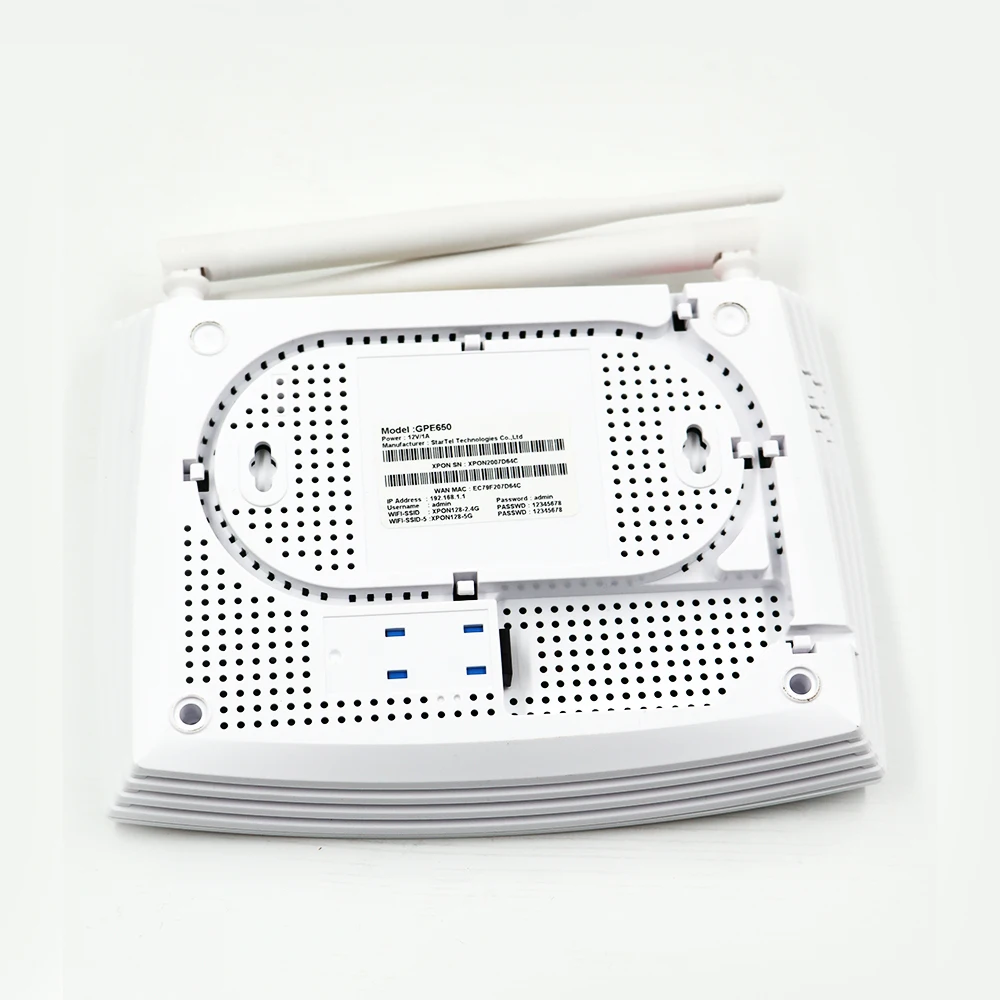

Best Ubiquiti Compatible Epon Onu Dual Band for FTTO FTTH FTTB FTTA

Product Description

This dual-band data type ONU is one of the XPON optical network unit designed to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data, and video service based on the XPON network. It has high reliability and provides a quality of service guarantee, easy management, flexible expansion, and networking. It fully meets the ITU-T and IEEE technical standards and has good compatibility with third-party manufacturers OLT.

Features:

Support EPON and GPON Mode, and switch mode automatically

Support ONU auto-discovery/Link detection/remote upgrade of software

WAN connections support Route and Bridge mode

Route mode supports PPPoE/DHCP/ static IP

Support WIFI Interface and multiple SSID

Support QoS and DBA

Support port Isolation and port vlan configuration

Support Firewall function and IGMP snooping multicast feature

Support LAN IP and DHCP Server configuration;

Support Port Forwarding and Loop-Detect

Support TR069 remote configuration and maintenance

Support interface for Video Service

Support POTS interface for VoIP Service

Specialized design for system breakdown prevention to maintain stable system

Specifications:

Item

Description

PON Standards

ITU-T G.984.x & IEEE802.3x

Chipset

ZTE,ZX279128

PON Interface

1 GPON/EPON port(EPON PX20+ and GPON ClassB+)

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20km

Wavelength

TX: 1310nm, RX: 1490nm

Optical Interface

1* SC/UPC Connector

POTS interface

1* FXS, RJ11 connector

Support: G.711/G.723/G.726/G.729 codec

Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909

LAN Interface

4*10/100/1000Mbps RJ45 Ports

Wireless

Compliant with IEEE802.11b/g/n/ac,

Operating frequency: 2.4GHz and 5.8GHz

support MIMO, rate up to 1200 Mbps,

2T2R,2 external antenna 5dBi,

Support: multiple SSID

Channel: Auto

Modulation type: DSSS, CCK and OFDM

Encoding scheme: BPSK, QPSK, 16QAM 64QAM and 128QAM

Operating Condition

Temperature: 0℃~+50℃

Humidity: 10%~90%(non-condensing)

Storing Condition

Temperature: -30℃~+60℃

Humidity: 10%~90%(non-condensing)

Power Supply

DC 12V/1A

Power Consumption

≤12 W

Dimension

120mm(L)x100mm(W)x40mm(H)

Net Weight

0.5kg

Ethernet Interface

4*10/100/1000Mbps BASE-T RJ45

Auto negotiation,Auto MDI/MDIX

XPON

Speed

Downstream:2.488Gbps

Upstream:1.244Gbps

Connector

SC/UPC, pigtail,G.652 Single Mode Fiber

Power level

Downstream:

– Wavelength:1490nm

– Sensitivity:-27dBm

– Saturation:-9dBm

Upstream:

– Wavelength:1310nm

– TX power:0.5 ~ 5dBm

– RMS: 0.5nm

WIFI

Standard

ThroughPut (11n HT40): ≥80Mbps

TX Power (11ac MCS9): 17+2dBm

EVM (11AC MCS9) : <-32dB

ThroughPut (11ac HT80) :≥500Mbps

Antenna

2.4G antenna :4dBi

5G antenna :4.5dBi

VoIP

Connector

1 * RJ11

Ringing

65V RMS ringing voltage

USB

Max 1A for each port

Packaging & Shipping

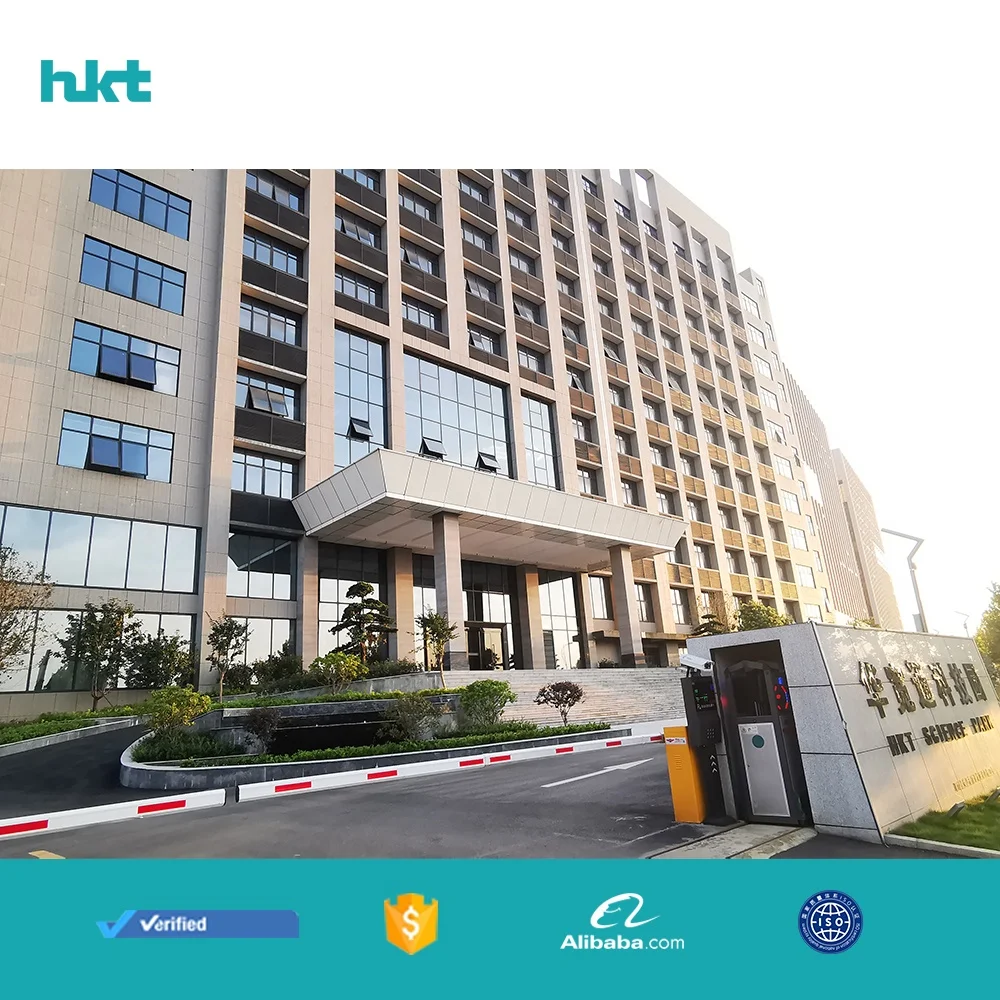

Company Information

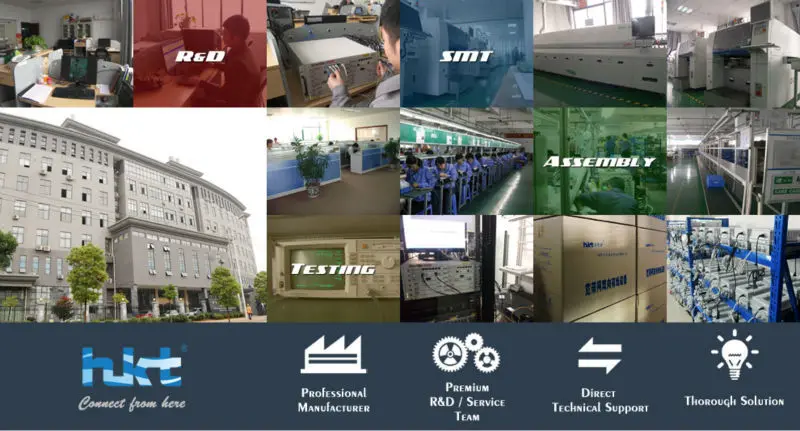

banner office 4

FAQ

Q: Can I get samples?
A: Yes, samples are available. Feel free to contact us for details.

Q: What are your terms of payment?
A: Usually, we accept T/T, PayPal, and Western Union. For special orders, we also accept L/C at sight with conditions. We encourage orders for standard products to be procured through the Alibaba Platform.

Q: How about the shipping?
A: Both shipping by air and by sea are available.

Q: Can I get technical support?
A: Yes. HKT has an experienced team of both software and hardware engineer. You can contact us for technical support at any time.

Q: Are you a manufacturer or a trader?
A: We have our own R&D and factory.

Feel free to contact us for details.

WhatsApp: +86 157 7318 6709

Skype: live:erin1316
