Криогенные резервуары, жидкость, промышленное ДеВар
142 211,42 ₽ - 175 029,44 ₽
Dewar 175L жидкий кислород/азот криогенная жидкость VGL цилиндр кислородный ДеВар танк оптом
- Категория: >>>
- Поставщик: Jiangsu Minsheng Heavy Industry Co. Ltd.
Сохранить в закладки 1600499179997:
Описание и отзывы
Характеристики
Product Description
China supplier certificated industrial liquid oxygen nitrogen cryogenic drewar tank
Cryogenic Dewar tank is a kind of high-performance vacuum insulated container, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications, can provide up to 9.2 cubic meters per hour continuous flow with a delivery pressure of approximately 100psig (6.9bar/690Kpa).
Applications:
1.to fill liquid oxygen for medical use, as an equipment for providing LO2;
2.to fill oxygen for the cutting, welding, and heating of metal in industry;
3.to fill liquid argon for argon-arc welding and other protection occasion of argon;
4.to fill liquid nitrogen for the protective use by high nitrogen, and the field of food, pharmaceutical, biotech, superconductionetc.
1.to fill liquid oxygen for medical use, as an equipment for providing LO2;
2.to fill oxygen for the cutting, welding, and heating of metal in industry;
3.to fill liquid argon for argon-arc welding and other protection occasion of argon;
4.to fill liquid nitrogen for the protective use by high nitrogen, and the field of food, pharmaceutical, biotech, superconductionetc.

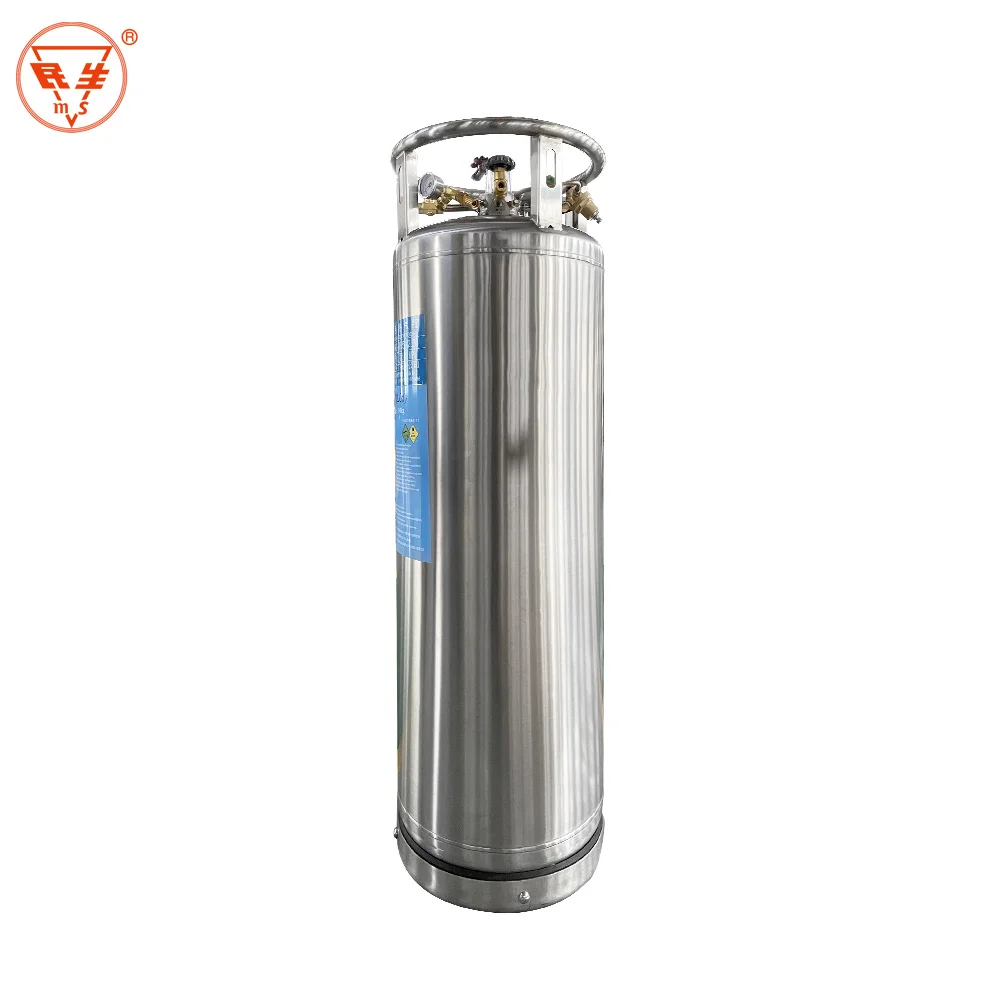

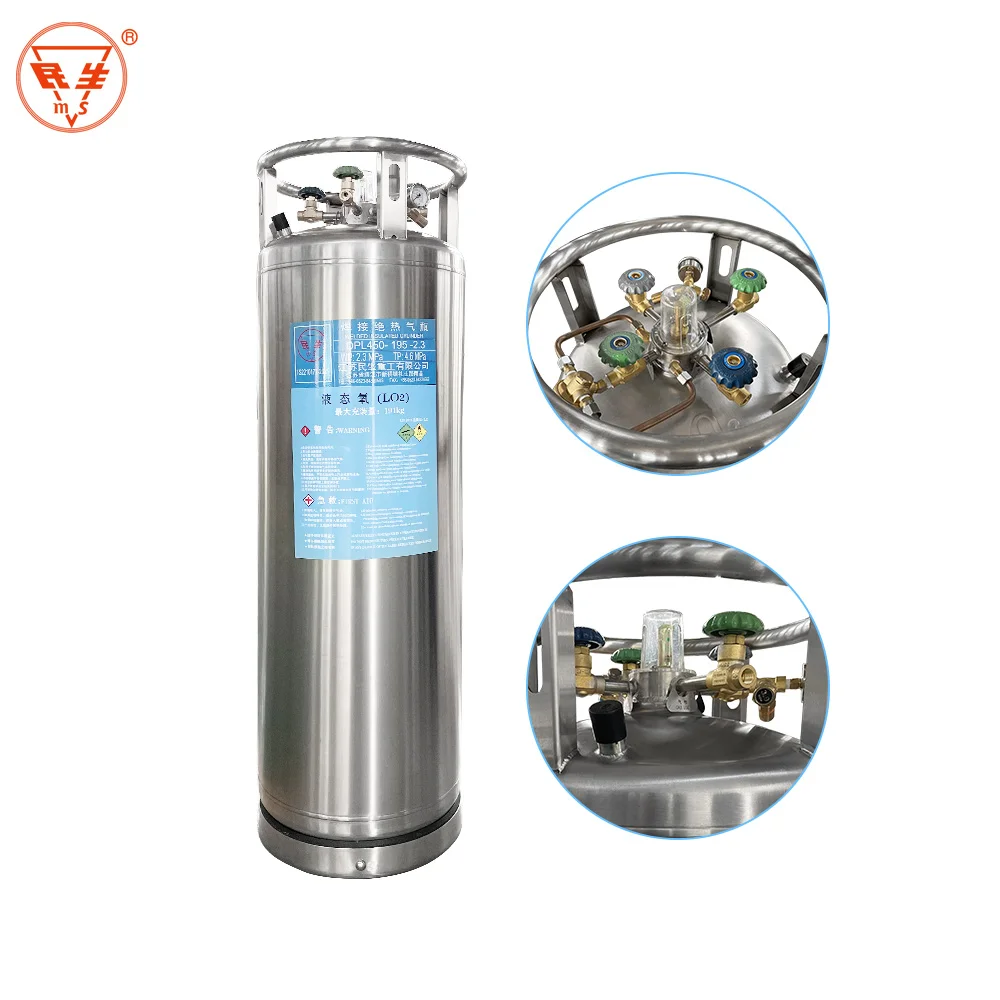

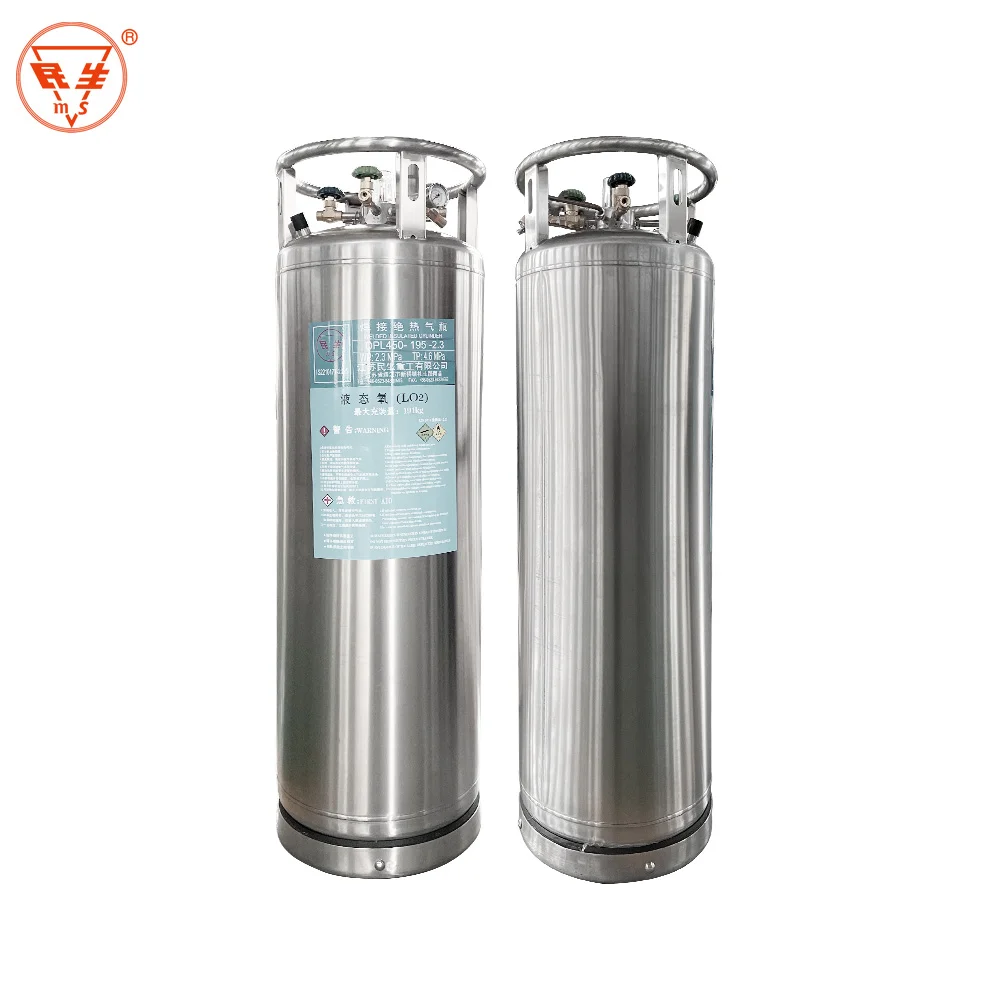

Vertical Cryogenic Dewar Cylinder Type
Medium: LO2, lN2, lCO2, lNG, lAr
Volume:80L, 100L, 130L, 175L, 195L, 210L, 232L, 249L, 360L
Working Pressure: 0.6Mpa, 1.4Mpa,2.0Mpa, 2.3Mpa, 2.88Mpa
Medium: LO2, lN2, lCO2, lNG, lAr
Volume:410L, 450L, 500L
Working Pressure: 1.59Mpa, 2.5Mpa, 2.88Mpa
Working Pressure: 1.59Mpa, 2.5Mpa, 2.88Mpa
Max Working Pressure(MPa) | 1.40MPa |
Capacity | 175L |
Weight | 112kg |
Storage Medium | oxygen, nitrogen,argon, lng |
Geometric Volume | 175 liters |
Effective Volume | 166 liters |
Working Pressure | 1.40 Mpa |
Activated Pressure of Safety Valve:: | 1.59 Mpa |
Bursting Pressure | 2.60 Mpa |
Details Images
Related Products
Company Introduction
Our company was first established In 1966. We are specialized in designing and manufacturing non-standard pressure vessels of class A1, A2(high pressure), searnless cylinder of class B1,welded cylinder of class B2, special cylinders and motor vehicle cylinders of class B3, Valves, pressure pipe of class GB/GC, industrial anneal furnace, furnace roller, radiant tube etc. Over the years, our products are popular on the market.
With a registered capital of RMB 500million, it now has 319 engineers and technical staff. Granted by State General Administration Of The people's Republic of China For Quality Supervision And Inspection And Quarantine, Minsheng is awarded designing and manufacturing license of pressure vessels and gas cylinders in category A1, A2, B1, B2, B3, GB, GC. It is also awarded by ASME with U steel stamp and TPED certification by DNV. Besides, Minsheng also has the qualified certificates of import and export, enterprise credit rating AAA, measuring guarantee, 1S09001,1S014001, 1S018001 and other assurance certification.
With a registered capital of RMB 500million, it now has 319 engineers and technical staff. Granted by State General Administration Of The people's Republic of China For Quality Supervision And Inspection And Quarantine, Minsheng is awarded designing and manufacturing license of pressure vessels and gas cylinders in category A1, A2, B1, B2, B3, GB, GC. It is also awarded by ASME with U steel stamp and TPED certification by DNV. Besides, Minsheng also has the qualified certificates of import and export, enterprise credit rating AAA, measuring guarantee, 1S09001,1S014001, 1S018001 and other assurance certification.
Our Services & Strength
We will reply your enquiry in 24 hours working time.
We are dedicated to providing the best service to global cuetomers with patience and enthusiasm.
We are dedicated to providing the best service to global cuetomers with patience and enthusiasm.
Certifications
Customer Photos
FAQ
Question1. How to ensure your cylinders quality?
A: Our LPG cylinder factory possesses ISO9001 certificate, and we have been in this field more than 50 years.
Our products have been sold almost all over the world, especially with the mature market.
Question2 About the brand name of the products?
A: In general, We use our own brand, if you have requested, OEM is also available.
Question3 About the sample?
In our acceptable range, we can offer a sample by charging freight. We will return the fee after you make an order.
Question4 About payment term and delivery time?
A: payment term: 50% for TT,50% TT before delivery
we can delivery 1*40HQ containers and below within 7 days after deposit payment.
Question5 About Production capacity?
A: 4000,000 pieces of cylinders could be produced in one year, and our monthly capacity is 300,000 pieces.
A: Our LPG cylinder factory possesses ISO9001 certificate, and we have been in this field more than 50 years.
Our products have been sold almost all over the world, especially with the mature market.
Question2 About the brand name of the products?
A: In general, We use our own brand, if you have requested, OEM is also available.
Question3 About the sample?
In our acceptable range, we can offer a sample by charging freight. We will return the fee after you make an order.
Question4 About payment term and delivery time?
A: payment term: 50% for TT,50% TT before delivery
we can delivery 1*40HQ containers and below within 7 days after deposit payment.
Question5 About Production capacity?
A: 4000,000 pieces of cylinders could be produced in one year, and our monthly capacity is 300,000 pieces.
