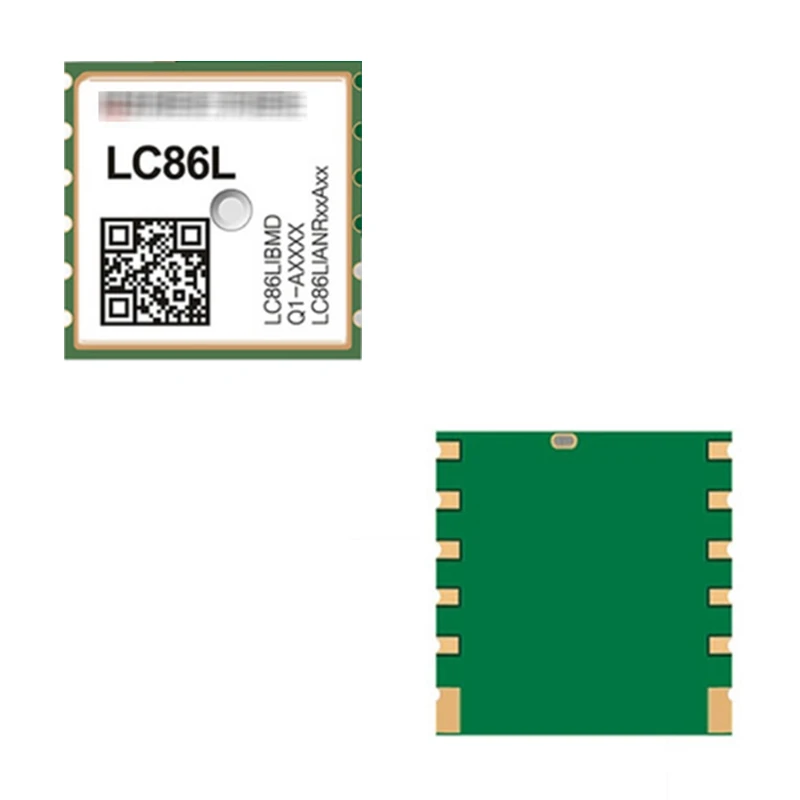

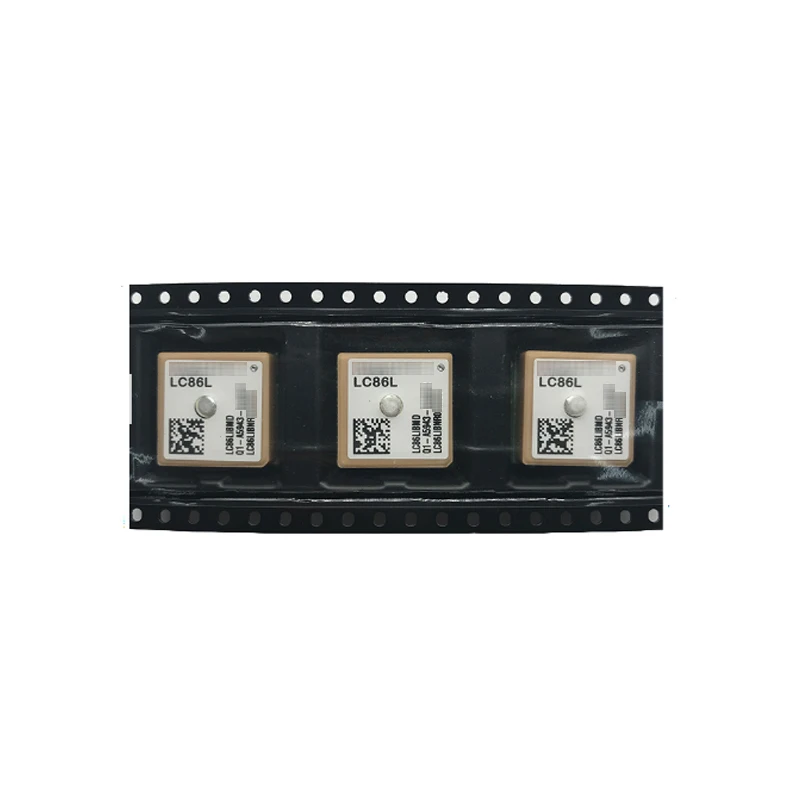

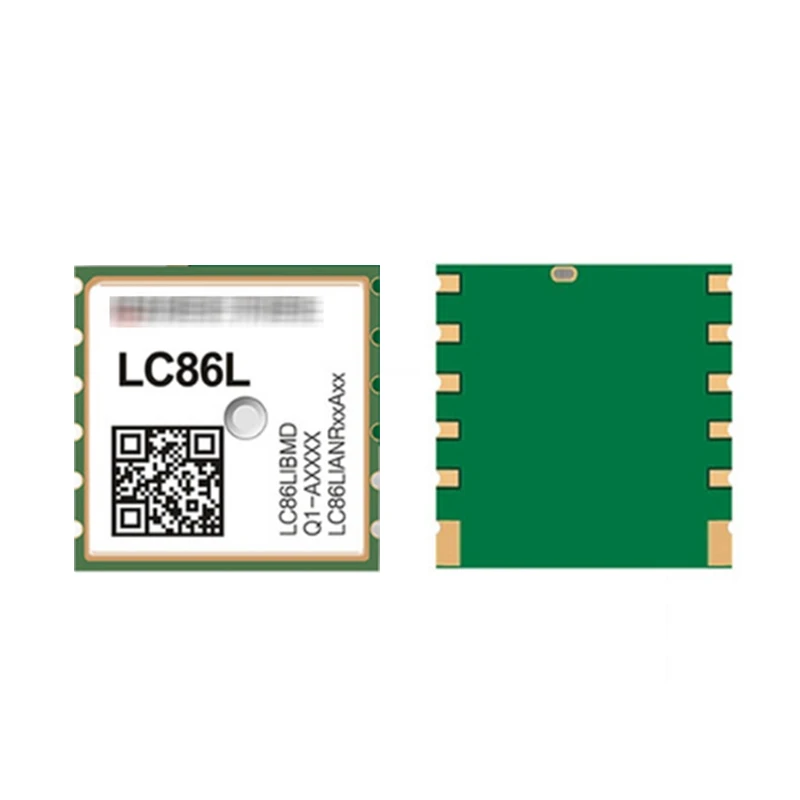

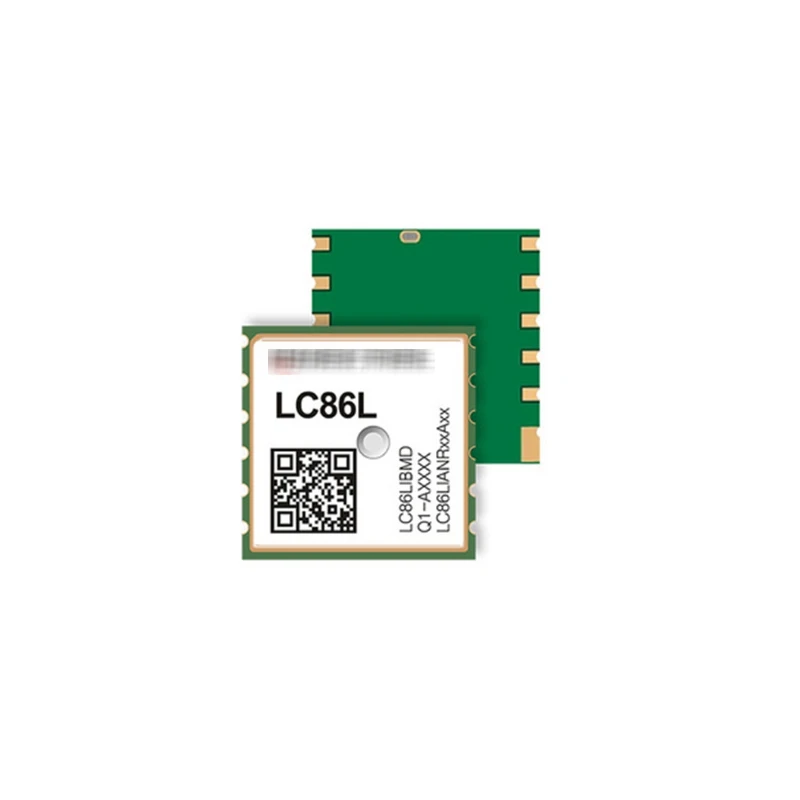

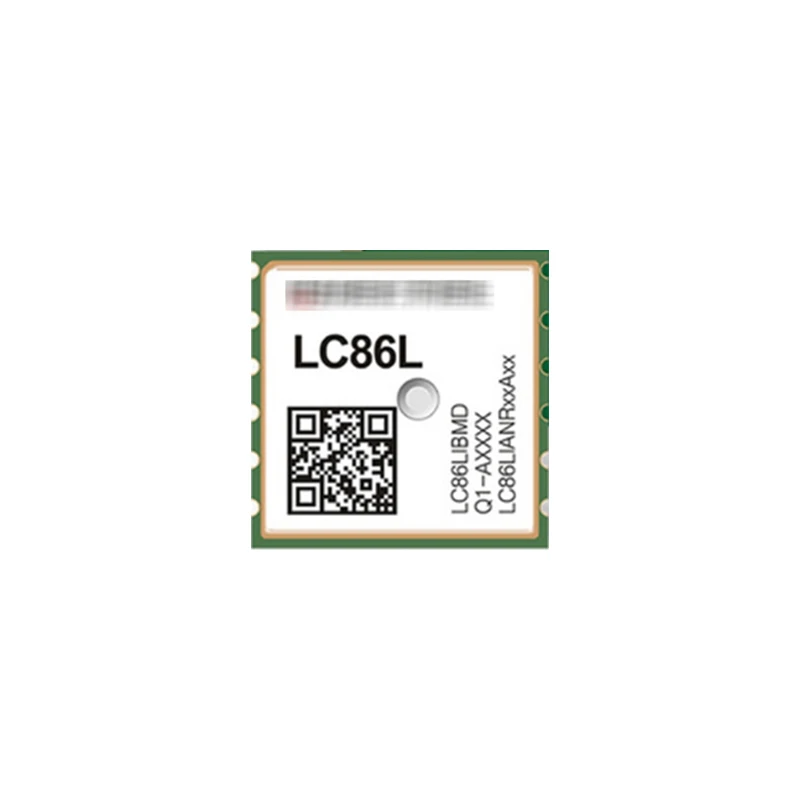

Модуль связи Quectel LC86L LC86LICMD GNSS GPS беспроводной модуль позиционирования Beidou IOT
- Категория: >>>
- Поставщик: Shenzhen Wuji Electronics Co. Ltd.
Сохранить в закладки 1600499420786:
Описание и отзывы
Характеристики
Quectel LC86L LC86LICMD GNSS GPS Module Communication Beidou Positioning IOT Wireless Module
Products Description
perfect performance to support two GNSS constellations (either GPS + GLONASS or GPS + BeiDou) and QZSS. With 33 tracking channels,
99 acquisition channels, and 210 PRN channels.
Designed to be compatible with Quectel GPS L80 and L86 module in the compact and unified form factor, it provides the easiest
flexible and scalable platform for migrating from GPS into GNSS.
Combining advanced AGNSS as well as EASY™ (Embedded Assist System) and LOCUS feature, LC86L achieves the highest performance and
fully meets the industrial standard. EASY™ technology allows LC86L to calculate and predict orbits automatically using the
ephemeris data (up to 3 days) stored in internal RAM memory, so LC86L can fix position quickly even at lower signal levels with
low power consumption. Additional feature of embedded logger function called LOCUS allows LC86L to log position information to
internal flash memory at default intervals of 15 seconds and provide typically more than 16 hours log capacity without adding any
cost.
LC86L supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external
active antenna. Moreover, it keeps positioning during the switching process. Due to its compact design, high precision and high
sensitivity, LC86L is perfectly suitable for a broad range of M2M applications such as portable devices, automotive, personal
tracking, security and industrial PDA. It is especially suitable for special applications, like GNSS mouse and OBD.
Key Benefits
1. Extremely compact footprint: 16.0 mm × 16.0 mm × 6.95 mm
2. Multi-GNSS engine for GPS, GLONASS, BeiDou (optional) and QZSS
3. Automatic antenna switching function
4. Support antenna detection and antenna short-circuit protection functions
5. Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
6. Support AGNSS
7. Integrated LNA available for better sensitivity
8. Support EASY™, an advanced AGNSS technology without the demand of any external memory
9. Support SDK commands developed by Quectel
1. Extremely compact footprint: 16.0 mm × 16.0 mm × 6.95 mm
2. Multi-GNSS engine for GPS, GLONASS, BeiDou (optional) and QZSS
3. Automatic antenna switching function
4. Support antenna detection and antenna short-circuit protection functions
5. Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
6. Support AGNSS
7. Integrated LNA available for better sensitivity
8. Support EASY™, an advanced AGNSS technology without the demand of any external memory
9. Support SDK commands developed by Quectel
Product Paramenters
Product Name | LC86L |
Application | IOT Wireless module |
Warranty | 1 Year |
Package | Standard |
Details Images
Company Profile
A leading OEM direct distributor and daigou distributor for a wide range of agents. The main agents are SIMcom, Quectel, Huawei, Longshang and many other internationally renowned M2M brand modules, providing integrated circuits, modules, connectors, antennas and antenna peripheral cables and other off-the-shelf and customized products.
As the industry's competitive price, stable supply and delivery, to be an excellent service provider in the industry.
We help solve problems such as supply shortages, on-time delivery, etc., and can provide timely small-volume demand orders for customers' new projects. Our unwavering values guide our operations and our business dealings with customers, suppliers and each other.
We help solve problems such as supply shortages, on-time delivery, etc., and can provide timely small-volume demand orders for customers' new projects. Our unwavering values guide our operations and our business dealings with customers, suppliers and each other.
Payment/Trade Terms/Packaging/Shipping
FAQ
1. What can we do for you?
--We can purchase and ship on behalf of overseas authorized dealers and original factories.
2. Our Quality Assurance
--All products are available and traceable by authorized dealers and original manufacturers. You can enjoy the same or better service as the original factory in terms of technical support, sample failure analysis, and supply chain stability.
--The source channel and quality are absolutely true, transparent and credible. Samples can be taken for testing when the quantity is large.
3. Our team
--Our team has been serving in the electronic product and component distribution industry for ten years, and customer satisfaction is our greatest value realization.
4. When will the goods be shipped?
--If the goods are stock, about the 1-3 days.
--If the goods need to order ,or if the quantity is large,it will take more than 5 days.
5.Your price is too high, can you give me the best price?
--Our prices are updated according to the latest market data. If there is any problem with the prices, we will give feedback in time.
--The price of the product can be negotiated, but it changes basically according to the quantity.
--We can purchase and ship on behalf of overseas authorized dealers and original factories.
2. Our Quality Assurance
--All products are available and traceable by authorized dealers and original manufacturers. You can enjoy the same or better service as the original factory in terms of technical support, sample failure analysis, and supply chain stability.
--The source channel and quality are absolutely true, transparent and credible. Samples can be taken for testing when the quantity is large.
3. Our team
--Our team has been serving in the electronic product and component distribution industry for ten years, and customer satisfaction is our greatest value realization.
4. When will the goods be shipped?
--If the goods are stock, about the 1-3 days.
--If the goods need to order ,or if the quantity is large,it will take more than 5 days.
5.Your price is too high, can you give me the best price?
--Our prices are updated according to the latest market data. If there is any problem with the prices, we will give feedback in time.
--The price of the product can be negotiated, but it changes basically according to the quantity.
Contact us
Alice Zhuang
Wechat/what's app: +8613715047528Email: alice@cat1-m2m.com/cosys@cosyswireless.com
Skype: aliceodm
