Промышленная камера gige A3138MG000 1 3 МП обеспечивает проекцию затвора с глобальной камерой для обработки изображений
- Категория: Other Optics Instruments >>>
- Поставщик: Hangzhou Huicui Intelligent Technology Co. Ltd.
Сохранить в закладки 1600499448550:
Описание и отзывы
Характеристики
Product Description

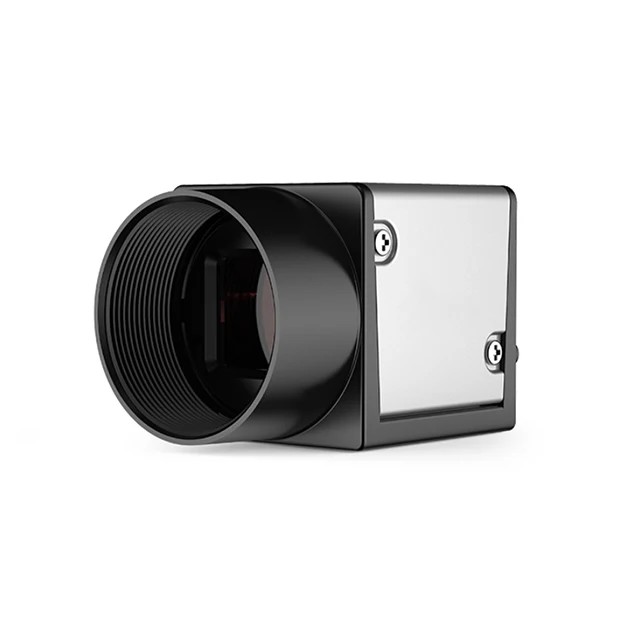

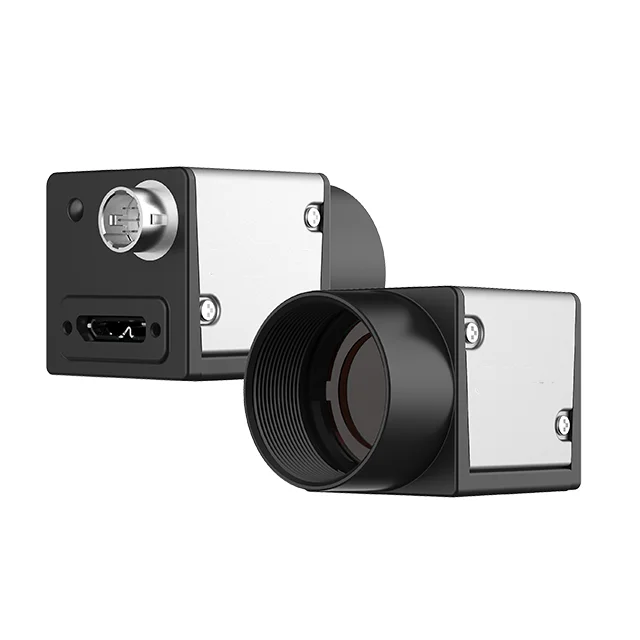

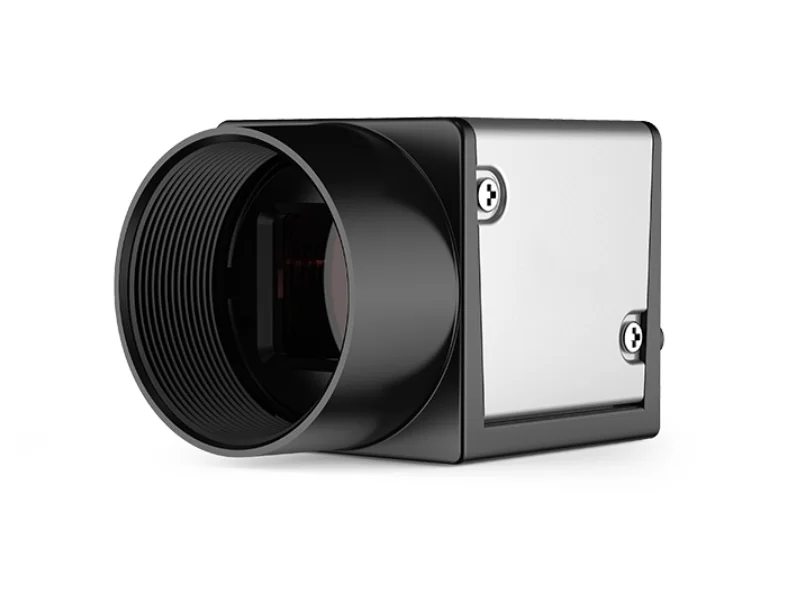

A3138MG000 1.3MP industrial gige camera provide Global shutter machine vision for image processing
Technical features：
GigEVision® protocol & GenICam® standard
Standard vision SDK platform for easy integration in existing software.
Full GenICam® compliant: easy to integrate
GenICam® compliant SDK package provides more flexibility to Vision Systems®.
GigE PoE compliance
No need for separate cables to transfer the information to the computer and provide power to the camera.
High Cost-Performance Ratio
Specification
Model | A3138MG000 |
Sensor | SS |
Sensor Type | CMOS |
Shutter | Global |
Resolution | 1280 x 1024 |
Frame rate （ fps ） | 75 |
Bit depth | 10 |
Interface | GigE, PoE |
Mono/ Color | Mono |
Pixel size (μm ) | 4.0 x 4.0 |
Sensor size | 1/2.7" |
Effective Pixels | 1.3MP |
SNR | 40dB |
Dynamic Range | 60dB |
GPIO | 6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |
Image Format | Mono8/10/10Packed |
Binning | Support |
ROI | Support |
Gain | X1~X32 |
Gamma | Range from 0 to 4, support LUT |
Exposure Time | 10μS~1S |
Trigger Mode | Software trigger/Hardware trigger/Free run mode |
Image Buffer | 64MB |
SPC | Support |
User Setting | Support two sets of user-defined configurations |
Dimensions | 29mm*29mm*42mm( not including lens mount and rear case connector) |
Weight | 88g |
Power Supply | Power supply via USB connector |
Power Consumption | 12V ≈ 3.4W |
Lens Mount | C-mount |
Temperature | Storage temperature: -30° C~ + 80° C; Operation temperature: -30° C~+50° C |

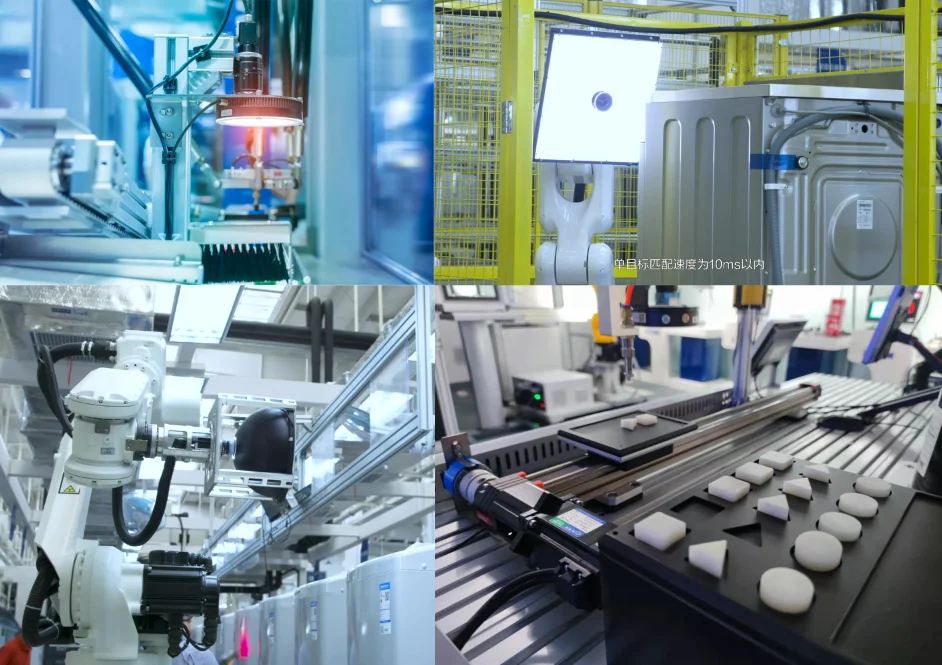

Application Industry
ASSEMBLY
Streamline Processes, Mitigate Rejections & Recalls, Advanced Throughput
PACKAGING
Package Faster, Function Efficiently, Optimize Quality, Monitor and Capture Every Line Segment
LOGISTICS
Drive Down Costs, Hold Suppliers Accountable, Enhance Automation, Increase Efficiencies
Streamline Processes, Mitigate Rejections & Recalls, Advanced Throughput
PACKAGING
Package Faster, Function Efficiently, Optimize Quality, Monitor and Capture Every Line Segment
LOGISTICS
Drive Down Costs, Hold Suppliers Accountable, Enhance Automation, Increase Efficiencies
Packing & Delivery
Standard export packing.
Company Profile
Located in Hangzhou, Mstar Technologies, Inc is a professional manufacturer of machine vision products. We have over 6 years of experience in machine vision and have a good reputation in this field.
Quality and Safety: We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.
Your Success, Our Glory: Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Certifications
Recommend Products
FAQ
1. When will you ship my order?
Generally, once we get confirmation for payment, we will ship the order within 7-10 days. The specific delivery time depends on the items and the quantity of your order.
2. Does OEM/ODM available?
Yes, just let us know your details, then we can help you to design and put it into production.
3. The sample request is ok? if so, for free?
Re: MOQ is needed for a factory but one sample for testing is acceptable. We'd like to see our customer having a try on our
products. But sorry, it's not for free, you need to pay for it.
4. Driver and SDK problems?
Re: We will provide the SDK with the camera for free. And if you meet any problems when using it, just feel free to let us know.
5. How to pay?
RE: Payment Term Credit card, VISA card, e-checking, PayPal, Western Union, T/T.
6. Could I print our logo or company name on our products?
Re: Of course, we could print your logo or company name as your requirements, but you need to send us your logo certification and the certificate of authorization.
7. Shipping
We have strong cooperation with ARAMEX and UPS.
You also can choose your own shipping forwarder.
8. If you have any questions, please contact us at any time.
Generally, once we get confirmation for payment, we will ship the order within 7-10 days. The specific delivery time depends on the items and the quantity of your order.
2. Does OEM/ODM available?
Yes, just let us know your details, then we can help you to design and put it into production.
3. The sample request is ok? if so, for free?
Re: MOQ is needed for a factory but one sample for testing is acceptable. We'd like to see our customer having a try on our
products. But sorry, it's not for free, you need to pay for it.
4. Driver and SDK problems?
Re: We will provide the SDK with the camera for free. And if you meet any problems when using it, just feel free to let us know.
5. How to pay?
RE: Payment Term Credit card, VISA card, e-checking, PayPal, Western Union, T/T.
6. Could I print our logo or company name on our products?
Re: Of course, we could print your logo or company name as your requirements, but you need to send us your logo certification and the certificate of authorization.
7. Shipping
We have strong cooperation with ARAMEX and UPS.
You also can choose your own shipping forwarder.
8. If you have any questions, please contact us at any time.
Похожие товары
Оптический продукт хорошего качества светодиодная диаграмма для глаз 5 м проверки
Инструментальный стол HD-18B оптометрический аппарат для prouector оптометрическое оборудование офтальмические
220,00 $ - 225,00 $

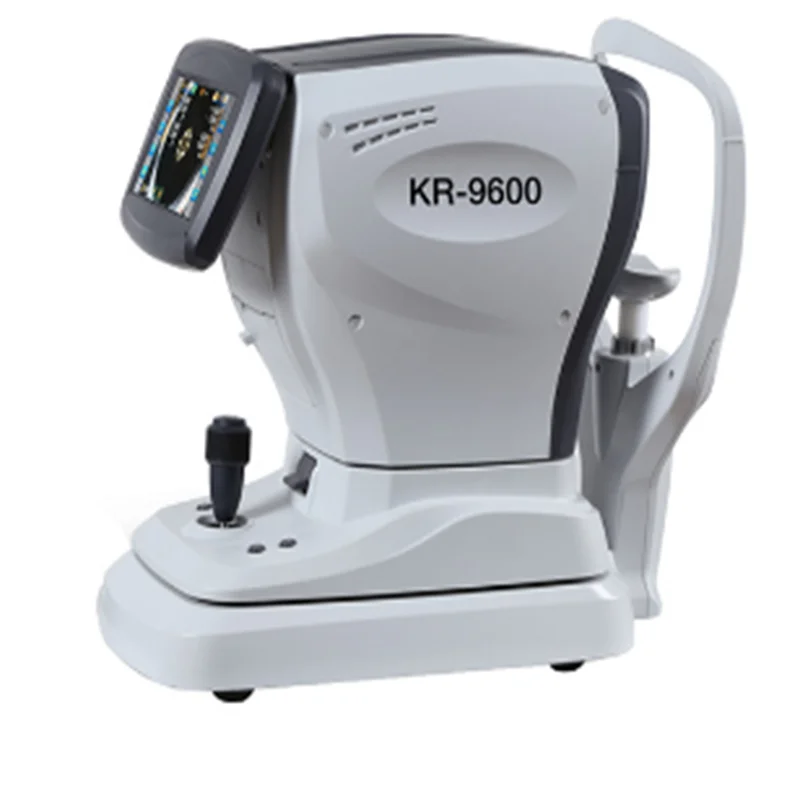

Стабильное оптическое устройство Автоматический рефрактор с кератометром автоматический рефрактометр
2 000,00 $ - 2 200,00 $

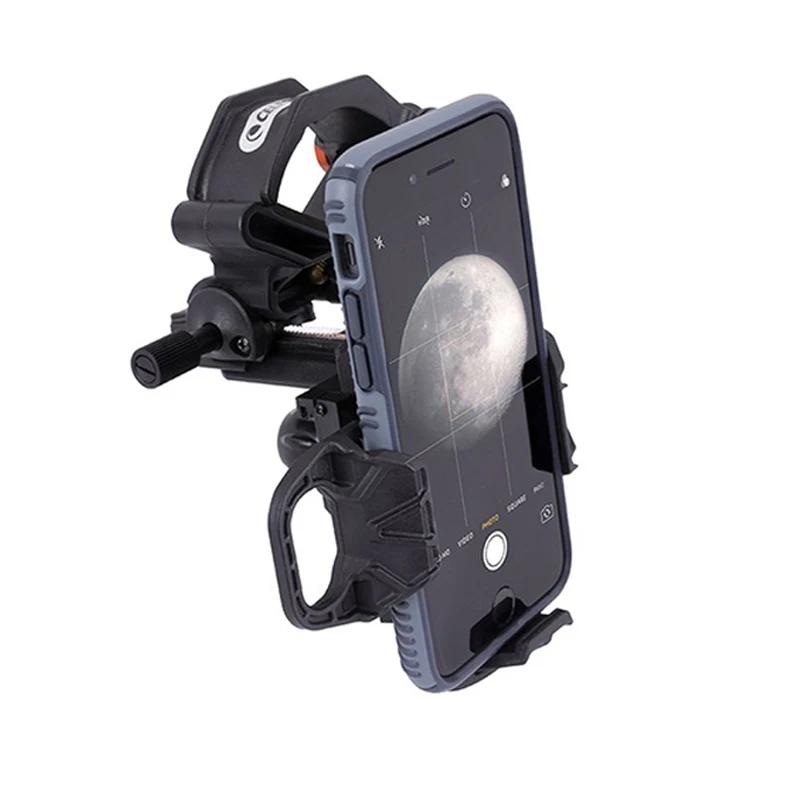

Высокое качество Celestron nexyz 3-осевой Универсальный адаптер для смартфона мобильного телефона крепление астрономического
36,90 $ - 42,80 $

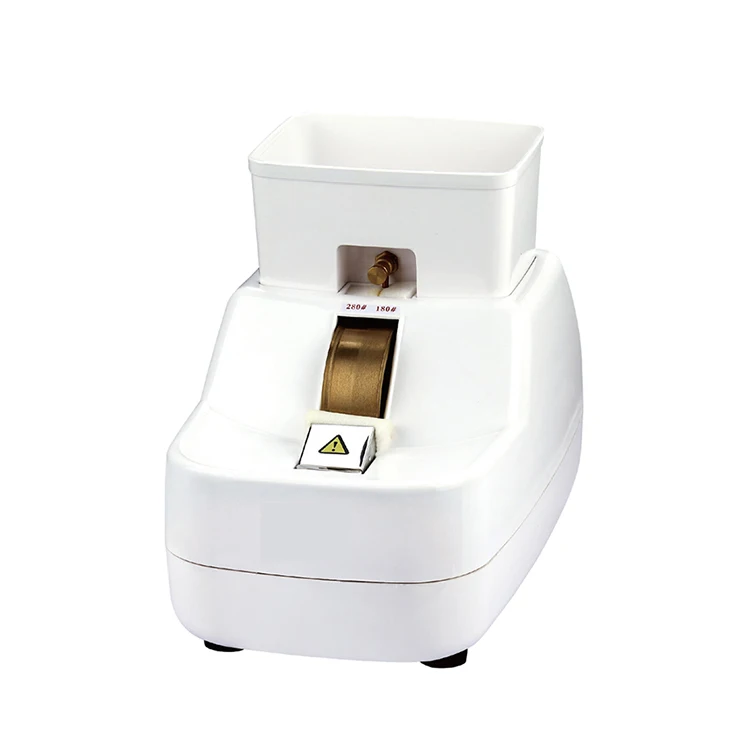

Supore ручная огранка для объектива оптический инструмент
64,94 $ - 74,92 $
Лазерный скоростной пистолет LANHAI с системой скоростной камеры

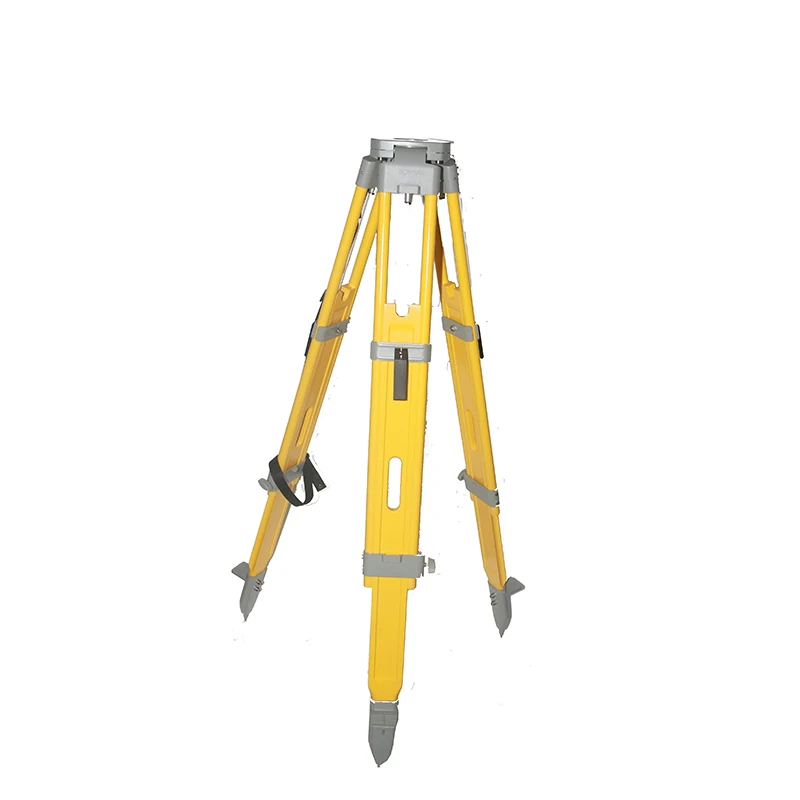

S19 деревянный штатив для общей станции Штатив наблюдения по лучшей
